Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

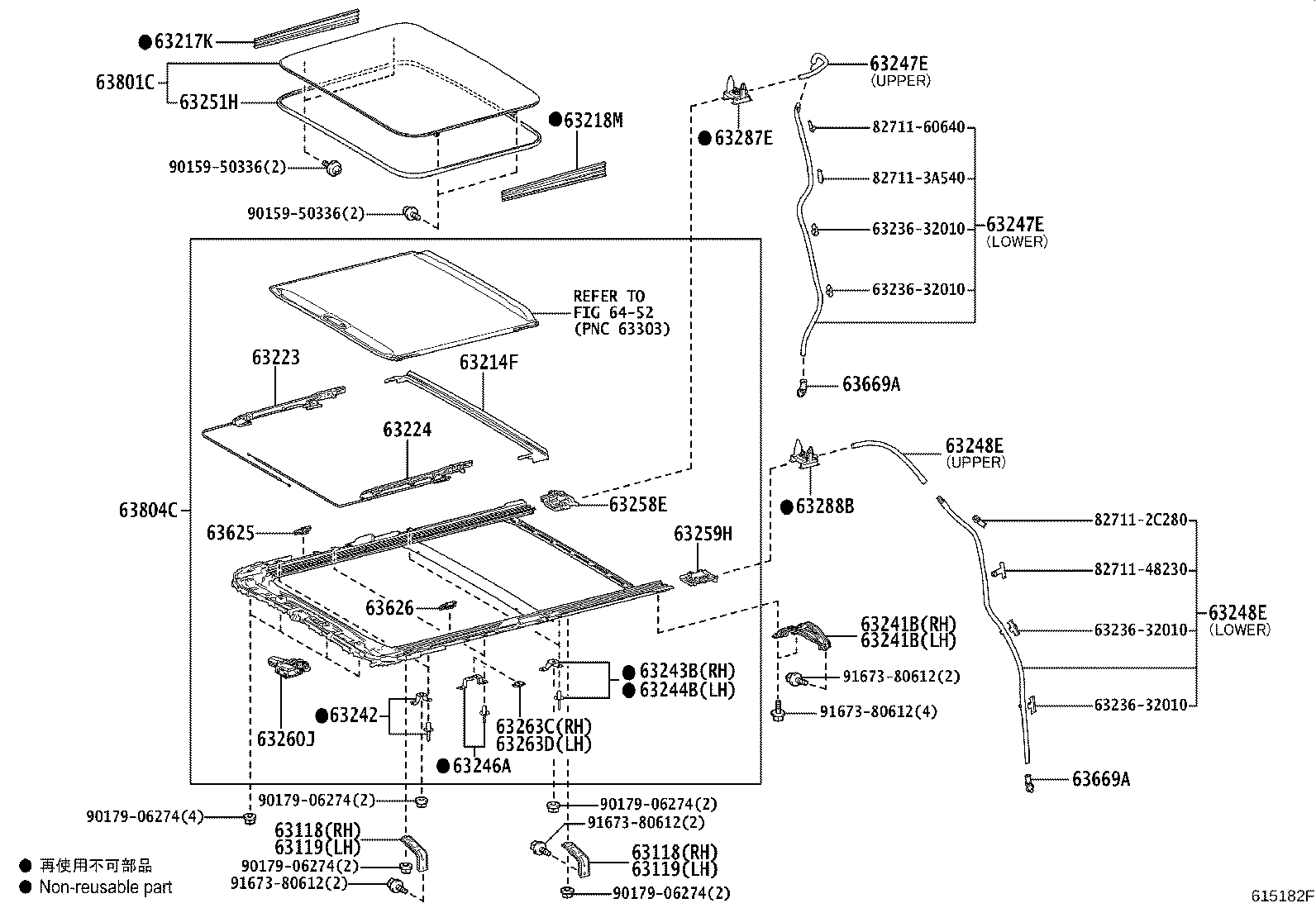

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63118 — Support, Roof Panel, RH | ||||
| 63118-58050 note |
Support, Roof Panel, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63118-58050 |
Support, Roof Panel, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63118-58050 |
Support, Roof Panel, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63118-58050 |
Support, Roof Panel, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63118-58050 note |
Support, Roof Panel, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63118-58050 |
Support, Roof Panel, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63118-58050 note |
Support, Roof Panel, RH
2020-01 → —
|
AGH30 G | — | |
| 63119 — Support, Roof Panel, LH | ||||
| 63118-58050 |
Support, Roof Panel, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63118-58050 note |
Support, Roof Panel, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63118-58050 |
Support, Roof Panel, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63118-58050 |
Support, Roof Panel, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63118-58050 note |
Support, Roof Panel, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63118-58050 |
Support, Roof Panel, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63118-58050 note |
Support, Roof Panel, LH
2020-01 → —
|
AGH30 G | — | |
| 63214F — Channel, Roof Drip, Rear | ||||
| 63214-33070 |
Channel, Roof Drip, Rear
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63214-33070 note |
Channel, Roof Drip, Rear
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63214-33070 |
Channel, Roof Drip, Rear
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63214-33070 note |
Channel, Roof Drip, Rear
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63214-33070 |
Channel, Roof Drip, Rear
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63214-33070 |
Channel, Roof Drip, Rear
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63214-33070 note |
Channel, Roof Drip, Rear
2020-01 → —
|
AGH30 G | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-58030 |
Garnish, Sliding Roof Side, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63217-58030 note |
Garnish, Sliding Roof Side, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63217-58030 note |
Garnish, Sliding Roof Side, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63217-58030 note |
Garnish, Sliding Roof Side, RH
2020-01 → —
|
AGH30 G | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63217-58030 note |
Garnish, Sliding Roof Side, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63217-58030 note |
Garnish, Sliding Roof Side, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63217-58030 |
Garnish, Sliding Roof Side, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63217-58030 note |
Garnish, Sliding Roof Side, LH
2020-01 → —
|
AGH30 G | — | |
| 63223 — Cable, Sliding Roof Drive, RH | ||||
| 63223-58020 |
Cable, Sliding Roof Drive, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63223-58020 note |
Cable, Sliding Roof Drive, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63223-58020 |
Cable, Sliding Roof Drive, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63223-58020 |
Cable, Sliding Roof Drive, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63223-58020 note |
Cable, Sliding Roof Drive, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63223-58020 |
Cable, Sliding Roof Drive, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63223-58020 note |
Cable, Sliding Roof Drive, RH
2020-01 → —
|
AGH30 G | — | |
| 63224 — Cable, Sliding Roof Drive, LH | ||||
| 63224-58020 |
Cable, Sliding Roof Drive, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63224-58020 note |
Cable, Sliding Roof Drive, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63224-58020 |
Cable, Sliding Roof Drive, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63224-58020 |
Cable, Sliding Roof Drive, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63224-58020 note |
Cable, Sliding Roof Drive, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63224-58020 |
Cable, Sliding Roof Drive, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63224-58020 note |
Cable, Sliding Roof Drive, LH
2020-01 → —
|
AGH30 G | — | |
| 63241B — Bracket, Sliding Roof Housing, NO.1 | ||||
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63241-58040 note |
Bracket, Sliding Roof Housing, NO.1
2020-01 → —
|
AGH30 G | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63241-58050 note |
Bracket, Sliding Roof Housing, NO.1
2020-01 → —
|
AGH30 G | — | |
| 63242 — Bracket, Sliding Roof Housing, NO.1 | ||||
| 63242-58010 |
Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63242-58010 note |
Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63242-58010 |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63242-58010 |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63242-58010 note |
Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63242-58010 note |
Bracket, Sliding Roof Housing, NO.1
2020-01 → —
|
AGH30 G | — | |
| 63242-58010 |
Bracket, Sliding Roof Housing, NO.1
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63243B — Bracket, Removable Roof Housing Side Mounting, RH | ||||
| 63243-58010 |
Bracket, Removable Roof Housing Side Mounting, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63243-58010 note |
Bracket, Removable Roof Housing Side Mounting, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63243-58010 |
Bracket, Removable Roof Housing Side Mounting, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63243-58010 |
Bracket, Removable Roof Housing Side Mounting, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63243-58010 note |
Bracket, Removable Roof Housing Side Mounting, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63243-58010 |
Bracket, Removable Roof Housing Side Mounting, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63243-58010 note |
Bracket, Removable Roof Housing Side Mounting, RH
2020-01 → —
|
AGH30 G | — | |
| 63244B — Bracket, Removable Roof Housing Side Mounting, LH | ||||
| 63244-58010 |
Bracket, Removable Roof Housing Side Mounting, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63244-58010 note |
Bracket, Removable Roof Housing Side Mounting, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63244-58010 note |
Bracket, Removable Roof Housing Side Mounting, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63244-58010 |
Bracket, Removable Roof Housing Side Mounting, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63244-58010 |
Bracket, Removable Roof Housing Side Mounting, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63244-58010 |
Bracket, Removable Roof Housing Side Mounting, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63244-58010 note |
Bracket, Removable Roof Housing Side Mounting, LH
2020-01 → —
|
AGH30 G | — | |
| 63246A — Bracket, Removable Roof, NO.2 | ||||
| 63246-58010 |
Bracket, Removable Roof, NO.2
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63246-58010 note |
Bracket, Removable Roof, NO.2
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63246-58010 |
Bracket, Removable Roof, NO.2
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63246-58010 |
Bracket, Removable Roof, NO.2
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63246-58010 note |
Bracket, Removable Roof, NO.2
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63246-58010 |
Bracket, Removable Roof, NO.2
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63246-58010 note |
Bracket, Removable Roof, NO.2
2020-01 → —
|
AGH30 G | — | |
| 63247E — Hose, Sliding Roof Drain, Rear RH | ||||
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63247-58040 note |
Hose, Sliding Roof Drain, Rear RH
2020-01 → —
|
AGH30 G | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63247-58050 note |
Hose, Sliding Roof Drain, Rear RH
2020-01 → —
|
AGH30 G | — | |
| 63248E — Hose, Sliding Roof Drain, Rear LH | ||||
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63248-58030 note |
Hose, Sliding Roof Drain, Rear LH
2020-01 → —
|
AGH30 G | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63248-58040 note |
Hose, Sliding Roof Drain, Rear LH
2020-01 → —
|
AGH30 G | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-58050 |
Weatherstrip, Sliding Roof
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63251-58050 note |
Weatherstrip, Sliding Roof
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63251-58050 |
Weatherstrip, Sliding Roof
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63251-58050 |
Weatherstrip, Sliding Roof
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63251-58050 note |
Weatherstrip, Sliding Roof
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63251-58050 note |
Weatherstrip, Sliding Roof
2020-01 → —
|
AGH30 G | — | |
| 63251-58050 |
Weatherstrip, Sliding Roof
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63258E — Joint, Slide Roof Drain Hose, RH | ||||
| 63258-58040 |
Joint, Slide Roof Drain Hose, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63258-58040 note |
Joint, Slide Roof Drain Hose, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63258-58040 |
Joint, Slide Roof Drain Hose, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63258-58040 |
Joint, Slide Roof Drain Hose, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63258-58040 note |
Joint, Slide Roof Drain Hose, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63258-58040 |
Joint, Slide Roof Drain Hose, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63258-58040 note |
Joint, Slide Roof Drain Hose, RH
2020-01 → —
|
AGH30 G | — | |
| 63259H — Joint, Slide Roof Drain Hose, LH | ||||
| 63259-58030 |
Joint, Slide Roof Drain Hose, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63259-58030 note |
Joint, Slide Roof Drain Hose, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63259-58030 note |
Joint, Slide Roof Drain Hose, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63259-58030 |
Joint, Slide Roof Drain Hose, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63259-58030 |
Joint, Slide Roof Drain Hose, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63259-58030 |
Joint, Slide Roof Drain Hose, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63259-58030 note |
Joint, Slide Roof Drain Hose, LH
2020-01 → —
|
AGH30 G | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-58030 |
Gear Assy, Sliding Roof Drive
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63260-58030 note |
Gear Assy, Sliding Roof Drive
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63260-58030 |
Gear Assy, Sliding Roof Drive
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63260-58030 |
Gear Assy, Sliding Roof Drive
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63260-58030 note |
Gear Assy, Sliding Roof Drive
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63260-58030 |
Gear Assy, Sliding Roof Drive
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63260-58030 note |
Gear Assy, Sliding Roof Drive
2020-01 → —
|
AGH30 G | — | |
| 63263C — Plate, Sliding Roof Lock Catch, RH | ||||
| 63263-60030 |
Plate, Sliding Roof Lock Catch, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63263-60030 note |
Plate, Sliding Roof Lock Catch, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63263-60030 |
Plate, Sliding Roof Lock Catch, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63263-60030 note |
Plate, Sliding Roof Lock Catch, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63263-60030 |
Plate, Sliding Roof Lock Catch, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63263-60030 |
Plate, Sliding Roof Lock Catch, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63263-60030 note |
Plate, Sliding Roof Lock Catch, RH
2020-01 → —
|
AGH30 G | — | |
| 63263D — Plate, Sliding Roof Lock Catch, LH | ||||
| 63263-60030 |
Plate, Sliding Roof Lock Catch, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63263-60030 note |
Plate, Sliding Roof Lock Catch, LH
2020-01 → —
|
AGH30 G | — | |
| 63287E — Cap, Sliding Roof Housing Drain End, RH | ||||
| 63287-58010 |
Cap, Sliding Roof Housing Drain End, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63287-58010 note |
Cap, Sliding Roof Housing Drain End, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63287-58010 |
Cap, Sliding Roof Housing Drain End, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63287-58010 |
Cap, Sliding Roof Housing Drain End, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63287-58010 note |
Cap, Sliding Roof Housing Drain End, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63287-58010 |
Cap, Sliding Roof Housing Drain End, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63287-58010 note |
Cap, Sliding Roof Housing Drain End, RH
2020-01 → —
|
AGH30 G | — | |
| 63288B — Cap, Sliding Roof Housing Drain End, LH | ||||
| 63288-58010 |
Cap, Sliding Roof Housing Drain End, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63288-58010 note |
Cap, Sliding Roof Housing Drain End, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63288-58010 |
Cap, Sliding Roof Housing Drain End, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63288-58010 |
Cap, Sliding Roof Housing Drain End, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63288-58010 note |
Cap, Sliding Roof Housing Drain End, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63288-58010 |
Cap, Sliding Roof Housing Drain End, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63288-58010 note |
Cap, Sliding Roof Housing Drain End, LH
2020-01 → —
|
AGH30 G | — | |
| 63625 — Block, Sliding Roof Guide, RH | ||||
| 63625-58010 |
Block, Sliding Roof Guide, RH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63625-58010 note |
Block, Sliding Roof Guide, RH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63625-58010 |
Block, Sliding Roof Guide, RH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63625-58010 |
Block, Sliding Roof Guide, RH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63625-58010 note |
Block, Sliding Roof Guide, RH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63625-58010 |
Block, Sliding Roof Guide, RH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63625-58010 note |
Block, Sliding Roof Guide, RH
2020-01 → —
|
AGH30 G | — | |
| 63626 — Block, Sliding Roof Guide, LH | ||||
| 63626-58010 |
Block, Sliding Roof Guide, LH
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63626-58010 note |
Block, Sliding Roof Guide, LH
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63626-58010 |
Block, Sliding Roof Guide, LH
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63626-58010 |
Block, Sliding Roof Guide, LH
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63626-58010 note |
Block, Sliding Roof Guide, LH
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63626-58010 |
Block, Sliding Roof Guide, LH
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63626-58010 note |
Block, Sliding Roof Guide, LH
2020-01 → —
|
AGH30 G | — | |
| 63669A — Grommet, Sliding Roof Drain | ||||
| 63669-30040 |
Grommet, Sliding Roof Drain
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63669-30040 note |
Grommet, Sliding Roof Drain
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63669-30040 note |
Grommet, Sliding Roof Drain
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63669-30040 |
Grommet, Sliding Roof Drain
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63669-30040 |
Grommet, Sliding Roof Drain
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63669-30040 |
Grommet, Sliding Roof Drain
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63669-30040 note |
Grommet, Sliding Roof Drain
2020-01 → —
|
AGH30 G | — | |
| 63801C — Glass Sub-assy, Rear Slide Roof | ||||
| 63801-58040 |
Glass Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 L,Q,V | — | |
| 63801-58040 note |
Glass Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63801-58040 |
Glass Sub-assy, Rear Slide Roof
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63801-58040 |
Glass Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
GGH30 L,R,V;AGH30,AYH30 L,Q,S,V | — | |
| 63801-58040 note |
Glass Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63801-58040 |
Glass Sub-assy, Rear Slide Roof
2020-01 → —
|
AGH30,AYH30,GGH30 L,Q,R,S,V,Z | — | |
| 63801-58040 note |
Glass Sub-assy, Rear Slide Roof
2020-01 → —
|
AGH30 G | — | |
| 63804C — Housing Sub-assy, Rear Slide Roof | ||||
| 63804-58040-A0 note |
Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
AGH30,AYH30,GGH30 ALPHD (L,Q) | — | |
| 63804-58040-A0 note |
Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
AGH30 G | — | |
| 63804-58040-B0 note |
Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
AGH30,GGH30 VFIRE | — | |
| 63804-58050-A0 note |
Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
GGH30 V | — | |
| 63804-58050-C0 note |
Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01
ended
|
GGH30 V | — | |
| 63804-58060-A0 note |
Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
AGH30,AYH30,GGH30 ALPHD (L,Q) | — | |
| 63804-58060-A0 note |
Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
AGH30 G | — | |
| 63804-58060-A0 note |
Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
AYH30,GGH30 V | — | |
| 63804-58060-B0 note |
Housing Sub-assy, Rear Slide Roof
2018-01 → 2019-07
ended
|
GGH30 Q | — | |
| 63804-58060-B0 note |
Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
AGH30,AYH30,GGH30 VFIRE (L,R,S) | — | |
| 63804-58070-C0 note |
Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01
ended
|
AYH30,GGH30 V | — | |
| 63804-58060-A0 note |
Housing Sub-assy, Rear Slide Roof
2020-01 → —
|
AGH30,AYH30,GGH30 ALPHD (L,Q) | — | |
| 63804-58060-A0 note |
Housing Sub-assy, Rear Slide Roof
2020-01 → —
|
AGH30 G | — | |
| 63804-58060-A0 note |
Housing Sub-assy, Rear Slide Roof
2020-01 → —
|
AYH30,GGH30 V,Z | — | |
| 63804-58060-B0 note |
Housing Sub-assy, Rear Slide Roof
2020-01 → —
|
GGH30 6FC (L,R);AGH30,AYH30 VFIRE +1 | — | |
| 63804-58070-C0 note |
Housing Sub-assy, Rear Slide Roof
2020-01 → —
|
AYH30,GGH30 V,Z | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
