Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

8 part groups · 7 illustrations

Illustrations

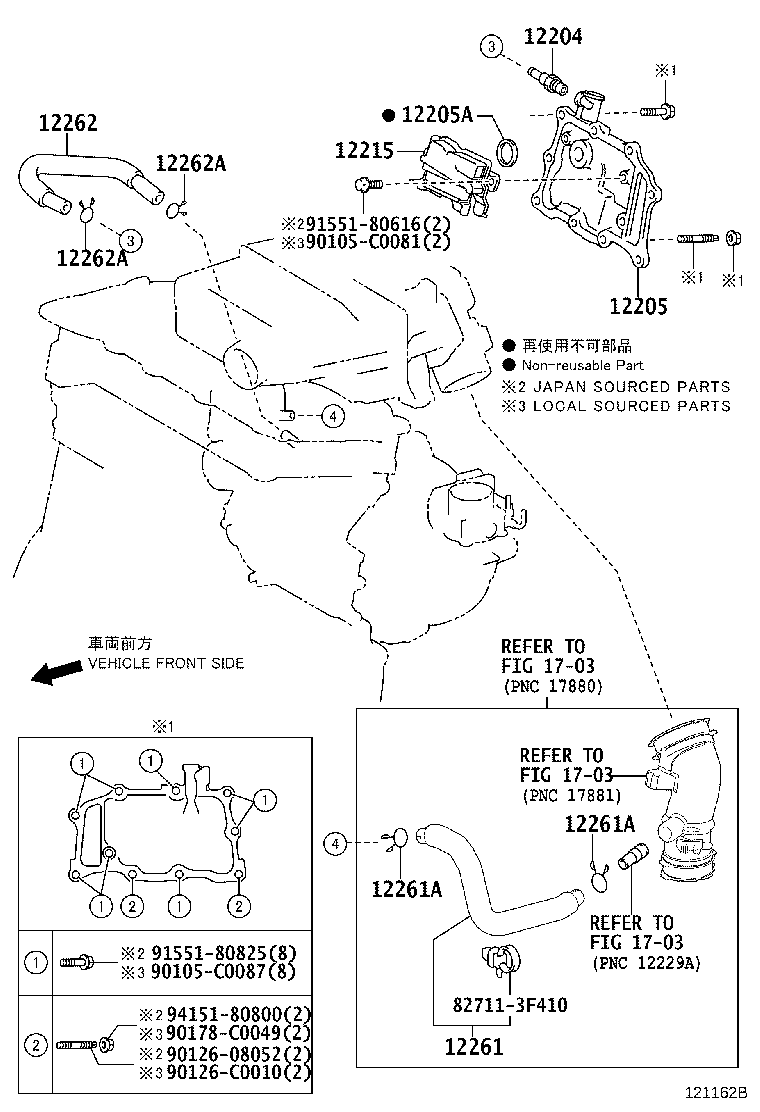

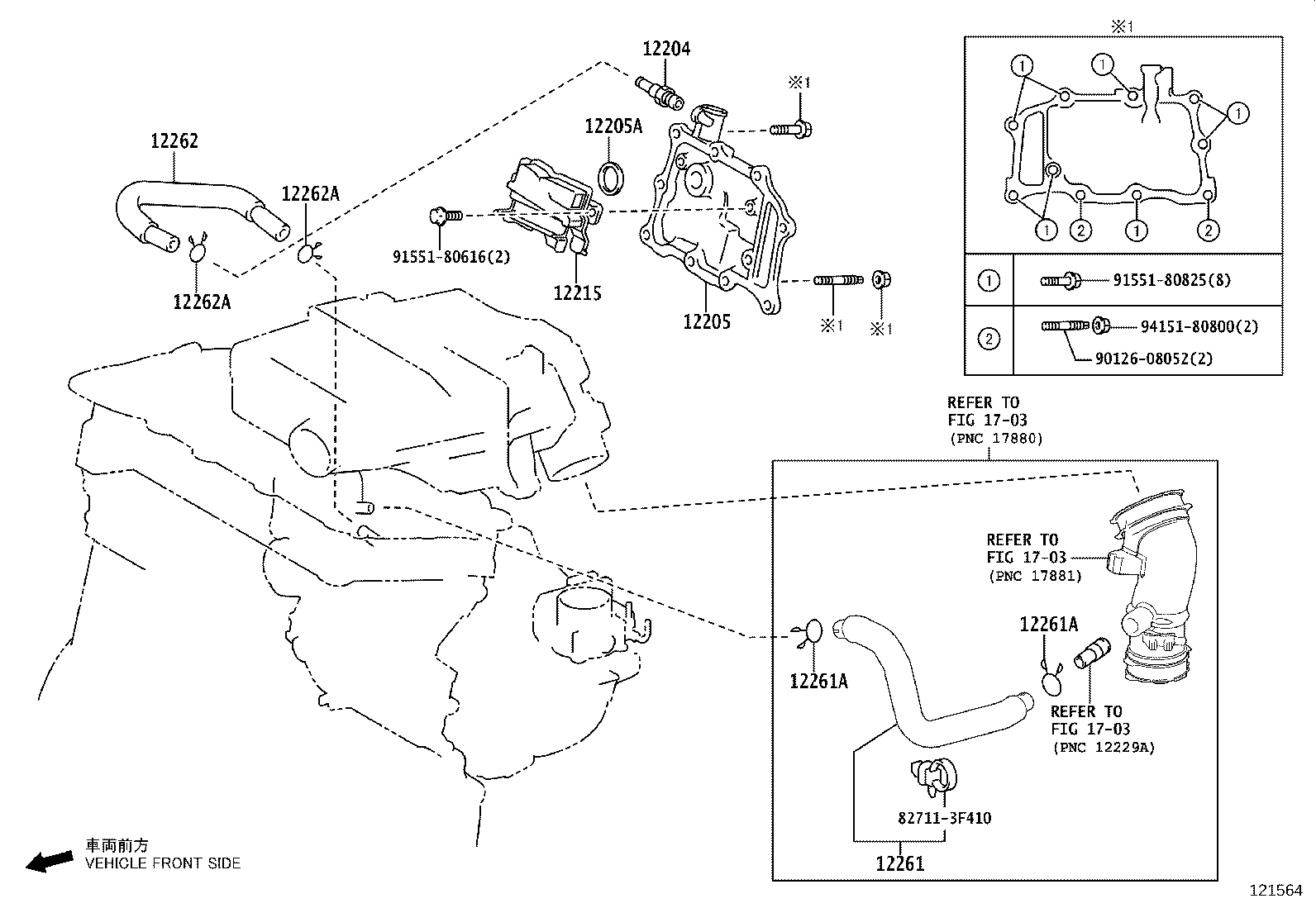

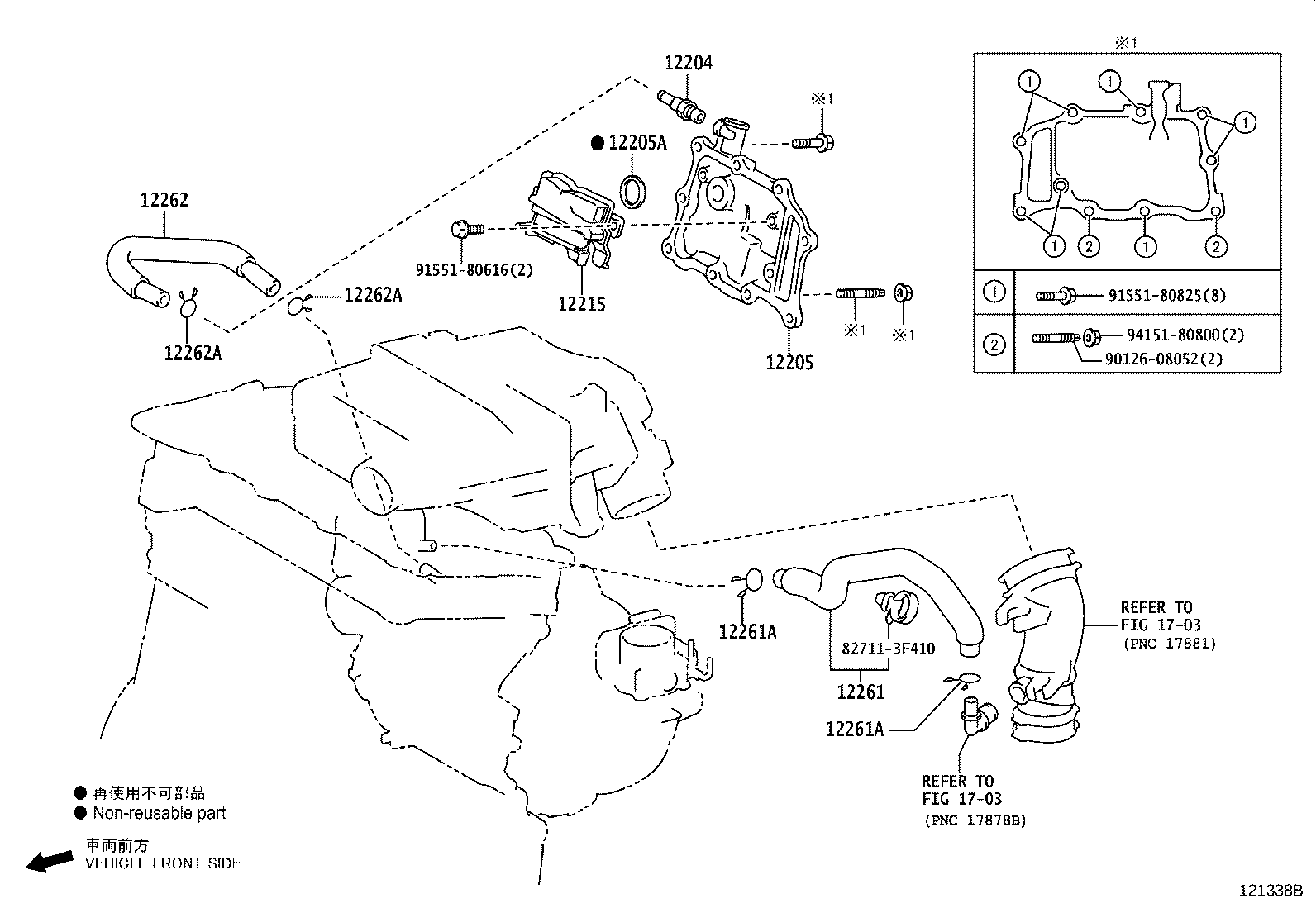

Figure 120986D 120986D 2015-01 → — Figure 121162B 121162B 2015-01 → 2022-05 Figure 121338B 121338B 2019-05 → — Figure 121338B 121338B 2022-05 → — Figure 121564 121564 2022-07 → — Figure 120982A 120982A 2015-01 → — Figure 121161 121161 2018-01 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12205 Case Sub-assy, Ventilation
12205A Ring, O(FOR VENTILATION CASE)
12215 Separator, Case
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
