Water Pump

9 part groups · 4 illustrations

Illustrations

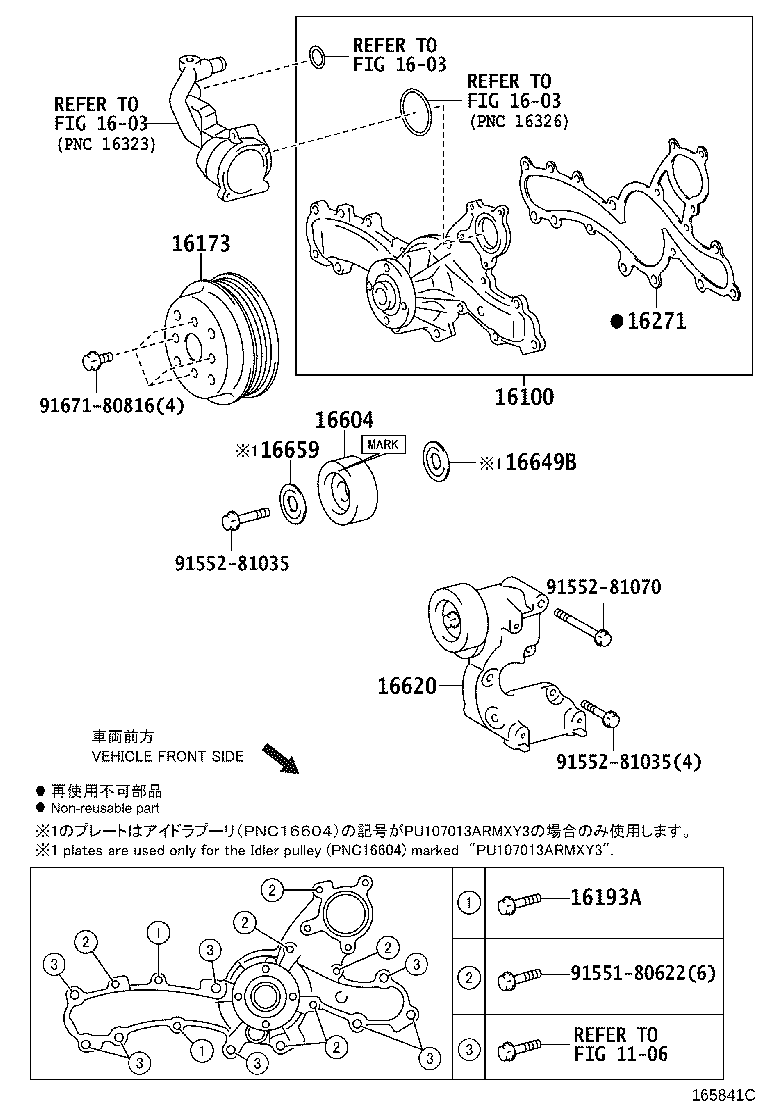

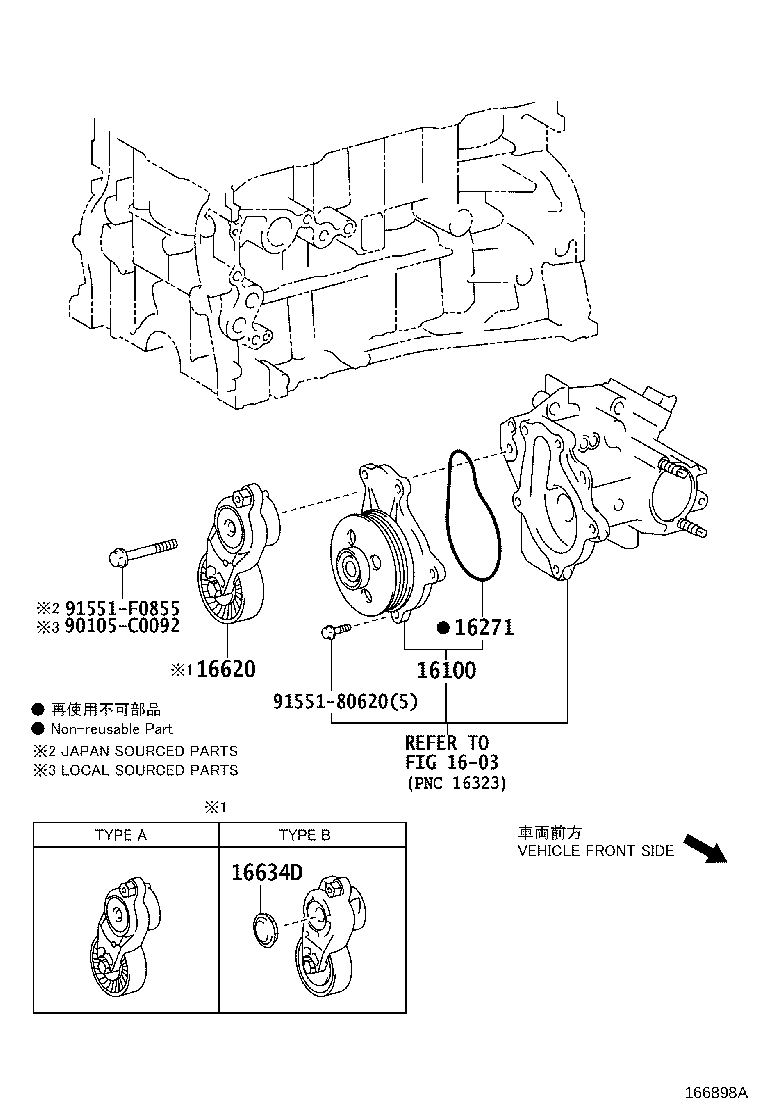

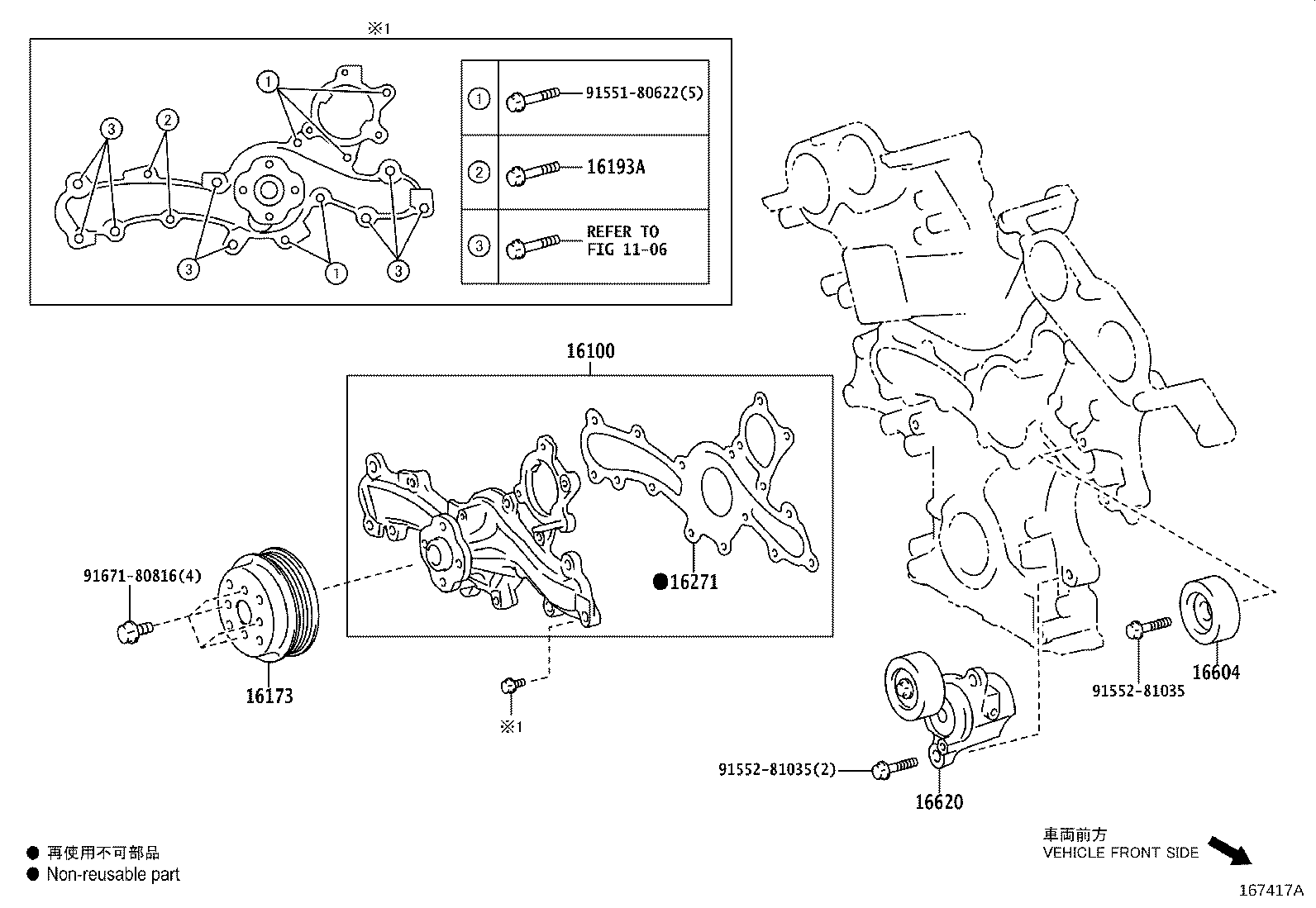

Figure 166897A 166897A 2015-01 → — Figure 166898A 166898A 2015-01 → — Figure 165841C 165841C 2015-01 → — Figure 167417A 167417A 2018-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16634D Cover, Dust
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
