Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

13 part groups · 2 illustrations

Illustrations

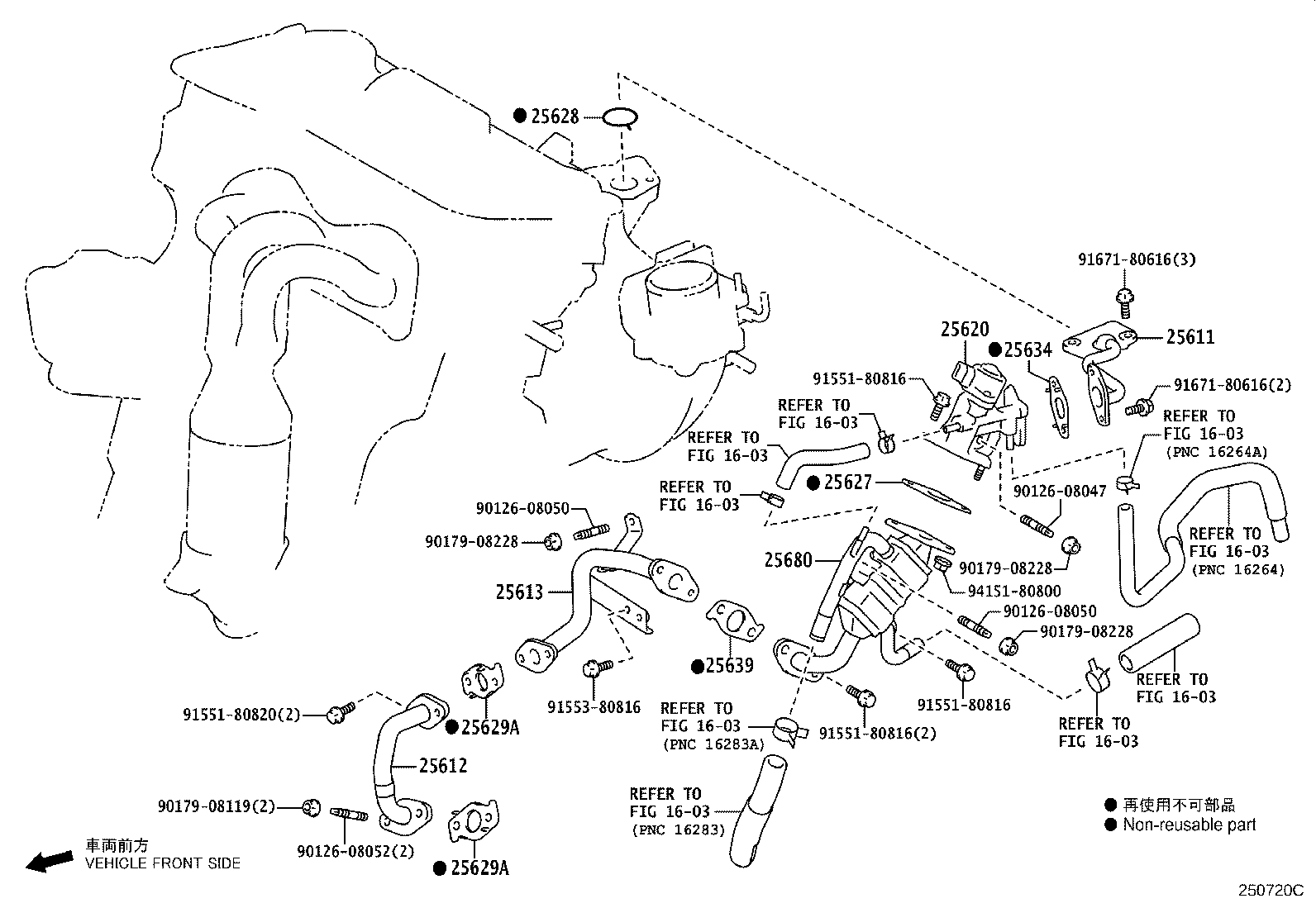

Figure 250633E 250633E 2015-01 → — Figure 250720C 250720C 2019-05 → —

Part groups

PNCDescription
25611 Connector, Egr Pipe
25612 Pipe, Egr, NO.2
25613 Pipe, Egr, NO.3
25620 Valve Assy, Egr
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25639 Gasket, Egr Pipe, NO.3
25680 Cooler Assy, Egr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
