Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 4 illustrations

Illustrations

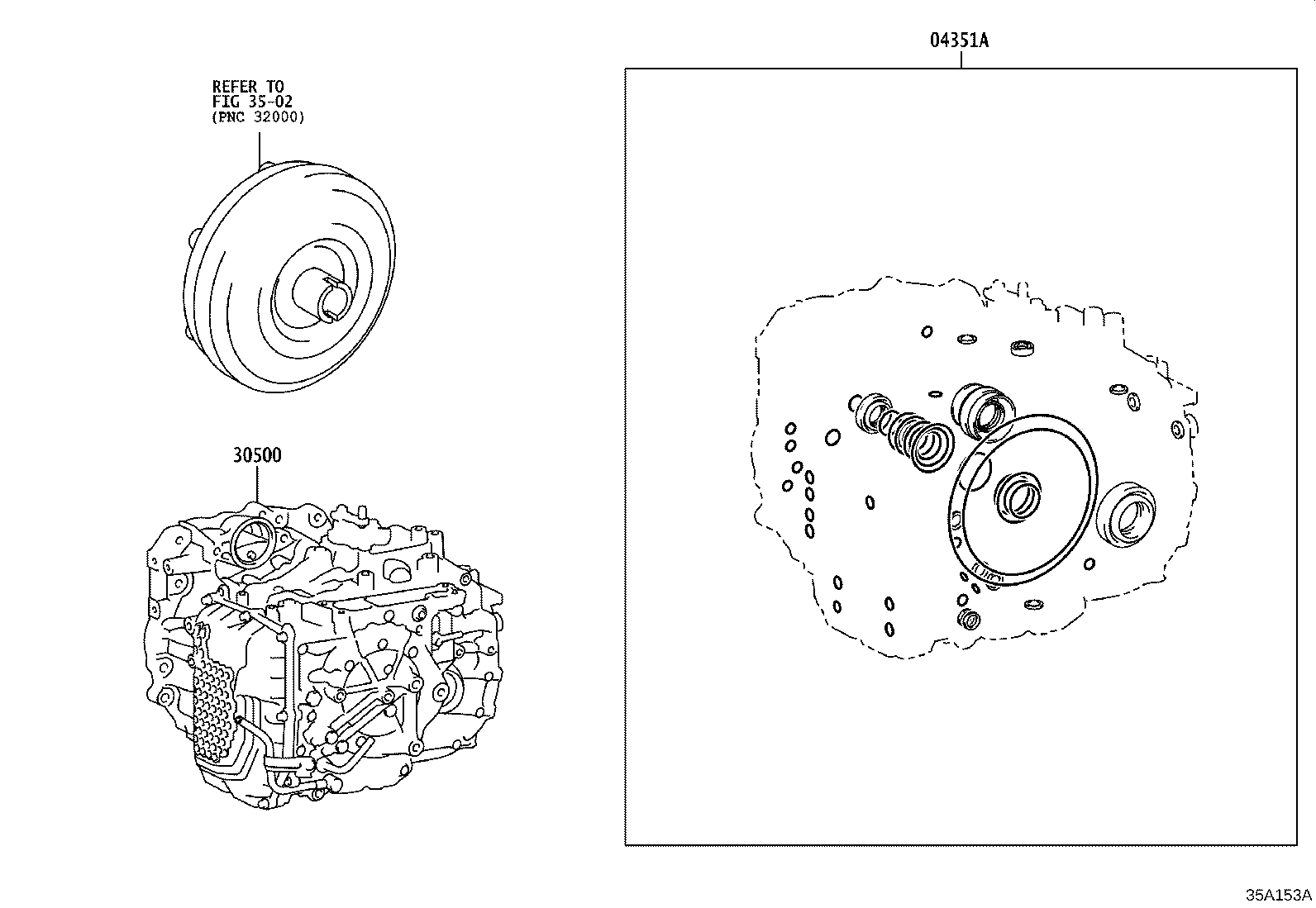

Figure 356989B 356989B 2015-01 → 2018-01 Figure 356989B 356989B 2019-08 → — Figure 35A153A 35A153A 2018-01 → — Figure 35A532 35A532 2018-01 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
