Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 8 illustrations

Illustrations

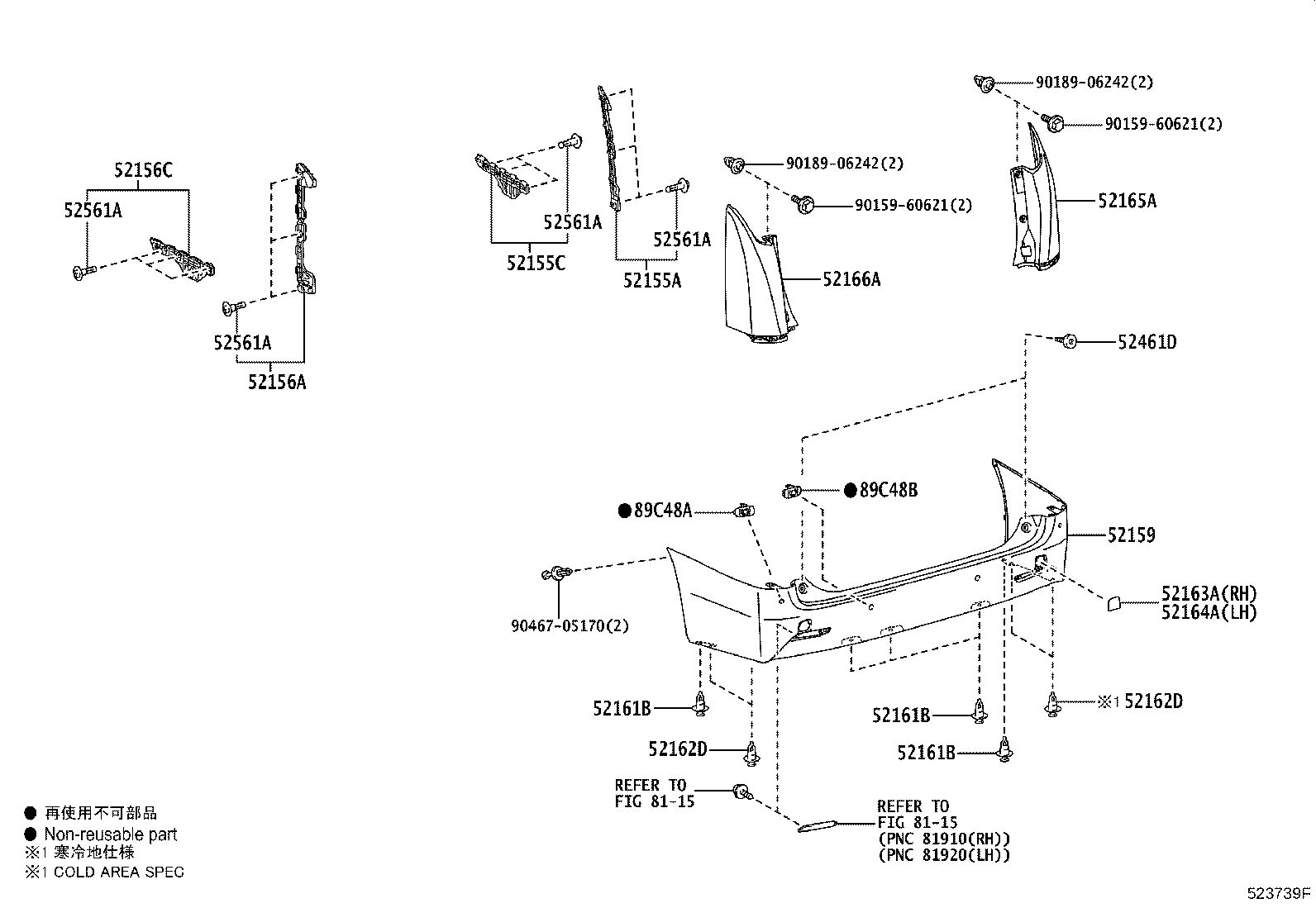

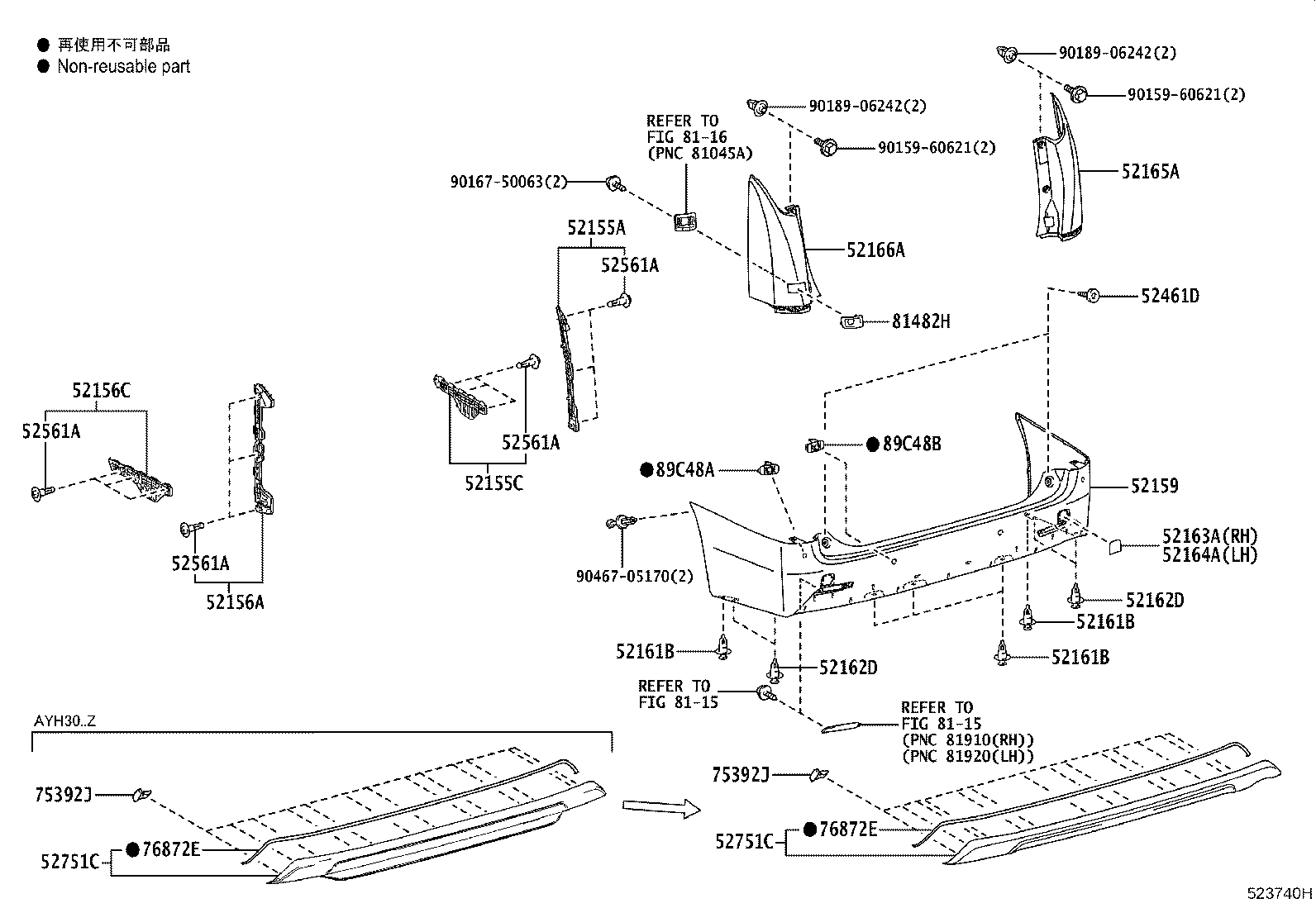

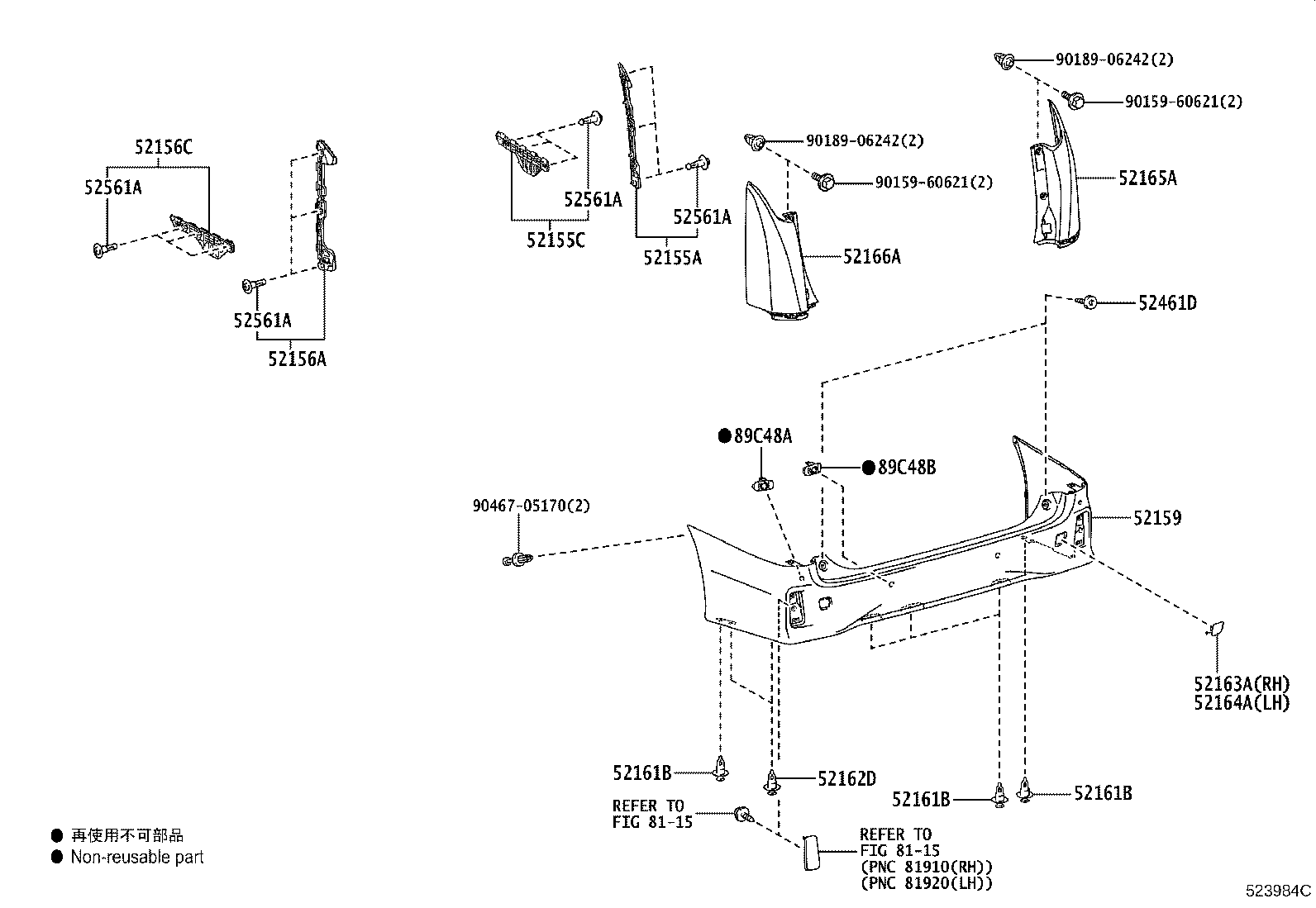

Figure 523092I 523092I 2015-01 → 2018-01 Figure 523739F 523739F 2018-01 → 2019-07 Figure 523739F 523739F 2018-01 → — Figure 523740H 523740H 2018-04 → 2019-05 Figure 523740H 523740H 2019-05 → — Figure 523740H 523740H 2021-05 → — Figure 523984C 523984C 2019-08 → — Figure 523984C 523984C 2021-05 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162D Piece, Rear Bumper
52163A Plate, Rear Bumper, RH
52164A Plate, Rear Bumper, LH
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52461D Cushion, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
52751C Moulding, Rear Bumper
75392J Retainer, Outside Moulding
76872E Protector, Rear Spoiler, NO.1
81482H Cover, Fog Lamp, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
