Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

62 part groups · 18 illustrations

Illustrations

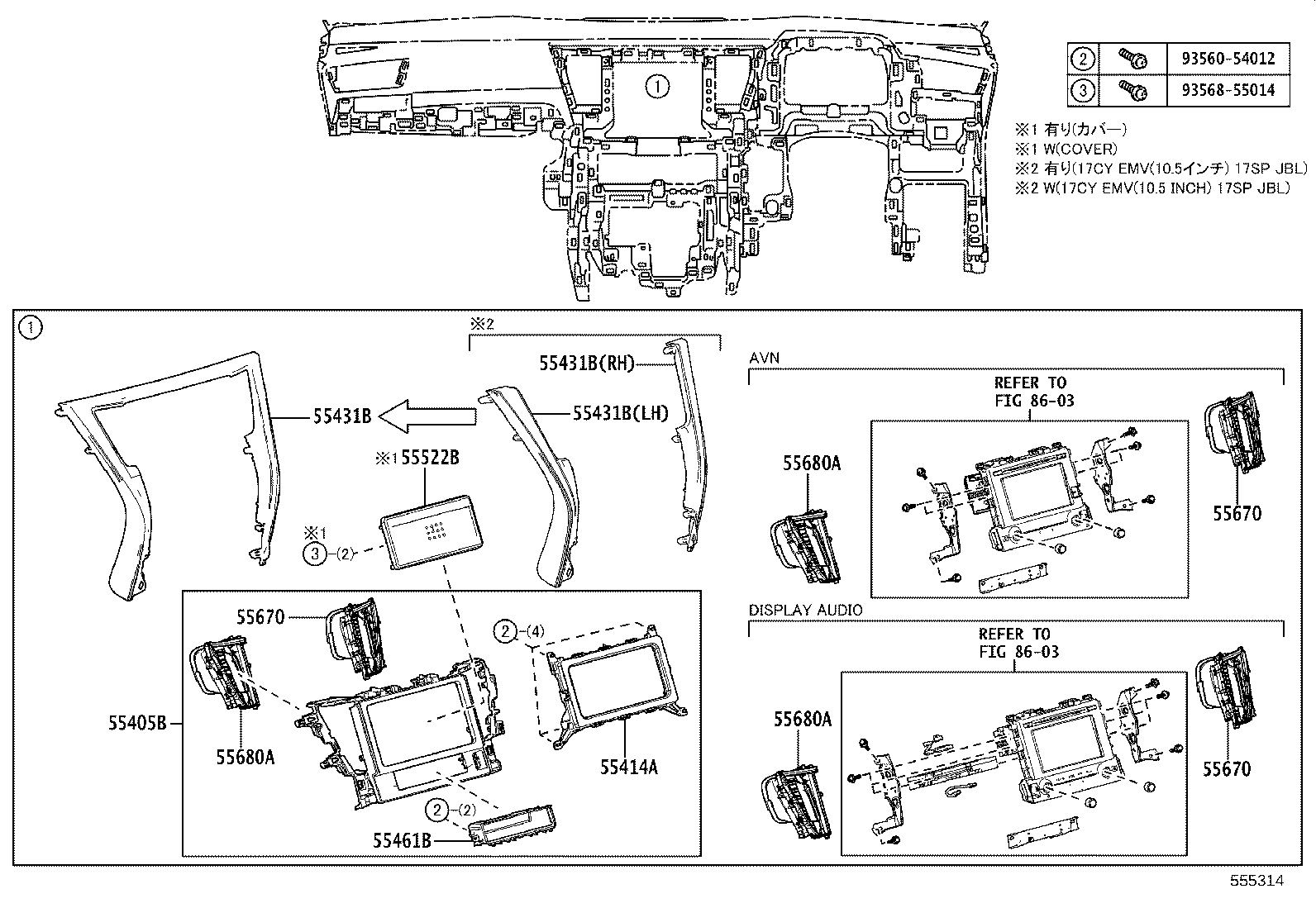

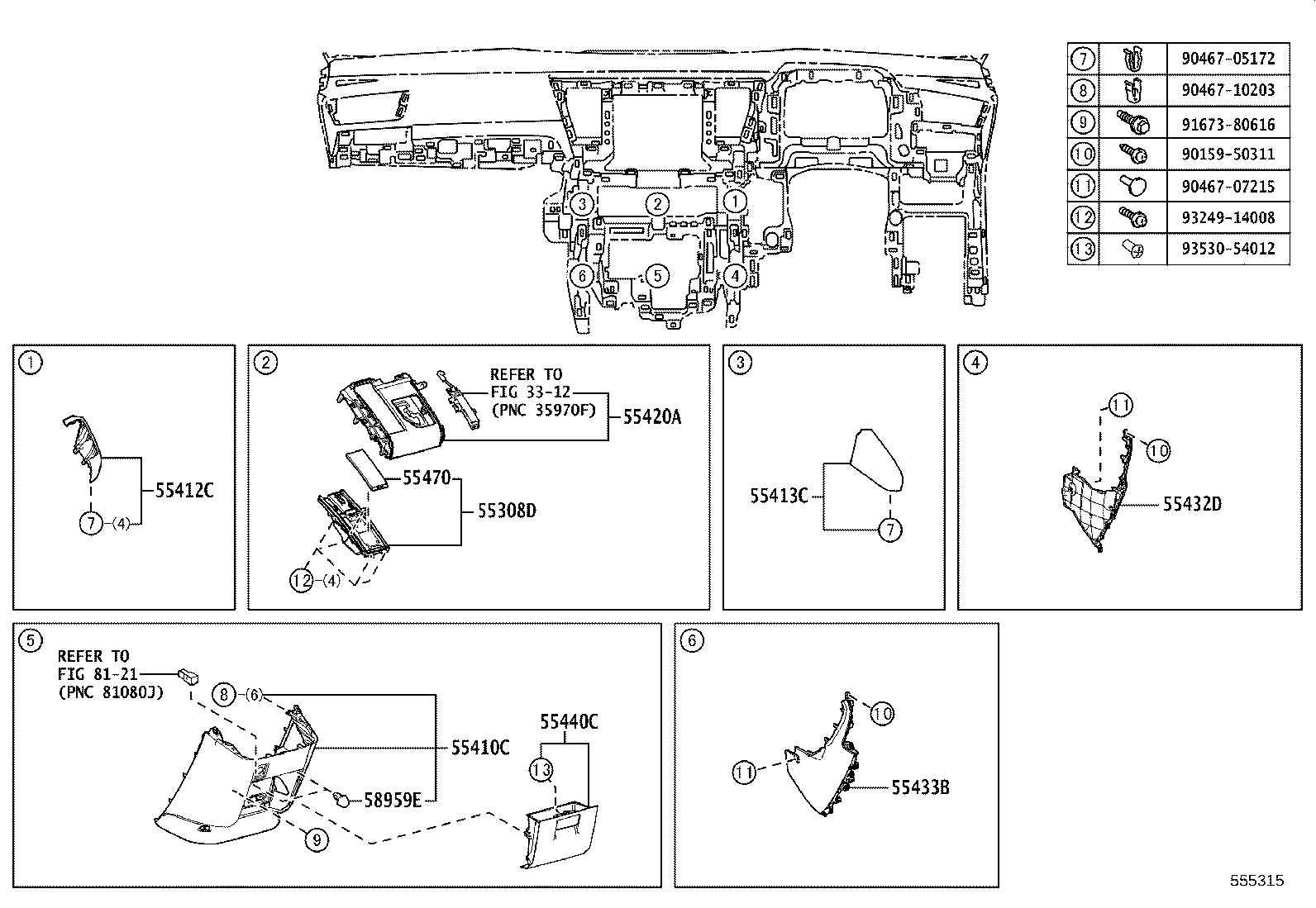

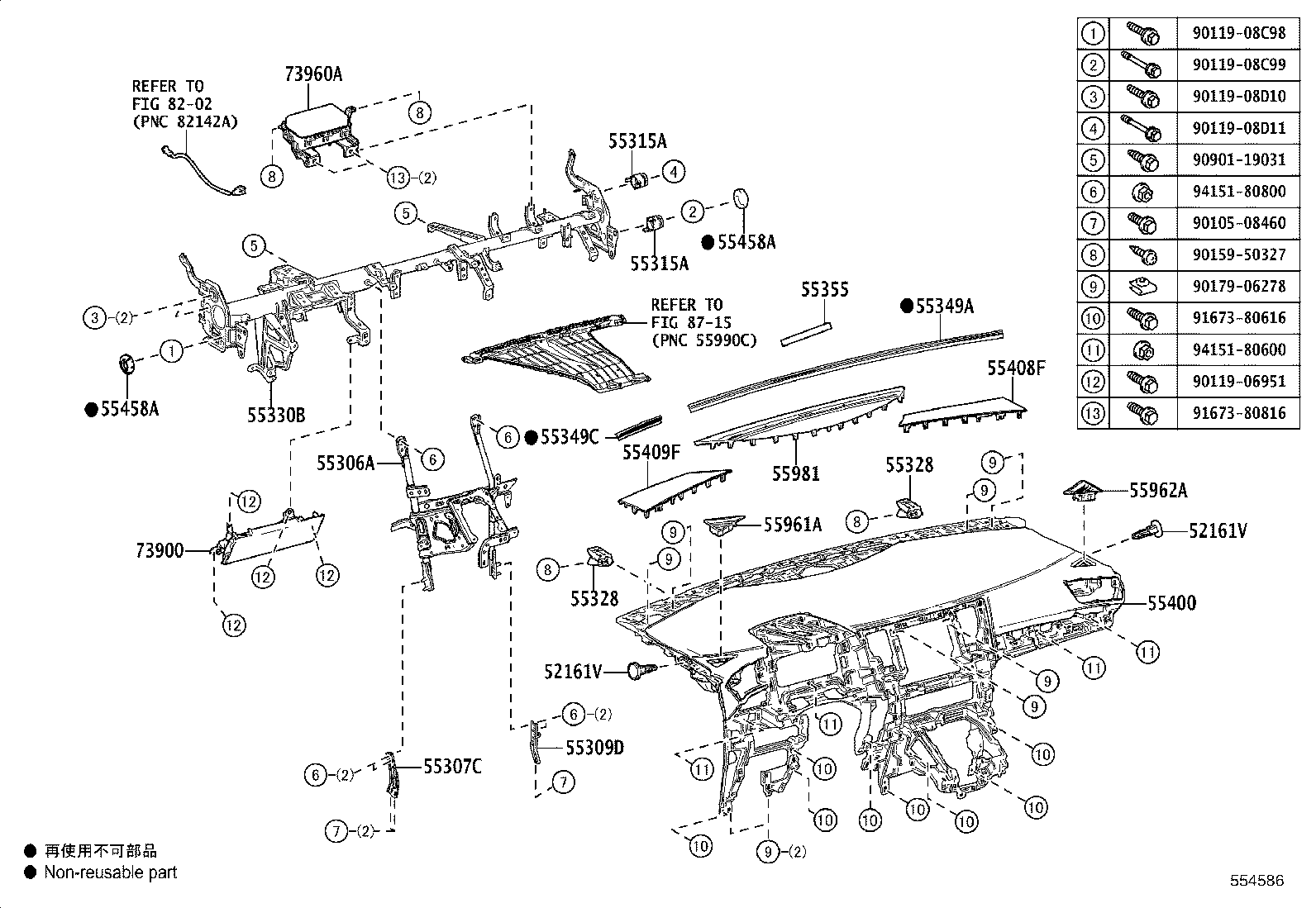

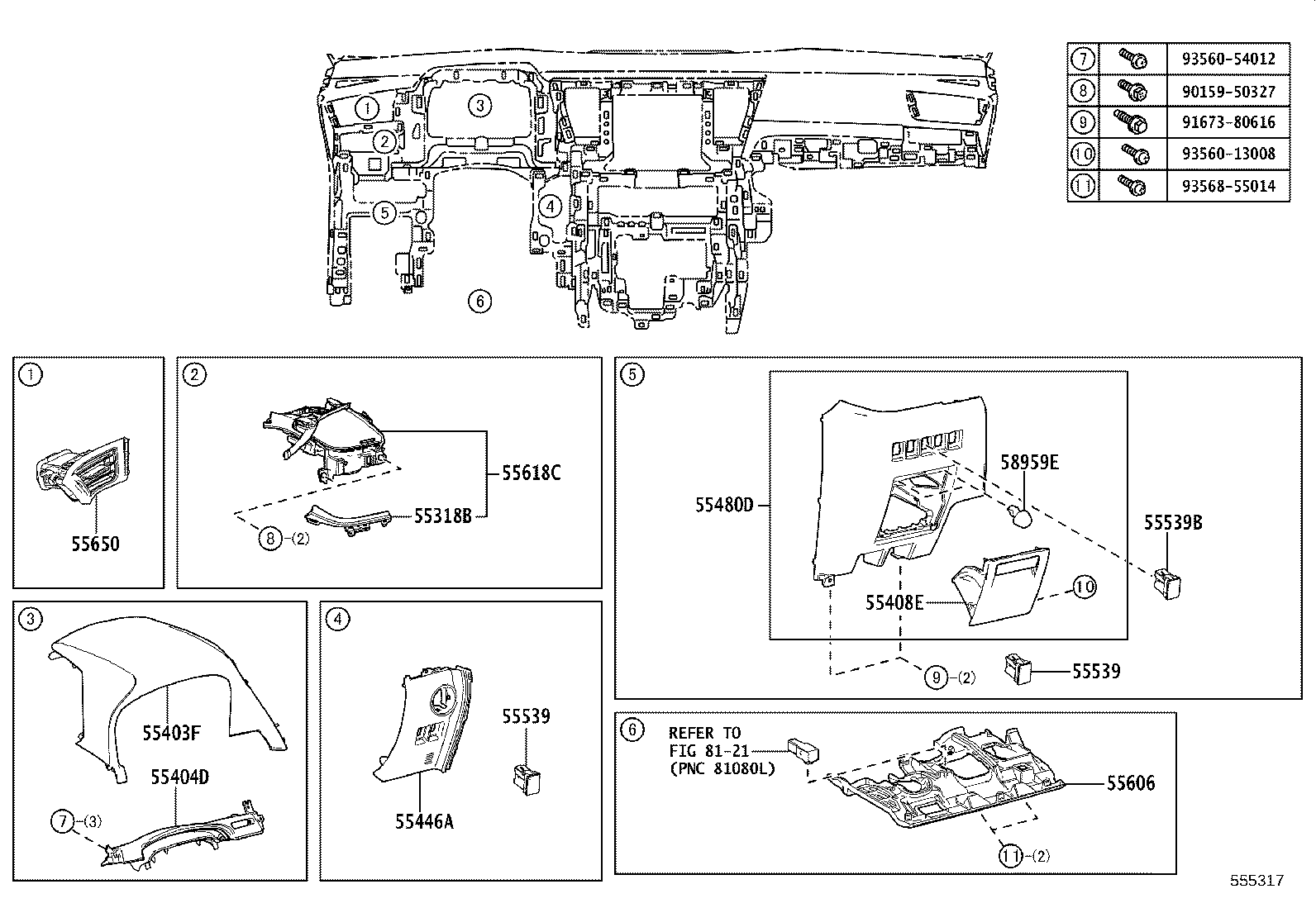

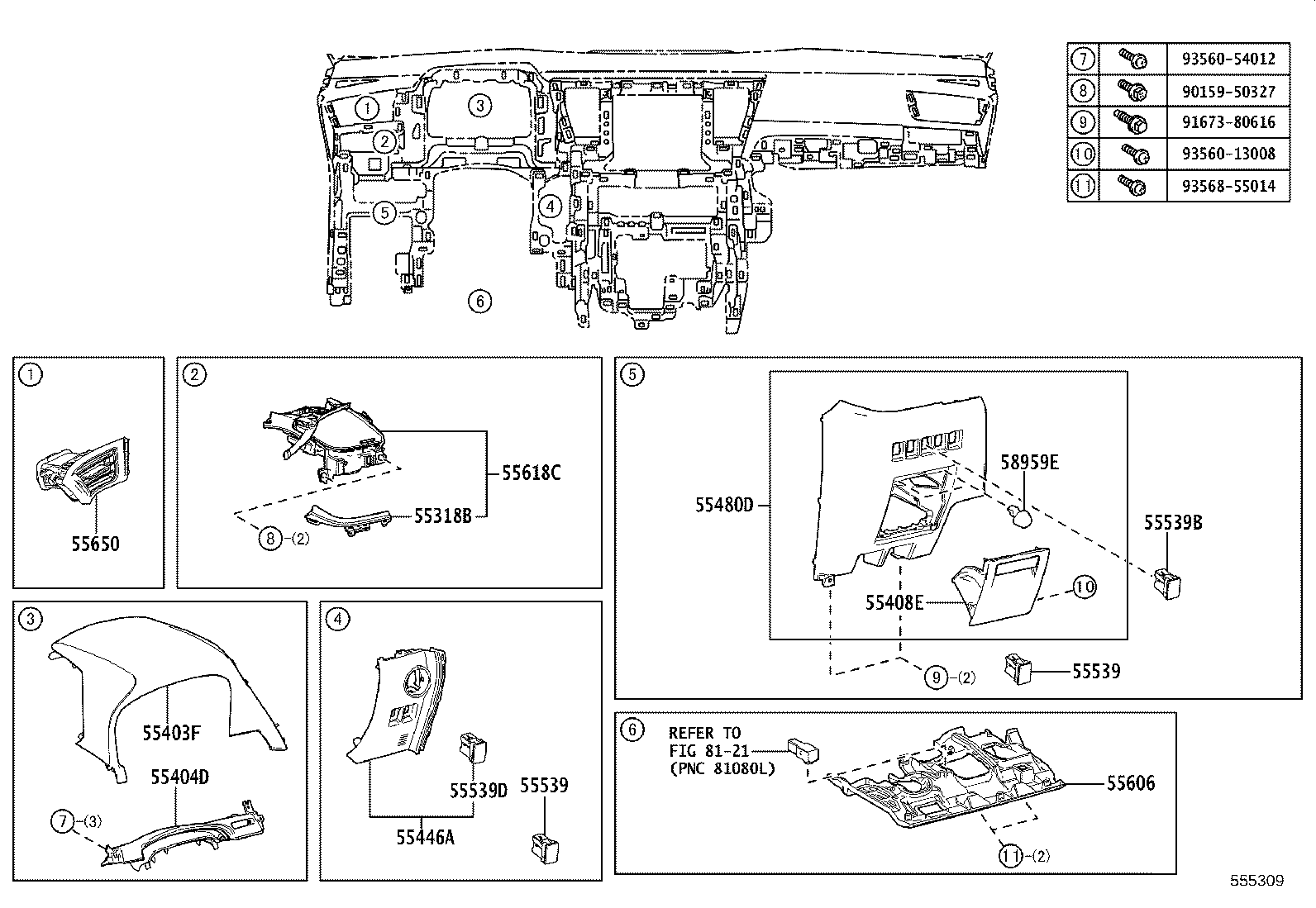

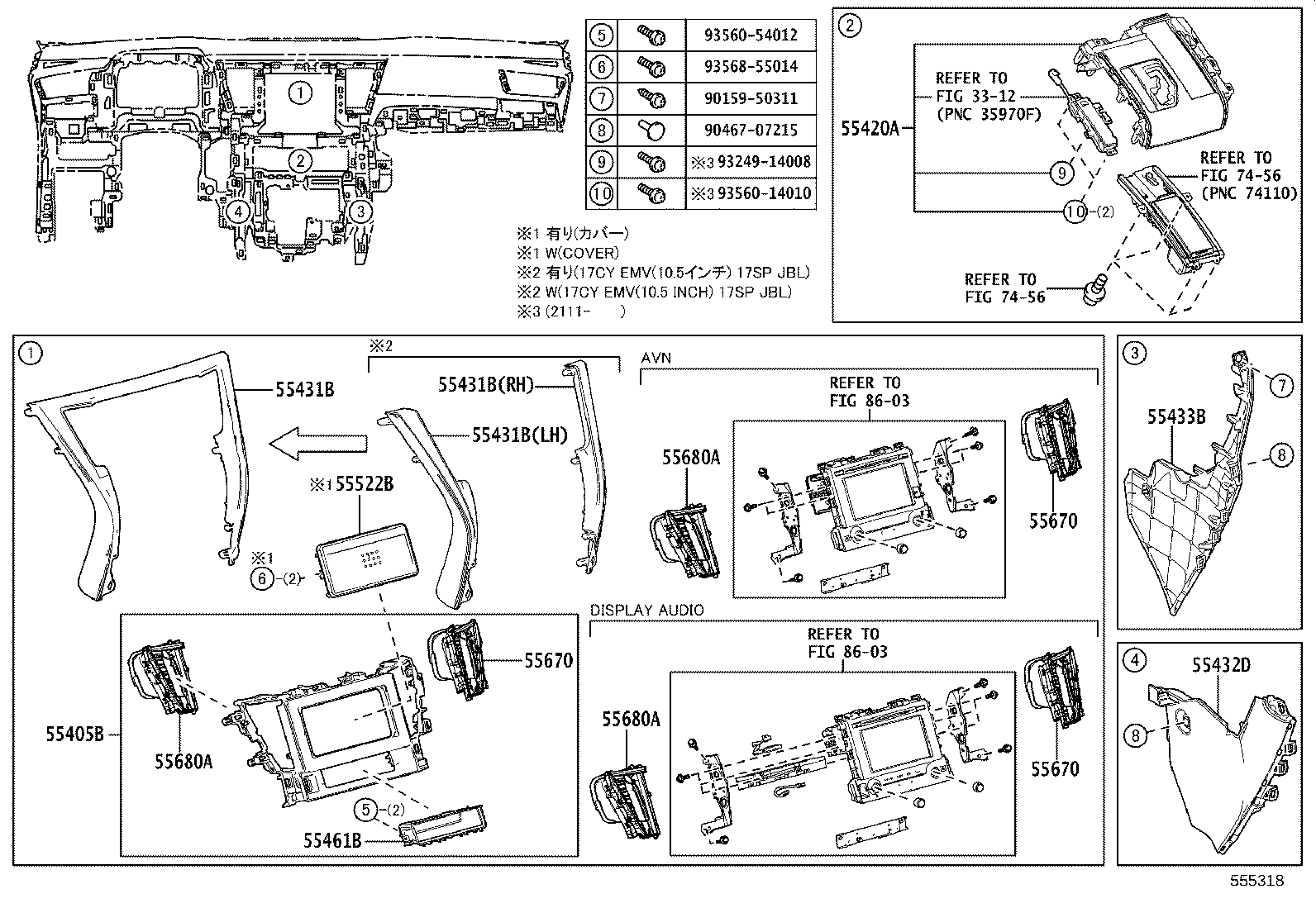

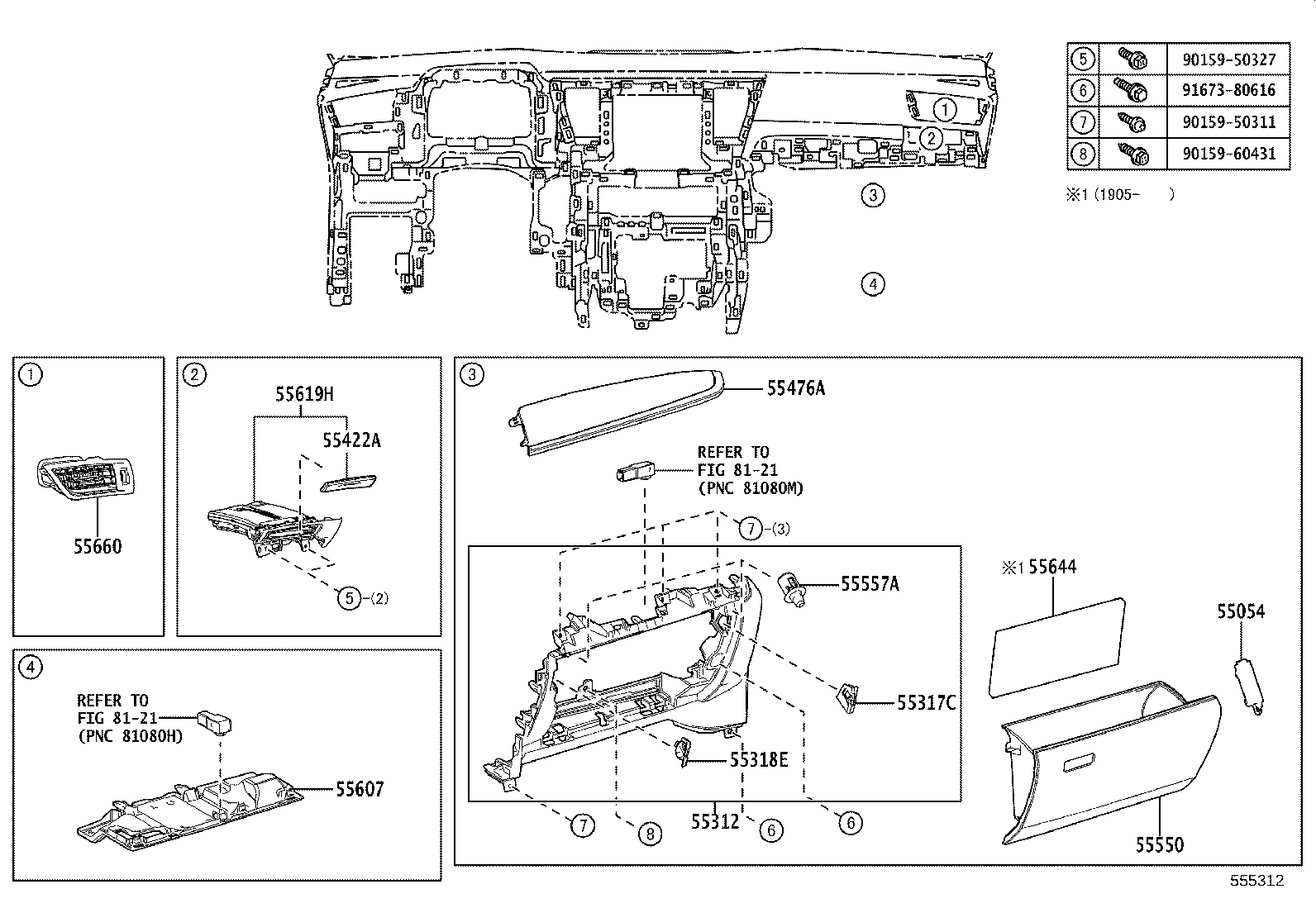

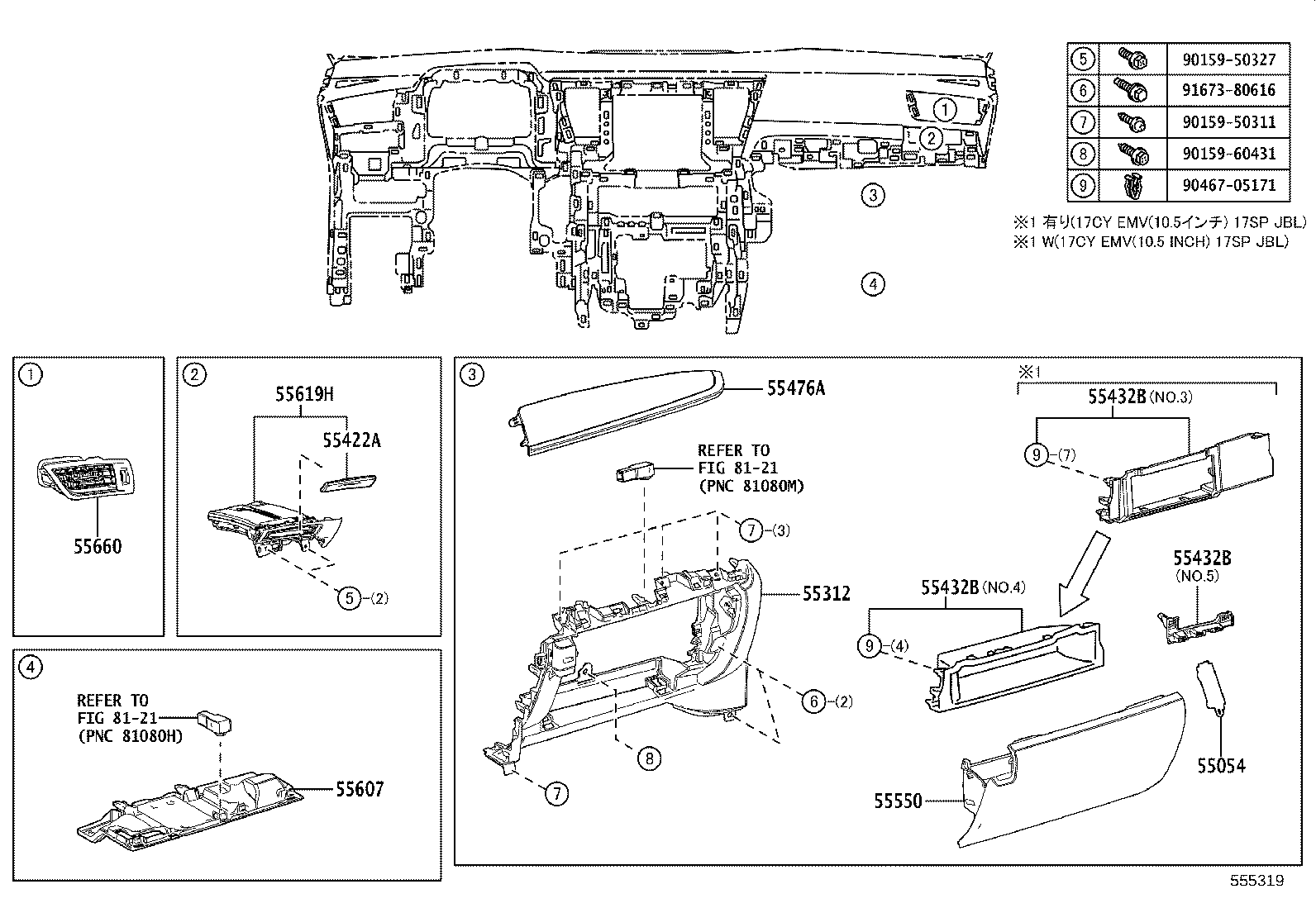

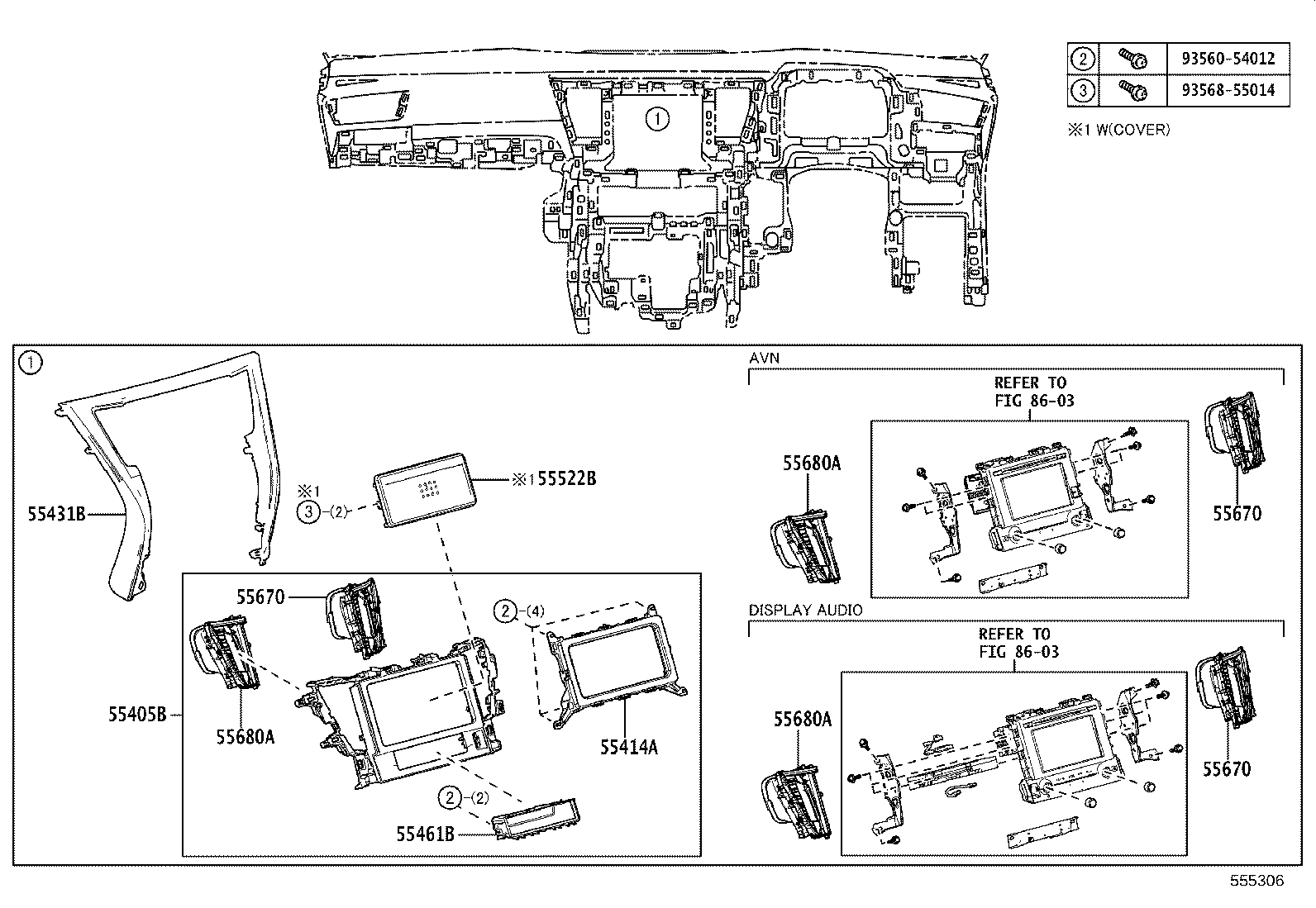

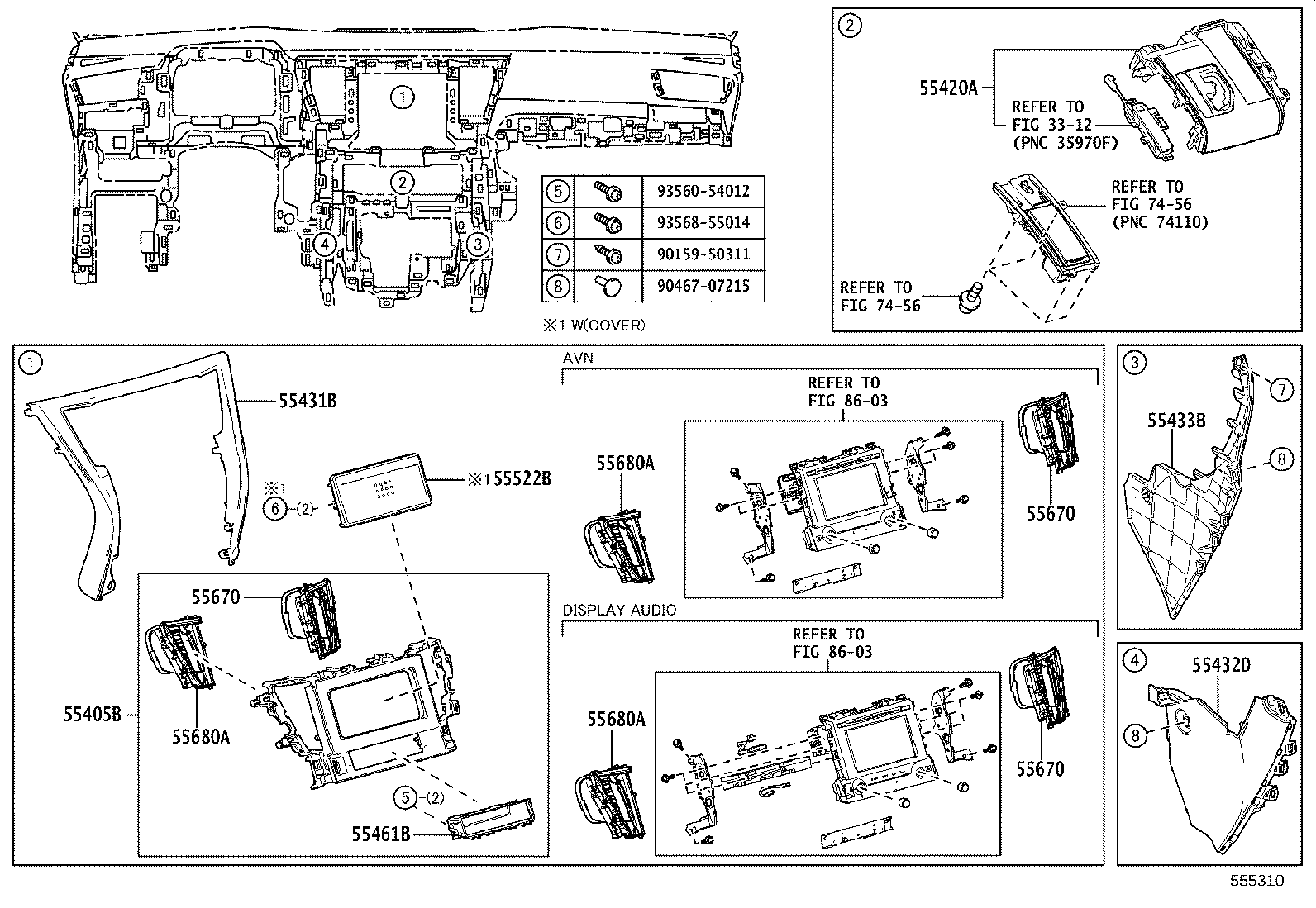

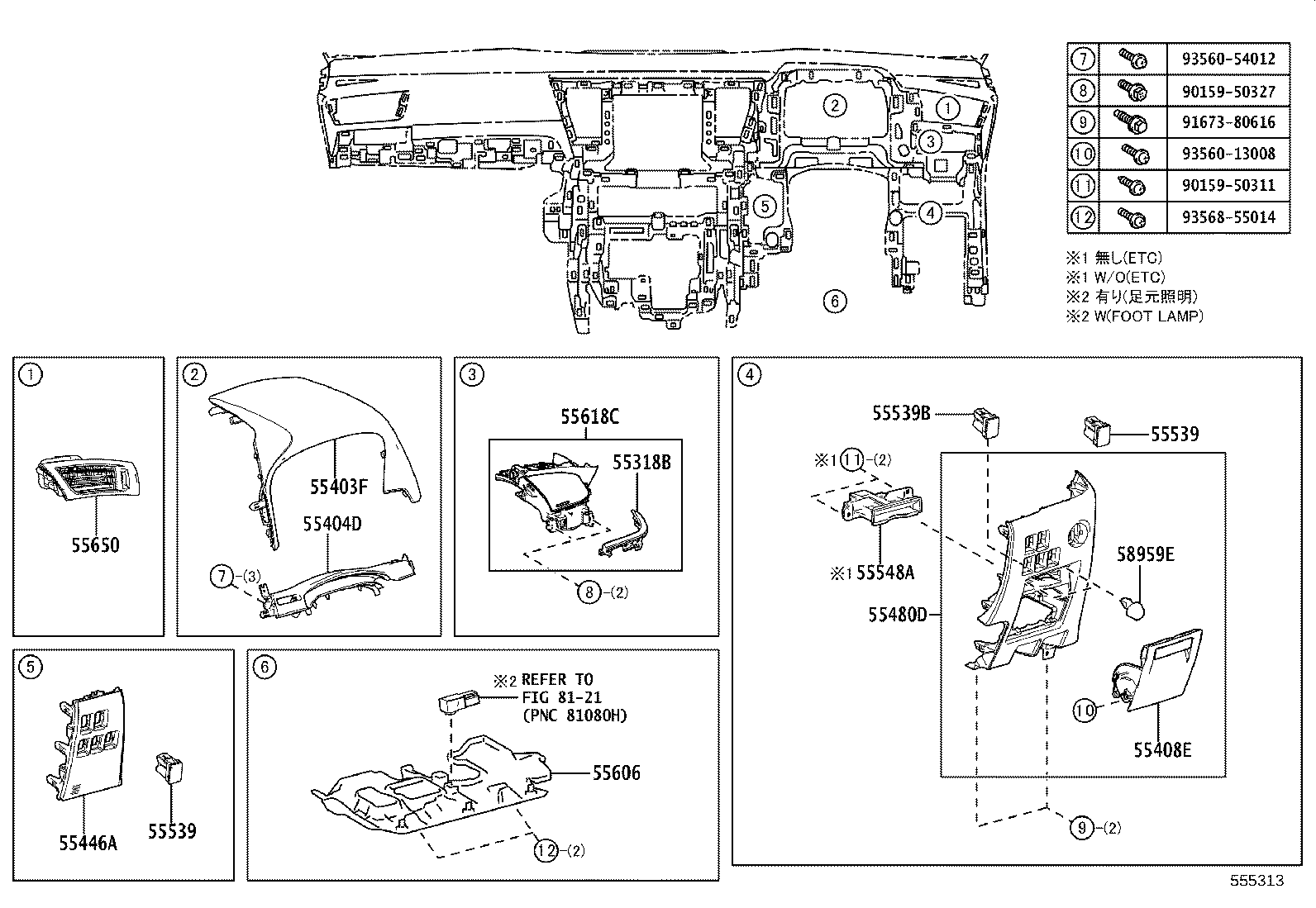

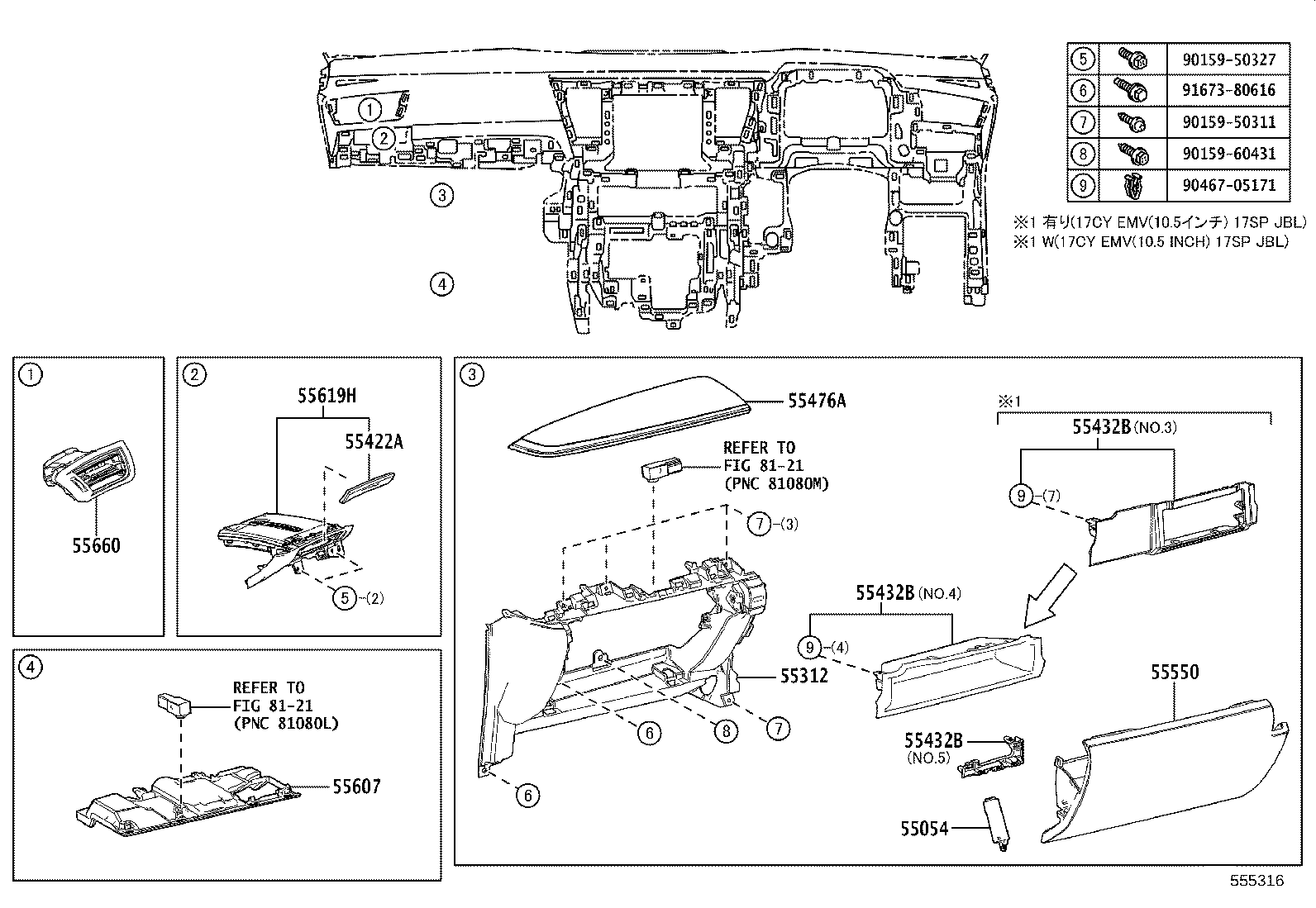

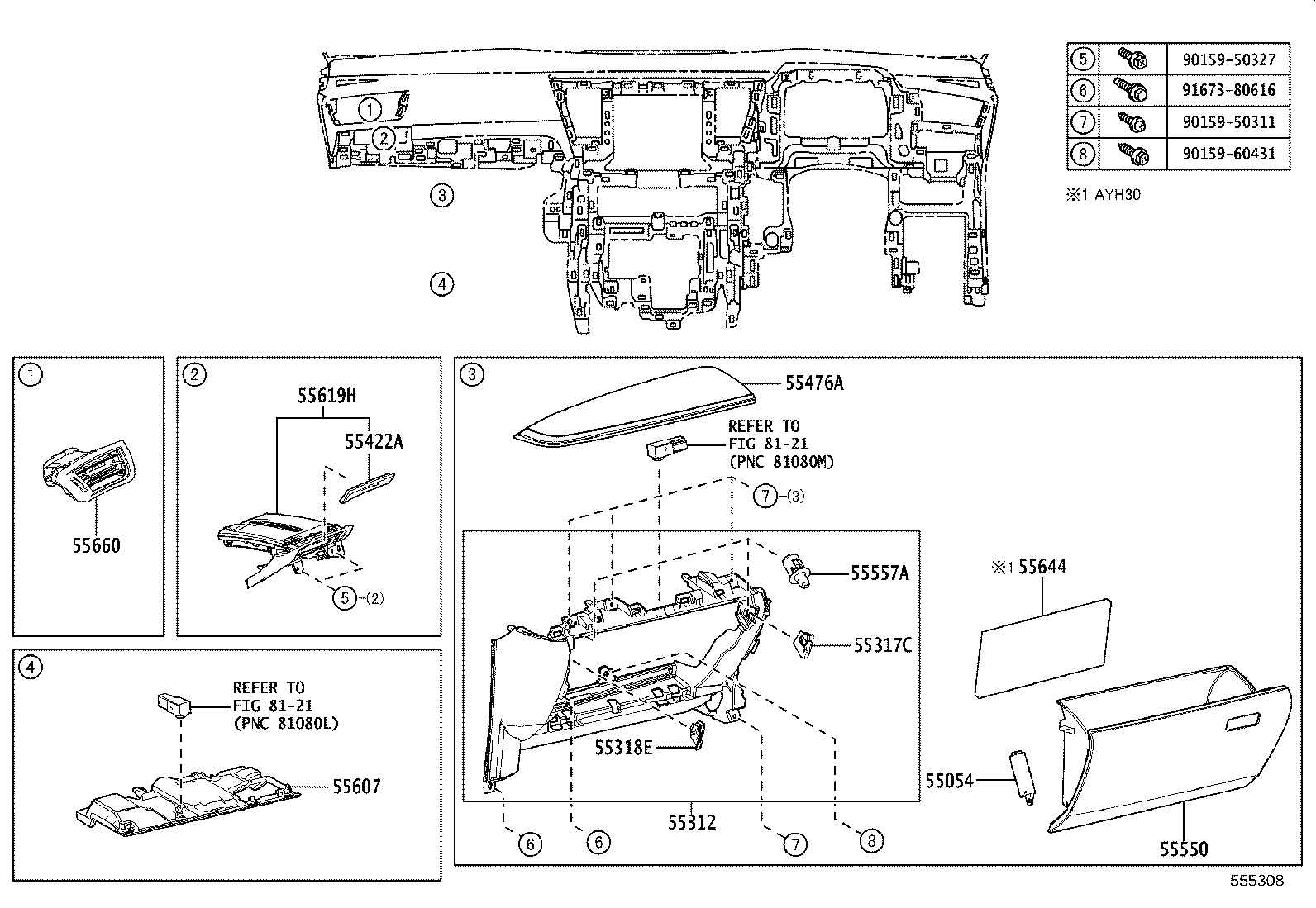

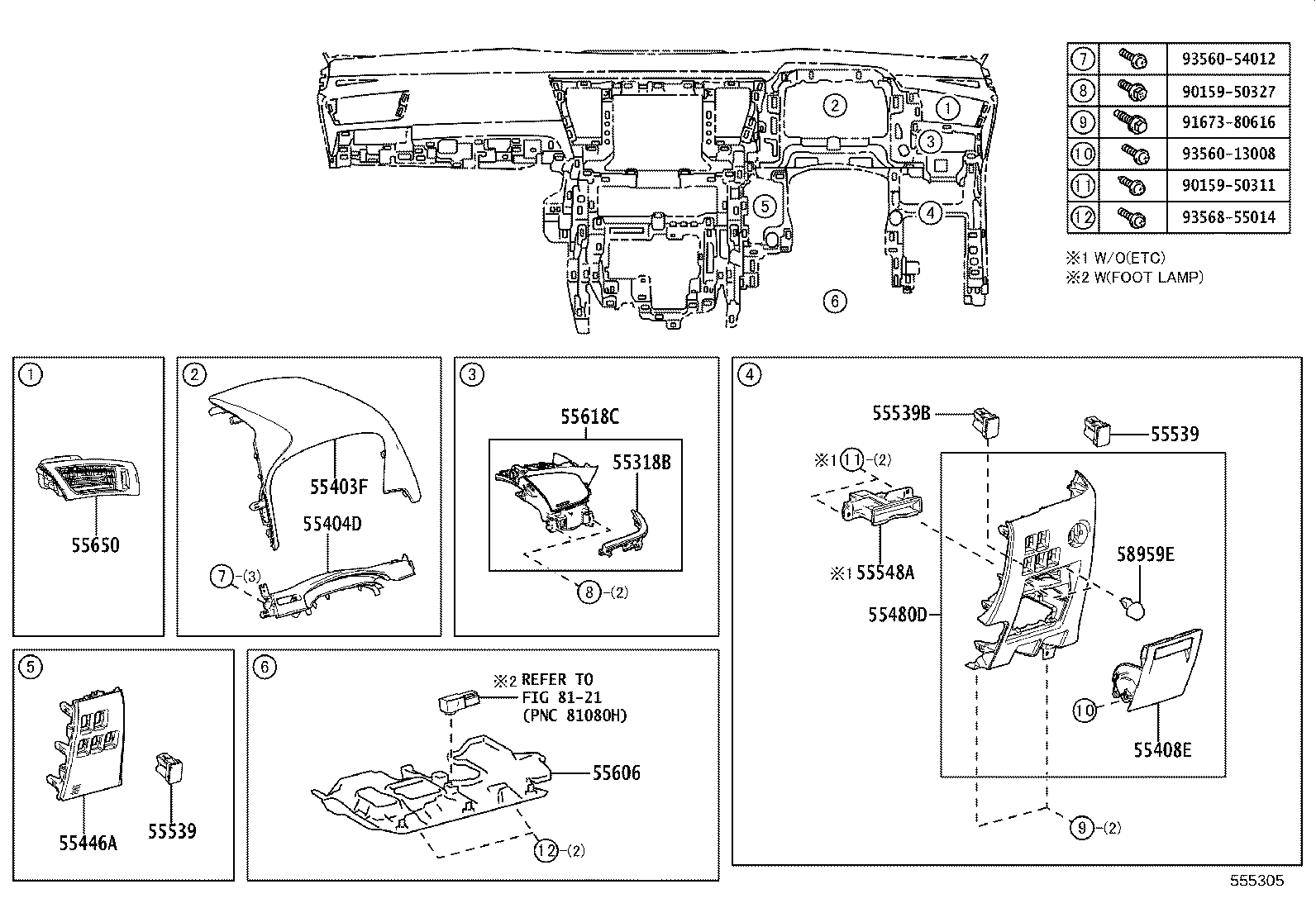

Figure 553415C 553415C 2015-01 → 2020-01 Figure 555305 555305 2015-01 → 2020-01 Figure 555306 555306 2015-01 → 2020-01 Figure 555307 555307 2015-01 → 2020-01 Figure 555308 555308 2015-01 → 2020-01 Figure 553418C 553418C 2015-01 → 2020-01 Figure 555309 555309 2015-01 → 2020-01 Figure 555310 555310 2015-01 → 2020-01 Figure 555312 555312 2015-01 → 2020-01 Figure 554585 554585 2020-01 → — Figure 555313 555313 2020-01 → — Figure 555314 555314 2020-01 → — Figure 555315 555315 2020-01 → — Figure 555316 555316 2020-01 → — Figure 554586 554586 2020-01 → — Figure 555317 555317 2020-01 → — Figure 555318 555318 2020-01 → — Figure 555319 555319 2020-01 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55054 Stopper Sub-assy, Glove Compartment Door
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308D Box Sub-assy, Instrument Panel, Center
55309D Brace Sub-assy, Instrument Panel TO Floor
55312 Panel, Instrument, Lower
55315A Spacer, Instrument Panel, NO.1
55317C Patch, Instrument Side, Lower RH
55318B Extension, Instrument Panel
55318E Patch, Instrument Side, Lower LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55400 Pad Assy, Instrument Panel Safety
55403F Panel Sub-assy, Instrument Panel Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408E Box Sub-assy, Instrument Panel Coin
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55412C Panel, Instrument Cluster Finish, Center NO.1
55413C Panel, Instrument Cluster Finish, Center NO.2
55414A Panel, Instrument Cluster Finish, End
55420A Panel Assy, Instrument Cluster Finish, Center
55422A Panel, Instrument Cluster Finish, Lower
55431B Panel, Instrument Panel Finish, Upper
55432B Panel, Instrument Panel Finish, Lower
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55440C Box Assy, Instrument Panel
55446A Base, Switch Hole, NO.1
55458A Cap, Instrument Panel Safety Pad
55461B Box, Instrument Panel, Center
55470 Garnish Assy, Instrument Cluster Finish Panel
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55480D Panel Assy, Instrument Panel Finish, Lwr
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55539D Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55618C Holder, Instrument Panel Cup
55619H Holder, Instrument Panel Cup, NO.2
55644 Pad, Instrument Panel Under Silencer, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55961A Nozzle, Side Defroster, RH
55962A Nozzle, Side Defroster, LH
55981 Garnish, Defroster Nozzle, NO.1
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
