Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

16 part groups · 7 illustrations

Illustrations

Figure 585485C

585485C 2015-01 → 2018-01

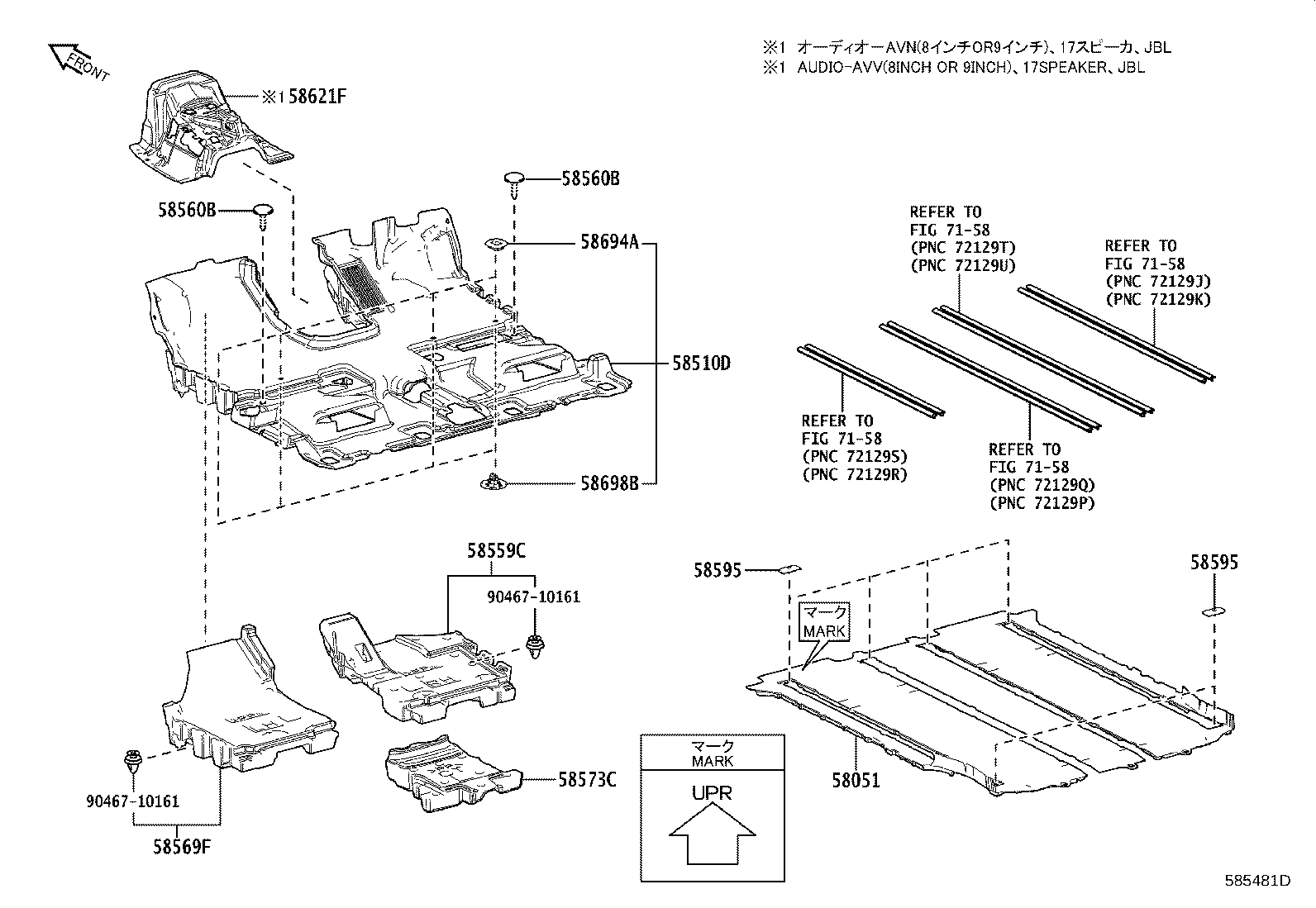

Figure 585481D

585481D 2015-01 → —

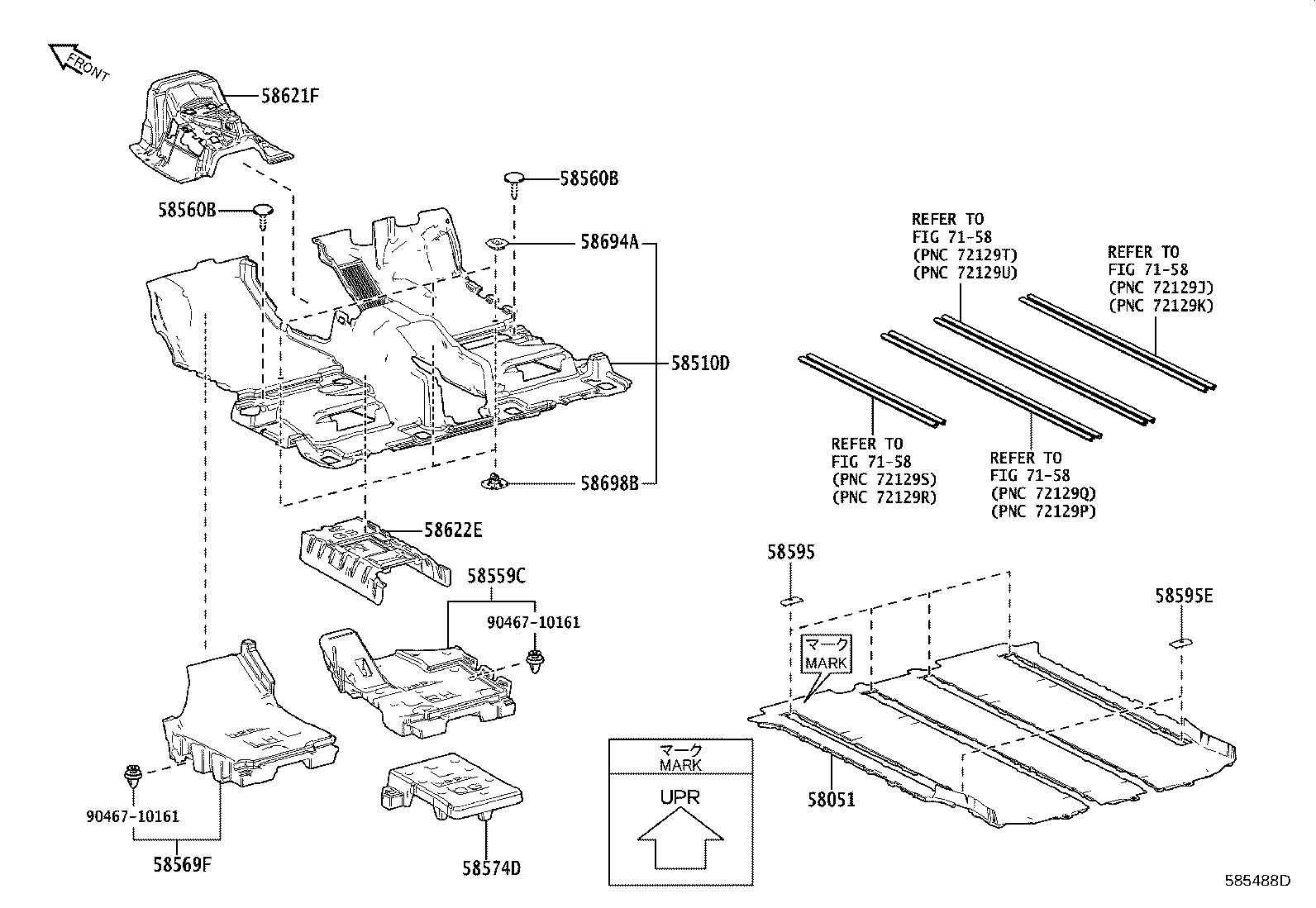

Figure 585488D

585488D 2015-01 → 2018-01

Figure 585488D

585488D 2018-01 → —

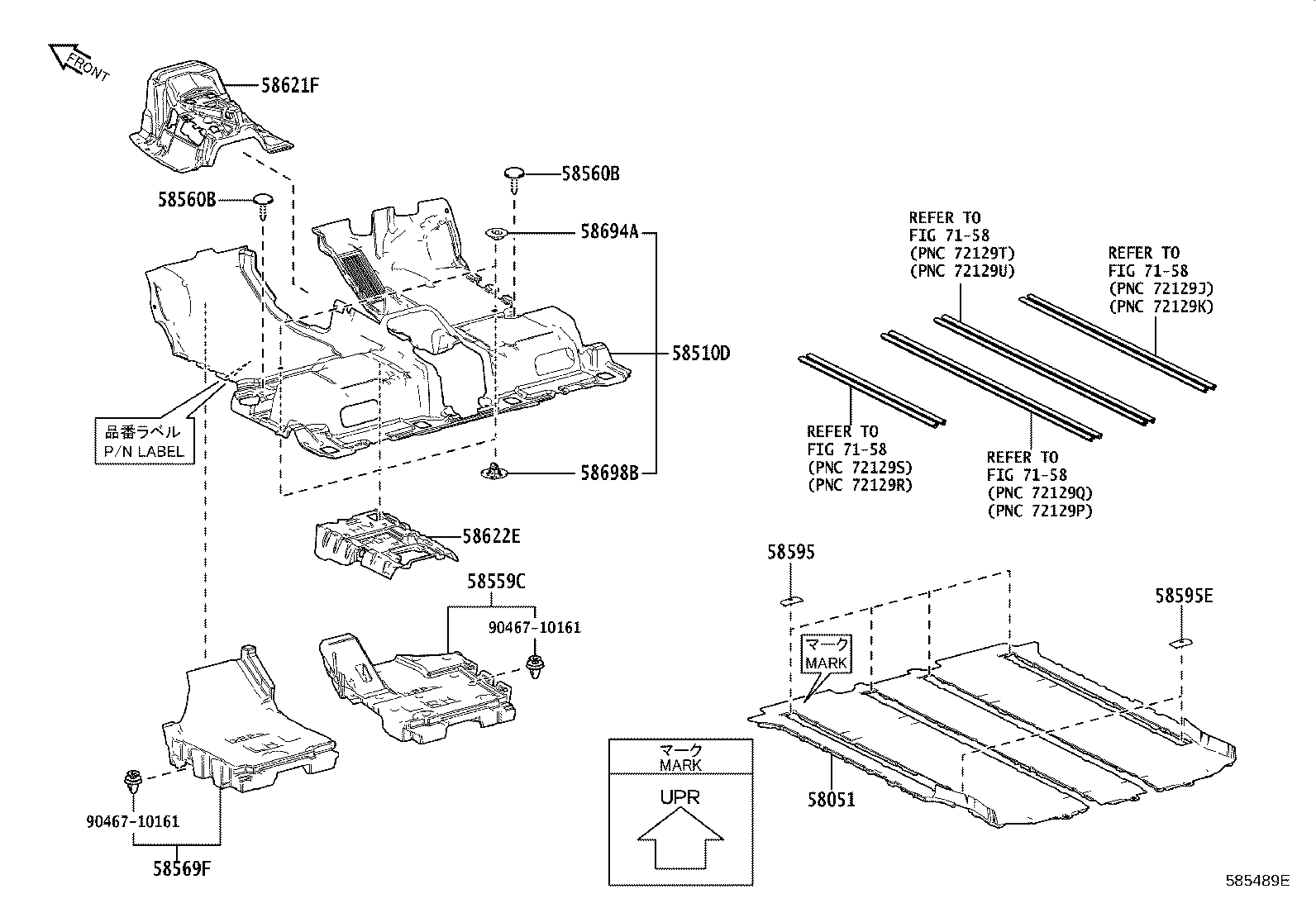

Figure 585489E

585489E 2015-01 → —

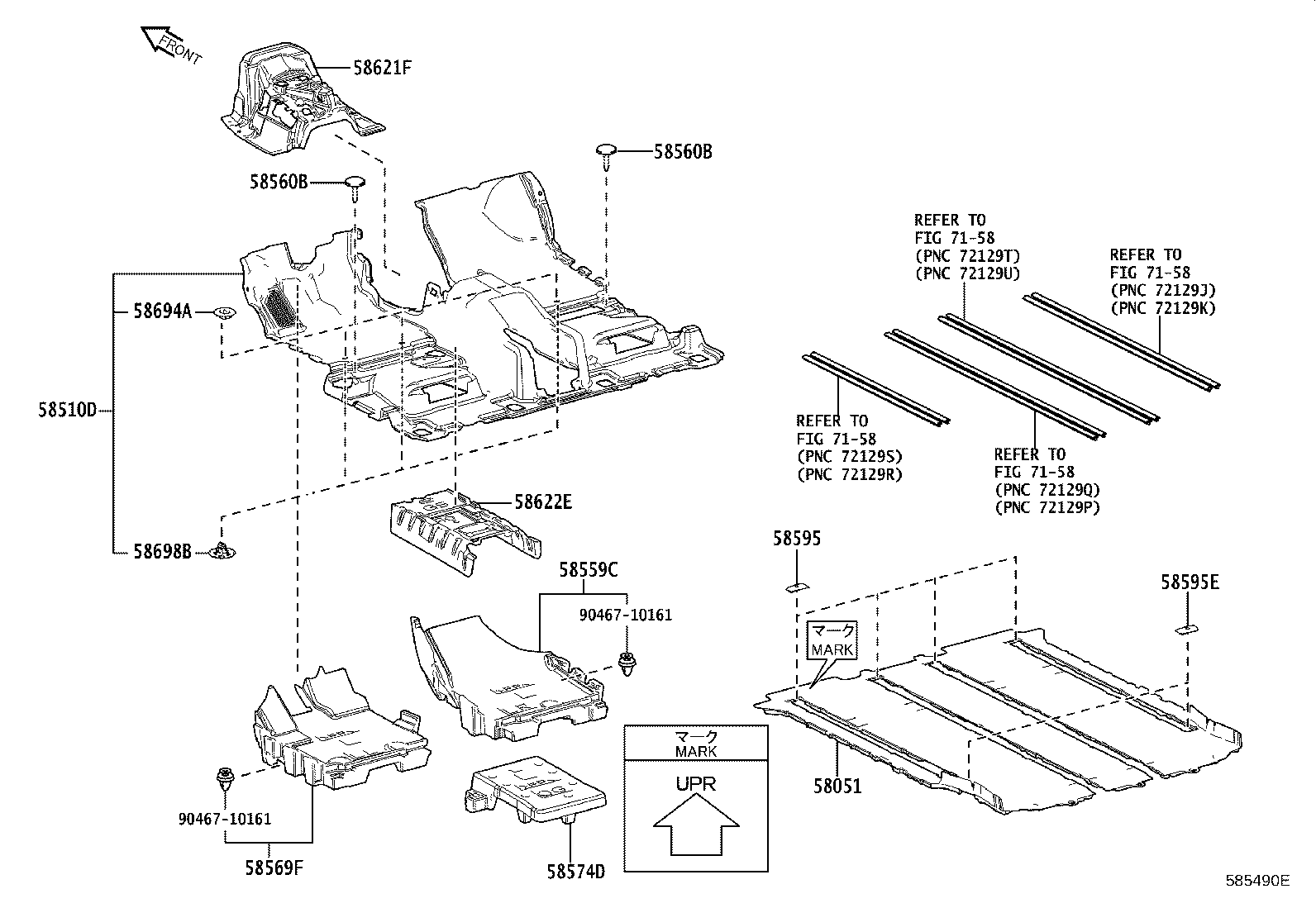

Figure 585490E

585490E 2015-01 → —

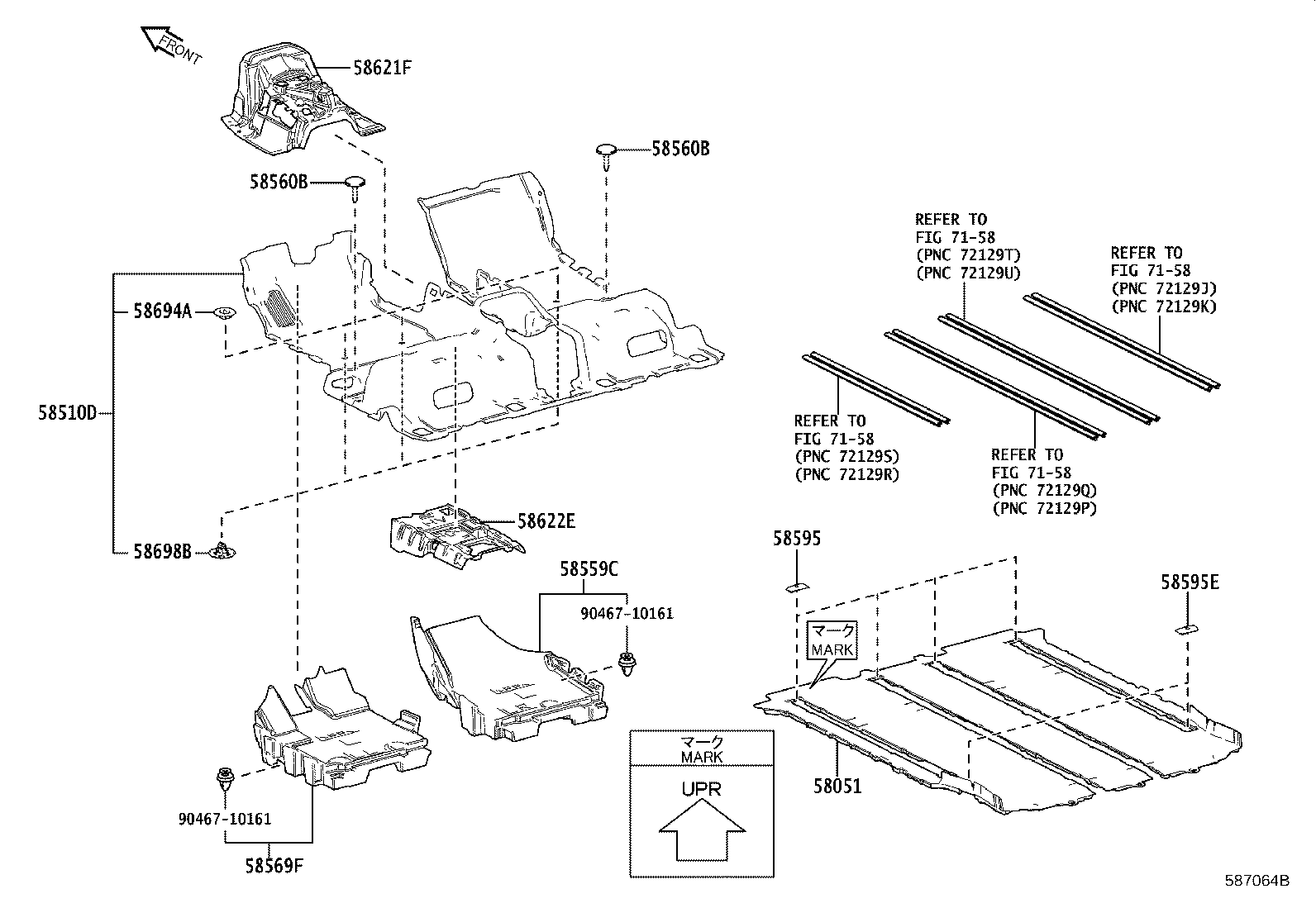

Figure 587064B

587064B 2019-05 → —

Part groups

PNC	Description
58051	Mat Set, Floor
58510D	Carpet Assy, Floor, Front
58540E	Mat Assy, Floor, Rear RH
58550B	Mat Assy, Floor, Rear LH
58559C	Pad, Front Floor Side, RH
58560B	Clip(FOR FLOOR CARPET, REAR)
58569F	Pad, Front Floor Side, LH
58573C	Pad, Front Floor Center
58574D	Pad, Front Floor, Center NO.2 RH
58595	Moulding, Floor Carpet, NO.3
58595C	Moulding, Floor Carpet, NO.1
58595E	Moulding, Floor Carpet, NO.4
58621F	Silencer, Center Console, NO.1
58622E	Silencer, Center Console, NO.2
58694A	Plate, Mat Set, Upper
58698B	Plate, Mat Set, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
