Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05

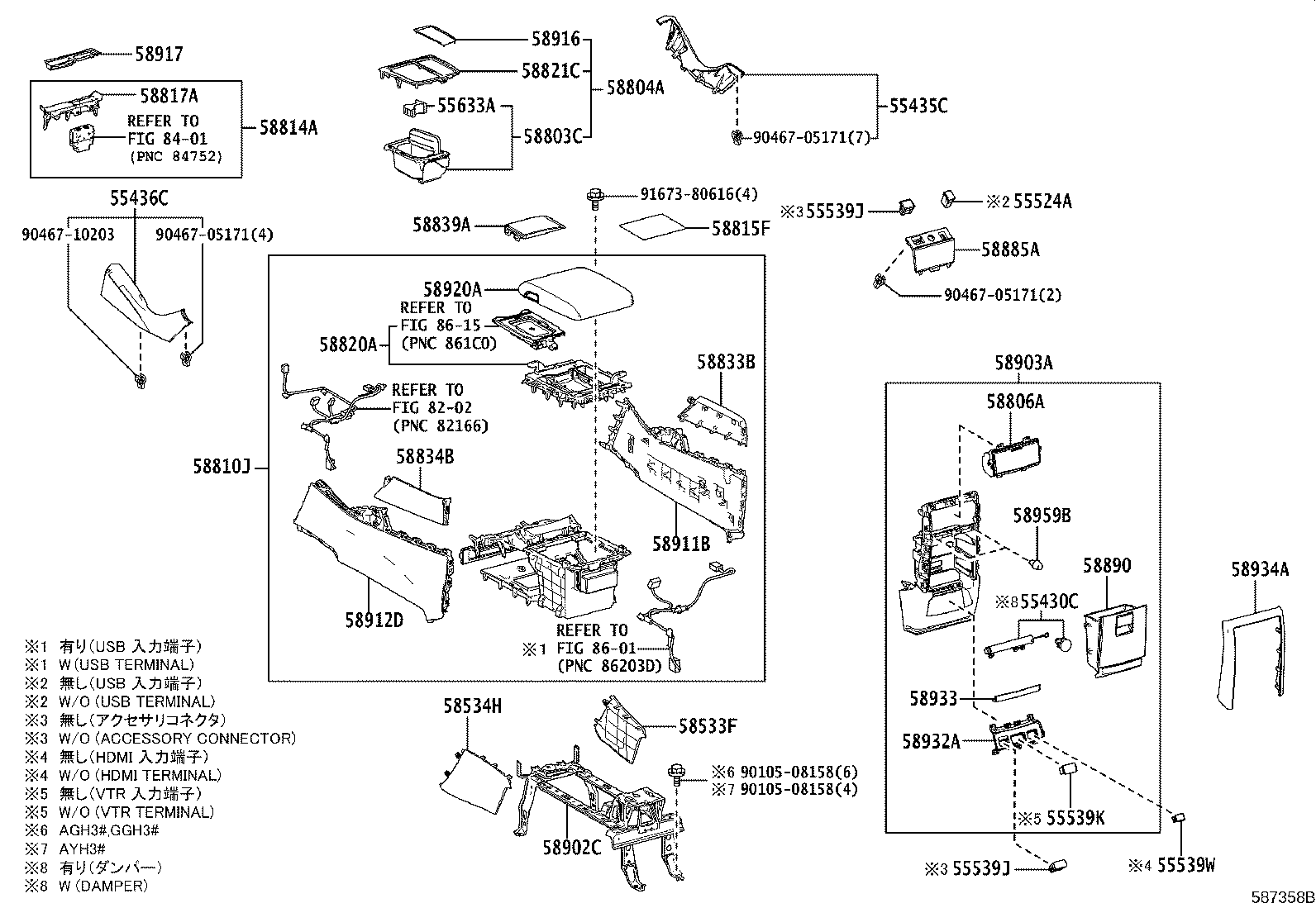

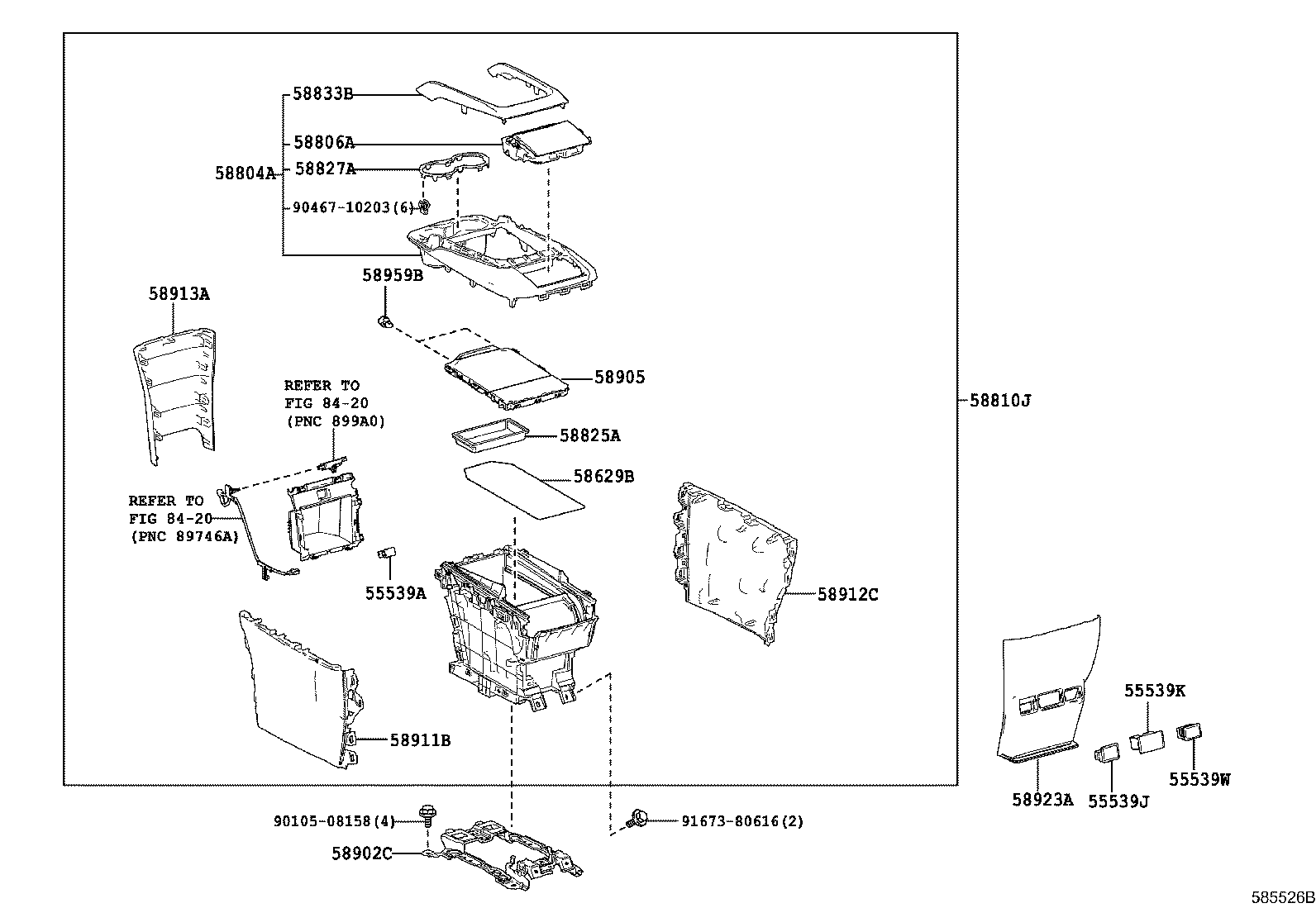

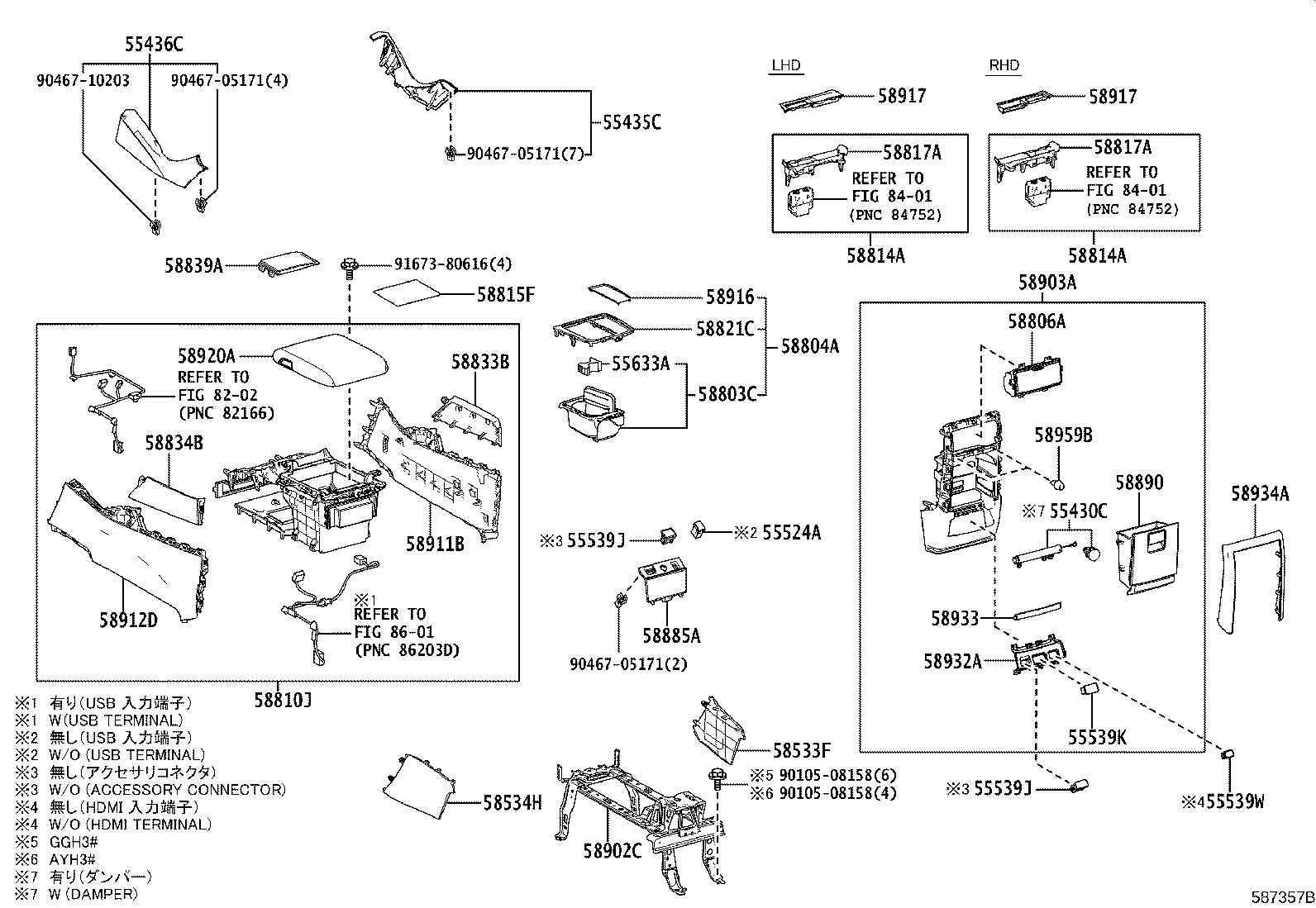

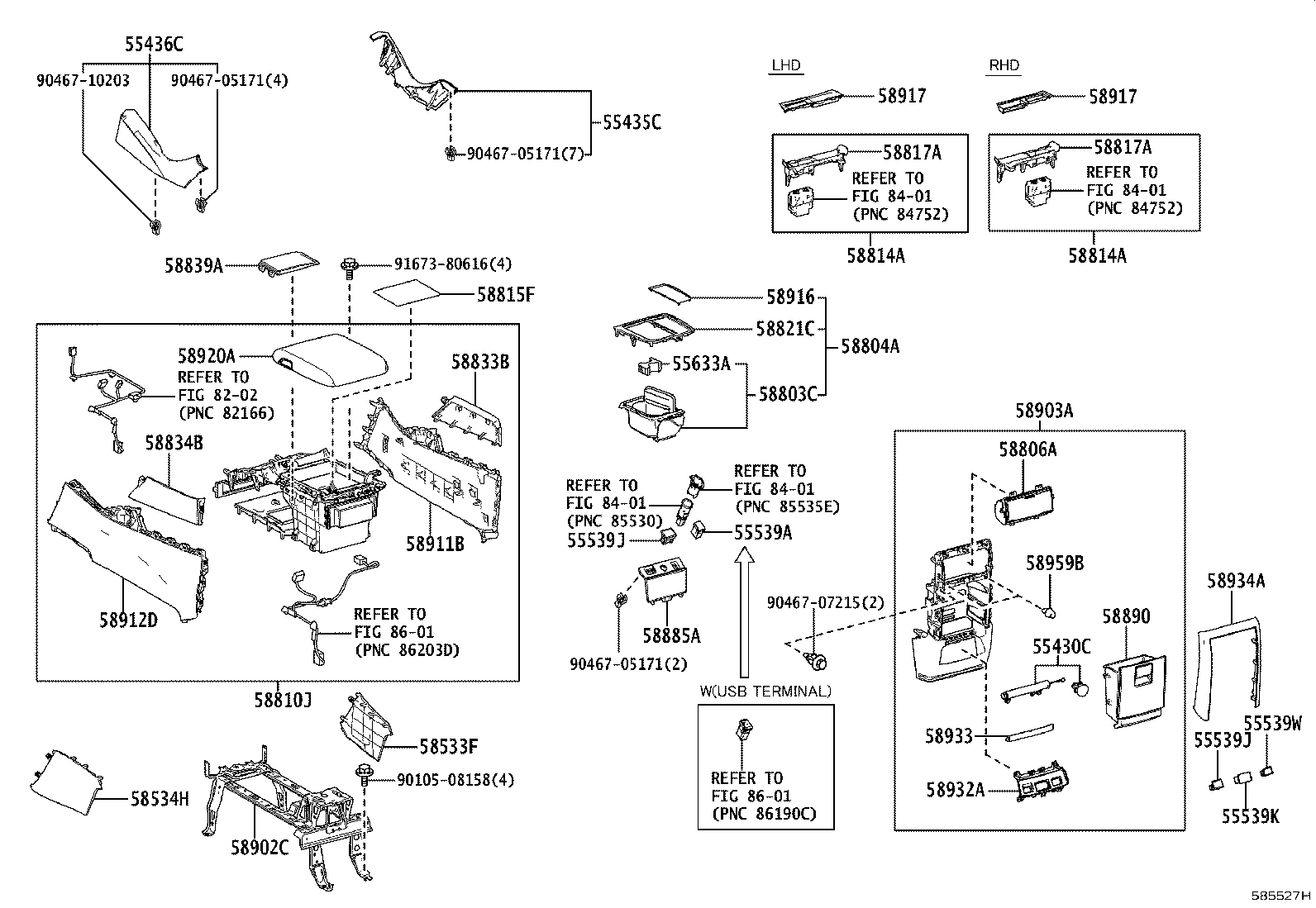

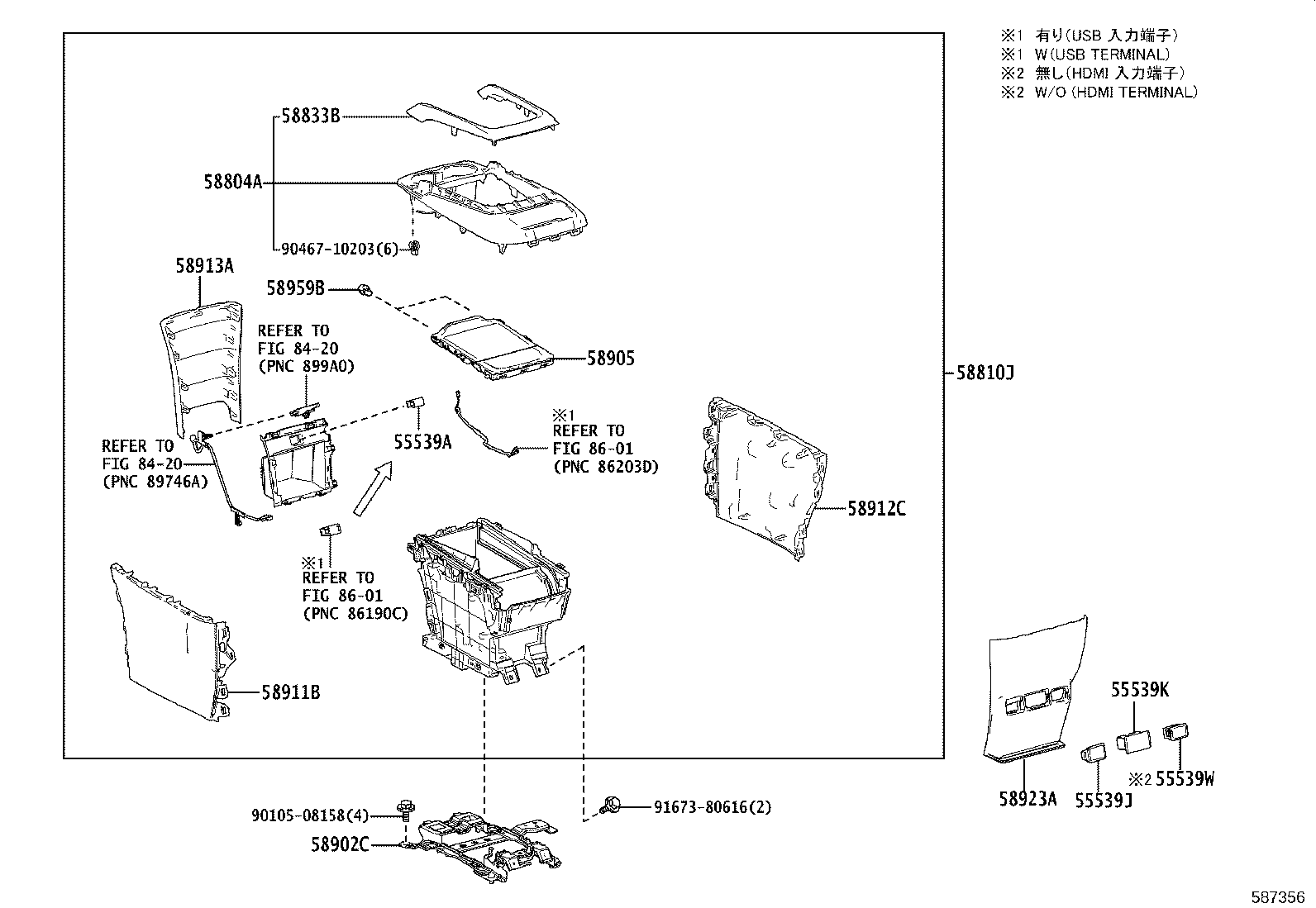

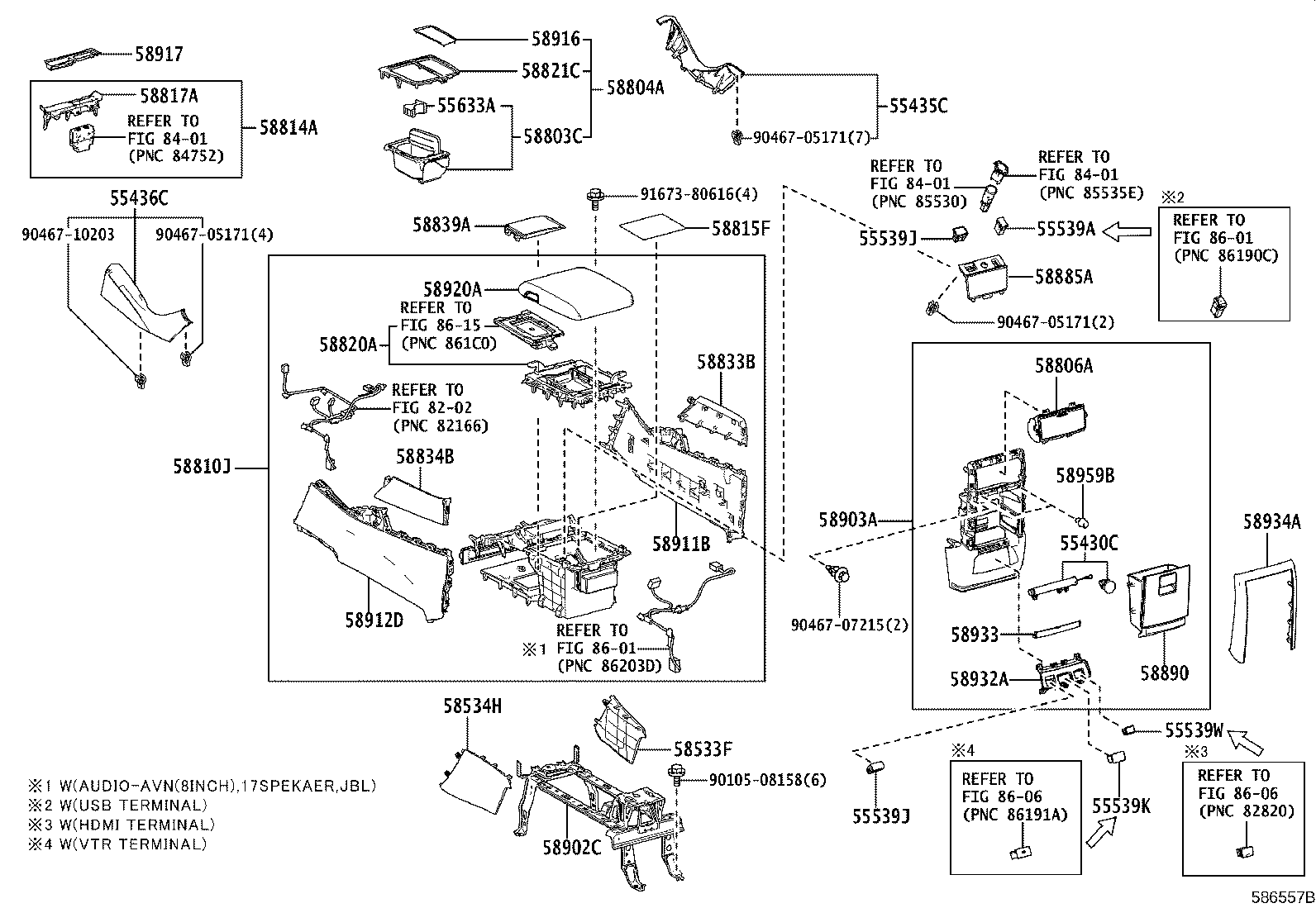

Console Box & Bracket

43 part groups · 9 illustrations

PNC	Description
55430C	Damper Assy, Instrument Cluster Finish Panel
55435C	Panel, Instrument Panel Finish, End RH
55436C	Panel, Instrument Panel Finish, End LH
55524A	Cover, Switch Base Hole
55539A	Cover, Spare Switch Hole
55539J	Cover, Spare Switch Hole
55539K	Cover, Spare Switch Hole
55539W	Cover, Spare Switch Hole
55633A	Support, Instrument Panel Cup Holder, NO.1
58533F	Cover, Floor Carpet, Center RH
58534H	Cover, Floor Carpet, Center LH
58629B	Mat, Center Console
58803C	Box Sub-assy, Console Cup Holder
58804A	Panel Sub-assy, Console, Upper
58806A	Pocket Sub-assy, Console Box
58810J	Box Assy, Console
58814A	Base, Console Upper Panel Power Seat Switch, NO.1
58815F	Carpet, Console Box
58817A	Insert, Console Box, Front NO.2
58820A	Box Assy, Console Compartment
58821C	Panel, Console, Upper
58825A	Pocket, Console Box
58827A	Garnish, Console Box Pocket
58833B	Garnish, Console Upper Panel, NO.1
58834B	Garnish, Console Upper Panel, NO.2
58839A	Cover, Console Box Hole
58885A	Panel, Equipment Set
58890	Box Assy, Trash
58902C	Bracket Sub-assy, Console Box Mounting
58903A	Panel Sub-assy, Console Rear End
58905	Door Sub-assy, Console Compartment
58911B	Panel, Box, NO.1
58912C	Panel, Box Side, NO.2
58912D	Panel, Box, NO.2
58913A	Panel, Box, NO.3
58916	Mat, Box Bottom
58917	Mat, Box Bottom, NO.2
58920A	Armrest Assy, Rear Console
58923A	Panel, Console Rear End
58932A	Garnish, Rear Console Box
58933	Garnish, Console Rear End Panel
58934A	Garnish, Console Rear End Panel, NO.2
58959B	Cushion, Console Compartment Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
