Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

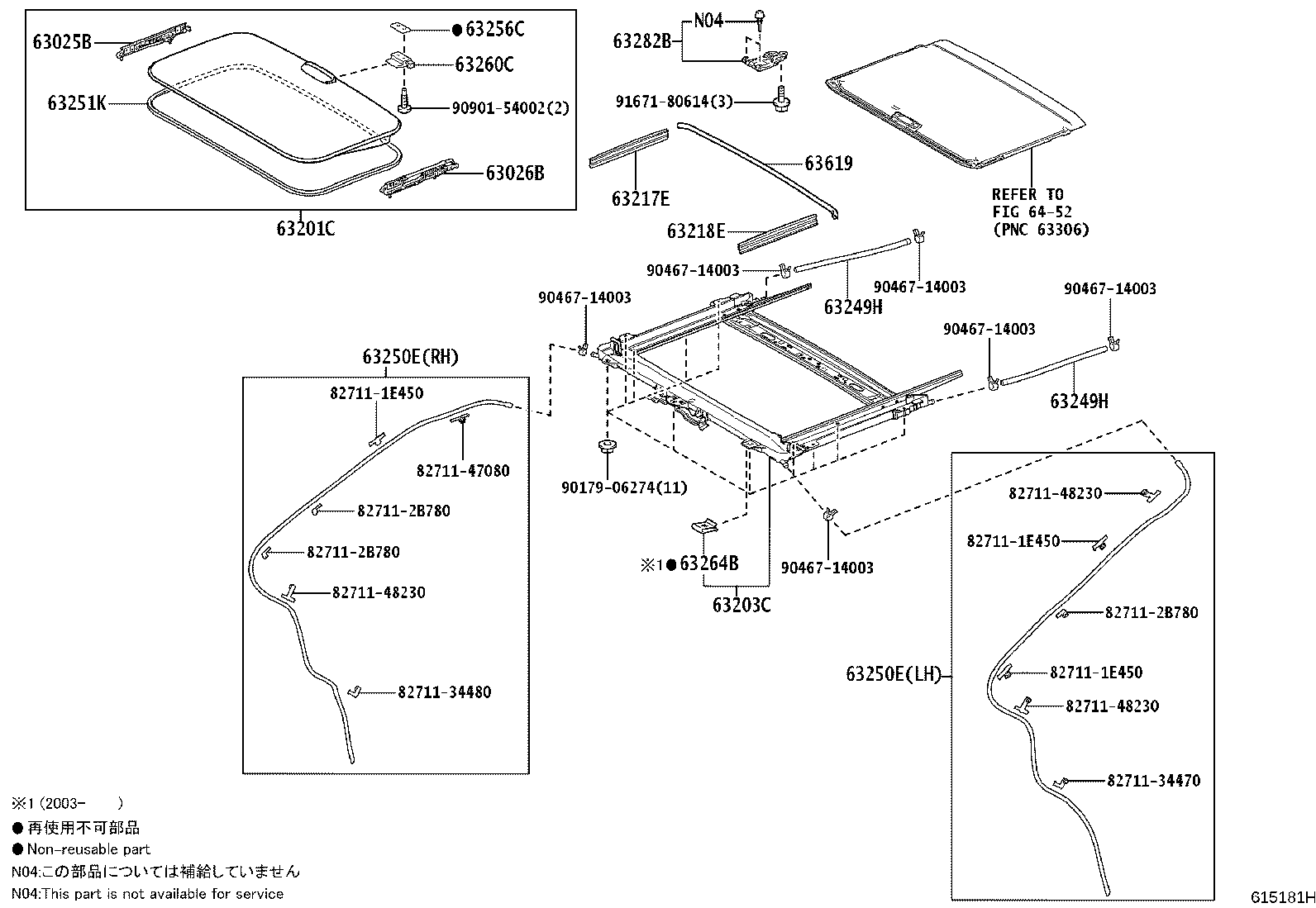

Roof Panel & Back Panel
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63025B | Link Sub-assy, Tilt Roof, RH |
| 63026B | Link Sub-assy, Tilt Roof, LH |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63132C | Panel, Windshield Header, Inner |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63203C | Housing Sub-assy, Tilt Roof |
| 63214F | Channel, Roof Drip, Rear |
| 63217E | Garnish, Sliding Roof, Front RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218E | Garnish, Sliding Roof, Front LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63242 | Bracket, Sliding Roof Housing, NO.1 |
| 63243B | Bracket, Removable Roof Housing Side Mounting, RH |
| 63244B | Bracket, Removable Roof Housing Side Mounting, LH |
| 63246A | Bracket, Removable Roof, NO.2 |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249H | Hose, Sliding Roof Drain |
| 63250E | Hose Assy, Tilt Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63251K | Weatherstrip, Tilt Roof |
| 63256C | Seal, Tilt Roof Glass |
| 63258E | Joint, Slide Roof Drain Hose, RH |
| 63259H | Joint, Slide Roof Drain Hose, LH |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63260J | Gear Assy, Sliding Roof Drive |
| 63263C | Plate, Sliding Roof Lock Catch, RH |
| 63263D | Plate, Sliding Roof Lock Catch, LH |
| 63264B | Plate, Sliding Roof Lock Catch, LH |
| 63282B | Striker, Tilt Roof Lock |
| 63287E | Cap, Sliding Roof Housing Drain End, RH |
| 63288B | Cap, Sliding Roof Housing Drain End, LH |
| 63619 | Cover, Tilt Roof Panel |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63669A | Grommet, Sliding Roof Drain |
| 63801C | Glass Sub-assy, Rear Slide Roof |
| 63804C | Housing Sub-assy, Rear Slide Roof |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
