Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

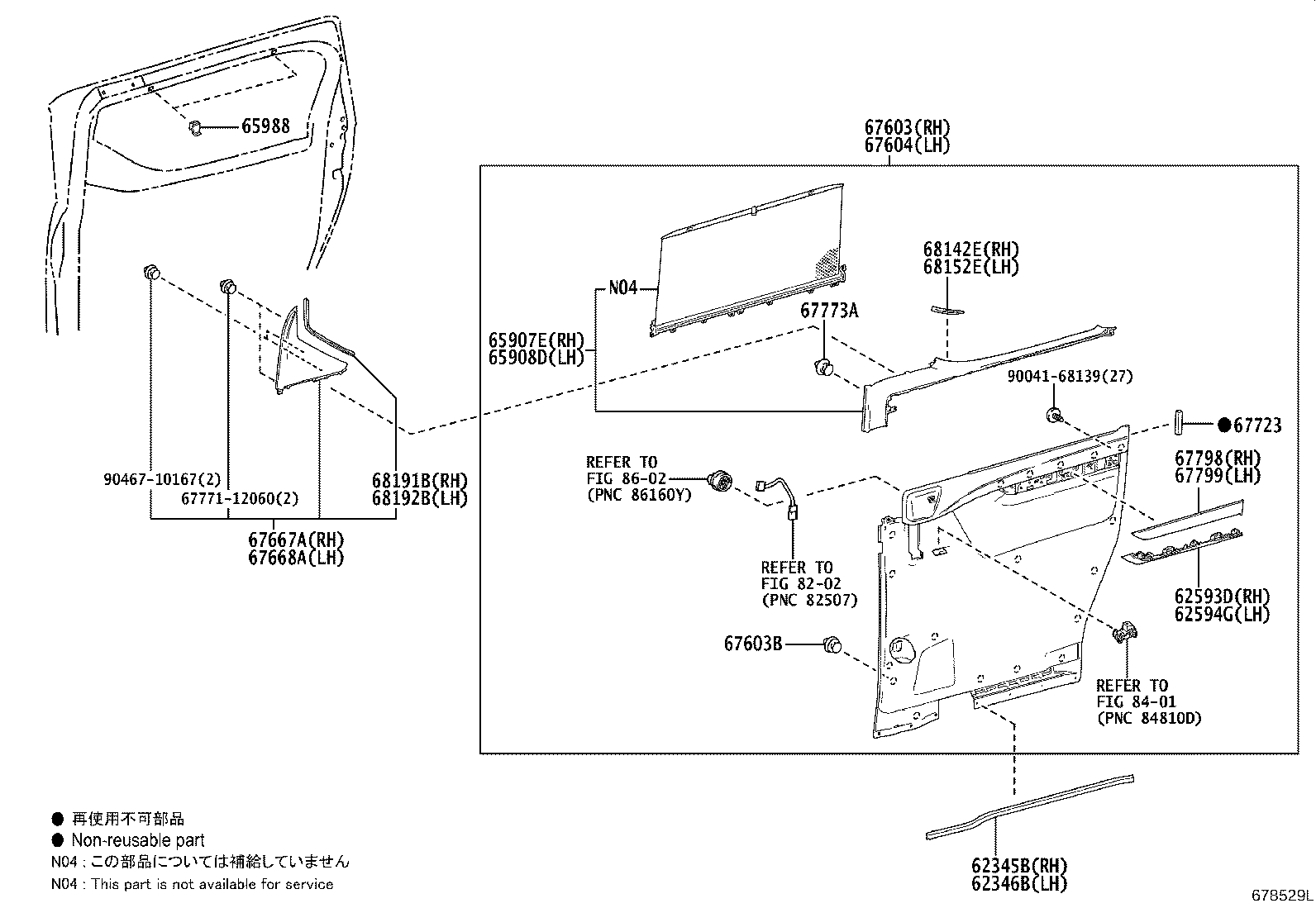

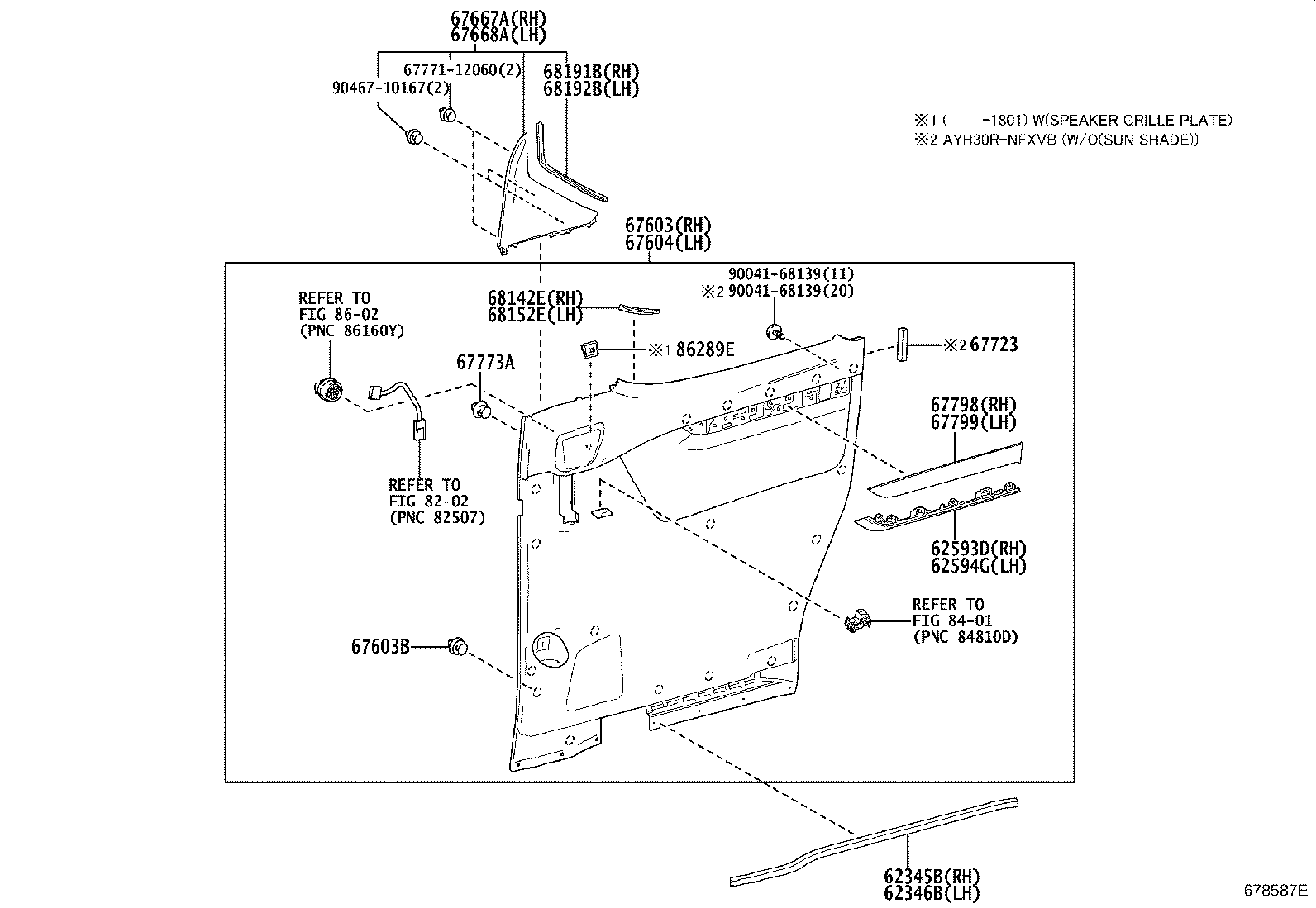

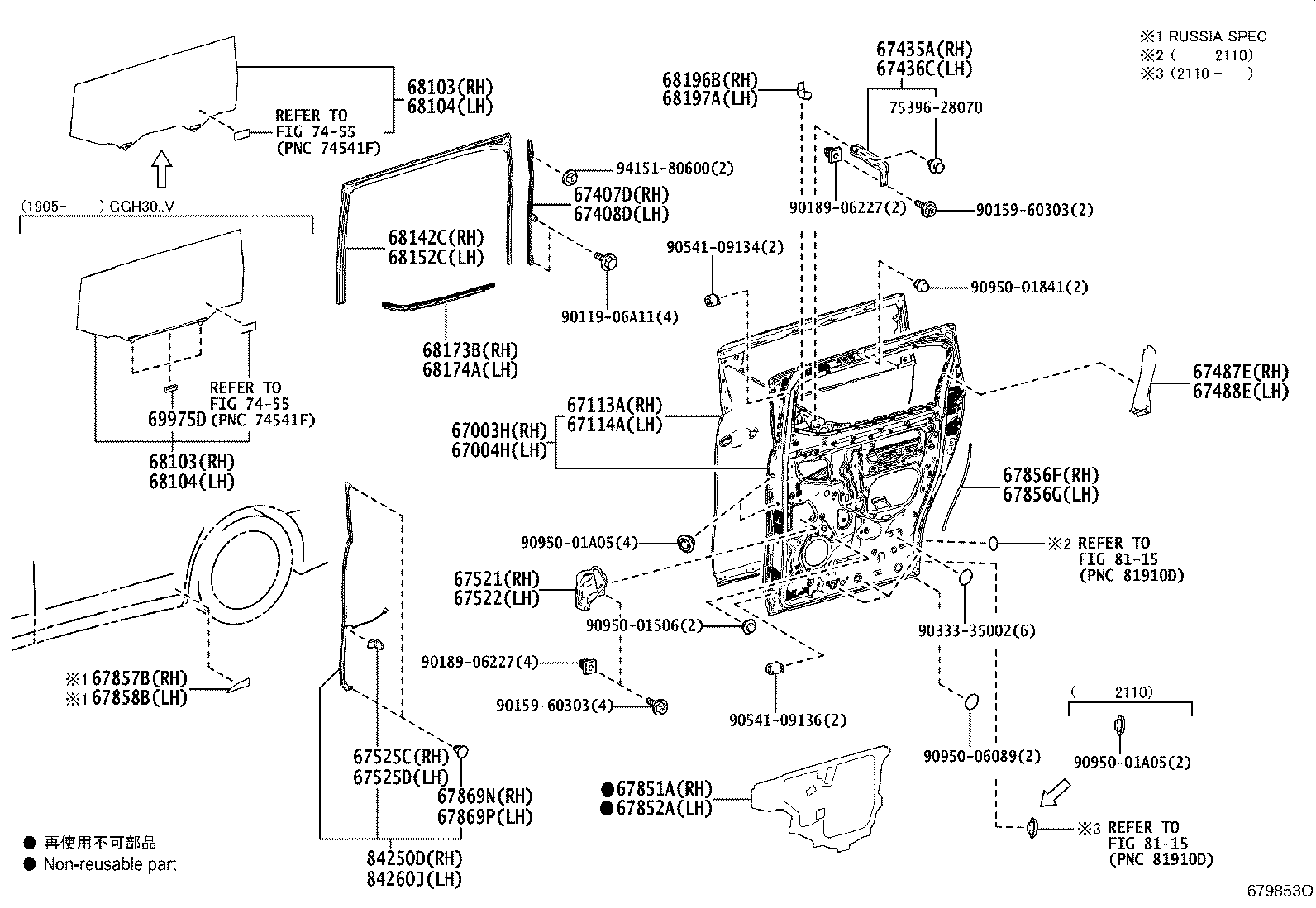

Rear Door Panel & Glass
54 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62345B | Weatherstrip, Slide Door, NO.3 RH |
| 62346B | Weatherstrip, Slide Door, NO.3 LH |
| 62593D | Plate, Side Trim Base, NO.3 |
| 62594G | Plate, Side Trim Base, NO.4 |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65988 | Hook, Sunshade |
| 67003H | Door Sub-assy, Slide, RH |
| 67004H | Door Sub-assy, Slide, LH |
| 67113A | Panel, Slide Door, Outer RH |
| 67114A | Panel, Slide Door, Outer LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67435A | Guide, Rear Door Window, Front RH |
| 67436C | Guide, Rear Door Window, Front LH |
| 67487E | Garnish, Rear Door Rear Guide Bracket, RH |
| 67488E | Garnish, Rear Door Rear Guide Bracket, LH |
| 67521 | Cover Sub-assy, Slide Door Panel, RH |
| 67522 | Cover Sub-assy, Slide Door Panel, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67723 | Pad, Rear Door Trim, Upper |
| 67773A | Clip, Rear Door Trim Upper Retainer, NO.1 |
| 67798 | Base, Door Trim Ornament, Rear NO.1 |
| 67799 | Base, Door Trim Ornament, Rear NO.2 |
| 67851A | Cover, Slide Door Service Hole, NO.1 |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67856F | Weatherstrip, Center Door, Rear RH |
| 67856G | Weatherstrip, Center Door, Rear LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67869N | Clip, Rear Door Weatherstrip, RH |
| 67869P | Clip, Rear Door Weatherstrip, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68142E | Run, Slide Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68152E | Run, Slide Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 69975D | Filler, Rear Door Glass Channal |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
| 86289E | Plate, Speaker Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
