Front Seat & Seat Track

164 part groups · 32 illustrations

Illustrations

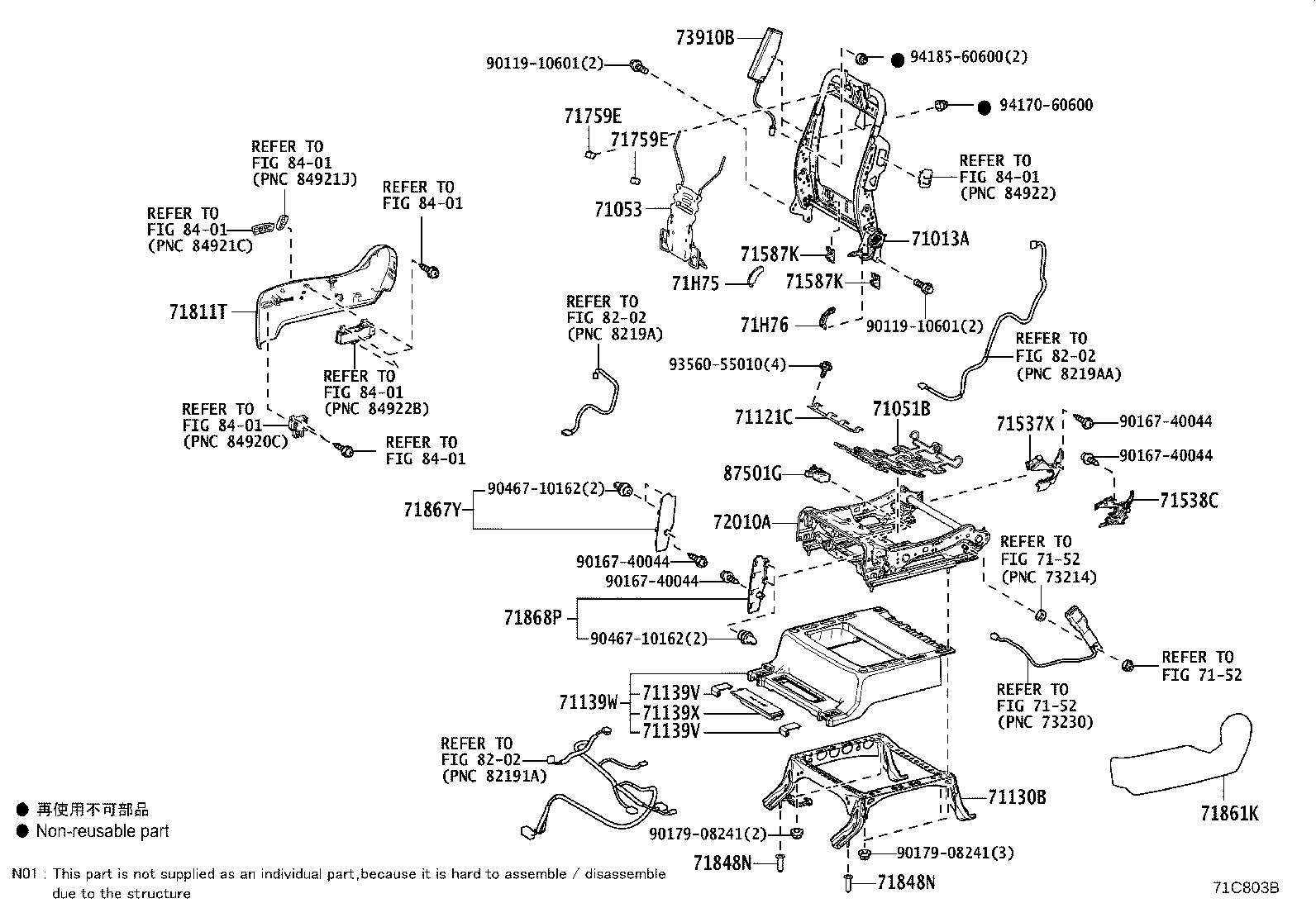

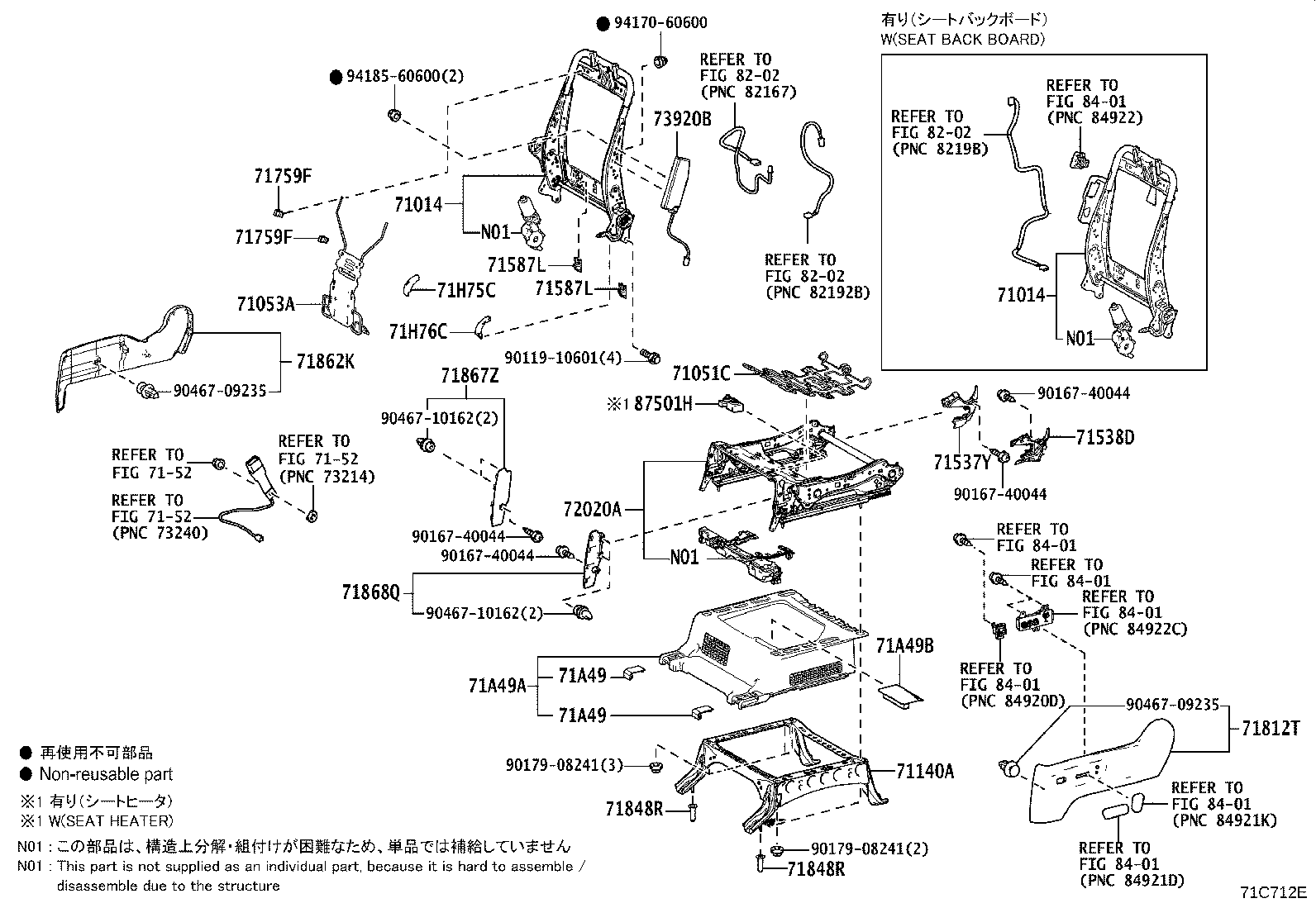

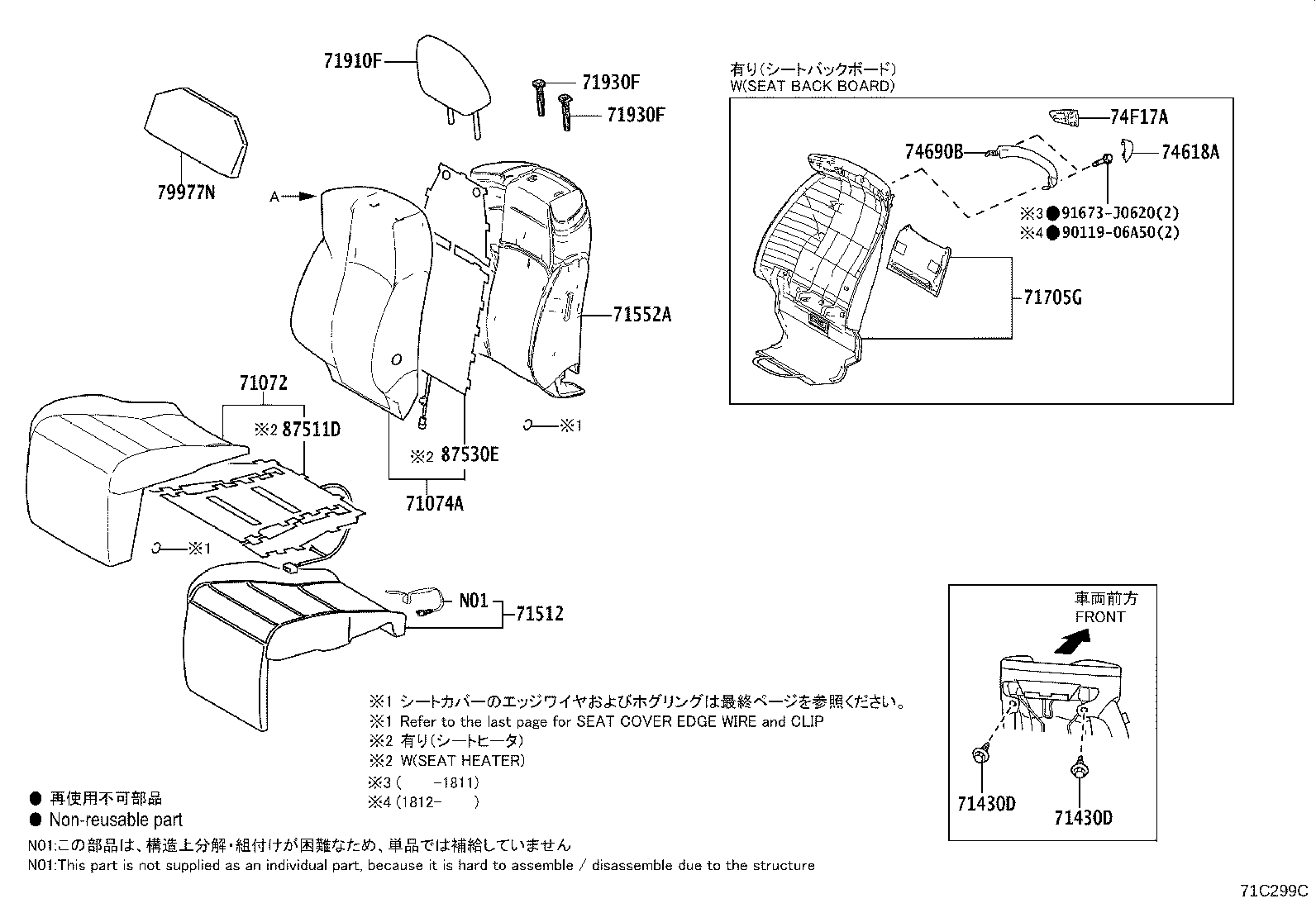

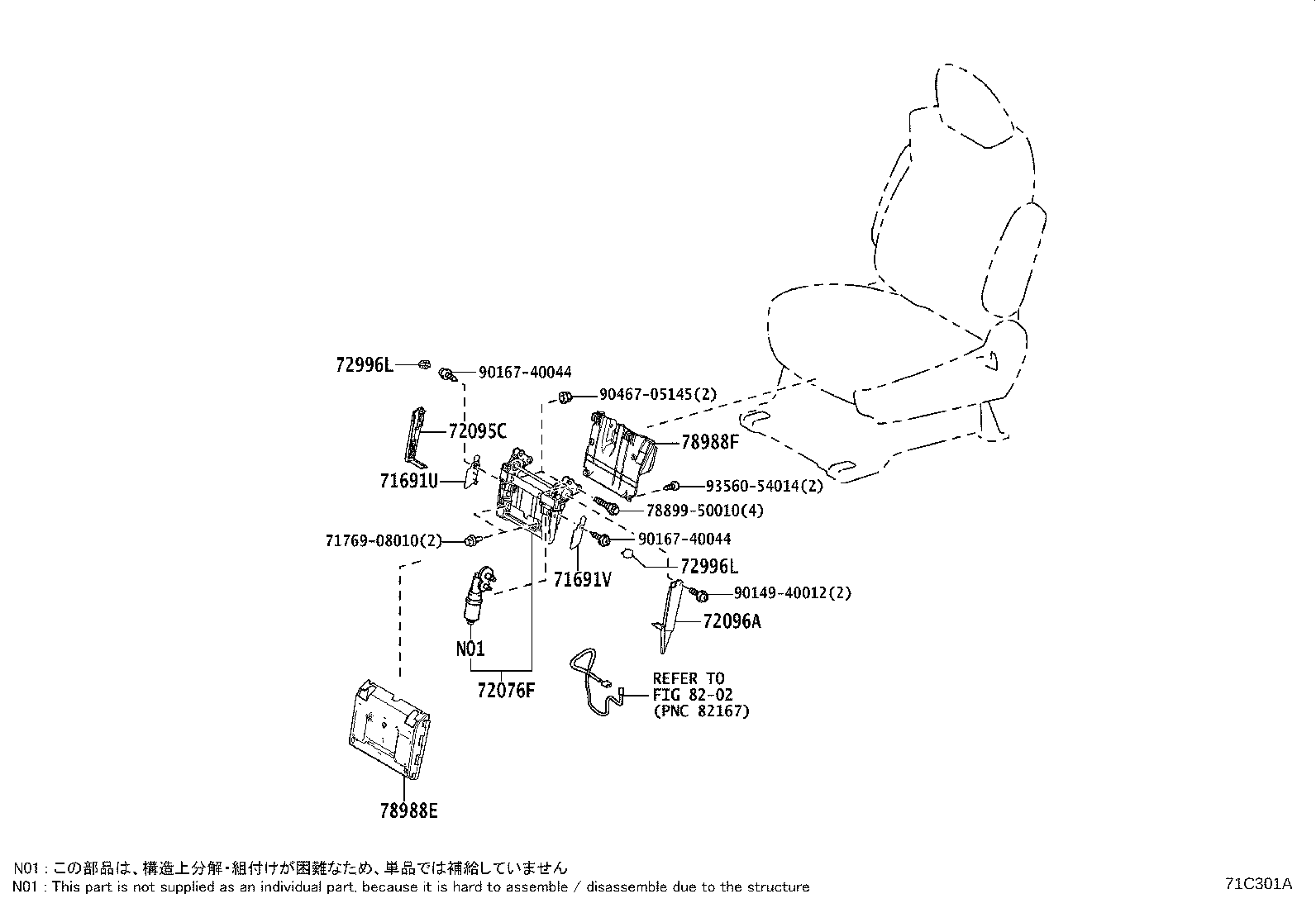

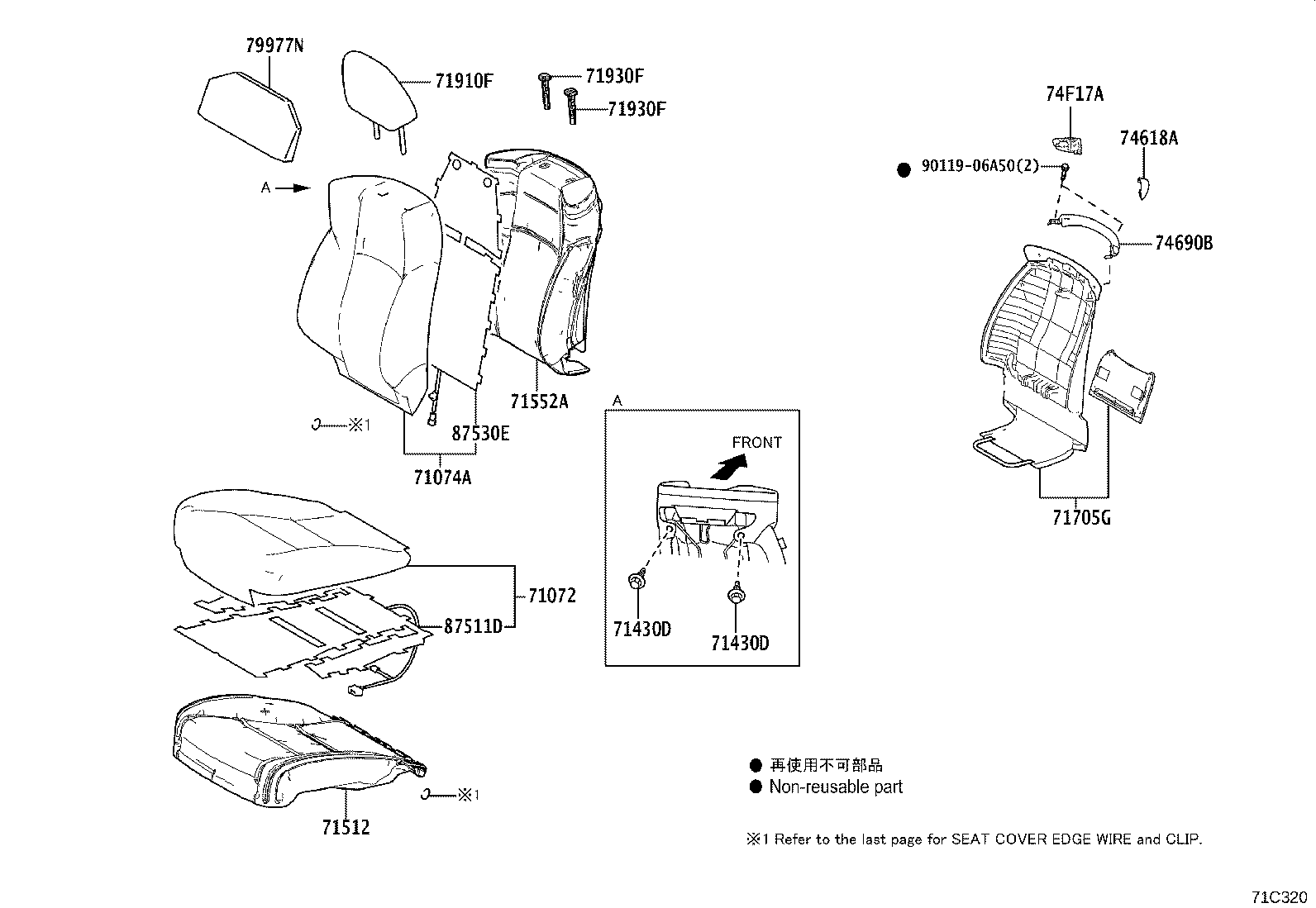

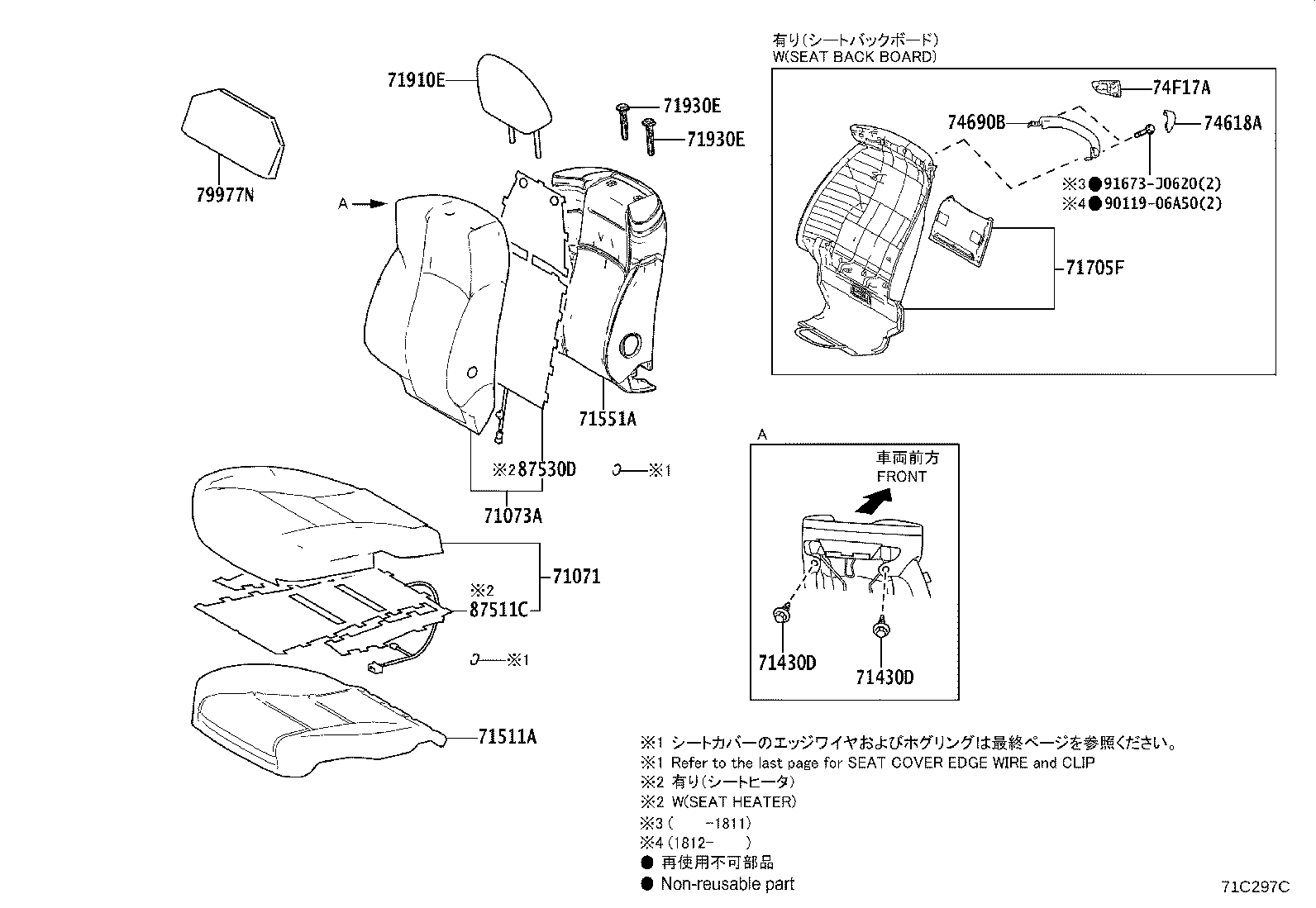

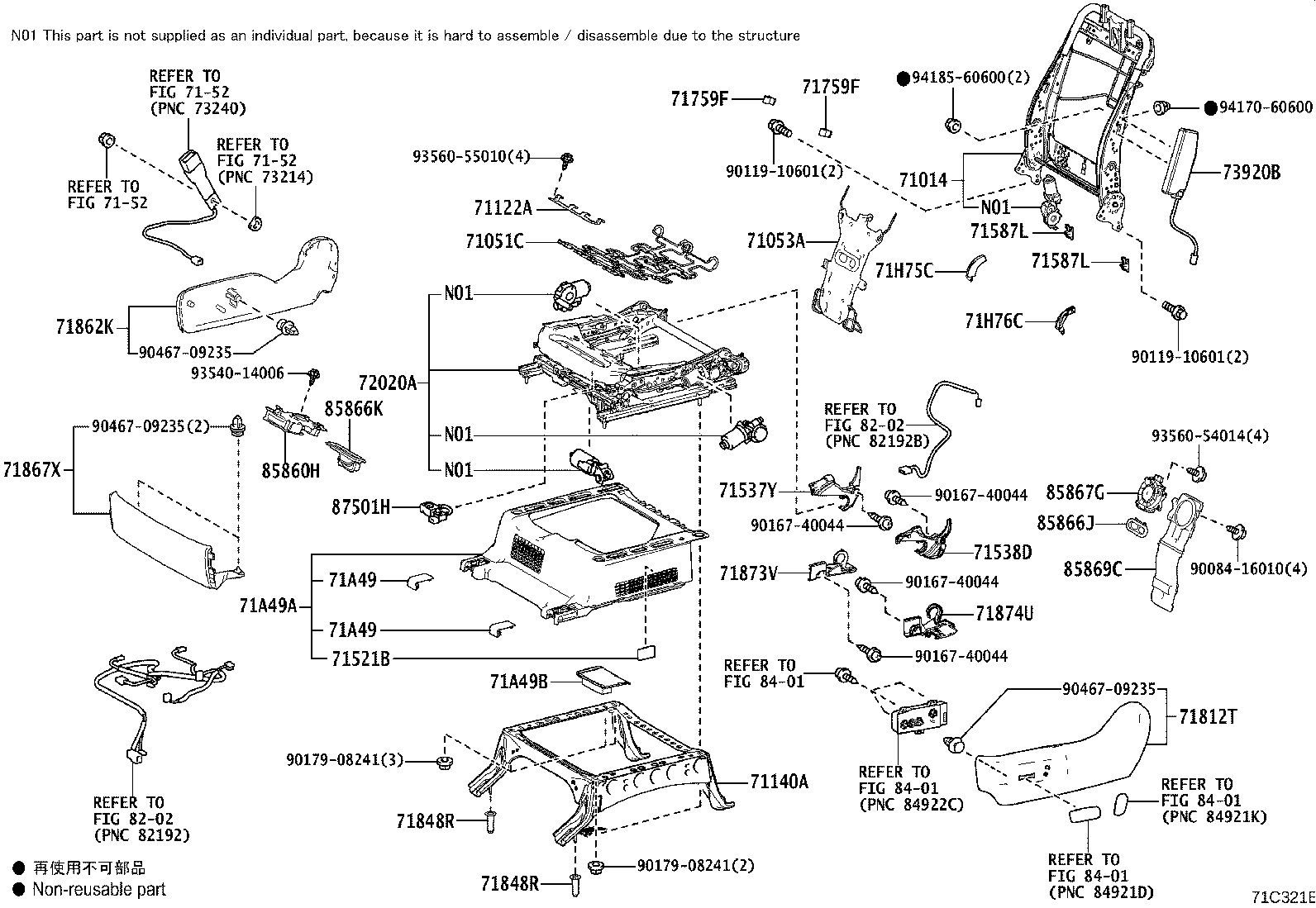

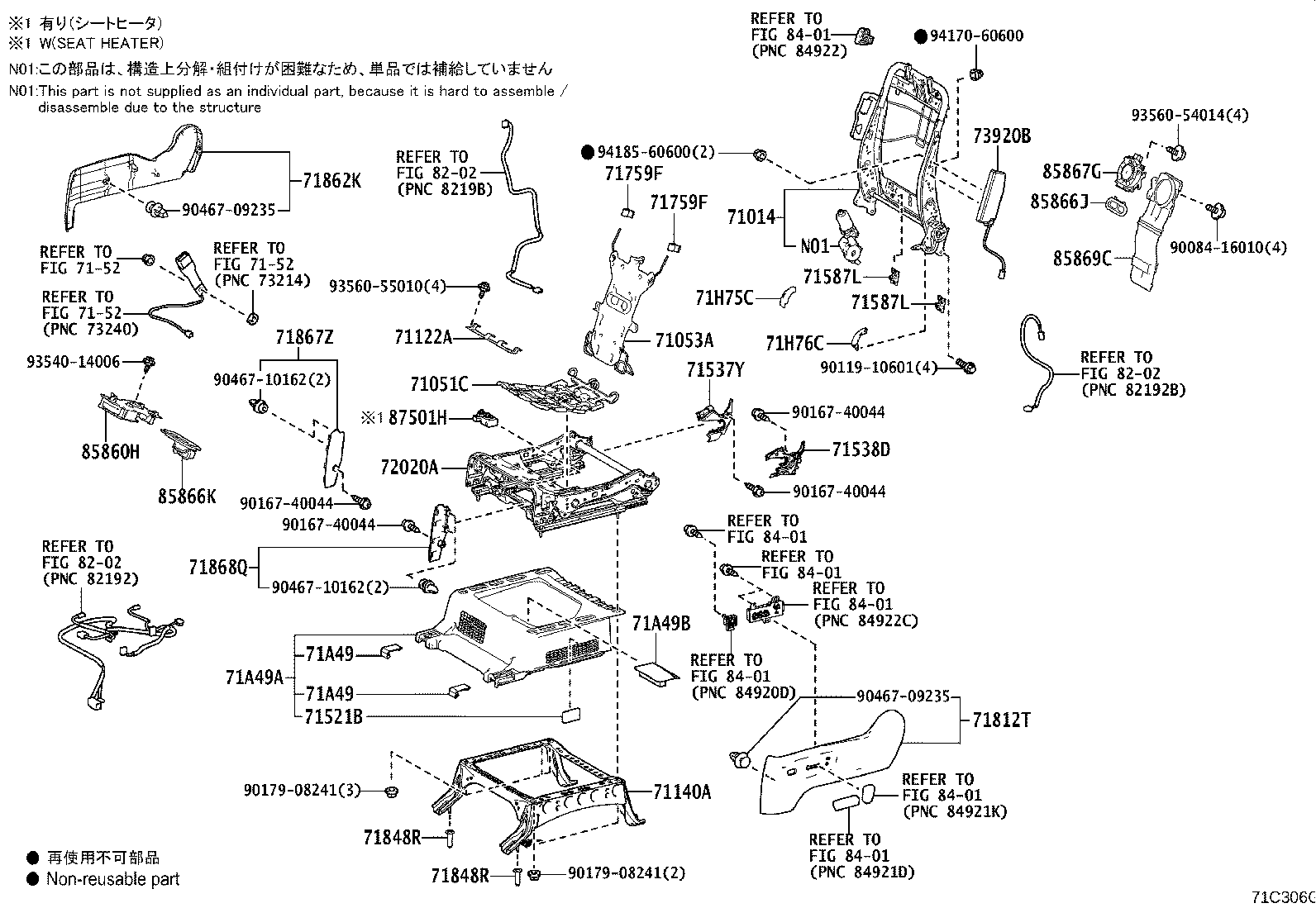

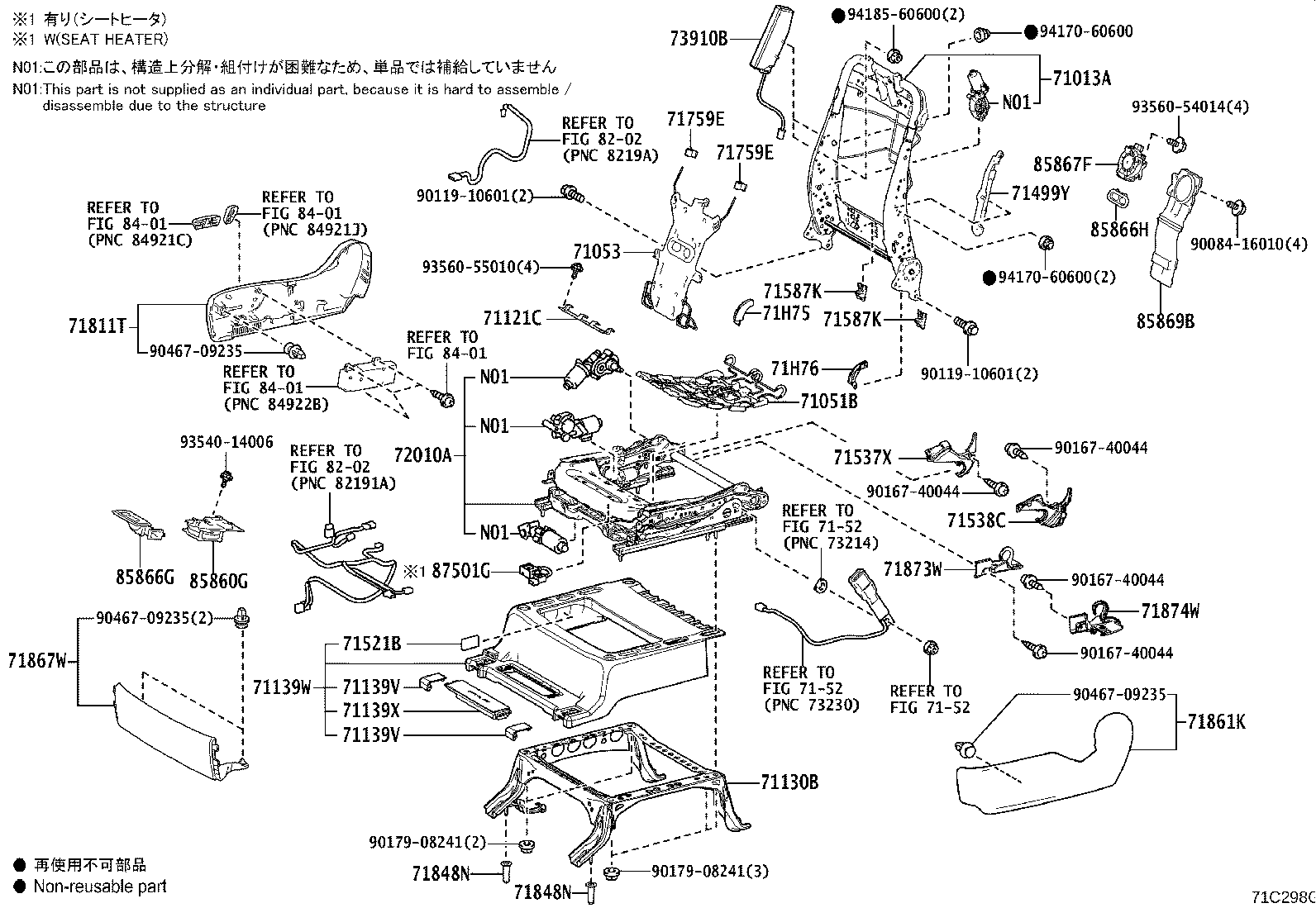

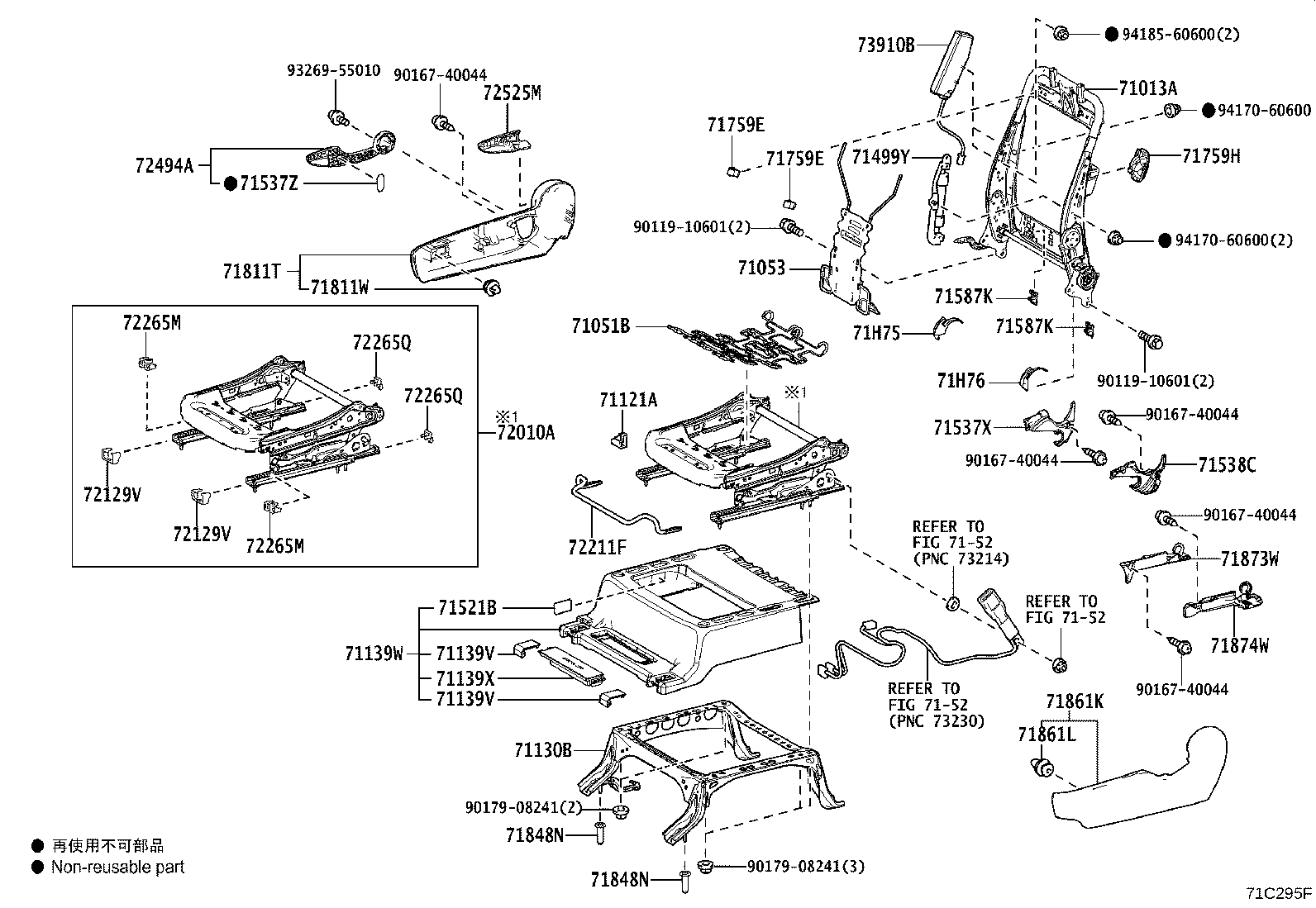

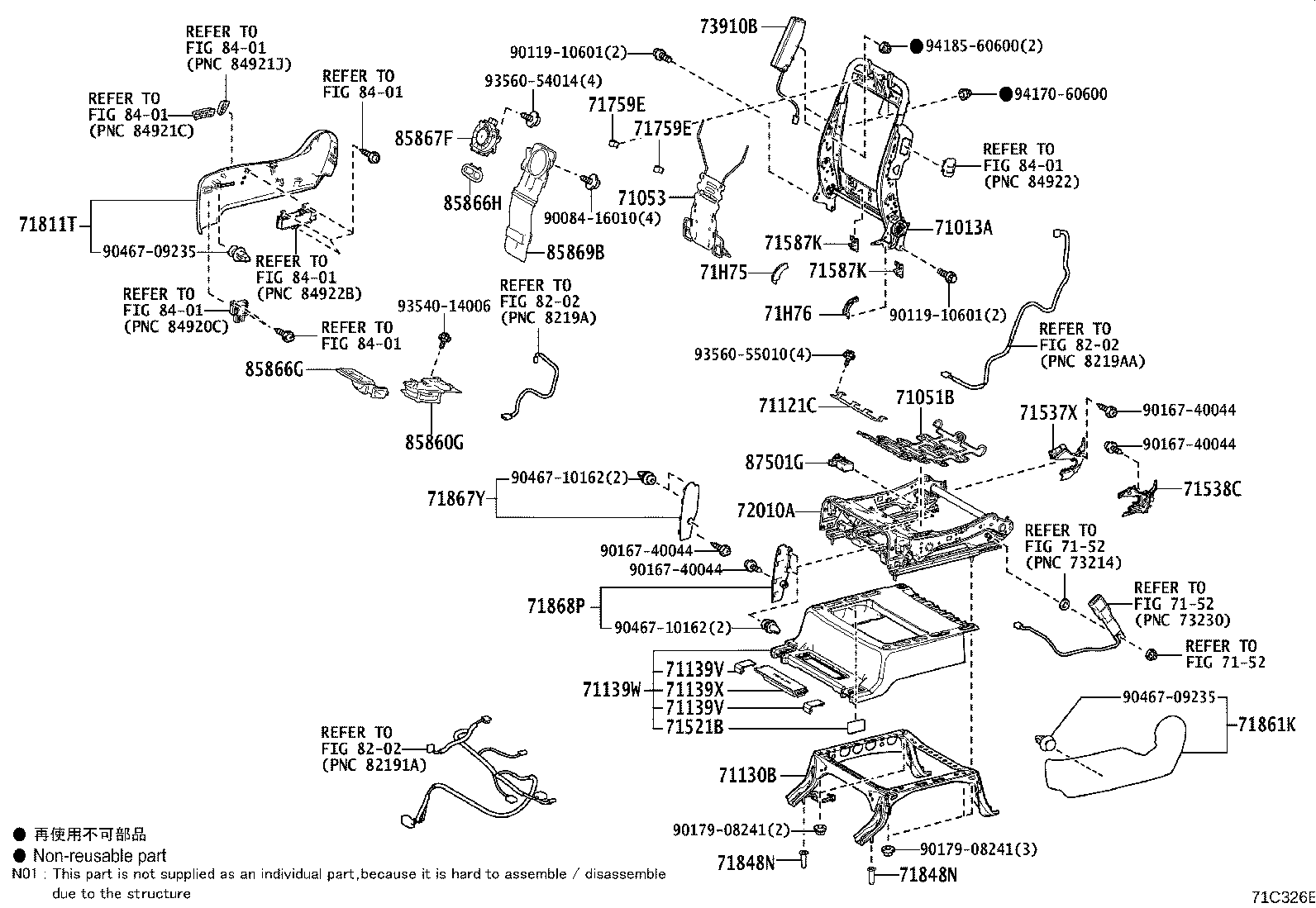

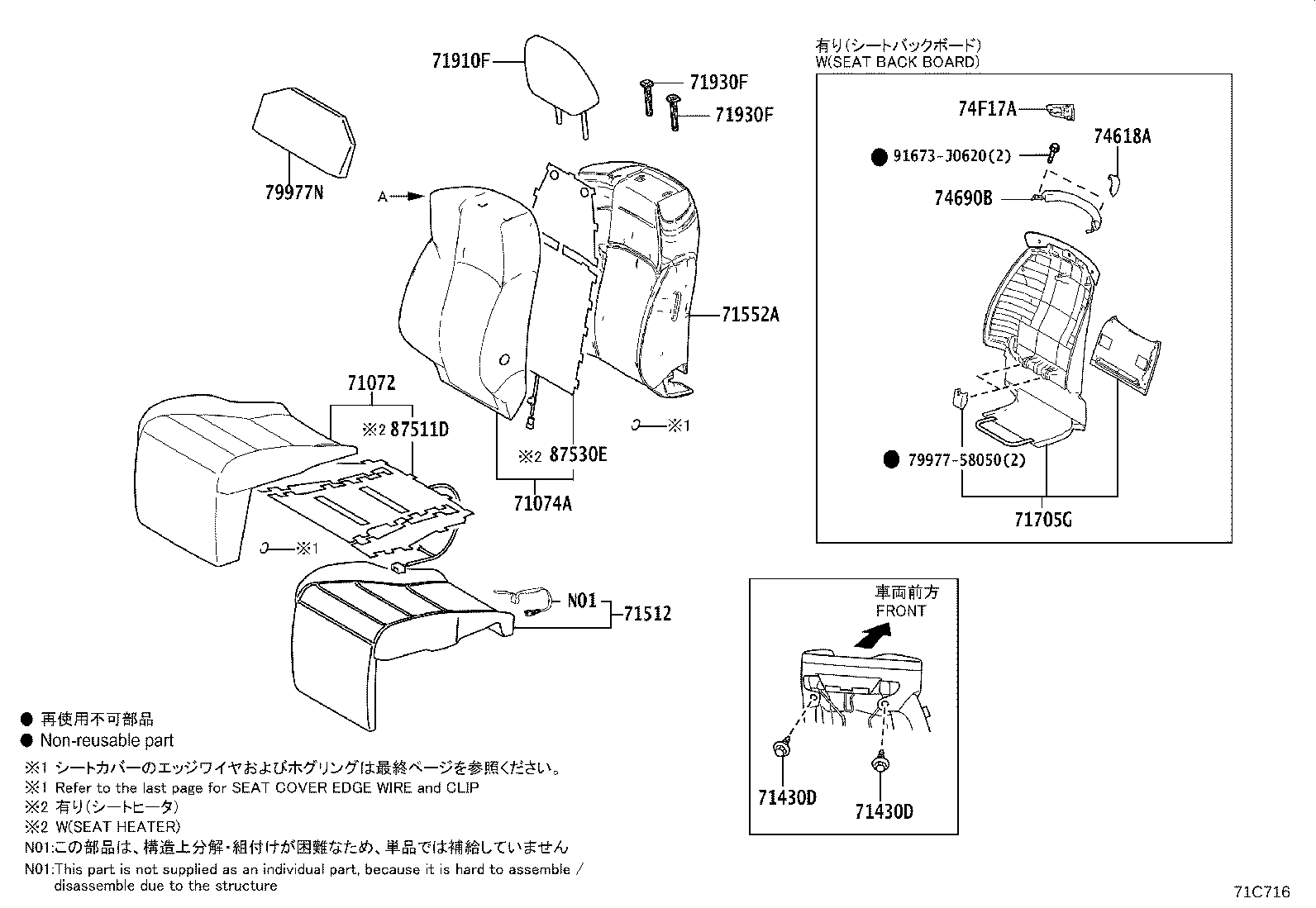

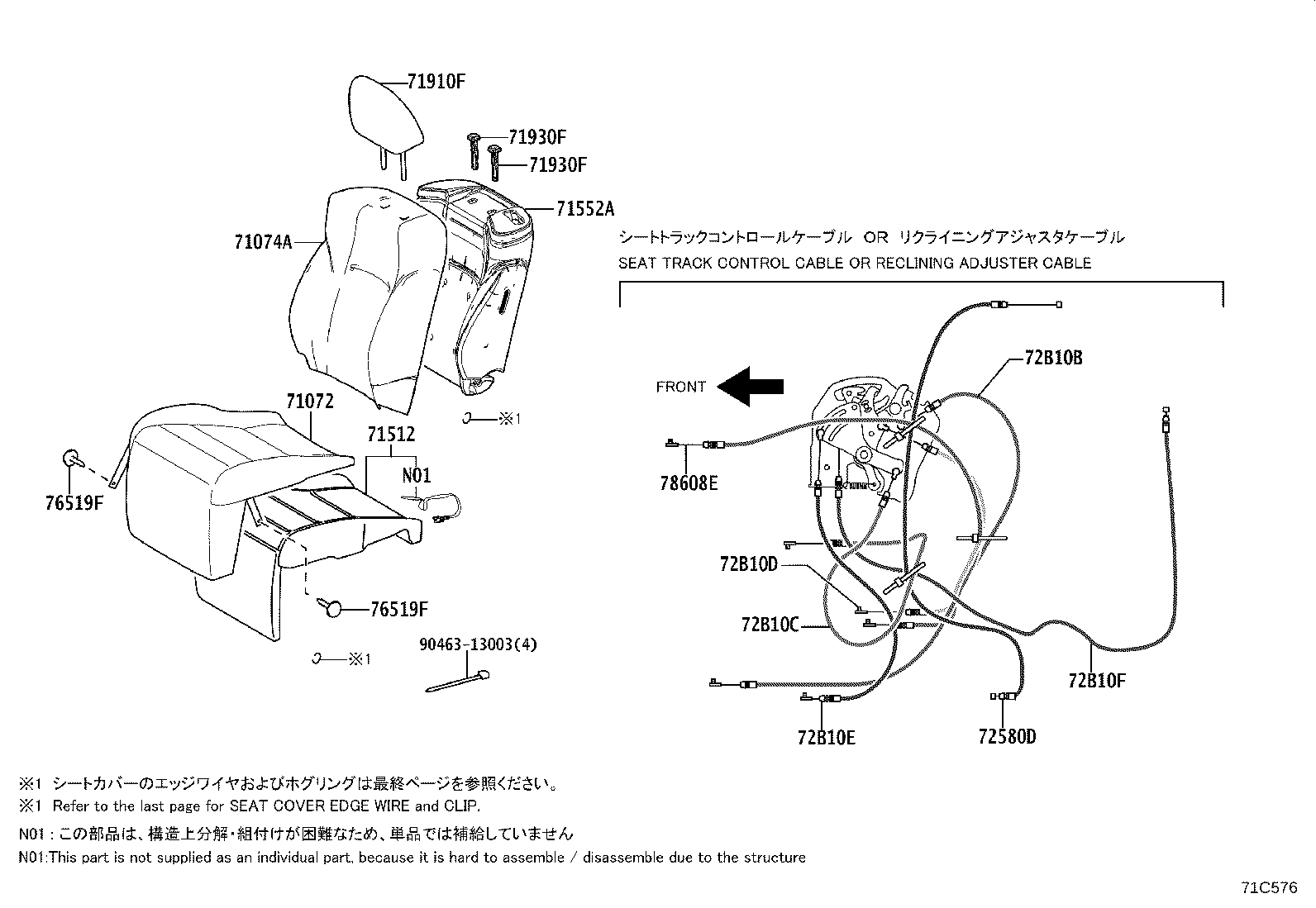

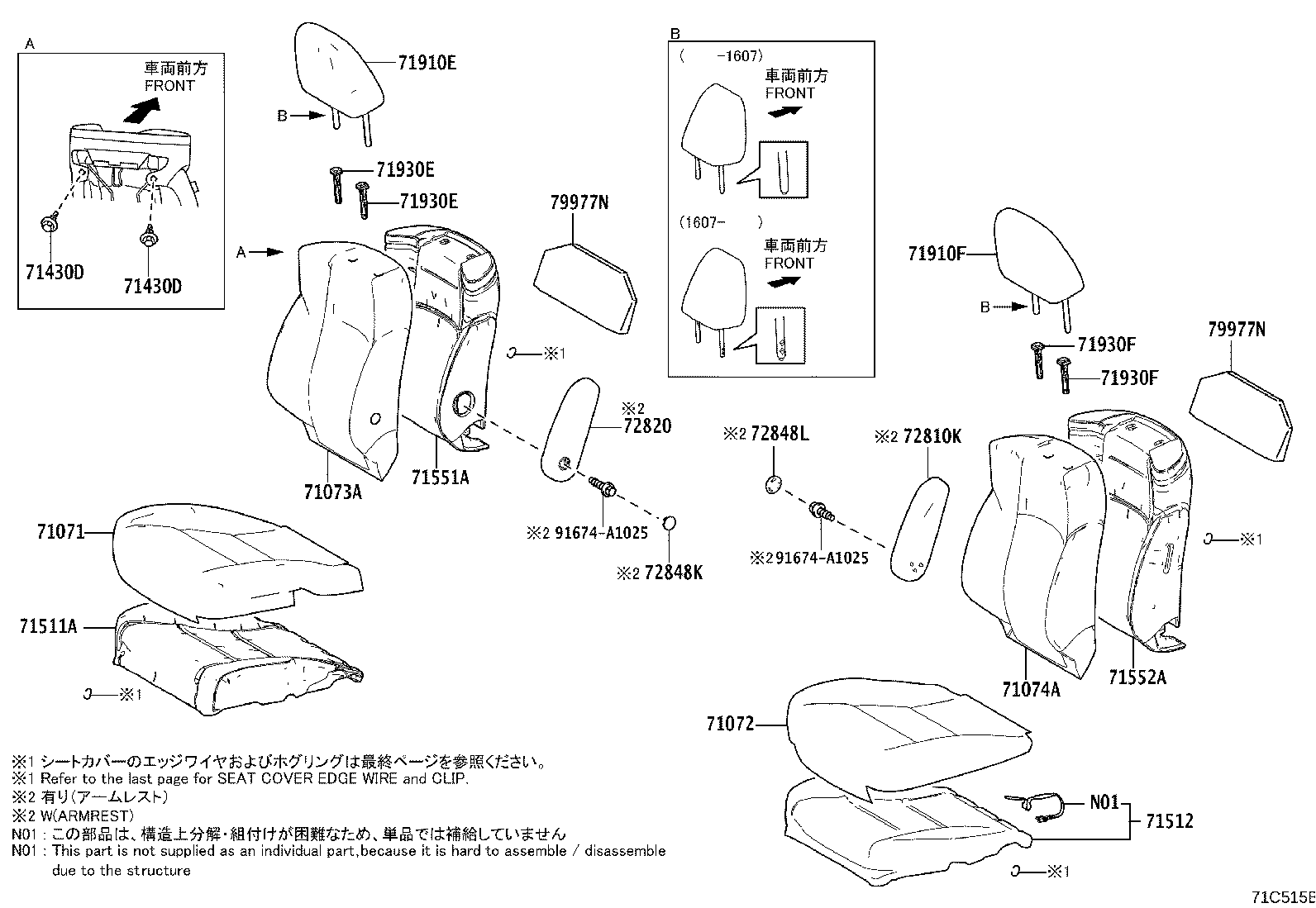

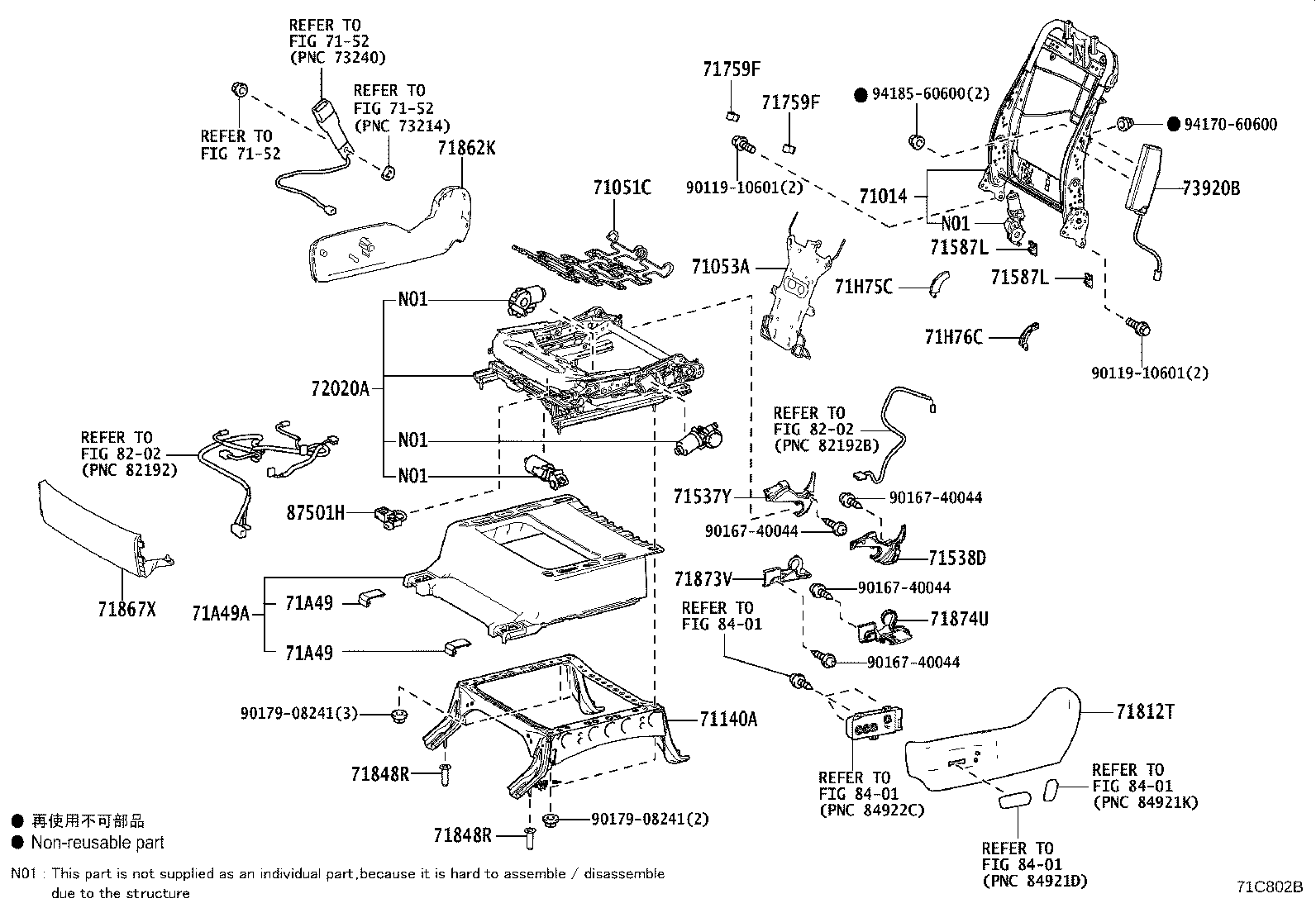

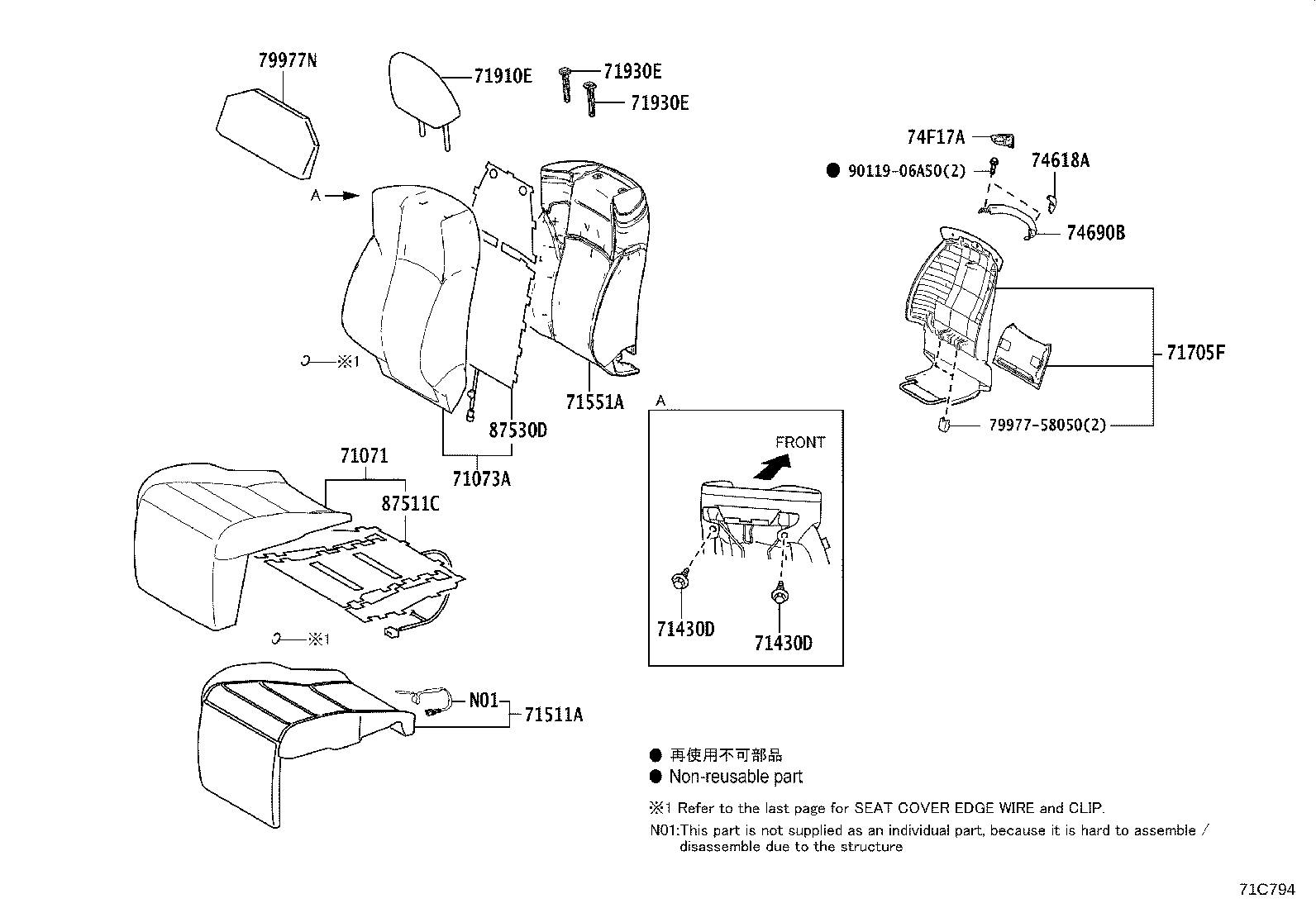

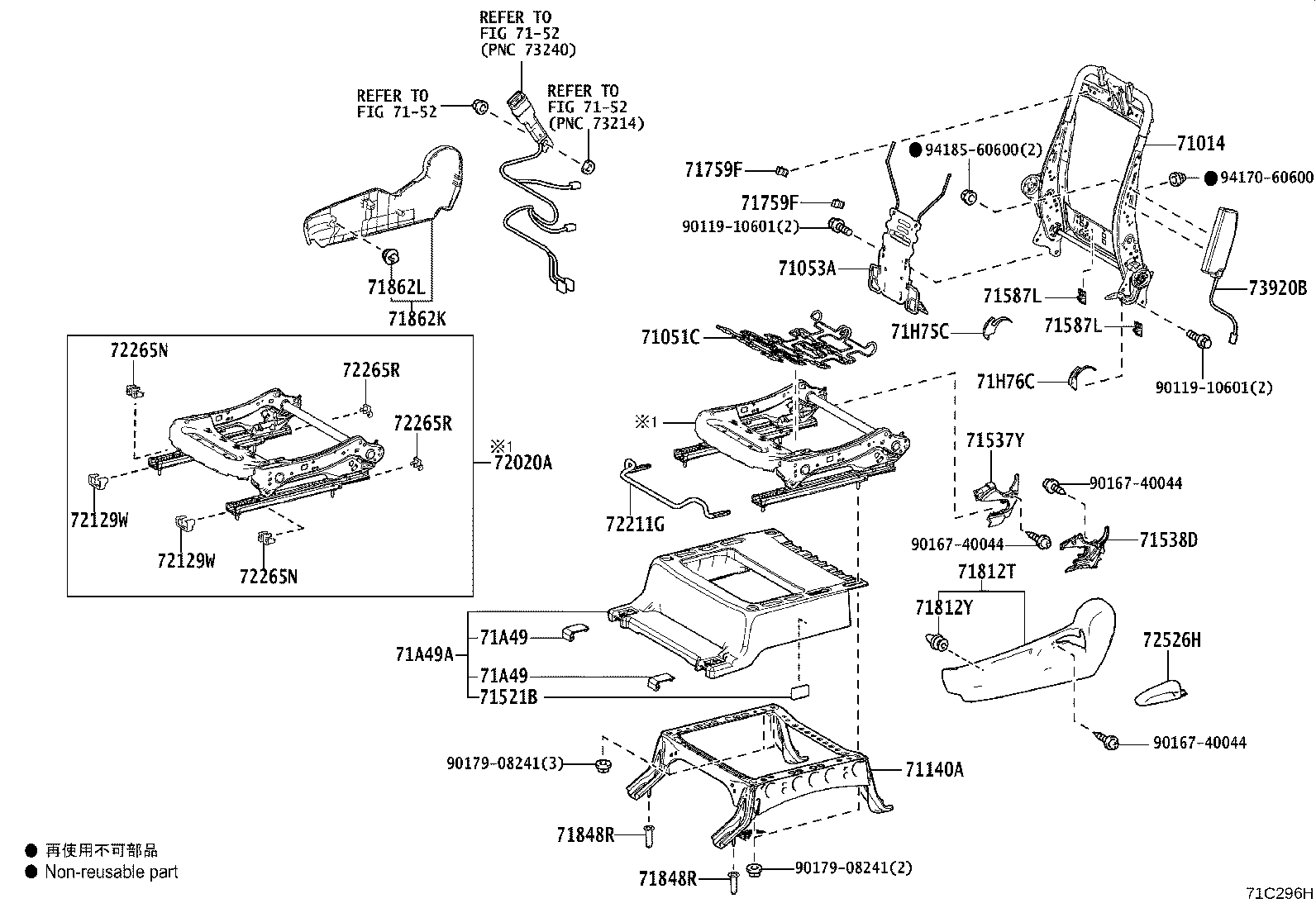

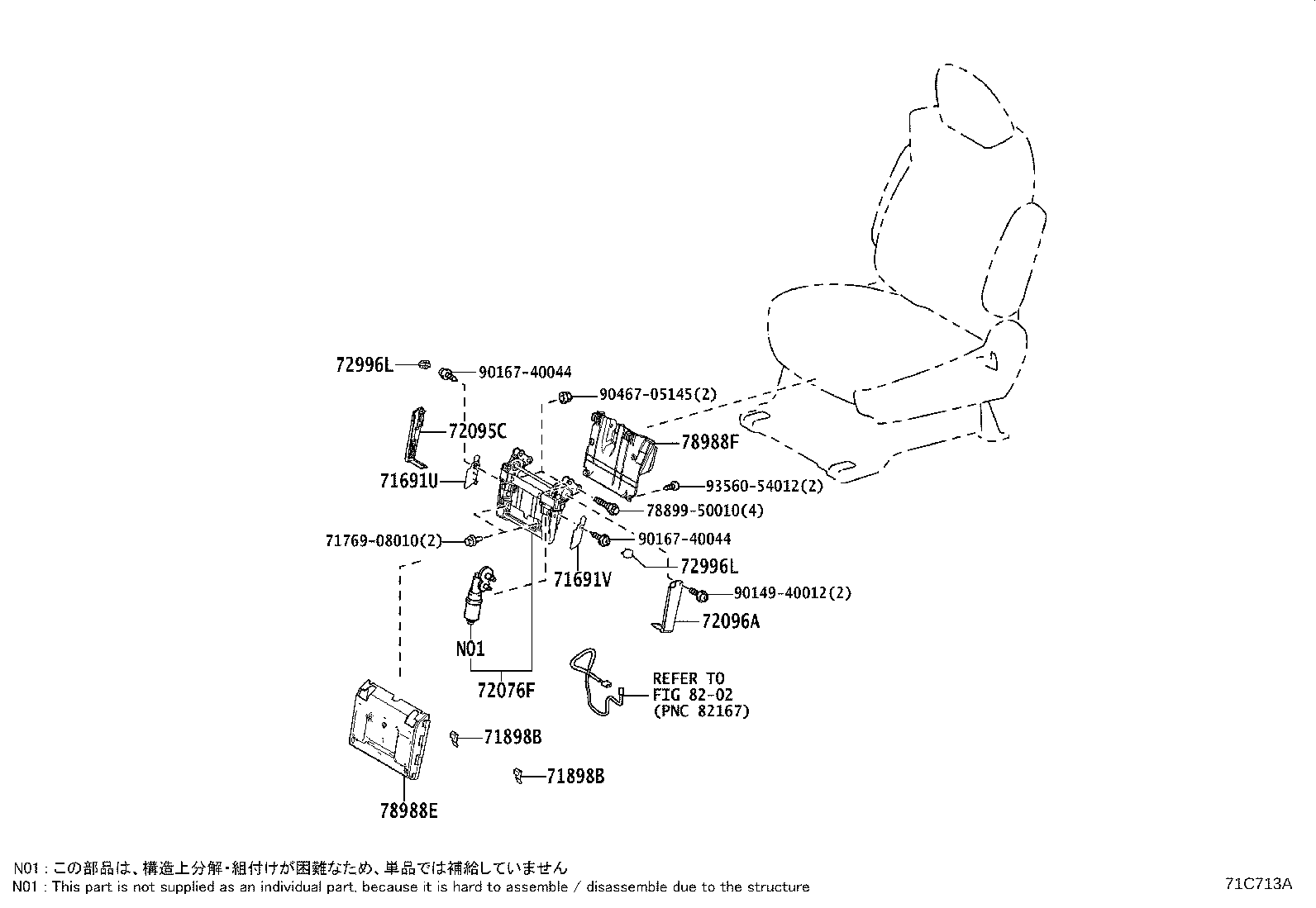

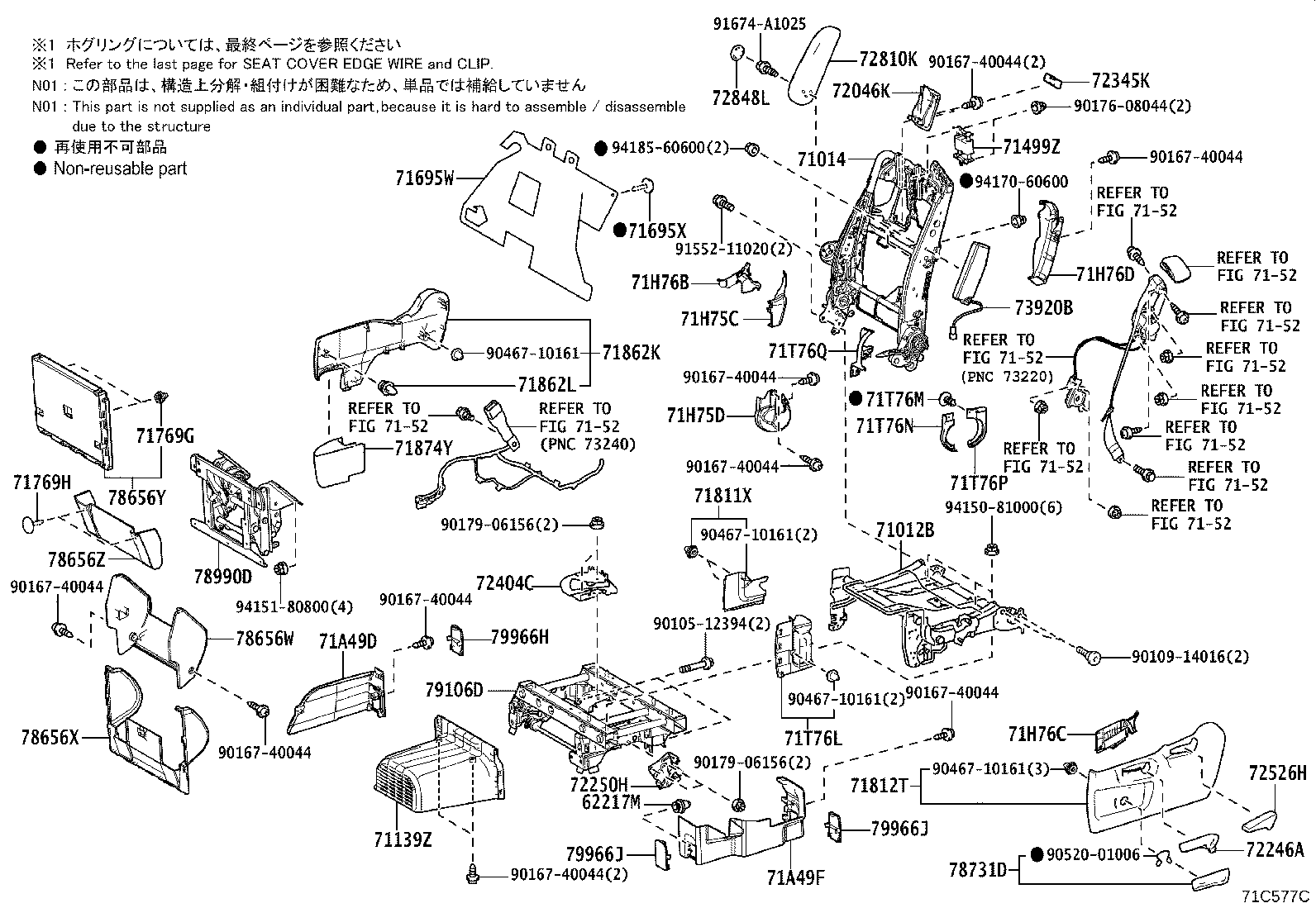

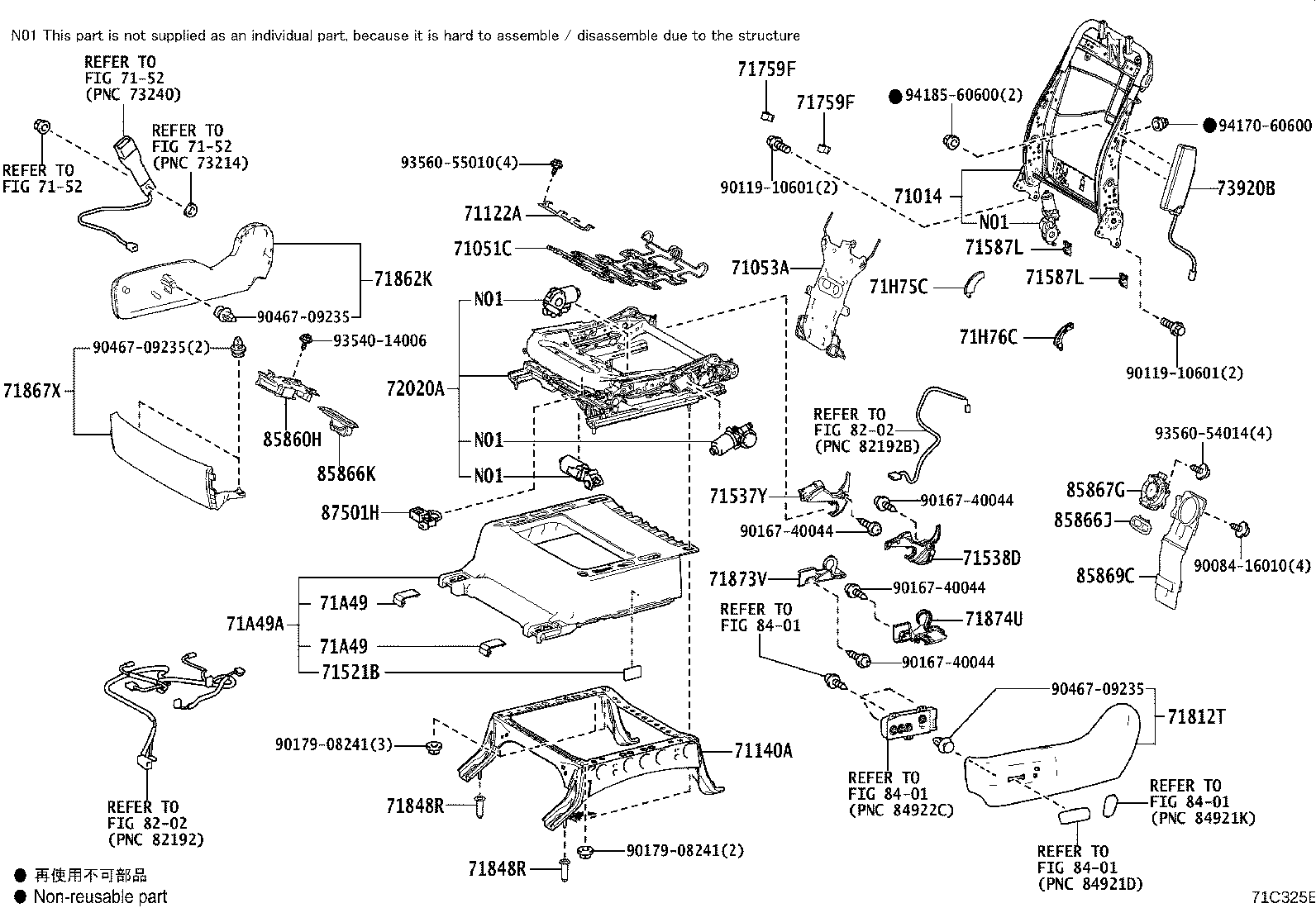

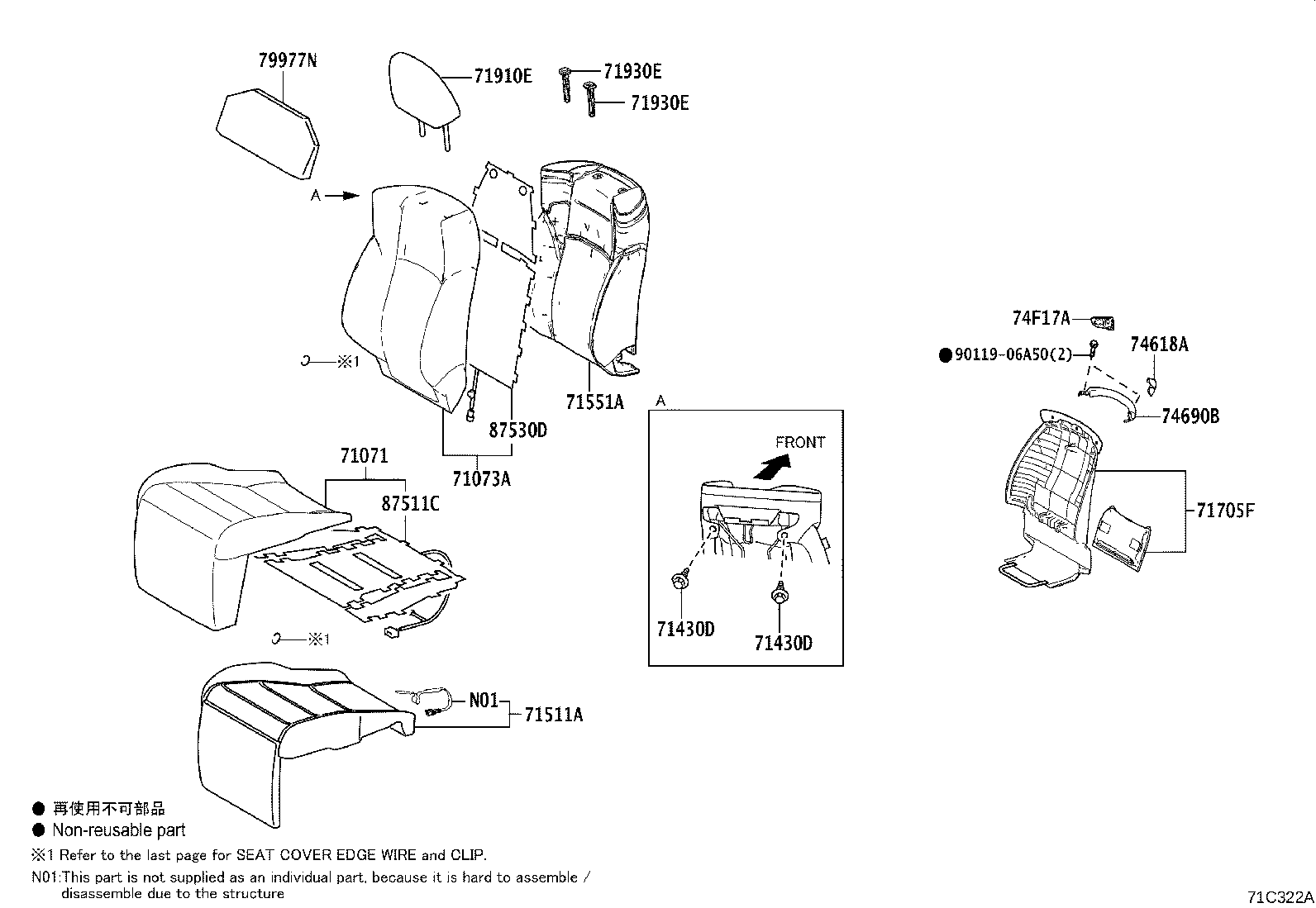

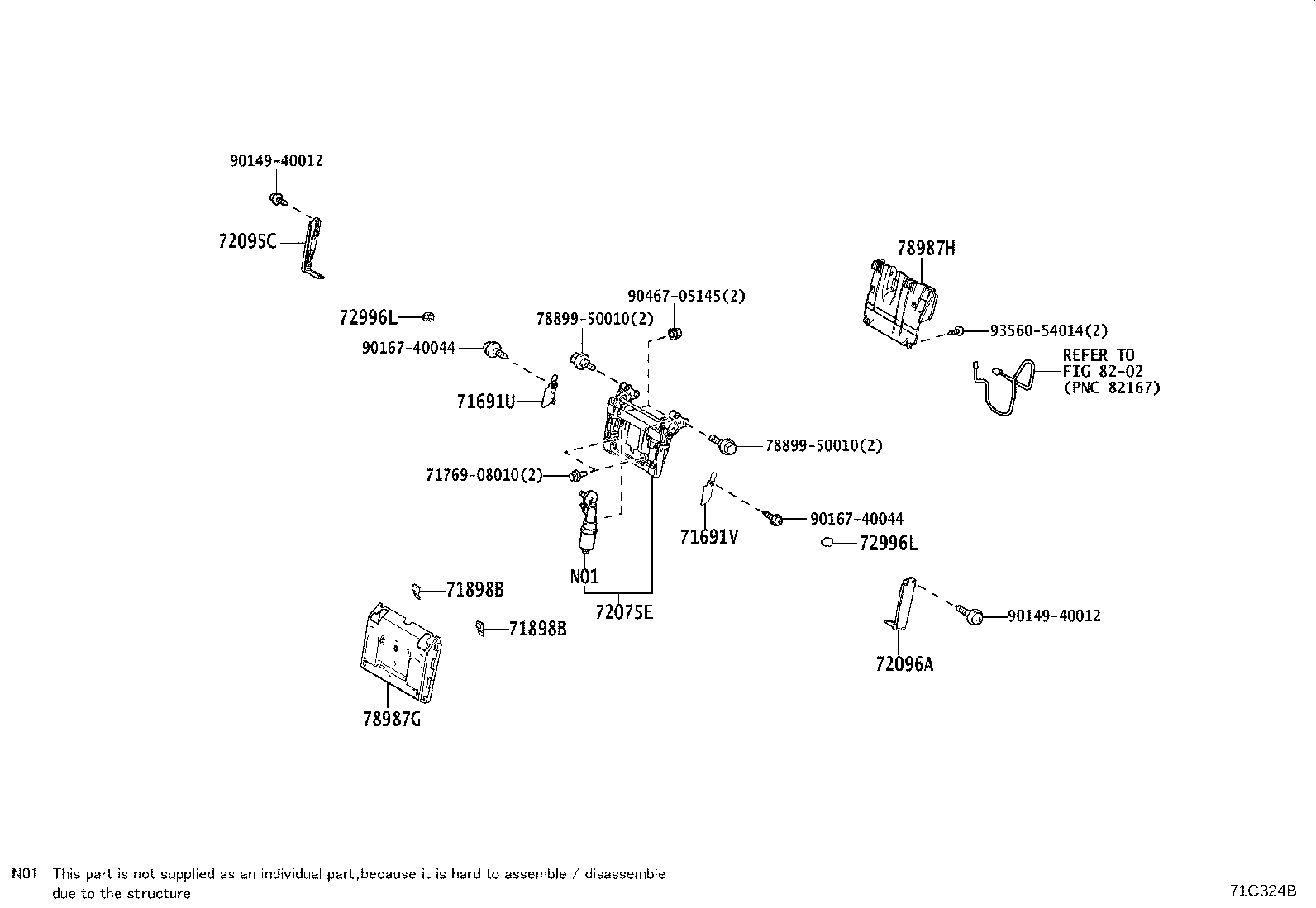

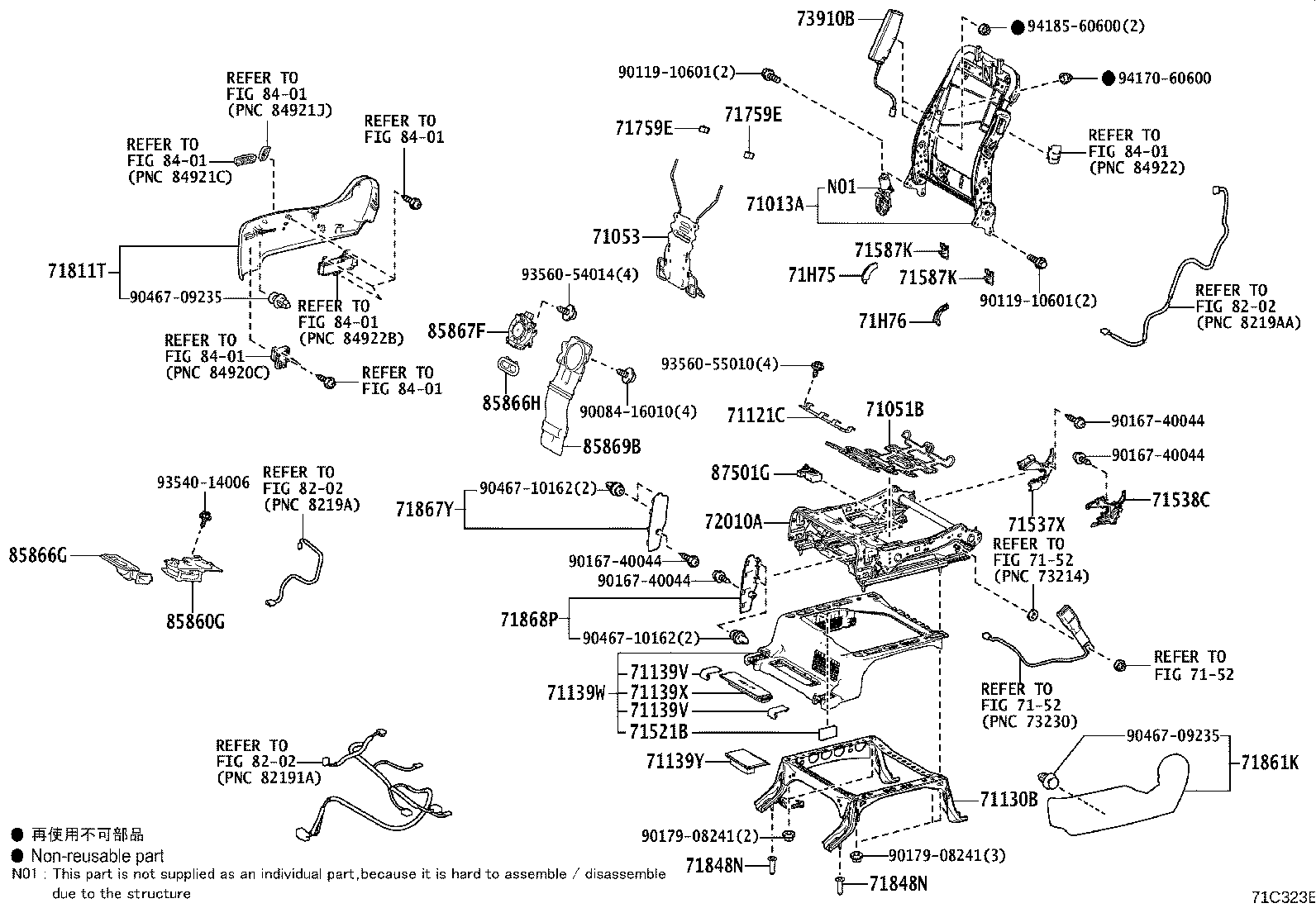

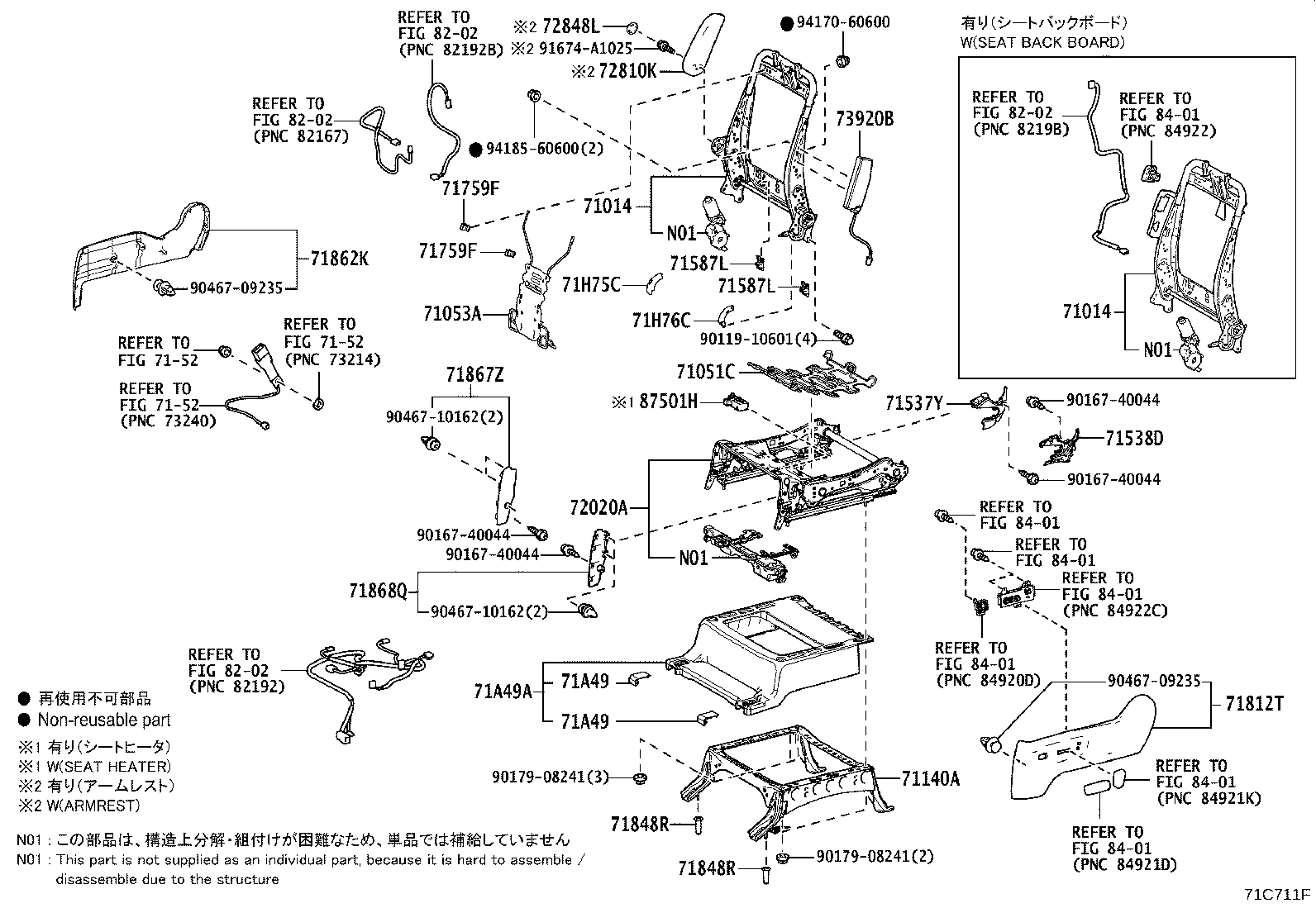

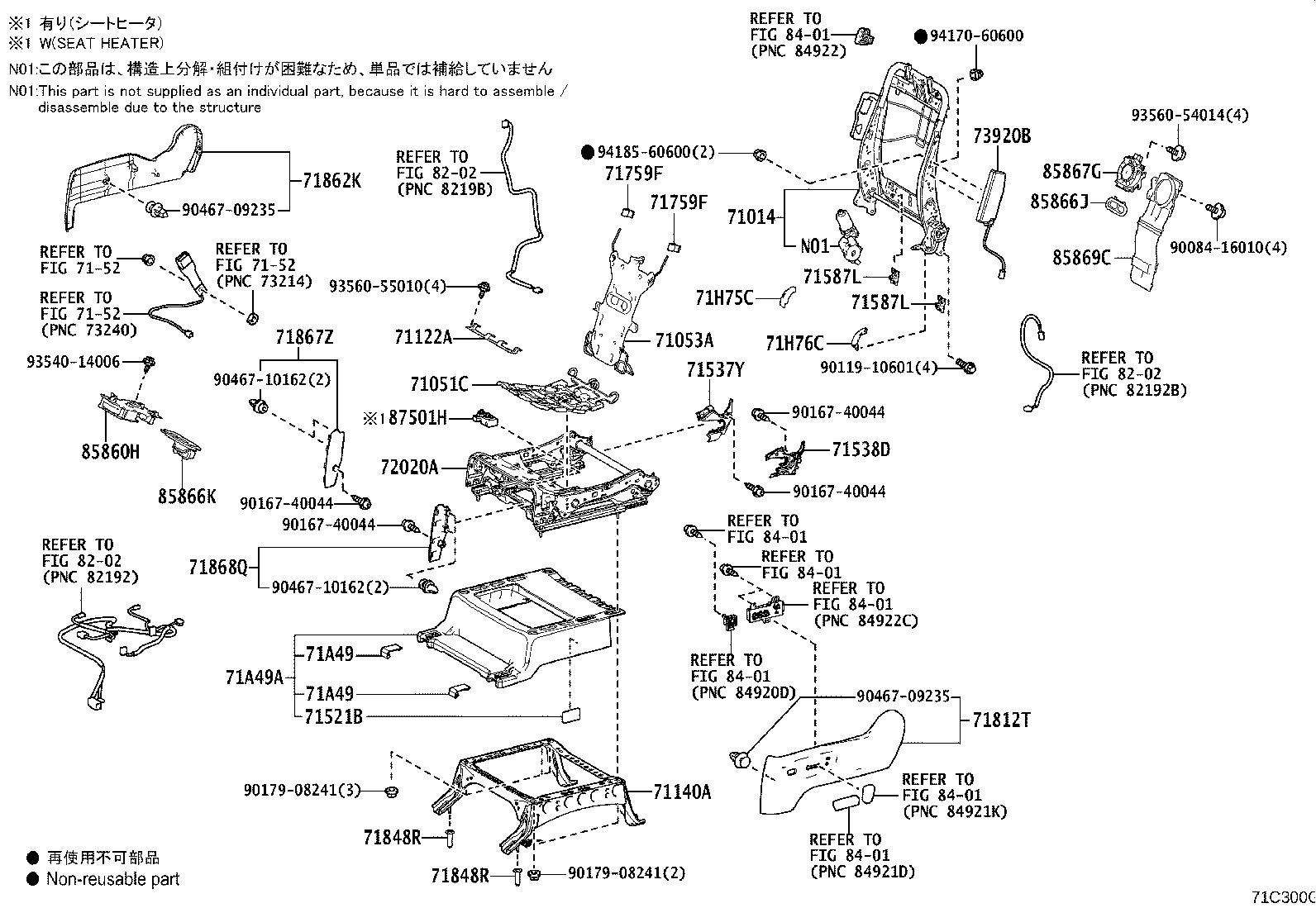

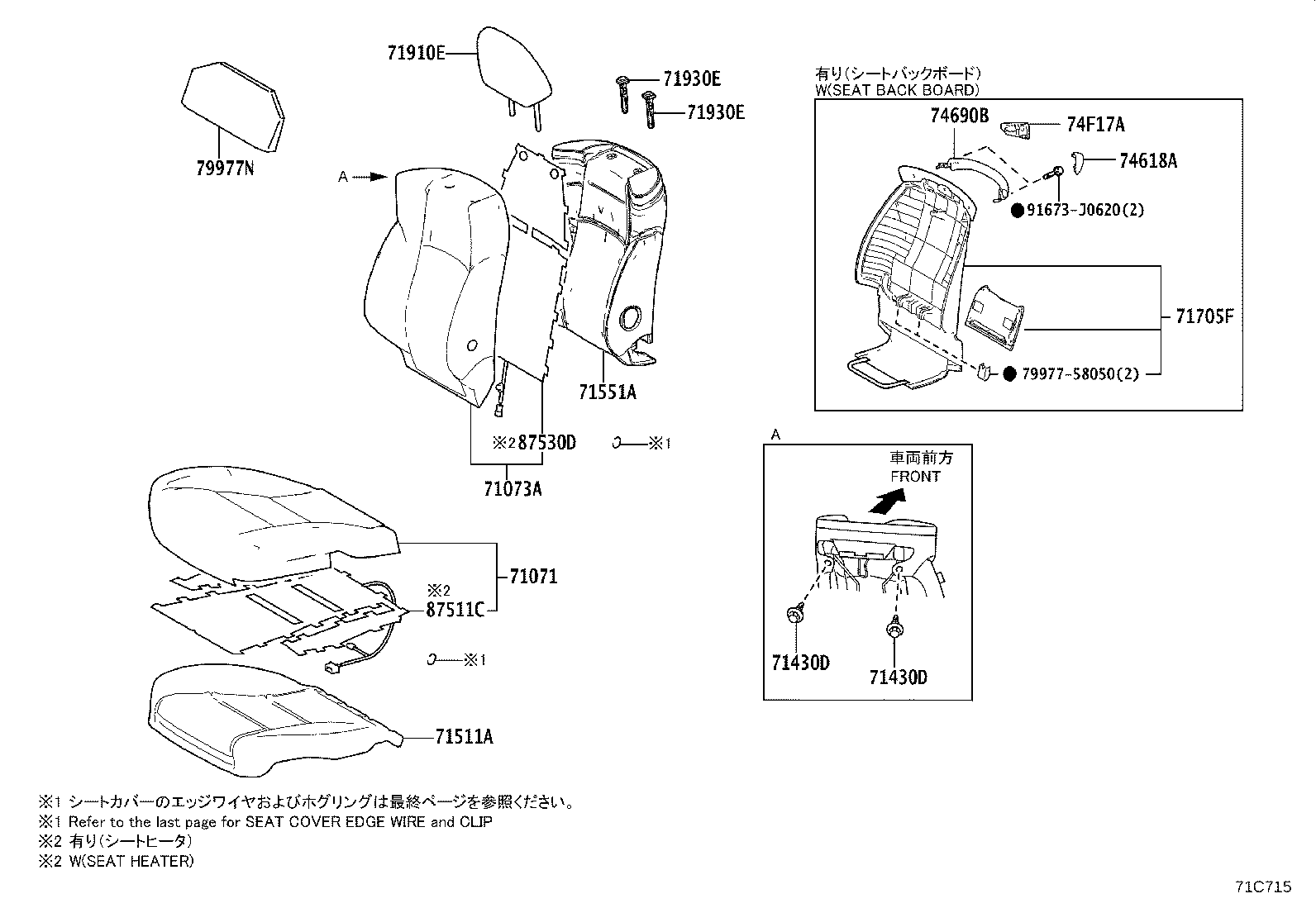

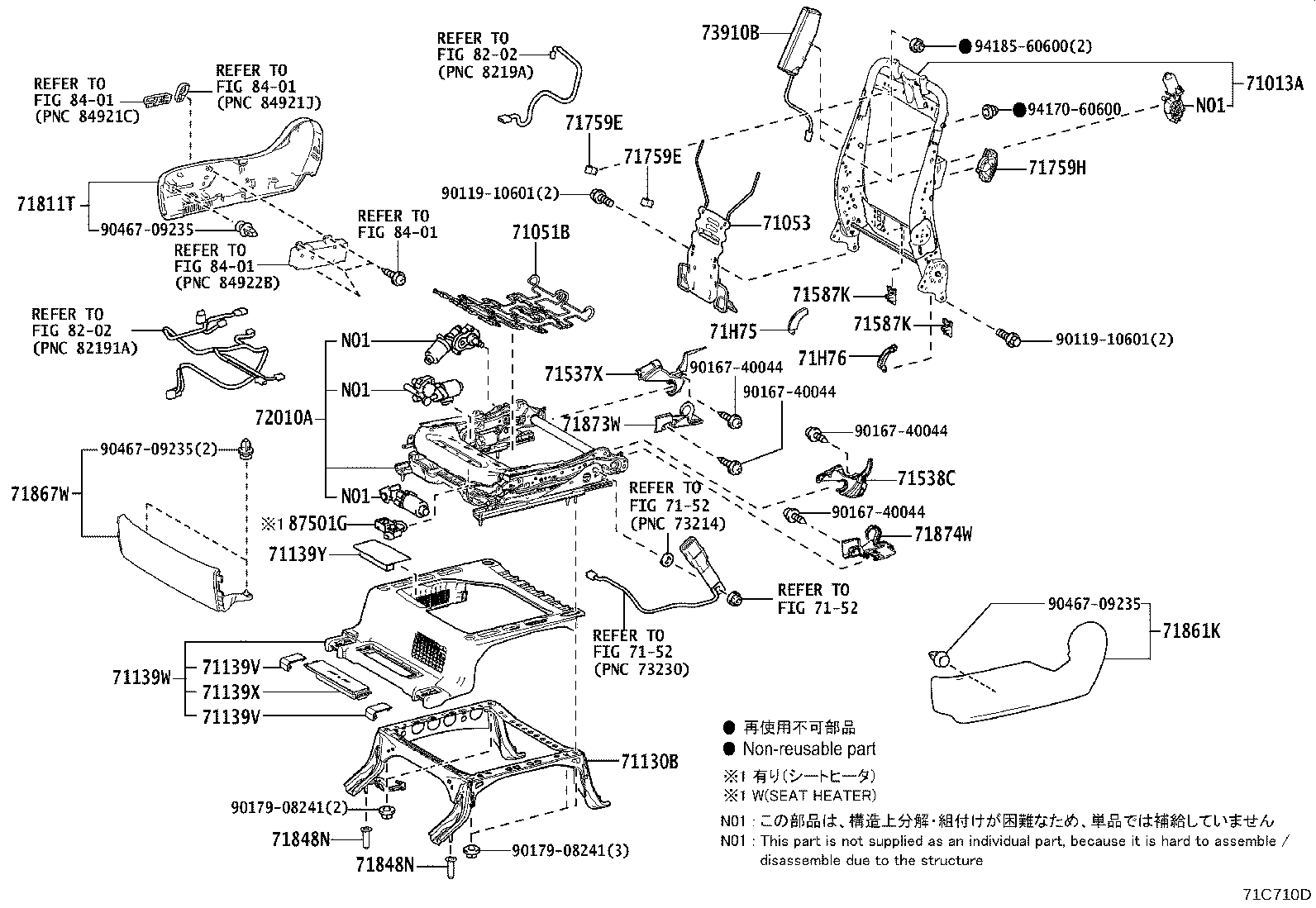

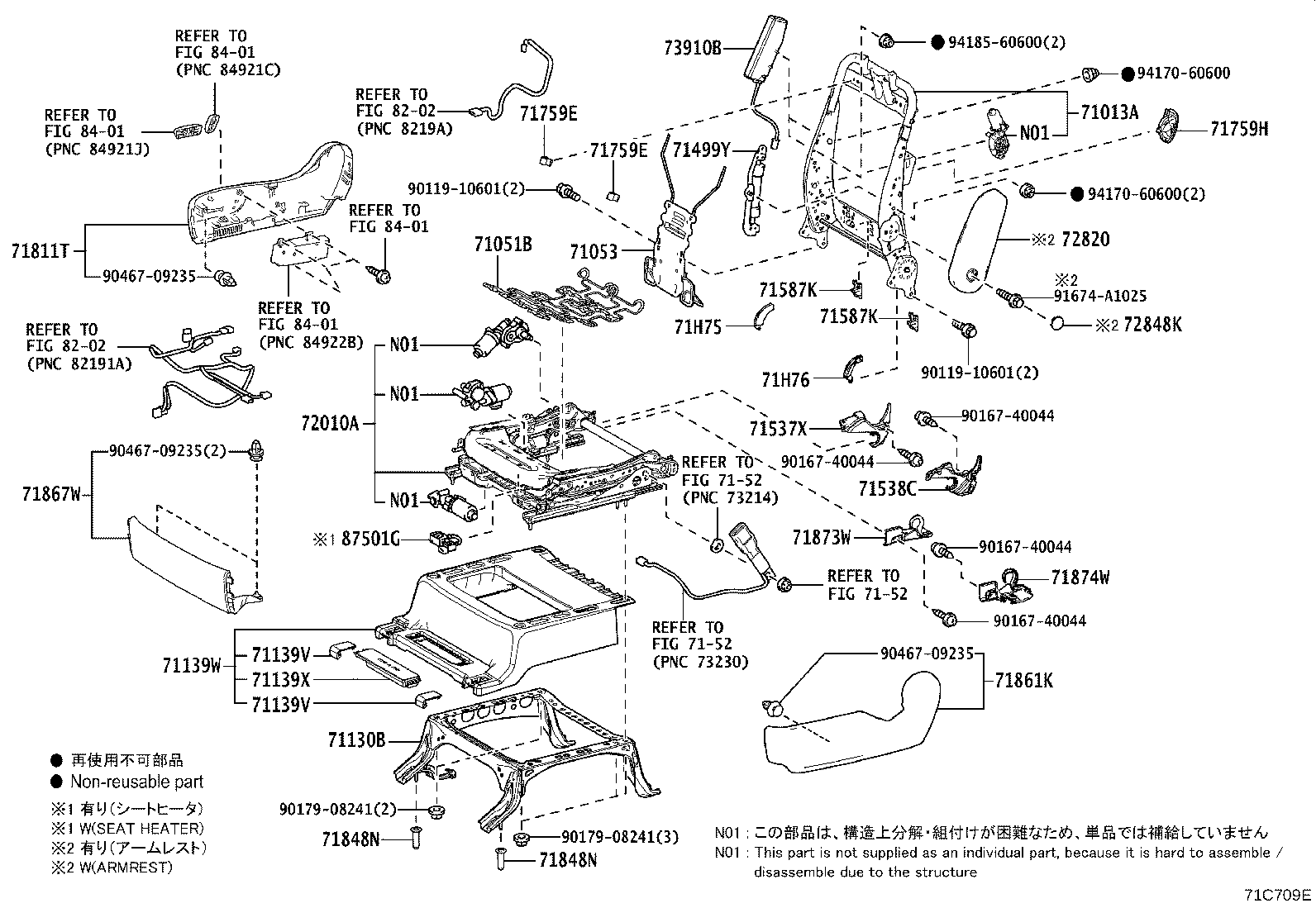

Figure 71C793 71C793 2015-01 → 2018-01 Figure 71C320A 71C320A 2018-01 → — Figure 71C802B 71C802B 2015-01 → 2018-01 Figure 71C325E 71C325E 2018-01 → — Figure 71C321E 71C321E 2019-05 → — Figure 71C794 71C794 2015-01 → 2018-01 Figure 71C322A 71C322A 2018-01 → — Figure 71C803B 71C803B 2015-01 → 2018-01 Figure 71C326E 71C326E 2018-01 → — Figure 71C323E 71C323E 2019-05 → — Figure 71C324B 71C324B 2015-01 → — Figure 71C515B 71C515B 2015-01 → — Figure 71C295F 71C295F 2015-01 → — Figure 71C296H 71C296H 2015-01 → — Figure 71C715 71C715 2015-01 → 2018-01 Figure 71C709E 71C709E 2015-01 → 2018-01 Figure 71C710D 71C710D 2015-01 → 2018-01 Figure 71C716 71C716 2015-01 → 2018-01 Figure 71C711F 71C711F 2015-01 → 2018-01 Figure 71C712E 71C712E 2015-01 → 2018-01 Figure 71C713A 71C713A 2015-01 → 2018-01 Figure 71C297C 71C297C 2018-01 → — Figure 71C298G 71C298G 2018-01 → — Figure 71C305G 71C305G 2018-01 → — Figure 71C299C 71C299C 2018-01 → — Figure 71C300G 71C300G 2018-01 → — Figure 71C306G 71C306G 2018-01 → — Figure 71C301A 71C301A 2018-01 → — Figure 71C576 71C576 2015-01 → 2018-01 Figure 71C577C 71C577C 2015-01 → 2018-01 Figure 71C302 71C302 2015-01 → — Figure 719801B 719801B 2015-01 → —

Part groups

PNCDescription
62217M Clip, Front Seat Leg Cover, LH
71012B Frame Sub-assy, Front Seat Cushion, LH
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71053 Spring Sub-assy, Front Seatback, RH
71053A Spring Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71121A Bracket, Front Seat Cushion, Outer
71121C Bracket, Front Seat Cushion, RH
71122A Bracket, Front Seat Cushion, LH
71130B Leg Assy, Front Seat, RH
71139T Cover, Front Seat Leg, Rear RH
71139U Cover, Front Seat Leg, Rear LH
71139V Cover, Front Seat Leg NO.1
71139W Cover, Front Seat Leg(FOR RH SEAT)
71139X Cover, Front Seat Leg NO.2
71139Y Cover, Front Seat Leg, RH
71139Z Cover, Front Seat Leg, LH
71140A Leg Assy, Front Seat, LH
71430D Clip(FOR SEATBACK COVER)
71499Y Damper, Seatback Spring, RH
71499Z Damper, Seatback Spring, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71521B Pad,Front Seat Cushion Silencer
71537X Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537Y Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71537Z Protector, Front Seat Cushion
71538C Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538D Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71691U Cover, Reclining Adjuster Arm, NO.1
71691V Cover, Reclining Adjuster Arm, NO.2
71695W Protector, Front Seatback Stay
71695X Clip, Front Seatback Stay Protector
71705F Board Sub-assy, Front Seatback, RH
71705G Board Sub-assy, Front Seatback, LH
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71759H Hook, Front Seatback
71769G Clip, Front Seat Leg Cover
71769H Clip, Front Seat Leg Cover, Inner
71811T Shield, Front Seat Cushion, RH
71811W Clip, Front Seat Cushion Shield, RH
71811X Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
71812Y Clip, Front Seat Cushion Shield, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71861K Shield, Front Seat Cushion, Inner RH
71861L Clip, Front Seat Cushion Shield, RH
71862K Shield, Front Seat Cushion, Inner LH
71862L Clip, Front Seat Cushion Shield, LH
71867W Shield, Front Seat Cushion, Front RH
71867X Shield, Front Seat Cushion, Front LH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71867Z Shield, Front Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71868P Shield, Front Seat Cushion, Inner NO.1 LH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71873V Shield, Front Seat Cushion, Lower RH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71874U Shield, Front Seat Cushion, Lower LH
71874W Shield, Front Seat Cushion, Lower LH, Inner
71874Y Shield, Front Seat Cushion, Lower LH NO.2
71898B Hook, Front Seat Cover
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49 Cover, Front Seat Leg, NO.1
71A49A Cover, Front Seat Leg(FOR LH SEAT)
71A49B Cover, Front Seat Leg, LH
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71A49F Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75C Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71H75D Cover, Reclining Adjuster Inside, RH(FOR LH SEATBACK FRAME)
71H76 Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71H76B Cover, Reclining Adjuster Inside, LH Inner(FOR LH SEAT)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
71H76D Cover, Reclining Adjuster Inside, LH(FOR LH SEATBACK FRAME)
71T76L Cover, Reclining Adjuster Inside, LH
71T76M Clip, Reclining Adjuster Inside Cover, LH
71T76N Cover, Reclining Adjuster Inside, LH NO.1
71T76P Cover, Reclining Adjuster Inside, LH NO.2
71T76Q Cover, Reclining Adjuster Inside, LH(FOR SEAT BACK FRAME)
72010A Adjuster Assy, Front Seat, RH
72020A Adjuster Assy, Front Seat, LH
72046K Cover Sub-assy, Front Seat Track, Outer LH
72075E Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT)
72076F Arm Sub-assy, Reclining Adjuster, Lwr Inner LH
72095C Plate Sub-assy, Reclining Adjuster Arm, NO.1
72096A Plate Sub-assy, Reclining Adjuster Arm, NO.2
72129V Protector, Seat Track Lower Rail, RH
72129W Protector, Seat Track Lower Rail, LH
72211F Handle, Seat Track Adjusting, RH
72211G Handle, Seat Track Adjusting, LH
72246A Lever, Seat Track Lock Open, LH
72250H Lock Assy, Front Seat, LH
72265M Cover, Seat Track Upper Rail, RH
72265N Cover, Seat Track Upper Rail, LH
72265Q Cover, Seat Track Upper Rail, RH Rear
72265R Cover, Seat Track Upper Rail, LH Rear
72345K Cap, Seat Stand Frame, LH
72404C Link Sub-assy, Front Seat Adjuster, LH NO.1
72494A Handle, Front Seat Vertical Adjuster, RH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72580D Cable Assy, Reclining Adjusting(FOR LH SEAT)
72810K Armrest Assy, Front Seat, RH(FOR LH SEAT)
72820 Armrest Assy, Front Seat, LH(FOR RH SEAT)
72848K Cap, Seat Armrest, NO.1(FOR RH SEAT)
72848L Cap, Seat Armrest, NO.1(FOR LH SEAT)
72996L Cap, Reclining Adjuster Arm Cover
72B10B Cable Assy, Seat Track Control
72B10C Cable Assy, Seat Track Control(FOR MAIN LOCK RELEASE)
72B10D Cable Assy, Seat Track Control(FOR SUB LOCK RELEASE)
72B10E Cable Assy, Seat Track Control(FOR SLIDE)
72B10F Cable Assy, Seat Track Control(FOR REAR OPERATI0N LEVER)
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
74618A Plug, Front Assist Grip, LH
74690B Grip Assy, Seat Assist, Rear
74F17A Plug, Assist Grip
76519F Clip, Front Seat Cushion Cover
78608E Cable Sub-assy, Legrest Lock Control
78656W Cover, Front Seat Legrest, NO.1
78656X Cover, Front Seat Legrest, NO.2
78656Y Cover, Front Seat Legrest, NO.3
78656Z Cover, Front Seat Legrest, NO.4
78731D Lever, Front Seat Cuhion(FOR LEGREST)
78987G Cover, Front Seat Footrest, NO.1(FOR RH SEAT)
78987H Cover, Front Seat Footrest, NO.2(FOR RH SEAT)
78988E Cover, Front Seat Footrest, NO.1
78988F Cover, Front Seat Footrest, NO.2
78990D Adjuster Assy, Front Seat Footrest
79106D Leg Sub-assy, Seat, LH
79966H Cover, Front Seat Leg Side, NO.1
79966J Cover, Front Seat Leg Side, NO.2
79977N Felt, Seatback
85860G Blower Assy, Seat Cushion Climate Control, RH
85860H Blower Assy, Seat Cushion Climate Control, LH
85866G Duct, Seat Cushion Climate Control, RH
85866H Duct, Seatback Climate Control, RH
85866J Duct, Seatback Climate Control, LH
85866K Duct, Seat Cushion Climate Control, LH
85867F Blower, Seatback Climate Control, RH
85867G Blower, Seatback Climate Control, LH
85869B Cover, Seatback Climate Control, RH
85869C Cover, Seatback Climate Control, LH
87501G Control Sub-assy, Seat Heater, RH
87501H Control Sub-assy, Seat Heater, LH
87511C Heater Assy, Front Seat Cushion, RH
87511D Heater Assy, Front Seat Cushion, LH
87530D Heater Assy, Front Seatback, RH
87530E Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
