Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05
Rear Seat & Seat Track
366 part groups · 46 illustrations
Illustrations
71C741
71C741

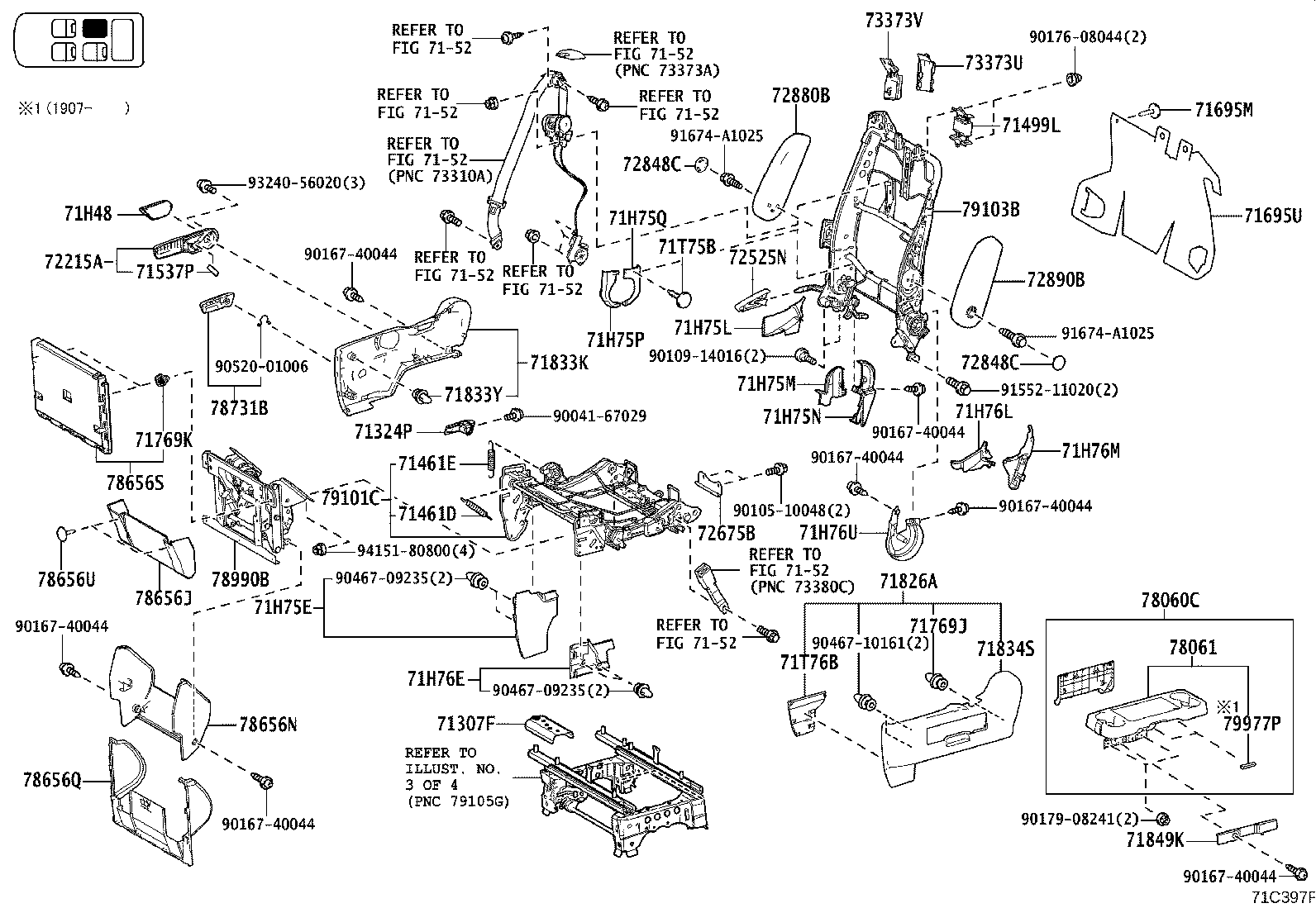

71C397F
71C397F

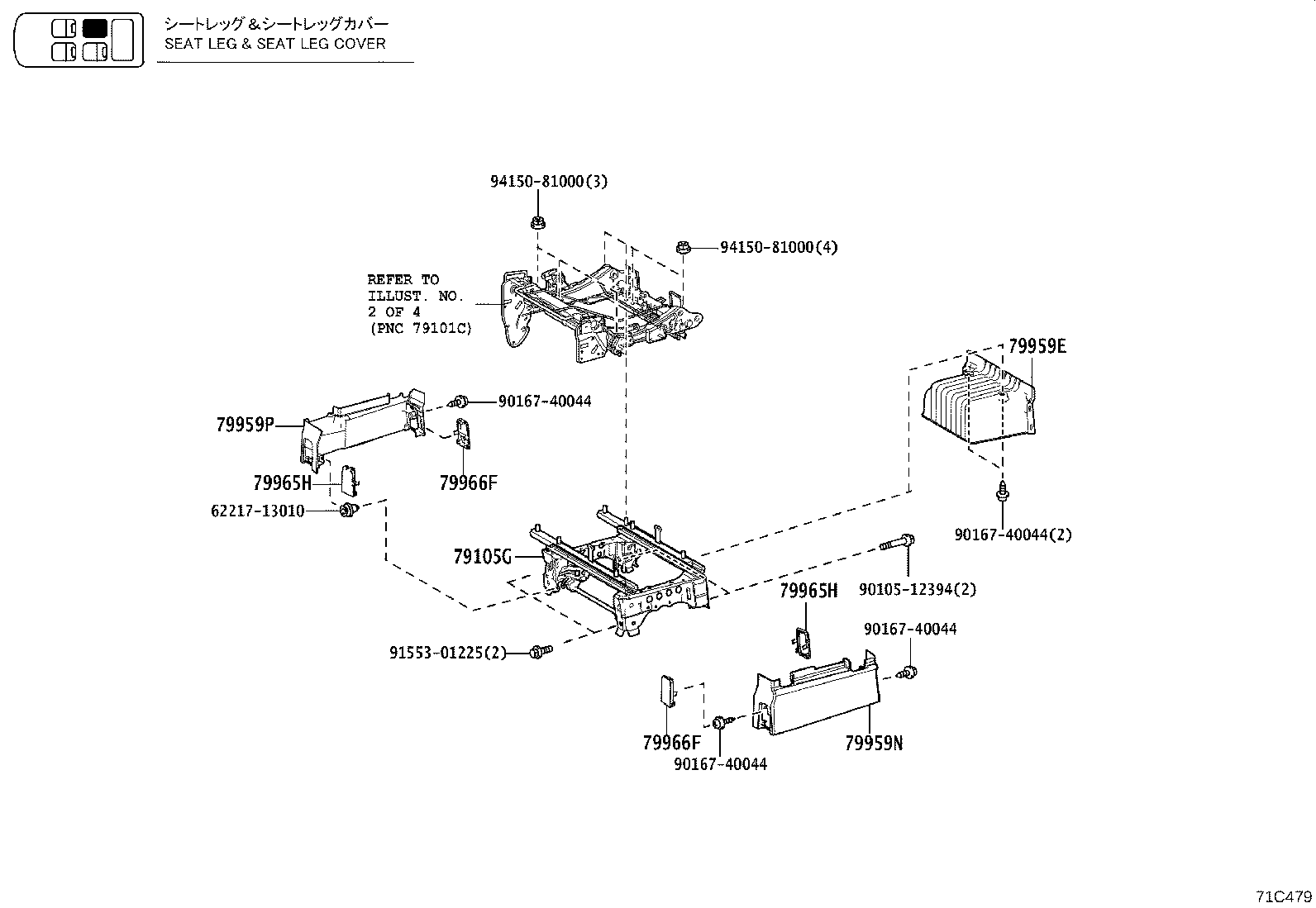

71C479
71C479

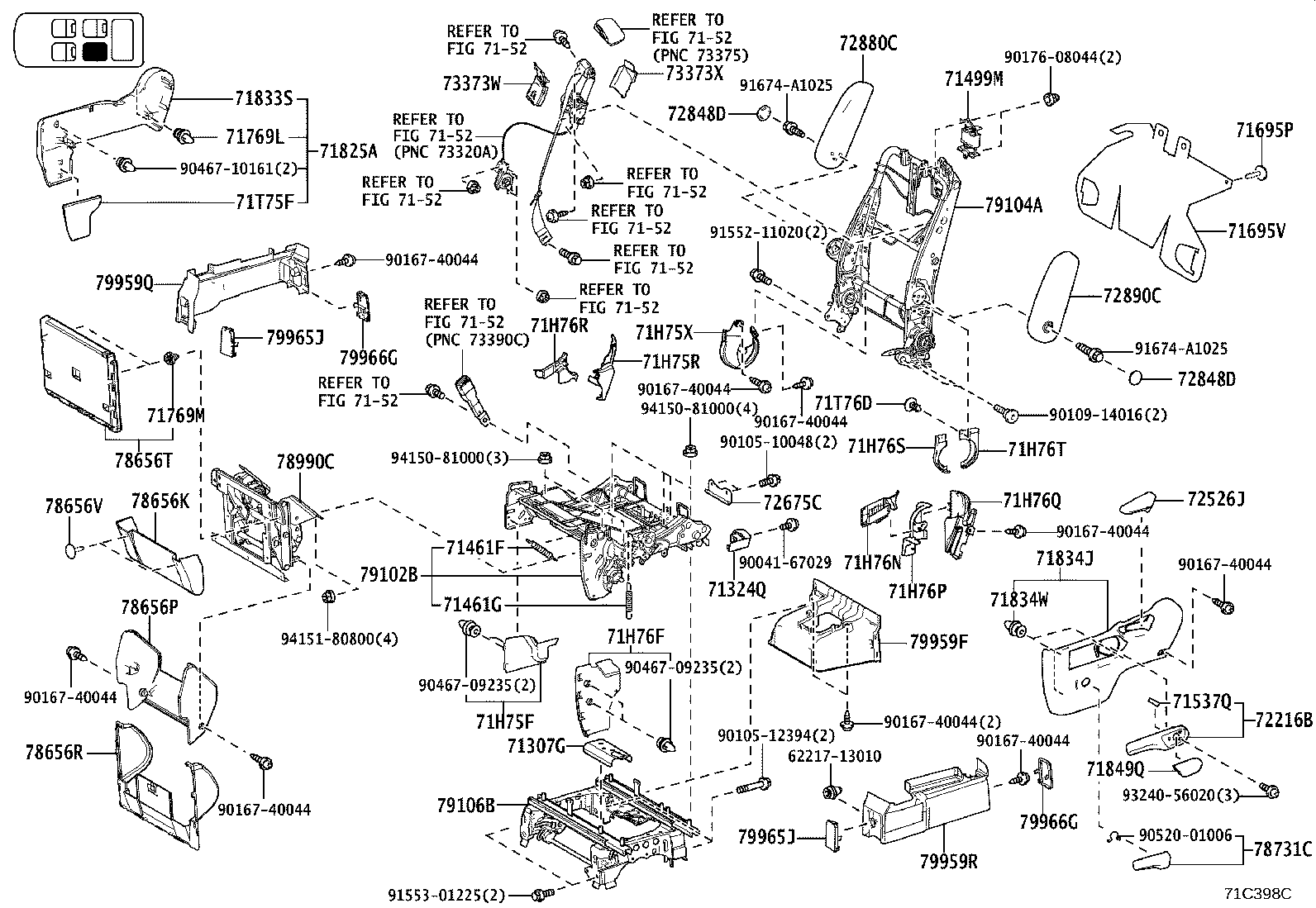

71C398C
71C398C

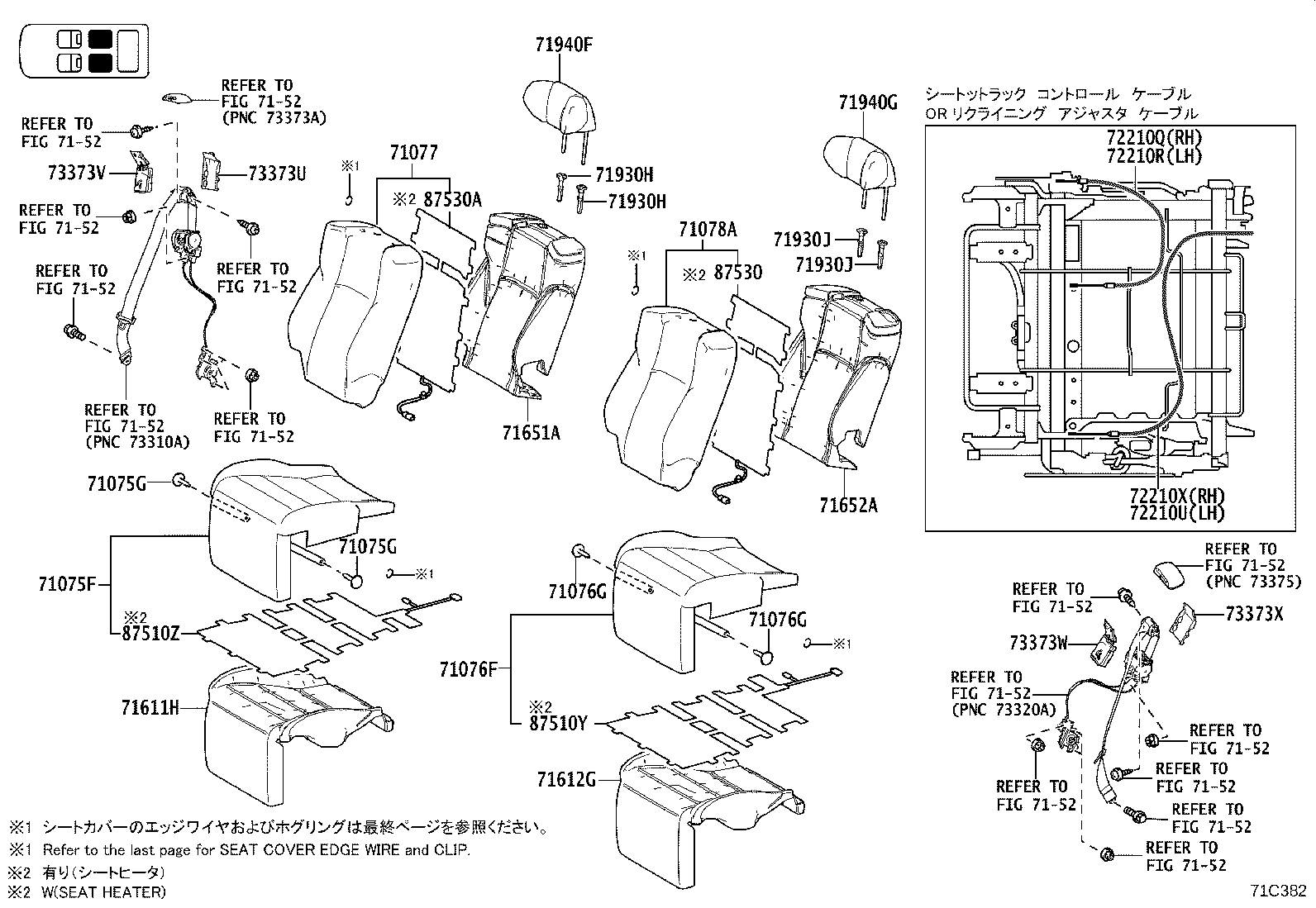

71C382
71C382

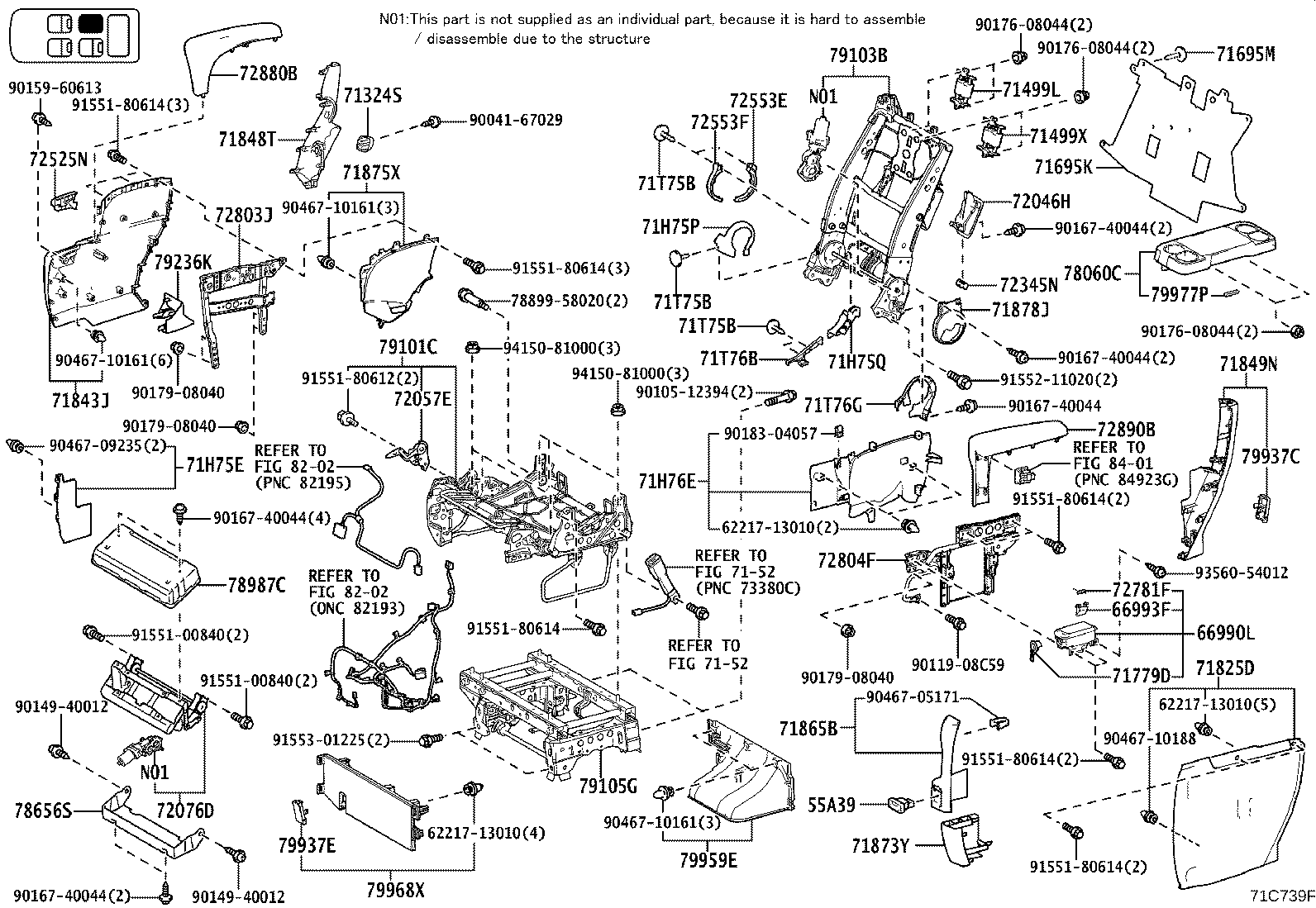

71C739F
71C739F

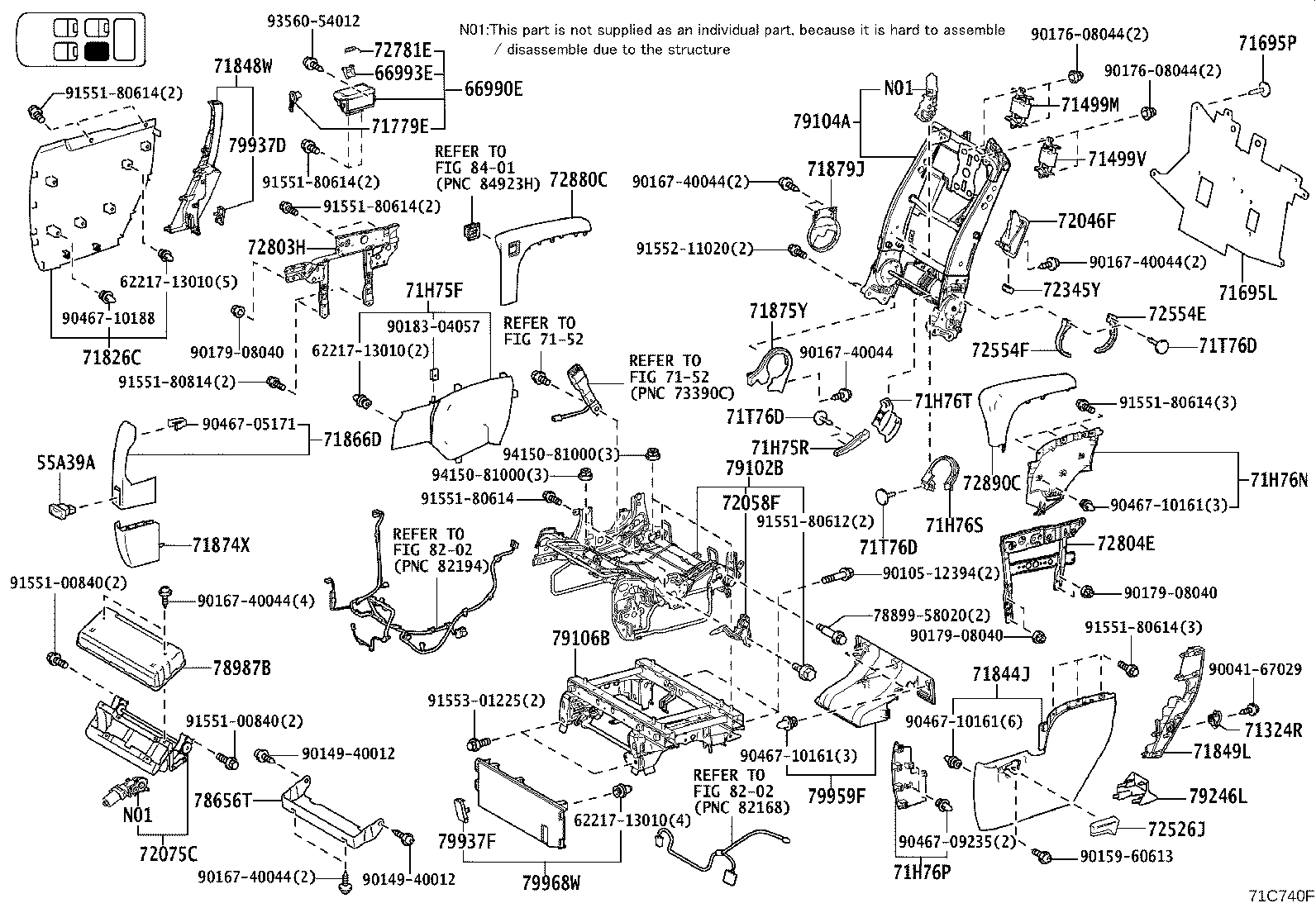

71C740F
71C740F

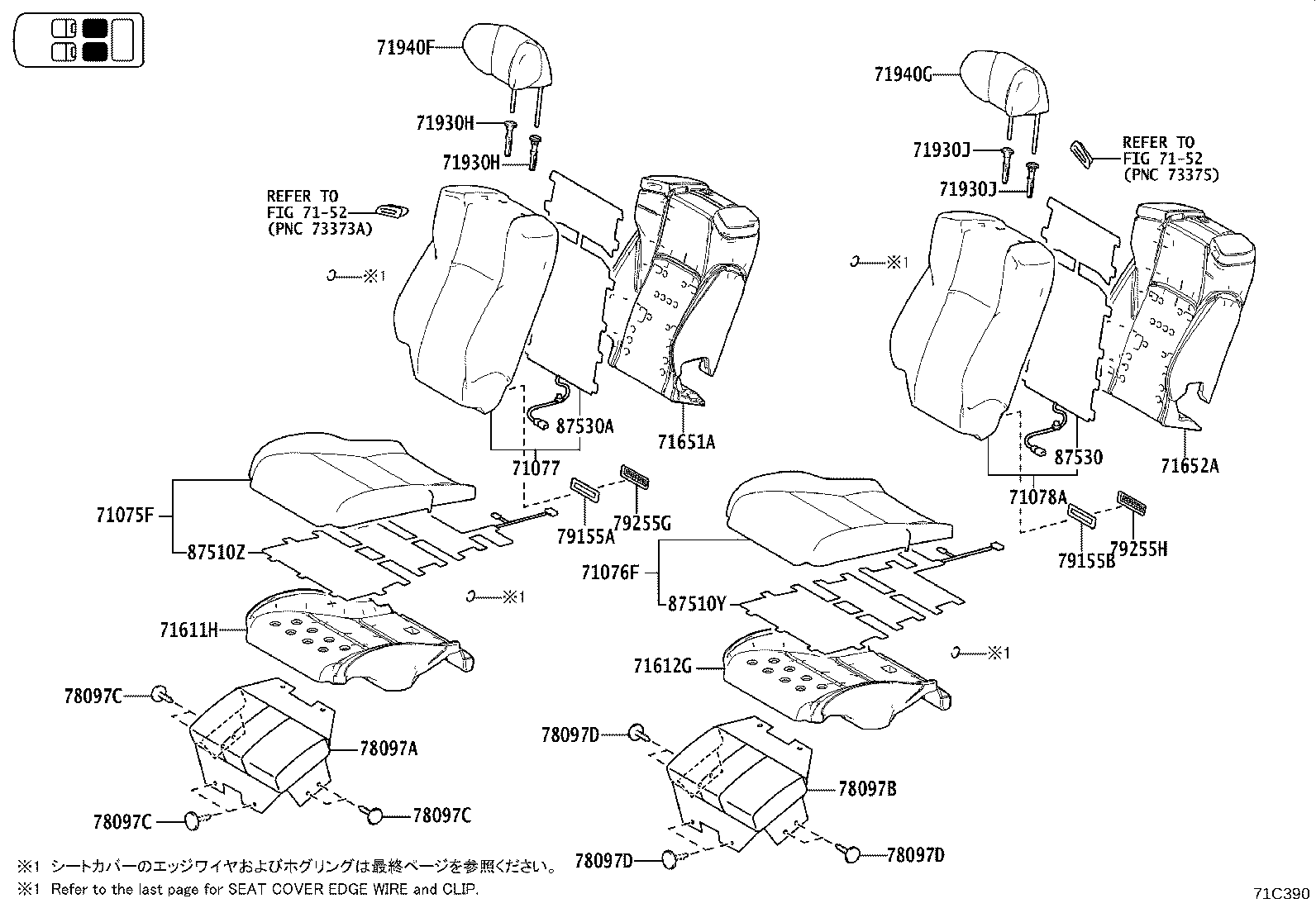

71C390
71C390

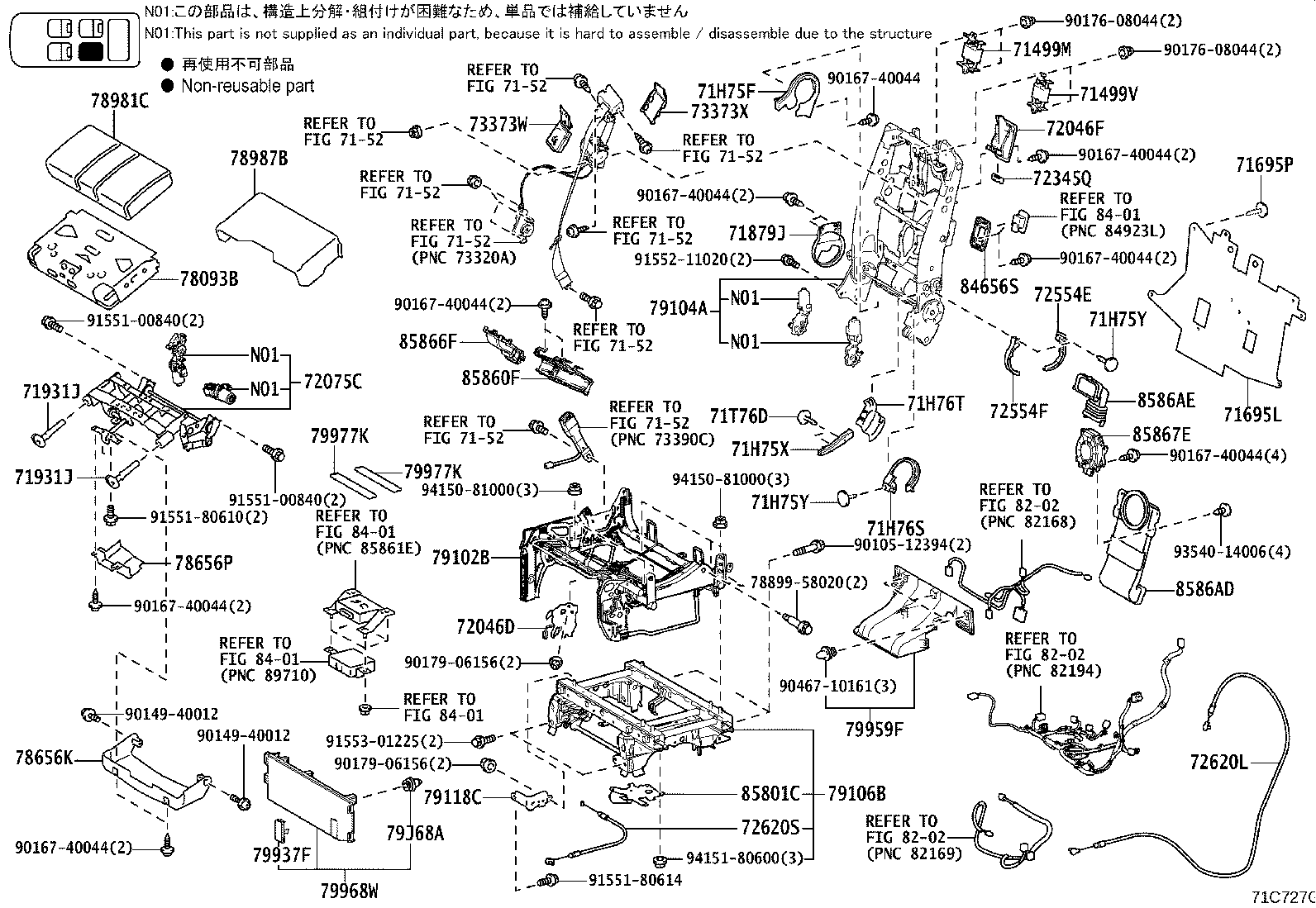

71C727G
71C727G

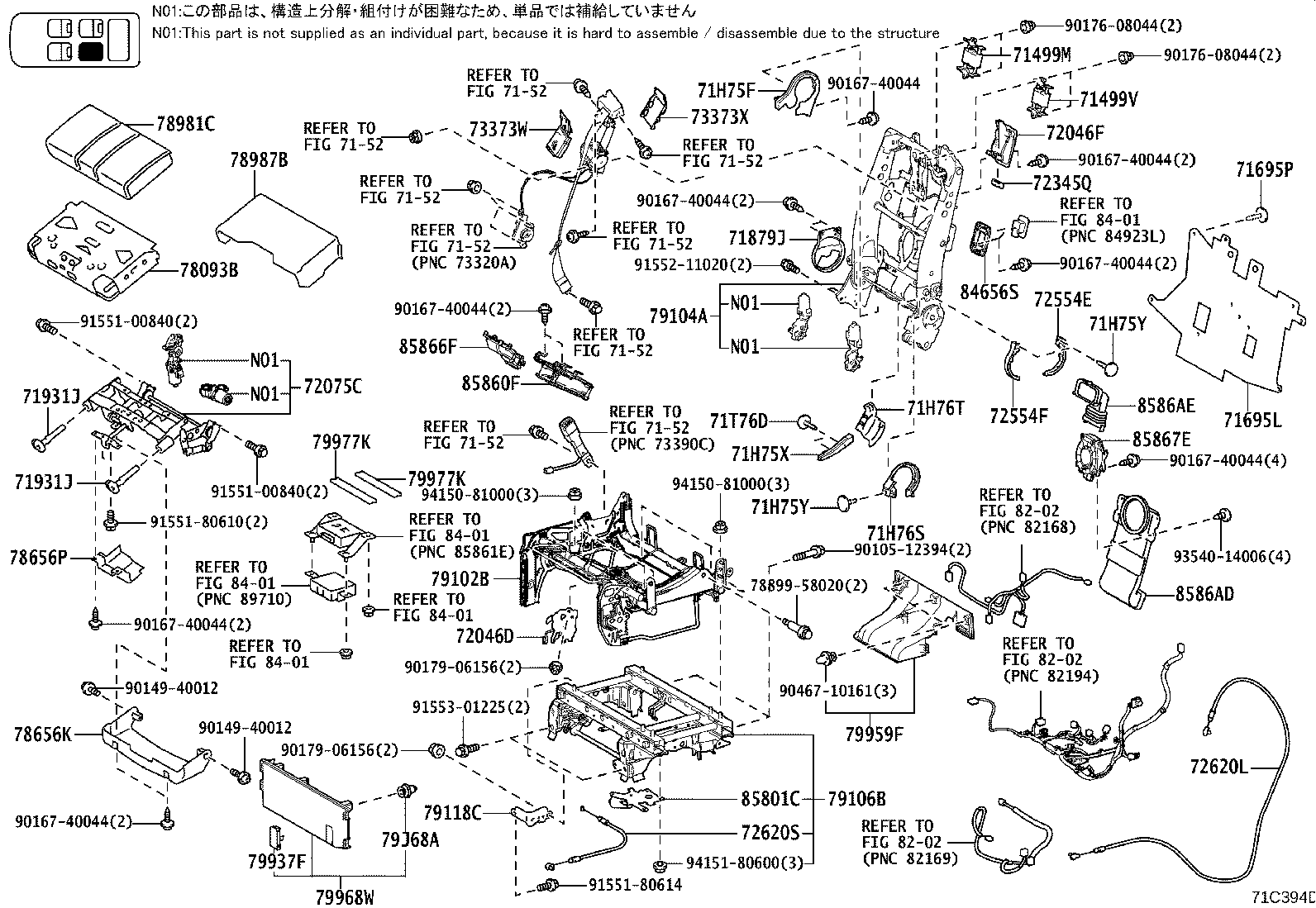

71C394D

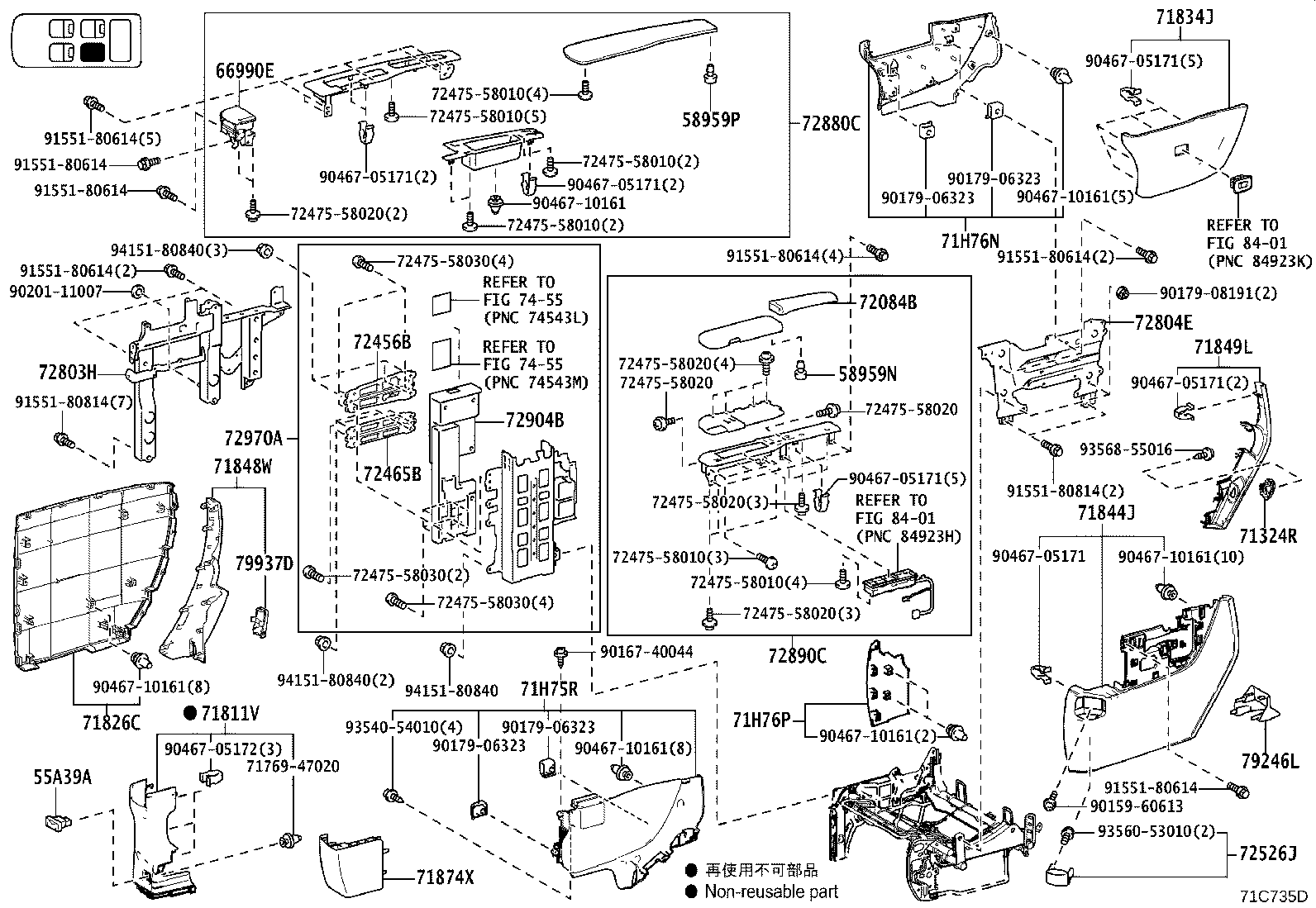

71C735D
71C735D

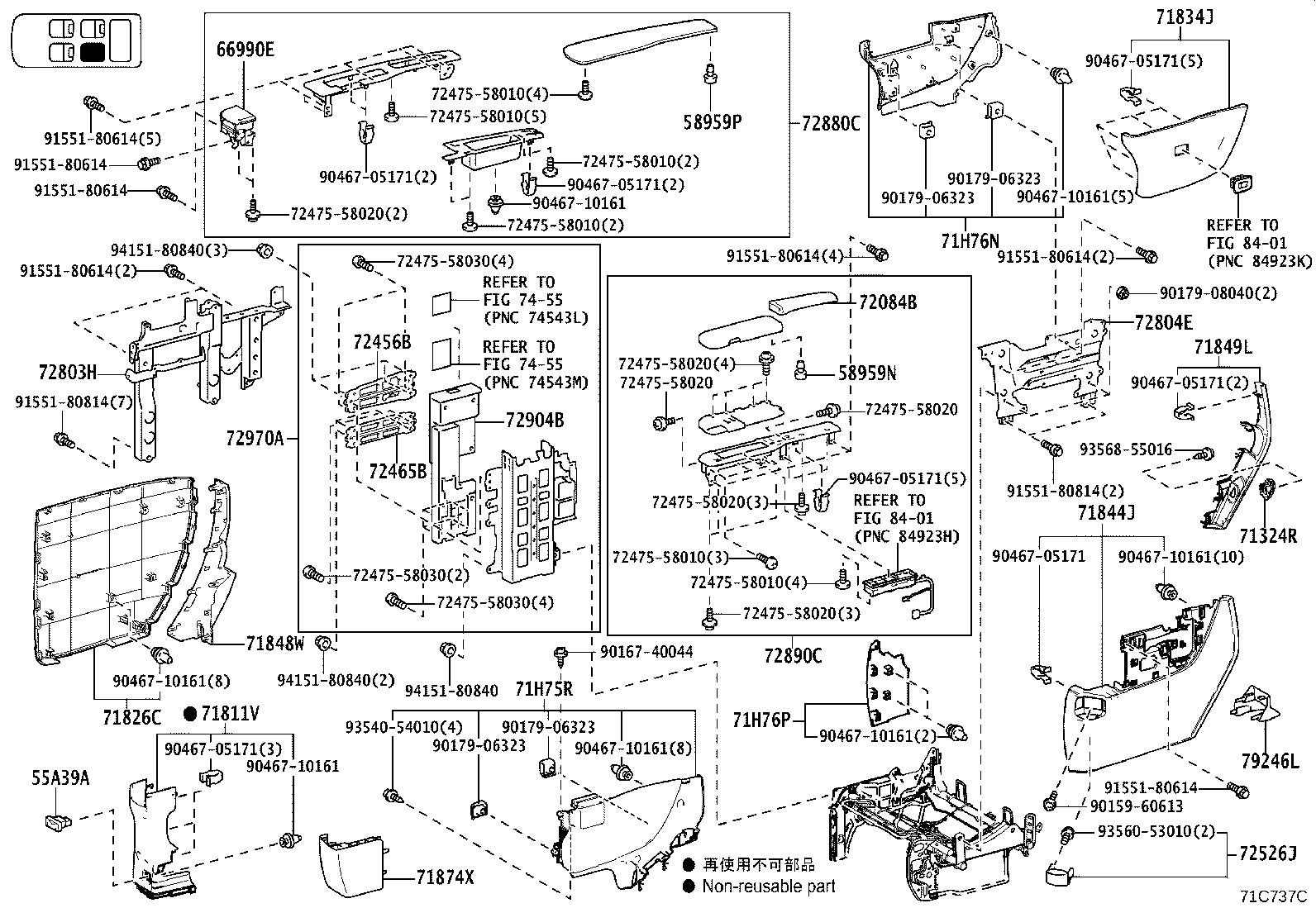

71C737C

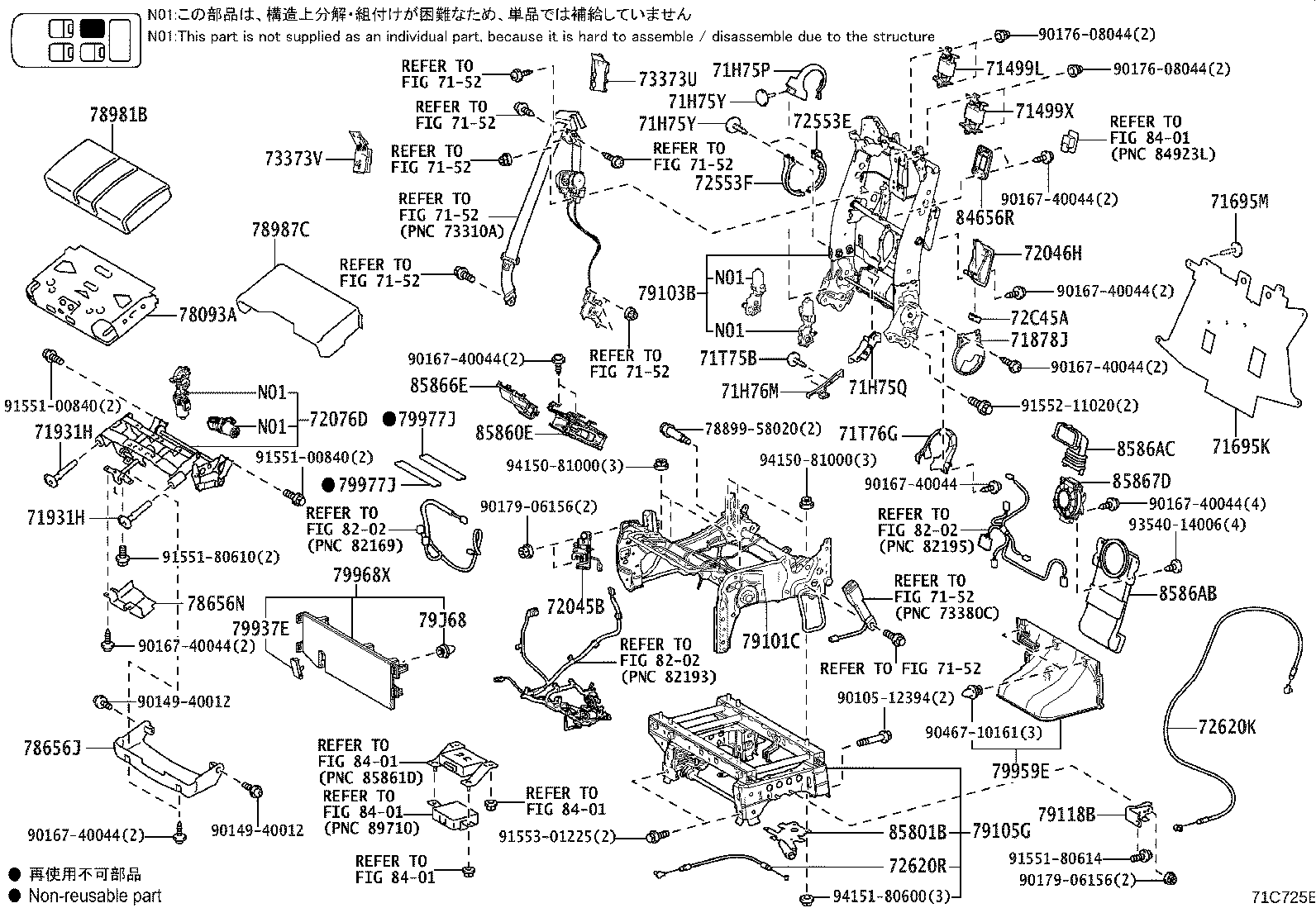

71C725E
71C725E

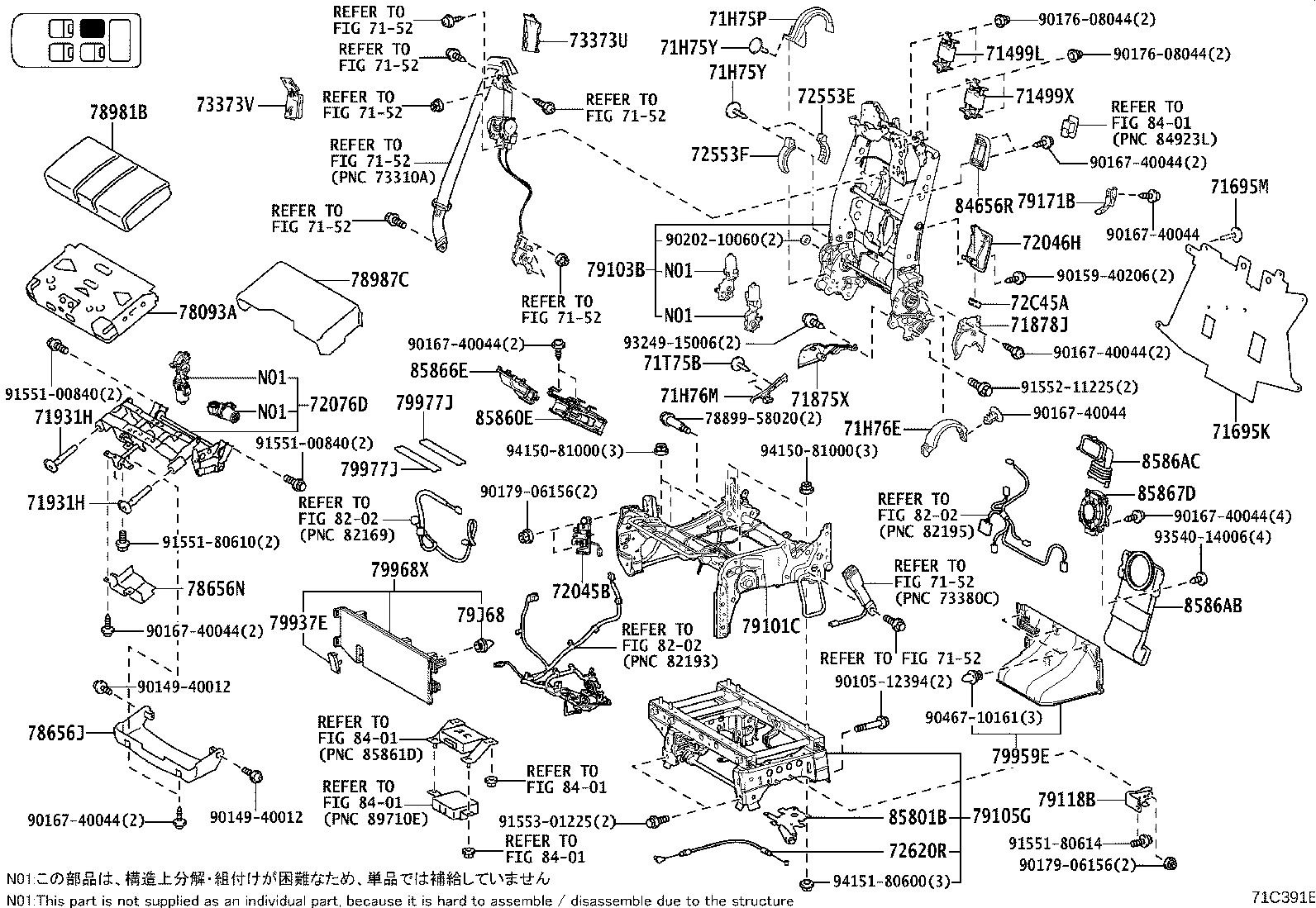

71C391E

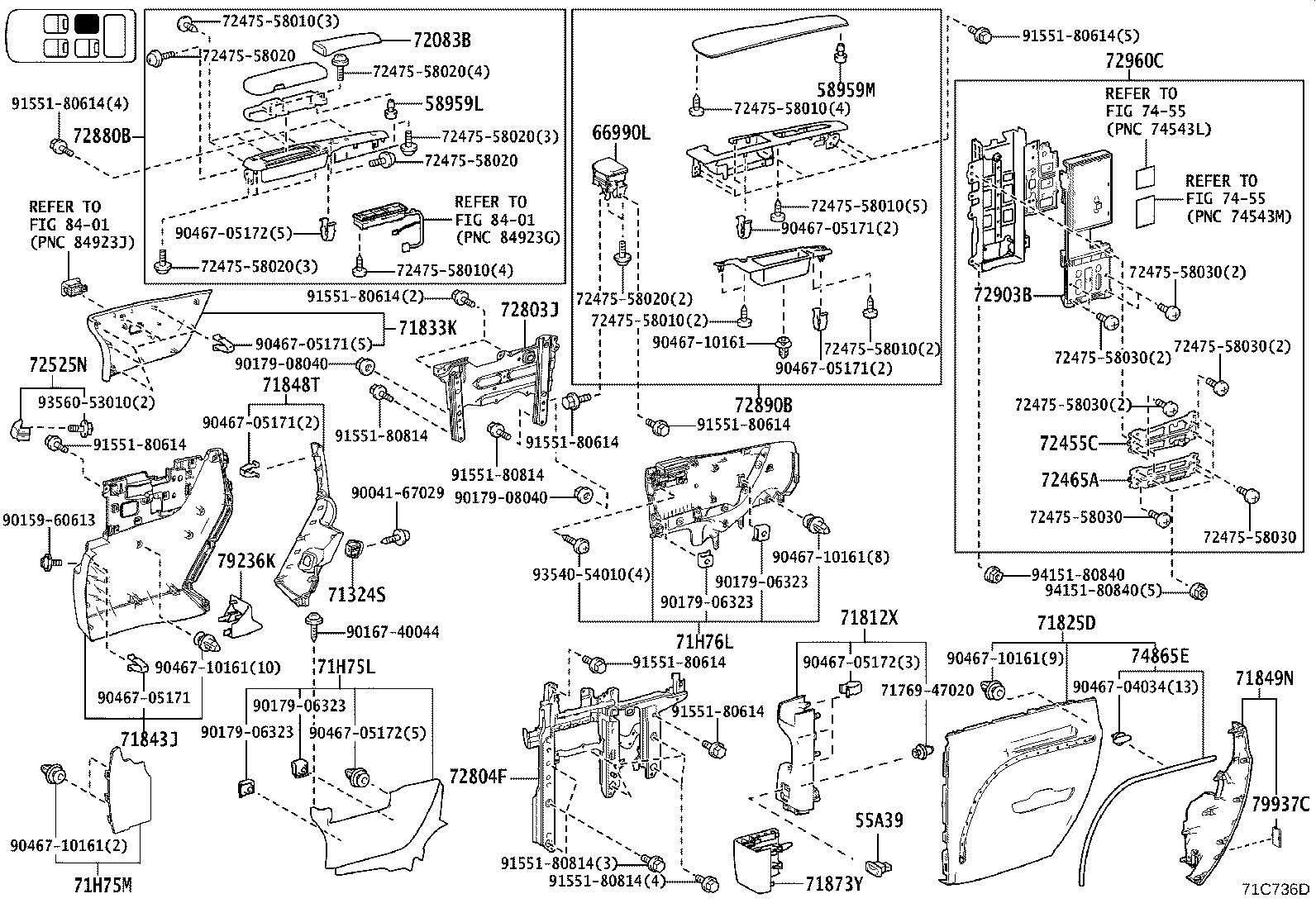

71C736D
71C736D

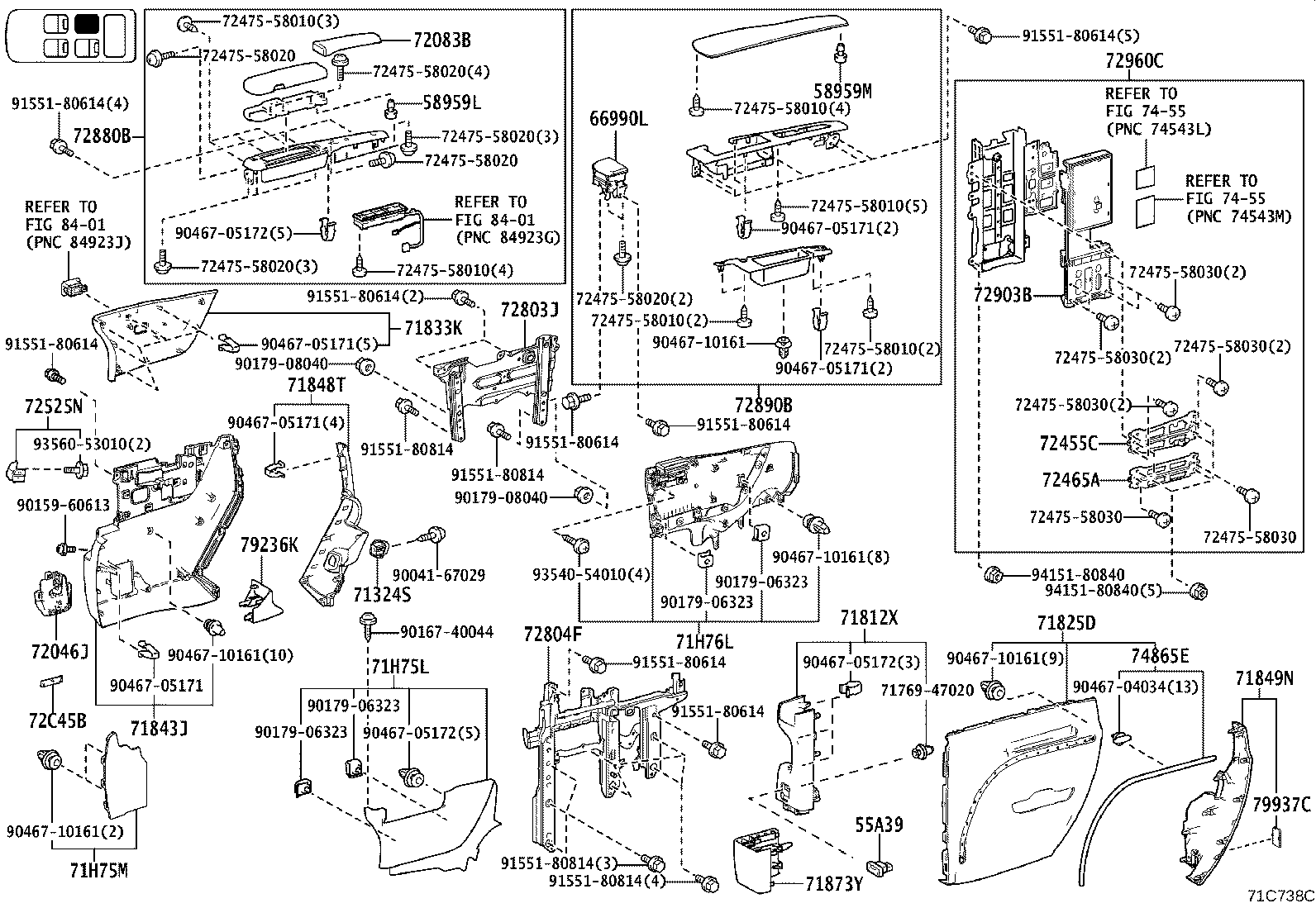

71C738C

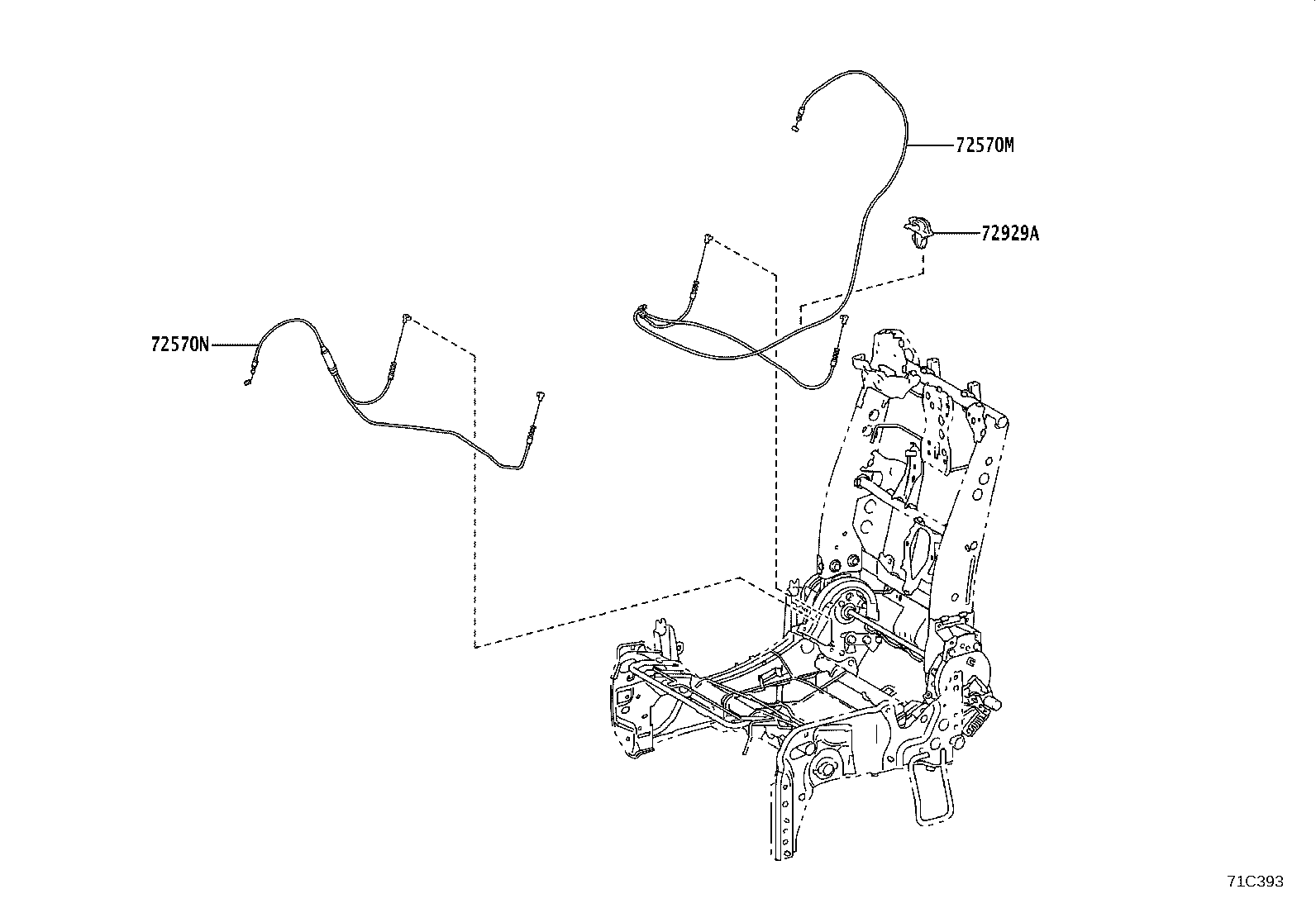

71C393

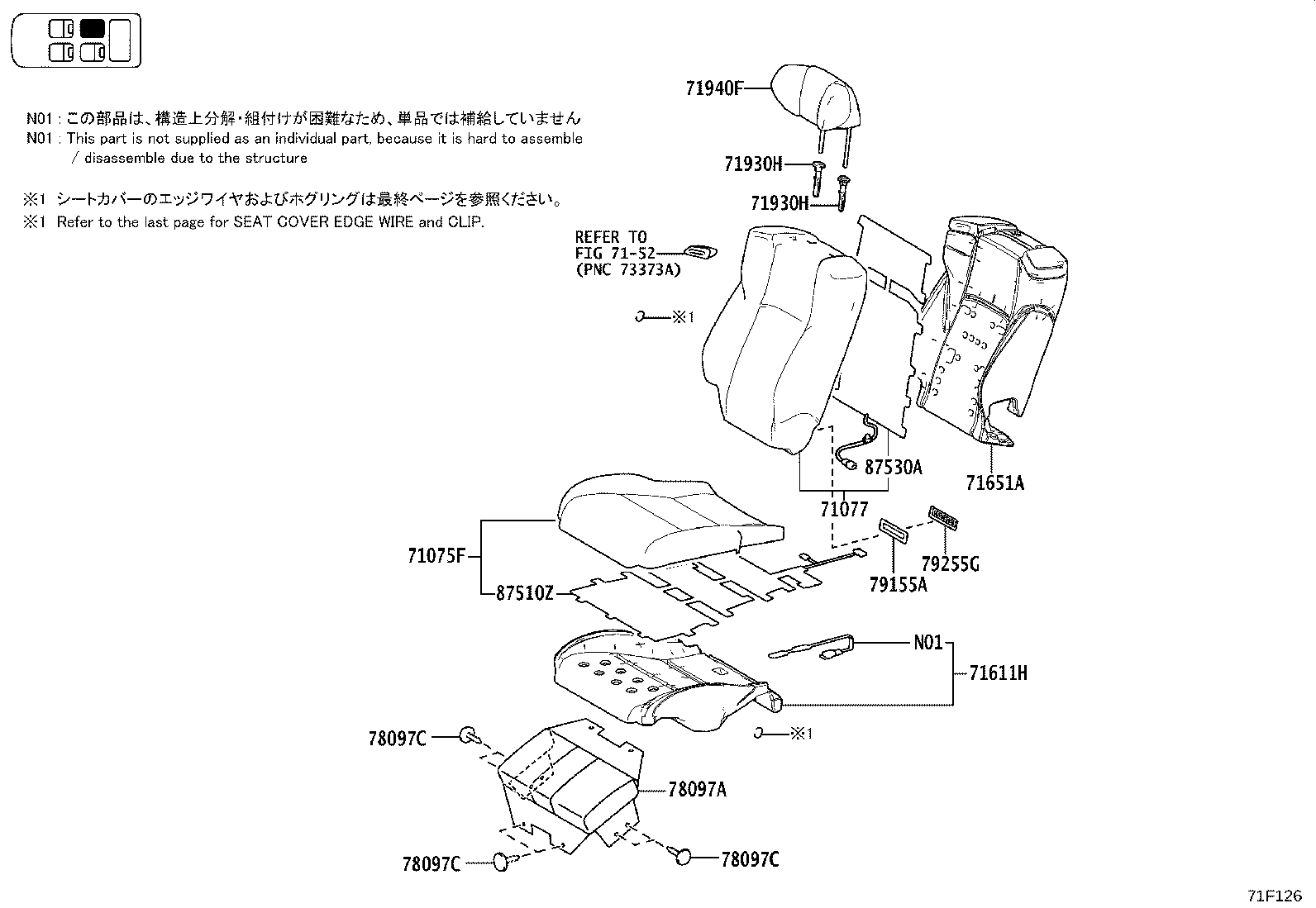

71F126

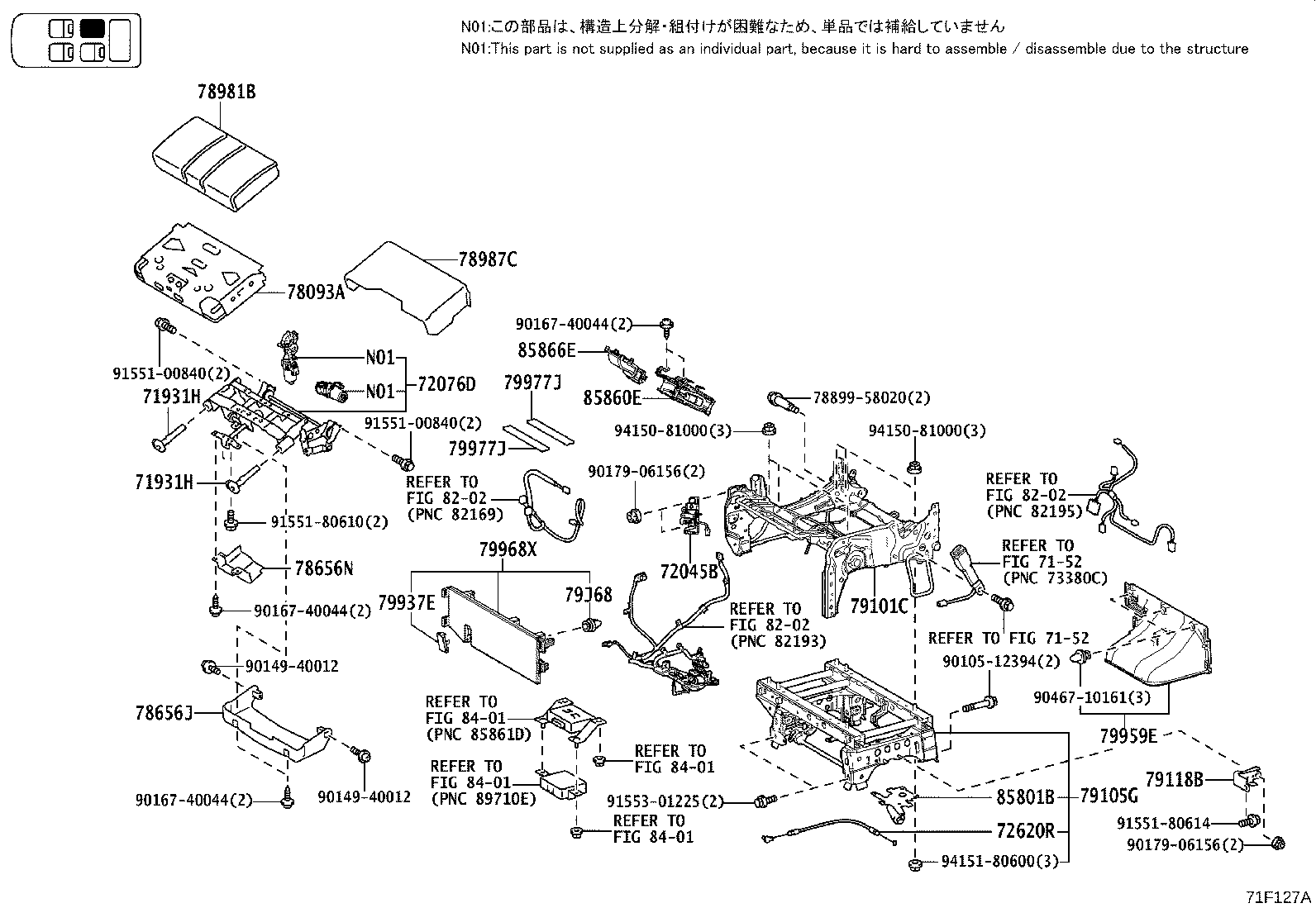

71F127A

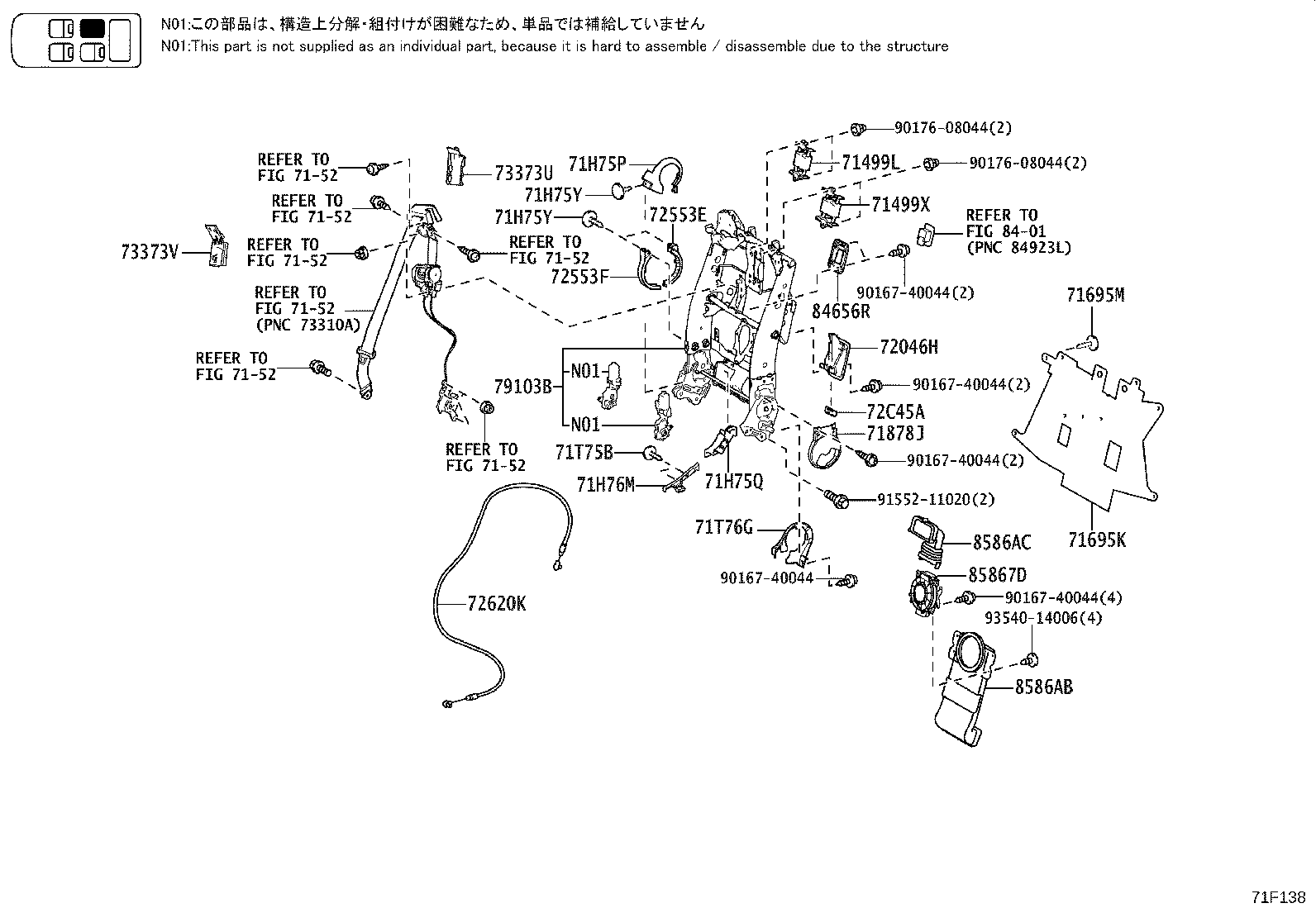

71F138

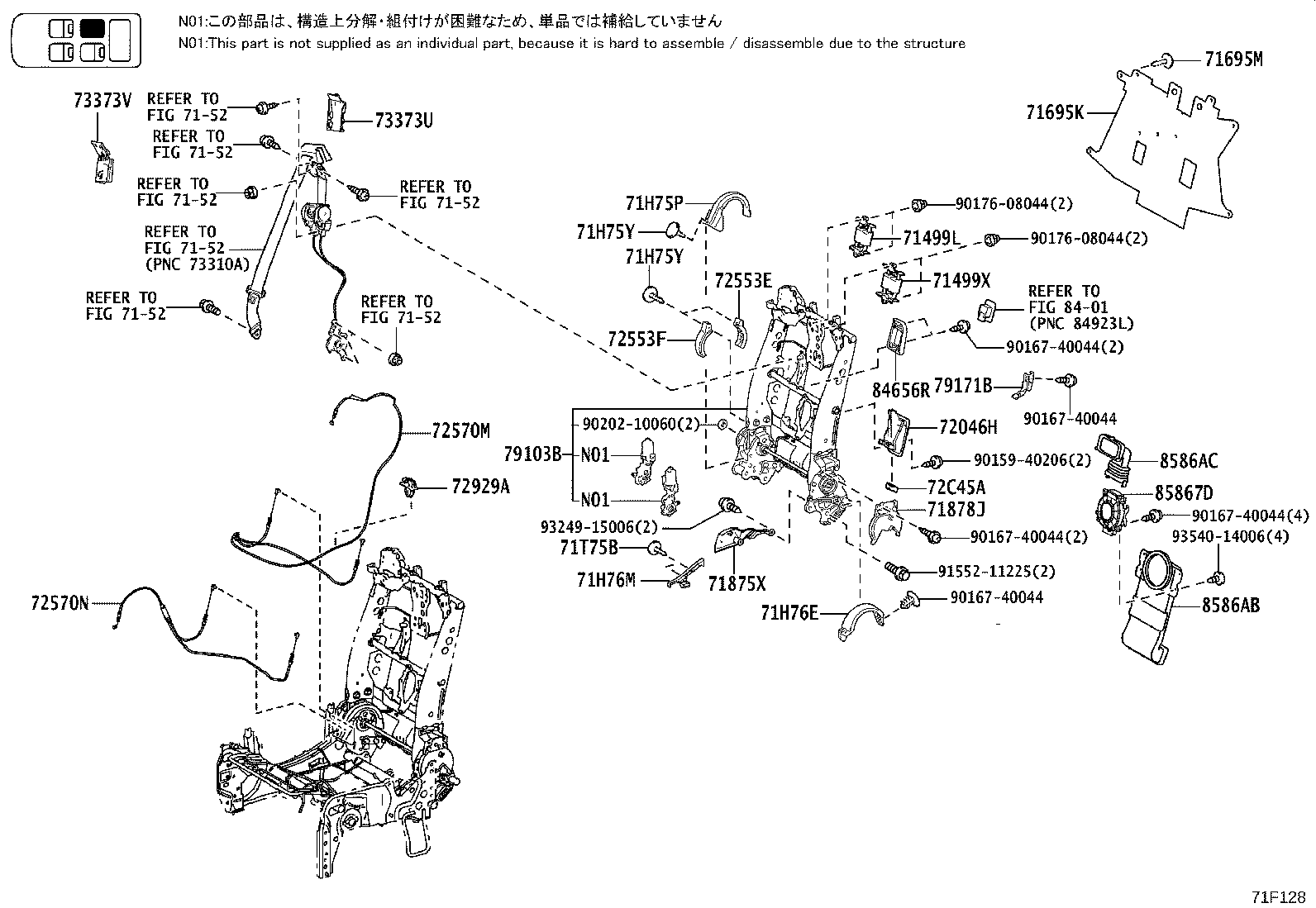

71F128

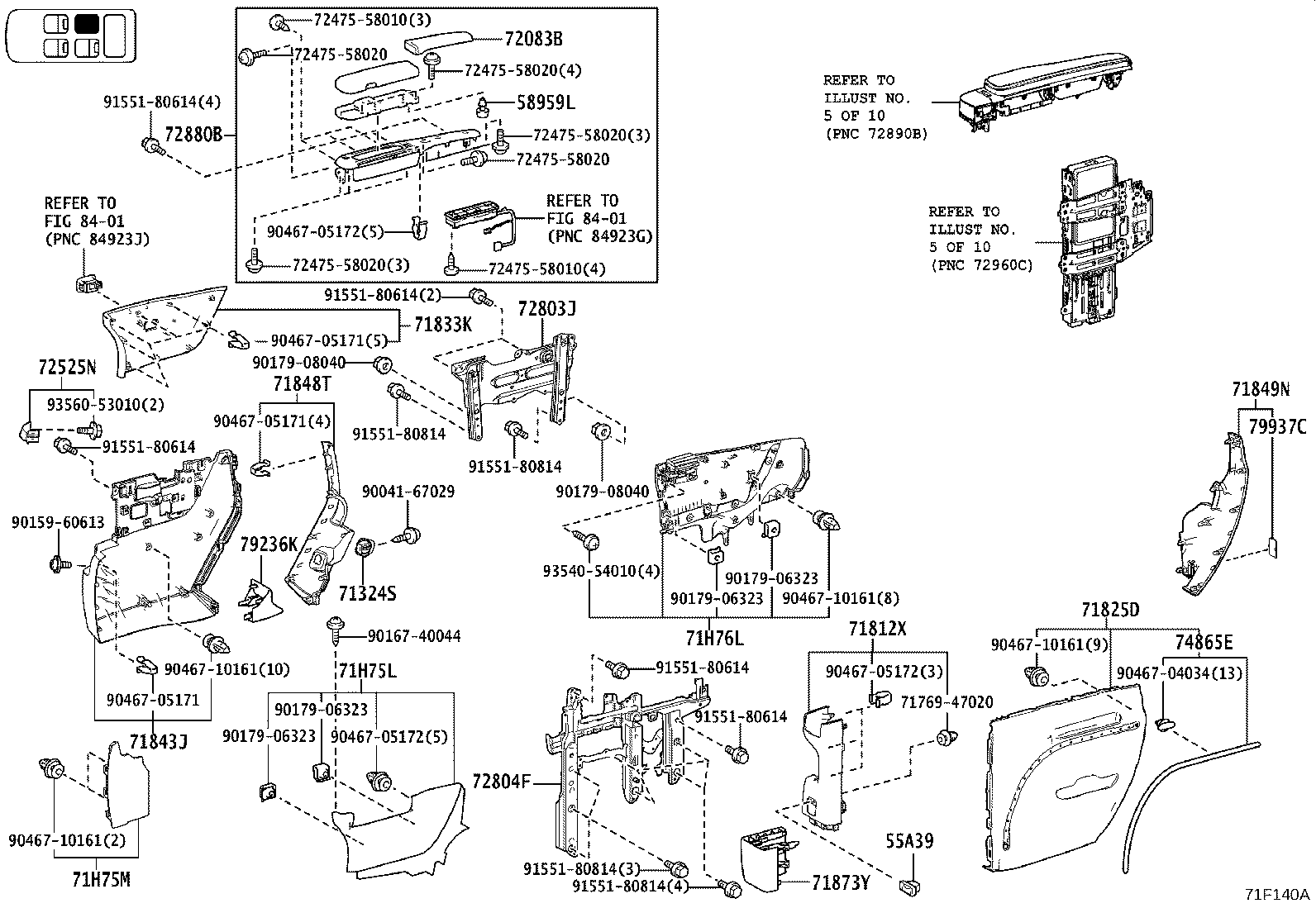

71F140A

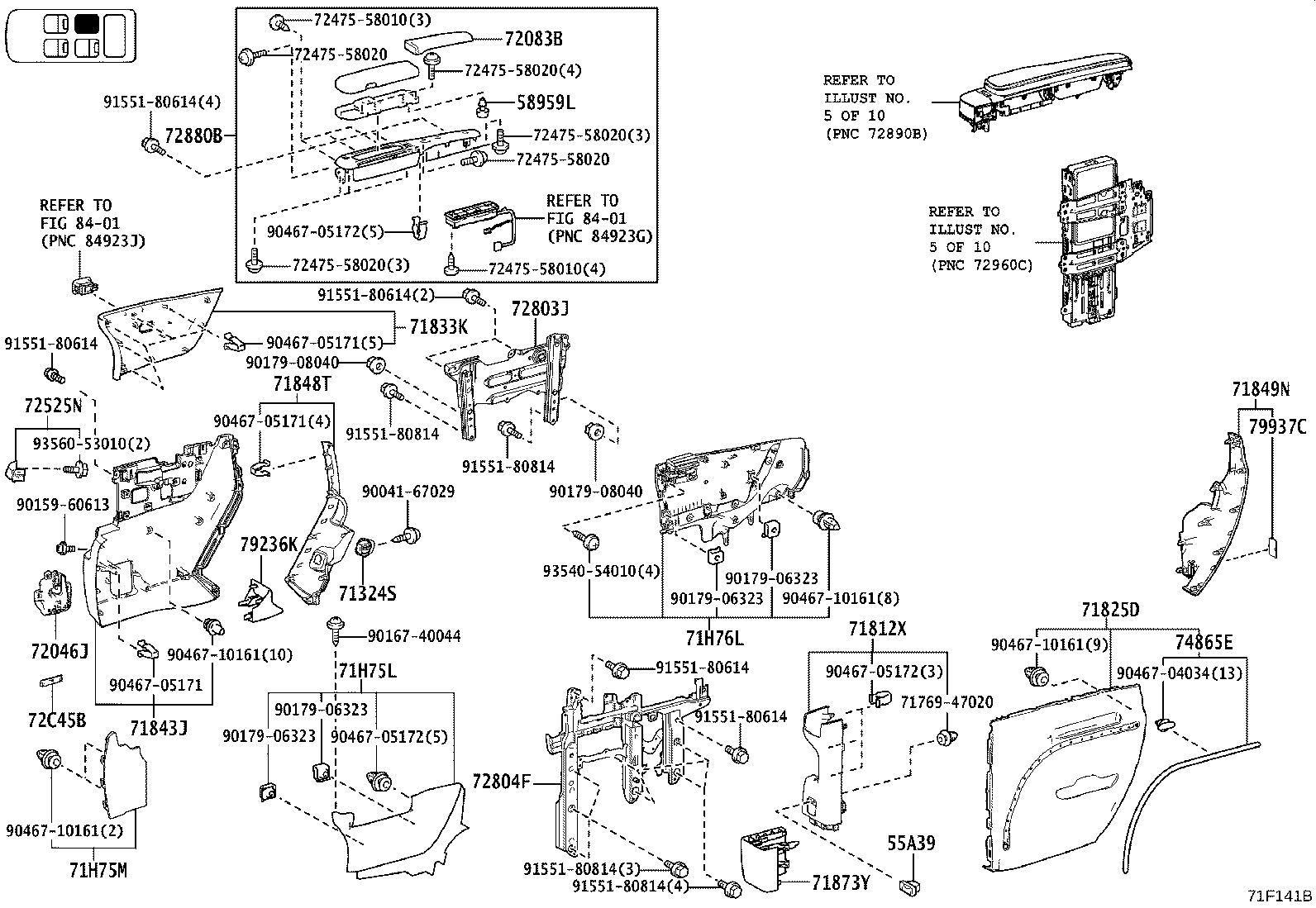

71F141B

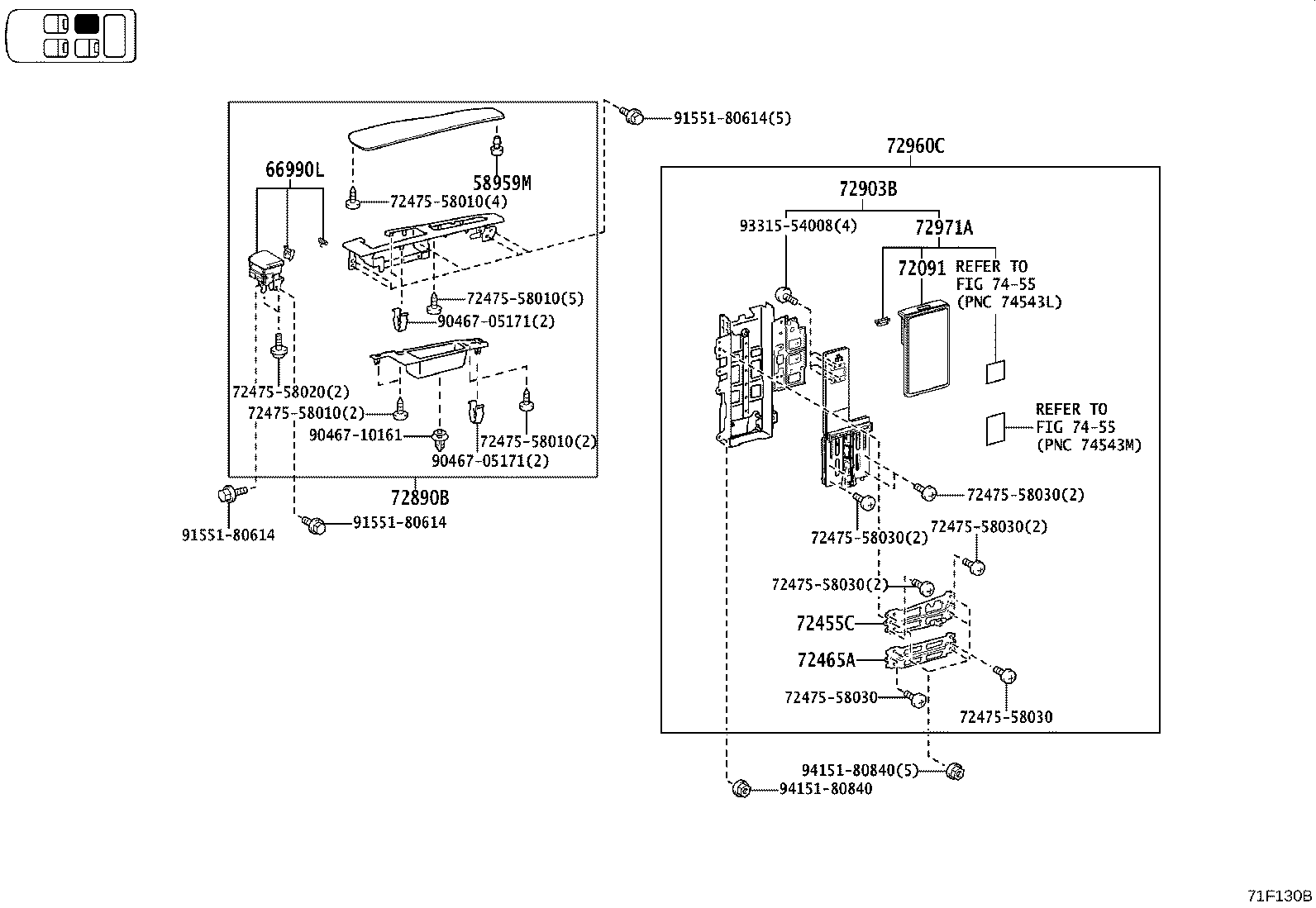

71F130B

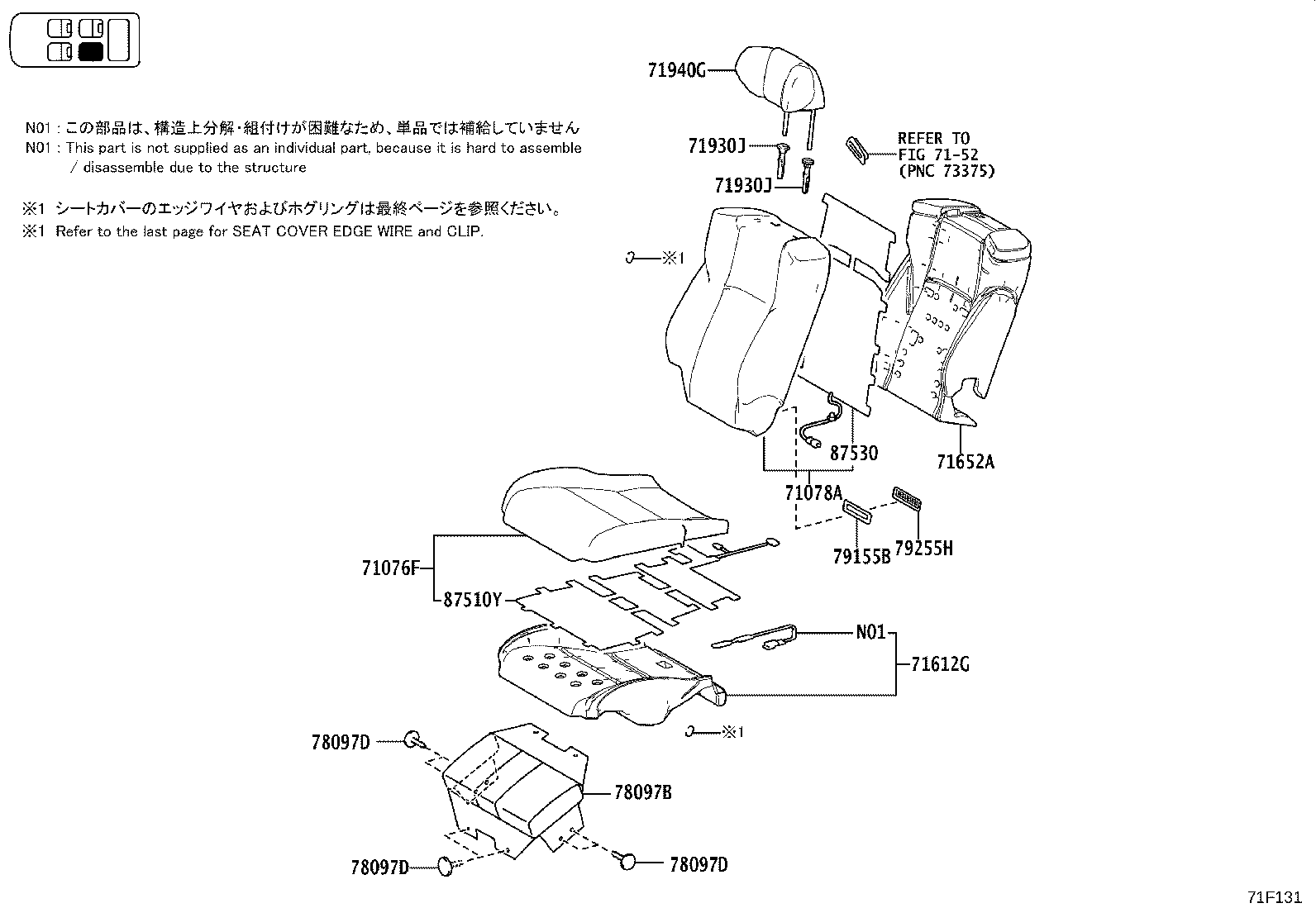

71F131

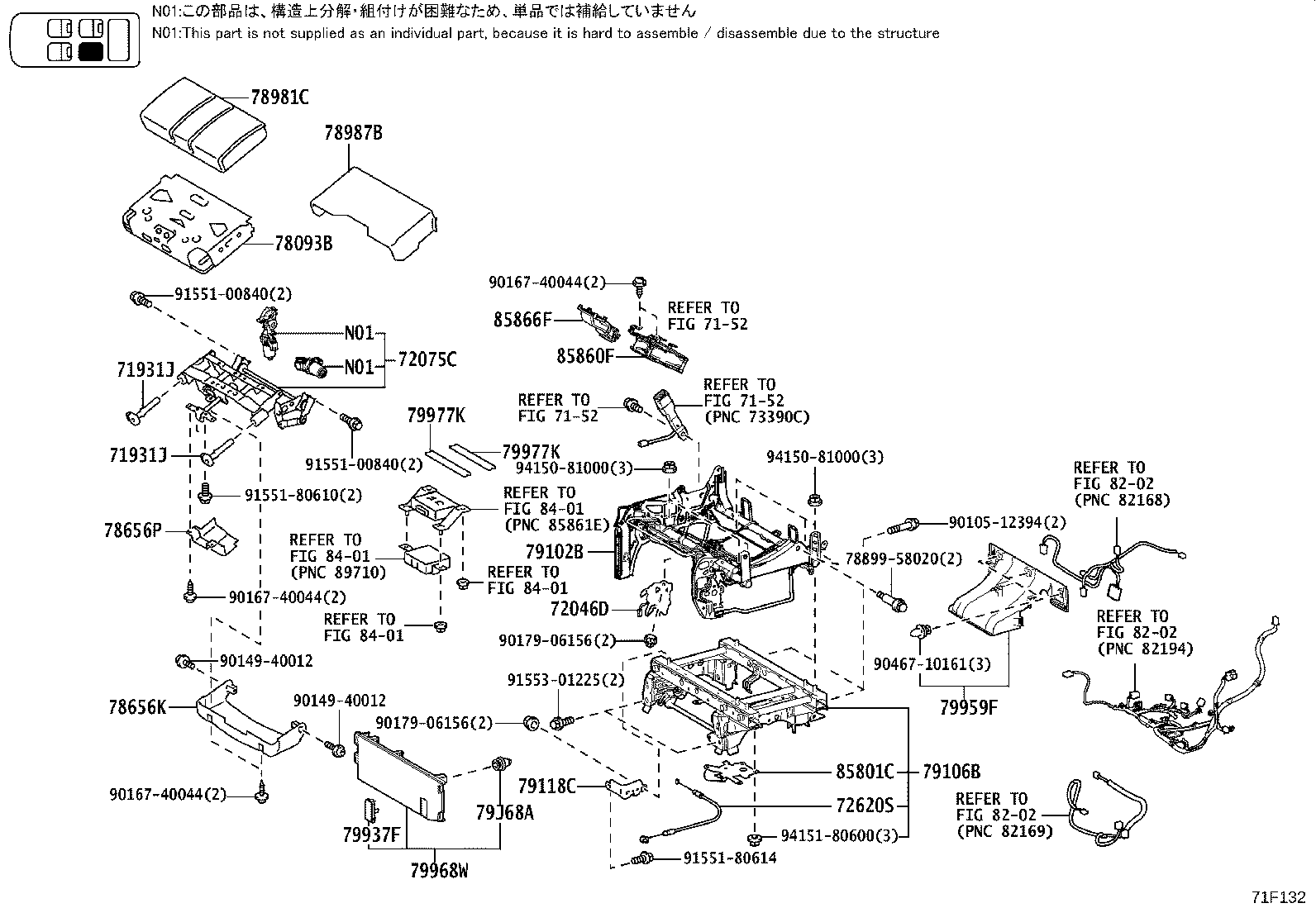

71F132

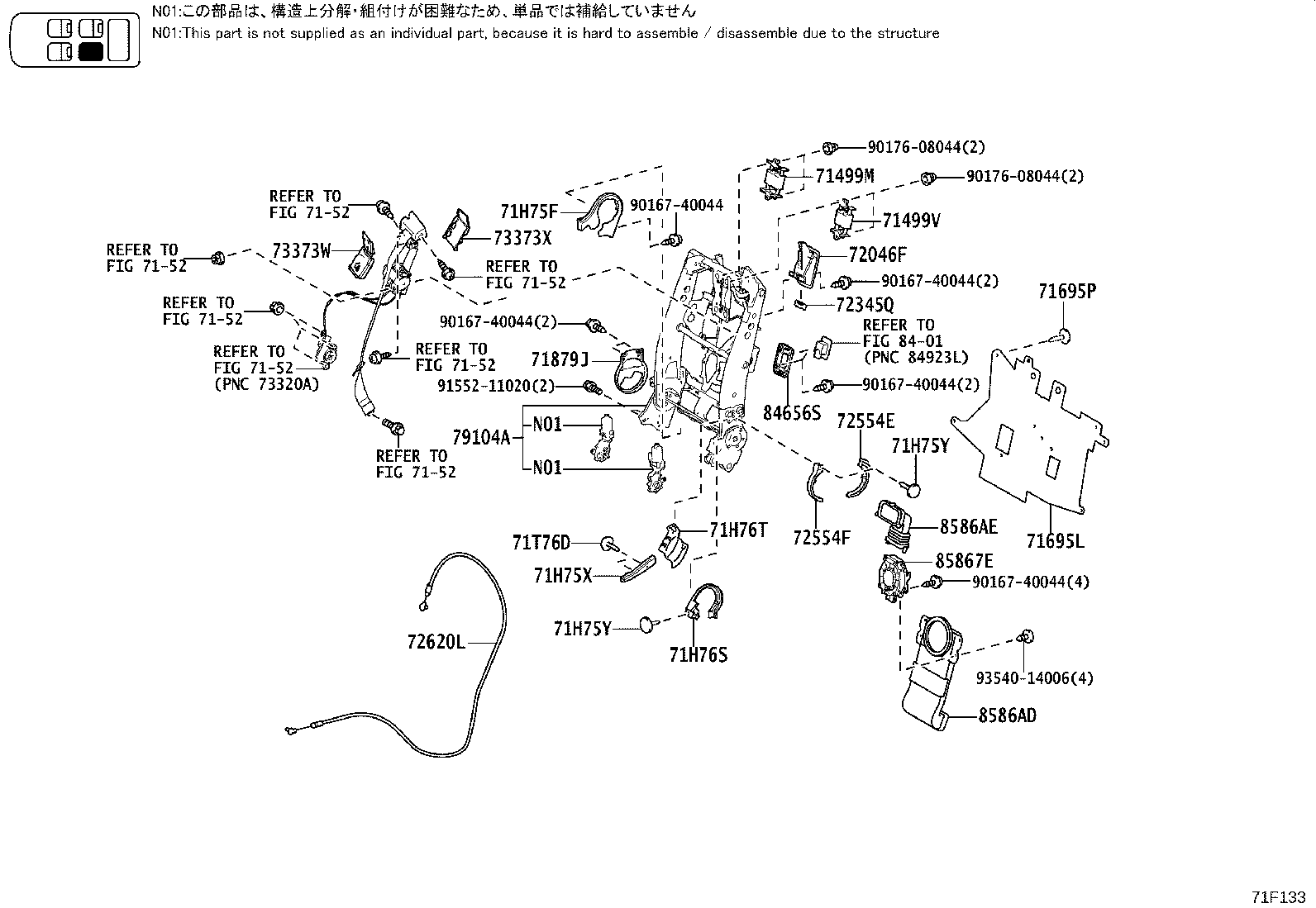

71F133

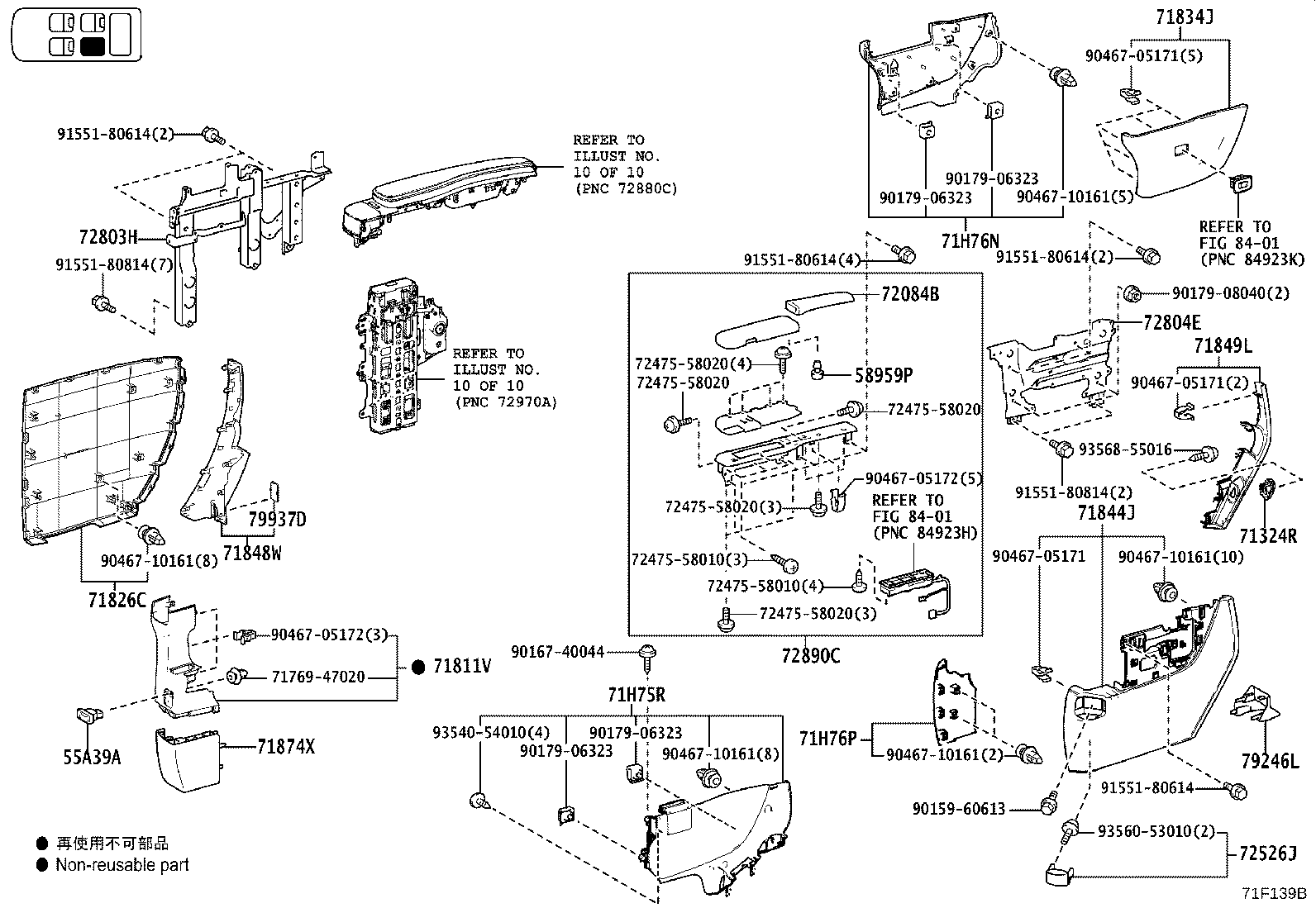

71F139B

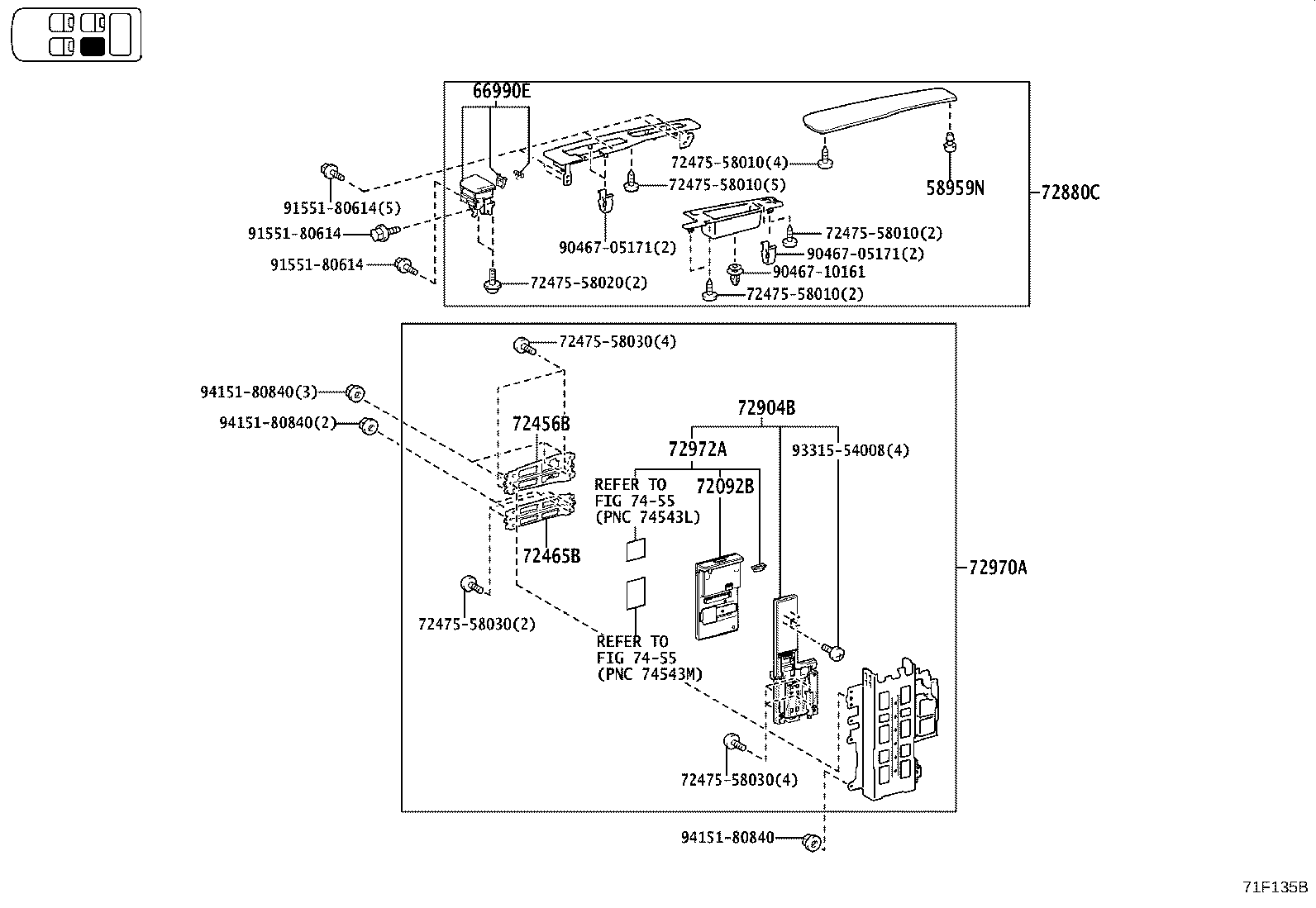

71F135B

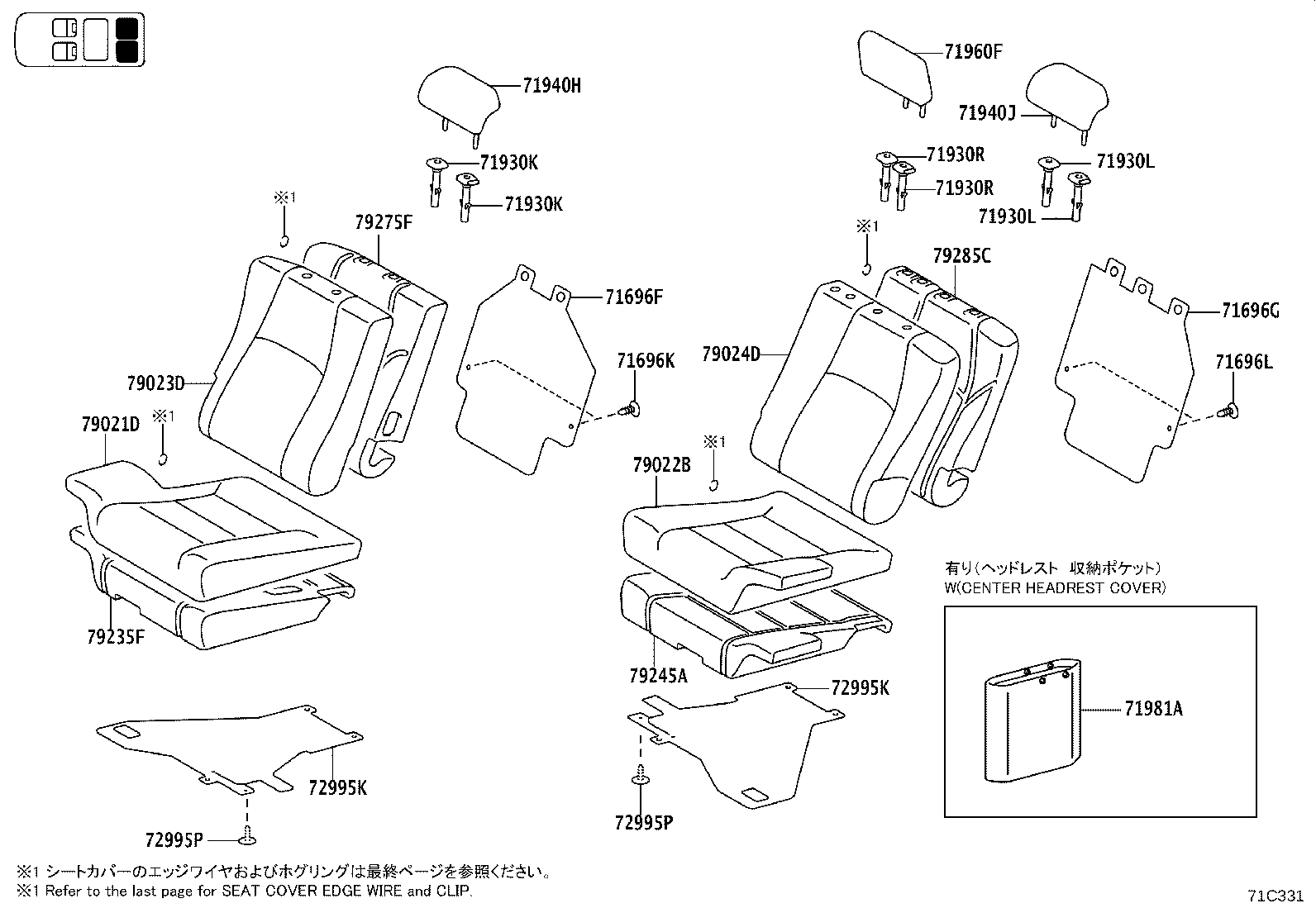

71C331

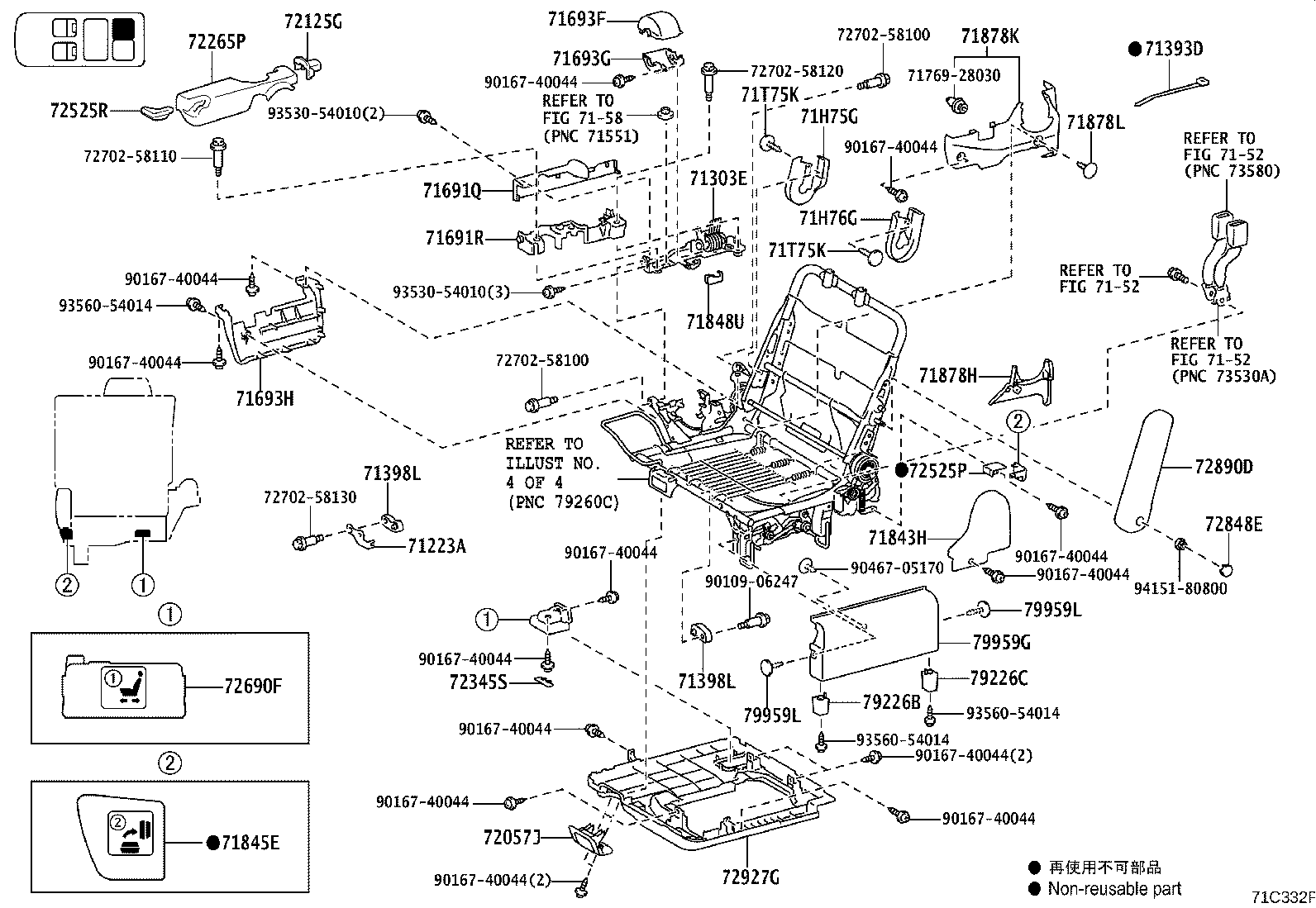

71C332P

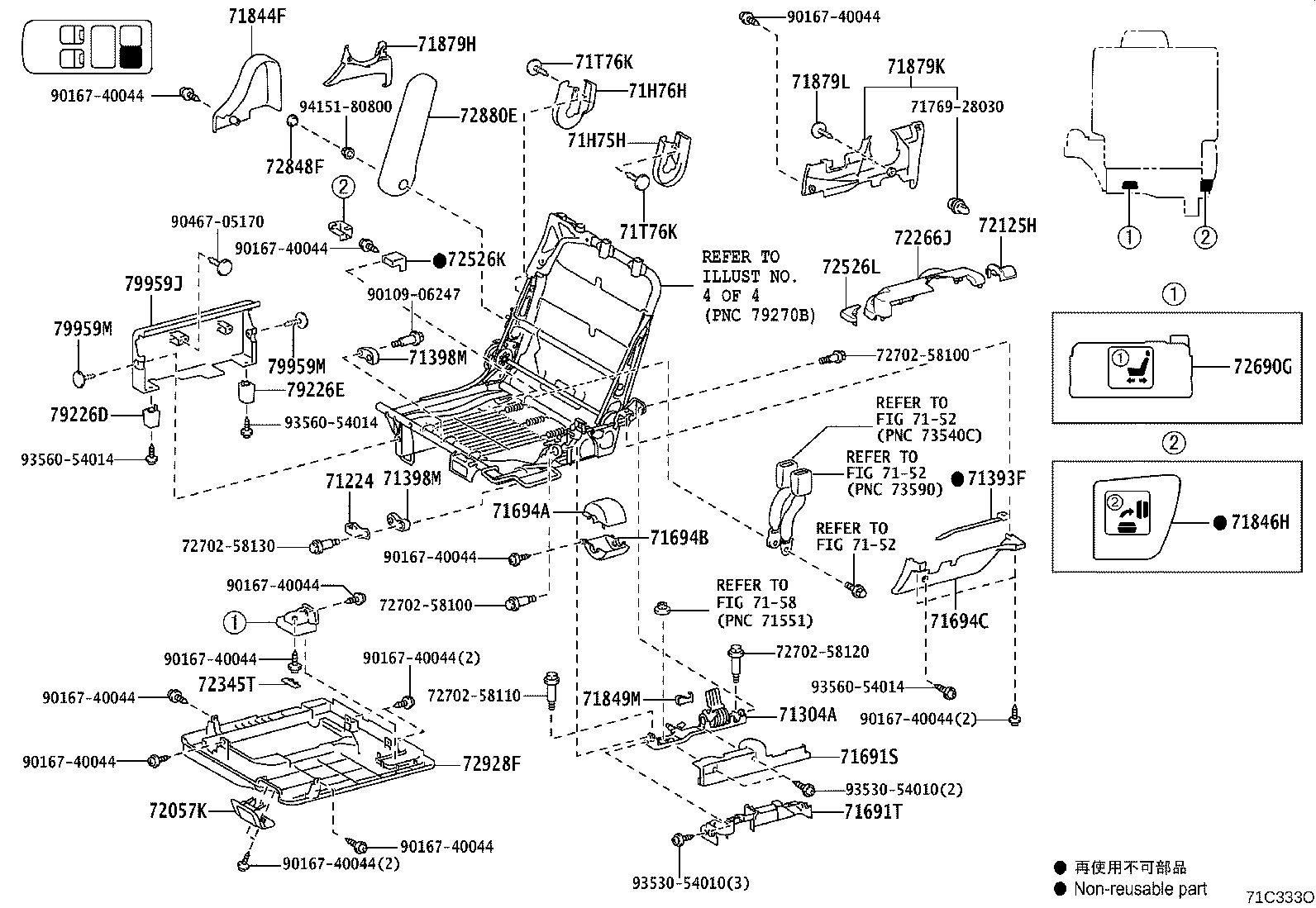

71C333O

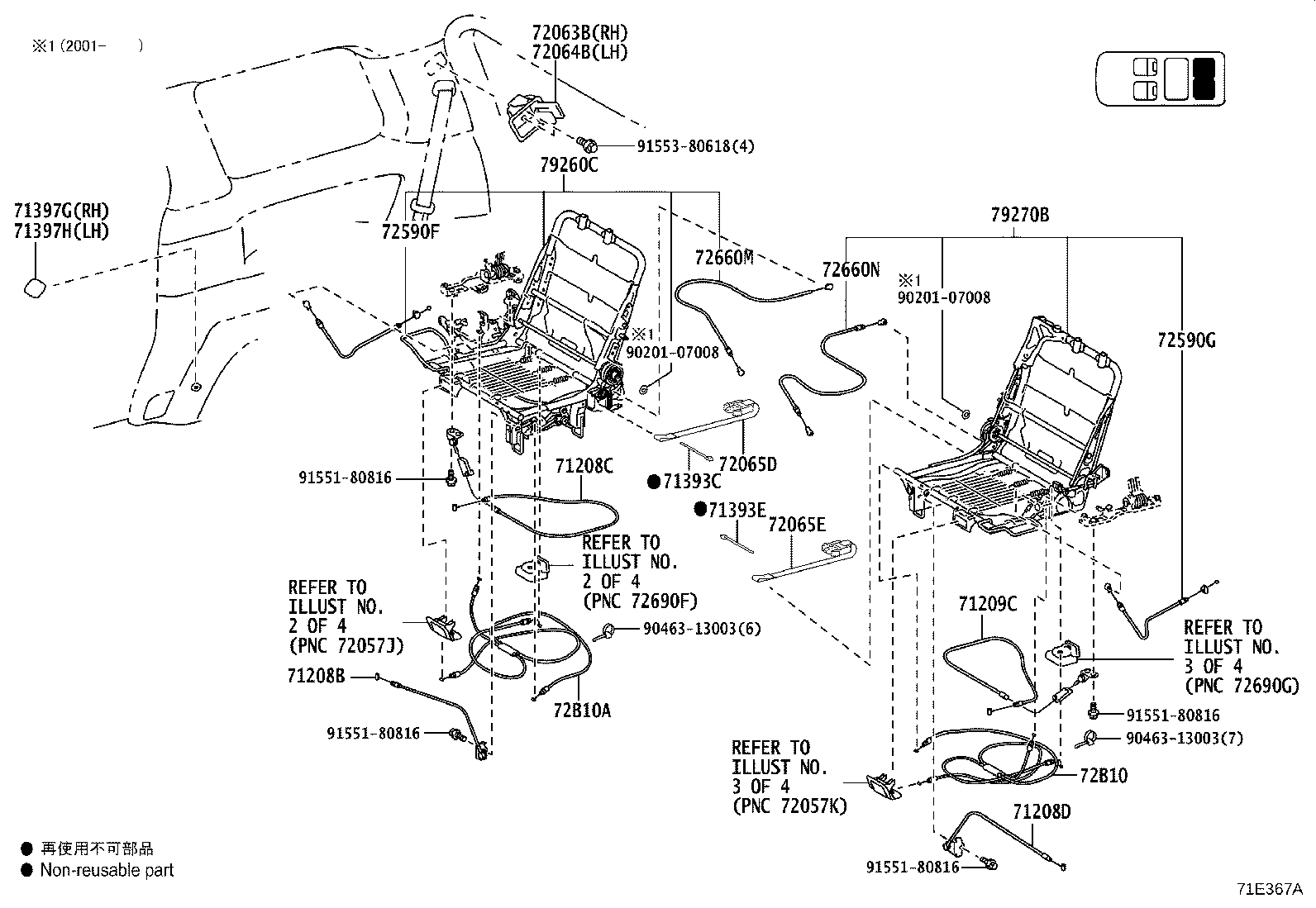

71E367A
719801B
Part groups
| PNC | Description |
|---|---|
| 55A39 | Cover, NO.1 Seat Spare Switch Hole(FOR RH SEAT) |
| 55A39A | Cover, NO.1 Seat Spare Switch Hole(FOR LH SEAT) |
| 58959L | Cushion, NO.1 Seat Armrest, RH(FOR RH SEAT) |
| 58959M | Cushion, NO.1 Seat Armrest, LH(FOR RH SEAT) |
| 58959N | Cushion, NO.1 Seat Armrest, RH(FOR LH SEAT) |
| 58959P | Cushion, NO.1 Seat Armrest, LH(FOR LH SEAT) |
| 66990E | Holder Assy, Rear NO.1 Seat Cup, LH |
| 66990L | Holder Assy, Rear NO.1 Seat Cup, RH |
| 66993E | Plate, Rear NO.1 Seat Cup Holder, LH |
| 66993F | Plate, Rear NO.1 Seat Cup Holder, RH |
| 71075F | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 71075G | Clip, NO.1 Seat Cushion Cover(FOR RH SEAT) |
| 71076F | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 71076G | Clip, NO.1 Seat Cushion Cover(FOR LH SEAT) |
| 71077 | Cover Sub-assy, Rear NO.1 Seatback, RH |
| 71078A | Cover Sub-assy, Rear NO.1 Seatback, LH |
| 71208B | Wire Sub-assy, NO.2 Seat Cushion, RH NO.1 |
| 71208C | Wire Sub-assy, NO.2 Seat Cushion, RH NO.2 |
| 71208D | Wire Sub-assy, NO.2 Seat Cushion, LH NO.1 |
| 71209C | Wire Sub-assy, NO.2 Seat Cushion, LH NO.2 |
| 71223A | Bracket, NO.2 Seat Cushion Side, RH |
| 71224 | Bracket, NO.2 Seat Cushion Side, LH |
| 71303E | Hinge Sub-assy, Rear NO.2 Seat, RH |
| 71304A | Hinge Sub-assy, Rear NO.2 Seat, LH |
| 71307F | Bracket Sub-assy, NO.1 Seat Cushion(FOR RH SEAT) |
| 71307G | Bracket Sub-assy, NO.1 Seat Cushion(FOR LH SEAT) |
| 71324P | Cushion, NO.1 Seat, RH |
| 71324Q | Cushion, NO.1 Seat, LH |
| 71324R | Cushion, Rear NO.1 Seat, LH |
| 71324S | Cushion, Rear NO.1 Seat, RH |
| 71393C | Band, NO.2 Seat Cushion, RH NO.1 |
| 71393D | Band, NO.2 Seat Cushion, RH NO.2 |
| 71393E | Band, NO.2 Seat Cushion, LH NO.1 |
| 71393F | Band, NO.2 Seat Cushion, LH NO.2 |
| 71397G | Stopper, Rear Seat, RH |
| 71397H | Stopper, Rear Seat, LH |
| 71398L | Guide, NO.2 Seat Cushion Support, RH |
| 71398M | Guide, NO.2 Seat Cushion Support, LH |
| 71461D | Spring, NO.1 Seat Cushion, NO.1(FOR RH SEAT) |
| 71461E | Spring, NO.1 Seat Cushion, NO.2(FOR RH SEAT) |
| 71461F | Spring, NO.1 Seat Cushion, NO.1(FOR LH SEAT) |
| 71461G | Spring, NO.1 Seat Cushion, NO.2(FOR LH SEAT) |
| 71499L | Damper, NO.1 Seatback Spring, RH |
| 71499M | Damper, NO.1 Seatback Spring, LH |
| 71499V | Damper, NO.1 Seatback Spring, LH NO.2 |
| 71499X | Damper, NO.1 Seatback Spring, RH NO.2 |
| 71537P | Protector, Rear NO.1 Seat Cushion, RH |
| 71537Q | Protector, Rear NO.1 Seat Cushion, LH |
| 71611H | Pad, Rear NO.1 Seat Cushion, RH |
| 71612G | Pad, Rear NO.1 Seat Cushion, LH |
| 71651A | Pad, Rear NO.1 Seatback, RH |
| 71652A | Pad, Rear NO.1 Seatback, LH |
| 71691Q | Cover, Rear NO.2 Seat Lock, Upper NO.1 RH |
| 71691R | Cover, Rear NO.2 Seat Lock, Upper NO.2 RH |
| 71691S | Cover, Rear NO.2 Seat Lock, Upper NO.1 LH |
| 71691T | Cover, Rear NO.2 Seat Lock, Upper NO.2 LH |
| 71693F | Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1 |
| 71693G | Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2 |
| 71693H | Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.3 |
| 71694A | Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1 |
| 71694B | Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2 |
| 71694C | Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.3 |
| 71695K | Protector, NO.1 Seatback, RH |
| 71695L | Protector, NO.1 Seatback, LH |
| 71695M | Clip, Rear NO.1 Seat Protector, NO.1 RH |
| 71695P | Clip, Rear NO.1 Seat Protector, NO.1 LH |
| 71695U | Protector, NO.1 Seatback Stay(FOR RH SEAT) |
| 71695V | Protector, NO.1 Seatback Stay(FOR LH SEAT) |
| 71696F | Protector, NO.2 Seatback, RH |
| 71696G | Protector, NO.2 Seatback, LH |
| 71696K | Clip, NO.2 Seatback Protector, RH NO.1 |
| 71696L | Clip, NO.2 Seatback Protector, LH NO.1 |
| 71769J | Clip, NO.1 Seat Cushion Moulding(FOR RH SEAT) |
| 71769K | Clip, NO.1 Seat Legrest Cover(FOR RH SEAT) |
| 71769L | Clip, NO.1 Seat Cushion Moulding(FOR LH SEAT) |
| 71769M | Clip, NO.1 Seat Legrest Cover(FOR LH SEAT) |
| 71779D | Plate, Rear Seat(FOR RH SEAT) |
| 71779E | Plate, Rear Seat(FOR LH SEAT) |
| 71811V | Cover, NO.1 Seat Reclining Adjuster, Inner(FOR LH SEAT) |
| 71812X | Cover, NO.1 Seat Reclining Adjuster, Inner(FOR RH SEAT) |
| 71825A | Moulding, NO.1 Seat Cushion, RH Inner |
| 71825D | Moulding, Rear NO.1 Seat Cushion, RH |
| 71826A | Moulding, NO.1 Seat Cushion, LH Inner |
| 71826C | Moulding, Rear Seat Cushion, LH |
| 71833K | Cover, NO.1 Seat Reclining, NO.1 RH Outer |
| 71833S | Cover, Rear Seat Reclining, NO.1 RH |
| 71833Y | Clip, NO.1 Seat Reclining Cover(FOR RH SEAT) |
| 71834J | Cover, NO.1 Seat Reclining, NO.1 LH Outer |
| 71834S | Cover, Rear Seat Reclining, NO.1 LH |
| 71834W | Clip, NO.1 Seat Reclining Cover(FOR LH SEAT) |
| 71843H | Cover, NO.2 Seat Reclining, NO.2 RH Inner |
| 71843J | Cover, Rear NO.1 Seat Reclining, NO.2 RH |
| 71844F | Cover, NO.2 Seat Reclining, NO.2 LH Inner |
| 71844J | Cover, Rear NO.1 Seat Reclining, NO.2 LH |
| 71845E | Cap, Rear NO.2 Seat Cover, RH |
| 71846H | Cap, Rear NO.2 Seat Cover, LH |
| 71848T | Cap, NO.1 Seat Adjuster Cover, RH |
| 71848U | Cap, NO.2 Seat Adjuster Cover, RH |
| 71848W | Cap, NO.1 Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71849K | Cap, Seat Adjuster Cover(FOR SEAT SIDE TABLE) |
| 71849L | Cap, NO.1 Seat Adjuster Cover, LH |
| 71849M | Cap, NO.2 Seat Adjuster Cover, LH |
| 71849N | Cap, NO.1 Seat Adjuster Cover, LH(FOR RH SEAT) |
| 71849Q | Cap, Seat Adjuster Cover, LH NO.1 |
| 71865B | Bezel, Rear NO.1 Seat Cover, NO.1(FOR RH SEAT) |
| 71866D | Bezel, Rear NO.1 Seat Cover, NO.2(FOR LH SEAT) |
| 71873Y | Shield, Rear Seat Cushion, Lower |
| 71874X | Shield, Rear Seat Cushion, Lower LH |
| 71875X | Cover, Reclining Adjuster Inside, RH |
| 71875Y | Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK) |
| 71878H | Cover, Rear Seat Reclining, Inner RH |
| 71878J | Cover, Rear NO.1 Seat Reclining, Inner RH |
| 71878K | Cover, Rear NO.2 Seat Reclining, Inner RH |
| 71878L | Clip, Rear NO.2 Seat Reclining Cover, RH |
| 71879H | Cover, Rear Seat Reclining, Inner LH |
| 71879J | Cover, Rear NO.1 Seat Reclining, Inner LH |
| 71879K | Cover, Rear NO.2 Seat Reclining, Inner LH |
| 71879L | Clip, Rear NO.2 Seat Reclining Cover, LH |
| 71930H | Support Assy, NO.1 Seat Headrest, RH |
| 71930J | Support Assy, NO.1 Seat Headrest, LH |
| 71930K | Support Assy, NO.2 Seat Headrest, RH |
| 71930L | Support Assy, NO.2 Seat Headrest, LH |
| 71930R | Support Assy, Rear NO.2 Seat Headrest, Center |
| 71931H | Support, NO.1 Seat Footrest(FOR RH SEAT) |
| 71931J | Support, NO.1 Seat Footrest(FOR LH SEAT) |
| 71940F | Headrest Assy, NO.1 Seat, RH |
| 71940G | Headrest Assy, NO.1 Seat, LH |
| 71940H | Headrest Assy, NO.2 Seat, RH |
| 71940J | Headrest Assy, NO.2 Seat, LH |
| 71960F | Headrest Assy, Rear NO.2 Seat, Center |
| 71981A | Cover, NO.2 Seat Headrest |
| 71H48 | Cap, Seat Adjuster Cover, RH NO.1 |
| 71H75E | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT) |
| 71H75F | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT) |
| 71H75G | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT) |
| 71H75H | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT) |
| 71H75L | Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT) |
| 71H75M | Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT) |
| 71H75N | Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT) |
| 71H75P | Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK) |
| 71H75Q | Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEATBACK) |
| 71H75R | Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT) |
| 71H75X | Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT) |
| 71H75Y | Clip, Rear Seat Reclining Cover |
| 71H76E | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT) |
| 71H76F | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT) |
| 71H76G | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT) |
| 71H76H | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT) |
| 71H76L | Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT) |
| 71H76M | Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT) |
| 71H76N | Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT) |
| 71H76P | Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT) |
| 71H76Q | Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT) |
| 71H76R | Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT) |
| 71H76S | Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK) |
| 71H76T | Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEATBACK) |
| 71H76U | Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT) |
| 71T75B | Clip, Reclining Adjuster Inside Cover, RH |
| 71T75F | Cover, Reclining Adjuster Inside, RH |
| 71T75K | Clip, Reclining Adjuster Inside Cover(FOR REAR NO.2 RH SEAT) |
| 71T76B | Cover, Reclining Adjuster Inside, LH |
| 71T76D | Clip, Reclining Adjuster Inside Cover, LH |
| 71T76G | Cover, Reclining Adjuster Inside, LH |
| 71T76K | Clip, Reclining Adjuster Inside Cover(FOR REAR NO.2 LH SEAT) |
| 72045B | Cover Sub-assy, NO.1 Seat Track, Outer RH |
| 72046D | Cover Sub-assy, Rear Seat Track, Outer LH NO.1 |
| 72046F | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT) |
| 72046H | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR RH SEAT) |
| 72046J | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.2(FOR RH SEAT) |
| 72057E | Lever Sub-assy, Rear Seat Lock Control, RH NO.1 |
| 72057J | Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT) |
| 72057K | Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT) |
| 72058F | Lever Sub-assy, NO.1 Seat Lock Control, LH |
| 72063B | Hook Sub-assy, Rear Seat, RH |
| 72064B | Hook Sub-assy, Rear Seat, LH |
| 72065D | Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH |
| 72065E | Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH |
| 72075C | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR LH SEAT) |
| 72076D | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT) |
| 72083B | Pad Sub-assy, NO.1 Seat Armrest, RH |
| 72084B | Pad Sub-assy, NO.1 Seat Armrest, LH |
| 72091 | Plate Sub-assy, Rear Seat Turn, Upper RH |
| 72092B | Plate Sub-assy, Rear Seat Turn, Upper LH |
| 72125G | Cover, Seat Track Lock Plate, NO.1 |
| 72125H | Cover, Seat Track Lock Plate, NO.2 |
| 72210Q | Cable Assy, NO.1 Seat Slide, RH |
| 72210R | Cable Assy, NO.1 Seat Slide, LH |
| 72210U | Cable Assy, NO.1 Seat Track Control, LH |
| 72210X | Cable Assy, NO.1 Seat Track Control, RH |
| 72215A | Lever, NO.1 Seat Track Handle Control, RH |
| 72216B | Lever, NO.1 Seat Track Handle Control, LH |
| 72265P | Cover, Seat Track Upper Rail, RH |
| 72266J | Cover, Seat Track Upper Rail, LH |
| 72345N | Cap, Seat Stand Frame, RH NO.1 |
| 72345Q | Cap, Seat Stand Frame, LH NO.1 |
| 72345S | Cap, NO.2 Seat Stand Frame, RH |
| 72345T | Cap, NO.2 Seat Stand Frame, LH |
| 72345Y | Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT) |
| 72455C | Bracket, NO.1 Seat Frame Set, NO.1 |
| 72456B | Bracket, NO.1 Seat Frame Set, NO.2 |
| 72465A | Bracket, NO.1 Seat Frame Set, NO.3(FOR RH SEAT) |
| 72465B | Bracket, NO.1 Seat Frame Set, NO.3(FOR LH SEAT) |
| 72525N | Handle, NO.1 Seat Reclining Adjuster Release, RH |
| 72525P | Handle, NO.2 Seat Reclining Adjuster Release, RH |
| 72525R | Handle, Reclining Adjuster Release, RH |
| 72526J | Handle, NO.1 Seat Reclining Adjuster Release, LH |
| 72526K | Handle, NO.2 Seat Reclining Adjuster Release, LH |
| 72526L | Handle, Reclining Adjuster Release, LH |
| 72553E | Protector, Reclining Cover, RH NO.1 |
| 72553F | Protector, Reclining Cover, RH NO.2 |
| 72554E | Protector, Reclining Cover, LH NO.1 |
| 72554F | Protector, Reclining Cover, LH NO.2 |
| 72570E | Cable Assy, NO.1 Seat Reclining Adjusting, RH |
| 72570F | Cable Assy, NO.1 Seat Reclining Adjusting, LH |
| 72570M | Cable Assy, NO.1 Seat Reclining Adjusting, RH NO.1 |
| 72570N | Cable Assy, NO.1 Seat Reclining Adjusting, RH NO.2 |
| 72590F | Cable Assy, Reclining Remote Control, RH |
| 72590G | Cable Assy, Reclining Remote Control, LH |
| 72620K | Cable Assy, NO.1 Seat Walk-in, RH |
| 72620L | Cable Assy, NO.1 Seat Walk-in, LH |
| 72620R | Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT) |
| 72620S | Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT) |
| 72660M | Cable Assy, Rear NO.2 Seat Cushion Lock, RH |
| 72660N | Cable Assy, Rear NO.2 Seat Cushion Lock, LH |
| 72675B | Hook, NO.1 Seat Lock(FOR RH SEAT) |
| 72675C | Hook, NO.1 Seat Lock(FOR LH SEAT) |
| 72690F | Lever Assy, NO.2 Seat Cushion Lock Release, RH |
| 72690G | Lever Assy, NO.2 Seat Cushion Lock Release, LH |
| 72781E | Spring, Rear NO.1 Seat Plate, LH |
| 72781F | Spring, Rear NO.1 Seat Plate, RH |
| 72803H | Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR LH SEAT) |
| 72803J | Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT) |
| 72804E | Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT) |
| 72804F | Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT) |
| 72848C | Cap, NO.1 Seat Armrest, NO.1 RH |
| 72848D | Cap, NO.1 Seat Armrest, NO.1 LH |
| 72848E | Cap, NO.2 Seat Armrest, NO.1 RH |
| 72848F | Cap, NO.2 Seat Armrest, NO.1 LH |
| 72880B | Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT) |
| 72880C | Armrest Assy, NO.1 Seat, C RH(FOR LH SEAT) |
| 72880E | Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT) |
| 72890B | Armrest Assy, NO.1 Seat, C LH(FOR RH SEAT) |
| 72890C | Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT) |
| 72890D | Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT) |
| 72903B | Table Sub-assy, NO.1 Seat Turn, RH |
| 72904B | Table Sub-assy, NO.1 Seat Turn, LH |
| 72905A | Link Sub-assy, 3RD Seat, RH |
| 72906A | Link Sub-assy, 3RD Seat, LH |
| 72927G | Cover, Rear NO.2 Seat Cushion Under, RH |
| 72928F | Cover, Rear NO.2 Seat Cushion Under, LH |
| 72929A | Holder, NO.1 Seat Cushion Band(FOR RH SEAT) |
| 72960C | Table Assy, NO.1 Seat Turn, RH |
| 72970A | Table Assy, NO.1 Seat Turn, LH |
| 72971A | Plate, Rear Seat Turn Side, RH |
| 72972A | Plate, Rear Seat Turn Side, LH |
| 72995K | Cover, Rear NO.2 Seat Cushion |
| 72995P | Clip, Rear Seat Cushion Cover |
| 72B10 | Cable Assy, Rear NO.2 Seat Track Control(FOR LH SEAT) |
| 72B10A | Cable Assy, Rear NO.2 Seat Track Control(FOR RH SEAT) |
| 72C45A | Cap, NO.1 Seat Stand Frame, NO.1(FOR RH SEAT) |
| 72C45B | Cap, NO.1 Seat Stand Frame, NO.2(FOR RH SEAT) |
| 73373U | Cover, NO.1 Seat Shoulder Belt, RH NO.1 |
| 73373V | Cover, NO.1 Seat Shoulder Belt, RH NO.2 |
| 73373W | Cover, NO.1 Seat Shoulder Belt, LH NO.2 |
| 73373X | Cover, NO.1 Seat Shoulder Belt, LH NO.1 |
| 74865E | Cover, NO.1 Seat Cushion Moulding, RH |
| 78060C | Table Assy, NO.1 Seat Side |
| 78061 | Table Sub-assy, Rear NO.1 Seat Side |
| 78093A | Frame Sub-aasy, NO.1 Seat Footrest(FOR RH SEAT) |
| 78093B | Frame Sub-aasy, NO.1 Seat Footrest(FOR LH SEAT) |
| 78097A | Cover Sub-assy, NO.1 Seat Footrest(FOR RH SEAT) |
| 78097B | Cover Sub-assy, NO.1 Seat Footrest(FOR LH SEAT) |
| 78097C | Clip, NO.1 Seat Footrest Cover(FOR RH SEAT) |
| 78097D | Clip, NO.1 Seat Footrest Cover(FOR LH SEAT) |
| 78608C | Cable Sub-assy, Legrest Lock Control(FOR RH SEAT) |
| 78608D | Cable Sub-assy, Legrest Lock Control(FOR LH SEAT) |
| 78656J | Cover, Rear Seat Legrest, RH |
| 78656K | Cover, Rear Seat Legrest, LH |
| 78656N | Cover, Rear Seat Legrest, RH NO.2 |
| 78656P | Cover, Rear Seat Legrest, LH NO.2 |
| 78656Q | Cover, NO.1 Seat Legrest, RH NO.3 |
| 78656R | Cover, NO.1 Seat Legrest, LH NO.3 |
| 78656S | Cover, NO.1 Seat Legrest(FOR RH SEAT) |
| 78656T | Cover, NO.1 Seat Legrest(FOR LH SEAT) |
| 78656U | Clip, NO.1 Seat Legrest Cover(FOR RH SEAT) |
| 78656V | Clip, NO.1 Seat Legrest Cover(FOR LH SEAT) |
| 78731B | Lever, Sub Seat Cushion(FOR RH SEAT) |
| 78731C | Lever, Sub Seat Cushion(FOR LH SEAT) |
| 78981B | Panel, NO.1 Seat Footrest(FOR RH SEAT) |
| 78981C | Panel, NO.1 Seat Footrest(FOR LH SEAT) |
| 78987B | Cover, Rear NO.1 Seat Footrest, NO.1 LH |
| 78987C | Cover, Rear NO.1 Seat Footrest, NO.1 RH |
| 78990B | Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT) |
| 78990C | Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT) |
| 79021D | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022B | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023D | Cover Sub-assy, NO.2 Seatback, RH |
| 79024D | Cover Sub-assy, NO.2 Seatback, LH |
| 79101C | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102B | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79103B | Frame Sub-assy, NO.1 Seatback, RH |
| 79104A | Frame Sub-assy, NO.1 Seatback, LH |
| 79105G | Leg Sub-assy, NO.1 Seat, RH |
| 79106B | Leg Sub-assy, NO.1 Seat, LH |
| 79118B | Bracket, NO.1 Seat Leg(FOR RH SEAT) |
| 79118C | Bracket, NO.1 Seat Leg(FOR LH SEAT) |
| 79155A | Plate, NO.1 Seatback, NO.1(FOR RH SEAT) |
| 79155B | Plate, NO.1 Seatback, NO.1(FOR LH SEAT) |
| 79171B | Bracket, NO.1 Seatback(FOR RH SEAT) |
| 79226B | Stopper, NO.2 Seat Cushion, RH Front |
| 79226C | Stopper, NO.2 Seat Cushion, RH Rear |
| 79226D | Stopper, NO.2 Seat Cushion, LH Front |
| 79226E | Stopper, NO.2 Seat Cushion, LH Rear |
| 79235F | Pad, NO.2 Seat Cushion, RH |
| 79236K | Cover, NO.1 Seat Leg, NO.1 |
| 79245A | Pad, NO.2 Seat Cushion, LH |
| 79246L | Cover, NO.1 Seat Leg, NO.2 |
| 79255G | Plate, NO.1 Seatback, NO.2(FOR RH SEAT) |
| 79255H | Plate, NO.1 Seatback, NO.2(FOR LH SEAT) |
| 79260C | Spring Assy, NO.2 Seat Cushion, RH |
| 79270B | Spring Assy, NO.2 Seat Cushion, LH |
| 79275F | Pad, NO.2 Seatback, RH |
| 79285C | Pad, NO.2 Seatback, LH |
| 79937C | Cover, NO.1 Seat Leg, NO.1(FOR RH SEAT) |
| 79937D | Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT) |
| 79937E | Cover, NO.1 Seat Leg, NO.2(FOR RH SEAT) |
| 79937F | Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT) |
| 79959E | Cover, NO.1 Seat Leg, RH |
| 79959F | Cover, NO.1 Seat Leg, LH |
| 79959G | Cover, NO.2 Seat Leg, RH NO.1 |
| 79959J | Cover, NO.2 Seat Leg, LH NO.1 |
| 79959L | Clip, NO.2 Seat Leg Cover, RH |
| 79959M | Clip, NO.2 Seat Leg Cover, LH |
| 79959N | Cover, NO.1 Seat Leg, Inner(FOR RH SEAT) |
| 79959P | Cover, NO.1 Seat Leg, Outer(FOR RH SEAT) |
| 79959Q | Cover, NO.1 Seat Leg, Inner(FOR LH SEAT) |
| 79959R | Cover, NO.1 Seat Leg, Outer(FOR LH SEAT) |
| 79965H | Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT) |
| 79965J | Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT) |
| 79966F | Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT) |
| 79966G | Cover, NO.1 Seat Leg Side, NO.3(FOR LH SEAT) |
| 79968W | Cover, Rear NO.1 Seat Leg Side, NO.5(FOR LH SEAT) |
| 79968X | Cover, Rear NO.1 Seat Leg Side, NO.5(FOR RH SEAT) |
| 79977J | Felt, Seatback |
| 79977K | Felt, Seatback, NO.2 |
| 79977P | Felt, Rear Seat Side Table |
| 79J68 | Clip, NO.1 Seat Leg Cover(FOR RH SEAT) |
| 79J68A | Clip, NO.1 Seat Leg Cover(FOR LH SEAT) |
| 84656R | Bezel, Rear Power Seat Switch(FOR RH SEAT) |
| 84656S | Bezel, Rear Power Seat Switch(FOR LH SEAT) |
| 85801B | Motor Assy, Power Seat(FOR RH SEAT) |
| 85801C | Motor Assy, Power Seat(FOR LH SEAT) |
| 85860E | Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT) |
| 85860F | Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT) |
| 85866E | Duct, NO.1 Seat Cushion Climate Control(FOR RH SEAT) |
| 85866F | Duct, NO.1 Seat Cushion Climate Control(FOR LH SEAT) |
| 85867D | Blower, NO.1 Seatback Climate Control(FOR RH SEAT) |
| 85867E | Blower, NO.1 Seatback Climate Control(FOR LH SEAT) |
| 8586AB | Duct, NO.1 Seatback Climate Control, NO.1(FOR RH SEAT) |
| 8586AC | Duct, NO.1 Seatback Climate Control, NO.2(FOR RH SEAT) |
| 8586AD | Duct, NO.1 Seatback Climate Control, NO.1(FOR LH SEAT) |
| 8586AE | Duct, NO.1 Seatback Climate Control, NO.2(FOR LH SEAT) |
| 87510Y | Heater Assy, Rear NO.1 Seat Cushion, LH |
| 87510Z | Heater Assy, Rear NO.1 Seat Cushion, RH |
| 87530 | Heater Assy, Rear NO.1 Seatback, LH |
| 87530A | Heater Assy, Rear NO.1 Seatback, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
