Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

21 part groups · 11 illustrations

Illustrations

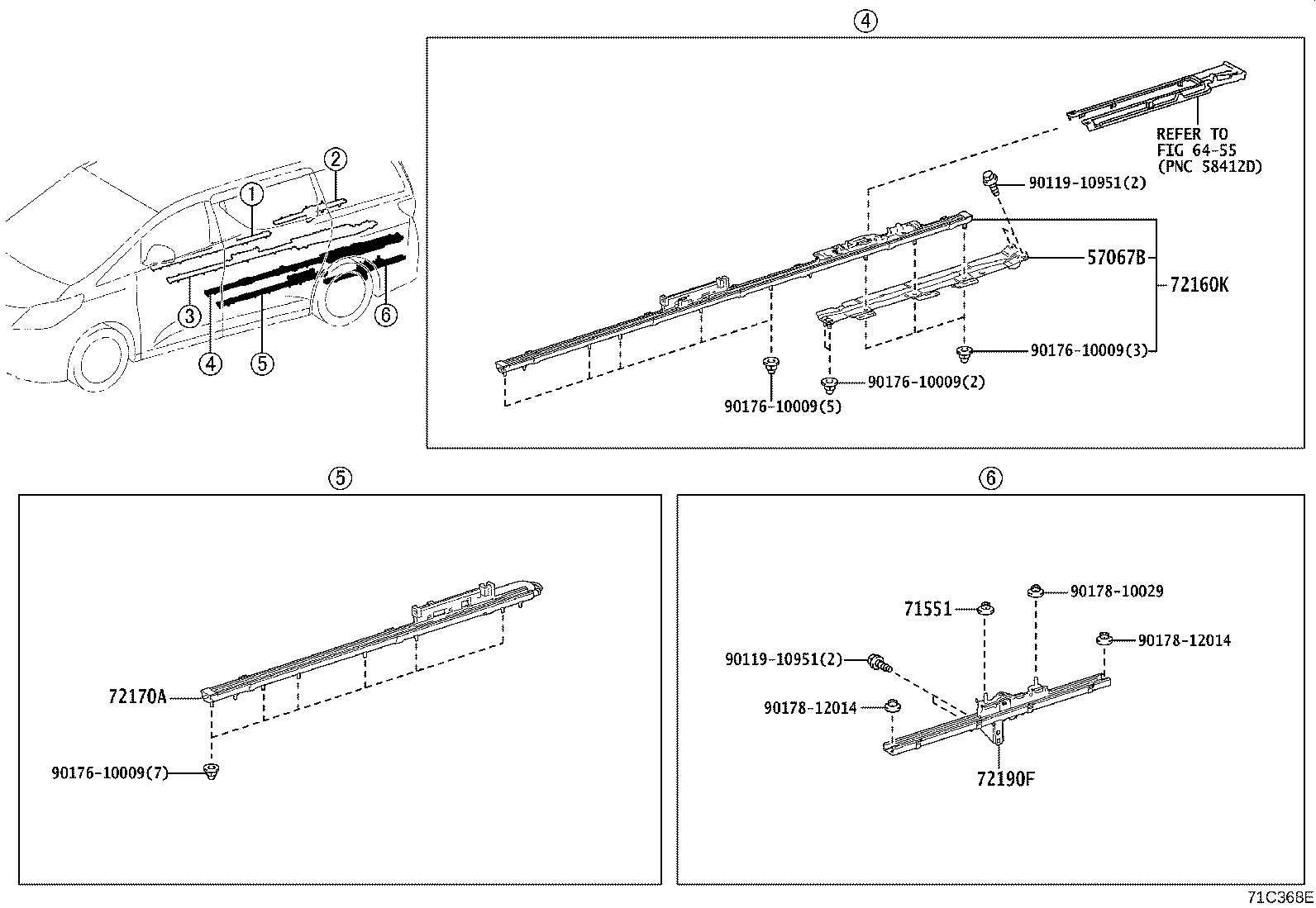

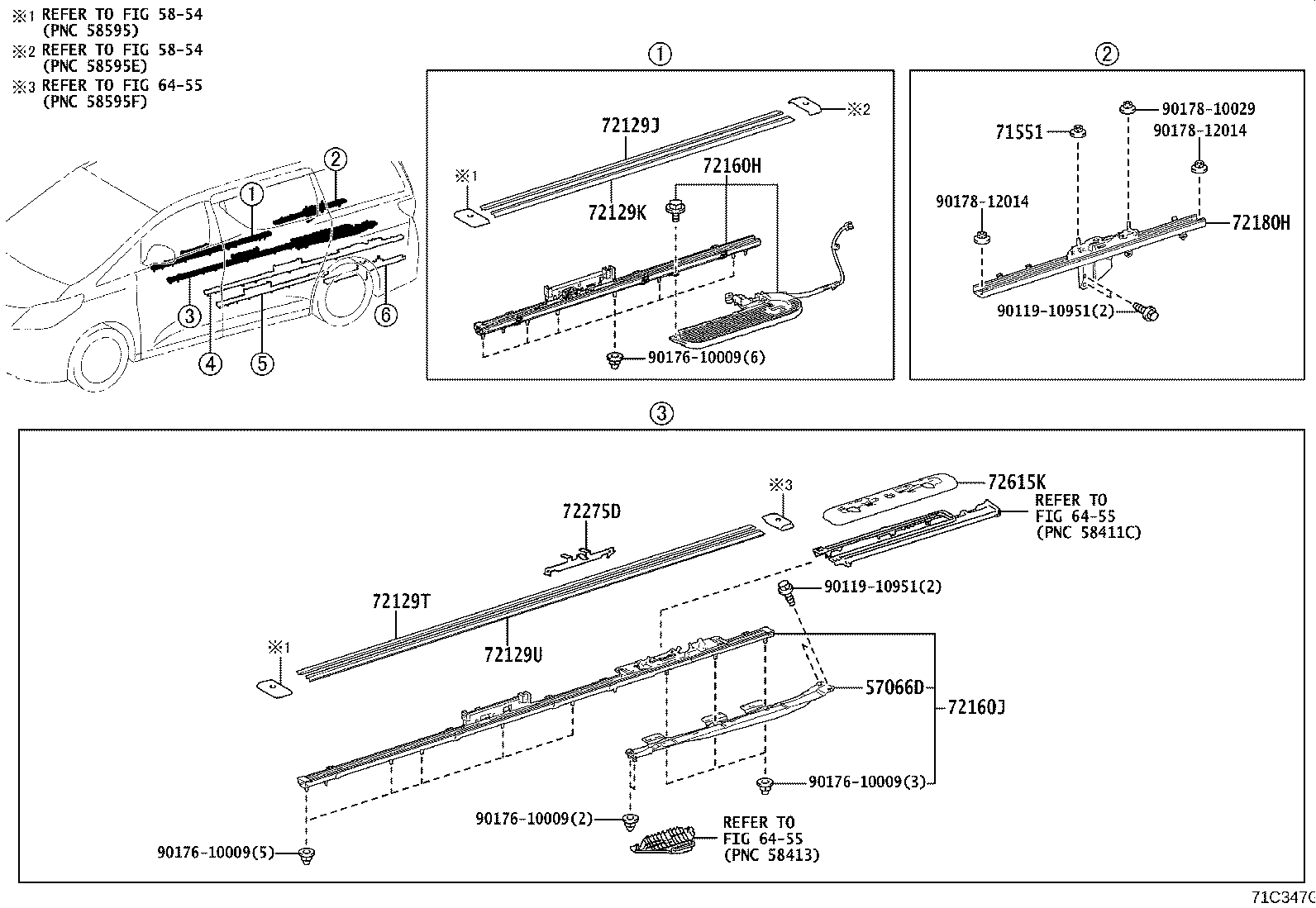

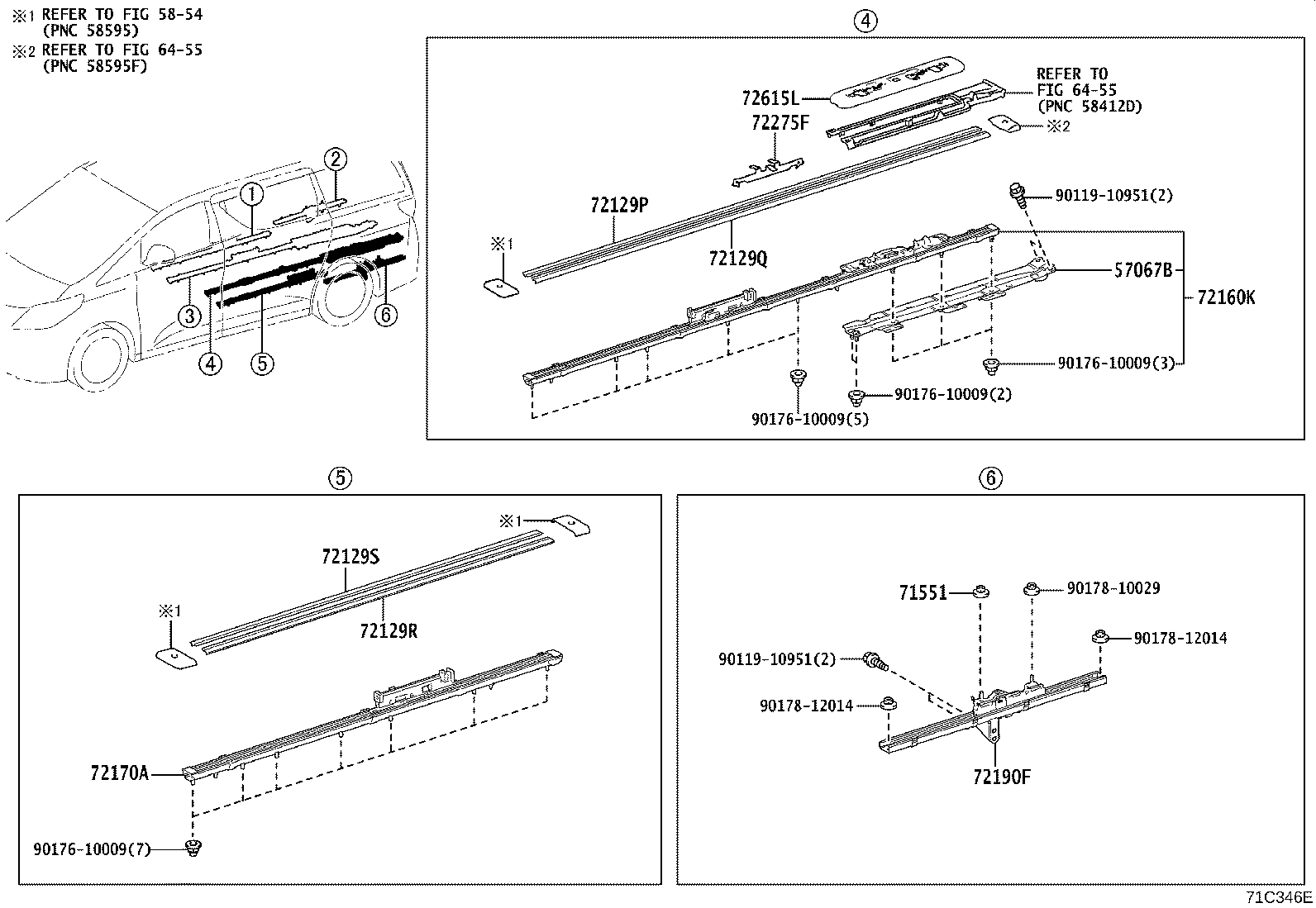

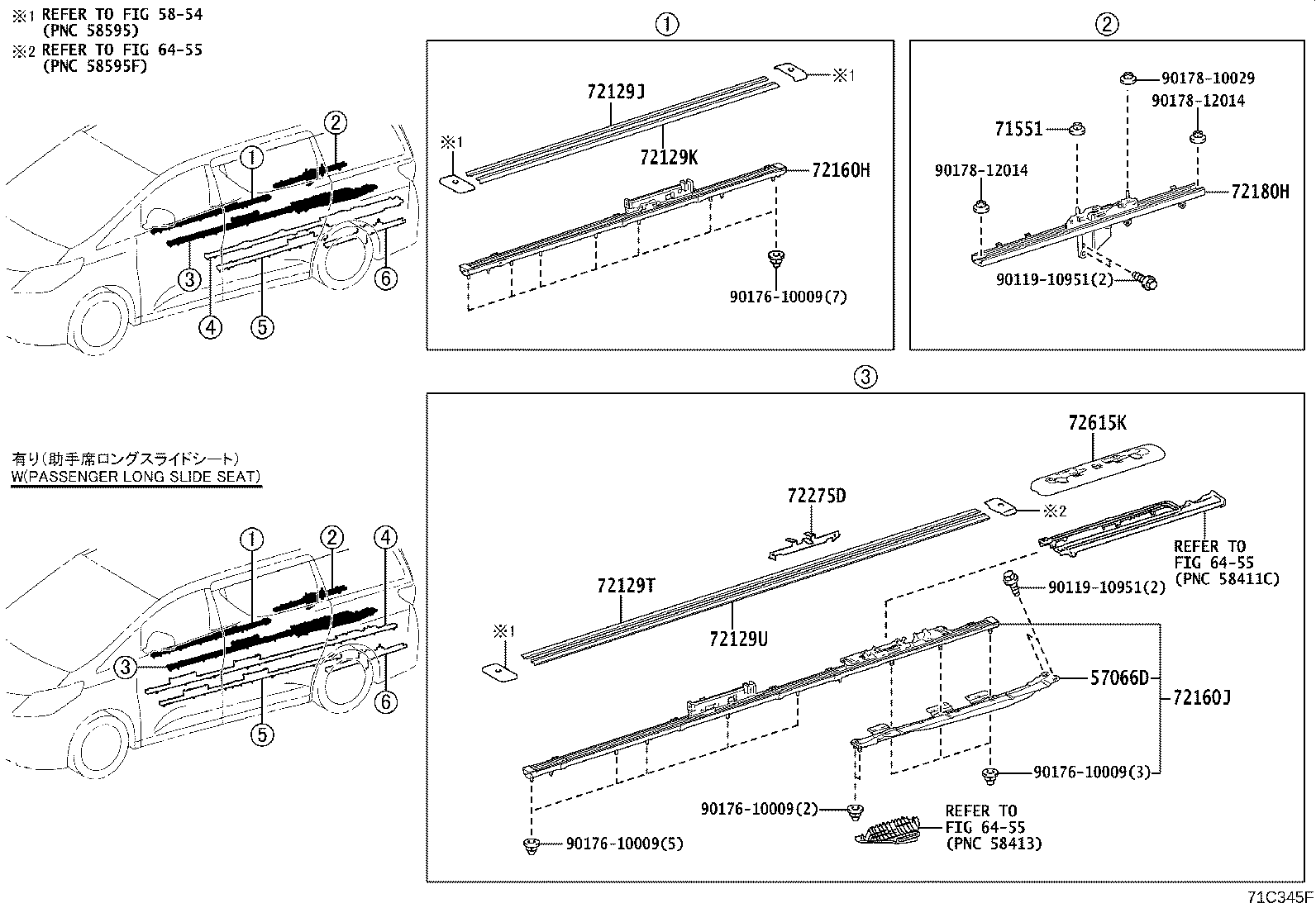

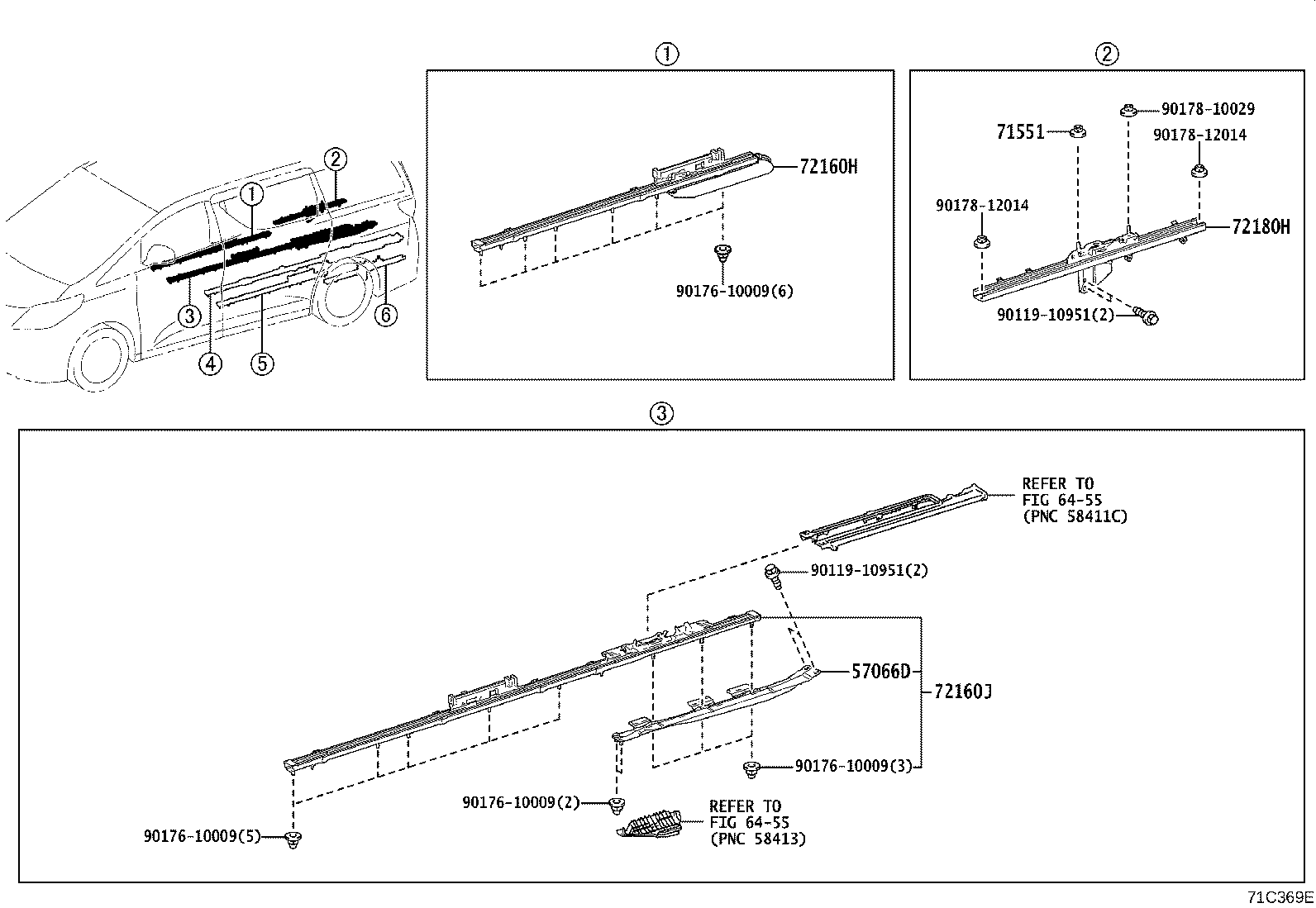

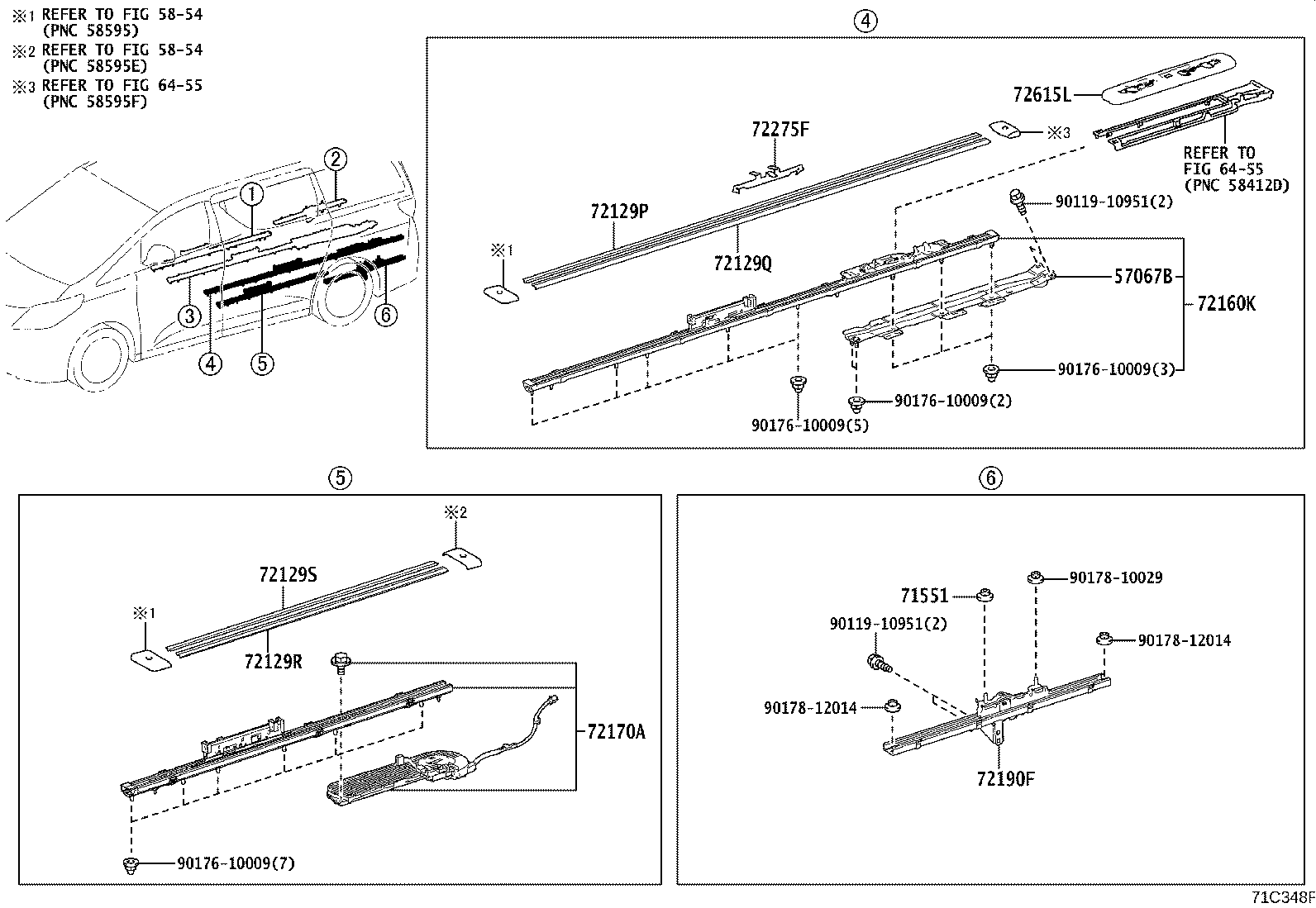

Figure 71C588E 71C588E 2015-01 → 2020-01 Figure 71C346E 71C346E 2015-01 → — Figure 71C346E 71C346E 2018-01 → 2020-01 Figure 71C345F 71C345F 2015-01 → 2018-01 Figure 71C345F 71C345F 2018-01 → — Figure 71C348F 71C348F 2015-01 → 2018-01 Figure 71C348F 71C348F 2018-01 → — Figure 71C347G 71C347G 2015-01 → 2018-01 Figure 71C347G 71C347G 2018-01 → — Figure 71C368E 71C368E 2015-01 → — Figure 71C369E 71C369E 2015-01 → —

Part groups

PNCDescription
57066D Member Sub-assy, Rear Floor Cross, NO.1
57067B Member Sub-assy, Rear Floor Cross, NO.2
71551 Nut
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72160J Track Assy, Rear RH Seat, Inner NO.1
72160K Track Assy, Rear LH Seat, Inner NO.1
72170A Track Assy, Rear Seat, Outer LH
72180H Track Assy, Rear RH Seat, Outer NO.2
72190F Track Assy, Rear LH Seat, Outer NO.2
72275D Stopper, Rear Seat Track Slide, RH NO.1
72275F Stopper, Rear Seat Track Slide, LH NO.1
72615K Cover, Rear Seat Lock Striker, RH
72615L Cover, Rear Seat Lock Striker, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
