Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

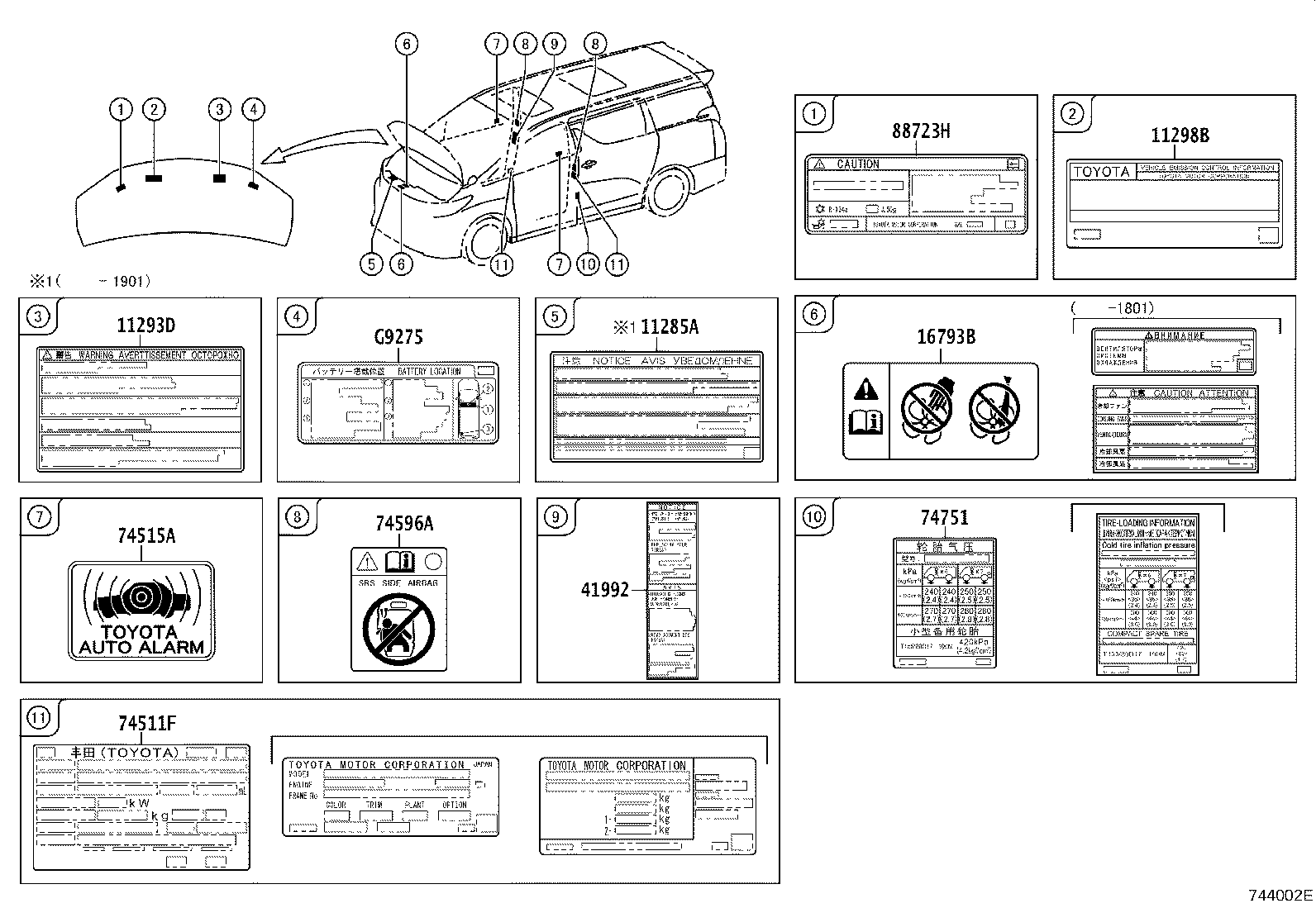

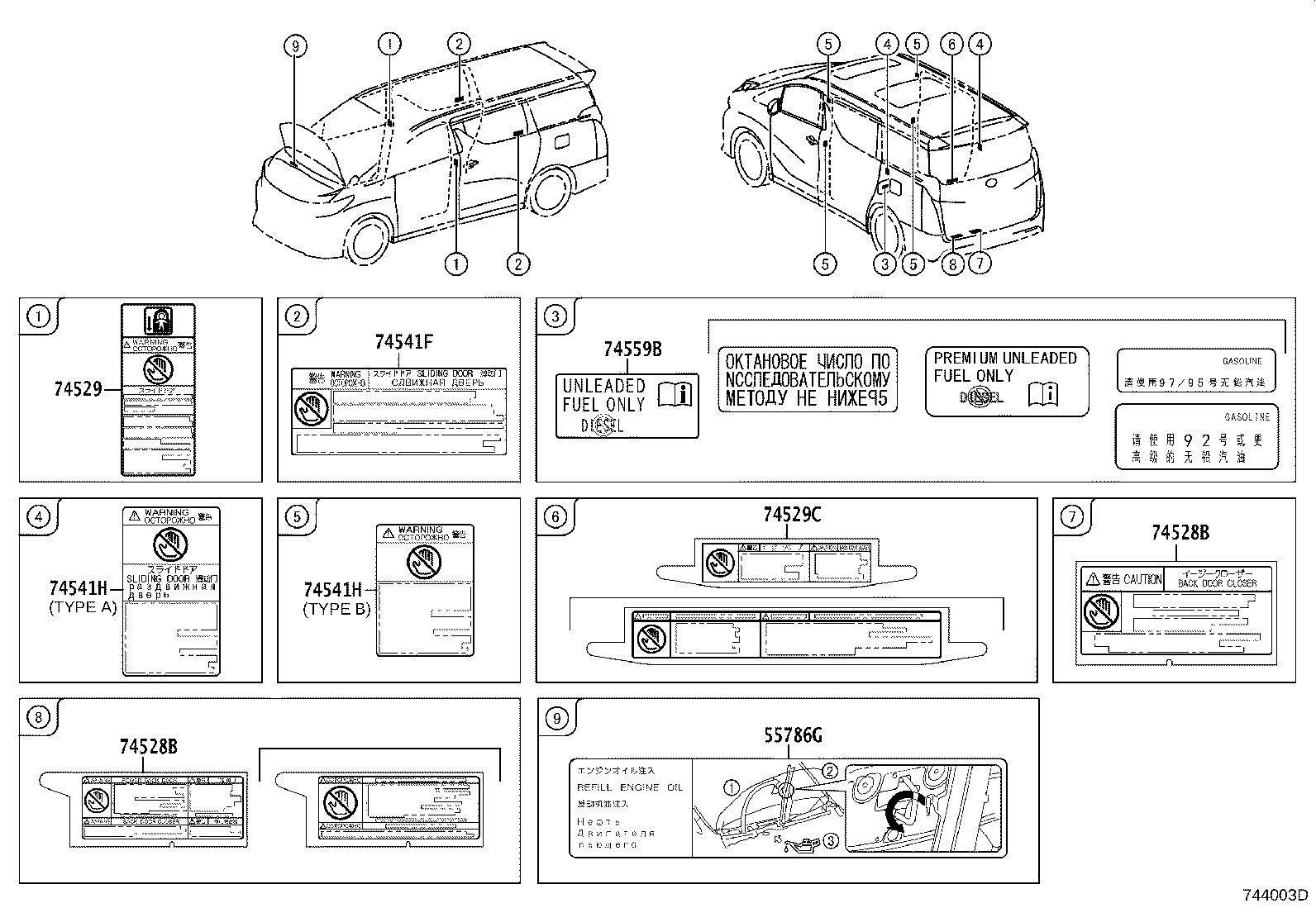

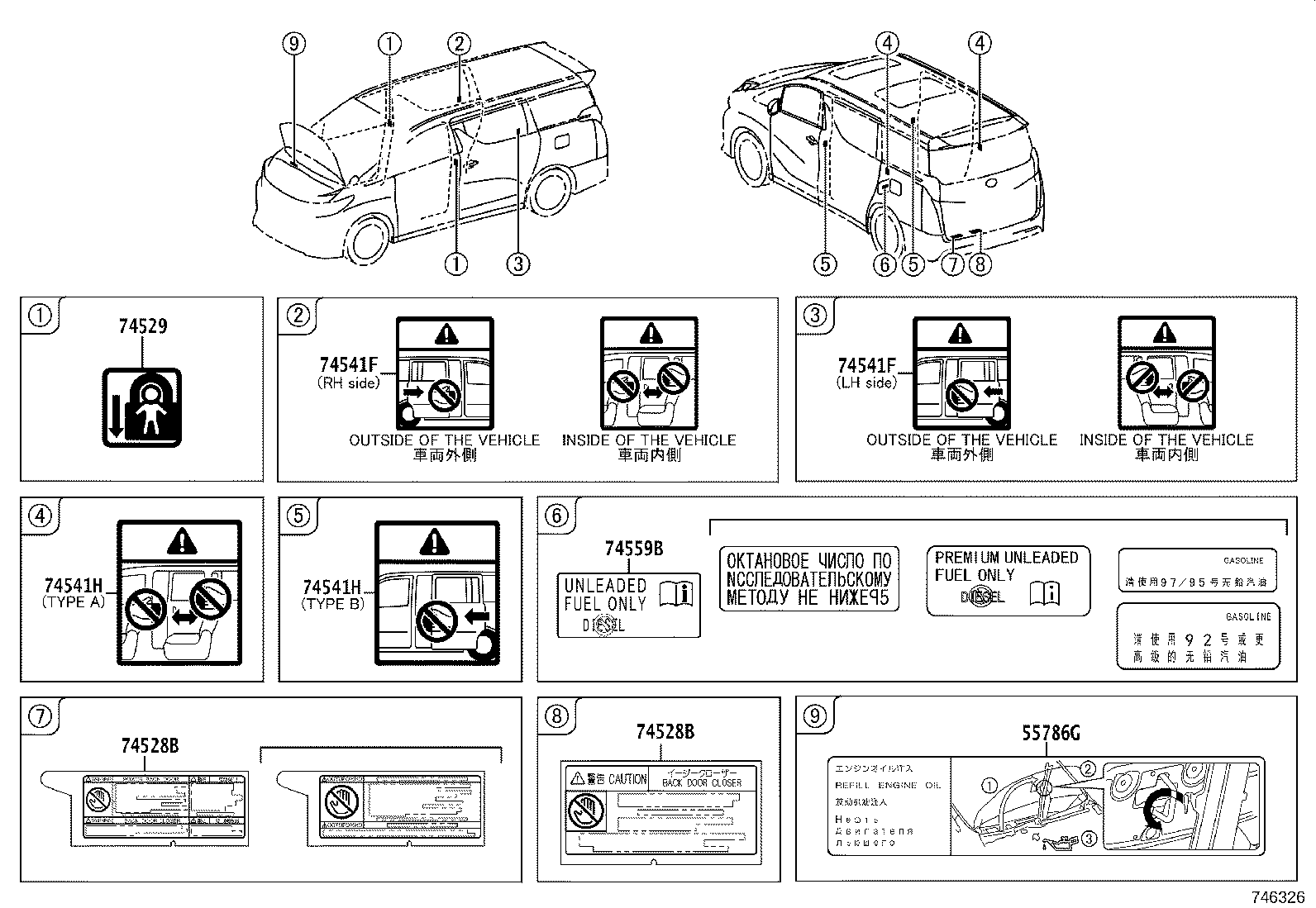

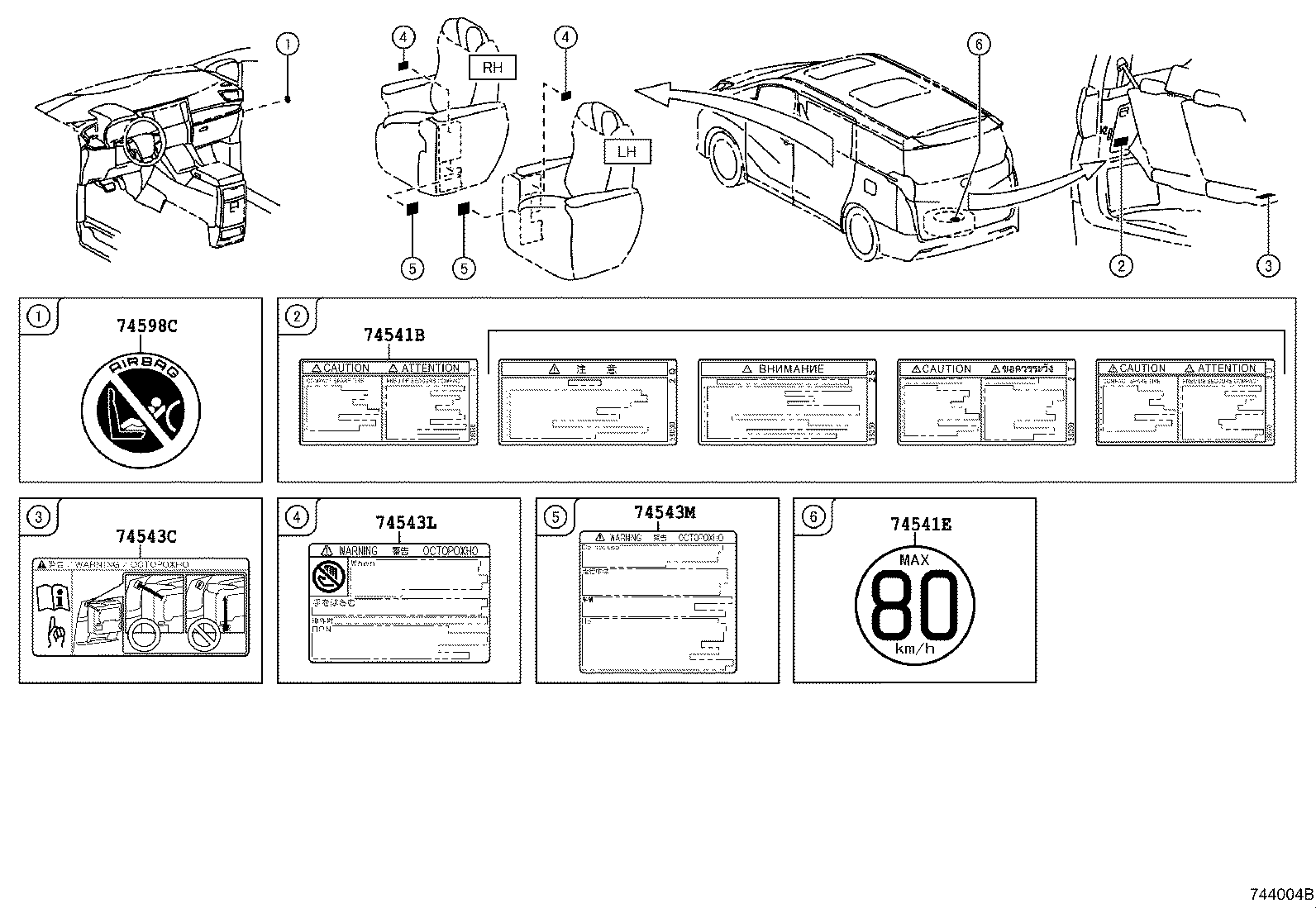

Caution Plate
27 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 41992 | Label, Differential Notice |
| 47288 | Label, Brake Fluid Notice |
| 55786G | Plate, Cowl Top Ventilator Louver |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74528B | Label, Back Door Caution |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74529C | Plate, Back Door Caution |
| 74535C | Label, Top Cover Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541F | Label, Slide Door Glass Caution |
| 74541H | Plate, Body Caution |
| 74543C | Label, Rear Seat Information |
| 74543L | Label, Rear Seat Caution, NO.1 |
| 74543M | Label, Rear Seat Caution, NO.2 |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
