Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

7 part groups · 2 illustrations

Illustrations

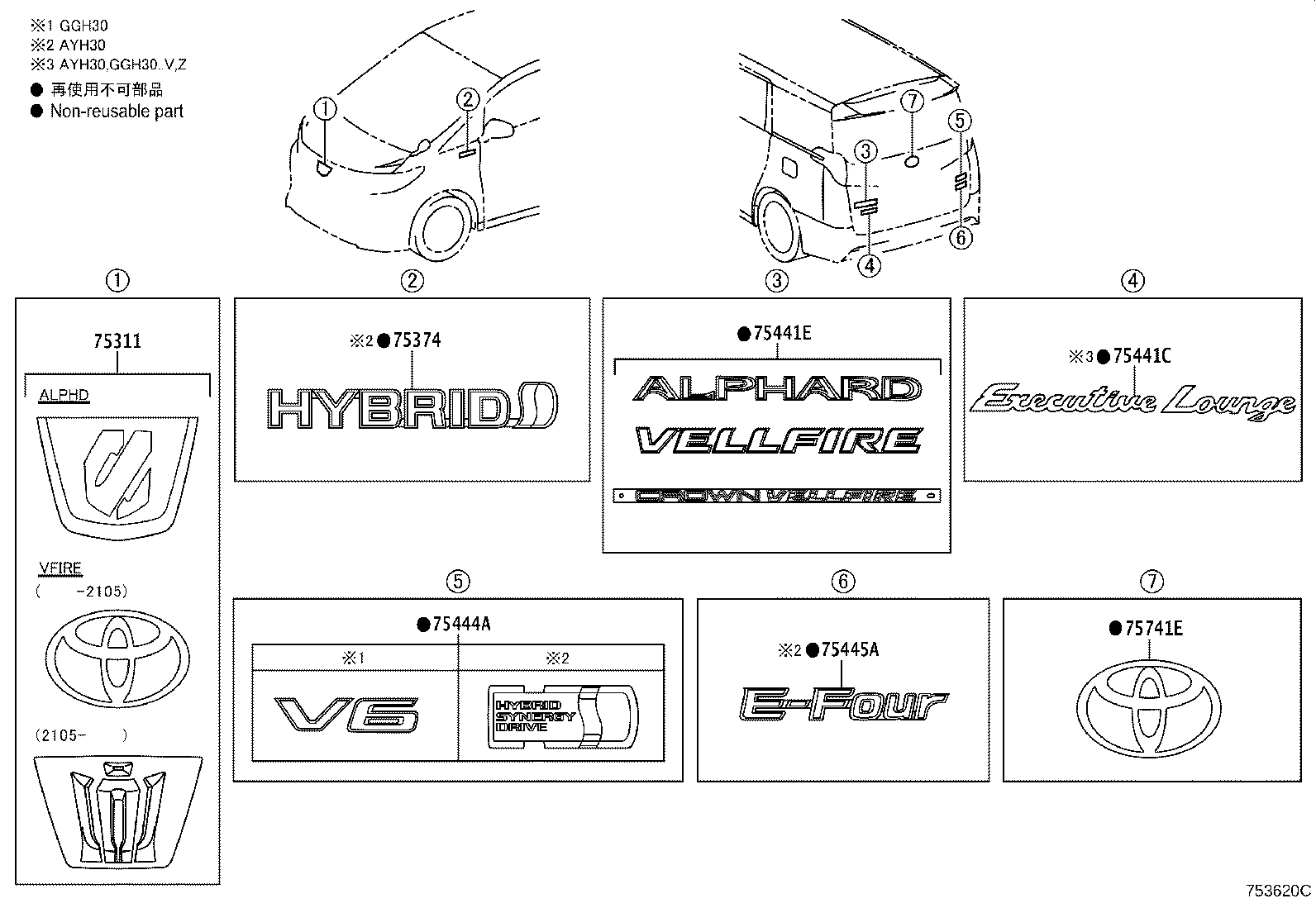

Figure 753135A 753135A 2015-01 → 2018-01 Figure 753620C 753620C 2018-01 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75374 Emblem, Side Panel
75441C Plate, Back Door Name
75441E Plate, Back Door Name, NO.1
75444A Plate, Back Door Name, NO.4
75445A Plate, Back Door Name, NO.5
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
