Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

31 part groups · 3 illustrations

Illustrations

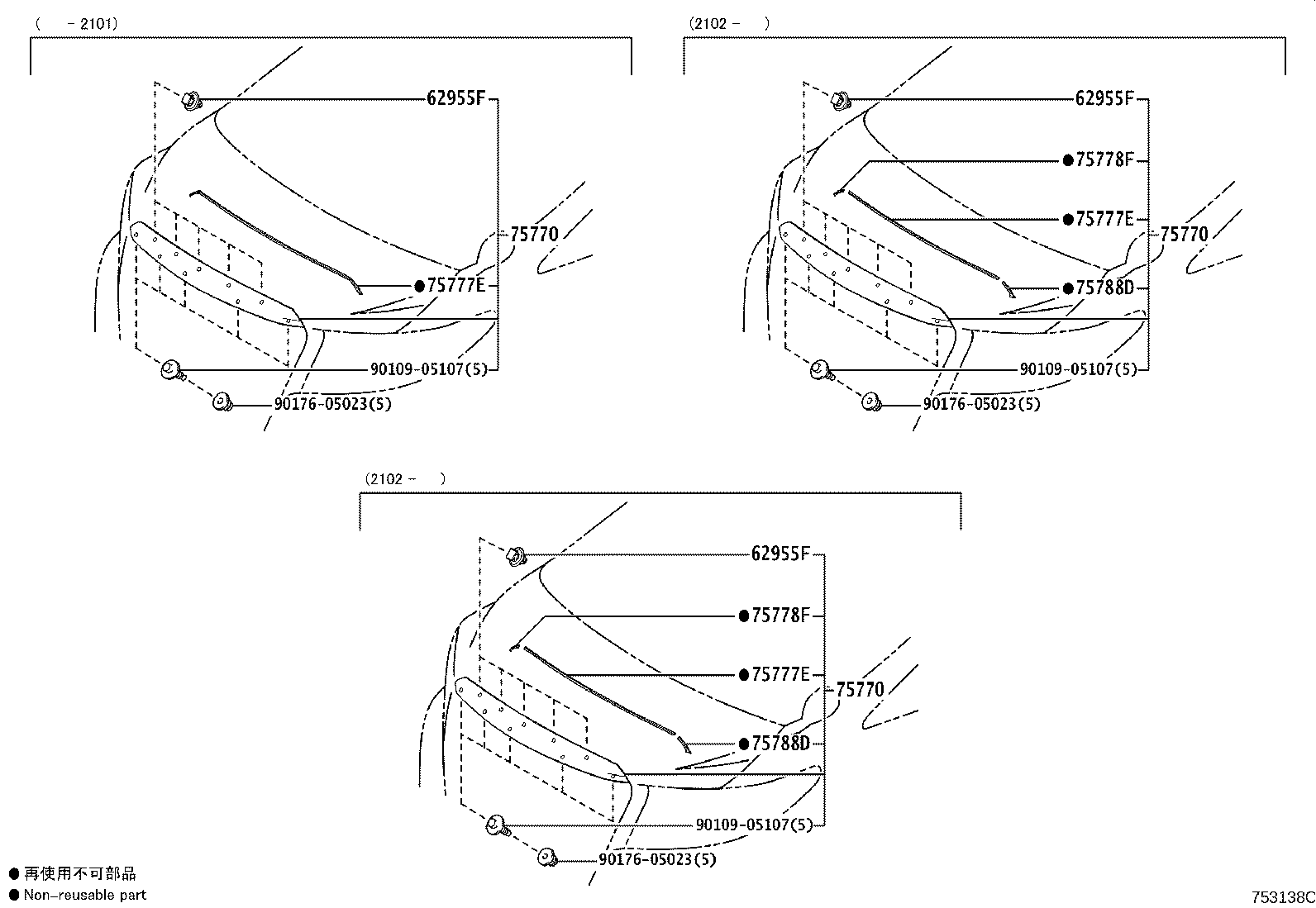

Figure 753137F 753137F 2015-01 → — Figure 753138C 753138C 2015-01 → — Figure 754507 754507 2015-01 → —

Part groups

PNCDescription
62955F Retainer, Quarter Vent Louver
75547B Clip, Windshield Outside Moulding, NO.3
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75561A Clip, Roof Drip Side Finish Moulding
75562 Clip, Roof Drip Side Finish Moulding, NO.2
75721A Moulding, Rear Door Belt, RH
75722A Moulding, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751C Moulding, Front Door Window Frame, Front RH
75752C Moulding, Front Door Window Frame, Front LH
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75763A Moulding, Rear Door Window Frame, Upper RH
75764A Moulding, Rear Door Window Frame, Upper LH
75765A Moulding, Rear Door Window Frame, Rear RH
75766A Moulding, Rear Door Window Frame, Rear LH
75770 Moulding Assy, Hood, Front
75777E Pad, Hood Front Moulding
75778F Pad, Hood Front Moulding, RH
75785 Moulding, Quarter Window, Front RH
75786 Moulding, Quarter Window, Front LH
75788D Pad, Hood Front Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
