Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

76 part groups · 16 illustrations

Illustrations

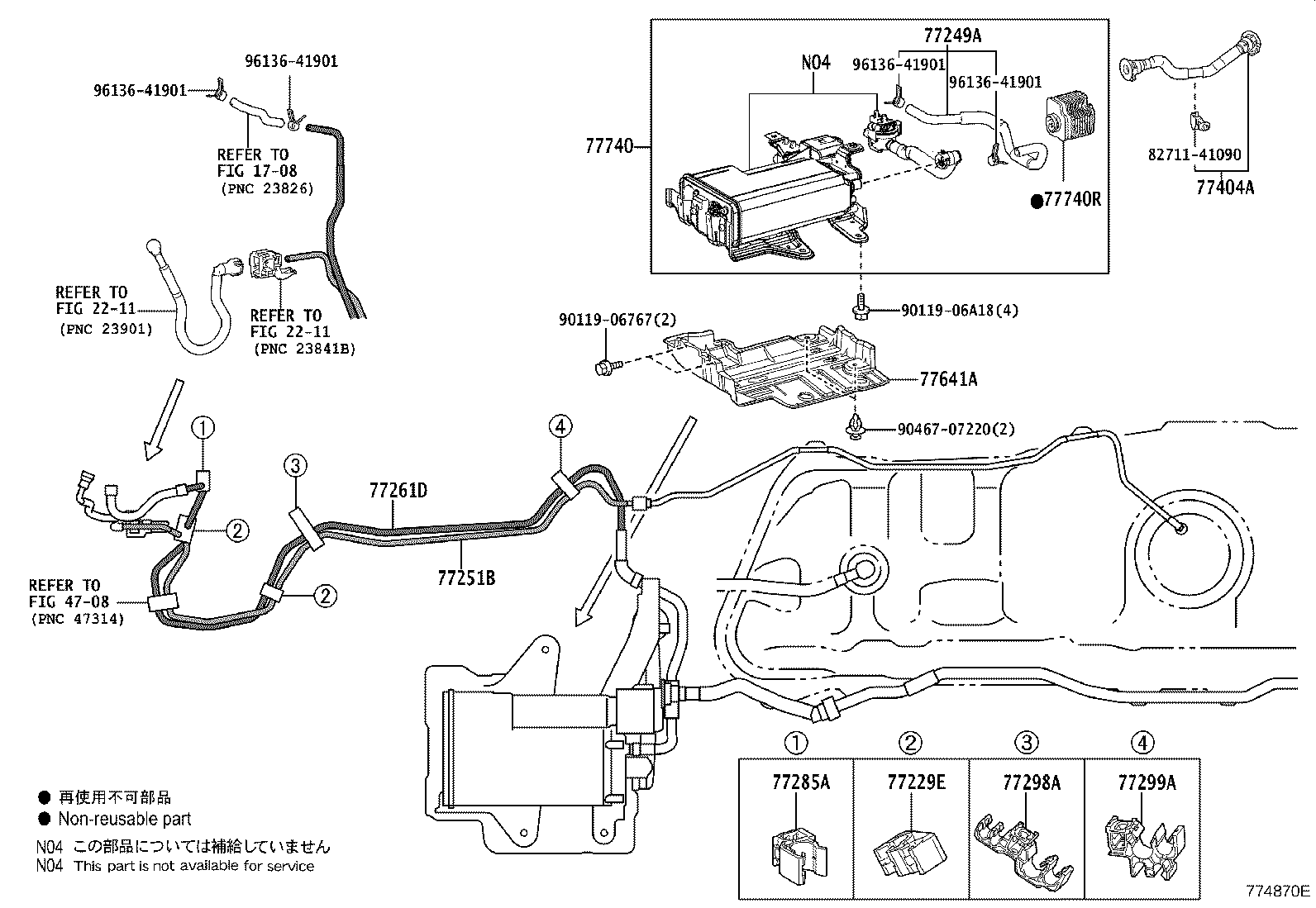

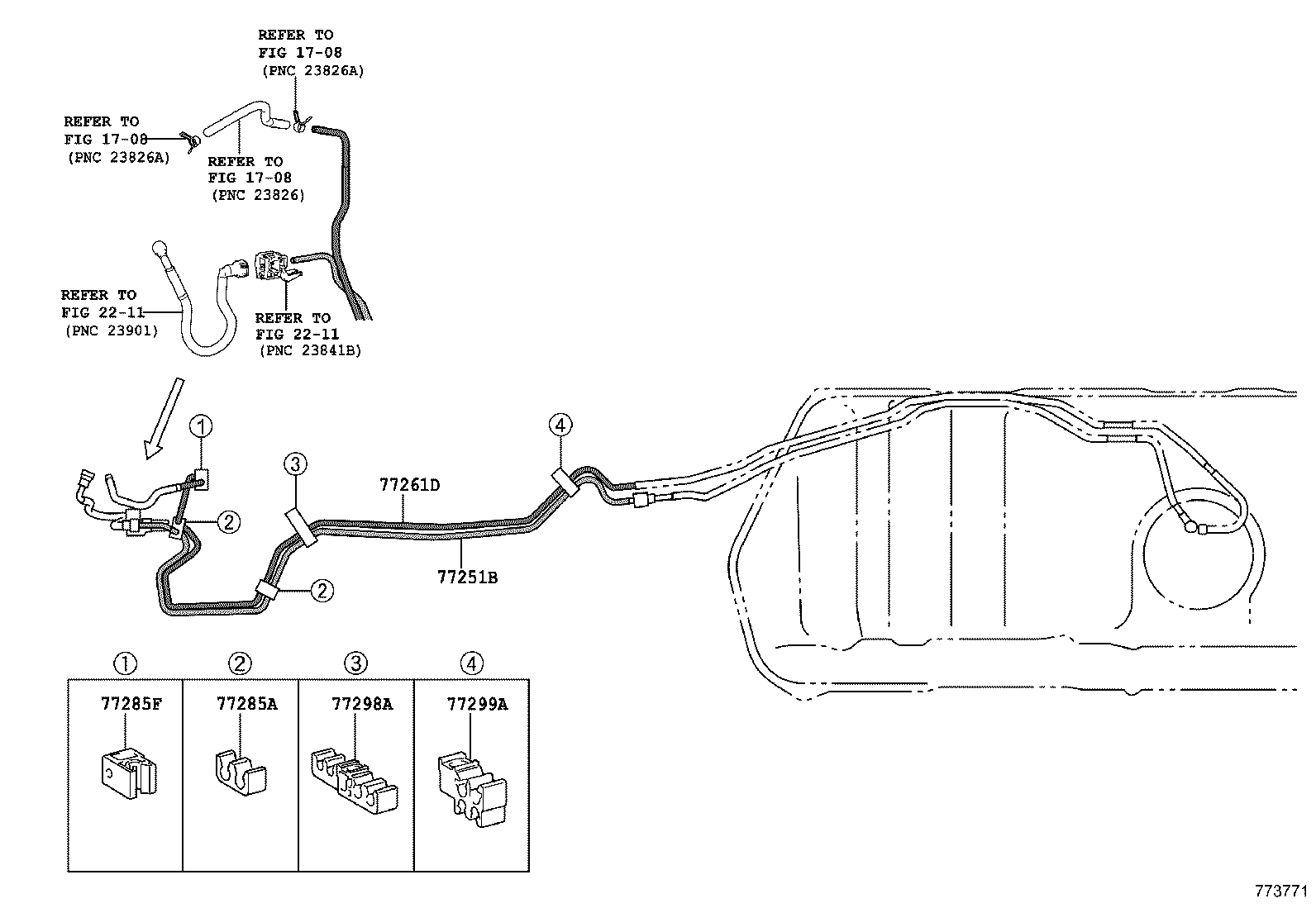

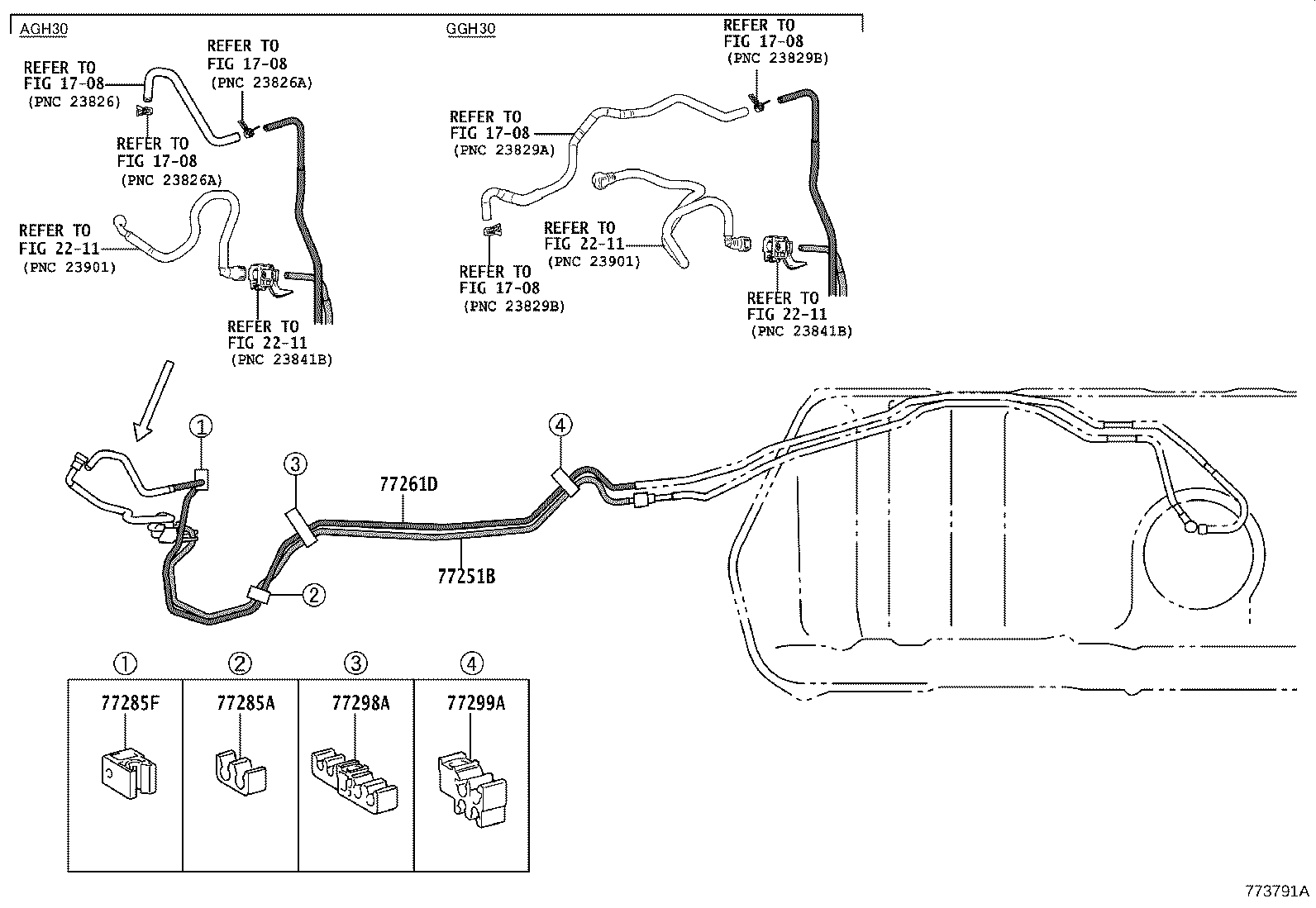

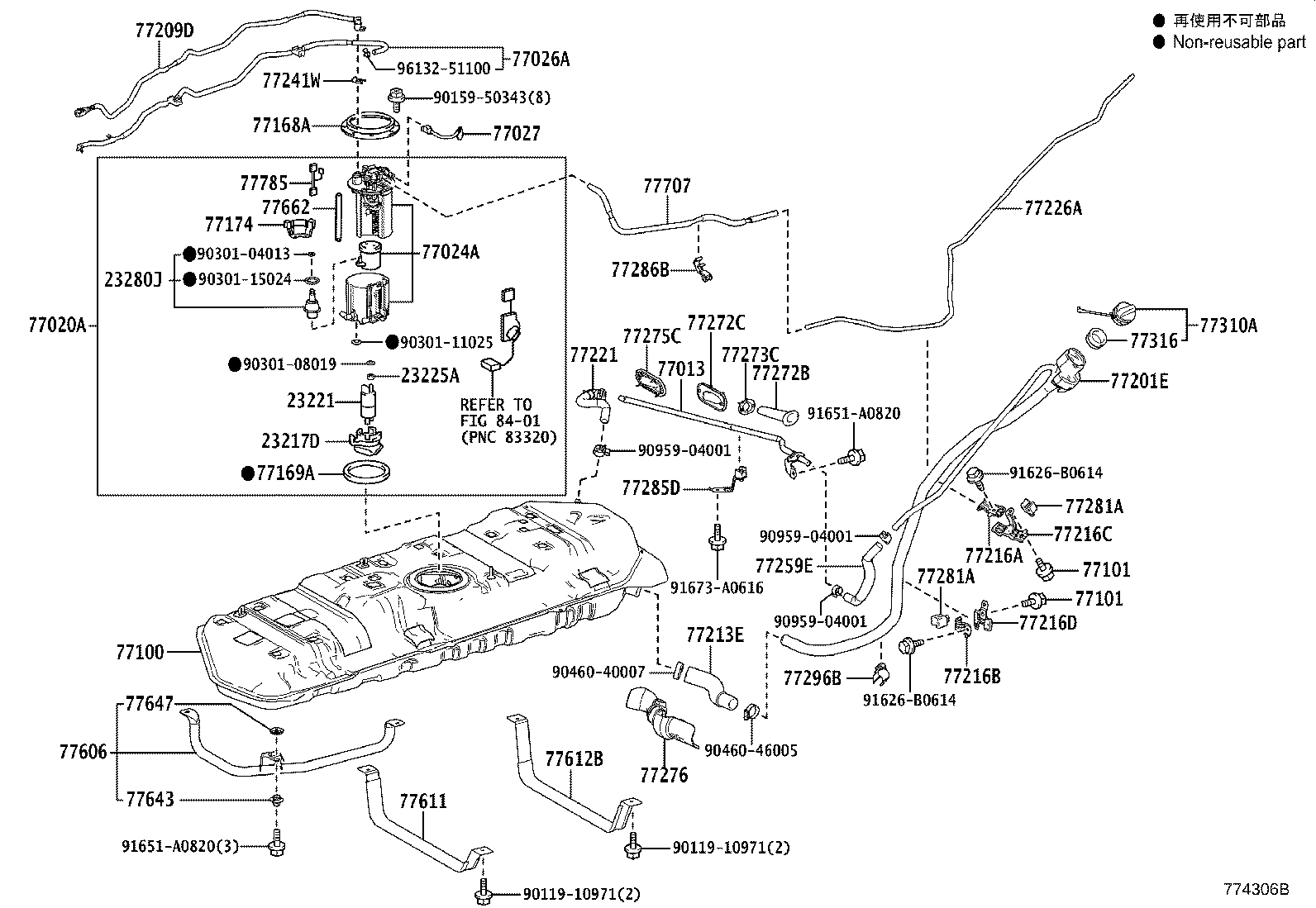

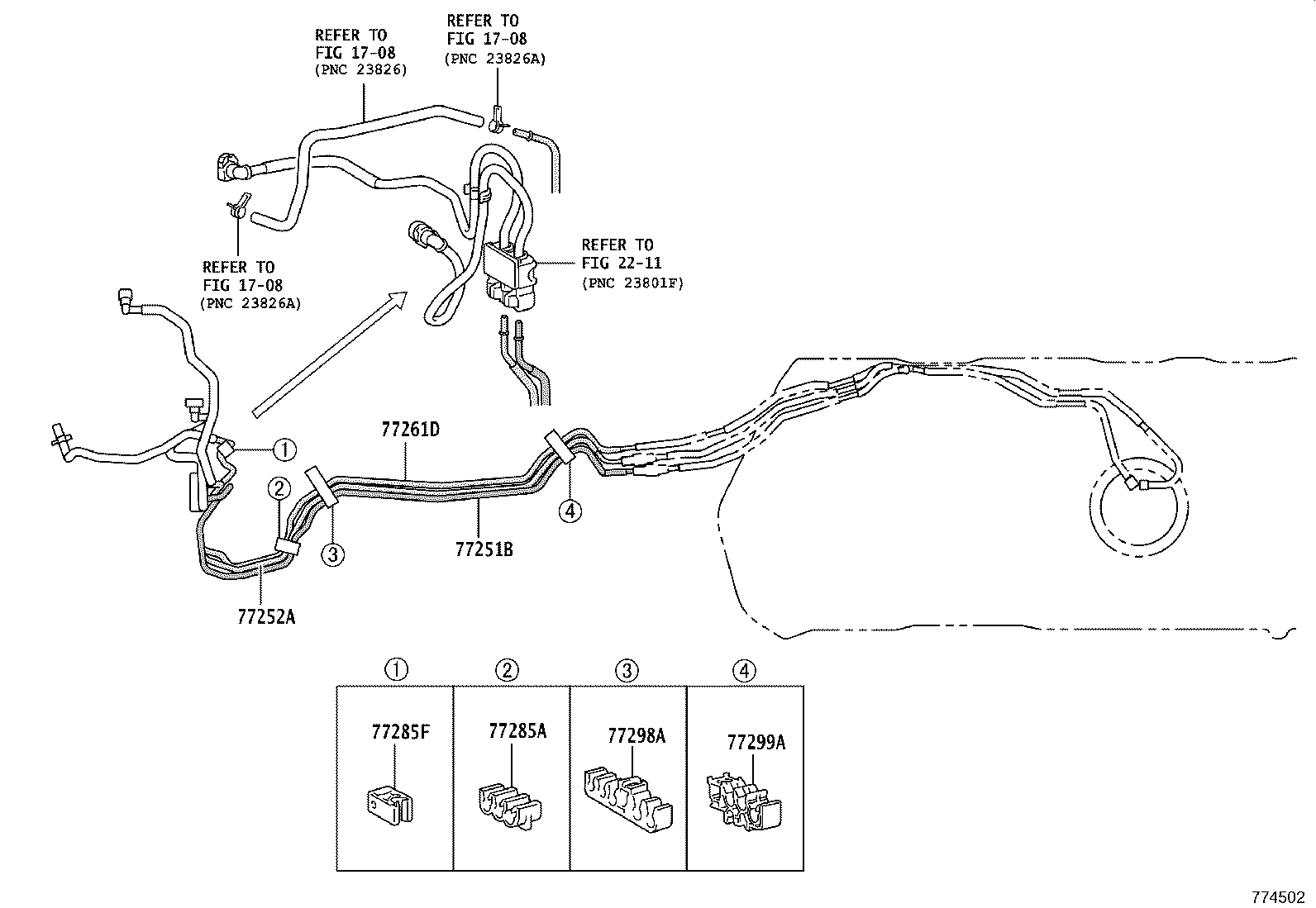

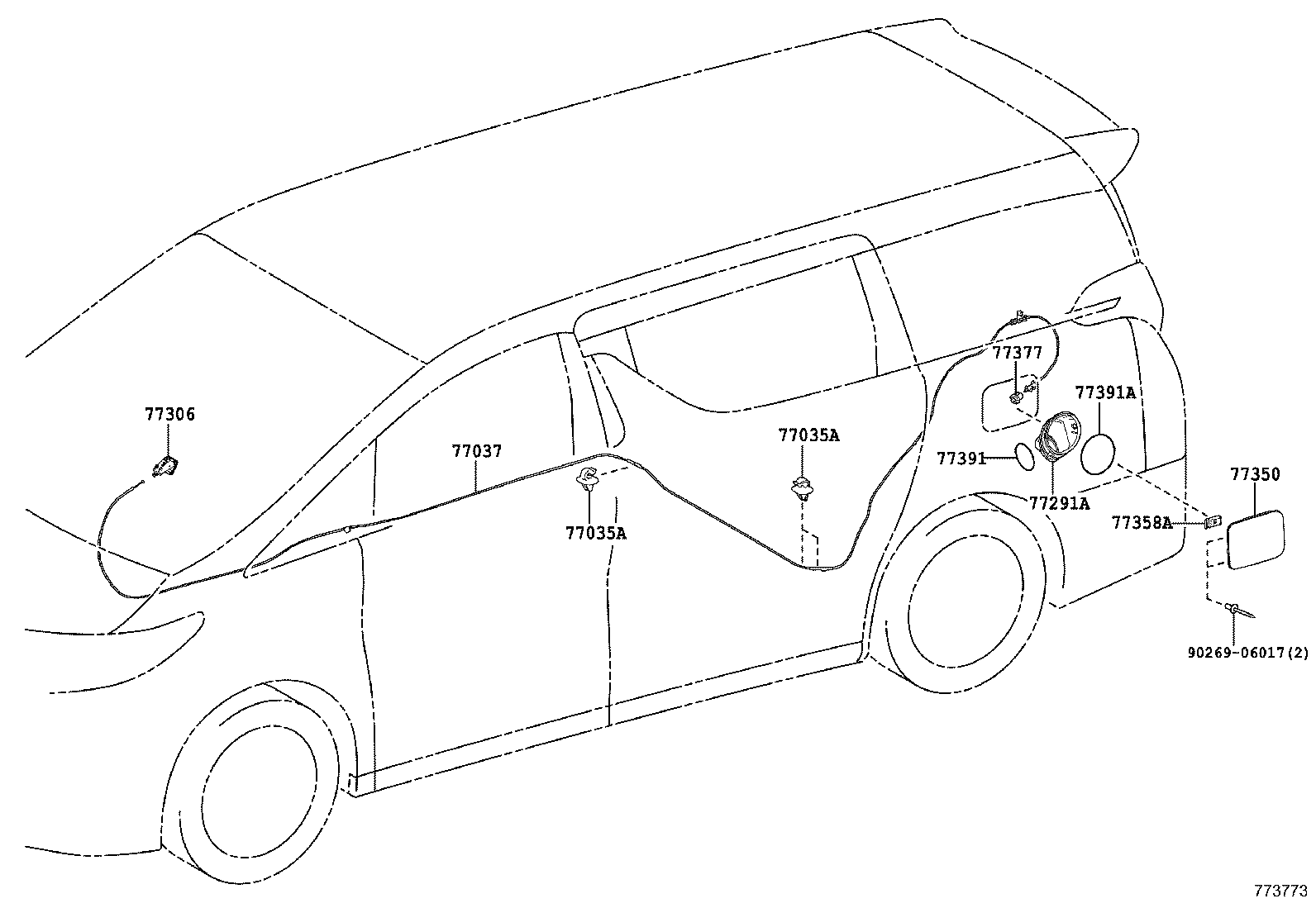

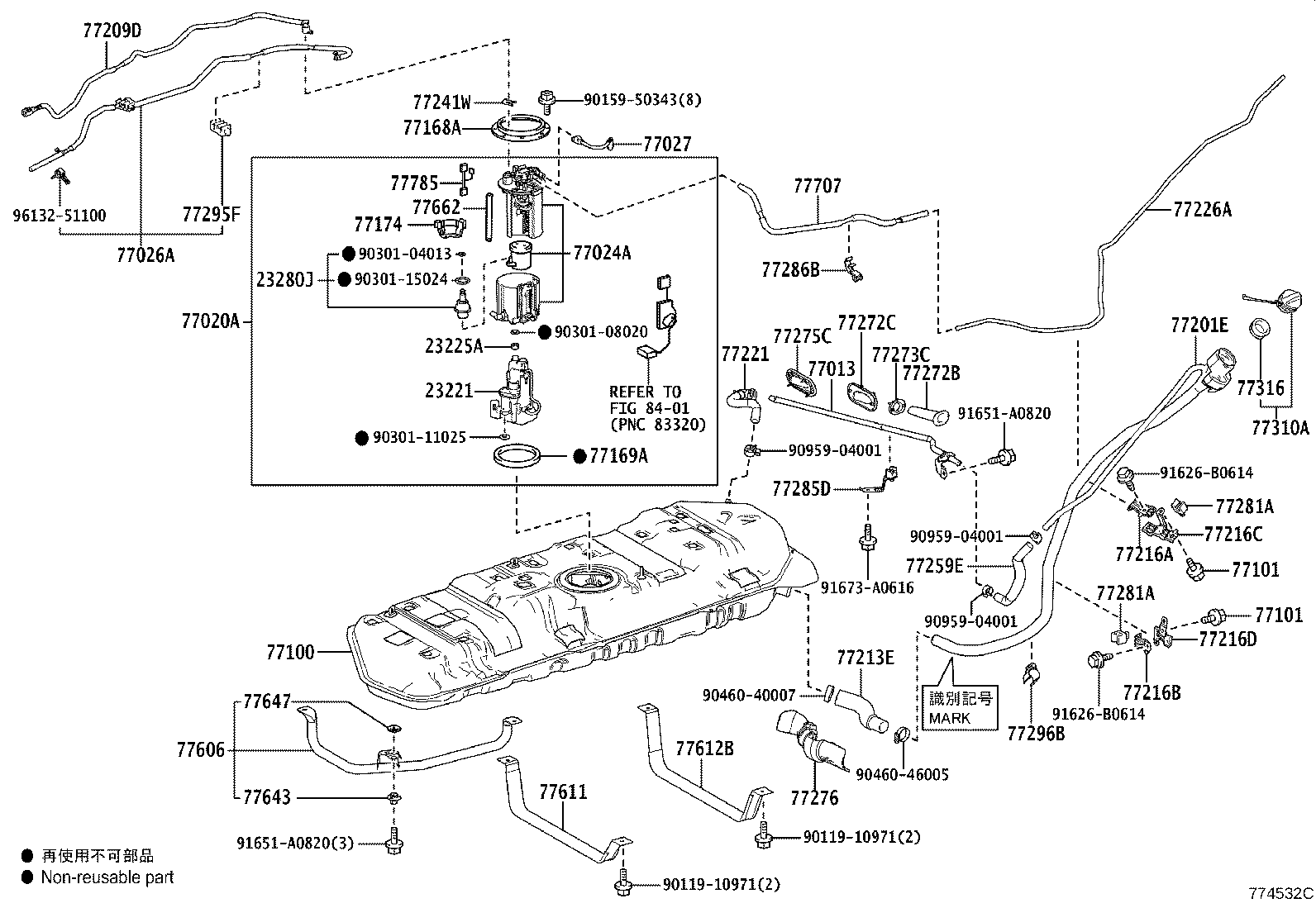

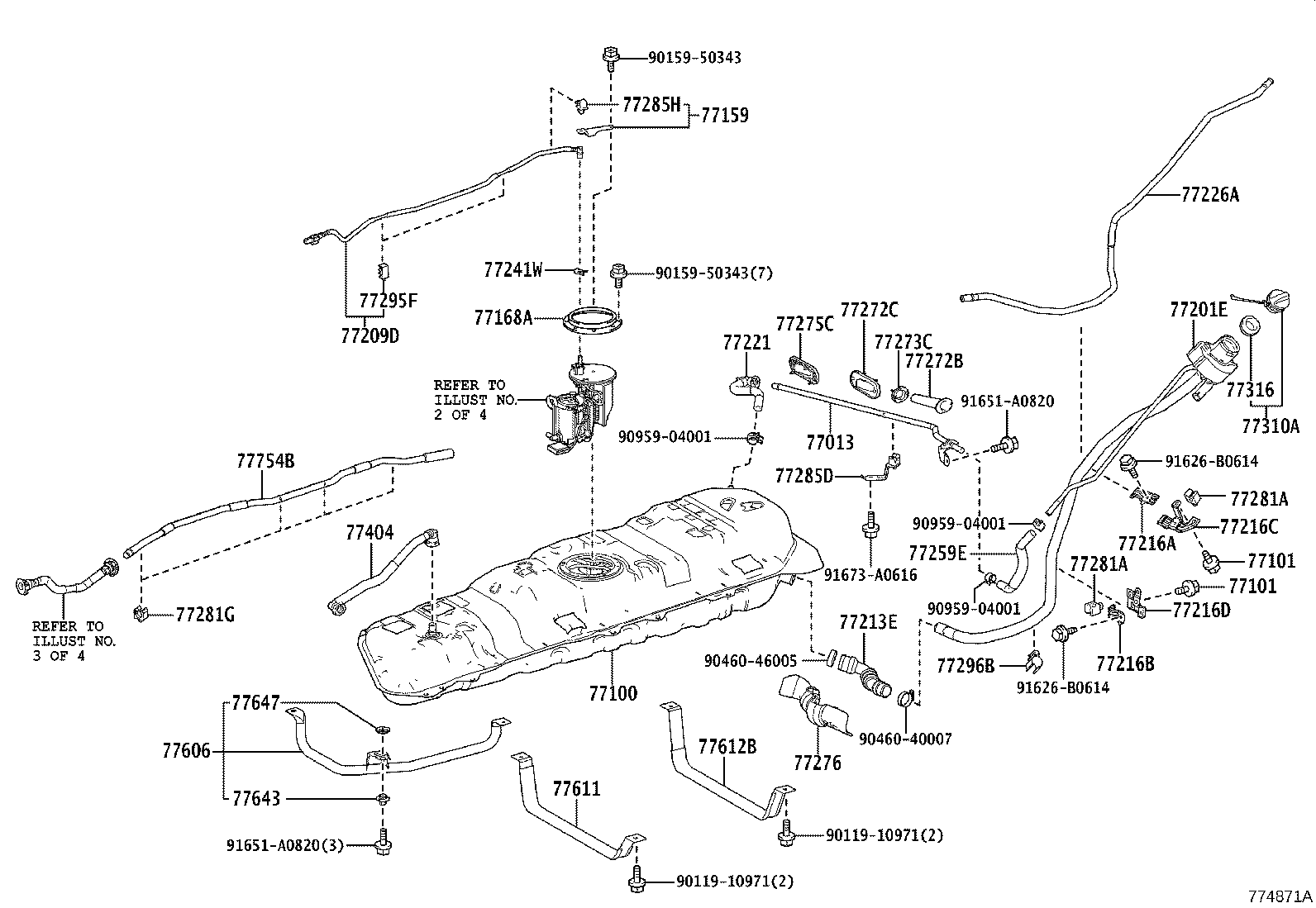

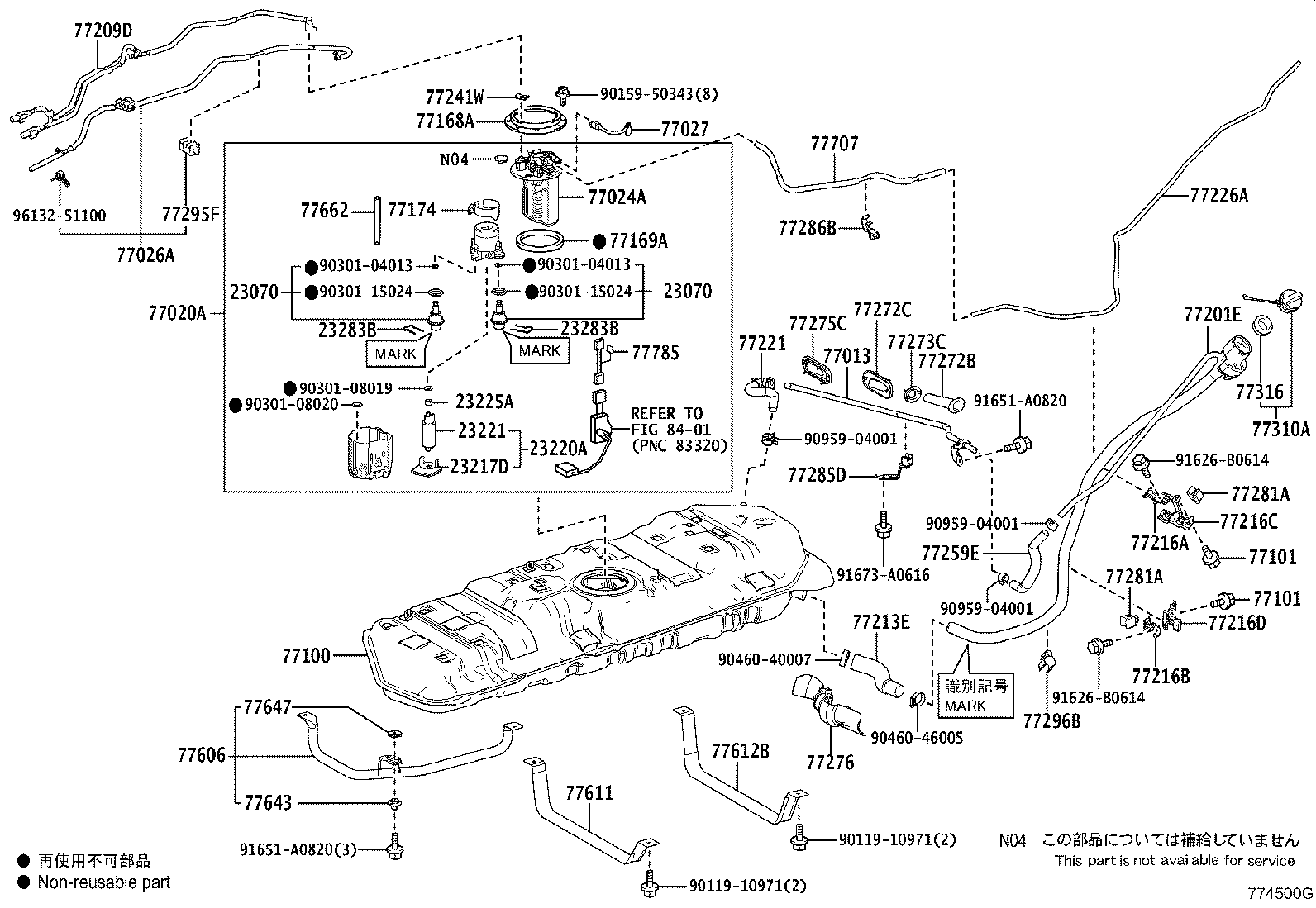

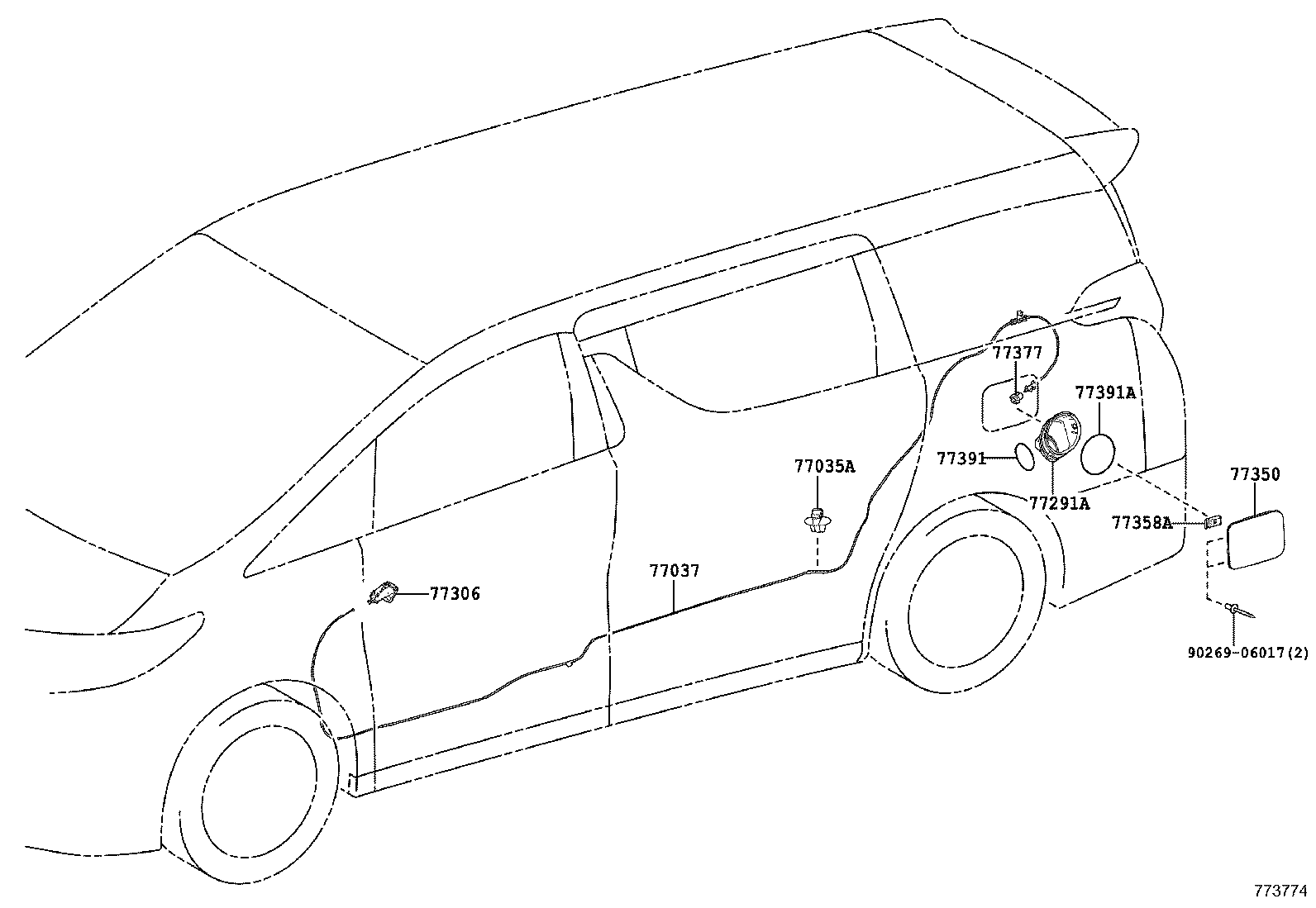

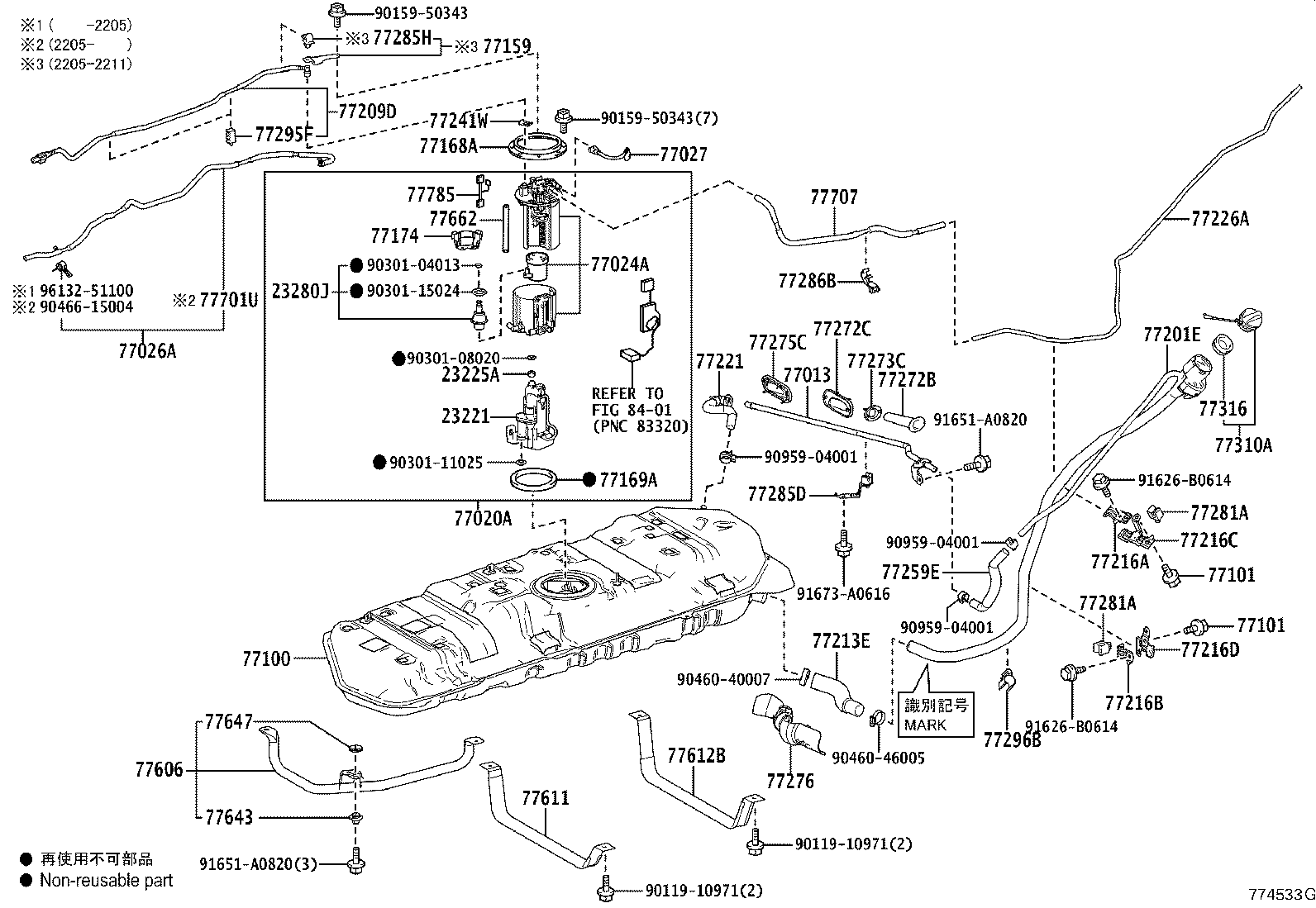

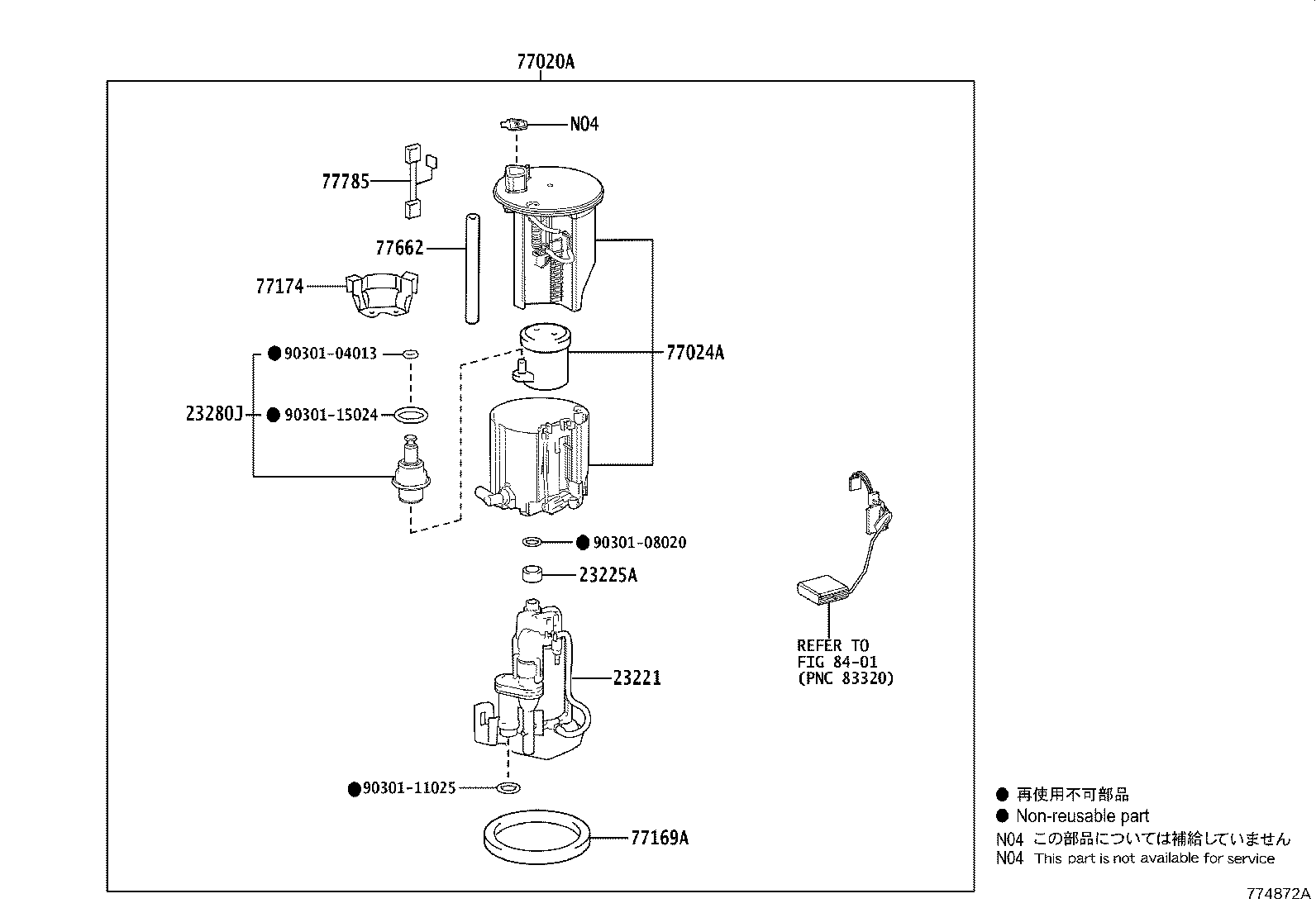

Figure 774417A 774417A 2015-01 → 2018-01 Figure 774306B 774306B 2015-01 → 2018-01 Figure 774306B 774306B 2019-08 → — Figure 774532C 774532C 2018-01 → — Figure 774533G 774533G 2018-01 → — Figure 774500G 774500G 2018-01 → — Figure 774871A 774871A 2019-05 → — Figure 773791A 773791A 2015-01 → 2018-01 Figure 773791A 773791A 2015-01 → — Figure 773791A 773791A 2019-08 → — Figure 774872A 774872A 2019-05 → — Figure 773771 773771 2015-01 → — Figure 774502 774502 2018-01 → — Figure 774870E 774870E 2019-05 → — Figure 773774 773774 2015-01 → — Figure 773773 773773 2015-01 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23283B Holder, Fuel Pressure Regulator
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77027 Tube Sub-assy, Fuel Evaporation, NO.2
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77101 Plug(FOR FUEL SUB-TANK)
77159 Plate, Suction Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77201E Pipe Sub-assy, Fuel Tank Filler
77209D Tube Sub-assy, Fuel Tank Main
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77216B Support, Fuel Tank Filler Pipe, NO.2
77216C Support, Fuel Tank Filler Pipe NO.3
77216D Support, Fuel Tank Filler Pipe NO.4
77221 Tube, Fuel Tank Breather, NO.1
77226A Tube, Fuel Tank Breather, NO.6
77229E Clamp, Breather Tube
77241W Clip, Tube Joint
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77259E Hose, Fuel
77261D Tube, Fuel Tank TO Canister
77272B Support, Breather Tube, NO.1
77272C Support, Breather Tube, NO.3
77273C Support, Breather Tube, NO.2
77275C Support, Breather Tube, NO.4
77276 Protector, Fuel Hose
77281A Clamp, Fuel Filler Pipe
77281G Clamp, Fuel Hose
77285A Support, Fuel Return And Main Tube
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77291A Shield, Fuel Tank Filler Pipe
77295F Grommet, Fuel Hose
77296B Support, Fuel Tube Protector, NO.1
77298A Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77358A Stopper, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77612B Band, Fuel Tank, NO.2
77641A Protector, Fuel Tank, NO.1
77643 Retainer, Fuel Tank Protector
77647 Retainer, Fuel Tank Protector, Side
77662 Cover, Fuel Tank Gage
77701U Hose, Fuel (FOR CHECK VALVE)
77707 Tube Sub-assy, Charcoal Canister Outlet
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77754B Hose, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
