Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

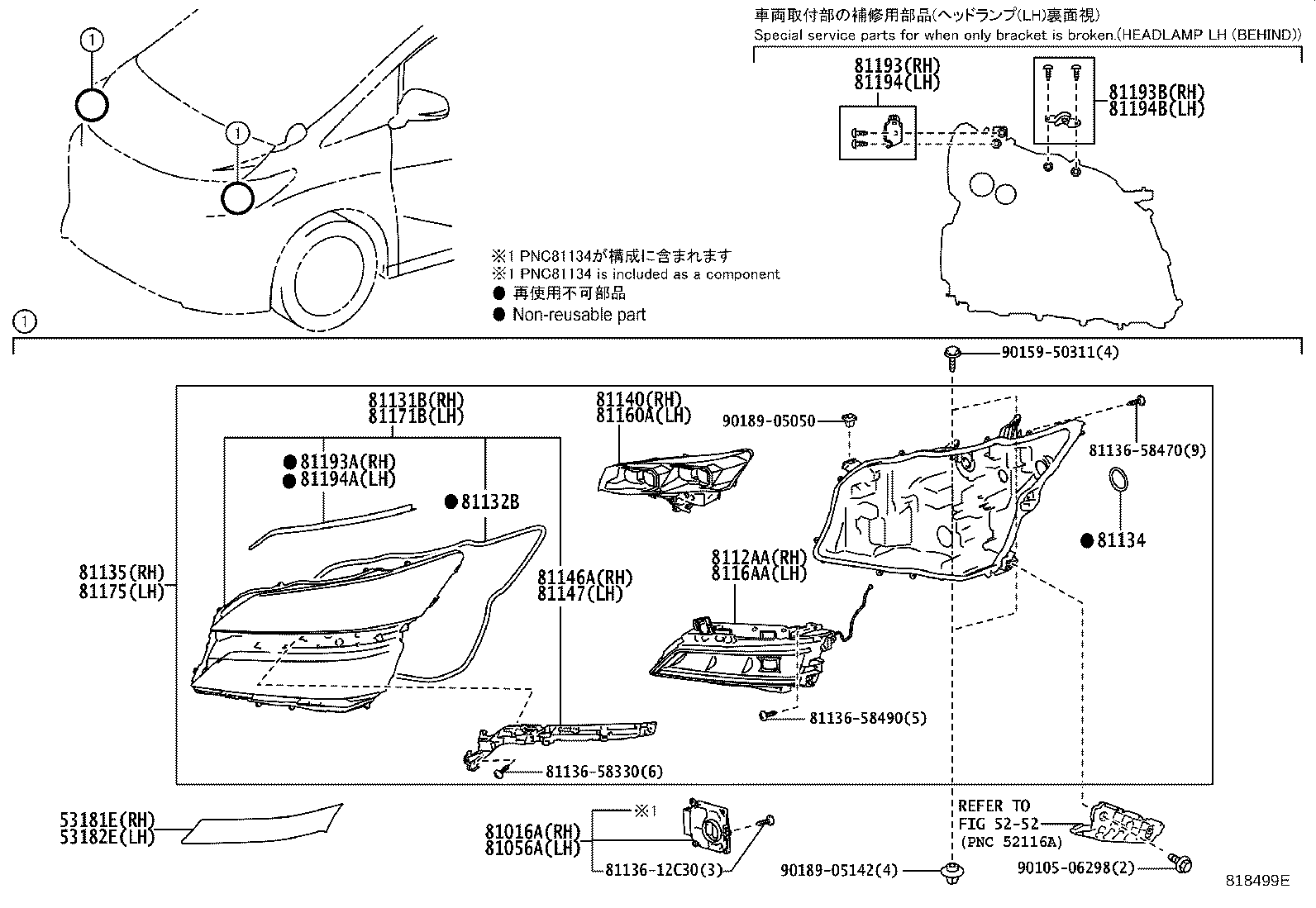

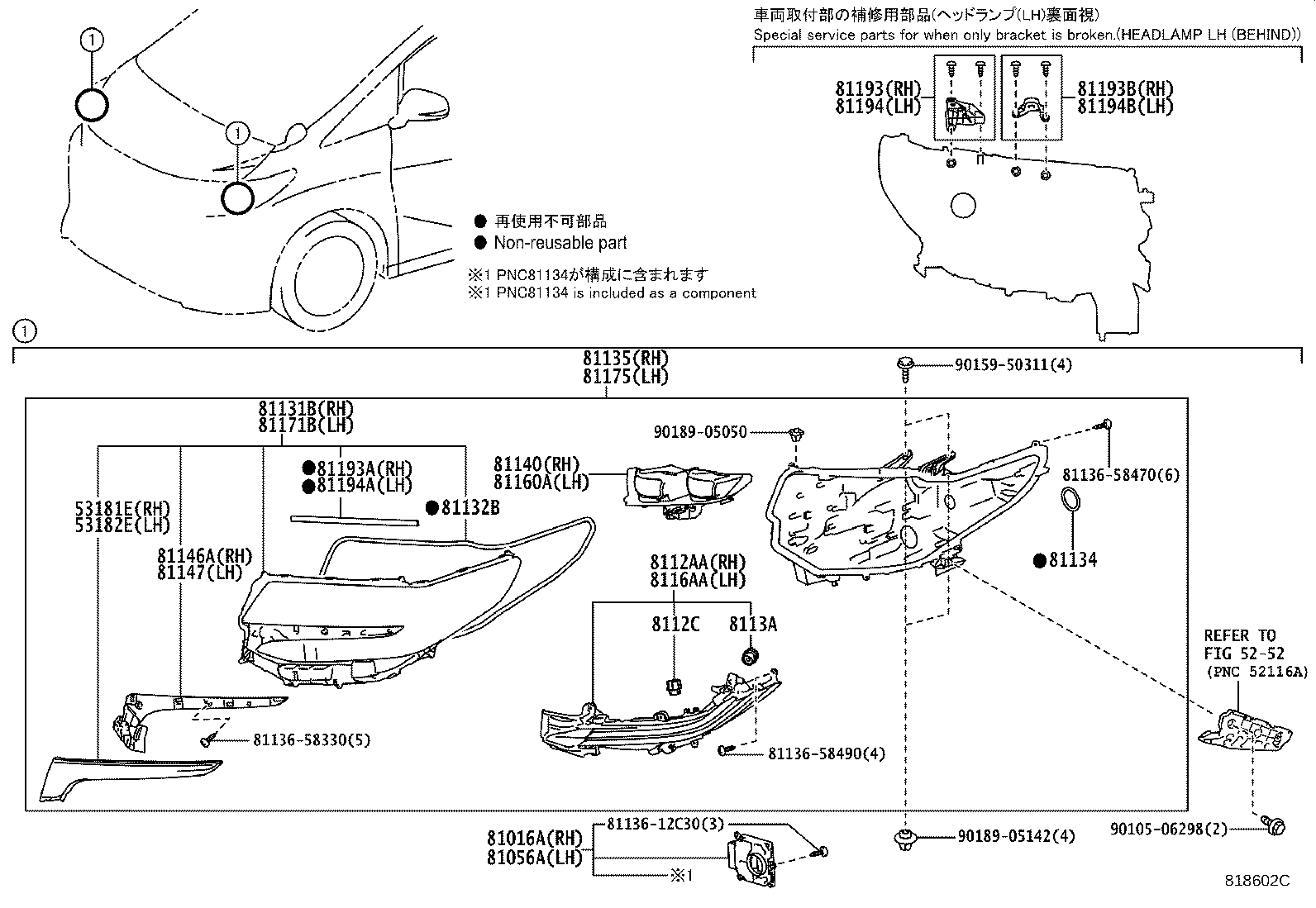

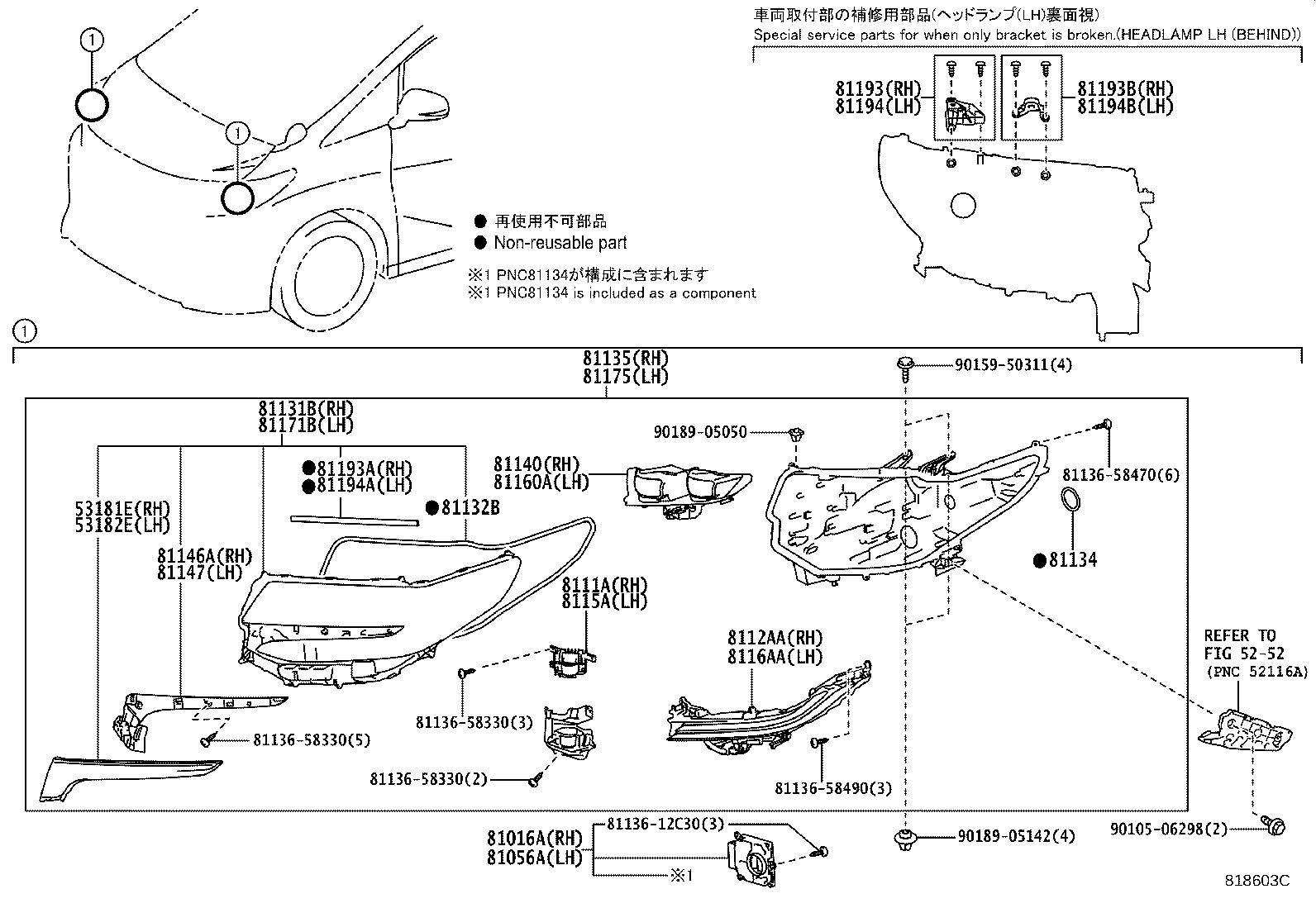

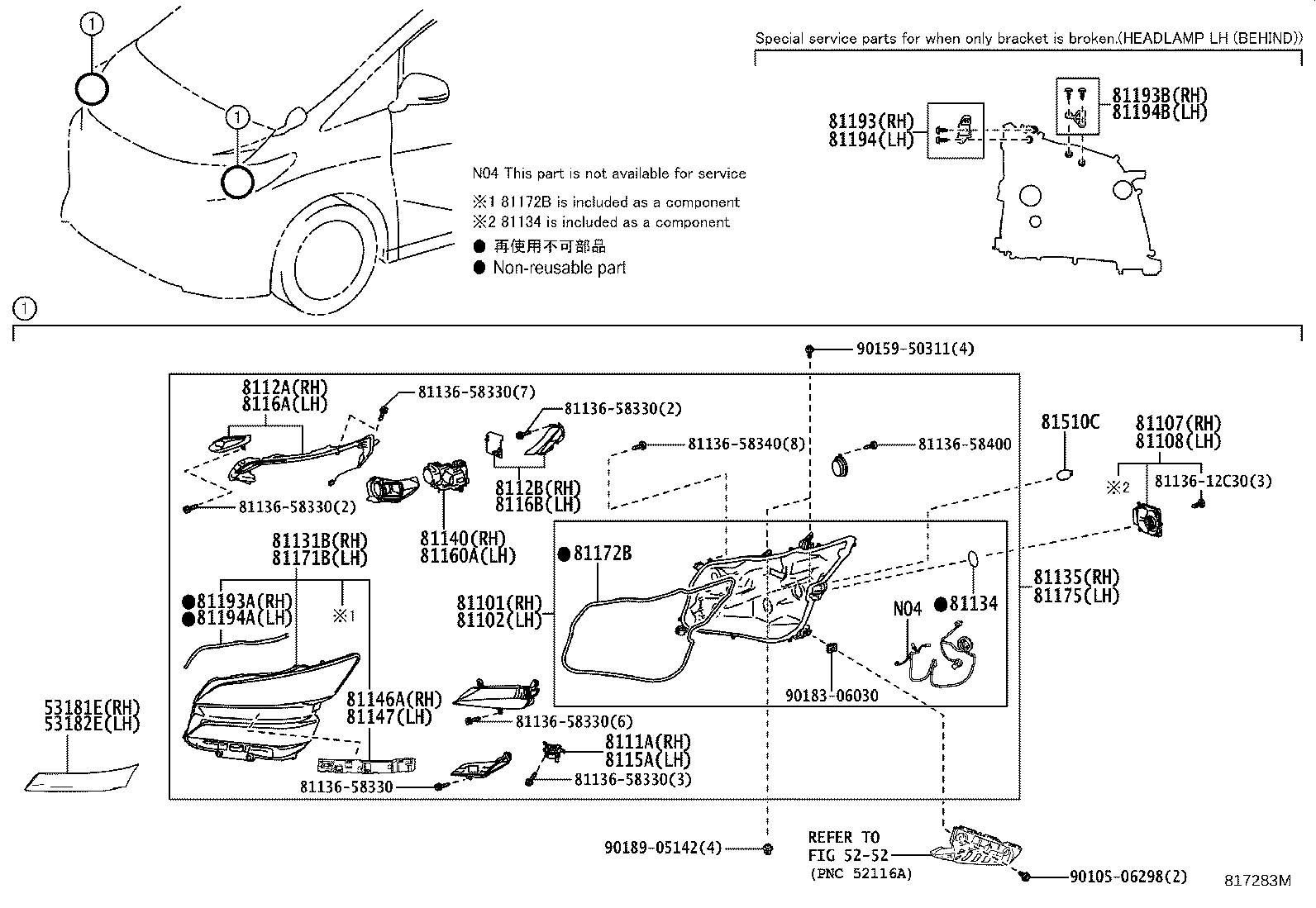

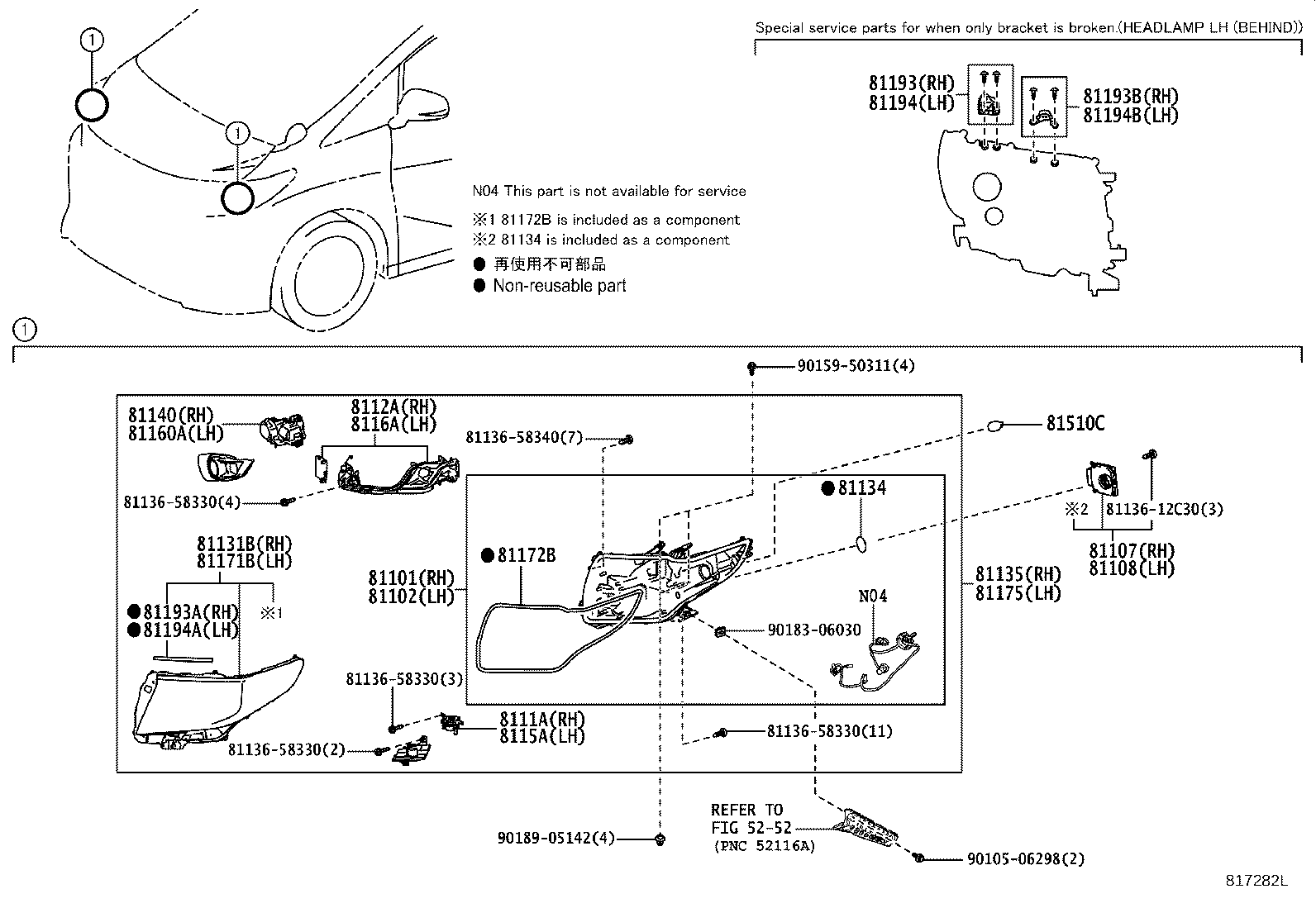

Headlamp
36 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 8111A | Unit, Headlamp Cornering Led, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 8112AA | Unit, Headlamp Clearance Led, RH |
| 8112B | Unit, Headlamp Clearance Led, NO.2 RH |
| 8112C | Socket, Headlamp Clearance Led |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81146A | Fitting, Headlamp, RH |
| 81147 | Fitting, Headlamp, LH |
| 8115A | Unit, Headlamp Cornering Led, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 8116AA | Unit, Headlamp Clearance Led, LH |
| 8116B | Unit, Headlamp Clearance Led, NO.2 LH |
| 81171B | Head Lamp Lens, LH |
| 81172B | Gasket, Headlamp Lens |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
