Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

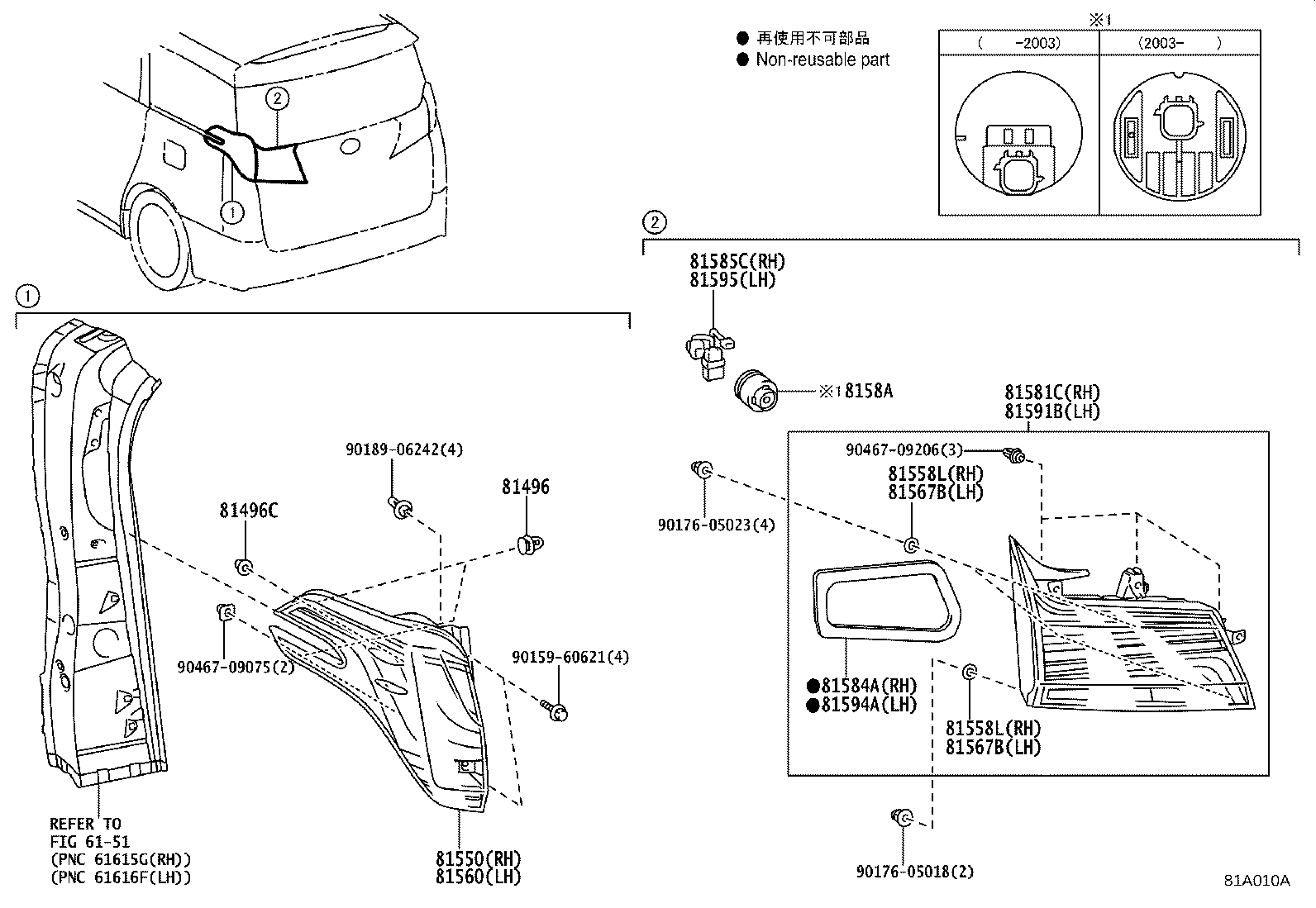

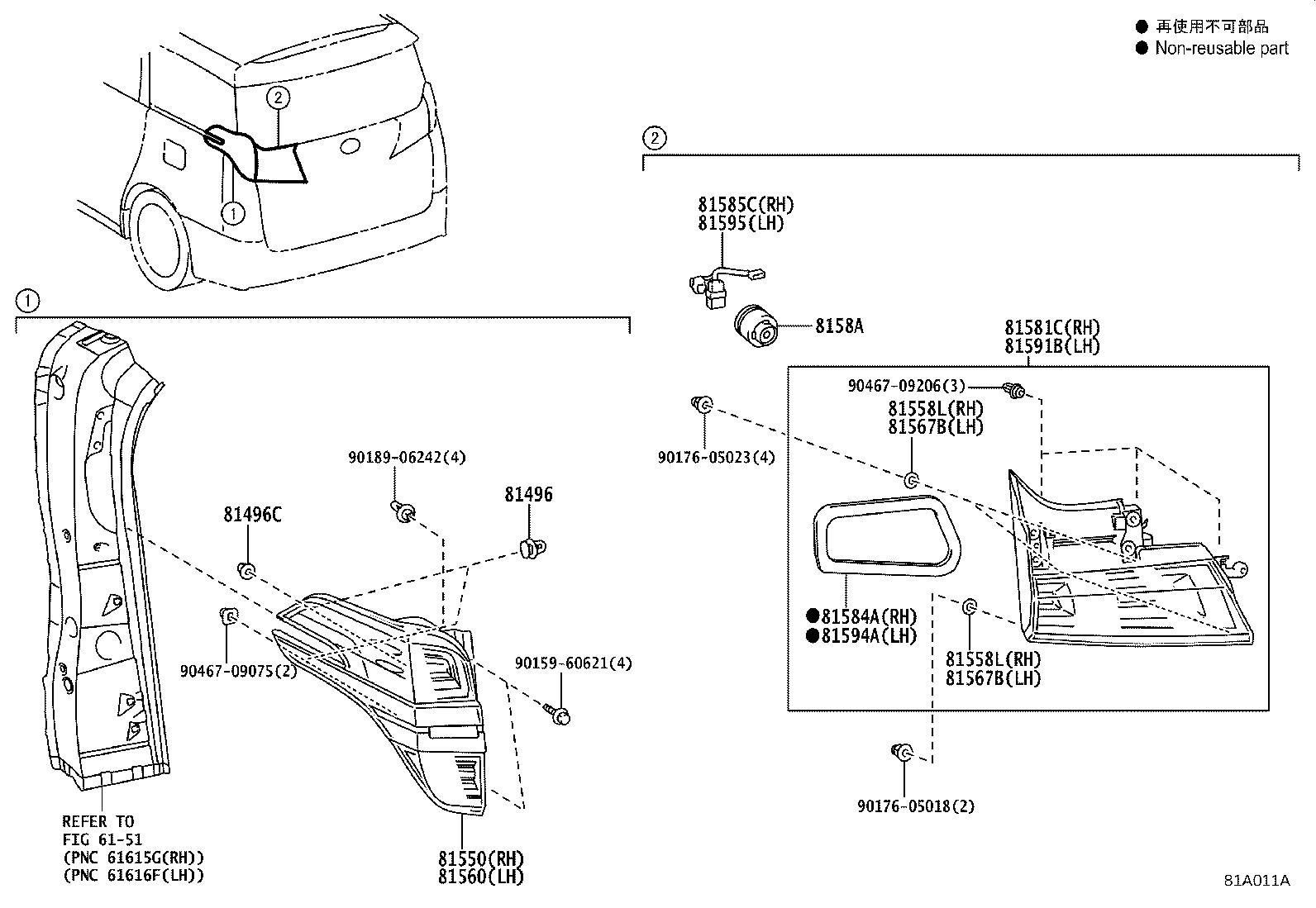

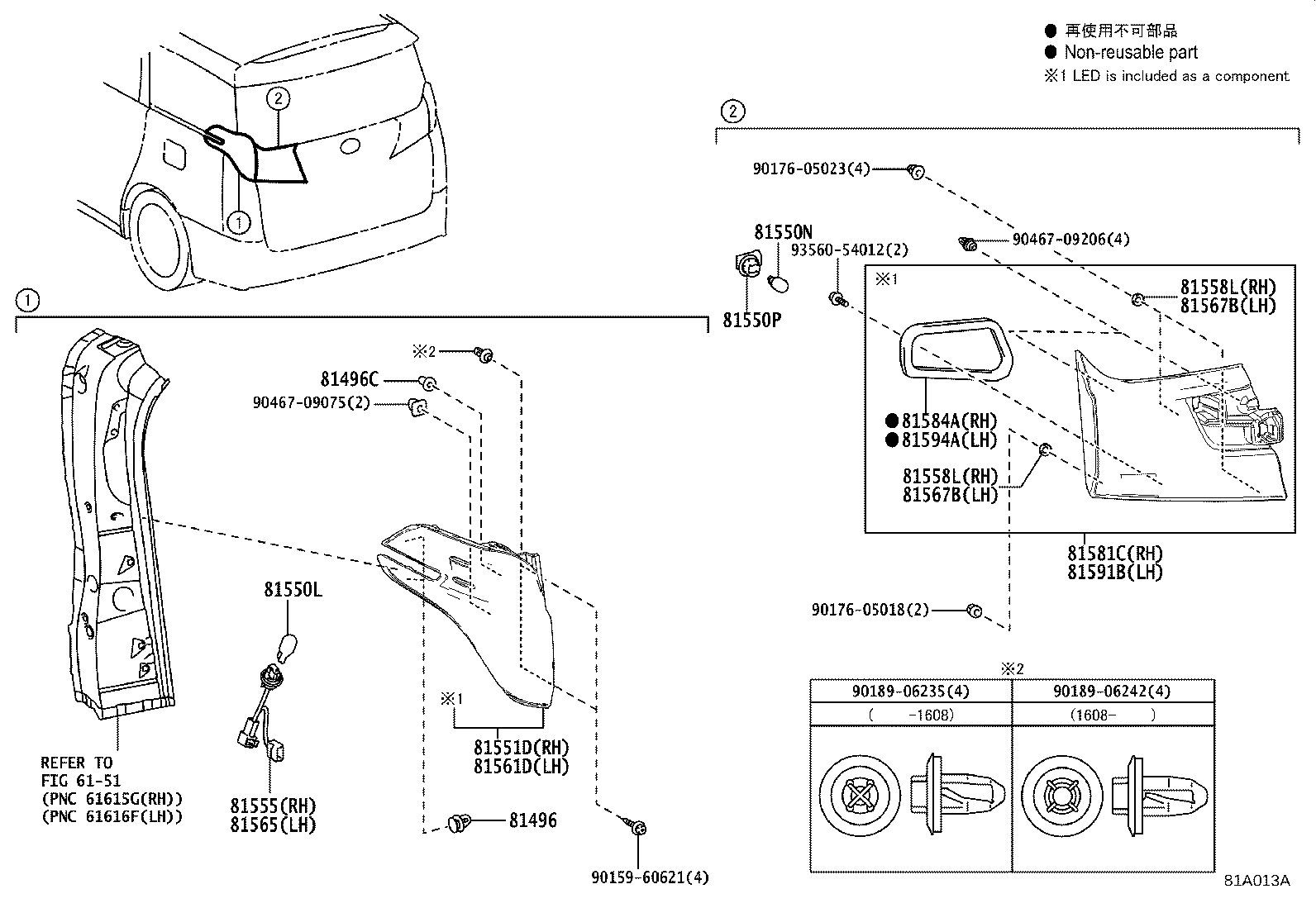

Rear Combination Lamp
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 76815A | Garnish, Back Door, Outside Lower RH |
| 76816A | Garnish, Back Door, Outside Lwr LH |
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81558L | Protector, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81567B | Protector, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 8158A | Led, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
