Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05
Overdrive & Electronic Controlled Transmission

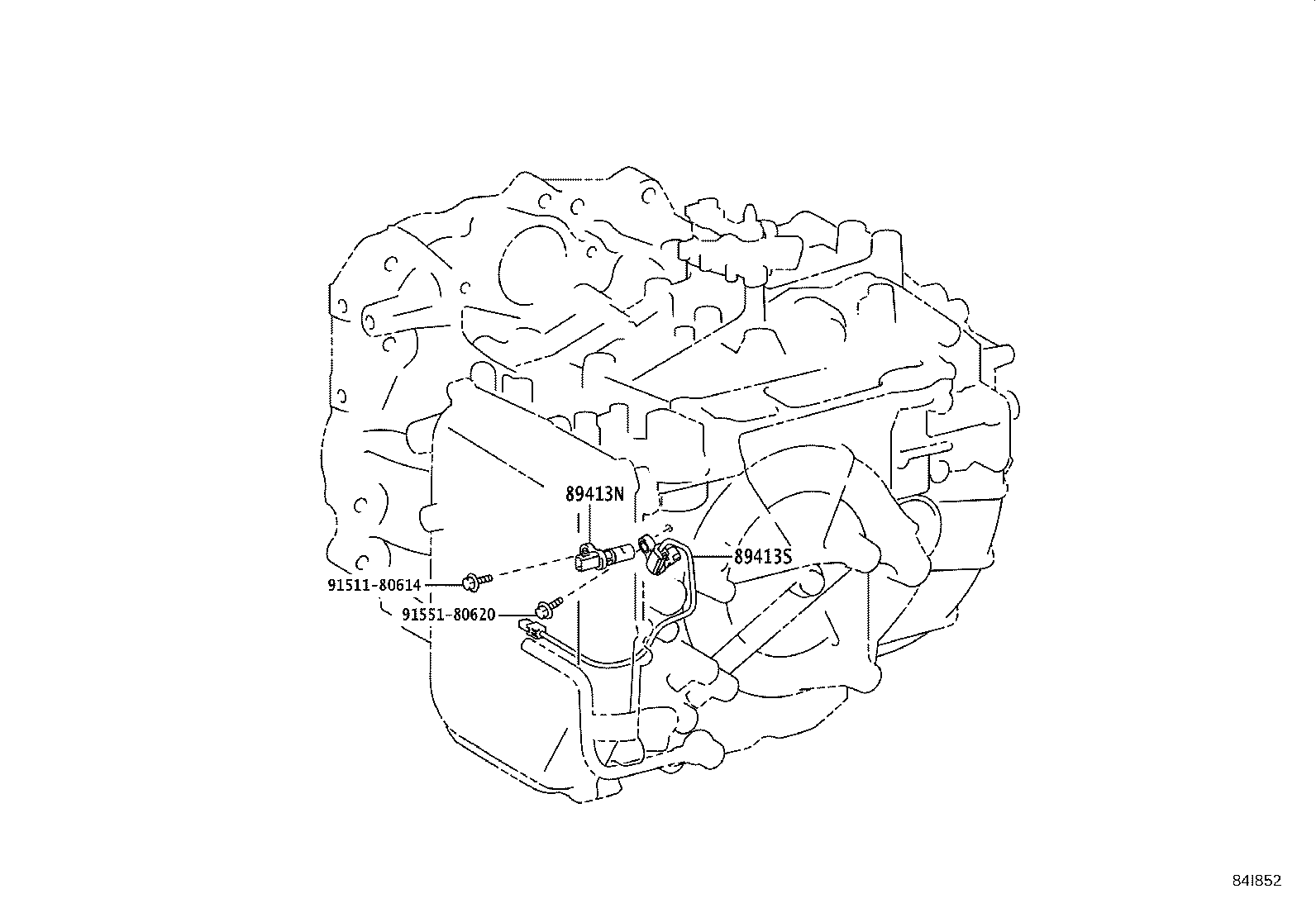

8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 89411H | Ring, O |
| 89413B | Sensor, Transmission Revolution |
| 89413M | Sensor, Transmission Revolution, (NOUT) |
| 89413N | Sensor, Transmission Revolution, (NT) |
| 89413P | Sensor, Transmission Revolution, (NIN) |
| 89413S | Sensor, Transmission Revolution (NC) |
| 89451 | Sensor, Shift Lever Position |
| 89637K | Sensor, Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
