Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

11 part groups · 5 illustrations

Illustrations

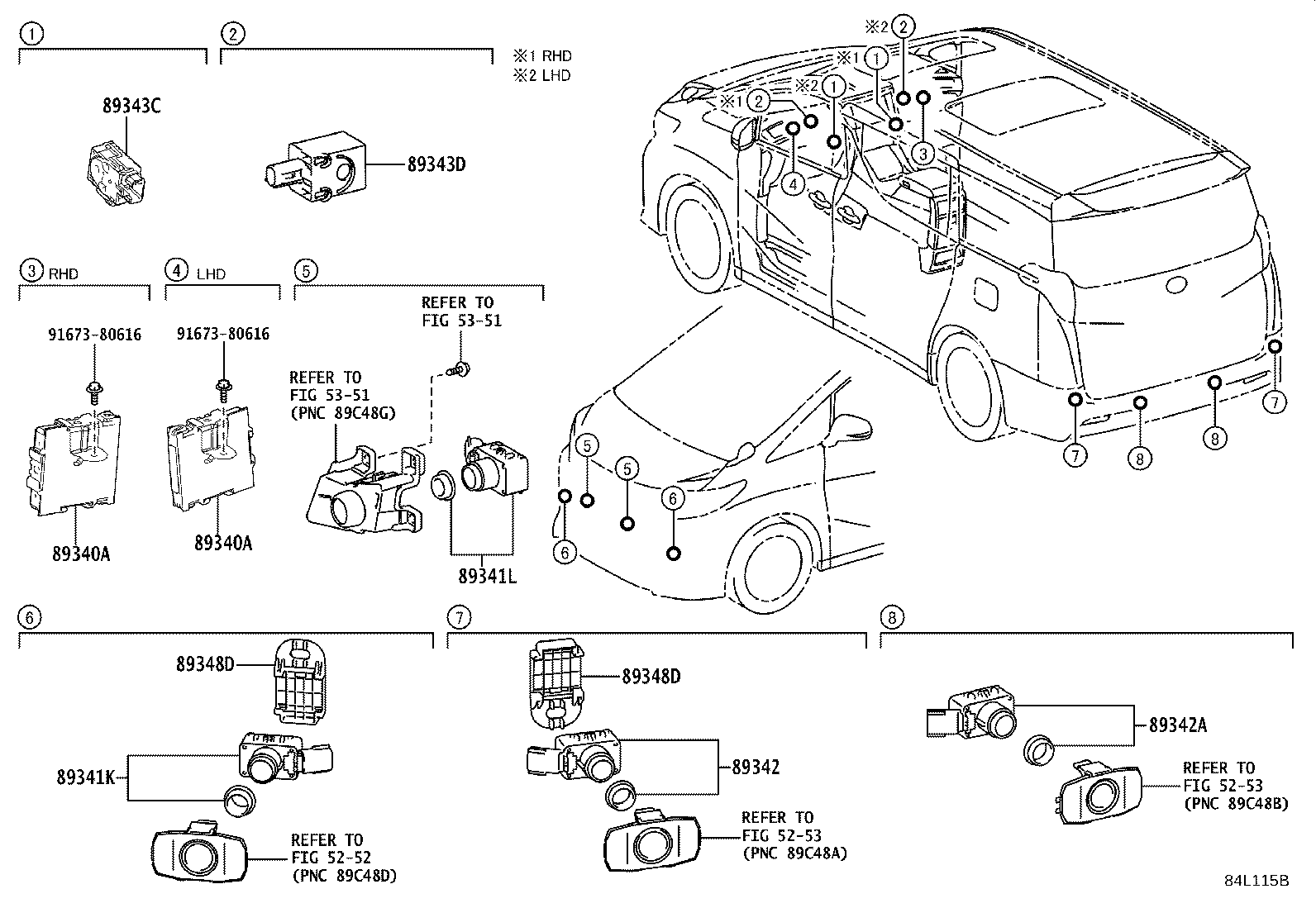

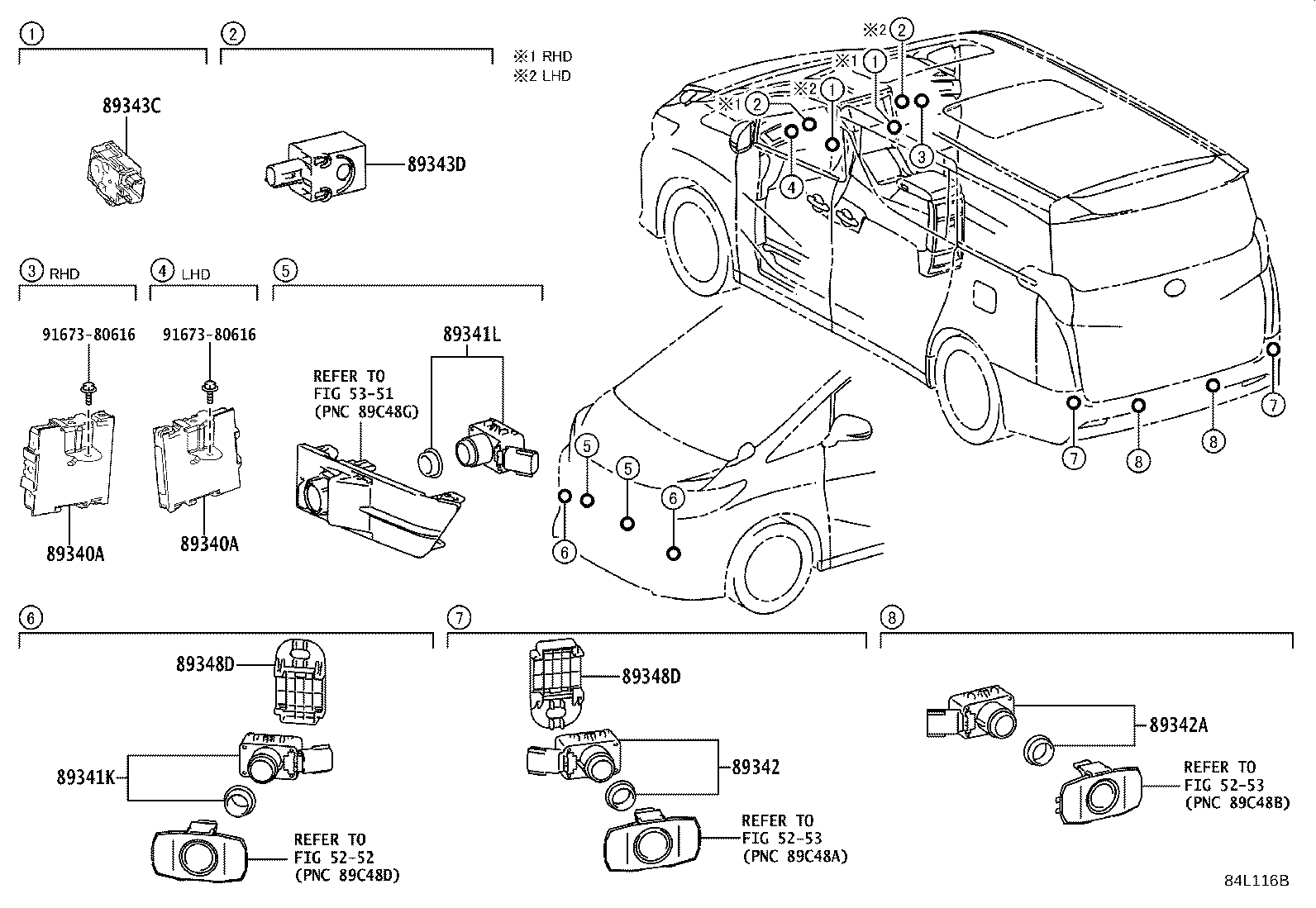

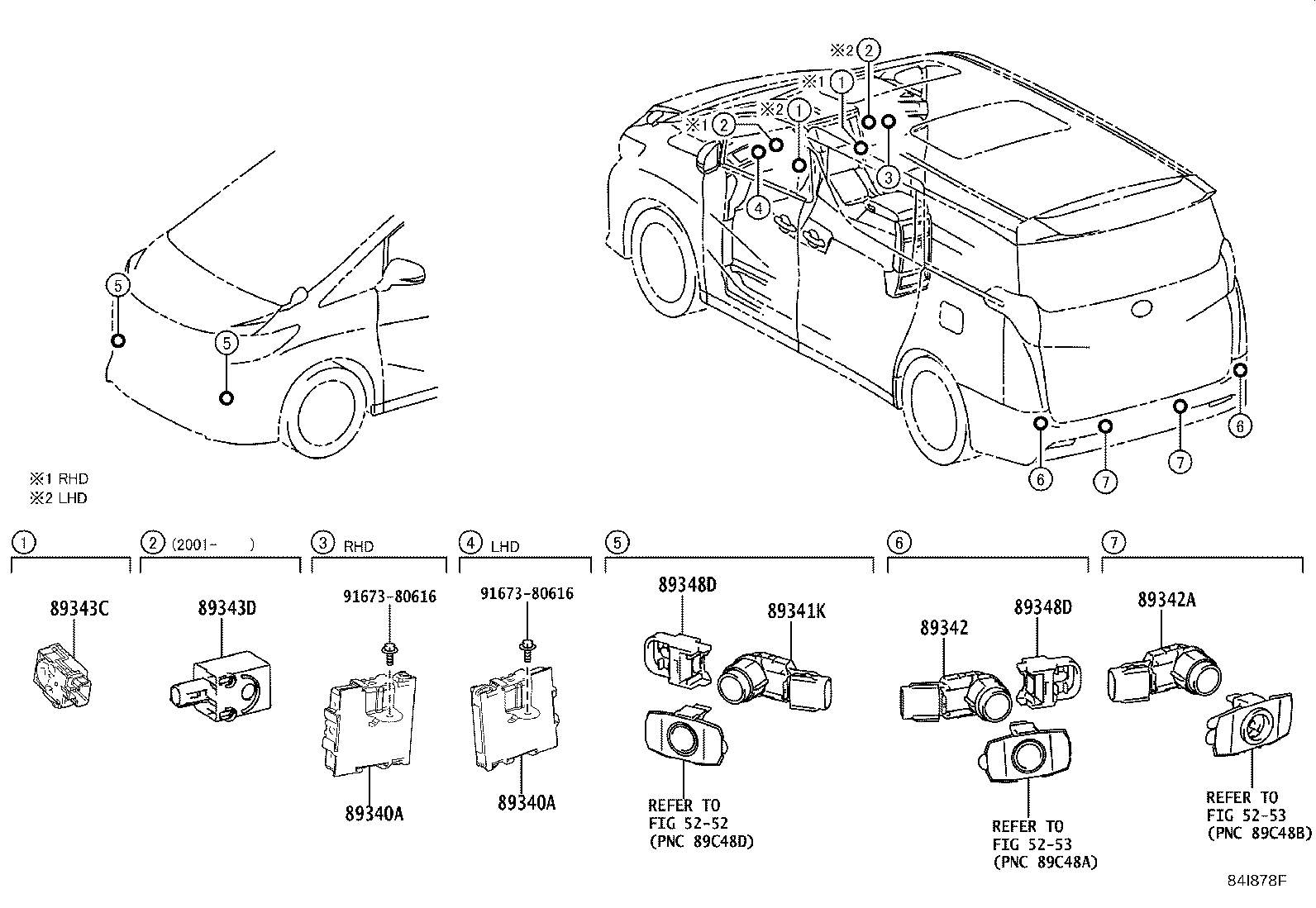

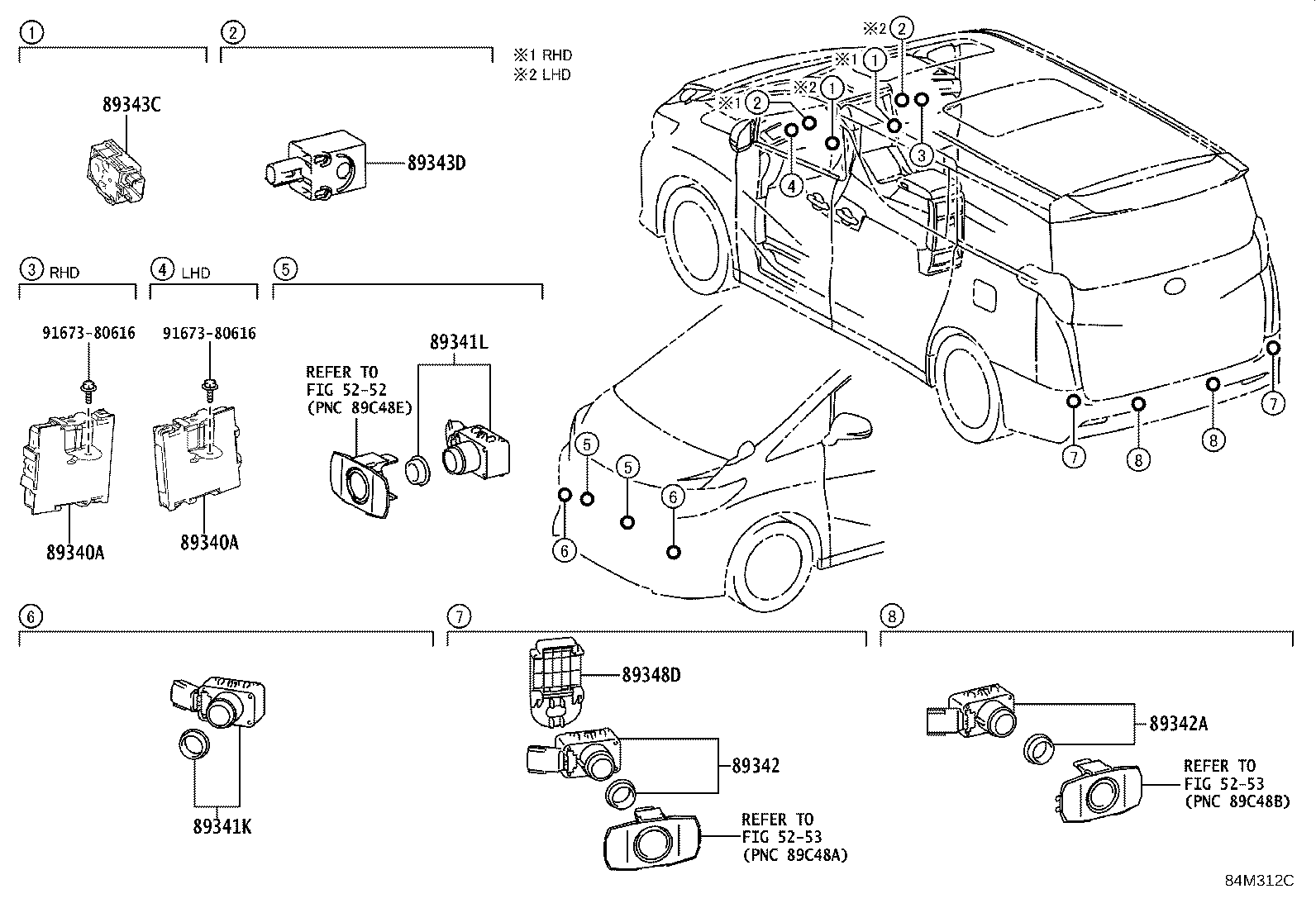

Figure 84F844A 84F844A 2015-01 → 2018-01 Figure 84I878F 84I878F 2018-01 → — Figure 84L115B 84L115B 2020-01 → — Figure 84L116B 84L116B 2020-01 → — Figure 84M312C 84M312C 2021-05 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341B Sensor, Ultrasonic, NO.2
89341H Sensor, Ultrasonic, NO.5
89341J Sensor, Ultrasonic, NO.6
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
