Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

19 part groups · 4 illustrations

Illustrations

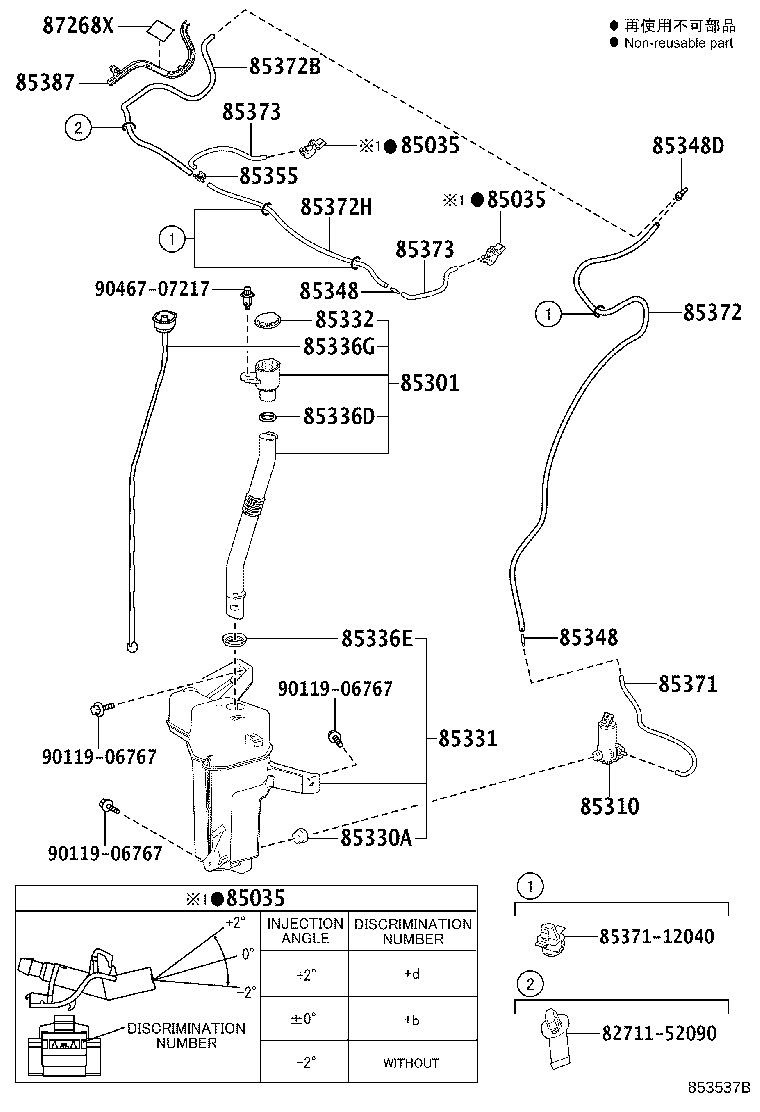

Figure 853332H 853332H 2015-01 → 2020-01 Figure 853332H 853332H 2020-01 → — Figure 853537B 853537B 2015-01 → 2020-01 Figure 853537B 853537B 2020-01 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85331 Jar Sub-assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85336G Gage, Water Level
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
87268X Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
