Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 5 illustrations

Illustrations

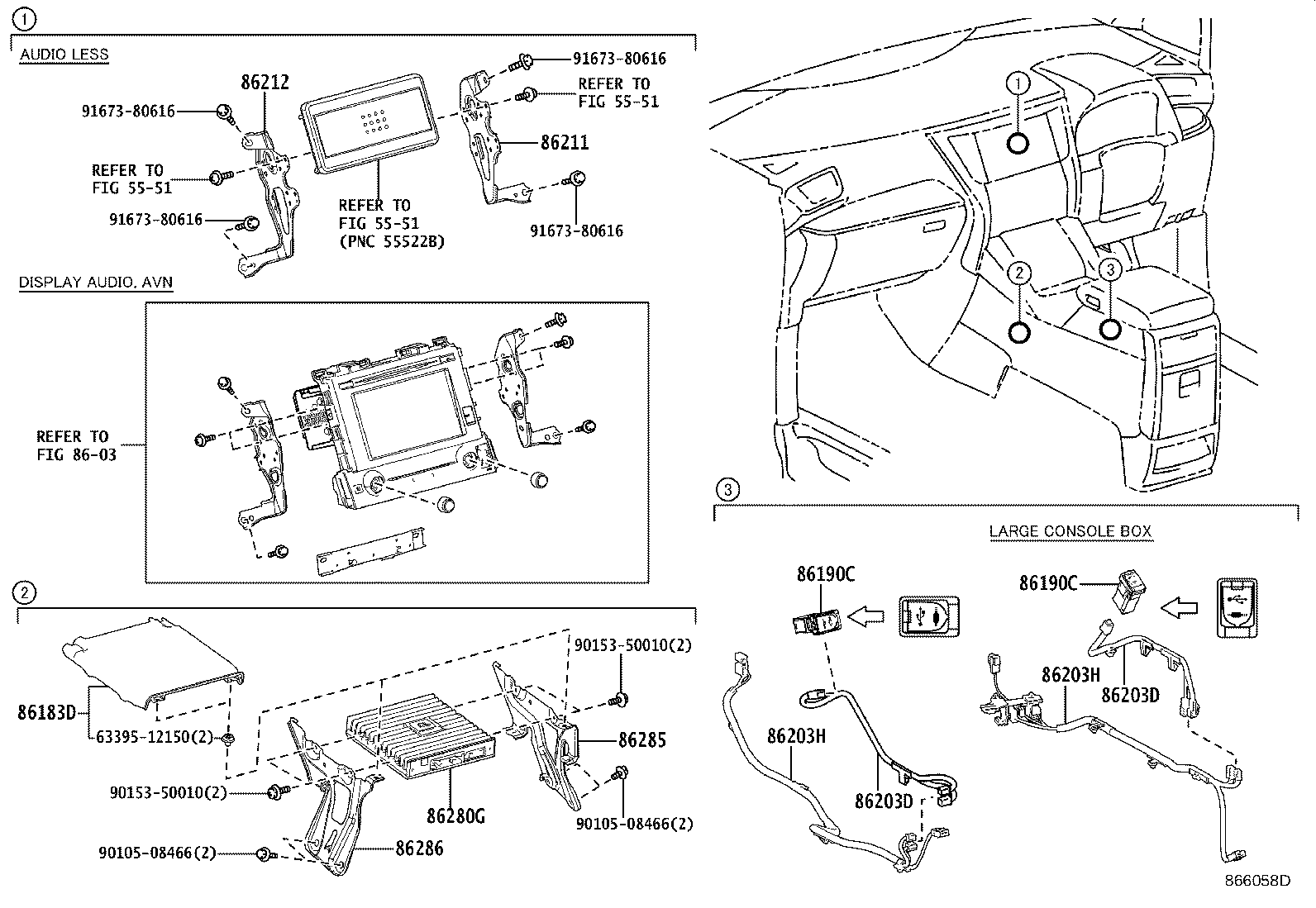

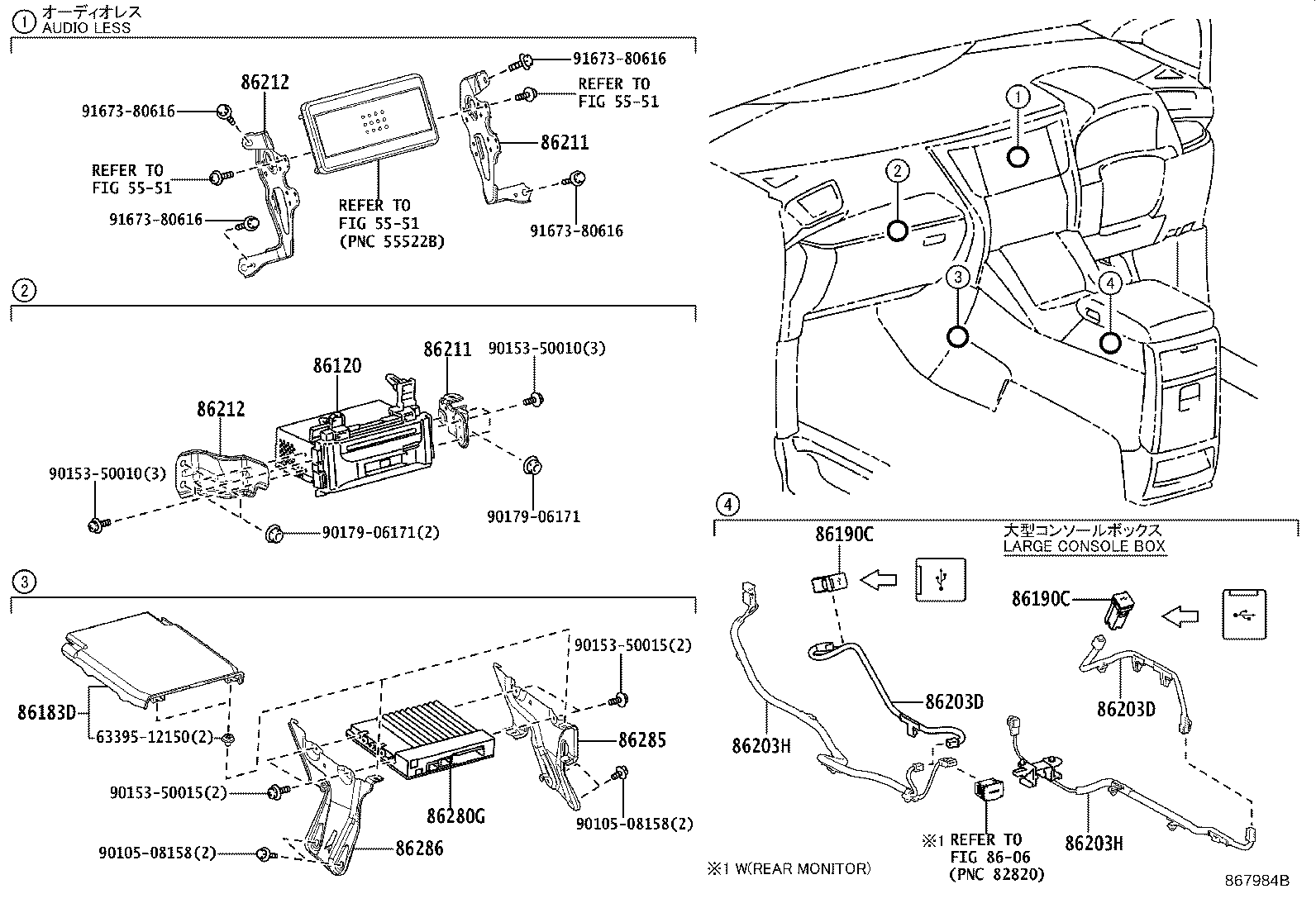

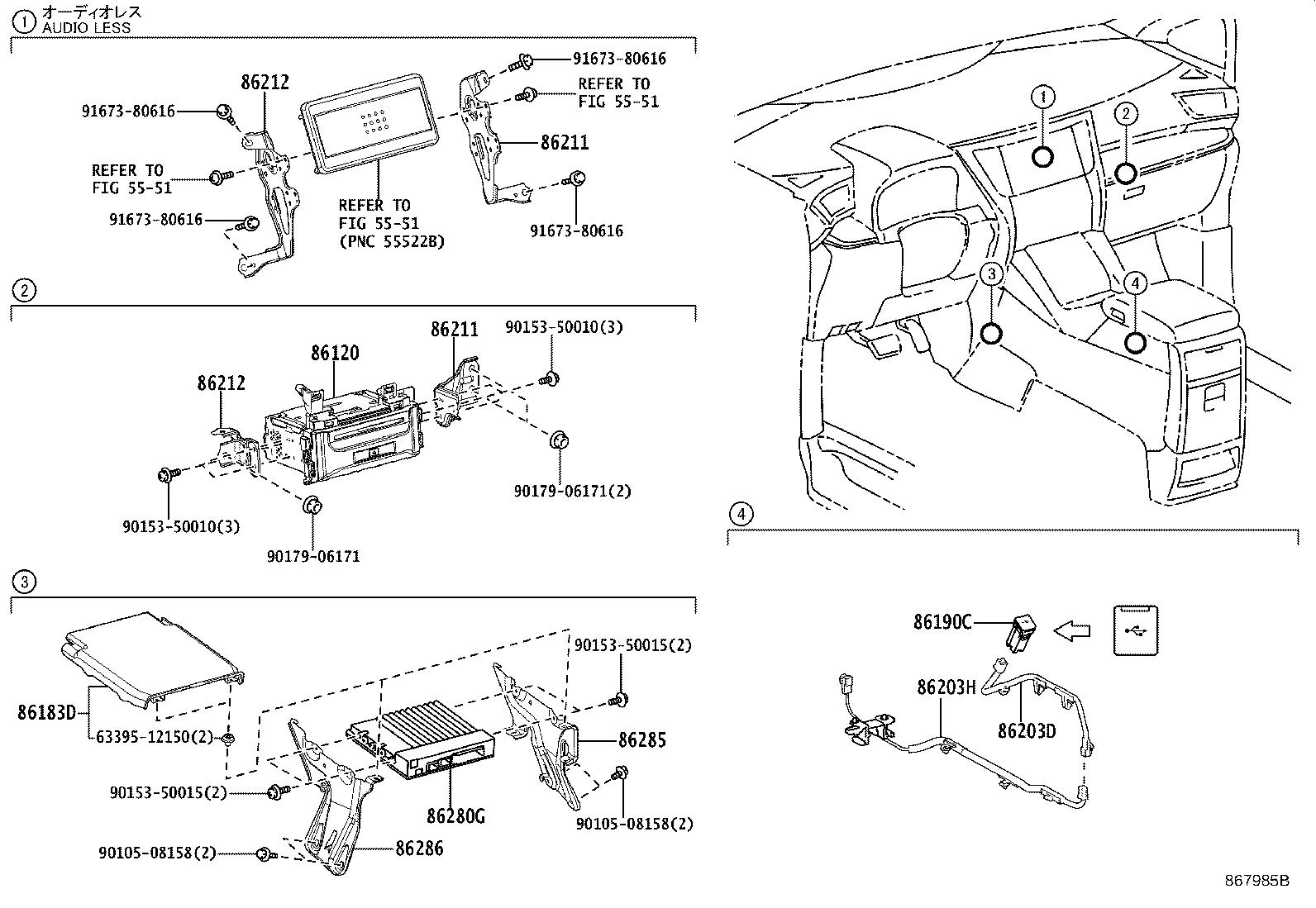

Figure 866043B 866043B 2015-01 → 2020-01 Figure 866058D 866058D 2015-01 → 2020-01 Figure 867985B 867985B 2020-01 → — Figure 867984B 867984B 2020-01 → — Figure 866042 866042 2015-01 → —

Part groups

PNCDescription
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86222A Clip, Radio Receiver Bracket NO.1
86280G Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
