Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05

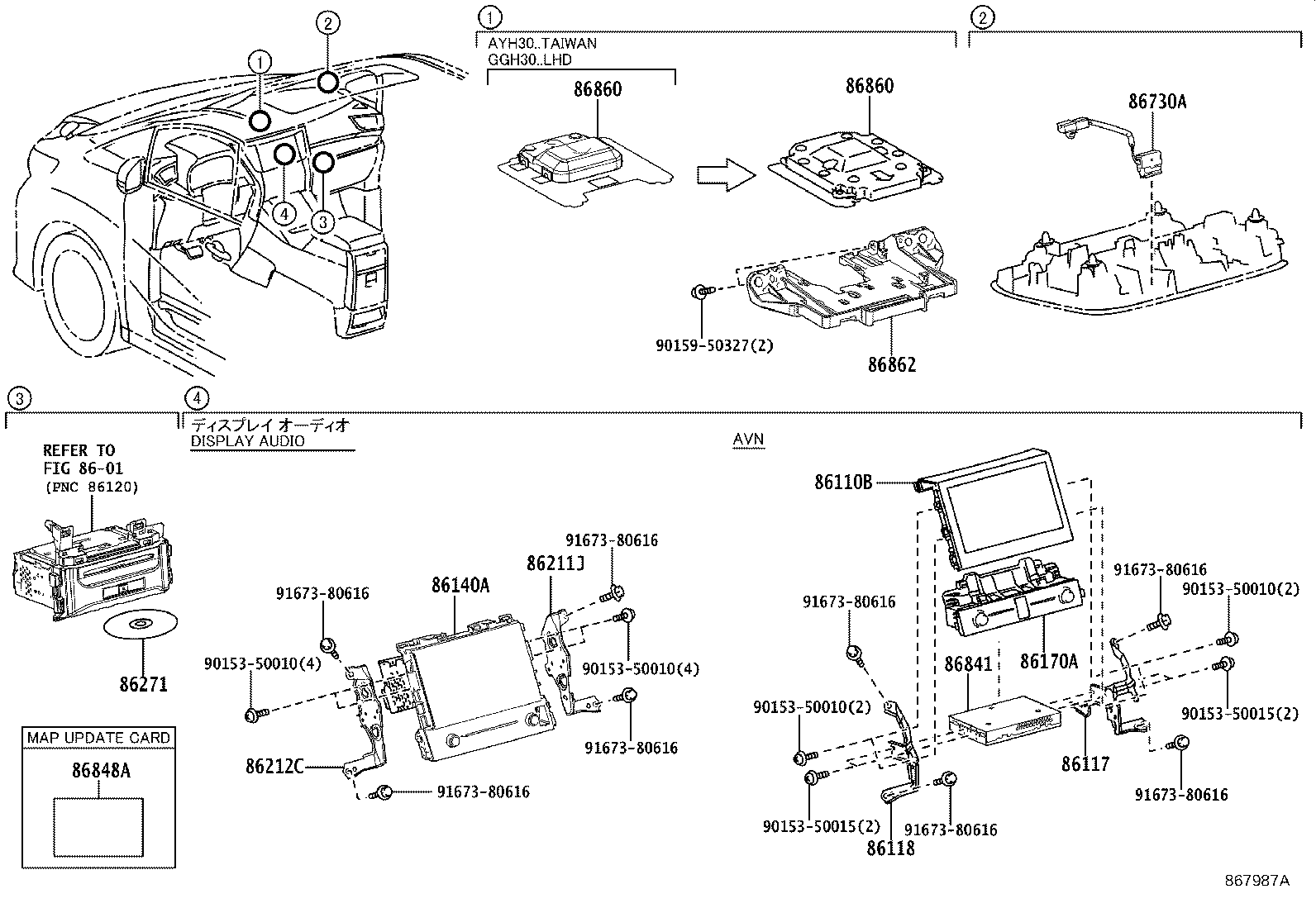

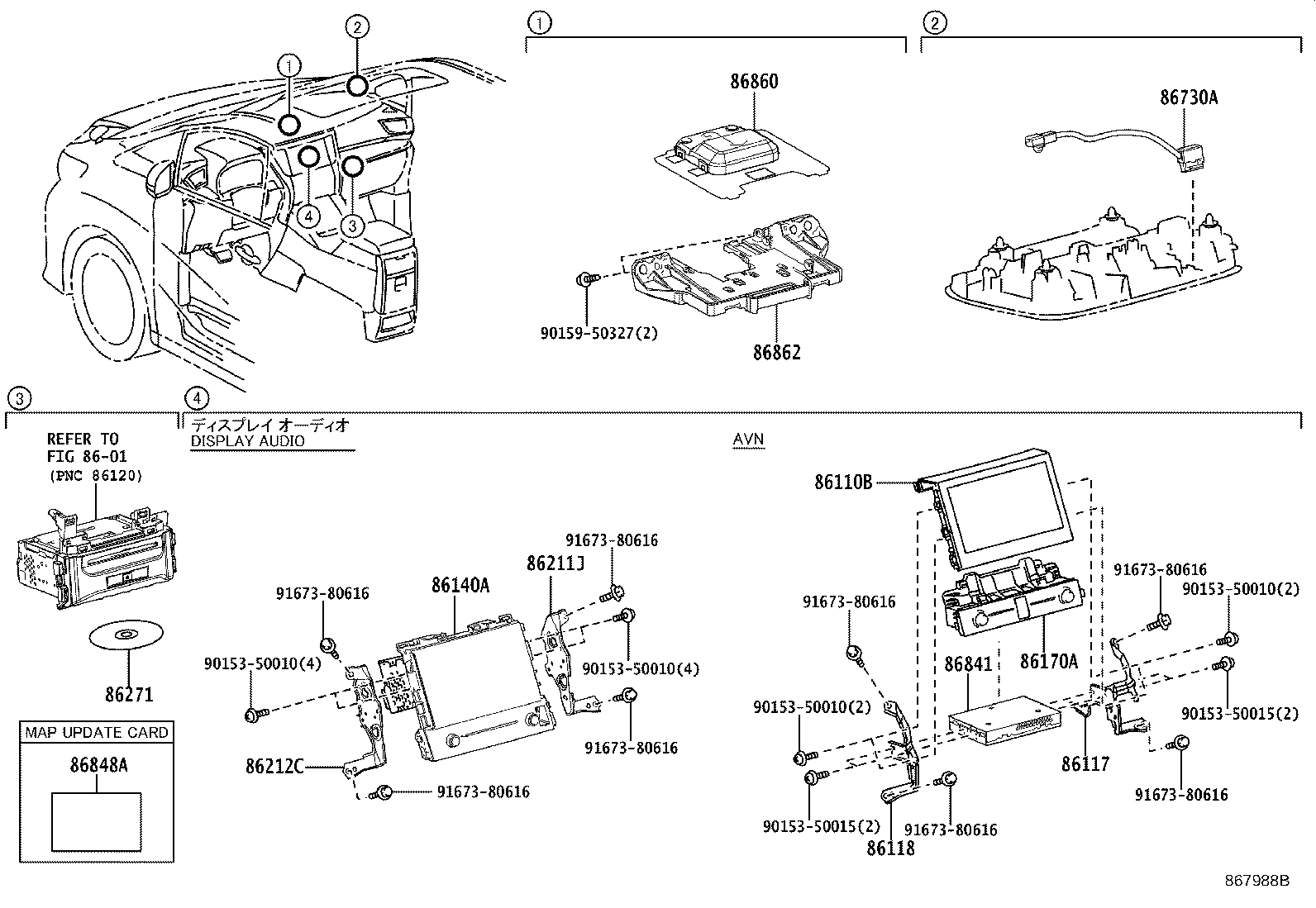

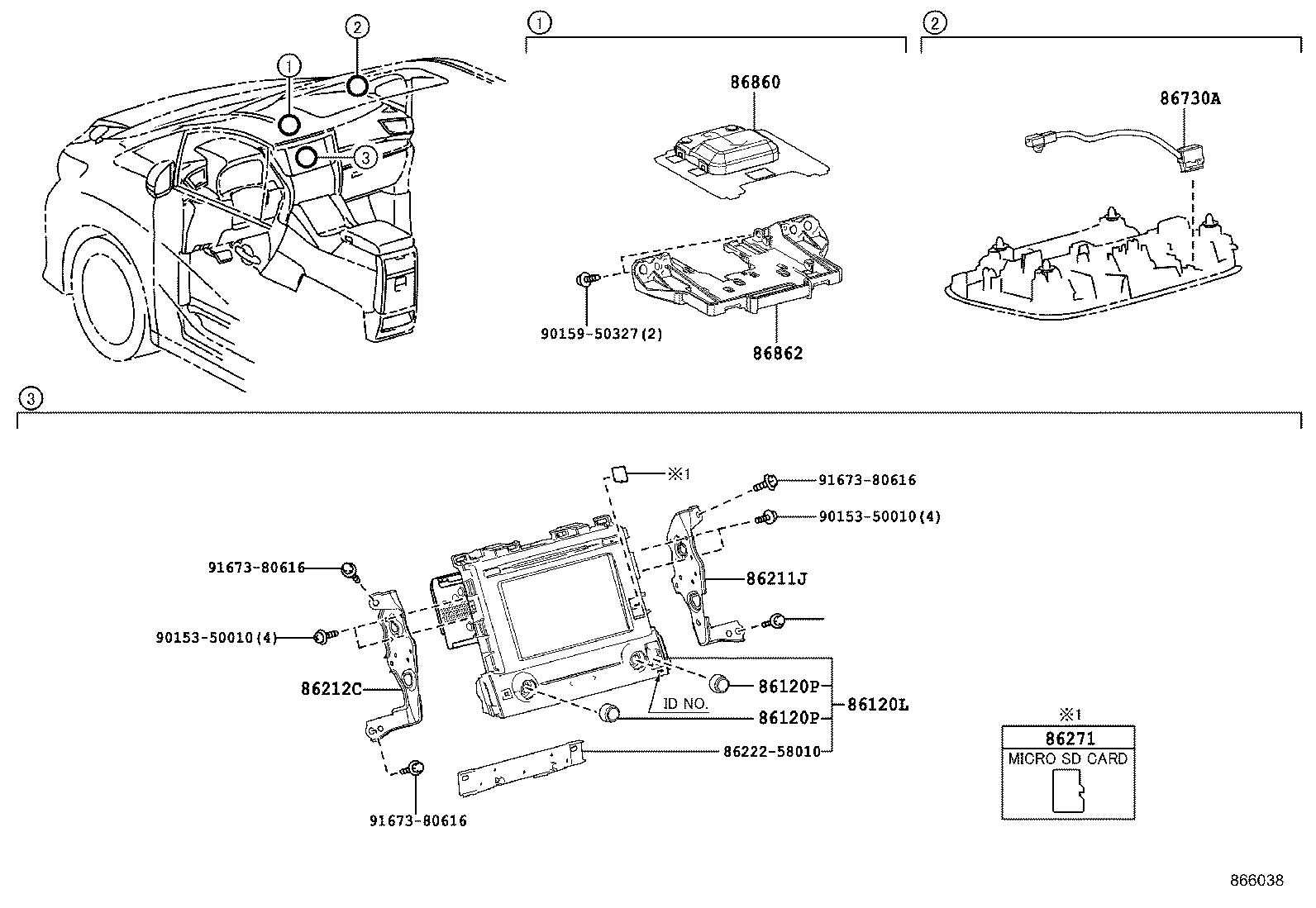

Navigation & Front Monitor Display
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86120L | Receiver Assy, Navigation |
| 86120N | Receiver Assy, Radio |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86170A | Switch & Volume Assy |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86271 | Disc, Disc Player |
| 86705B | Cord Sub-assy, Telephone Antenna |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
