Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

10 part groups · 4 illustrations

Illustrations

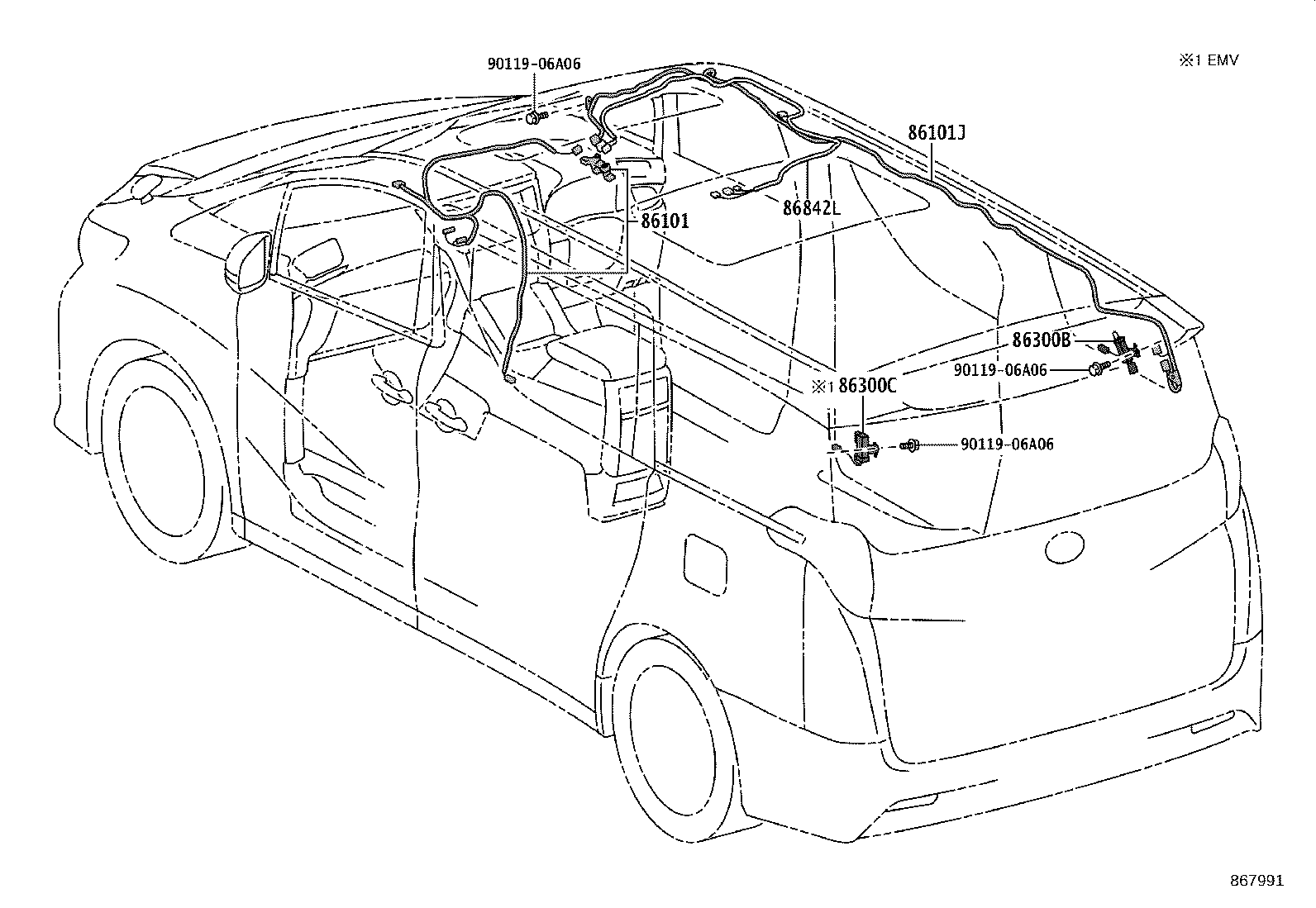

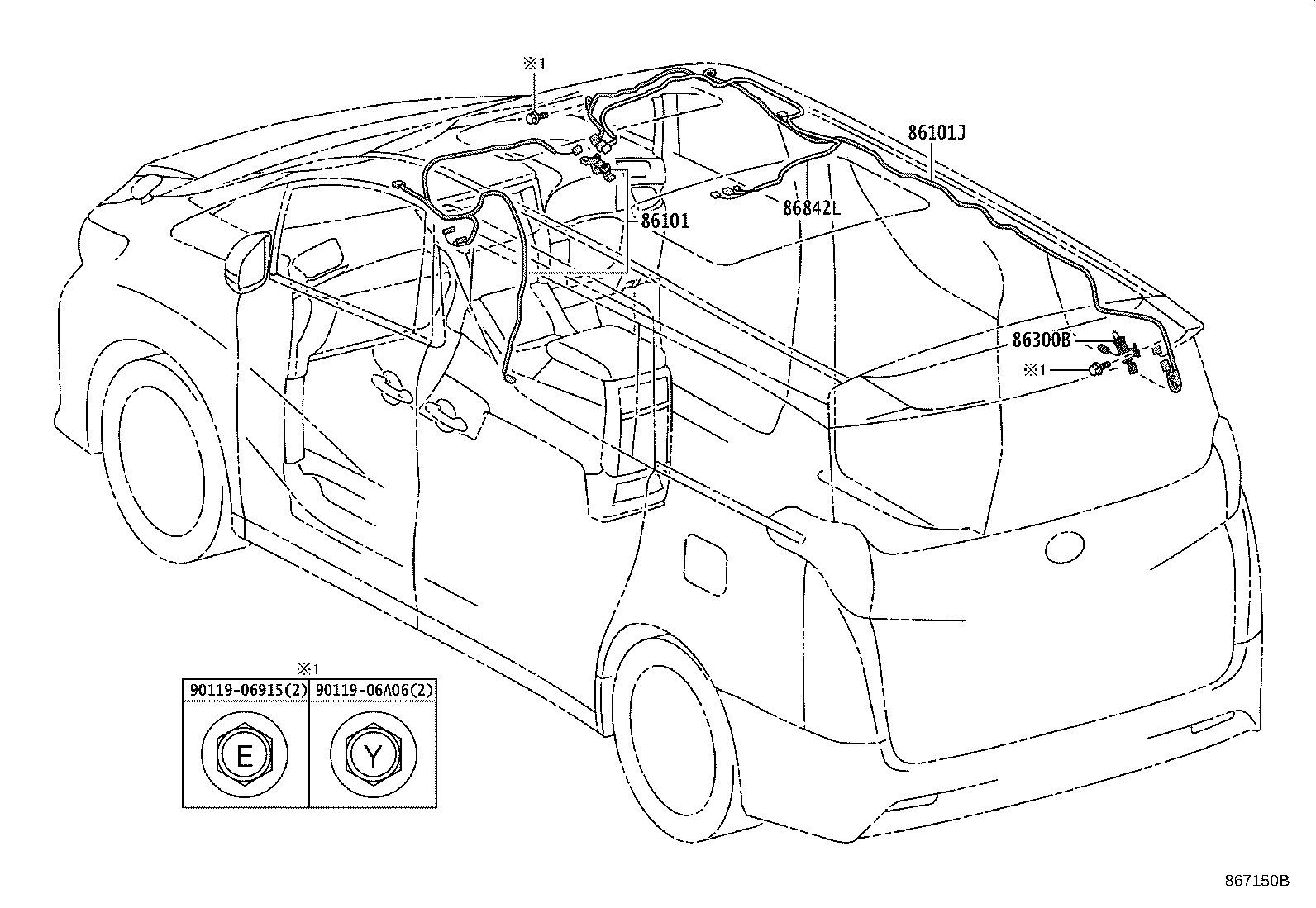

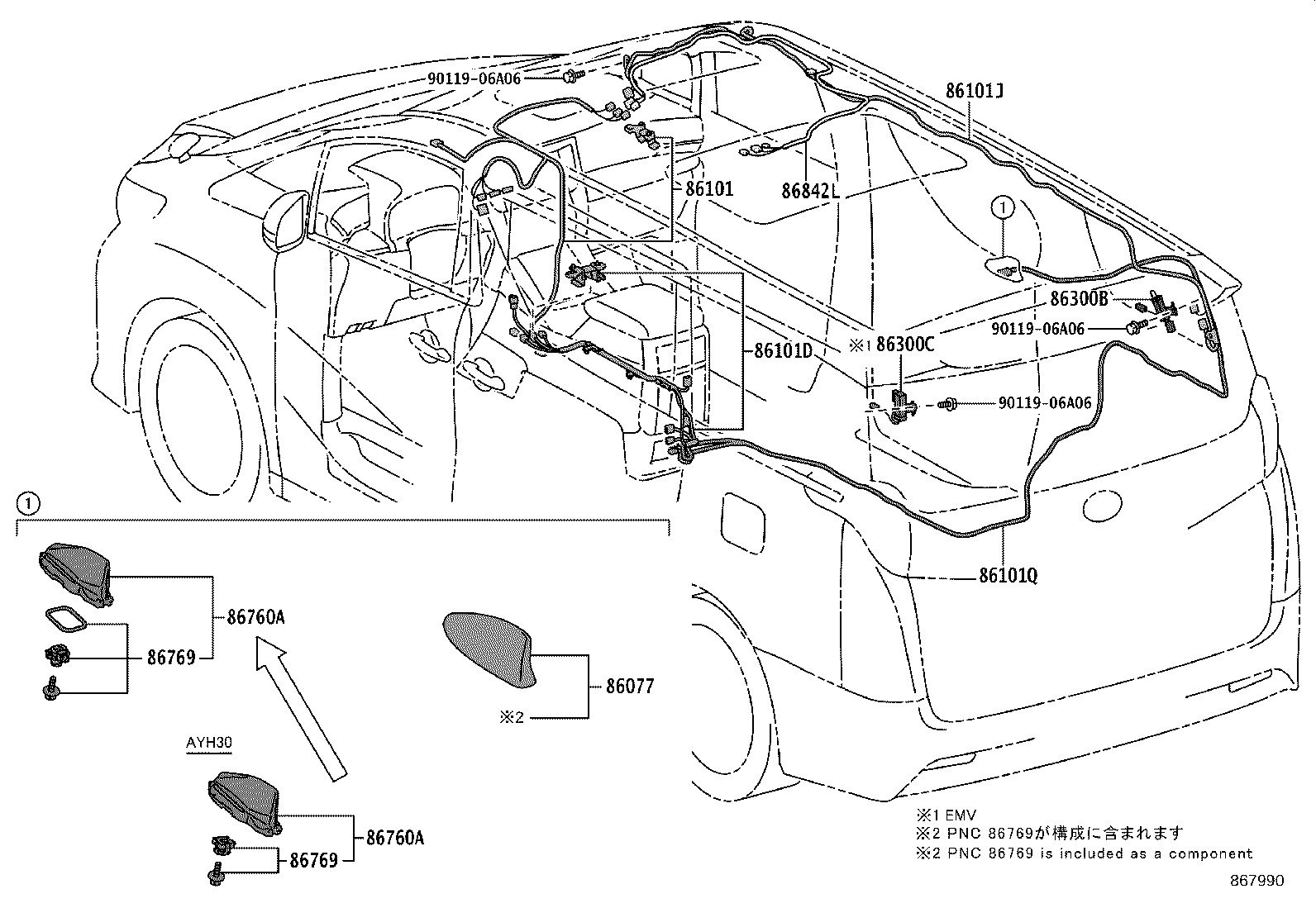

Figure 867151B 867151B 2015-01 → 2020-01 Figure 867990 867990 2020-01 → — Figure 867150B 867150B 2015-01 → 2020-01 Figure 867991 867991 2020-01 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
86842L Wire, Navigation, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
