Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

12 part groups · 3 illustrations

Illustrations

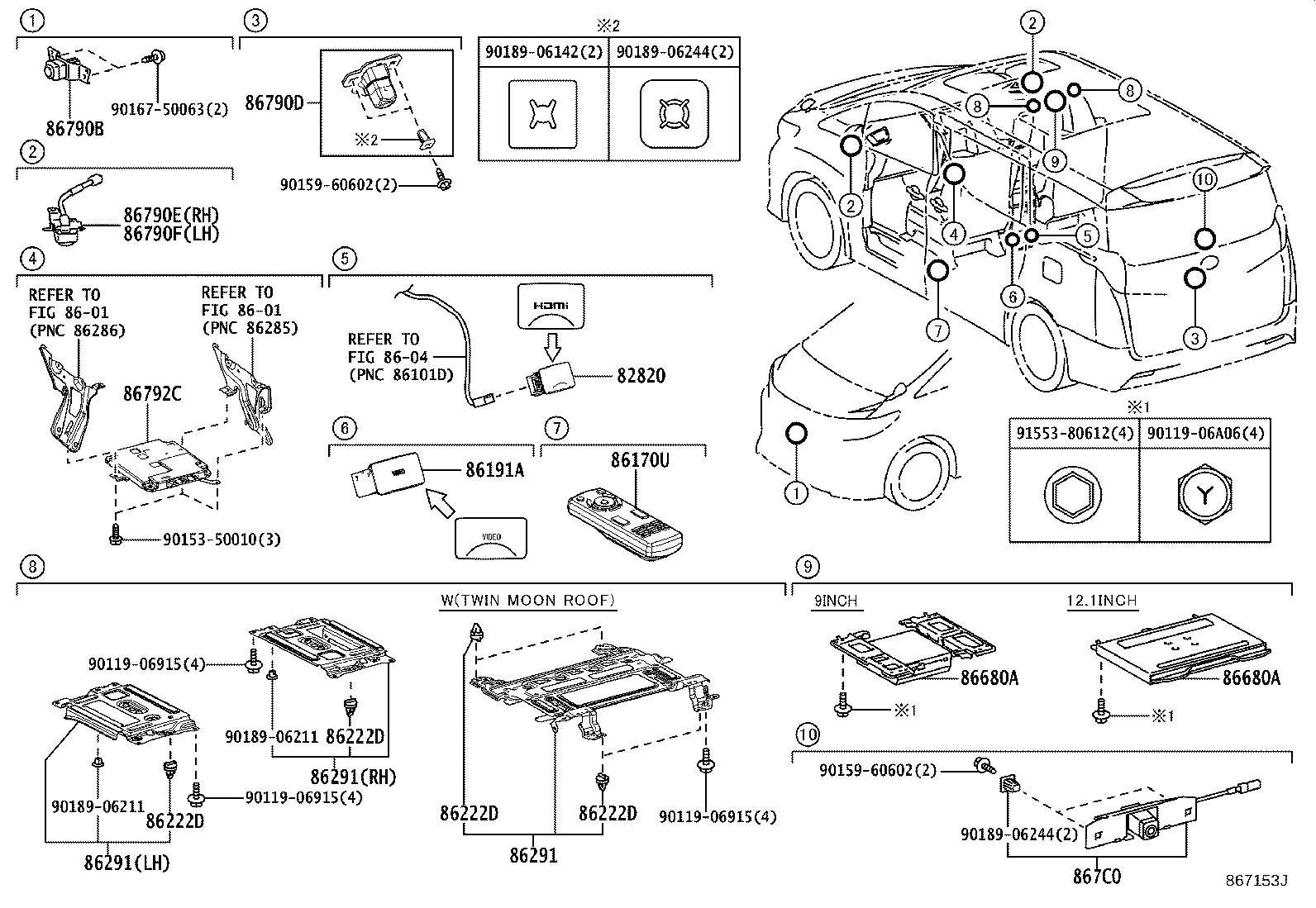

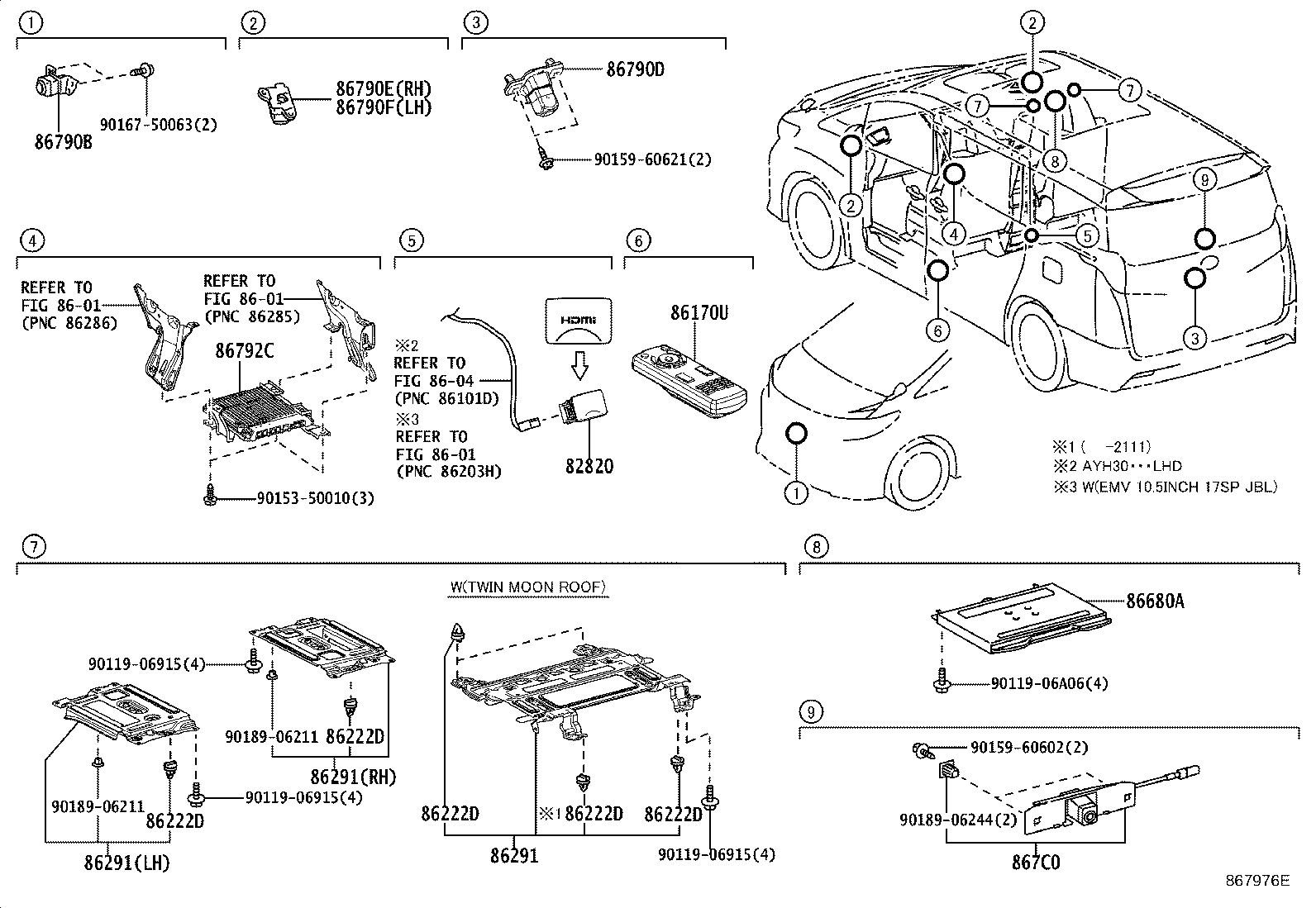

Figure 866031I 866031I 2015-01 → 2018-01 Figure 867153J 867153J 2018-01 → 2020-01 Figure 867976E 867976E 2020-01 → —

Part groups

PNCDescription
82820 Cover, Connector
86170U Switch & Volume Assy, Rear
86191A Terminal, Video(VIDEO ADAPTER)
86222D Clip, Television Bracket
86291 Bracket, Television
86680A Display Assy, Television
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
867C0 Camera Assy, Inner Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
