Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

18 part groups · 6 illustrations

Illustrations

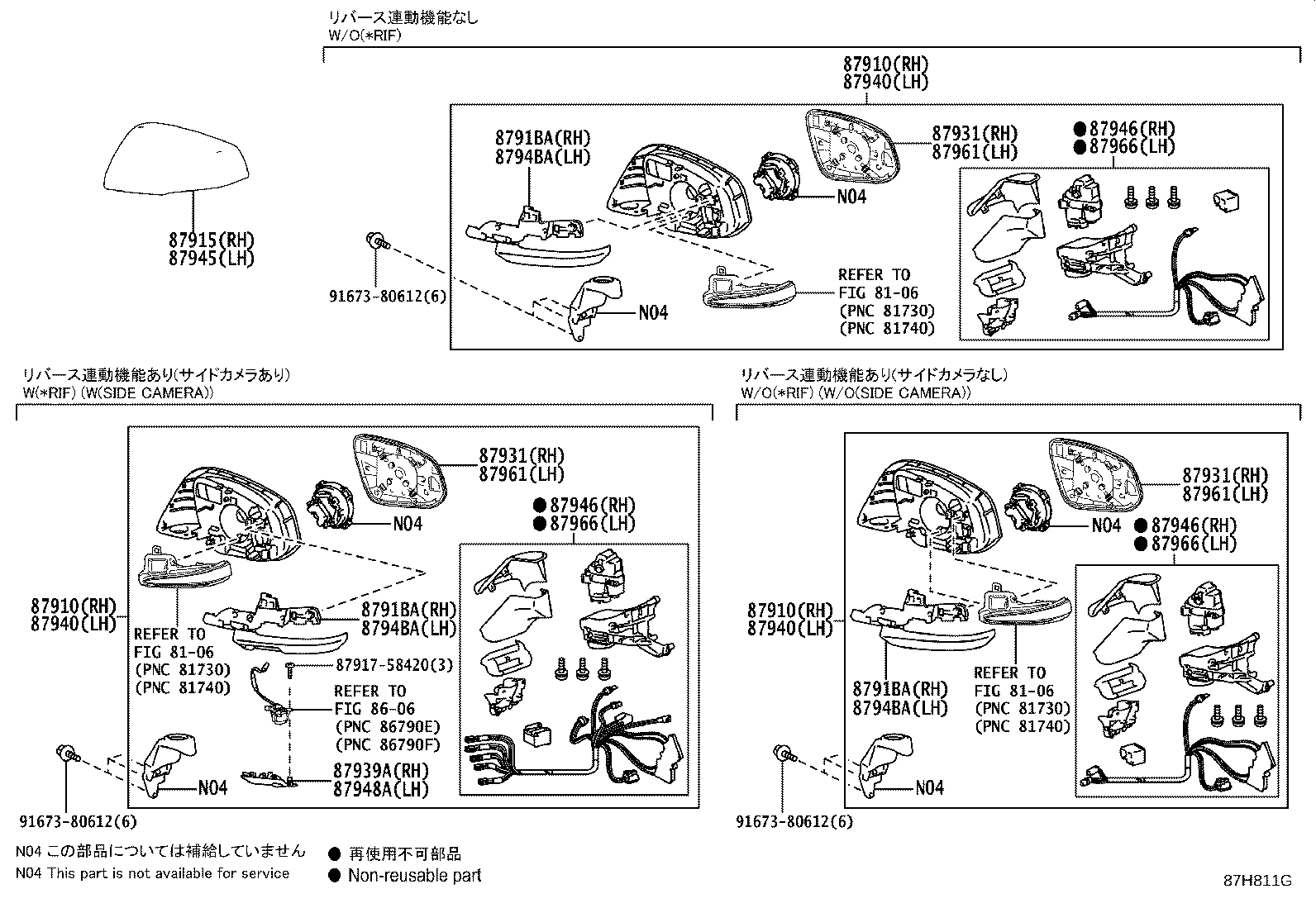

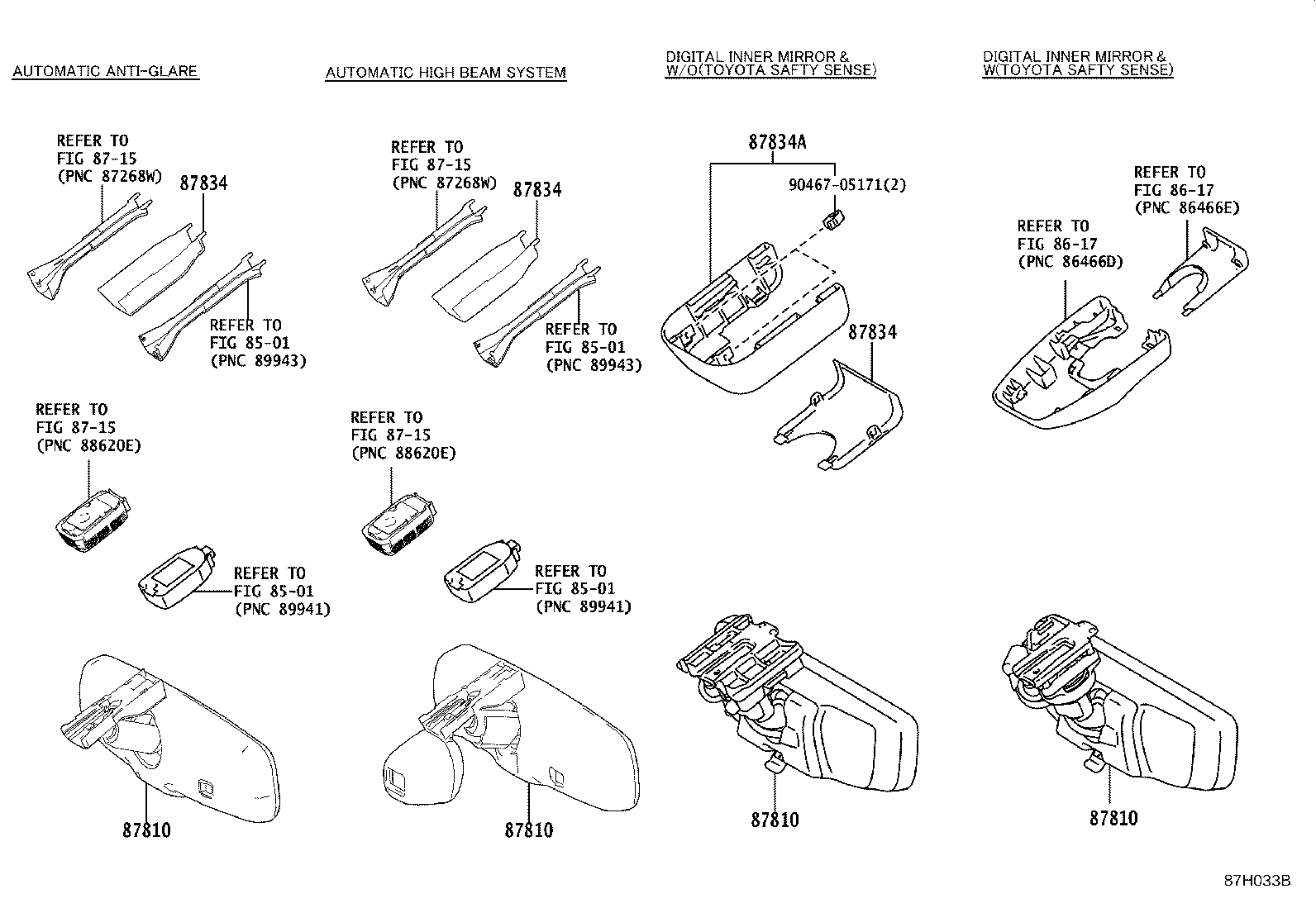

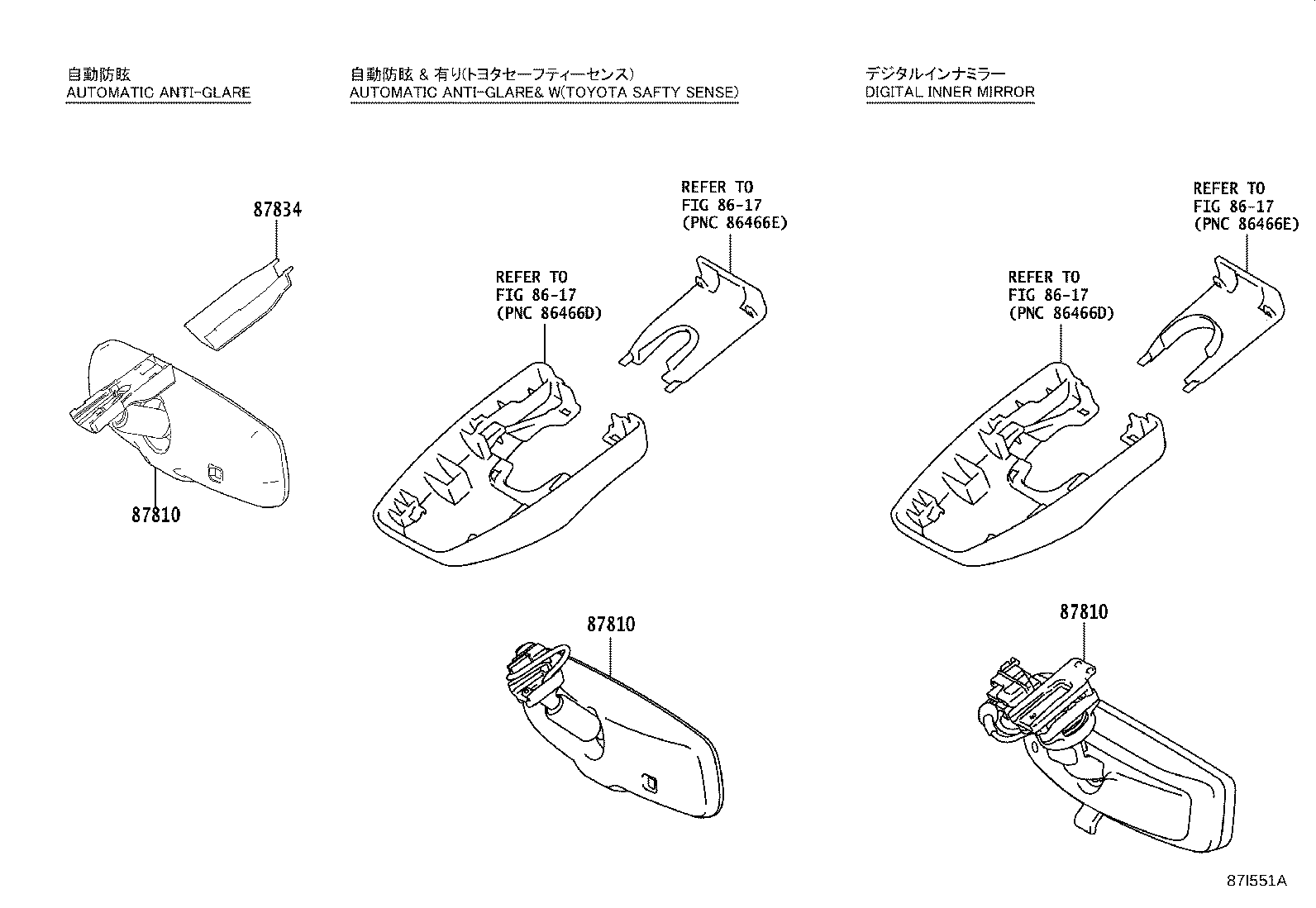

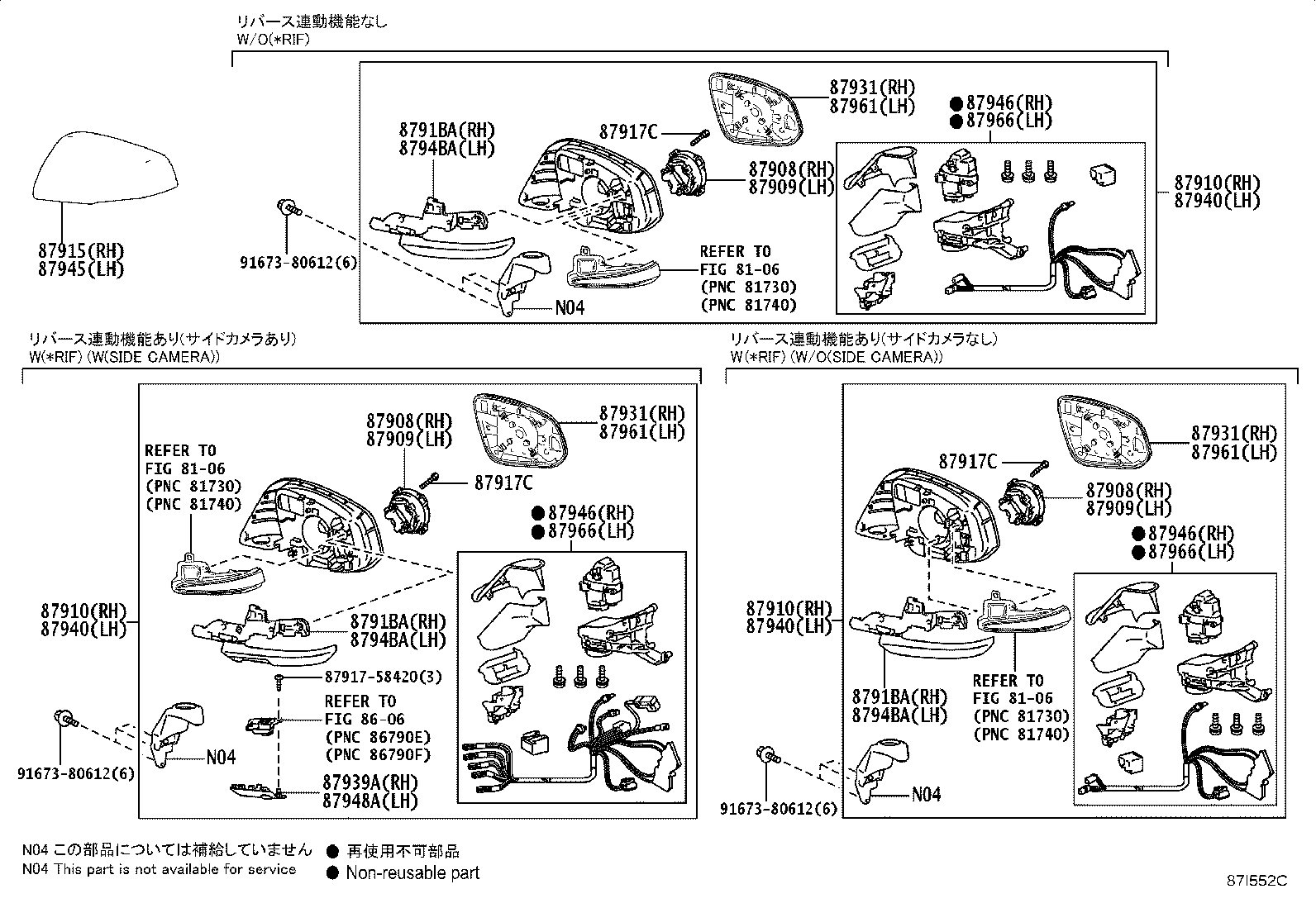

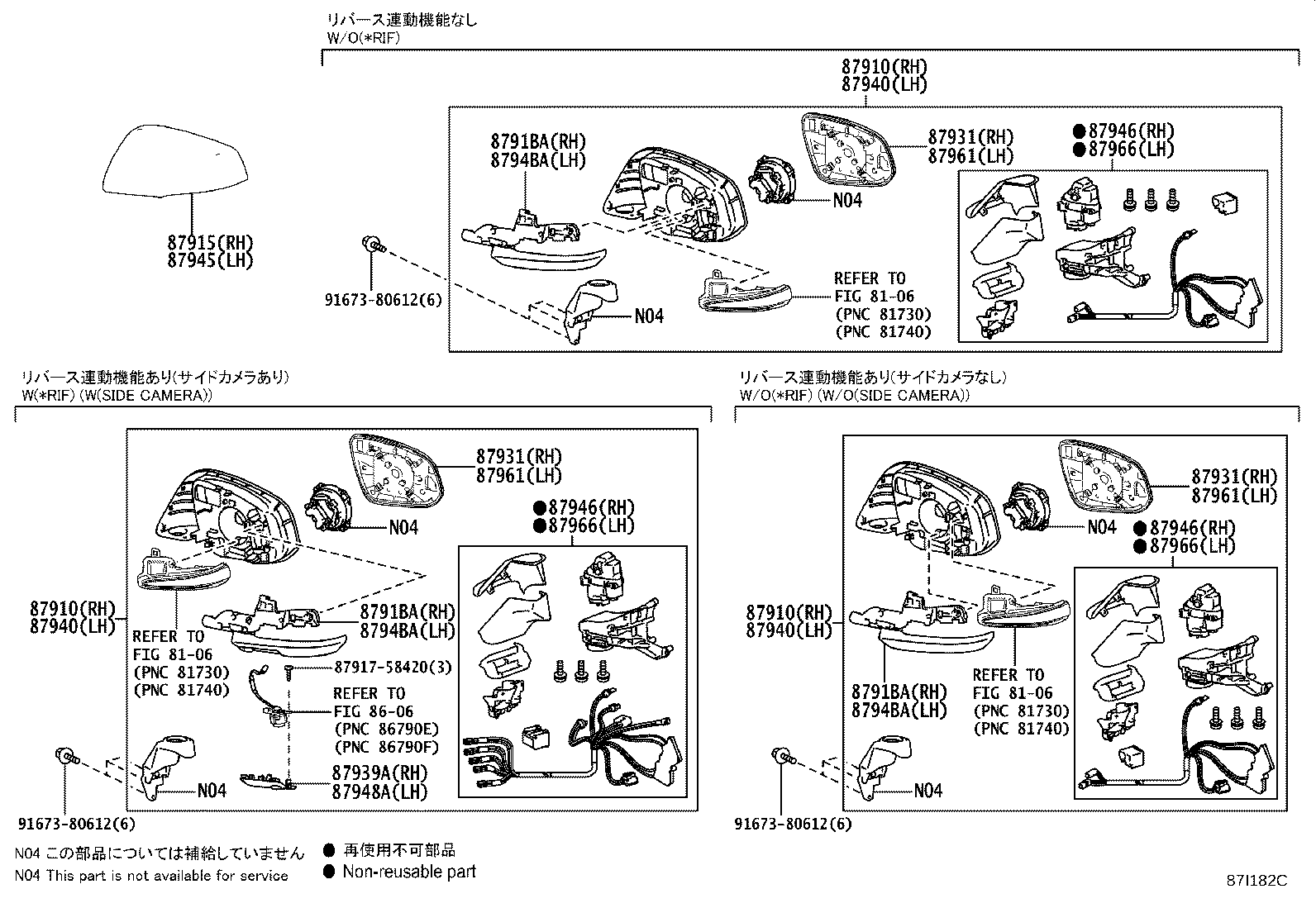

Figure 87E851F 87E851F 2015-01 → 2018-01 Figure 87H811G 87H811G 2018-01 → 2019-09 Figure 87I182C 87I182C 2019-10 → 2020-01 Figure 87I552C 87I552C 2020-01 → — Figure 87H033B 87H033B 2018-01 → 2020-01 Figure 87I551A 87I551A 2020-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87834A Cover, Inner Rear View Mirror Stay Holder, NO.2
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87917C Screw, Outer Mirror
8791BA Cover, Outer Mirror, RH NO.3
87931 Outer Mirror, RH
87939A Cover, Outer Mirror Hole, RH
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87946 Retractor, Outer Mirror, RH
87948A Cover, Outer Mirror Hole, LH
8794BA Cover, Outer Mirror, LH NO.3
87961 Mirror Outer, LH
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
