Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH30,AYH30,GGH30 · catalogue 713240 · General
Supported model
Data version 2021-05
Heating & Air Conditioning - Control & Air Duct
29 part groups · 15 illustrations
Illustrations
Part groups

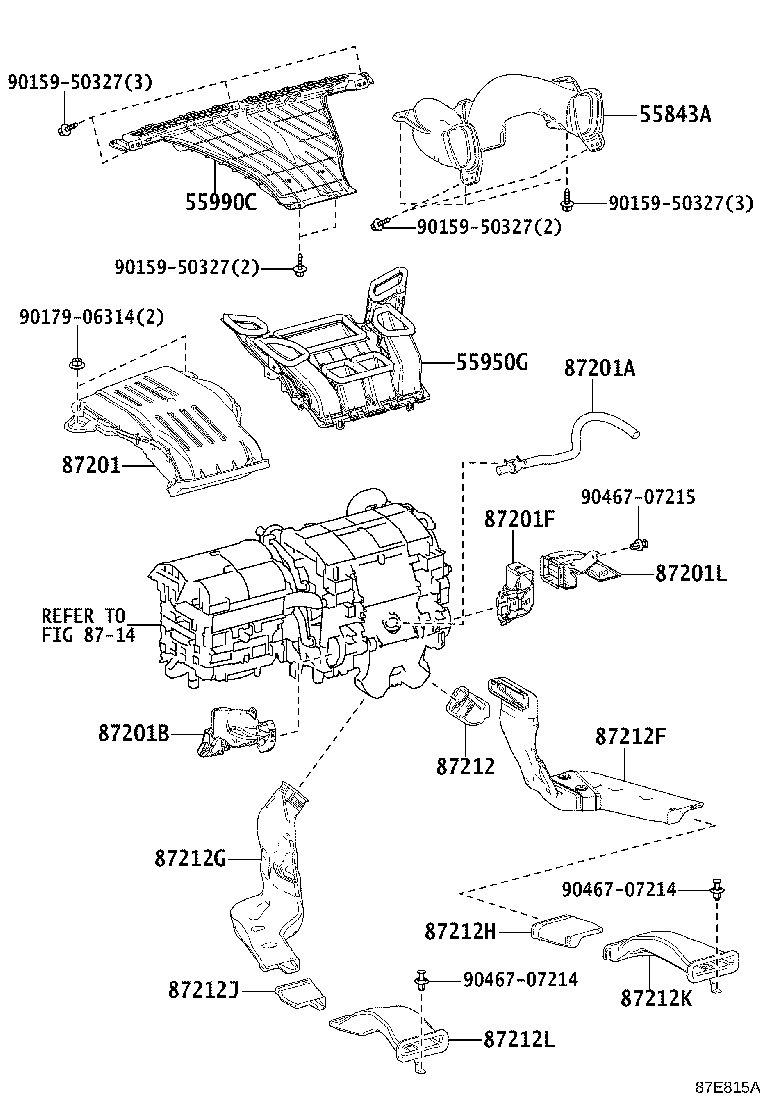

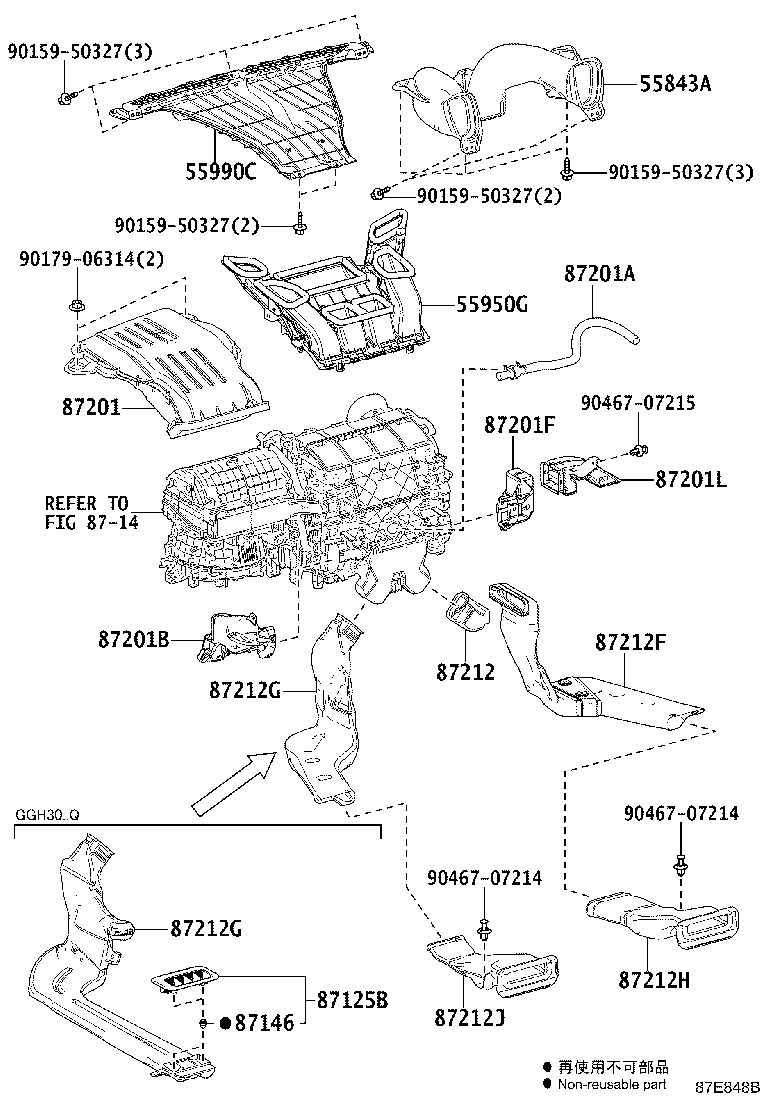

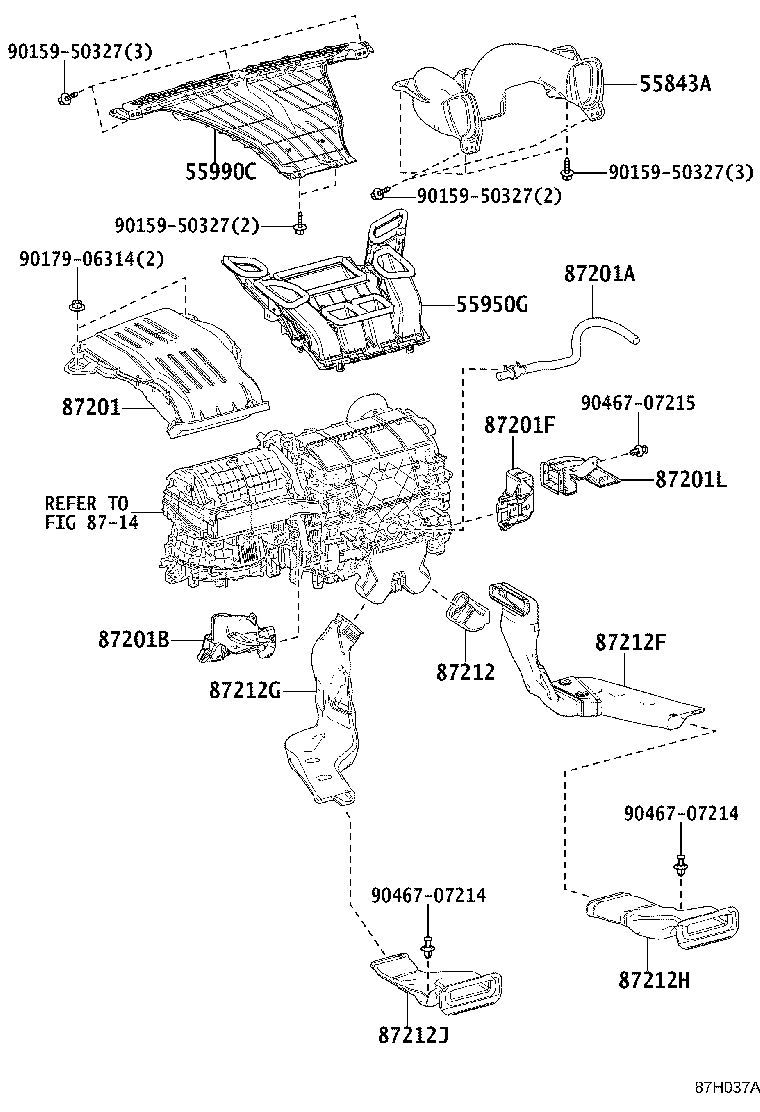

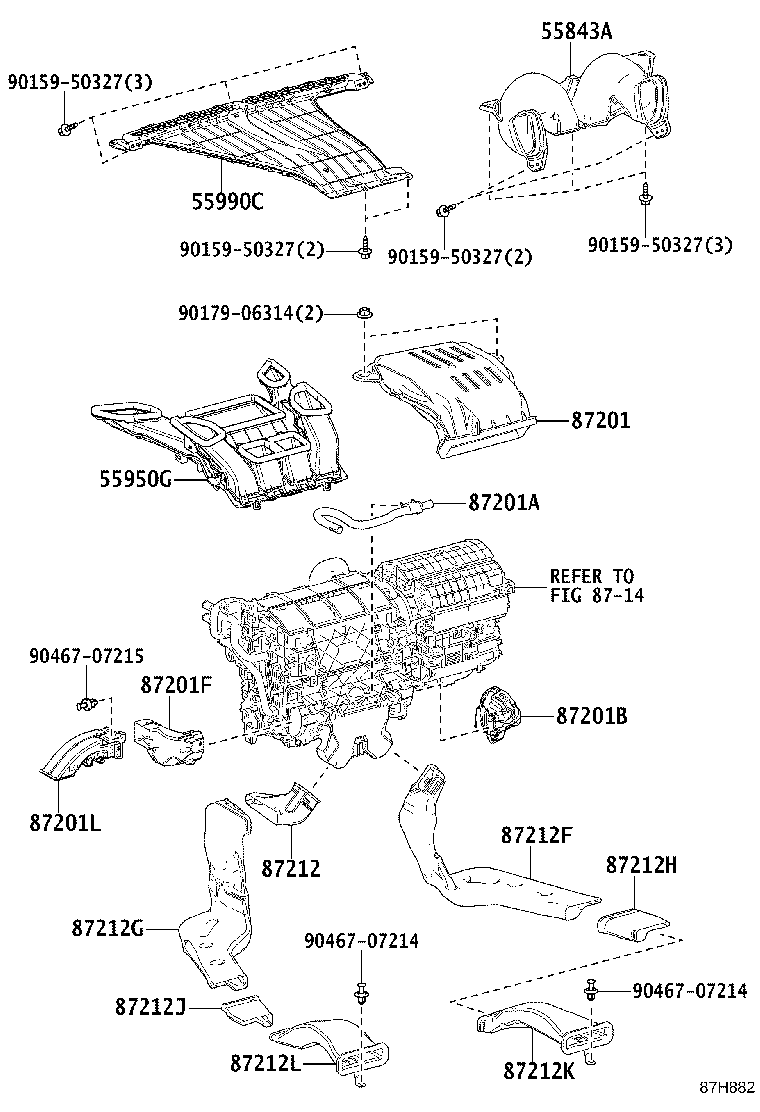

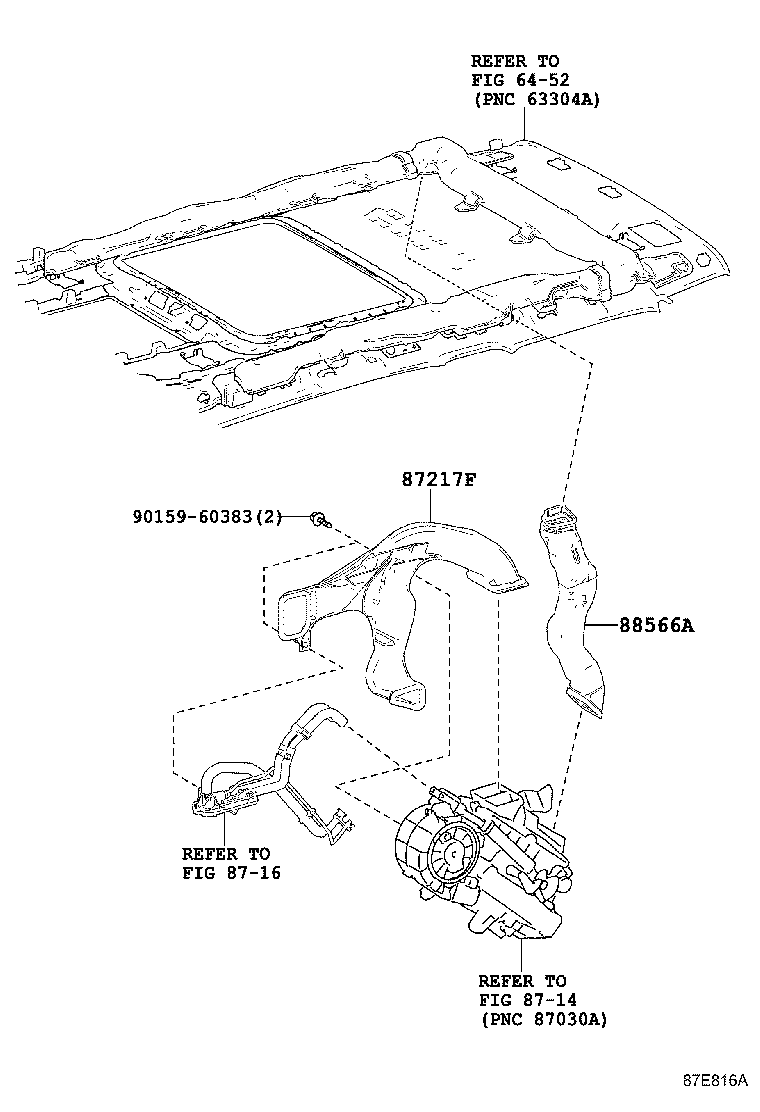

| PNC | Description |
|---|---|

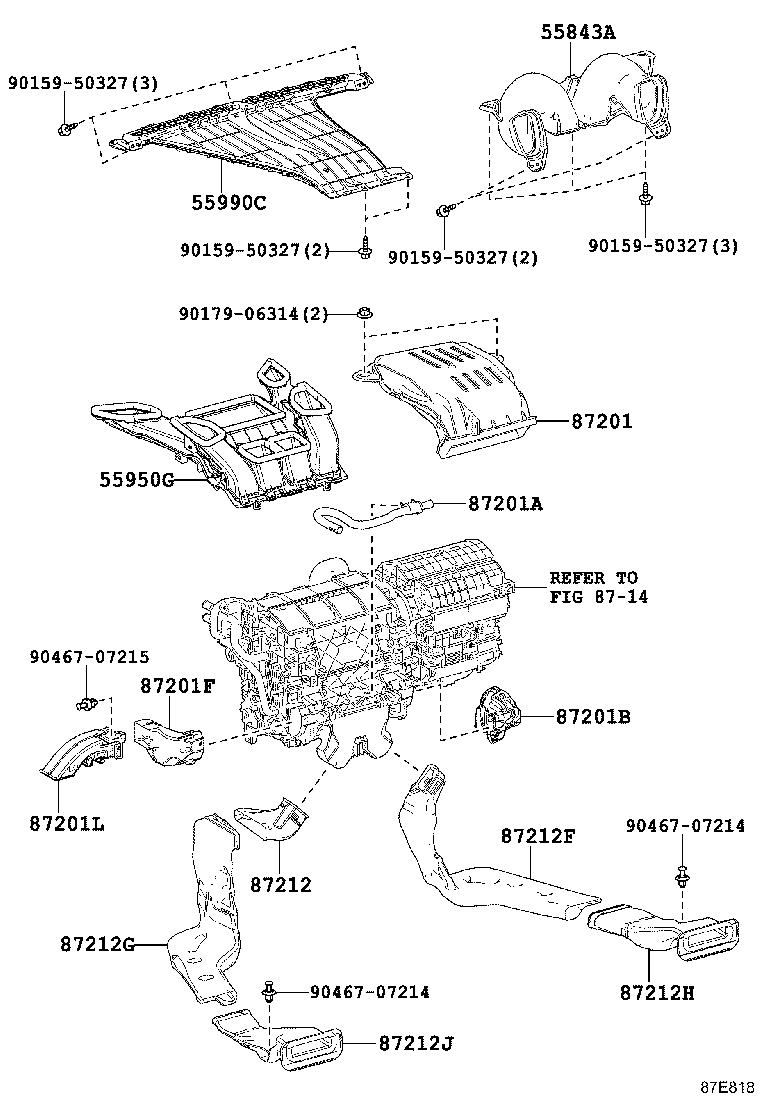

| 55843A | Duct, Heater TO Register, NO.1 |
| 55900 | Control Assy, Air Conditioner |
| 55921A | Retainer, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55990C | Nozzle Assy, Center Defroster |

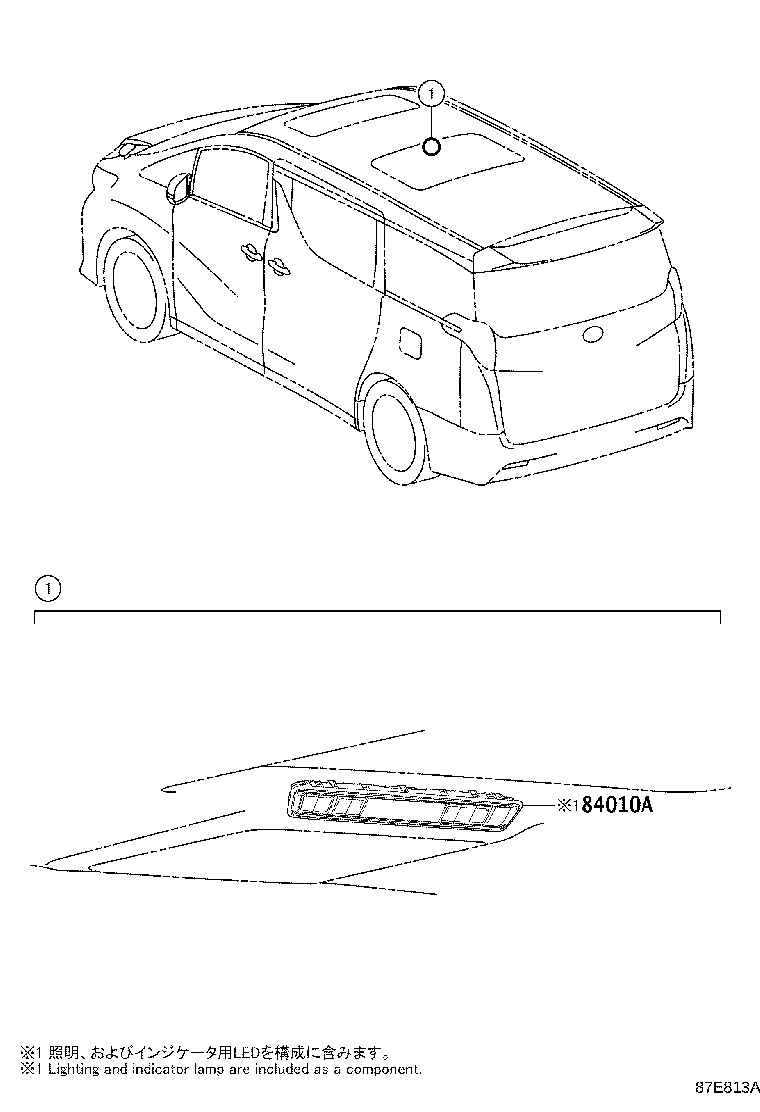

| 84010A | Control & Panel Assy, Integration |
| 87125B | Grille, Heater Air Outlet |
| 87146 | Retainer, Grille |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201A | Duct Sub-assy, Air |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87201L | Duct Sub-assy, Air, NO.4 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87212K | Duct, Air, Rear NO.6 |
| 87212L | Duct, Air, Rear NO.7 |
| 87217F | Duct, Air, Rear Side NO.3 |
| 87268W | Protector |
| 88566A | Duct, Cooler Air, NO.1 |
| 88620E | Thermistor Assy, Air Conditioner (HUMIDITY SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88625T | Thermistor, Cooler (ROOM TEMP. SENSOR NO.2) |
| 88649B | Wiring, Cooler |
| 88898J | Sensor, Smog Ventilation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
