Heating & Air Conditioning - Compressor

7 part groups · 8 illustrations

Illustrations

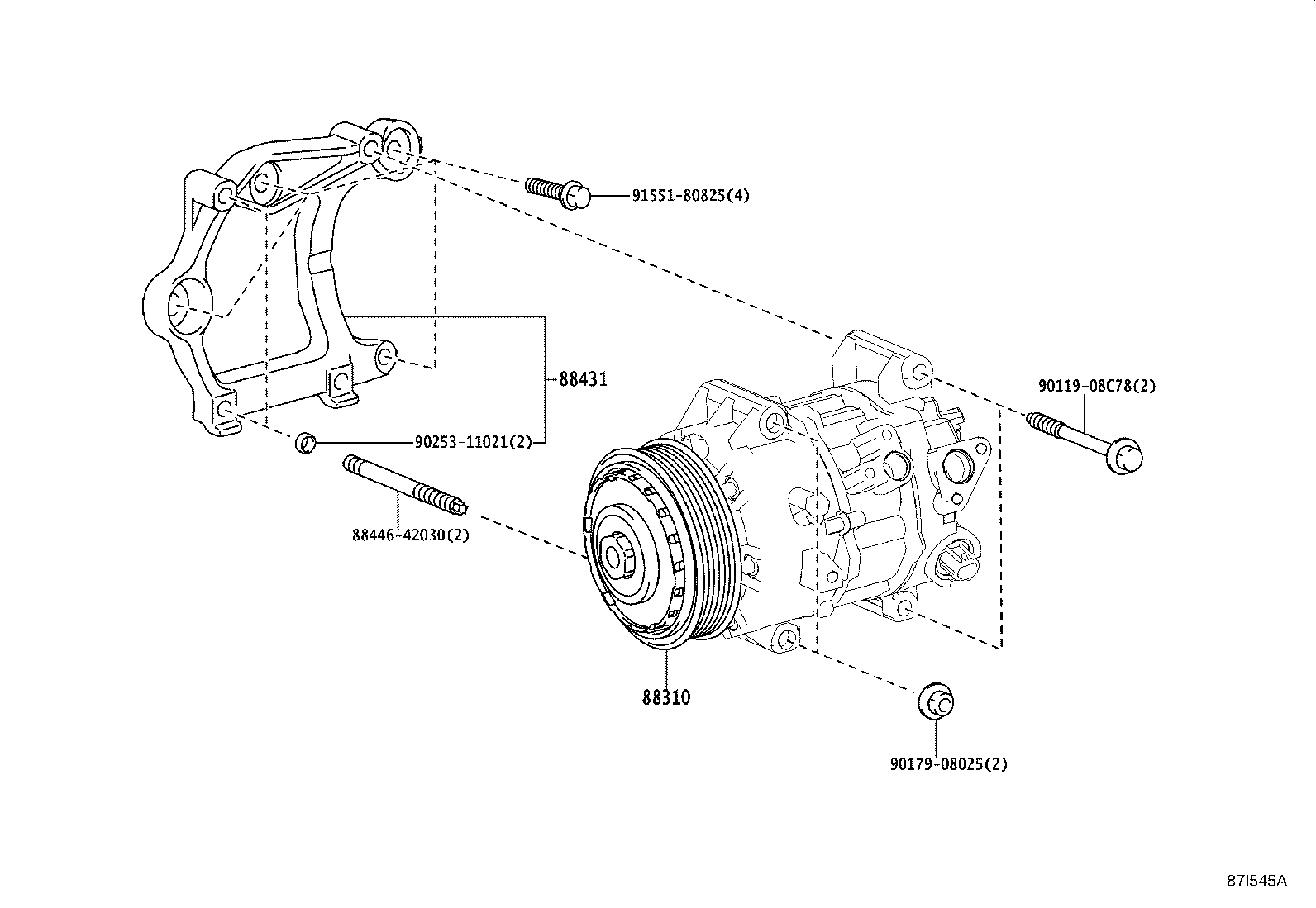

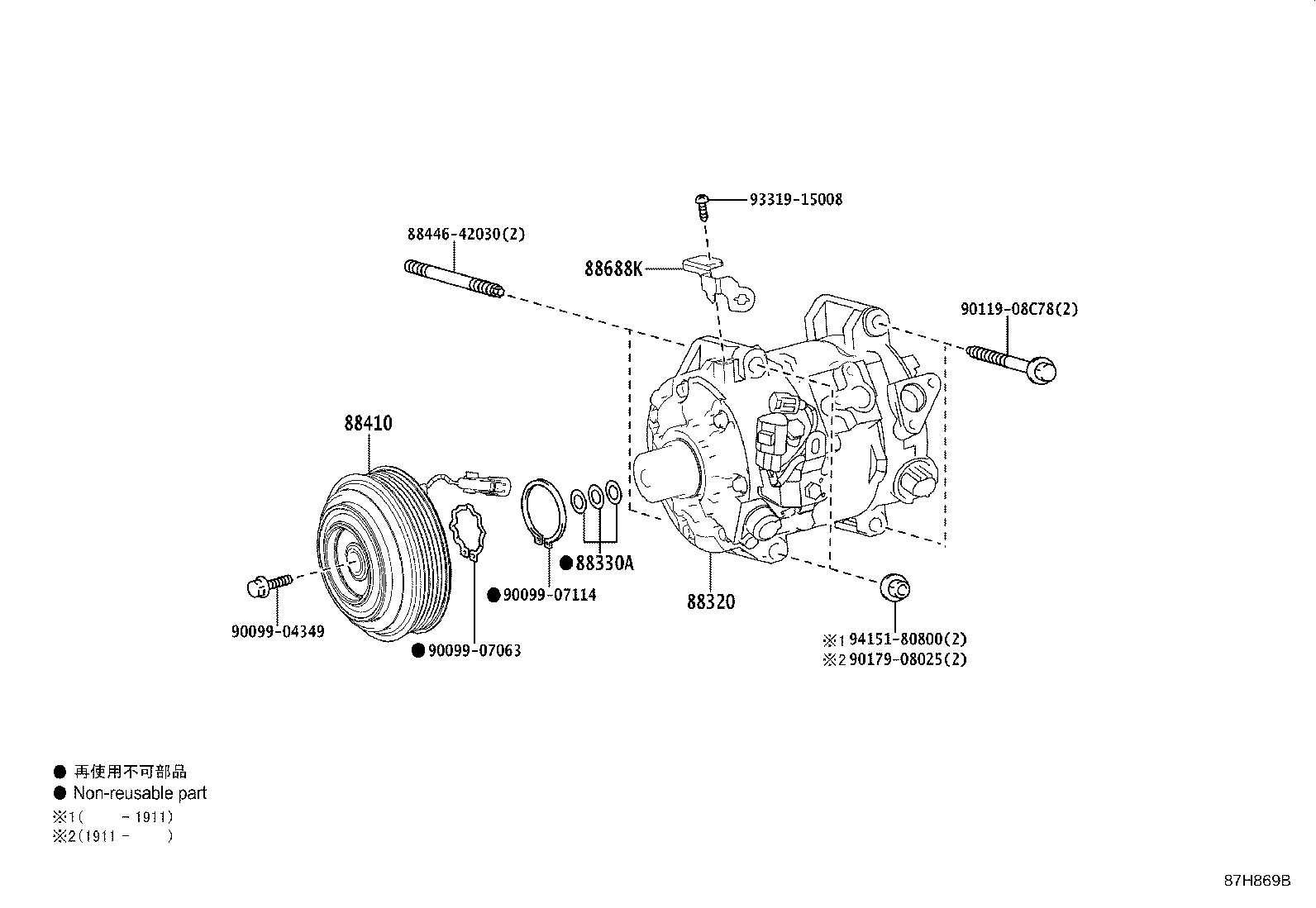

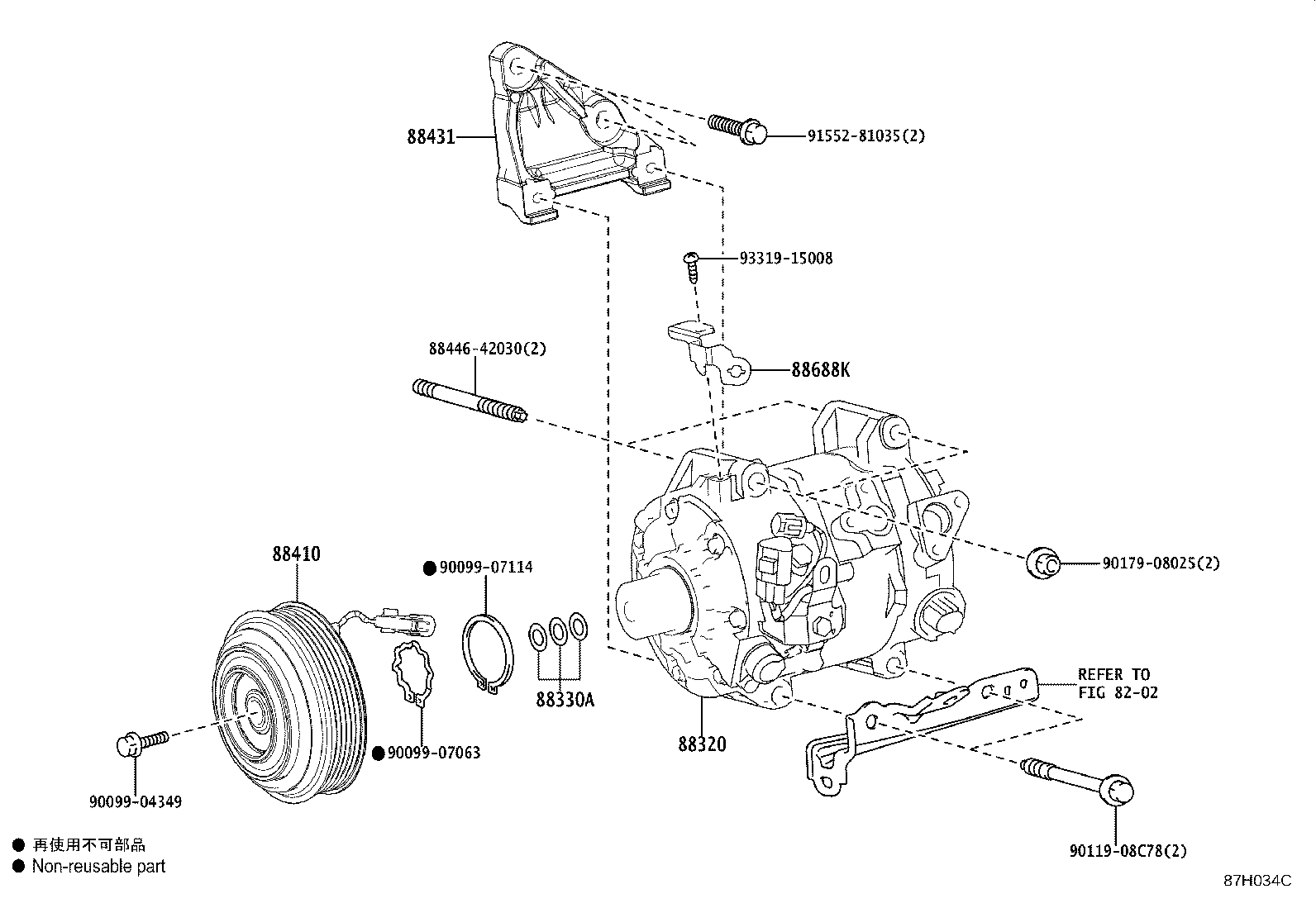

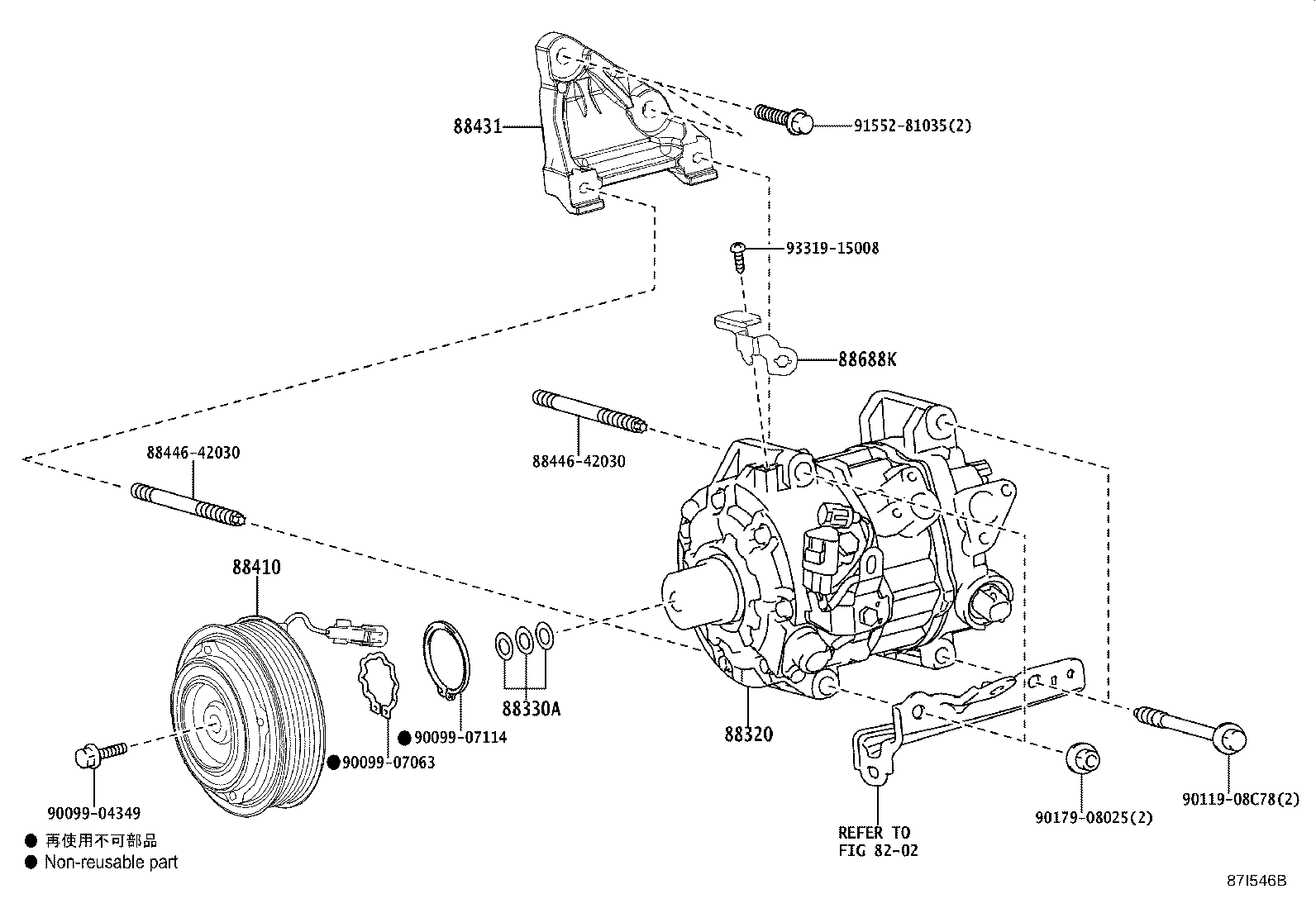

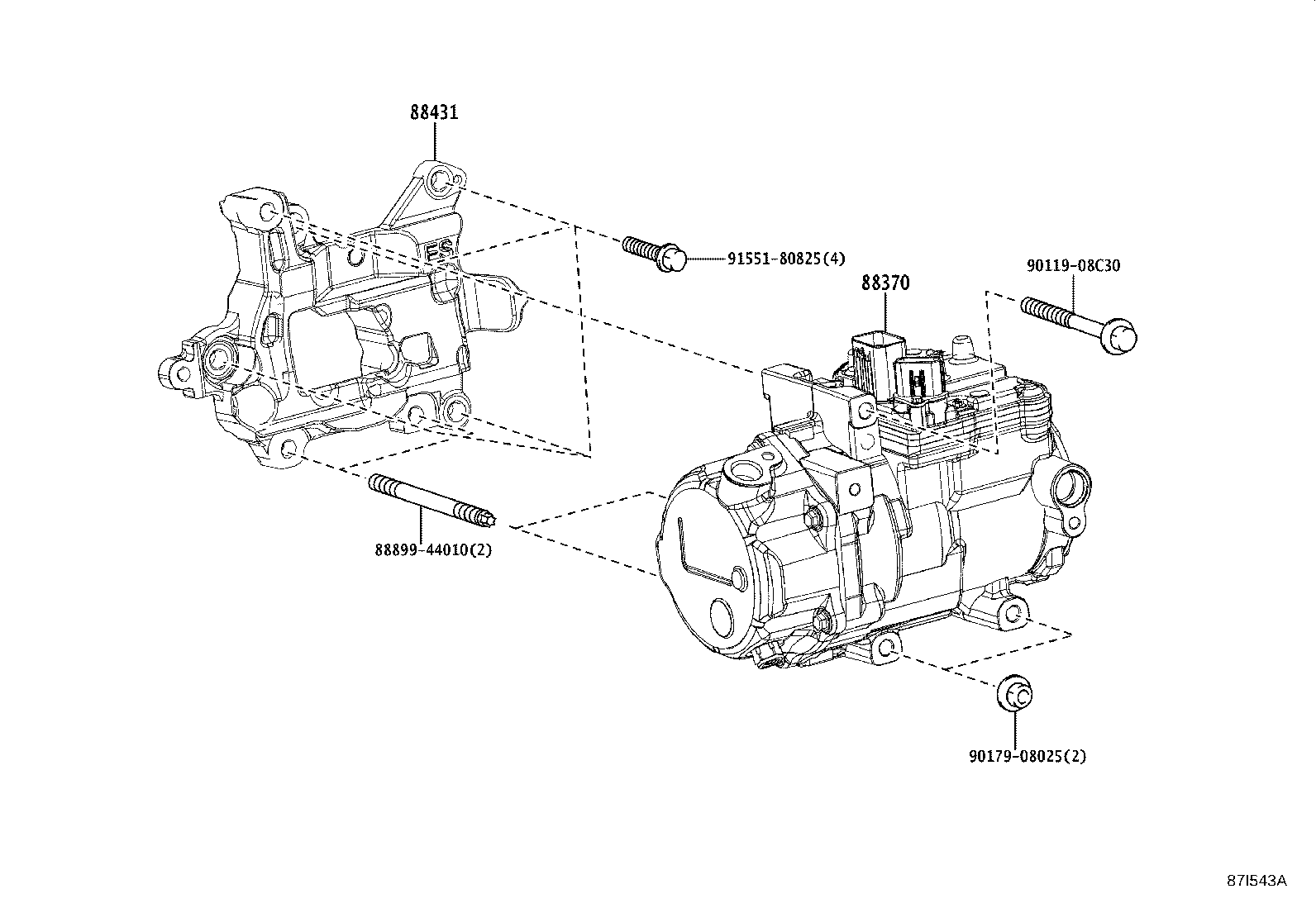

Figure 87E820 87E820 2015-01 → 2020-01 Figure 87I545A 87I545A 2020-01 → — Figure 87E821B 87E821B 2015-01 → 2018-01 Figure 87H869B 87H869B 2019-08 → — Figure 87H034C 87H034C 2018-01 → 2020-01 Figure 87I546B 87I546B 2020-01 → — Figure 87E822B 87E822B 2015-01 → 2020-01 Figure 87I543A 87I543A 2020-01 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
