Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Cylinder Head
45 part groups · 7 illustrations

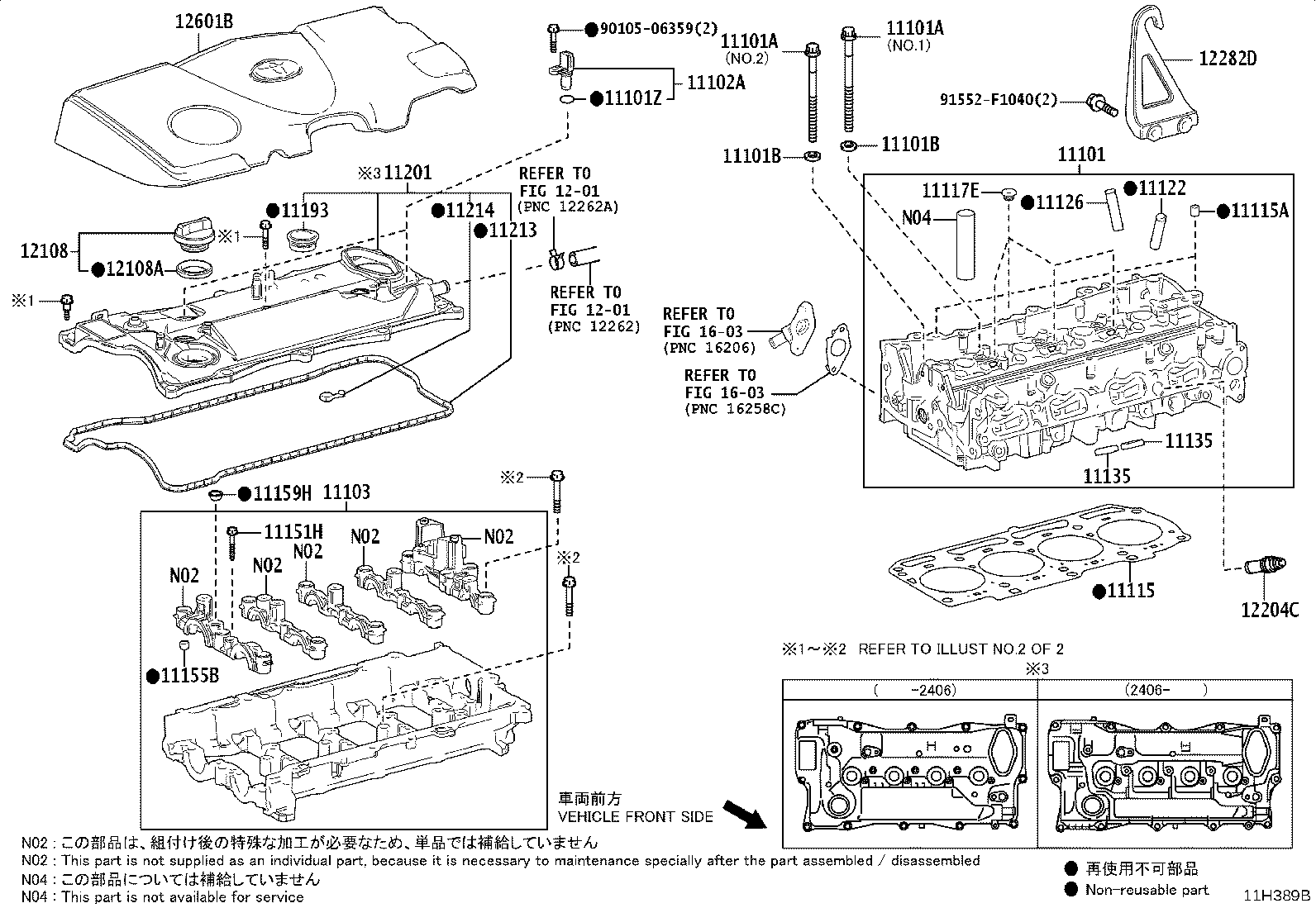

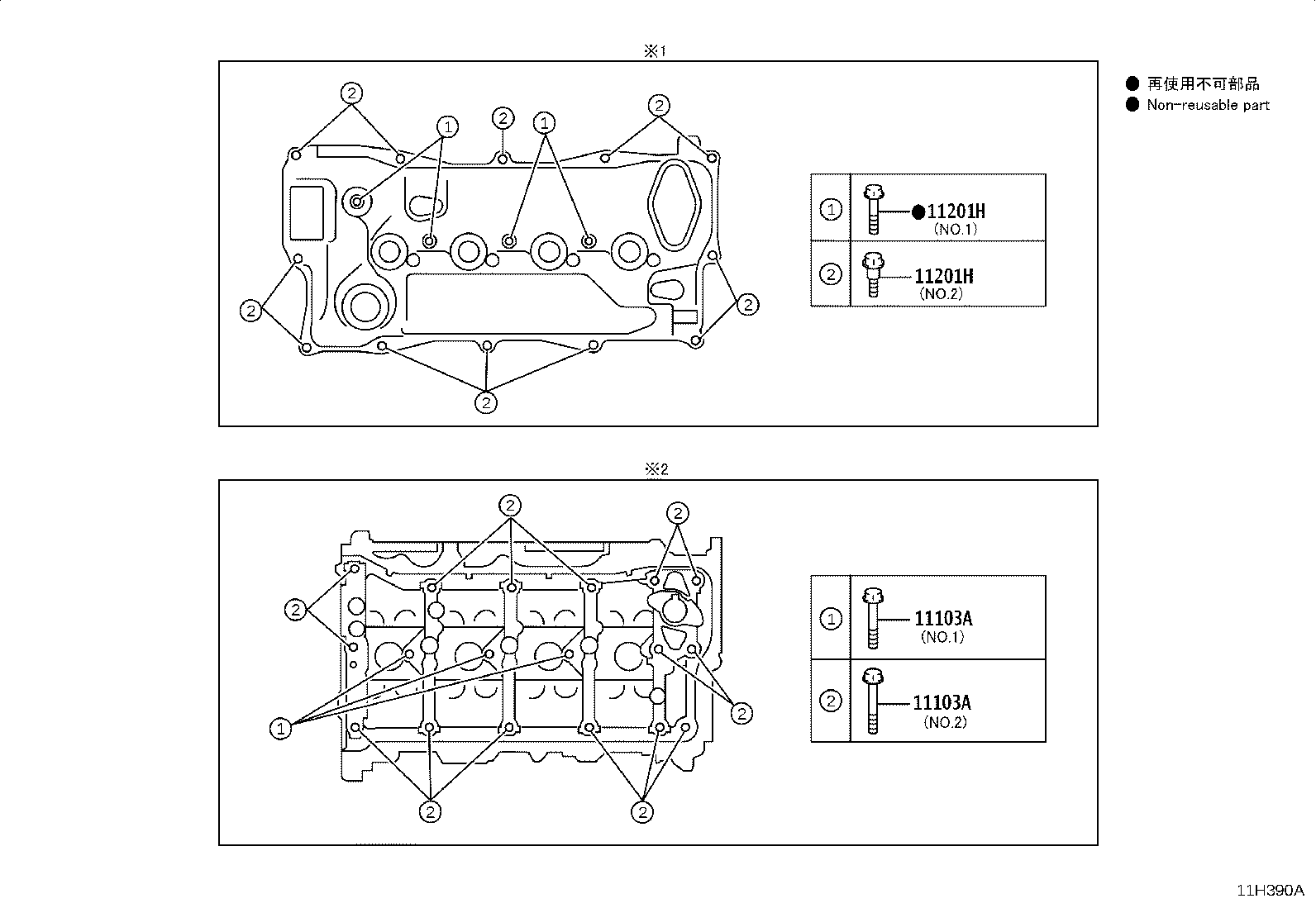

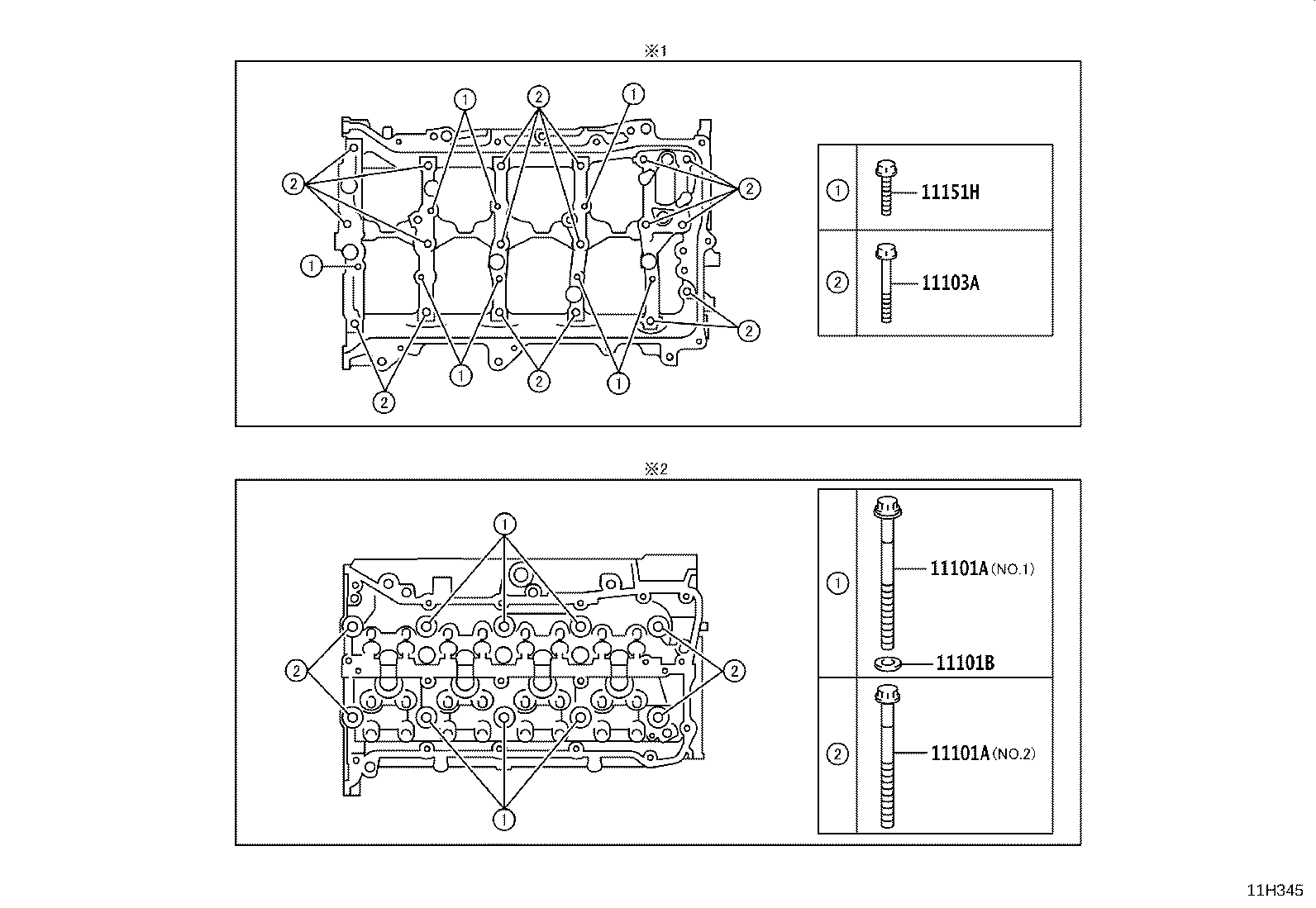

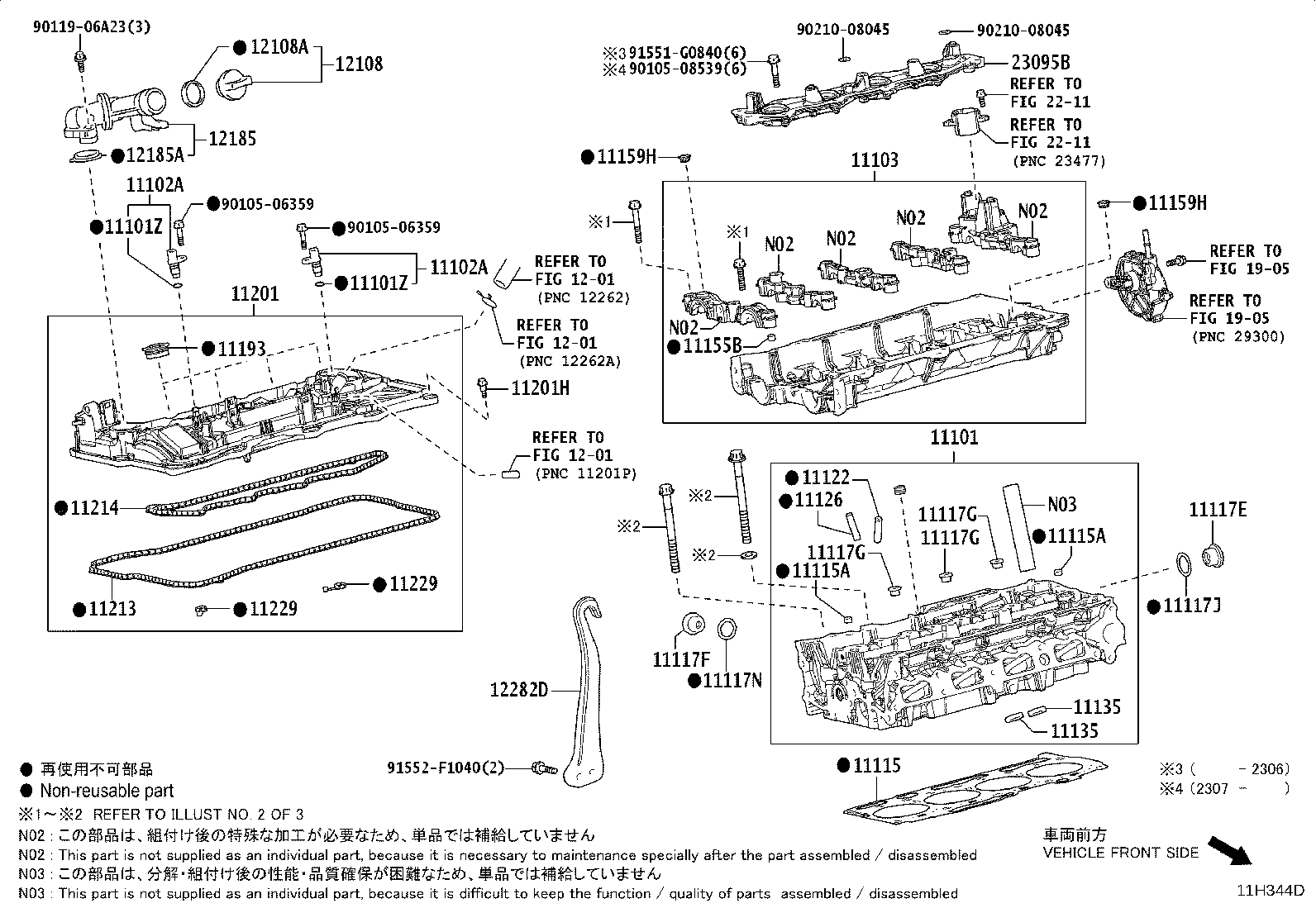

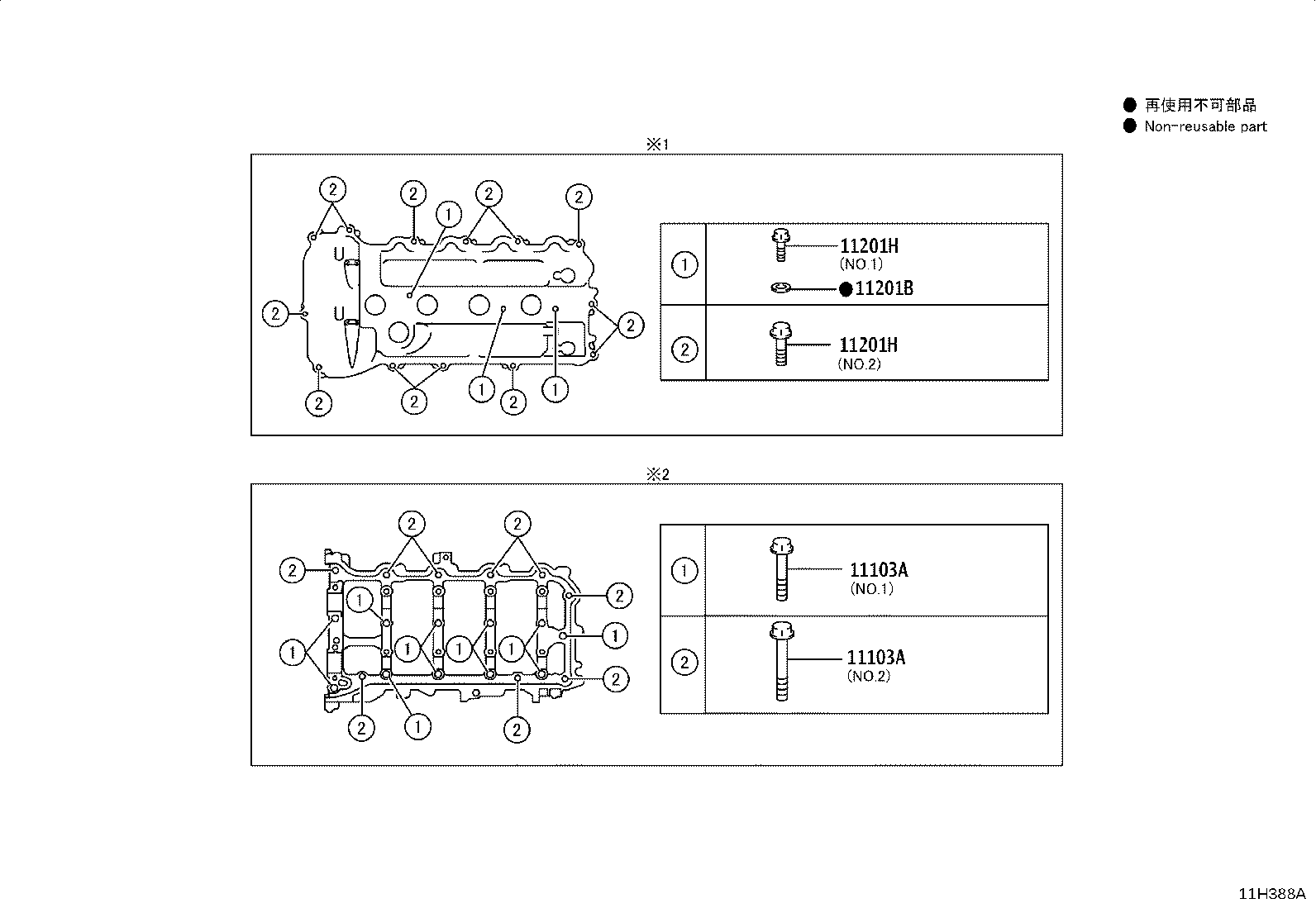

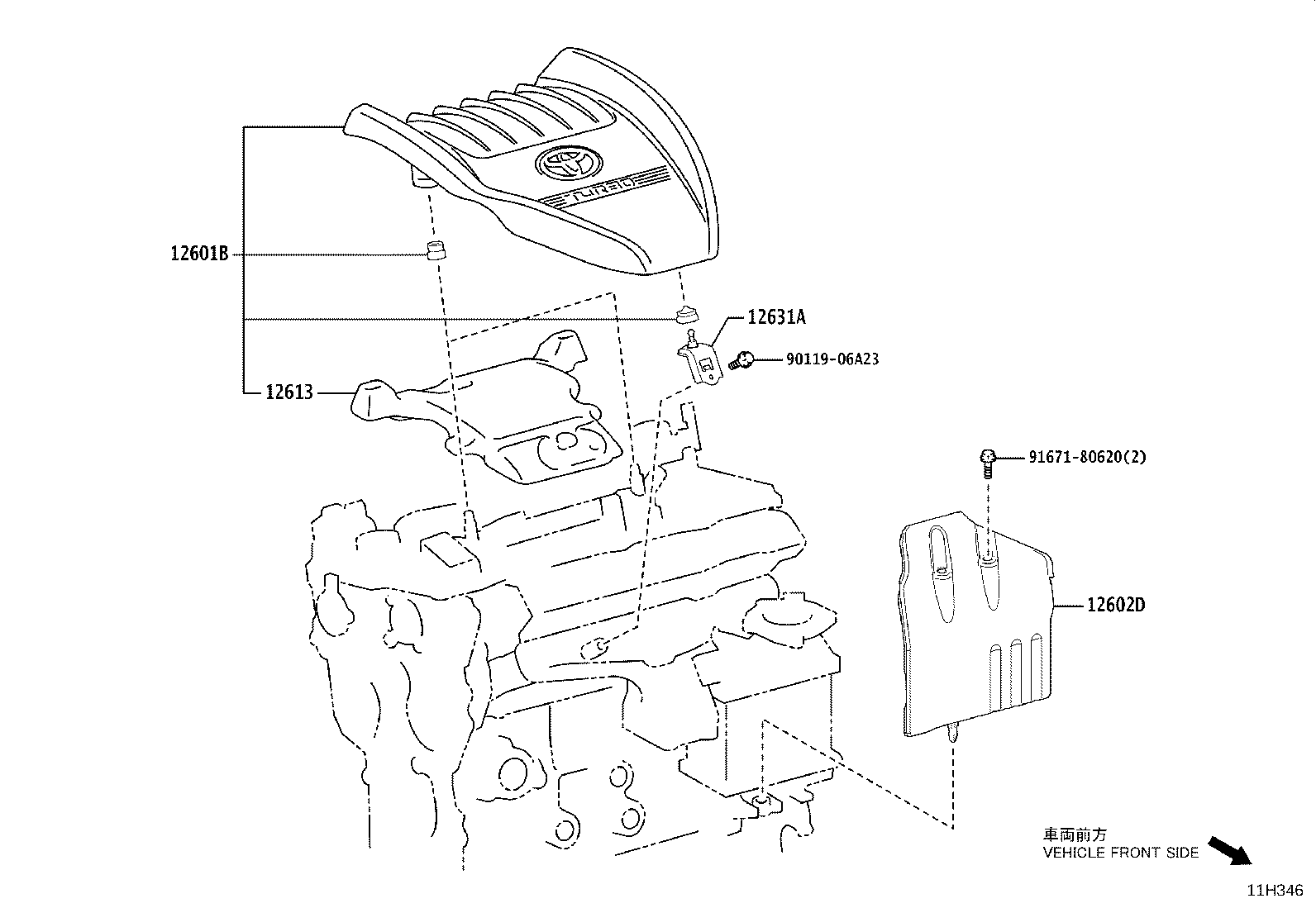

Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101Z | O Ring, Cam Position Sensor |
| 11102A | Sensor, Camshaft Position |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11115A | Pin, Ring |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117G | Plug, W/Head Straight Screw, NO.3 |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11117N | Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151H | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) |
| 11155B | Pin, Ring |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11229 | Gasket, Cylinder Head Cover, NO.3 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12185 | Housing, Oil Filler Cap |
| 12185A | Gasket, Oil Filler Cap Housing |
| 12204C | Valve Sub-assy, Ventilation |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12601B | Cover Sub-assy, Engine, NO.1 |
| 12602D | Cover Sub-assy, Engine, NO.2 |
| 12613 | Cover, Engine, NO.3 |
| 12631A | Bracket, Engine Cover |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15678A | Filter, Oil Control Valve |
| 23095B | Holder Sub-assy, Injector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
