Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

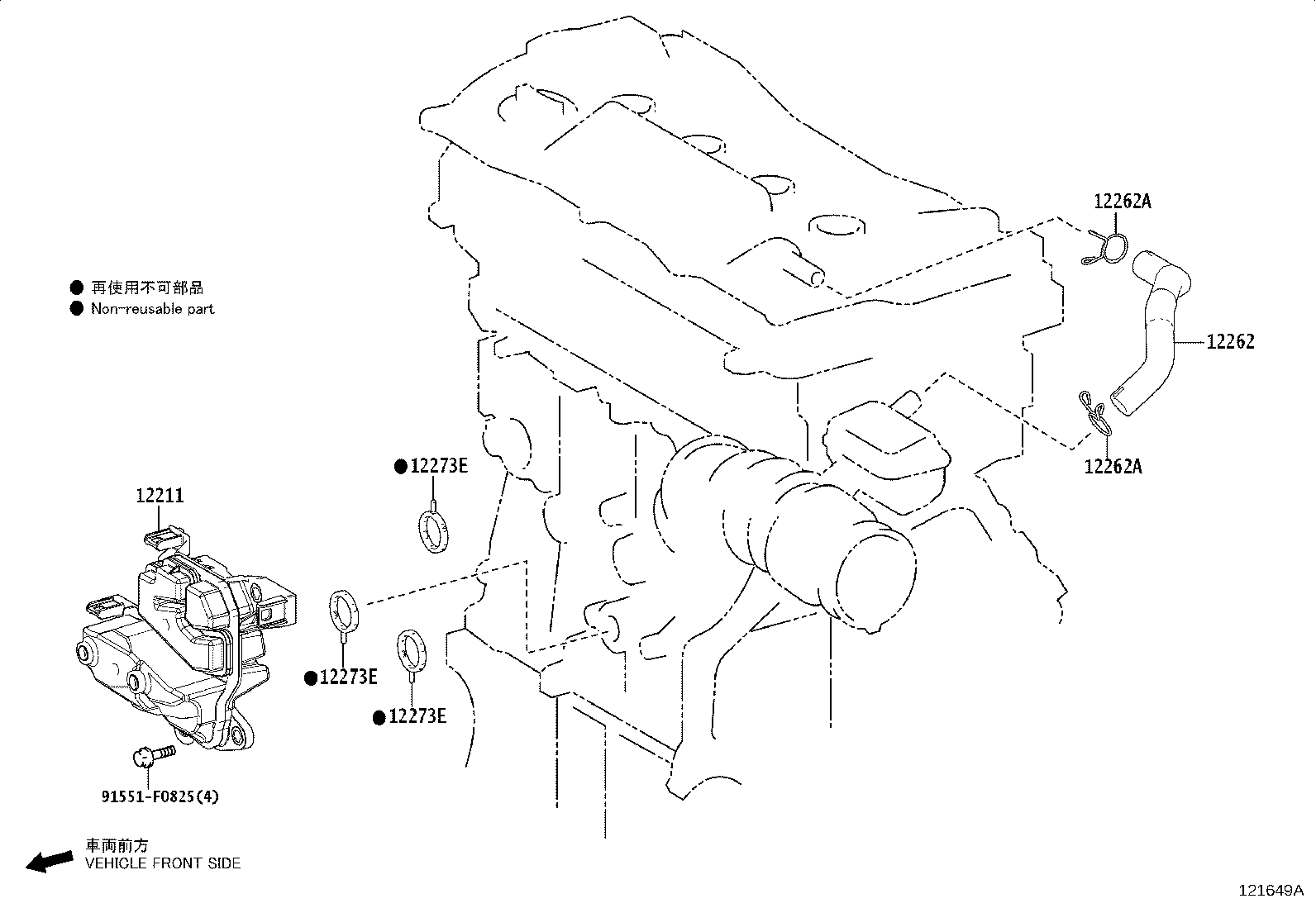

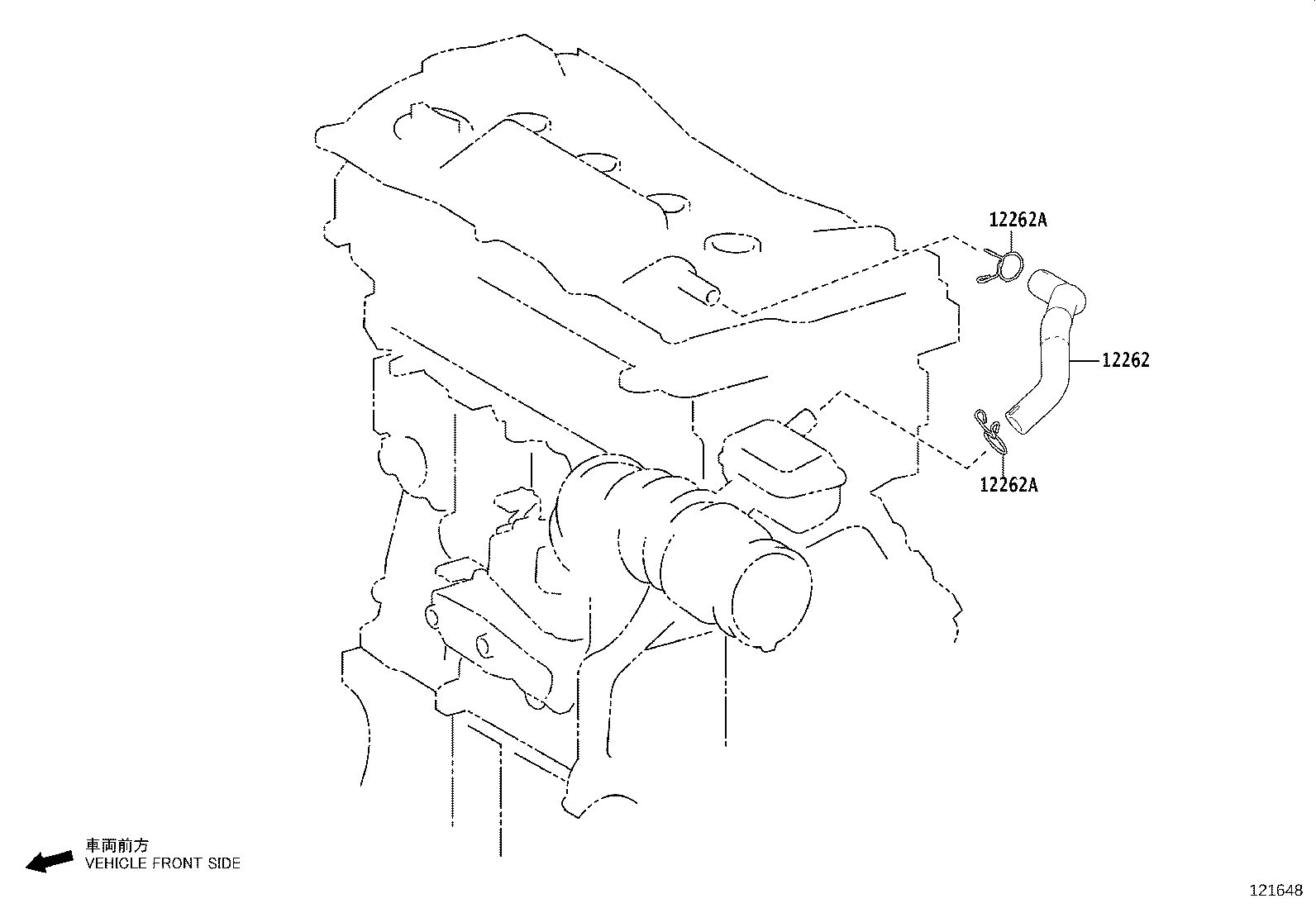

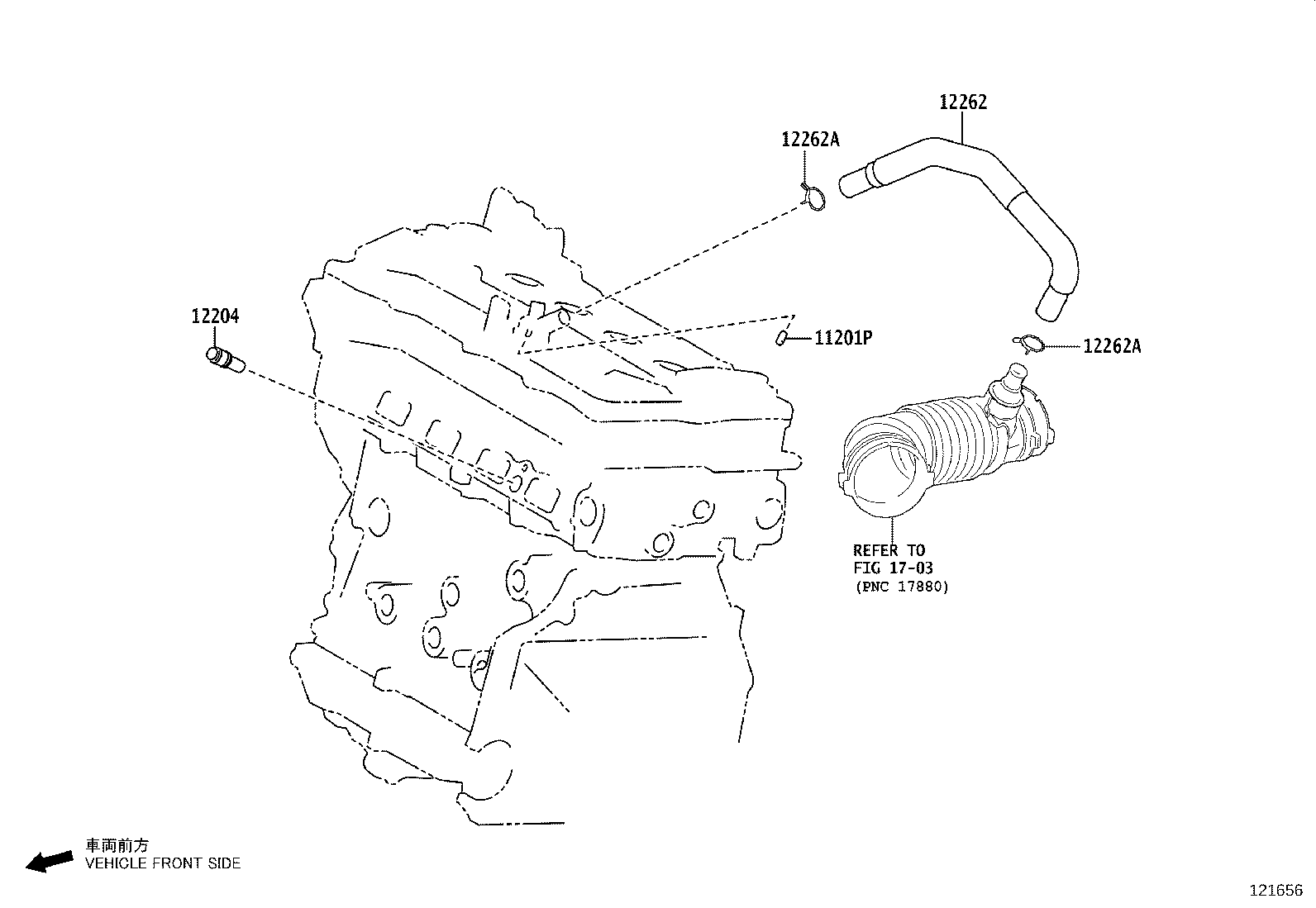

Ventilation Hose
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11201P | Plug(FOR CYLINDER HEAD COVER) |
| 12204 | Valve Sub-assy, Ventilation |
| 12205 | Case Sub-assy, Ventilation |
| 12205A | Ring, O(FOR VENTILATION CASE) |
| 12211 | Case, Ventilation, NO.1 |
| 12215 | Separator, Case |
| 12260 | Hose Assy, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12273E | Gasket(FOR VENTILATION CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
