Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

3 part groups · 2 illustrations

Illustrations

Figure 153759A

153759A 2023-06 → —

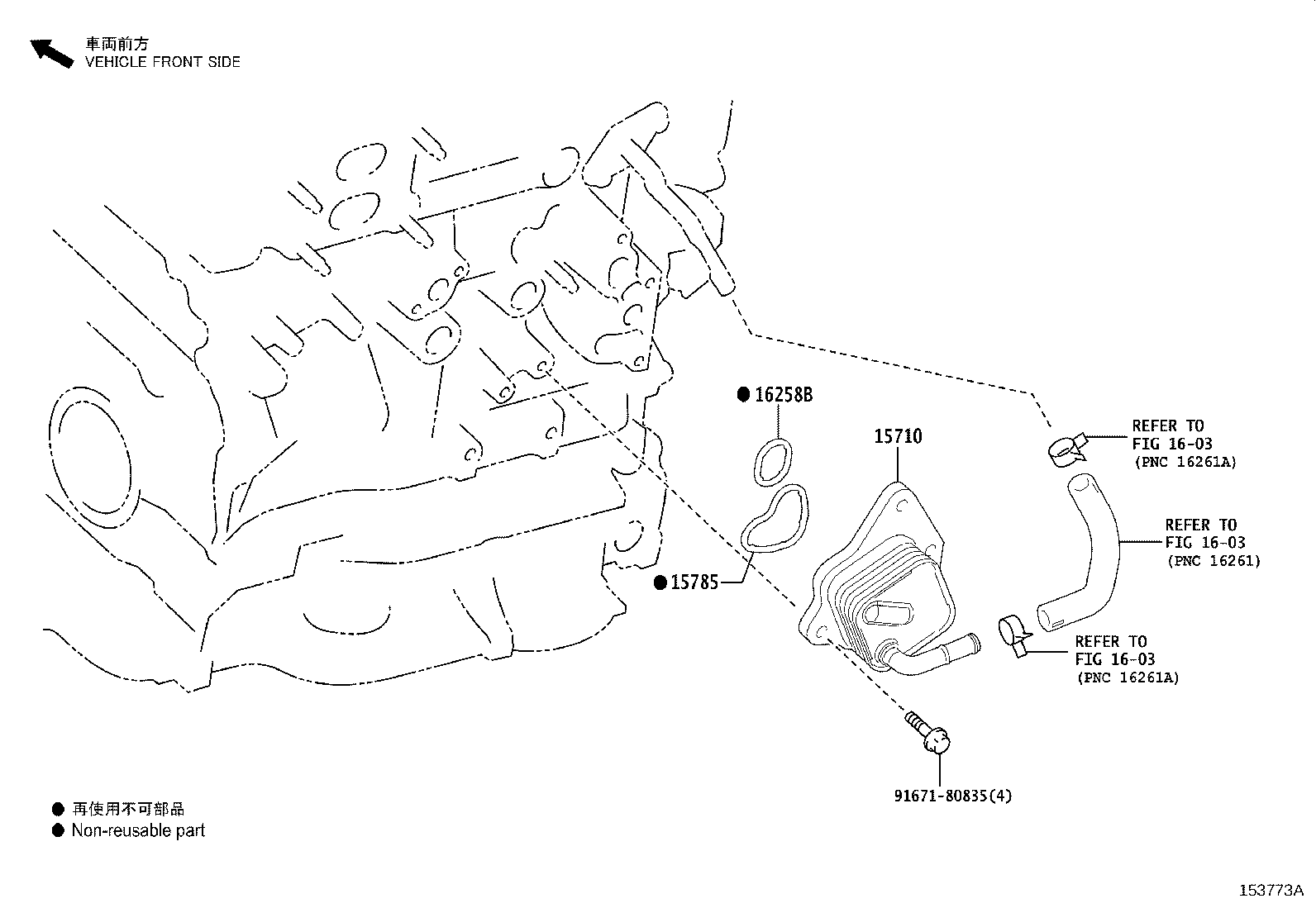

Figure 153773A

153773A 2023-06 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15785	Gasket, Oil Cooler
16258B	Gasket, Oil Cooler Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
