Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

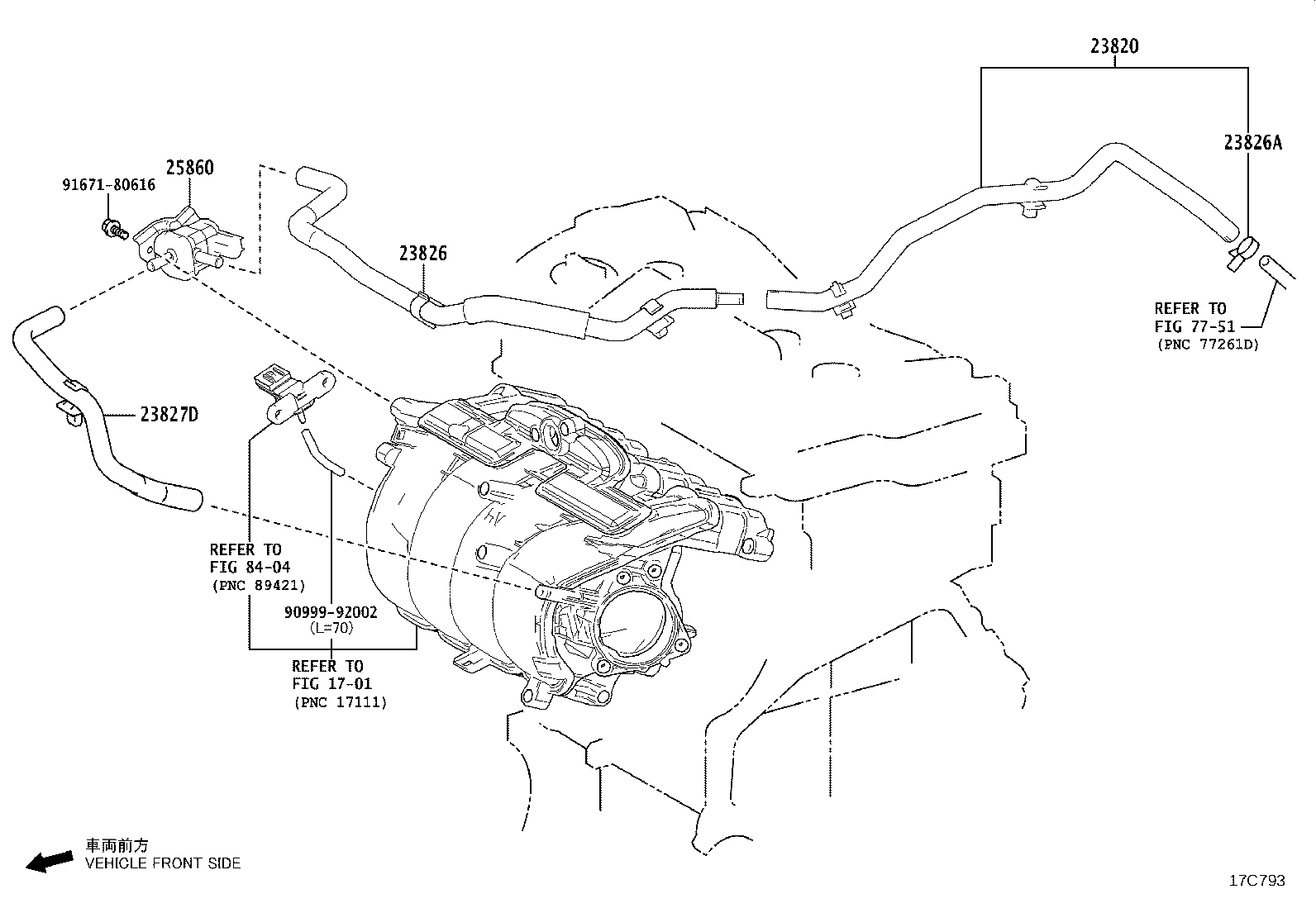

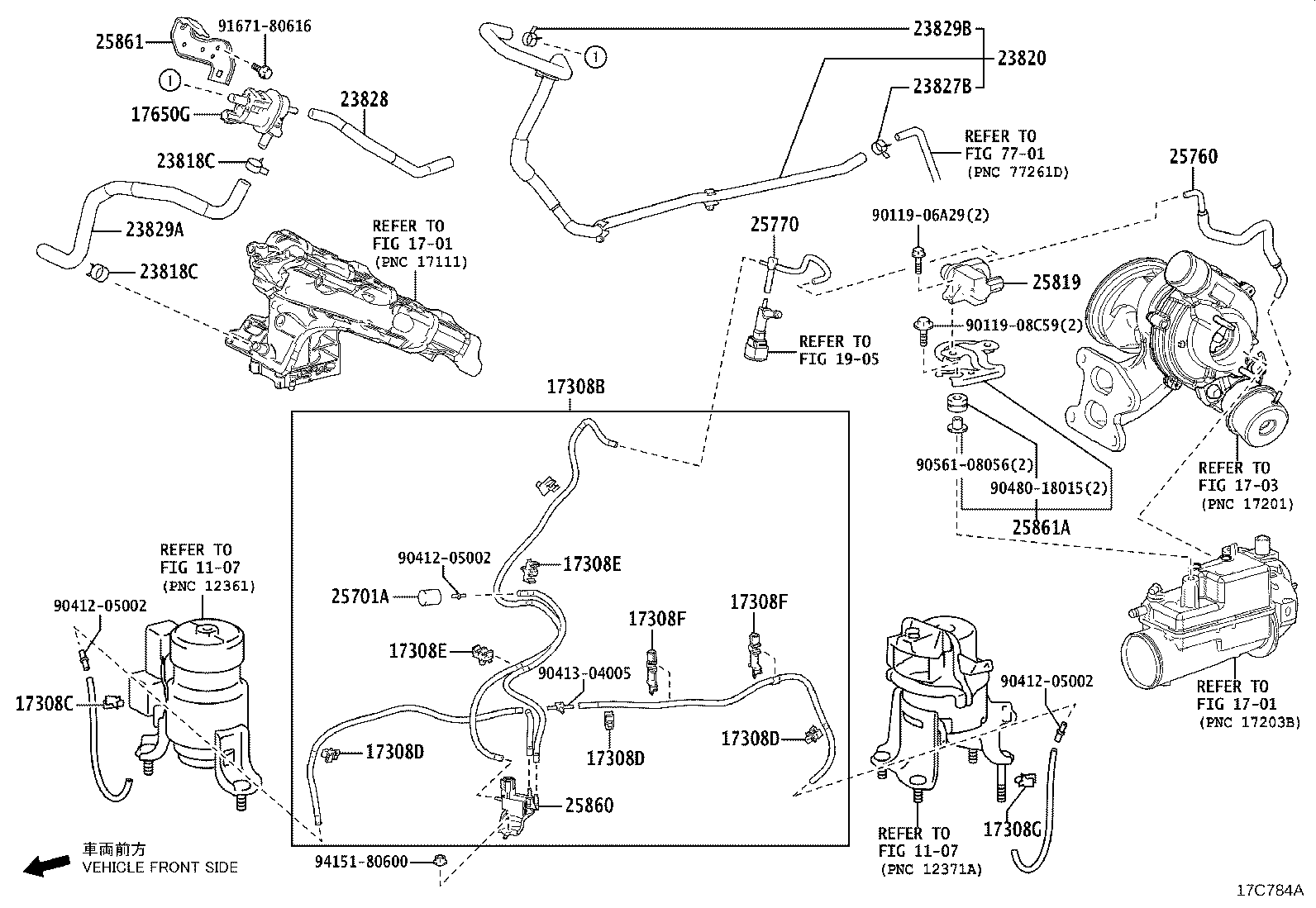

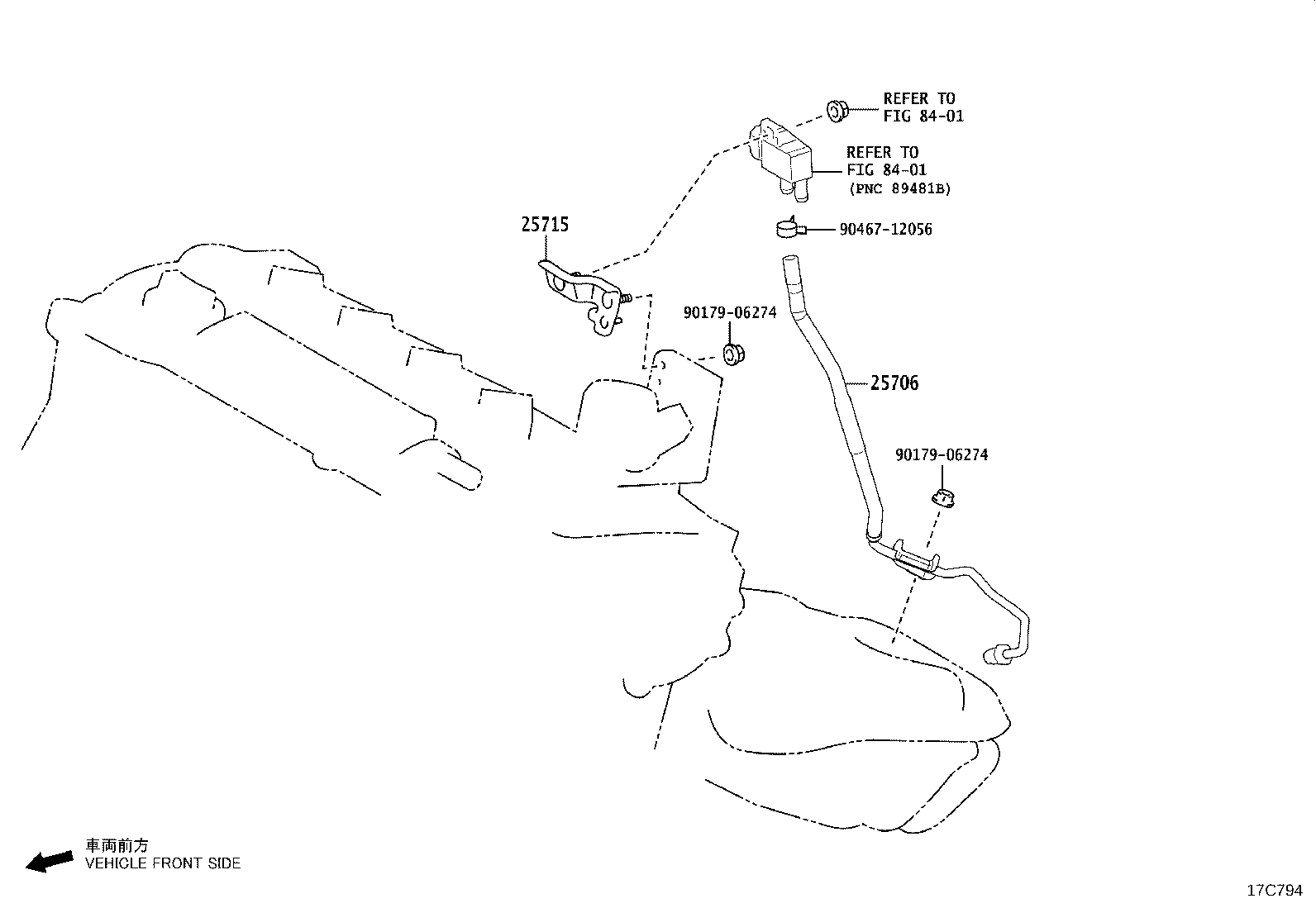

Vacuum Piping
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17308C | Clamp(FOR VACUUM HOSE) |
| 17308D | Clamp, NO.2(FOR VACUUM HOSE) |
| 17308E | Clamp, NO.3(FOR VACUUM HOSE) |
| 17308F | Clamp, NO.4(FOR VACUUM HOSE) |
| 17308G | Clamp, NO.5(FOR VACUUM HOSE) |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23285A | Valve, Check, NO.1 |
| 23818C | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23827D | Hose, Fuel Vapor Feed, NO.2 |
| 23828 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23830 | Hose Assy, Fuel Vapor Feed, NO.2 |
| 25701A | Filter, Air |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25715 | Bracket, Emission Control Valve |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
| 25861A | Bracket, Vacuum Switching Valve, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
