Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

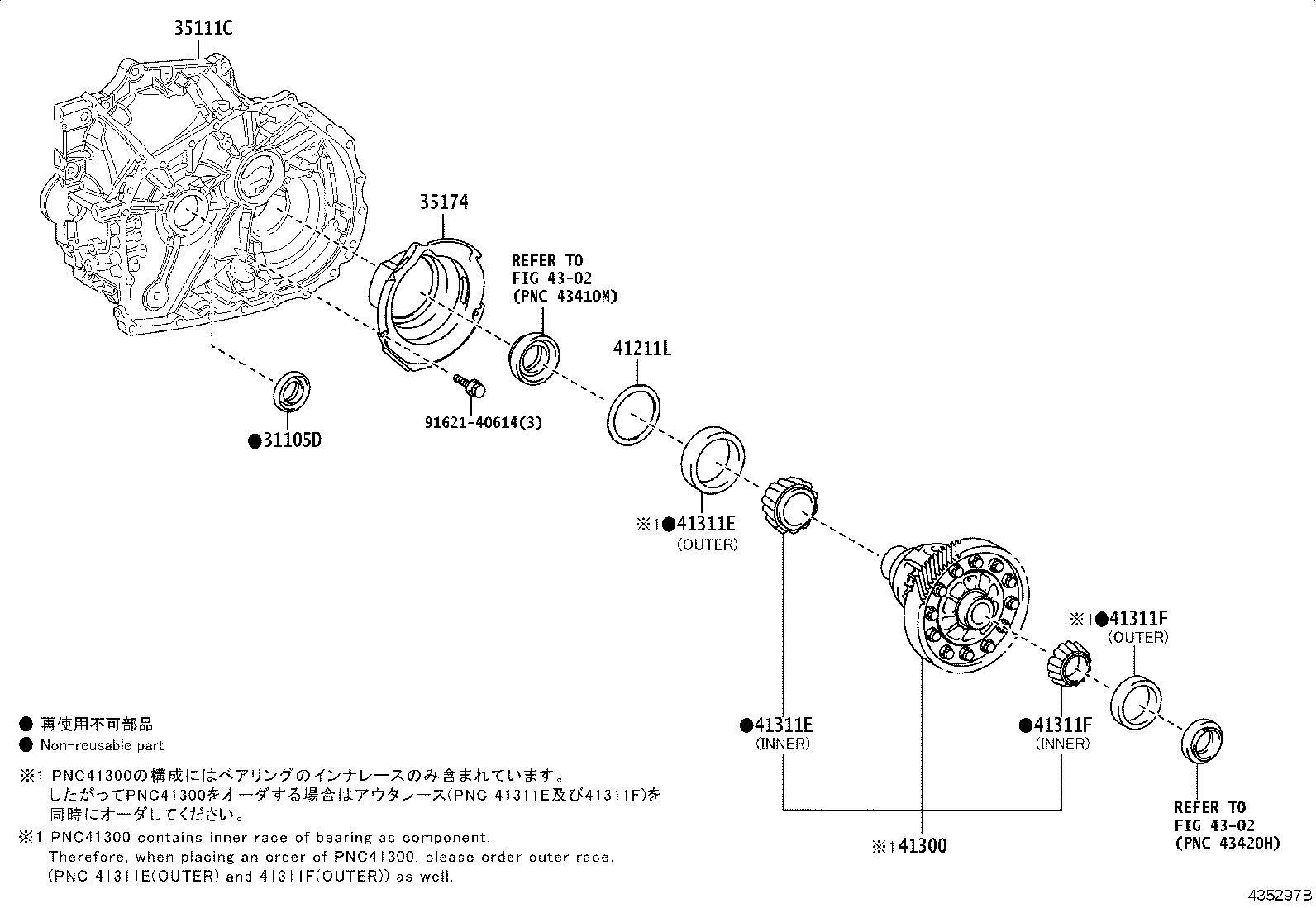

Front Axle Housing & Differential
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 35111C | Housing, Transaxle |
| 35174 | Separator, Transaxle Housing Oil |
| 35759A | Gear, Reduction Driven |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41300 | Case Assy, Front Differential, W/Ring Gear |
| 41311 | Case, Front Differential |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311P | Bolt (FOR FRONT DIFFERENTIAL CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
