Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

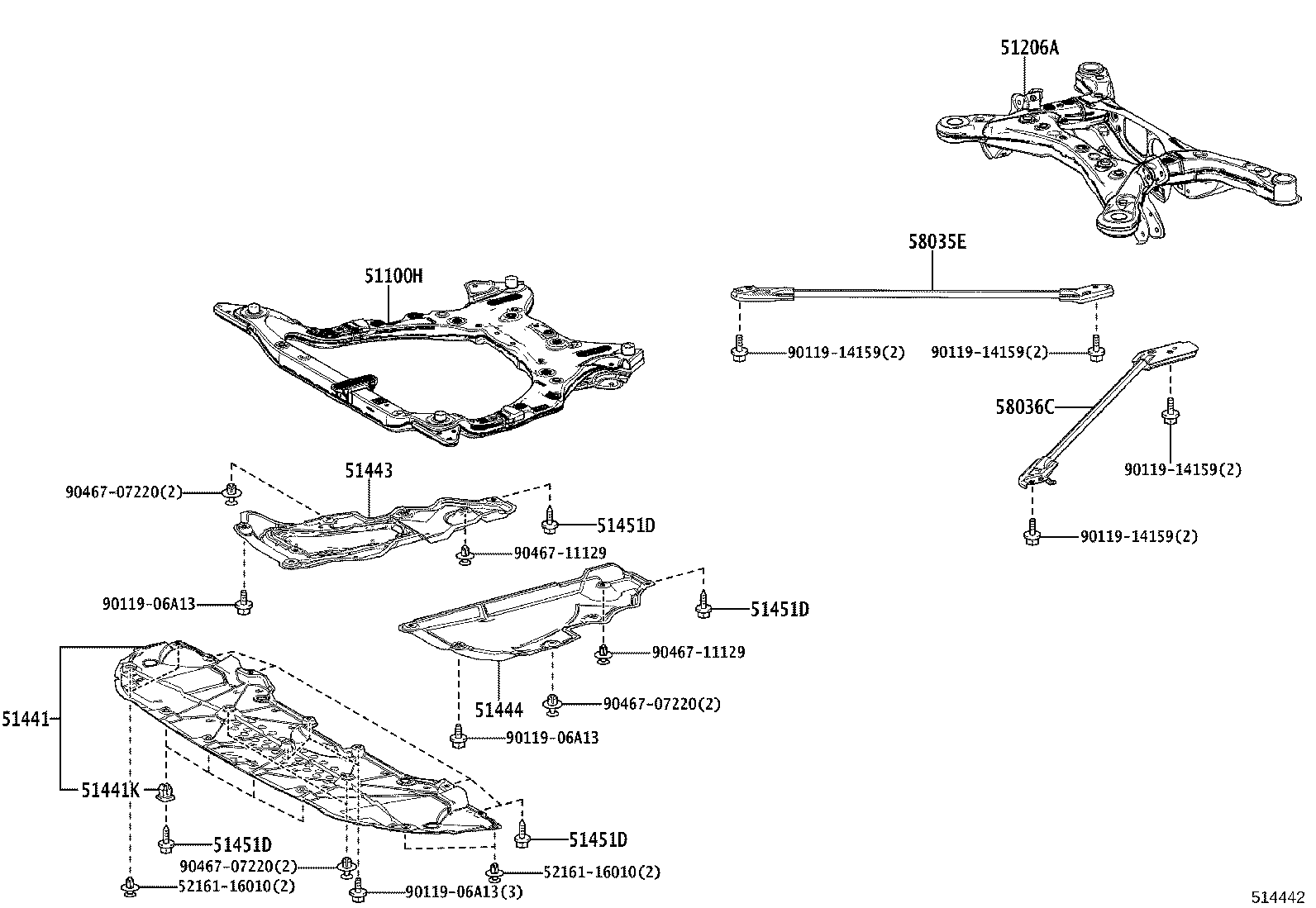

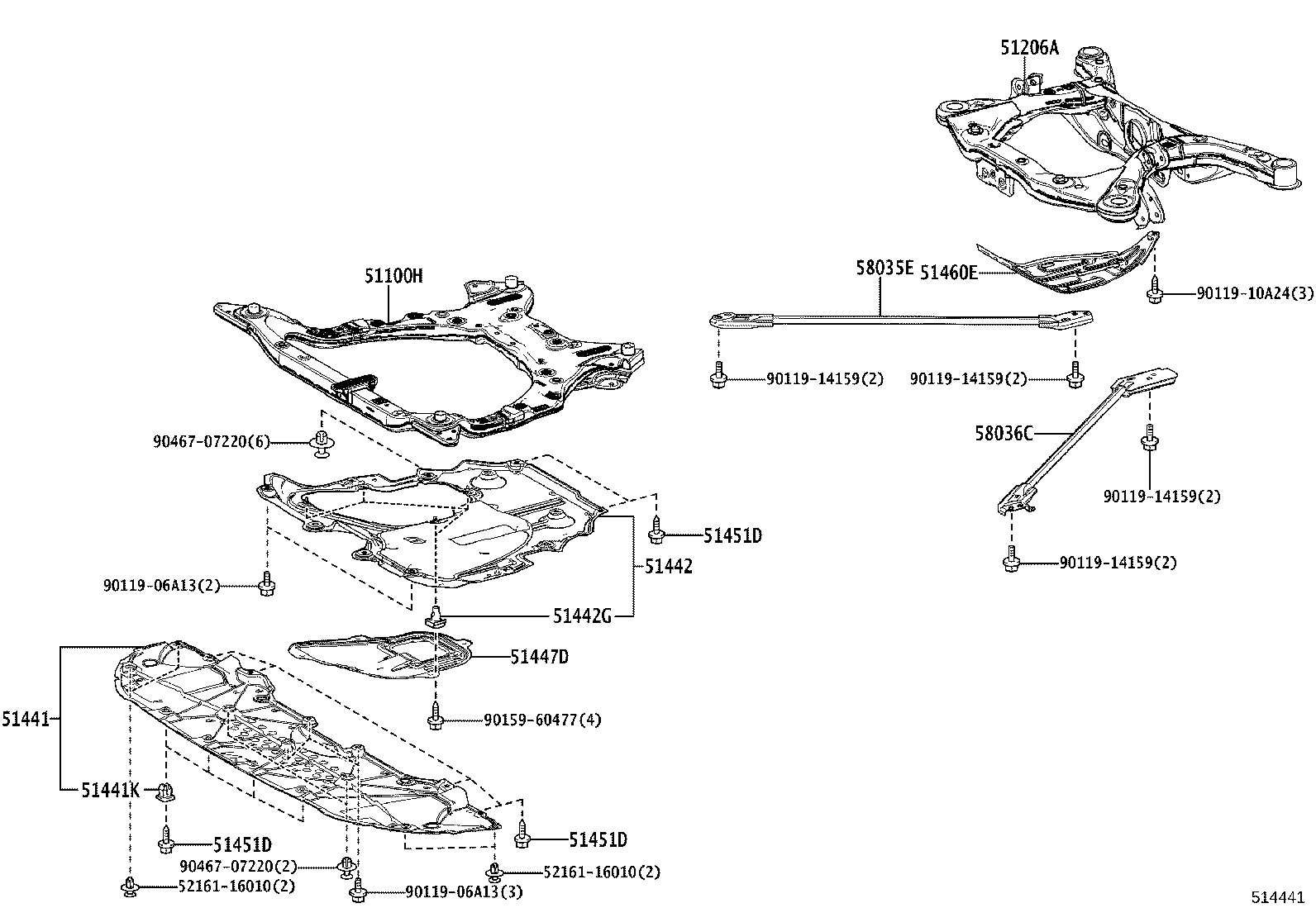

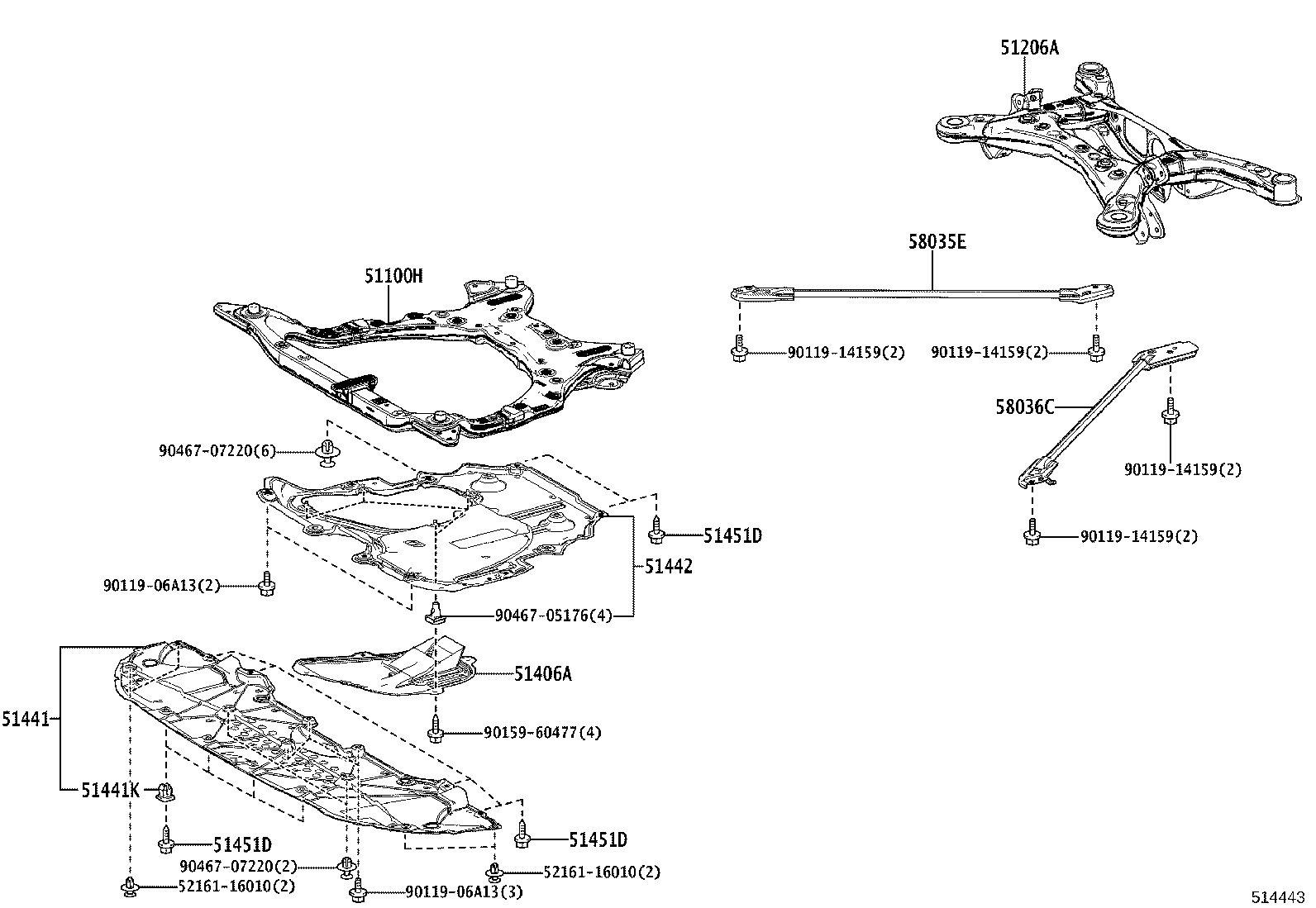

Suspension Crossmember & Under Cover
33 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100H | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51406A | Cover Sub-assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51441K | Grommet(FOR ENGINE UNDER COVER) |
| 51442 | Cover, Engine Under, NO.2 |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51443 | Cover, Engine Under, Rear RH |
| 51444 | Cover, Engine Under, Rear LH |
| 51447D | Cover, Engine Under, NO.4 Center |
| 51451D | Screw, NO.1 |
| 51460E | Protector Assy, Motor Under |
| 51468A | Retainer, Engine Under Cover, NO.2 |
| 51473E | Cover, Engine Under, NO.5 RH |
| 51474D | Cover, Engine Under, NO.5 LH |
| 52162K | Piece, Rear Bumper |
| 58035E | Brace Sub-assy, Rear Floor Panel, RH |
| 58036C | Brace Sub-assy, Rear Floor Panel, LH |
| 58165C | Cover, Front Floor, RH |
| 58165D | Clip, Floor Cover |
| 58165E | Clip, Floor Cover |
| 58166A | Cover, Front Floor, LH |
| 58166J | Clip, Floor Cover |
| 58166K | Clip, Floor Cover |
| 58168D | Cover, Front Floor, Center LH |
| 58378J | Cover, Lower Back Trim Retainer, RH |
| 58379M | Cover, Lower Back Trim Retainer, LH |
| 58397H | Cover, Body Lower Back, RH |
| 58398F | Cover, Floor Under, NO.1 |
| 58399D | Cover, Floor Under, NO.2 |
| 58399G | Clip, NO.1(FOR REAR UNDER COVER) |
| 58399H | Clip, NO.2(FOR REAR UNDER COVER) |
| 58737C | Bracket, Floor Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
