Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Cab Mounting & Body Mounting
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51403F | Brace Sub-assy, Front Suspension Member, RH |
| 51404 | Brace Sub-assy, Front Suspension Member, LH |

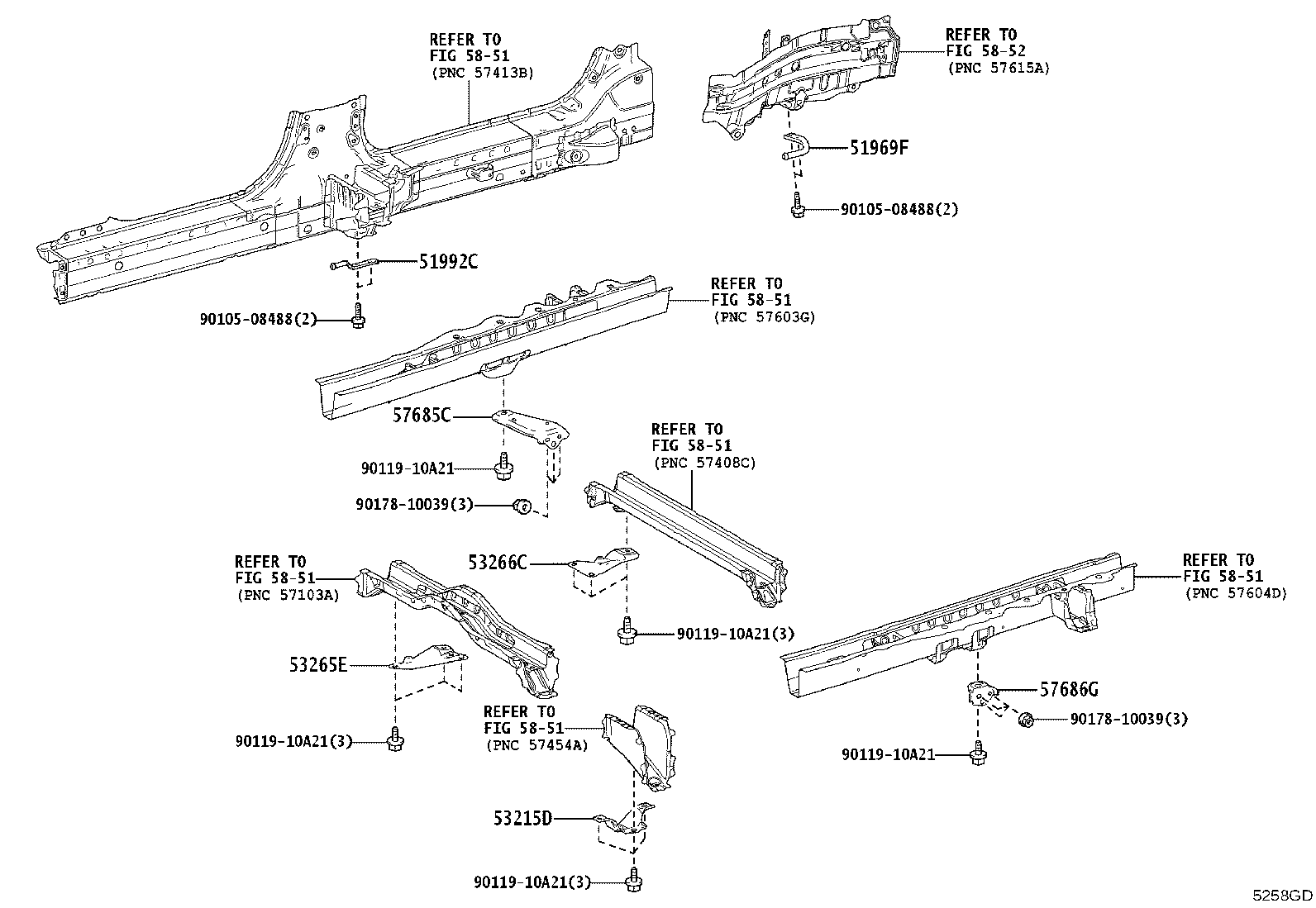

| 51969F | Hanger, Exhaust Pipe Support |
| 51992C | Hanger, Exhaust Pipe Support, NO.2 |
| 52217 | Bolt, Body Mounting |
| 52217A | Bolt, Body Mounting |
| 52217B | Bolt, Body Mounting |
| 52217C | Bolt, Body Mounting |

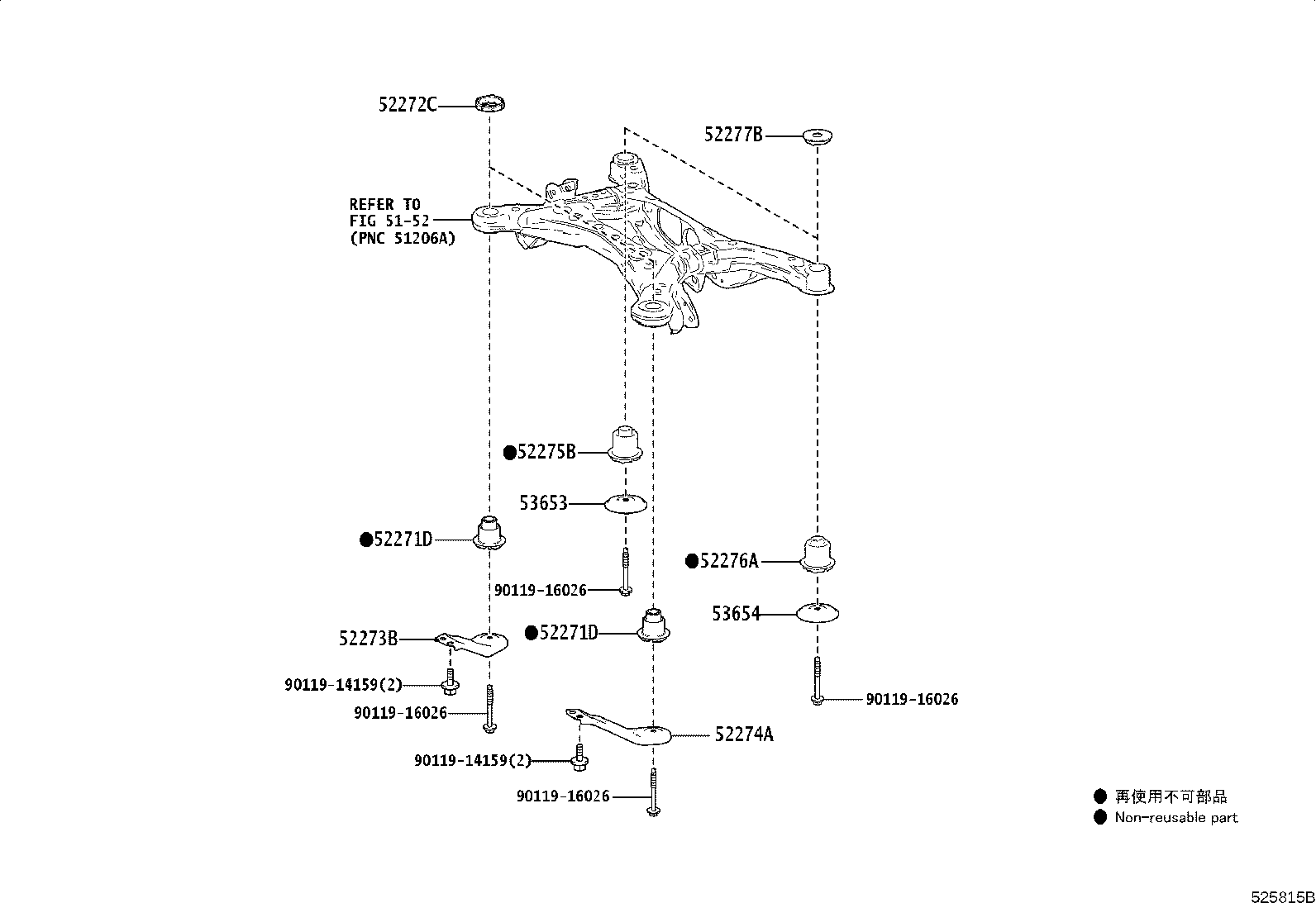

| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52272C | Stopper, Rear Suspension Member, Upper |
| 52273B | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275B | Cushion, Rear Suspension Member Body Mount, Rear RH |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52277B | Stopper, Rear Suspension Member, Rear Upper |
| 53215D | Bracket, Battery Support, NO.1 |
| 53265E | Bracket, Battery Carrier Mounting, NO.1 |
| 53266C | Bracket, Battery Carrier Mounting, NO.2 |
| 53653 | Brace, Rear Suspension, Lower RH |
| 53654 | Brace, Rear Suspension, Lower LH |
| 57685C | Bracket, Battery Mounting, RH |
| 57686G | Bracket, Battery Mounting, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
