Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

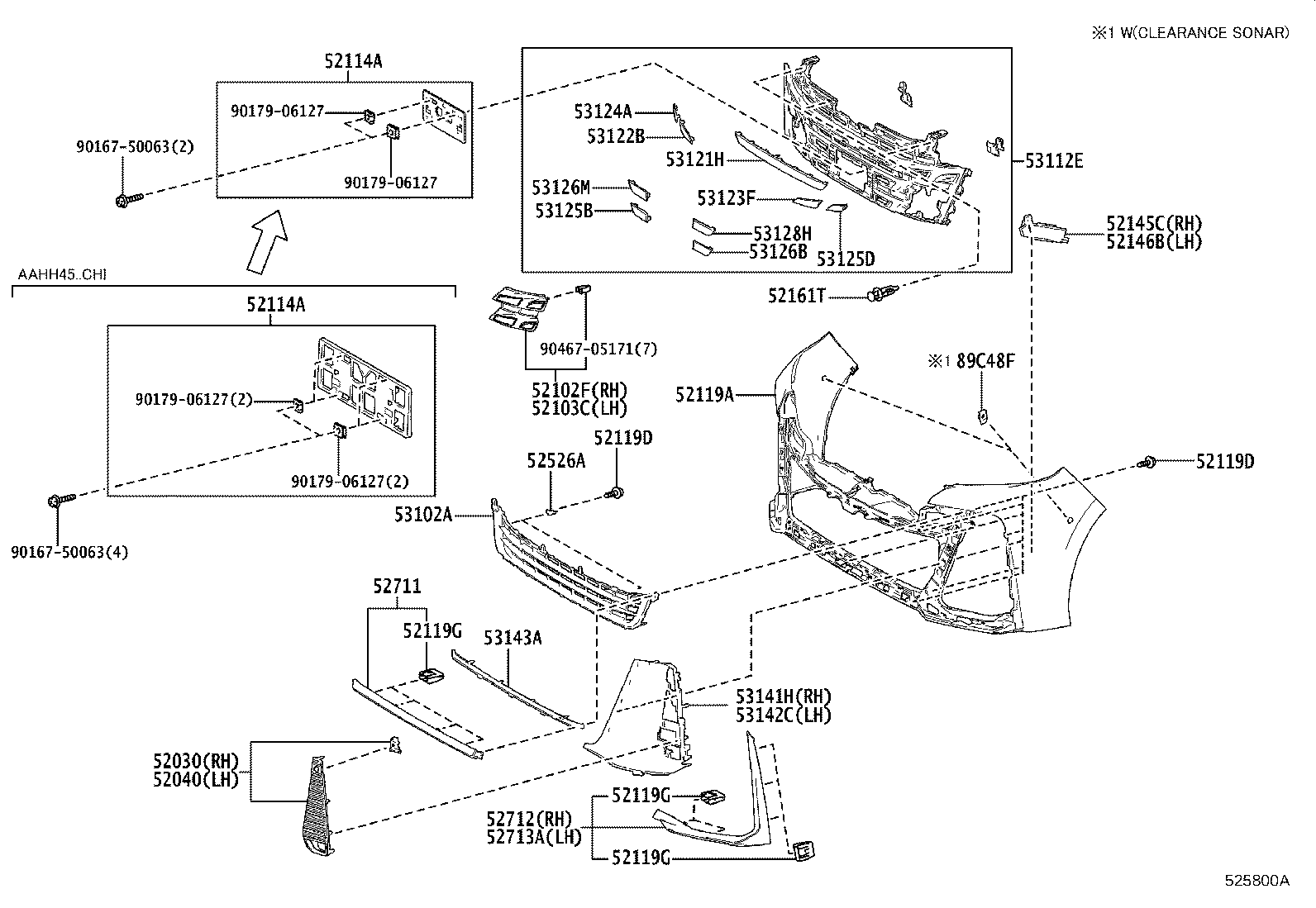

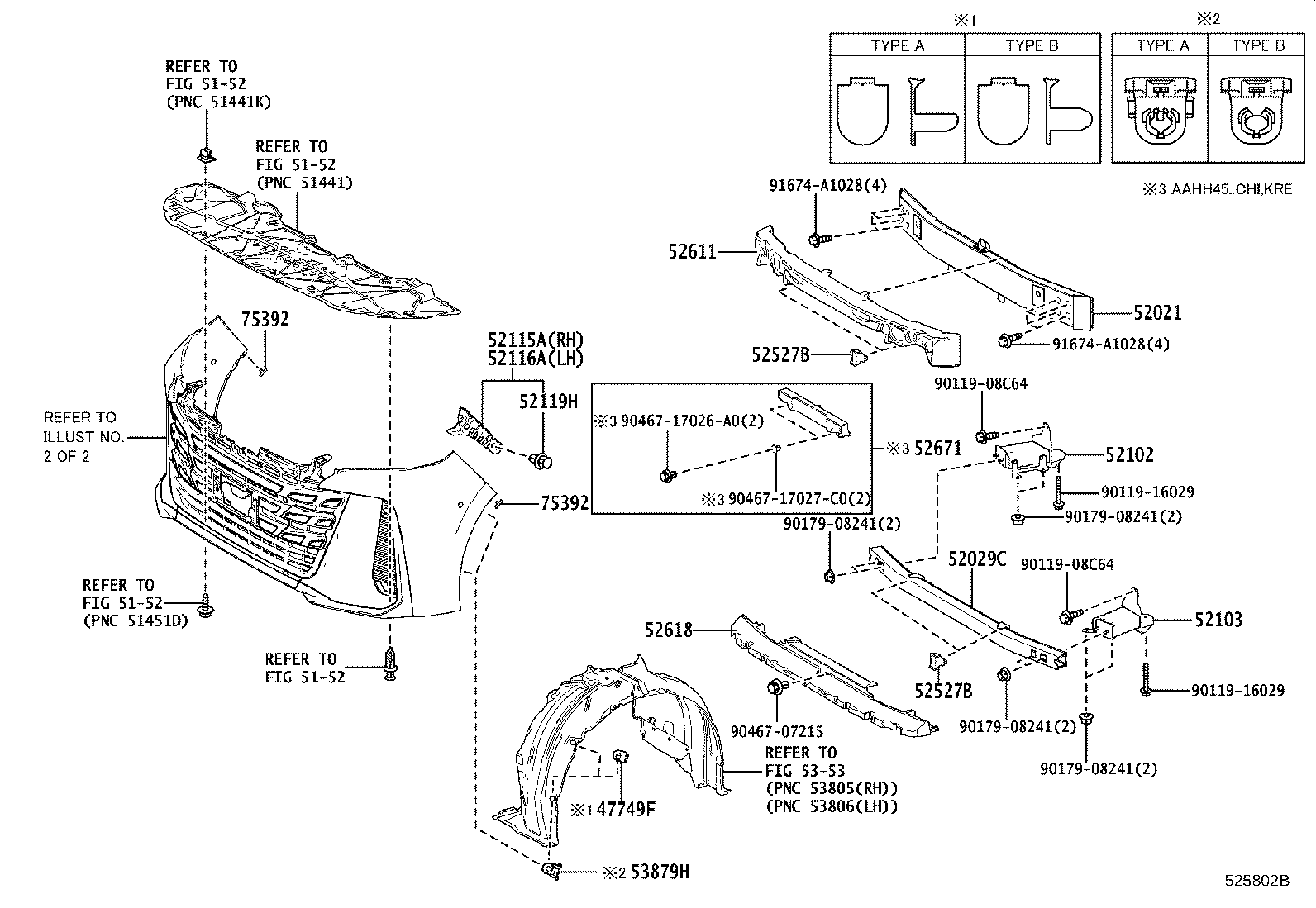

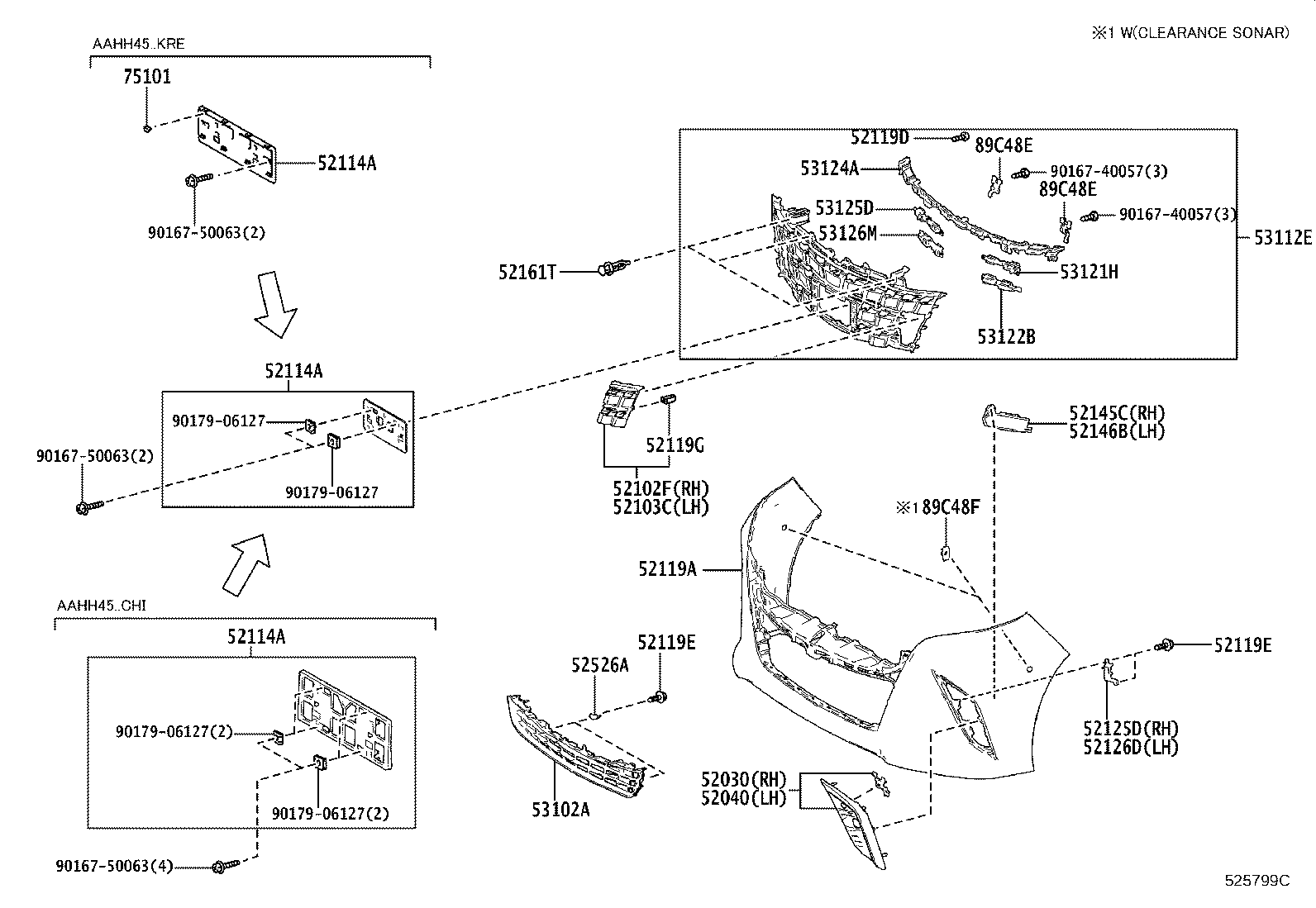

Front Bumper & Bumper Stay
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52029C | Reinforcement Sub-assy, Front Bumper, NO.2 |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52102 | Bracket Sub-assy, Front Bumper, RH |
| 52102F | Extension Sub-assy, Front Bumper, RH |
| 52103 | Bracket Sub-assy, Front Bumper, LH |
| 52103C | Extension Sub-assy, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52119E | Screw, NO.2 |
| 52119G | Clip, NO.1 |
| 52119H | Clip, NO.2 |
| 52125D | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52161T | Piece, Front Bumper |
| 52526A | Retainer, Front Bumper, Lower NO.1 |
| 52527B | Retainer, Front Bumper, Lower NO.2 |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52671 | Extension, Front Bumper Arm |
| 52711 | Moulding, Front Bumper |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53121H | Moulding, Radiator Grille, NO.1 |
| 53122B | Moulding, Radiator Grille, NO.2 |
| 53123F | Moulding, Radiator Grille, NO.3 |
| 53124A | Moulding, Radiator Grille, NO.4 |
| 53125B | Moulding, Radiator Grille, Center RH |
| 53125D | Moulding, Radiator Grille, NO.5 |
| 53126B | Moulding, Radiator Grille, Center LH |
| 53126M | Moulding, Radiator Grille, NO.6 |
| 53128H | Moulding, Radiator Grille, NO.8 |
| 53141H | Garnish, Radiator Grille |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 53143A | Garnish, Radiator Grille, NO.3 |
| 53879H | Retainer, Front Fender Liner |
| 75101 | Bracket Sub-assy, Front License Plate |
| 75392 | Retainer, Outside Moulding |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
| 89C48F | Retainer, Ultrasonic Sensor, Front Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
