Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Roof Panel & Back Panel
29 part groups · 4 illustrations
Part groups

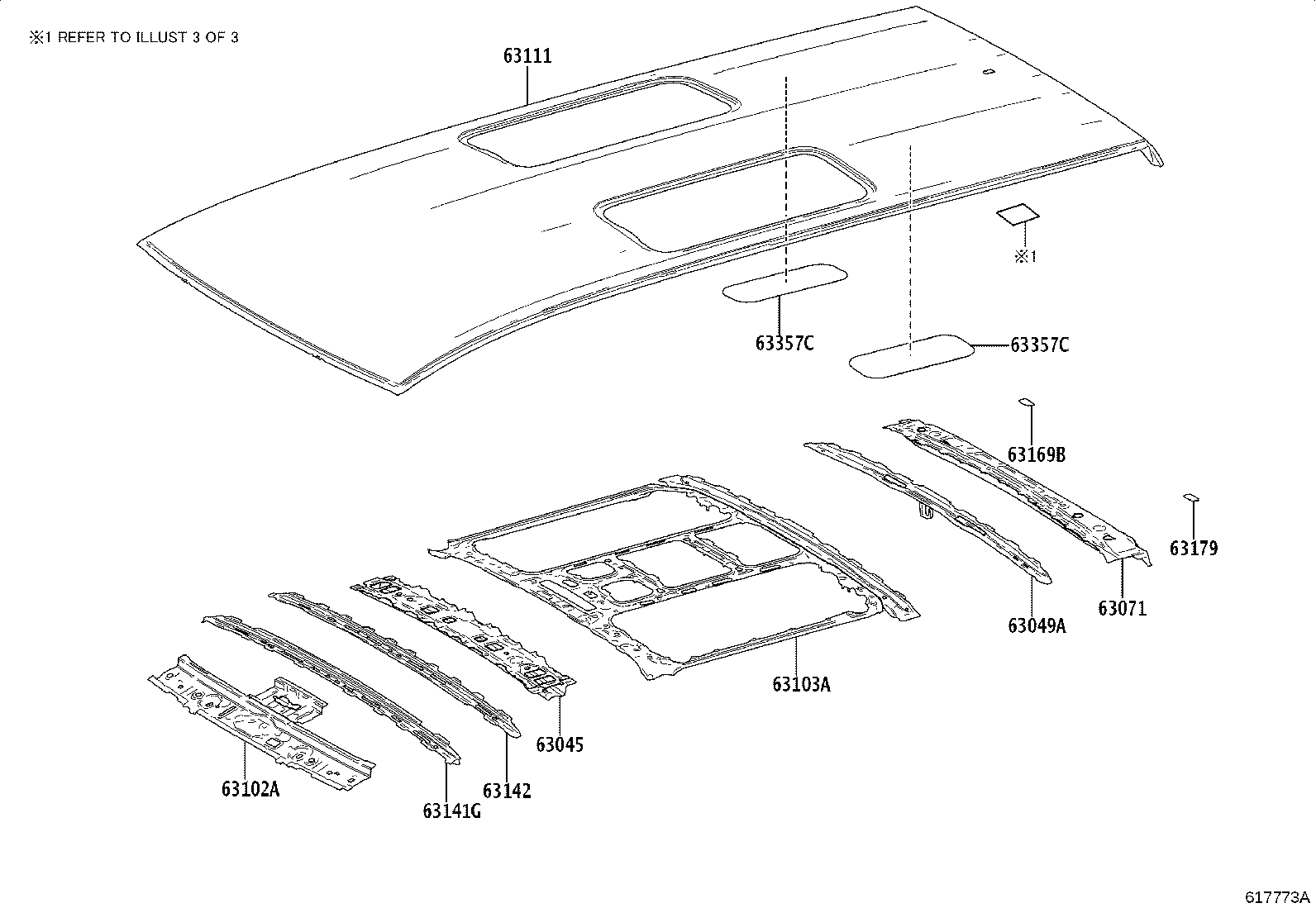

| PNC | Description |
|---|---|
| 63045 | Reinforcement Sub-assy, Roof Panel, NO.3 |
| 63047C | Reinforcement Sub-assy, Roof Panel, NO.5 |
| 63048B | Reinforcement Sub-assy, Roof Panel, NO.6 |
| 63049A | Reinforcement Sub-assy, Roof Panel, NO.7 |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63203K | Housing Sub-assy, Sliding Roof, RH |
| 63203Q | Housing Sub-assy, Sliding Roof, LH |
| 63210G | Glass Assy, Moon Roof, RH |
| 63215F | Moulding, Roof Window, Upper |
| 63220B | Glass Assy, Moon Roof, LH |
| 63227M | Clip, Roof Window, Lower |
| 63228N | Clip, Roof Window, Side |
| 63260M | Gear Assy, Sliding Roof Drive, RH |
| 63260N | Gear Assy, Sliding Roof Drive, LH |
| 63271C | Strength, Roof Panel, NO.1 RH |
| 63275B | Strength, Roof Panel, NO.5 |
| 63281E | Strength, Roof Panel, NO.1 LH |
| 63285G | Strength, Roof Panel, NO.5 LH |
| 63295D | Pad, Sliding Roof Housing |
| 63357C | Silencer, Roof |
| 63738B | Cover, Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
