Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

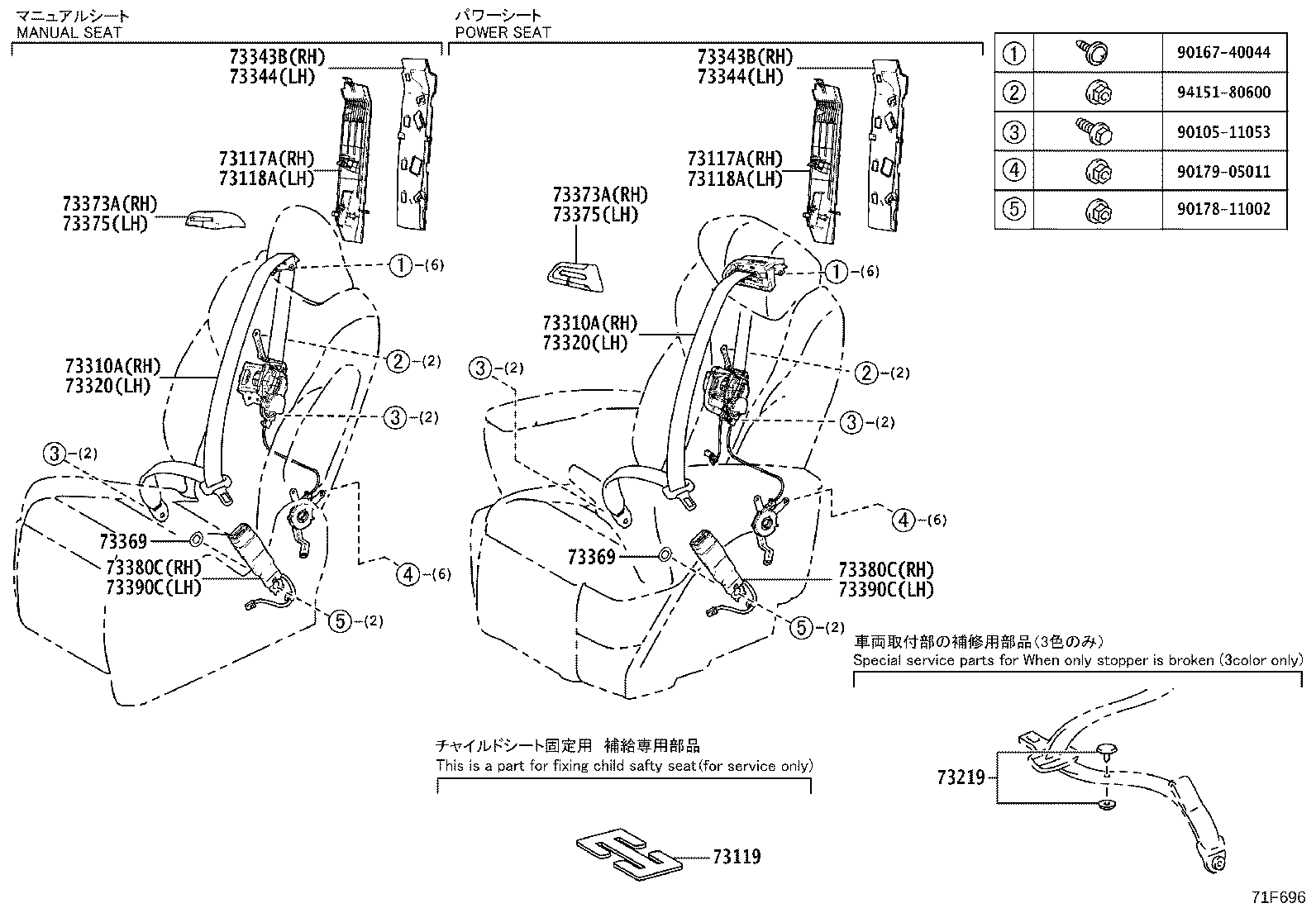

Seat Belt
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 73117A | Protector, Belt |
| 73118A | Protector, Seat Belt Webbing, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73139B | Cover, Seat Belt Anchor |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310A | Belt Assy, NO.1 Seat 3 Point Type, RH |
| 73320 | Belt Assy, Rear Seat 3 Point Type, LH |
| 73343B | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73369 | Plate, Rear Seat Belt Anchor |
| 73373A | Cover, Rear Seat Shoulder Belt, RH |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73381 | Holder, Rear Seat Belt |
| 73381C | Holder, Seat Belt |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73530A | Belt Assy, Rear NO.2 Seat Lap Type, RH |
| 73540A | Belt Assy, Rear NO.2 Seat Lap Type, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
