Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

107 part groups · 21 illustrations

Illustrations

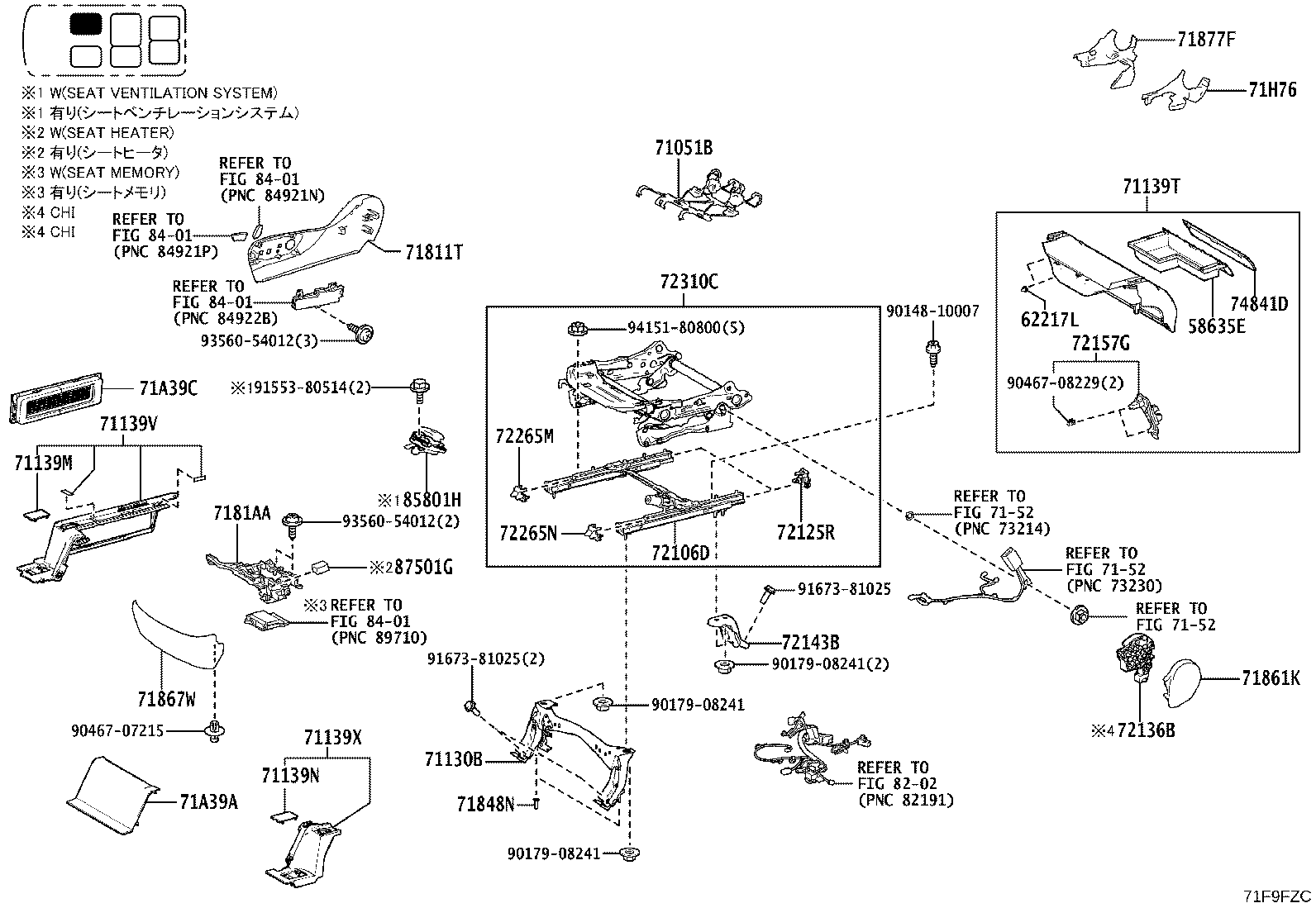

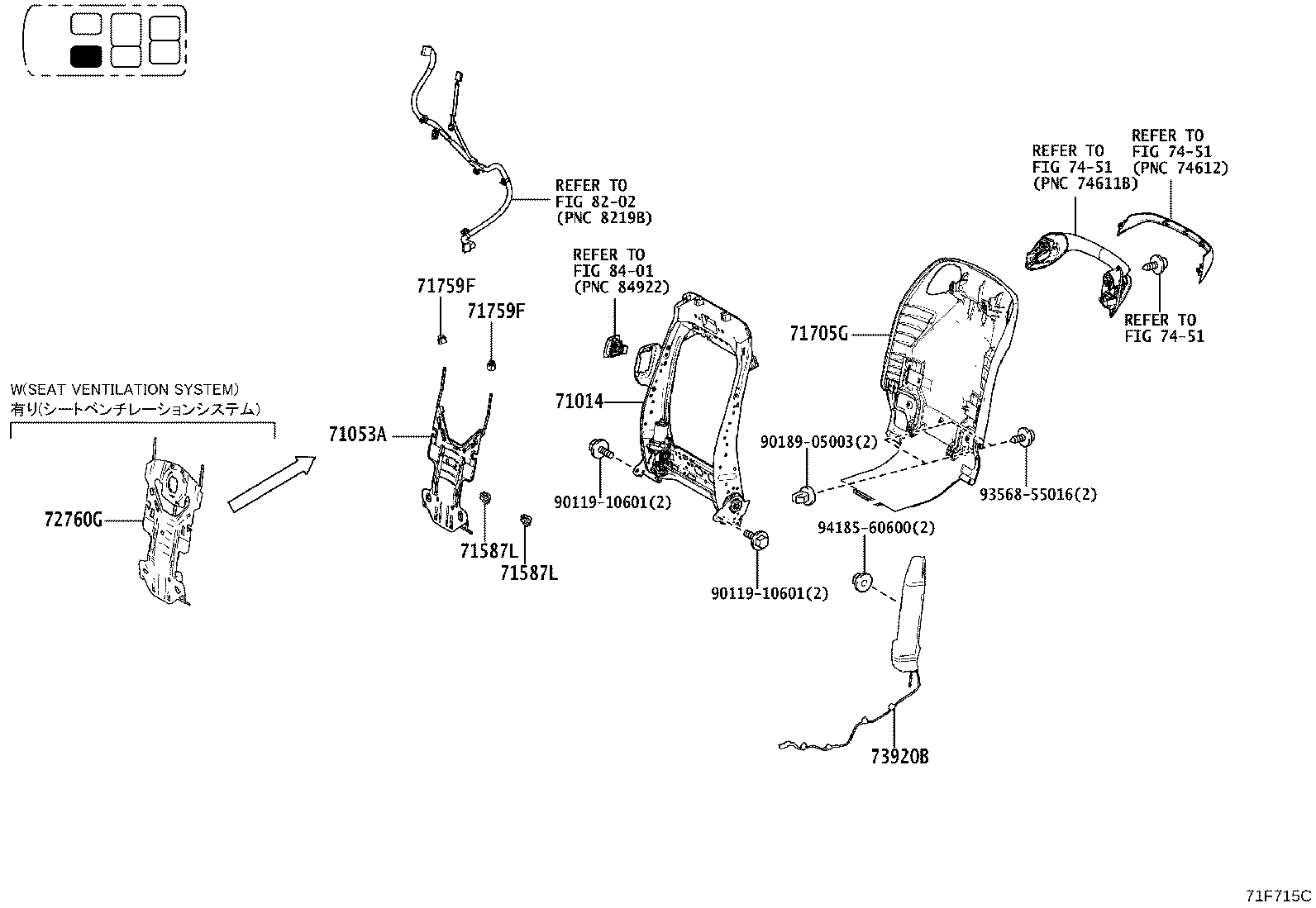

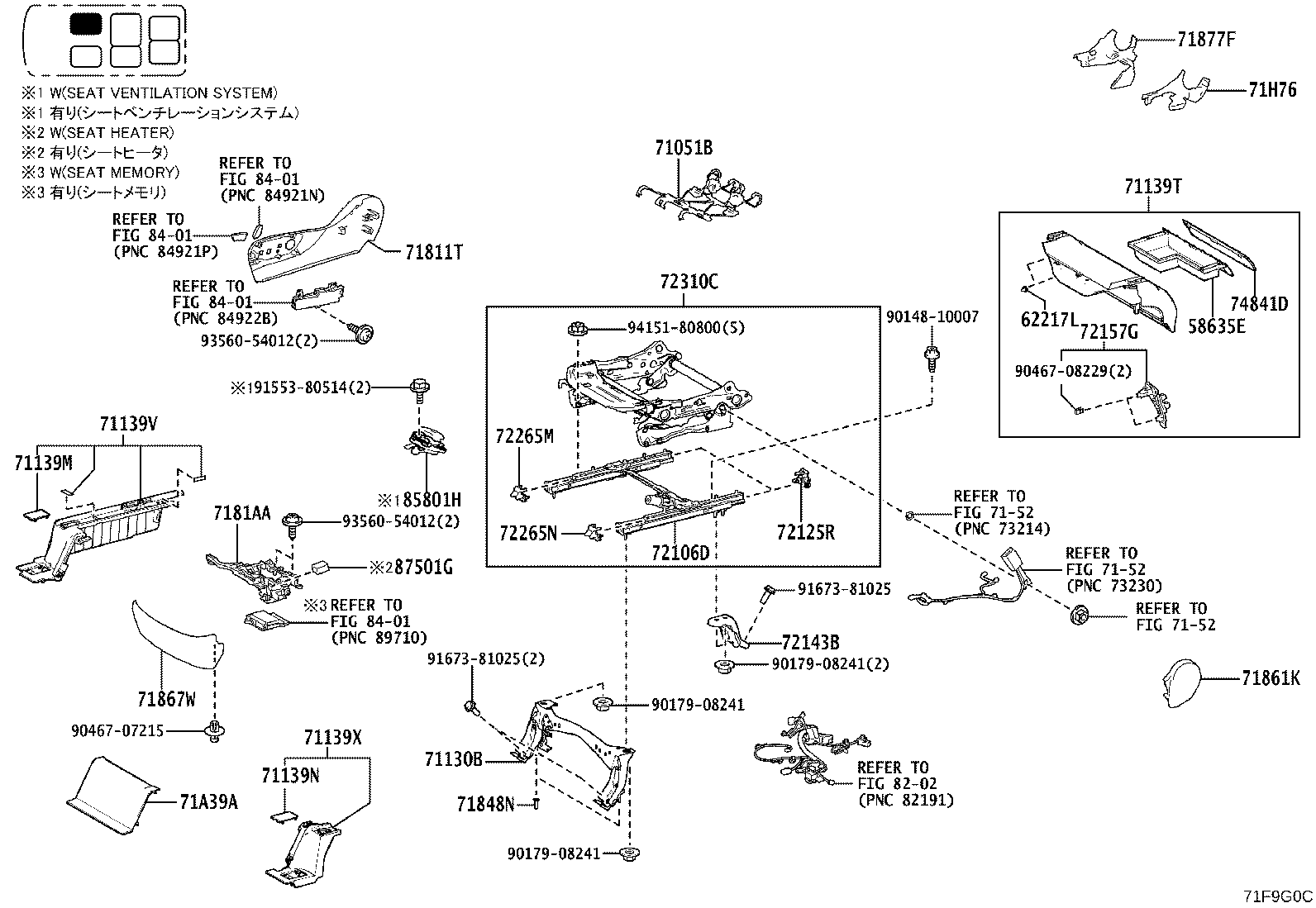

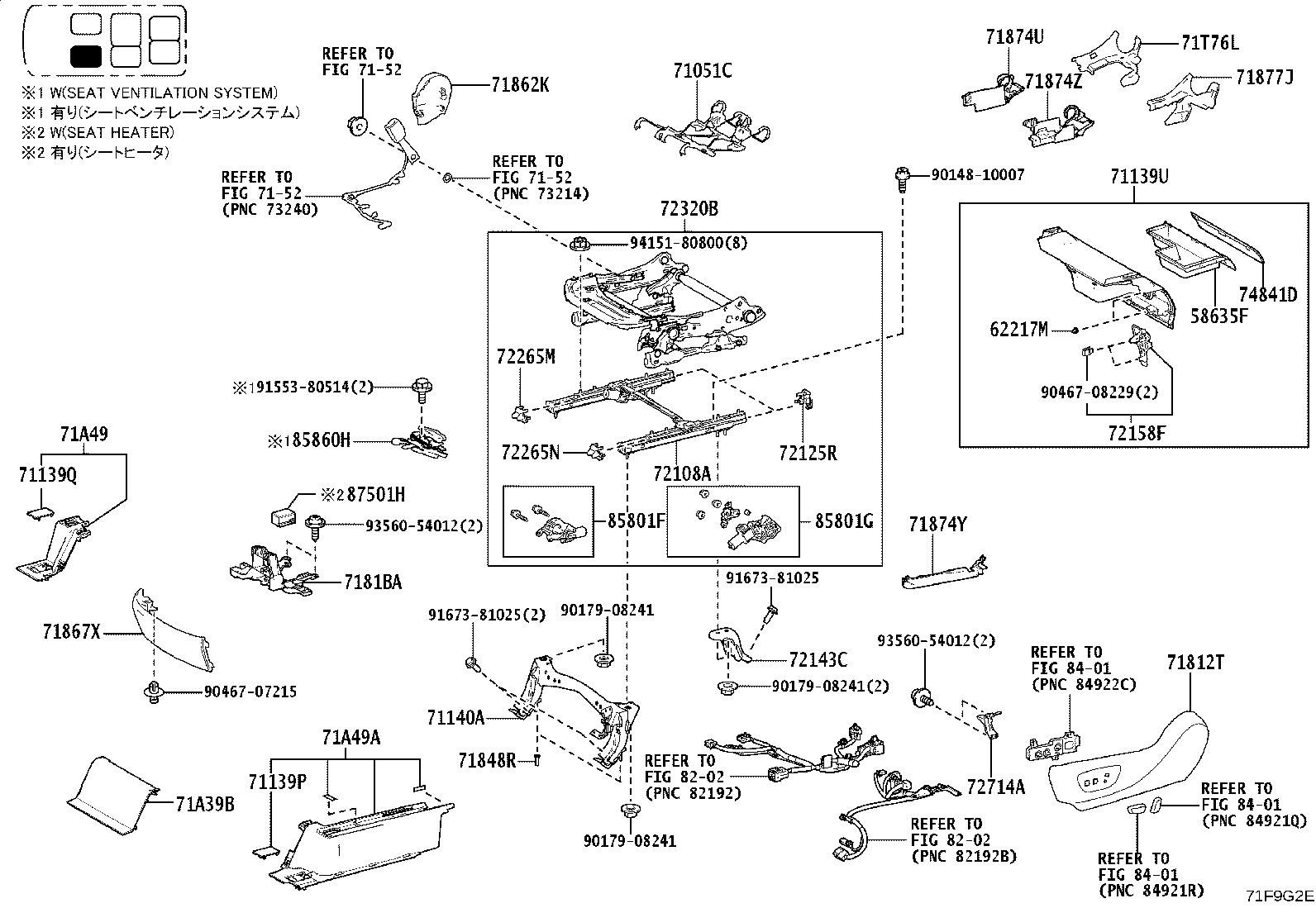

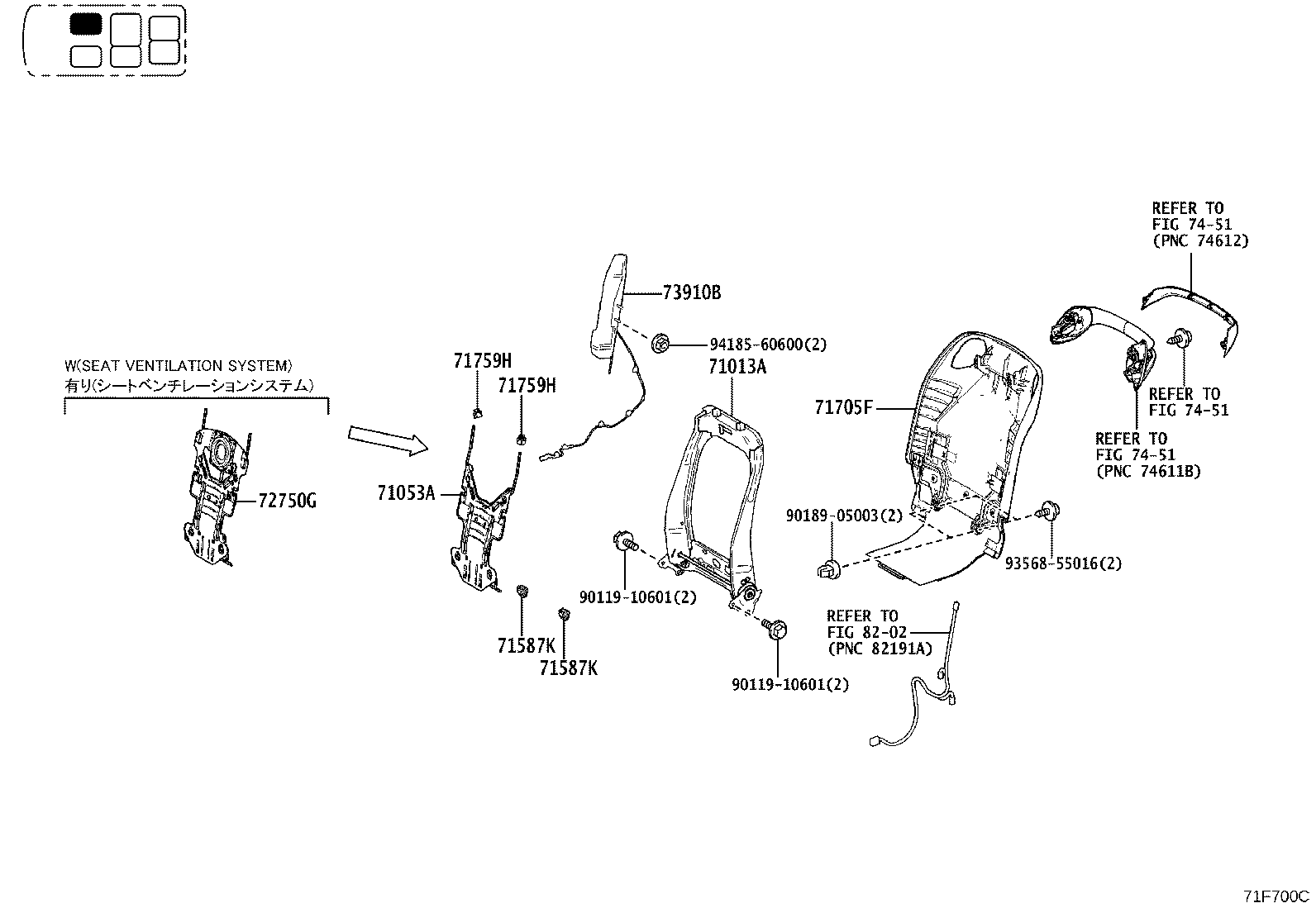

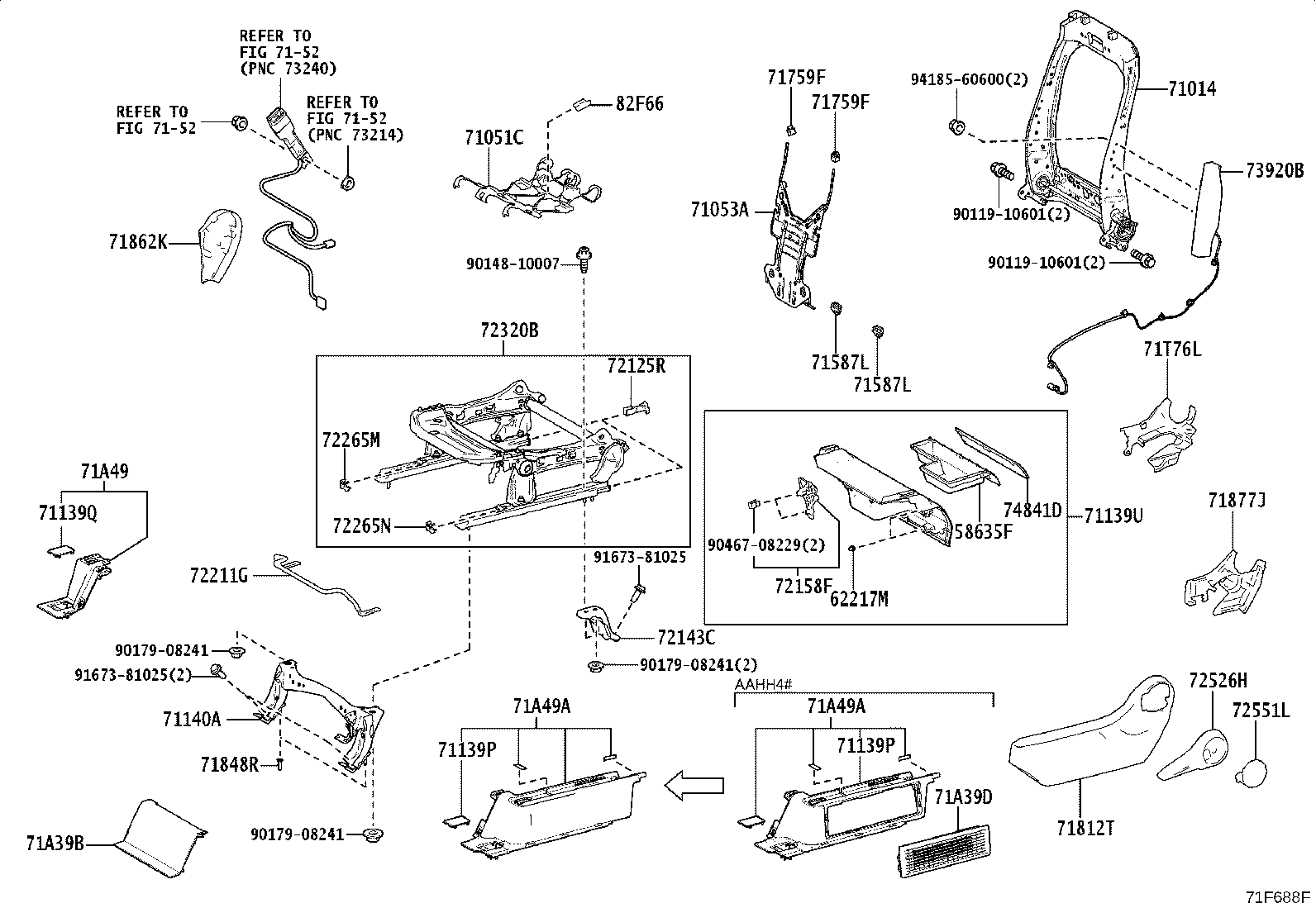

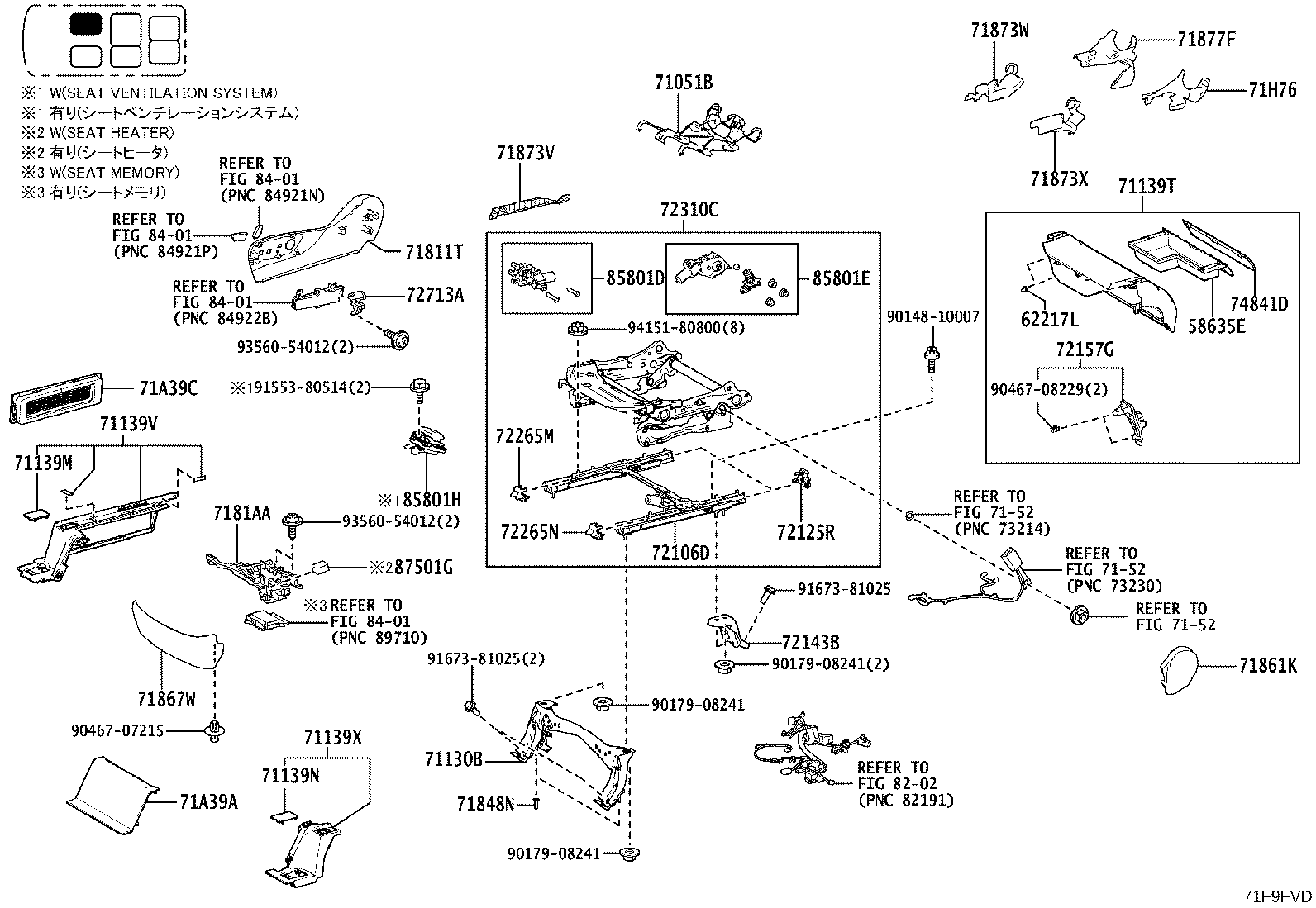

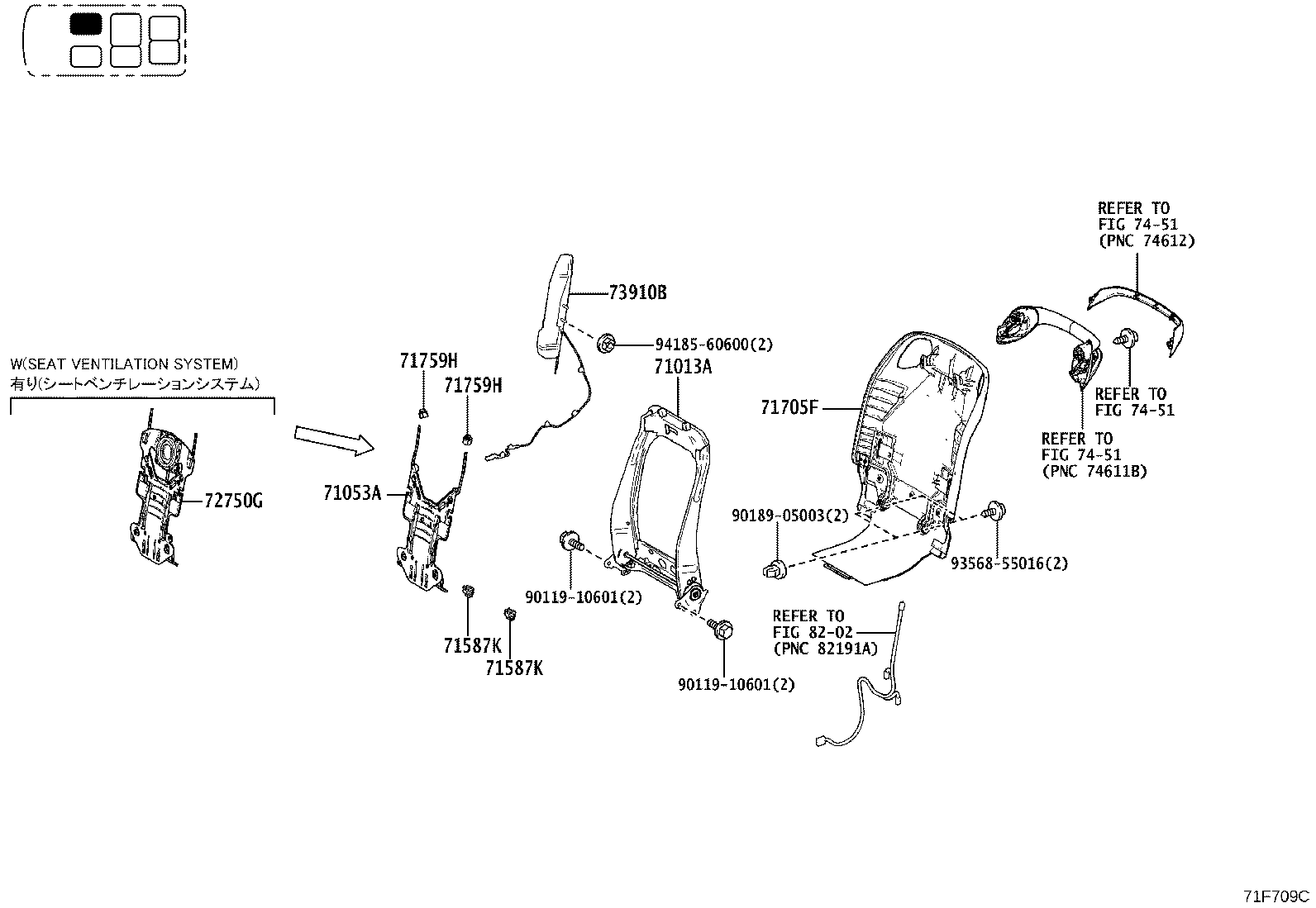

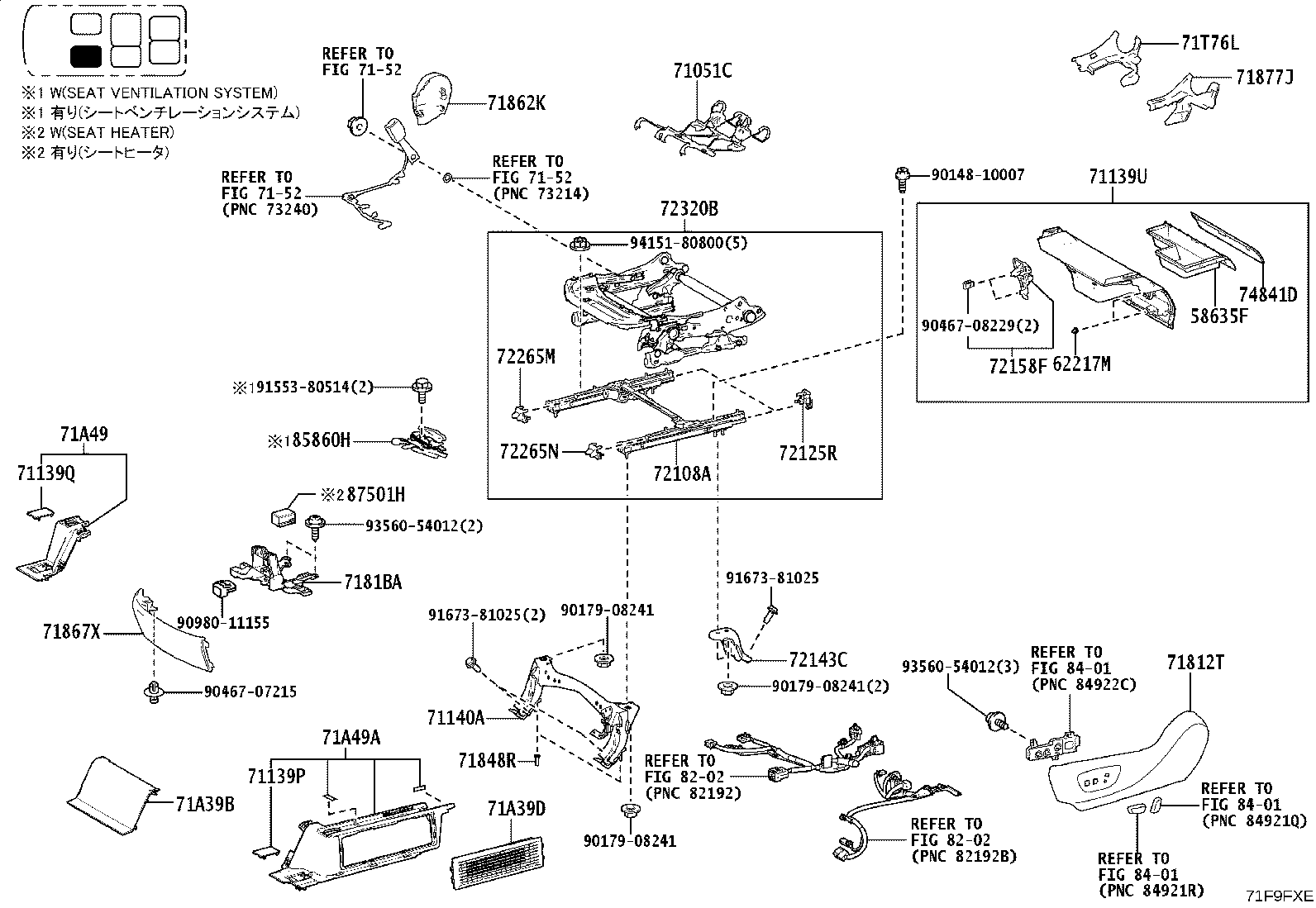

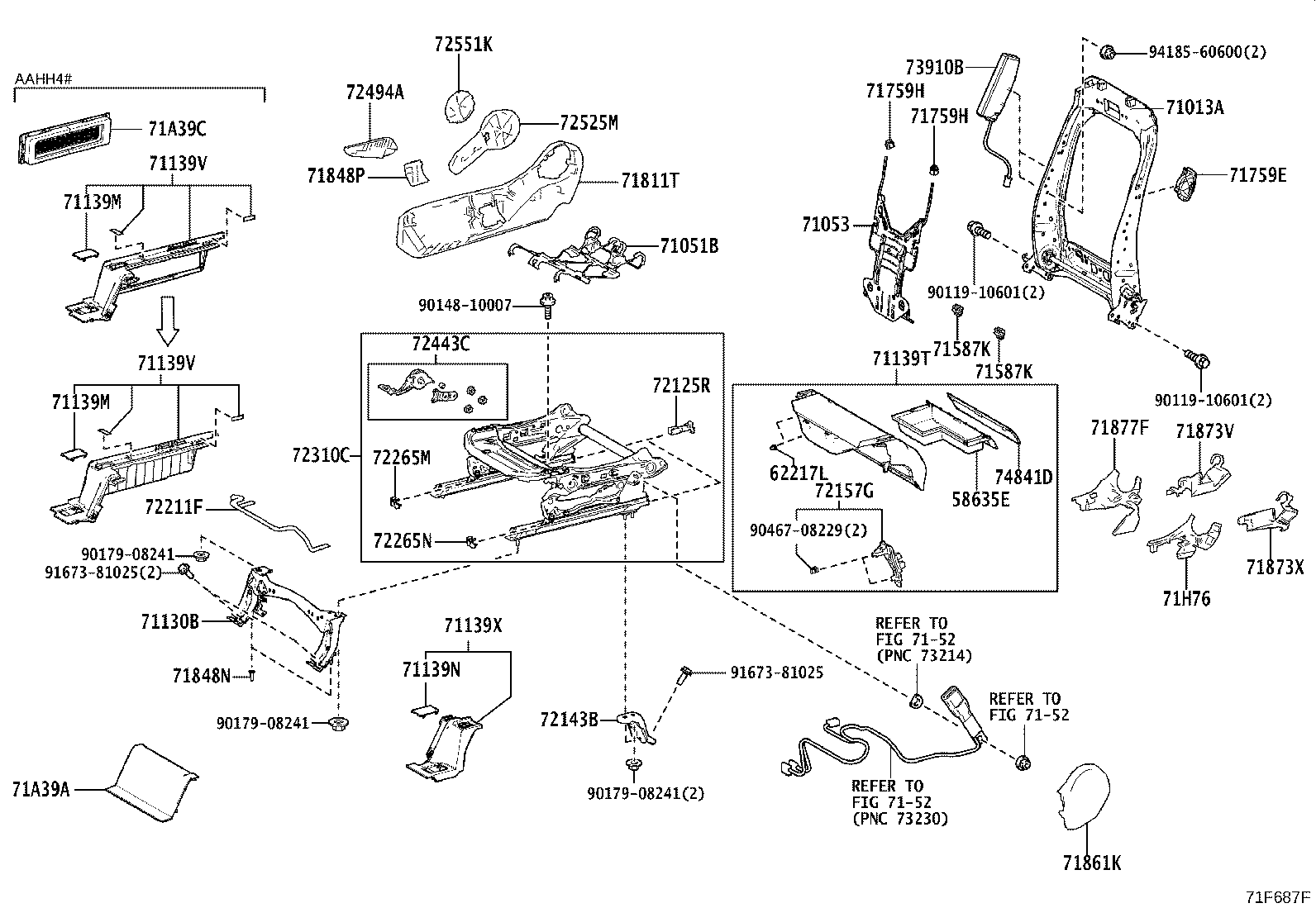

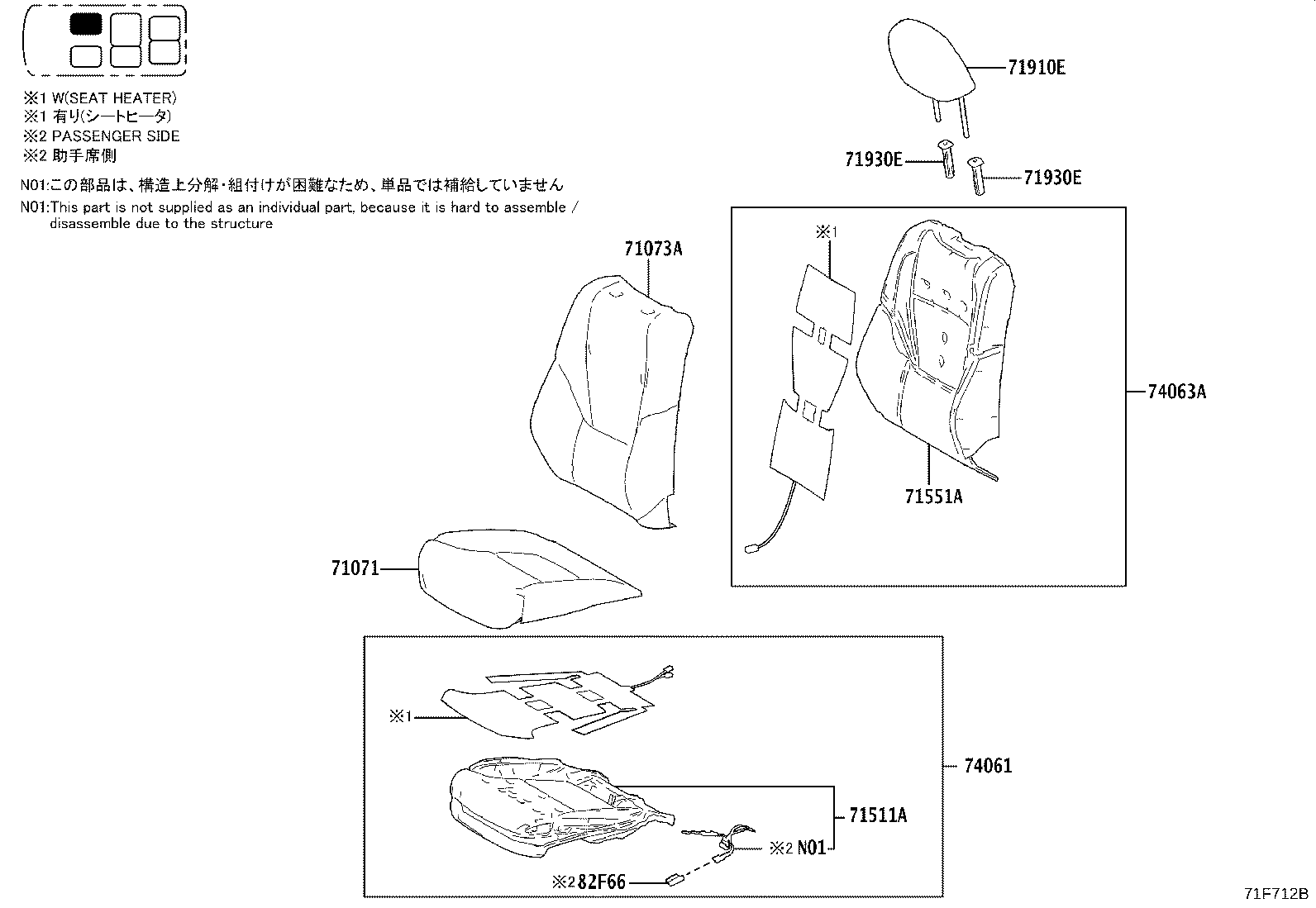

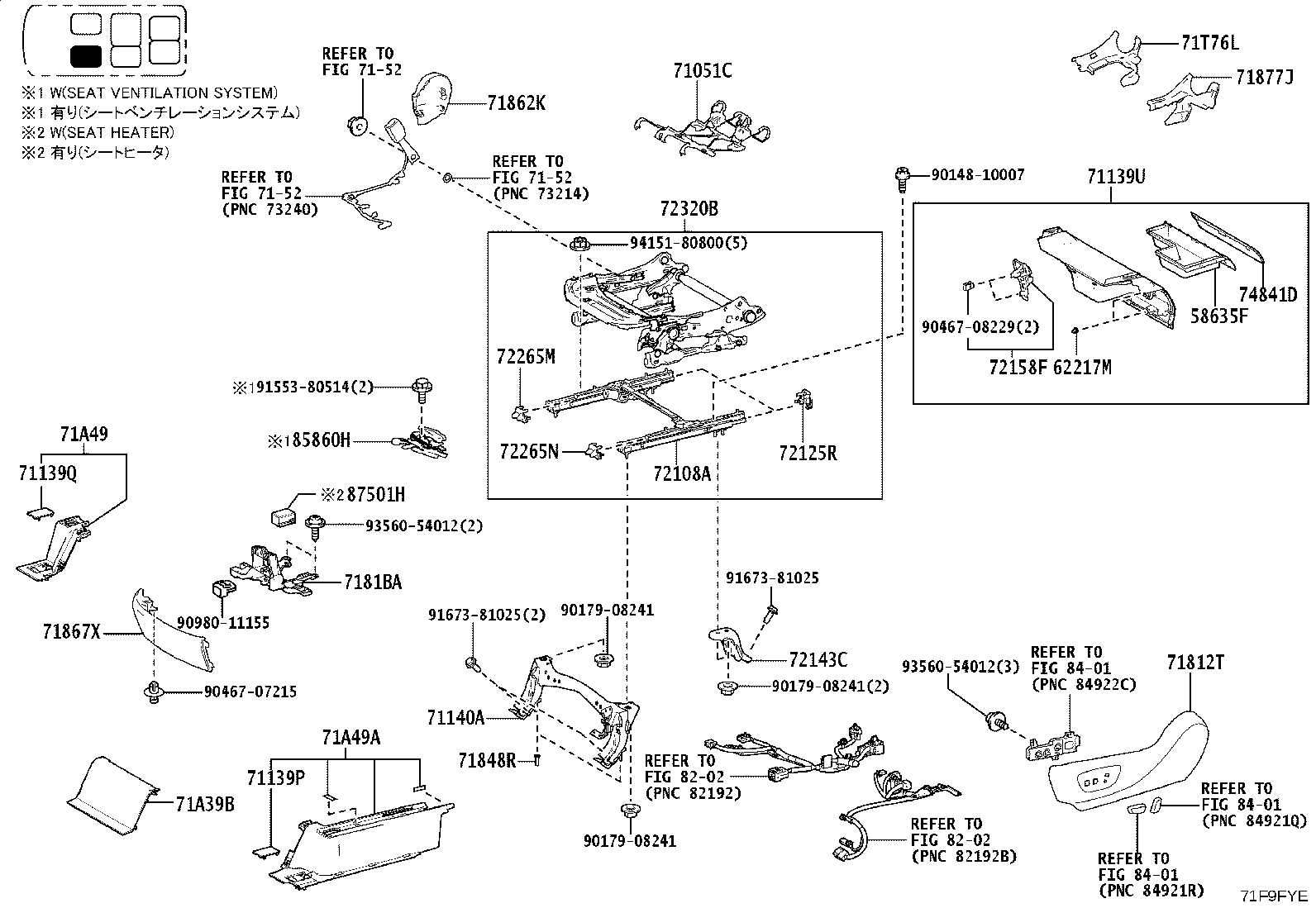

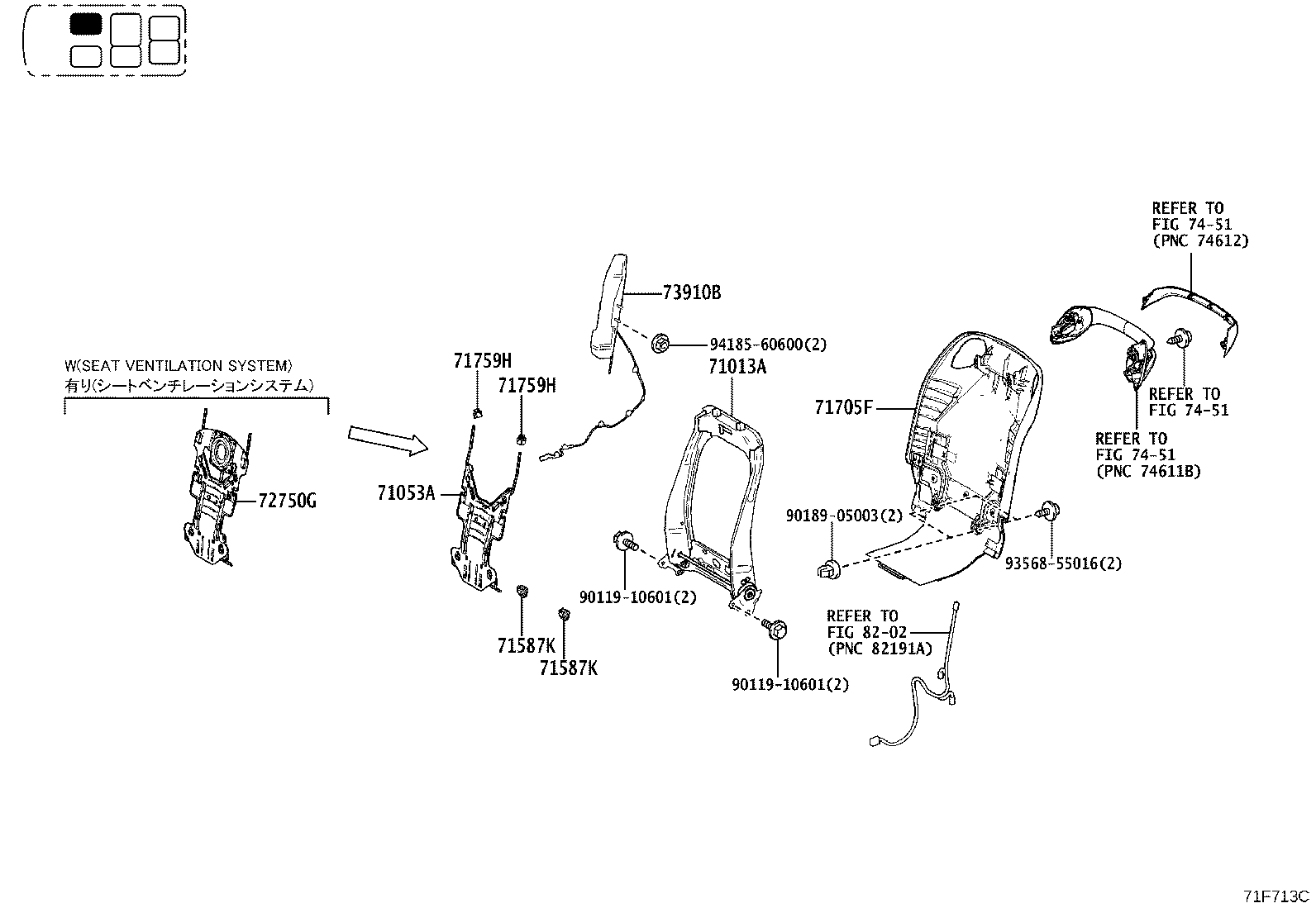

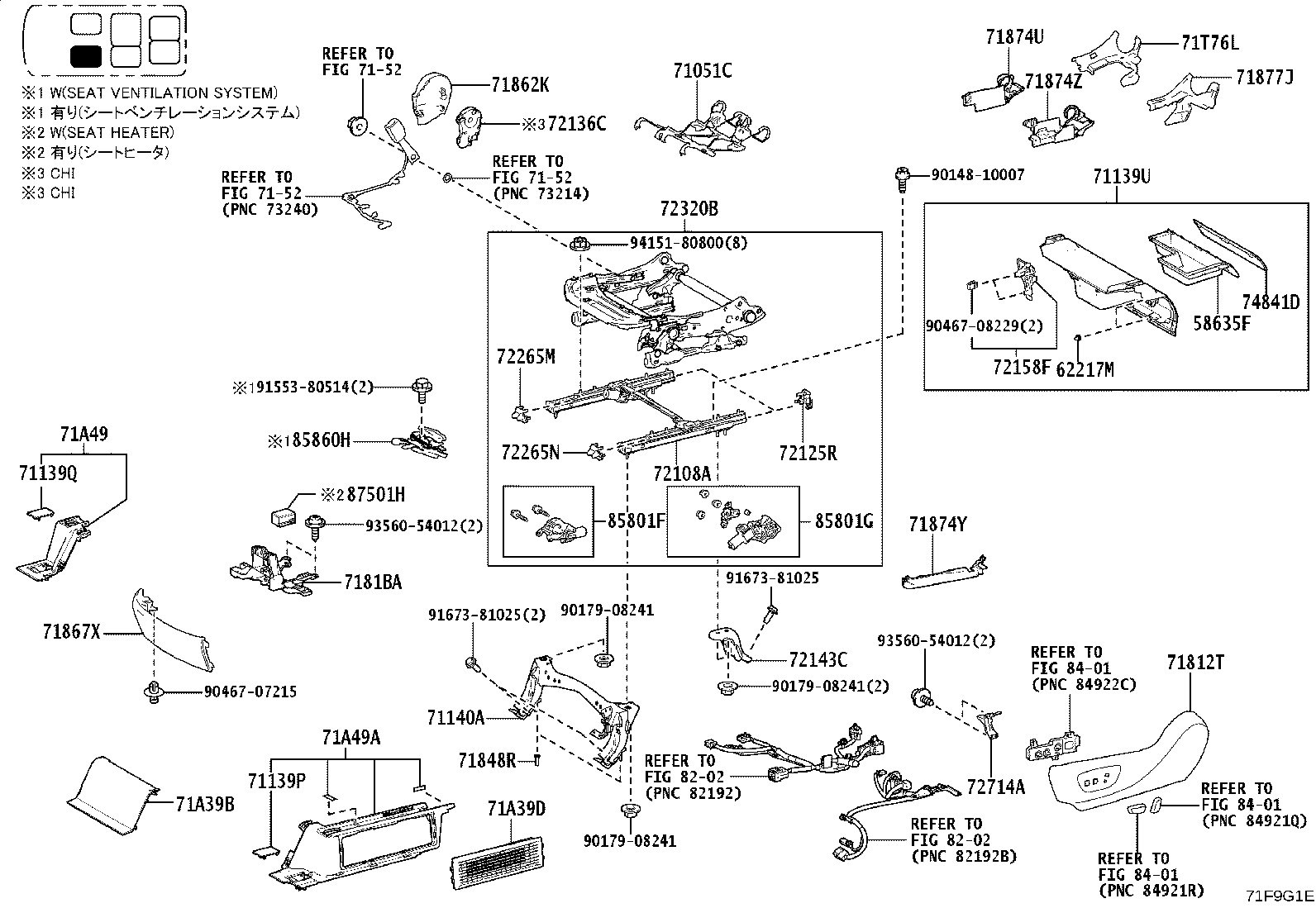

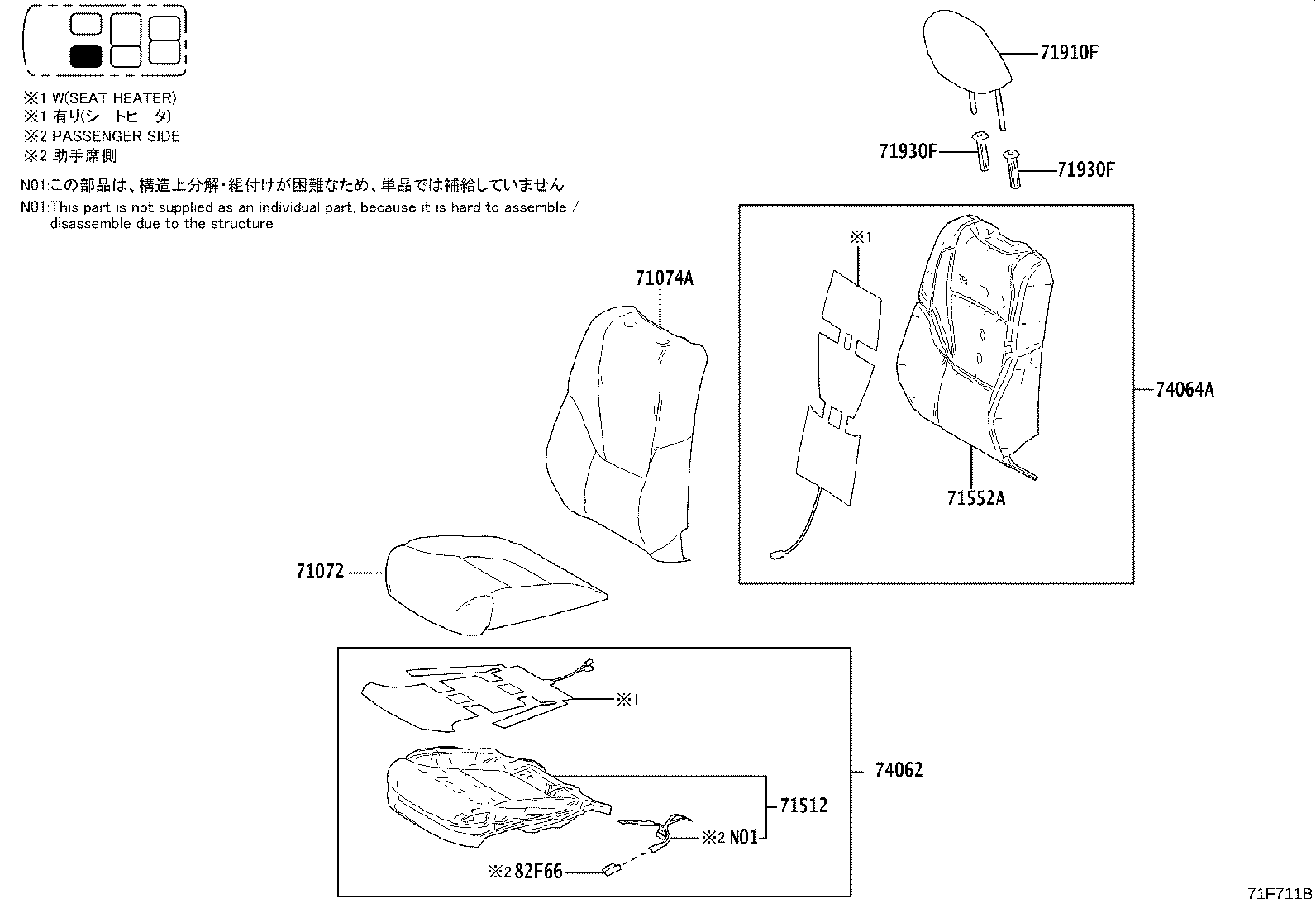

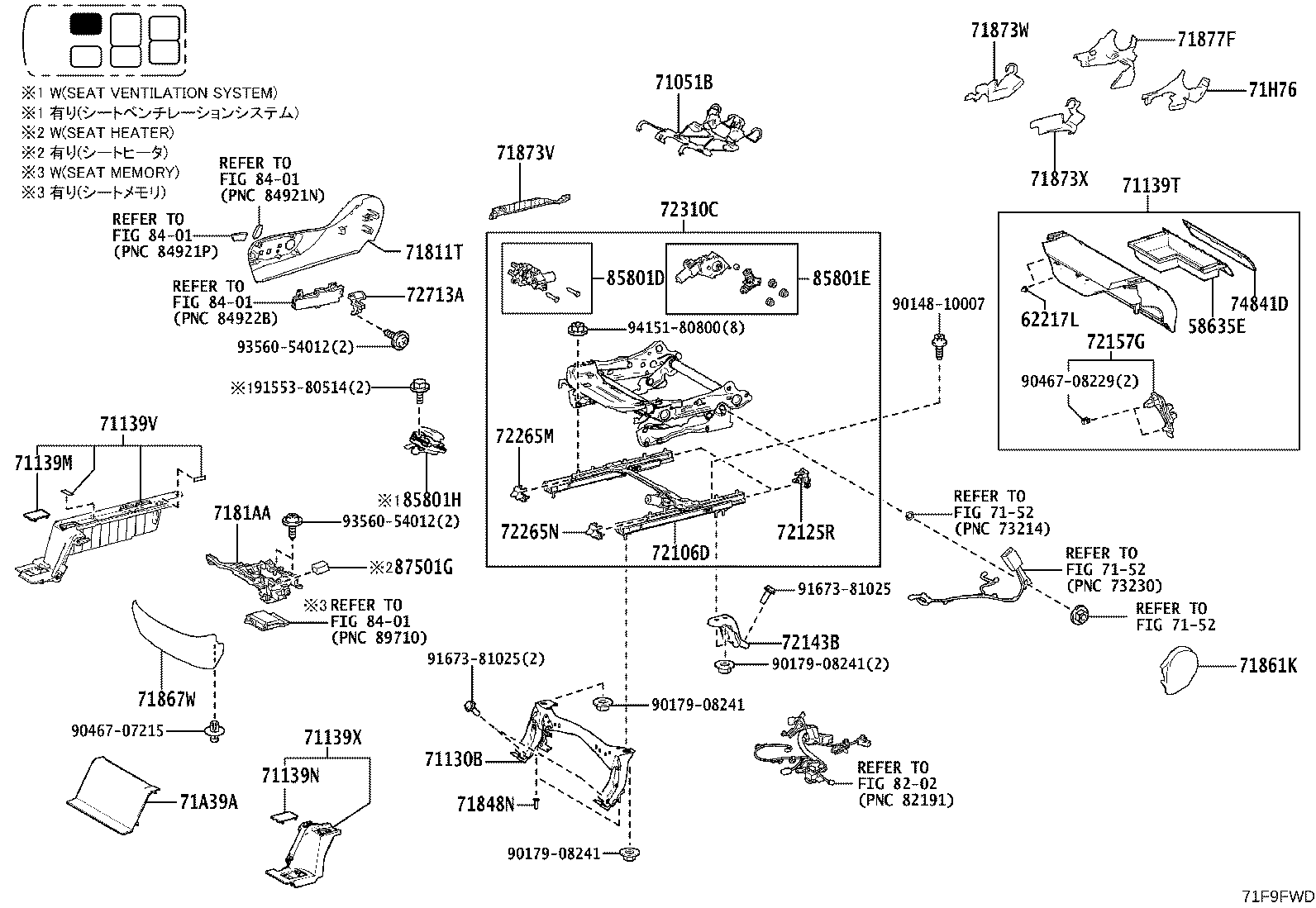

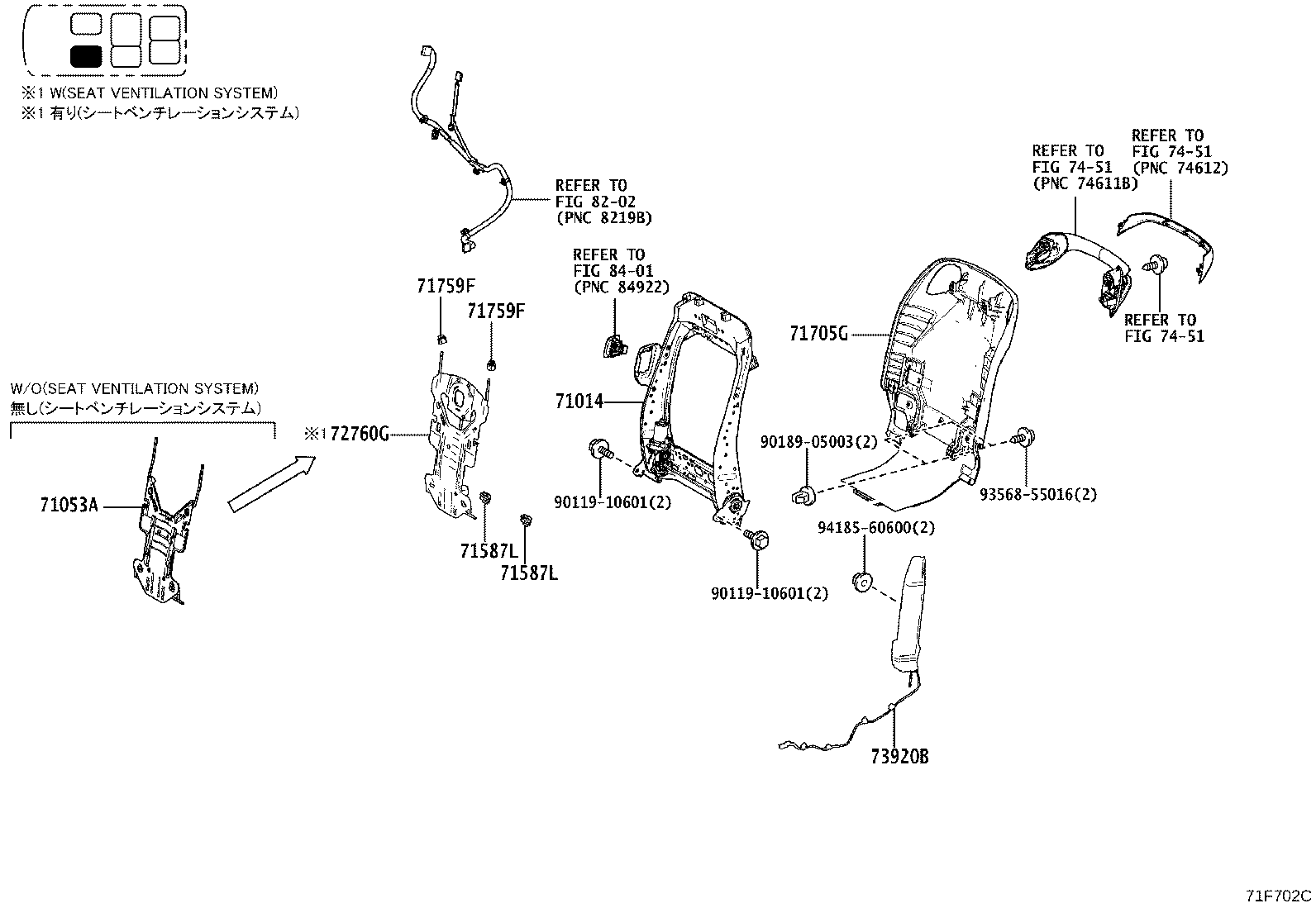

Figure 71F686 71F686 2023-05 → — Figure 71F687F 71F687F 2023-05 → — Figure 71F688F 71F688F 2023-05 → — Figure 71F712B 71F712B 2023-05 → — Figure 71F700C 71F700C 2023-05 → — Figure 71F9FVD 71F9FVD 2023-05 → — Figure 71F713C 71F713C 2023-05 → — Figure 71F9FZC 71F9FZC 2023-05 → — Figure 71F709C 71F709C 2023-05 → — Figure 71F9FWD 71F9FWD 2023-05 → — Figure 71F714C 71F714C 2023-05 → — Figure 71F9G0C 71F9G0C 2023-05 → — Figure 71F711B 71F711B 2023-05 → — Figure 71F702C 71F702C 2023-05 → — Figure 71F9FXE 71F9FXE 2023-05 → — Figure 71F715C 71F715C 2023-05 → — Figure 71F9G1E 71F9G1E 2023-05 → — Figure 71F710C 71F710C 2023-05 → — Figure 71F9FYE 71F9FYE 2023-05 → — Figure 71F716C 71F716C 2023-05 → — Figure 71F9G2E 71F9G2E 2023-05 → —

Part groups

PNCDescription
58635E Box, Seat Floor, RH
58635F Box, Seat Floor, LH
62217L Clip, Front Seat Leg Cover, RH
62217M Clip, Front Seat Leg Cover, LH
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71053 Spring Sub-assy, Front Seatback, RH
71053A Spring Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71130B Leg Assy, Front Seat, RH
71139M Cover, Front Seat Leg, RH Outer
71139N Cover, Front Seat Leg, RH Inner
71139P Cover, Front Seat Leg, LH Outer
71139Q Cover, Front Seat Leg, LH Inner
71139T Cover, Front Seat Leg, Rear RH
71139U Cover, Front Seat Leg, Rear LH
71139V Cover, Front Seat Leg NO.1
71139X Cover, Front Seat Leg NO.2
71140A Leg Assy, Front Seat, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71705F Board Sub-assy, Front Seatback, RH
71705G Board Sub-assy, Front Seatback, LH
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71759H Hook, Front Seatback
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
7181AA Holder, Front Seat Cushion Wire Harness, RH
7181BA Holder, Front Seat Cushion Wire Harness, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71848P Cap, Front Seat Adjuster Cover, RH NO.2
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867W Shield, Front Seat Cushion, Front RH
71867X Shield, Front Seat Cushion, Front LH
71873V Shield, Front Seat Cushion, Lower RH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71873X Shield, Front Seat Cushion, Lower RH, Inner
71874U Shield, Front Seat Cushion, Lower LH
71874Y Shield, Front Seat Cushion, Lower LH NO.2
71874Z Shield, Front Seat Cushion, Lower LH NO.3
71877F Cover, Reclining Adjuster Inside, RH(FOR RH SEAT)
71877J Cover, Reclining Adjuster Inside, LH(FOR LH SEAT)
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A39A Cover, Front Seat Leg, NO.3
71A39B Cover, Front Seat Leg, NO.4
71A39C Cover, Front Seat Leg, NO.5
71A39D Cover, Front Seat Leg, NO.6
71A49 Cover, Front Seat Leg, NO.1
71A49A Cover, Front Seat Leg(FOR LH SEAT)
71H76 Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71T76L Cover, Reclining Adjuster Inside, LH
72106D Rail Sub-assy, Seat Track, Upper RH
72108A Rail Sub-assy, Seat Track, Upper LH
72125R Cover, Seat Track, Upper Rear NO.1
72136B Spacer, Seat Track, Lower NO.3
72136C Spacer, Seat Track, Lower NO.4
72143B Bracket, Front Seat Track, Lower Rear RH(FOR RH SEAT)
72143C Bracket, Front Seat Track, Lower Rear(FOR LH SEAT)
72157G Cover, Seat Track Bracket, Inner Rear RH
72158F Cover, Seat Track Bracket, Inner Rear LH
72211F Handle, Seat Track Adjusting, RH
72211G Handle, Seat Track Adjusting, LH
72265M Cover, Seat Track Upper Rail, RH
72265N Cover, Seat Track Upper Rail, LH
72310C Adjuster Assy, Front Seat Vertical, RH
72320B Adjuster Assy, Front Seat Vertical, LH
72443C Gear, Vertical Adjuster
72494A Handle, Front Seat Vertical Adjuster, RH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72551K Cover, Reclining Hinge, RH
72551L Cover, Reclining Hinge, LH
72713A Bracket, Seat Adjuster Shield Clamp, RH
72714A Bracket, Seat Adjuster Shield Clamp, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
74061 Bag Sub-assy, Seat Cushion Pad, RH
74062 Bag Sub-assy, Seat Cushion Pad, LH
74063A Bag Sub-assy, Seatback Pad, RH
74064A Bag Sub-assy, Seatback Pad, LH
74841D Panel, Front Seatback
82F66 Holder, Connector
85801D Motor Sub-assy, Power Seat Tilt, RH
85801E Motor Sub-assy, Power Seat Lifter, RH
85801F Motor Sub-assy, Power Seat Tilt, LH
85801G Motor Sub-assy, Power Seat Lifter, LH
85801H Blower Sub-assy, Seat Cushion Climate, RH
85860H Blower Assy, Seat Cushion Climate Control, LH
87501G Control Sub-assy, Seat Heater, RH
87501H Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
