Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

331 part groups · 29 illustrations

Illustrations

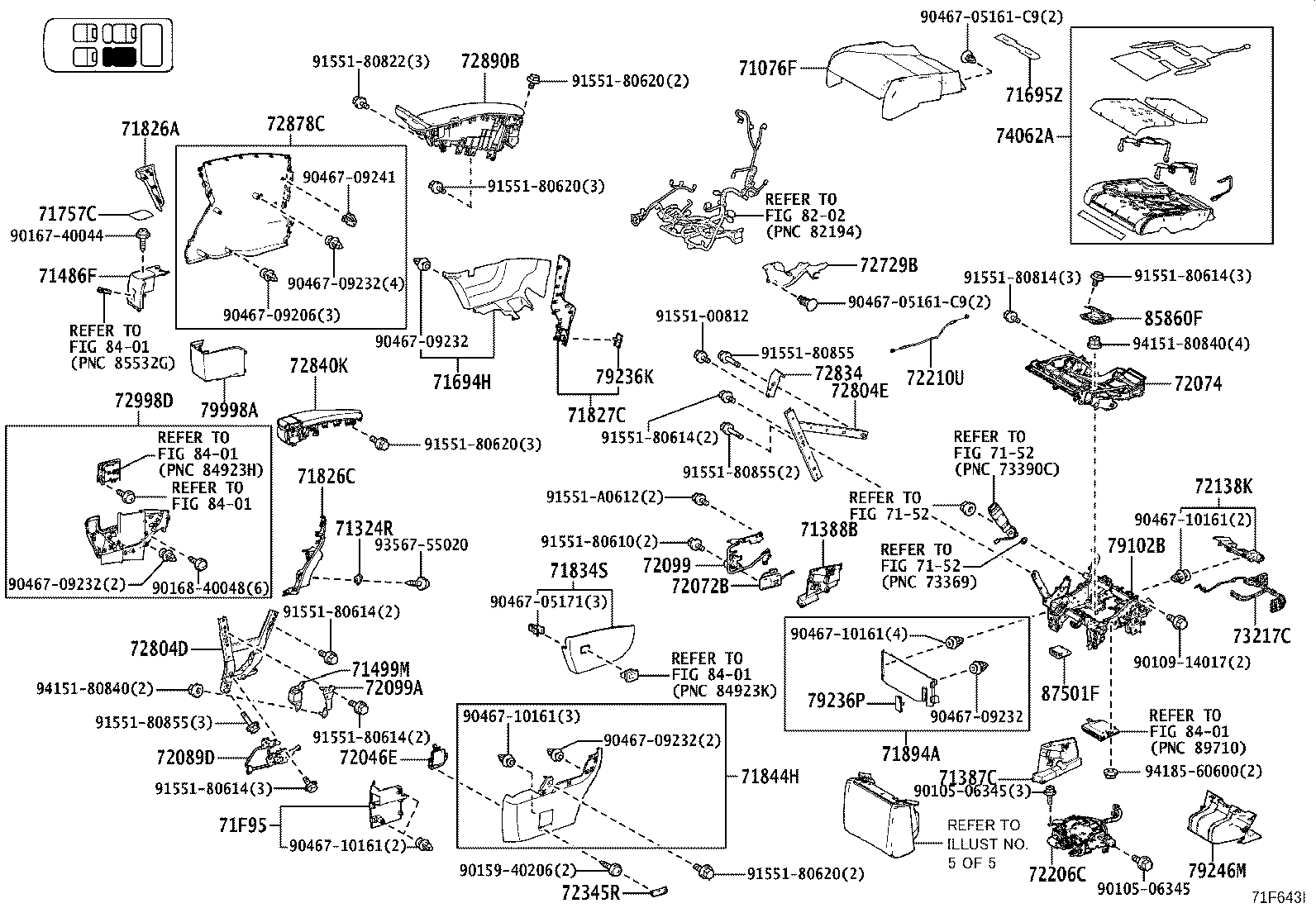

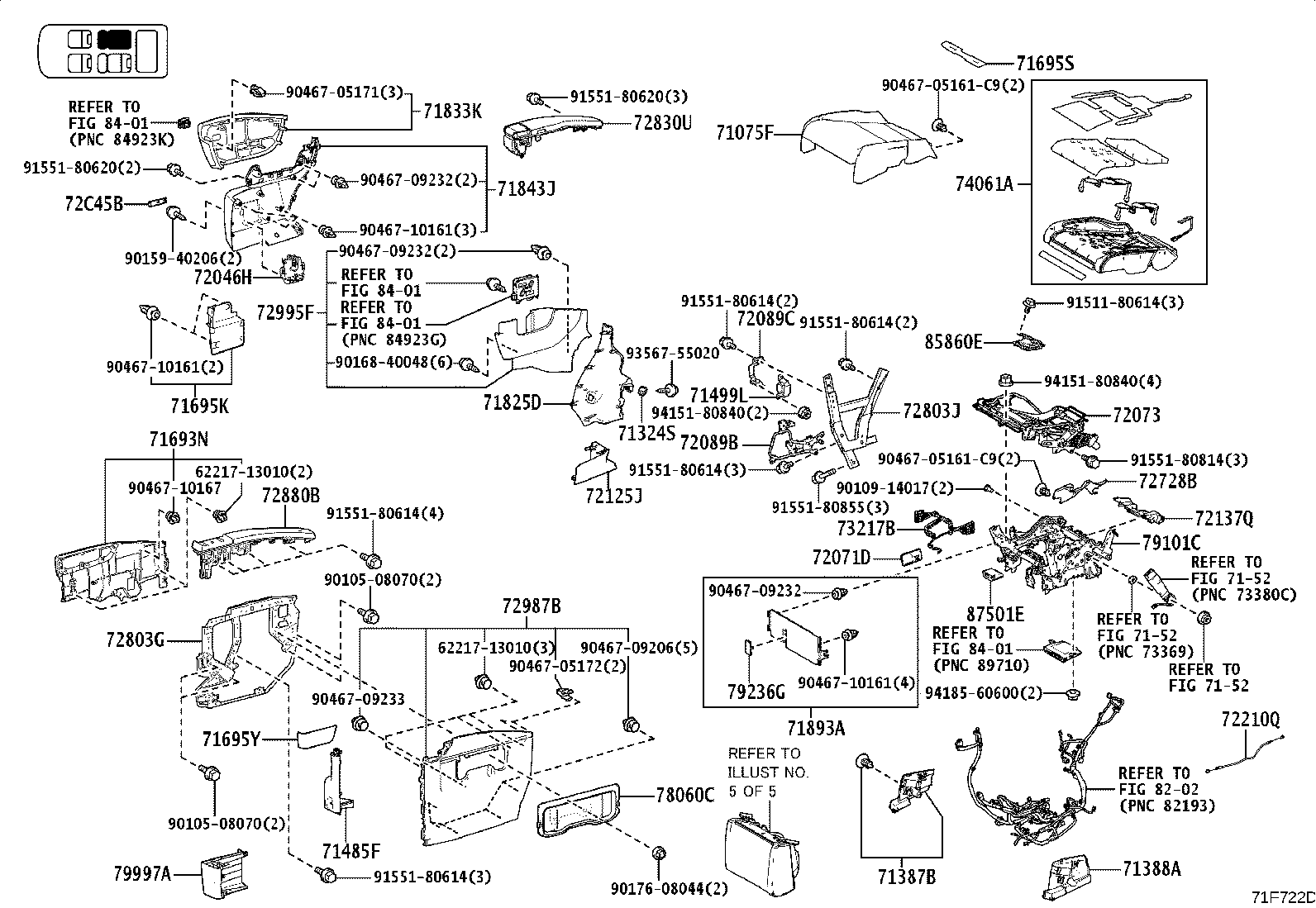

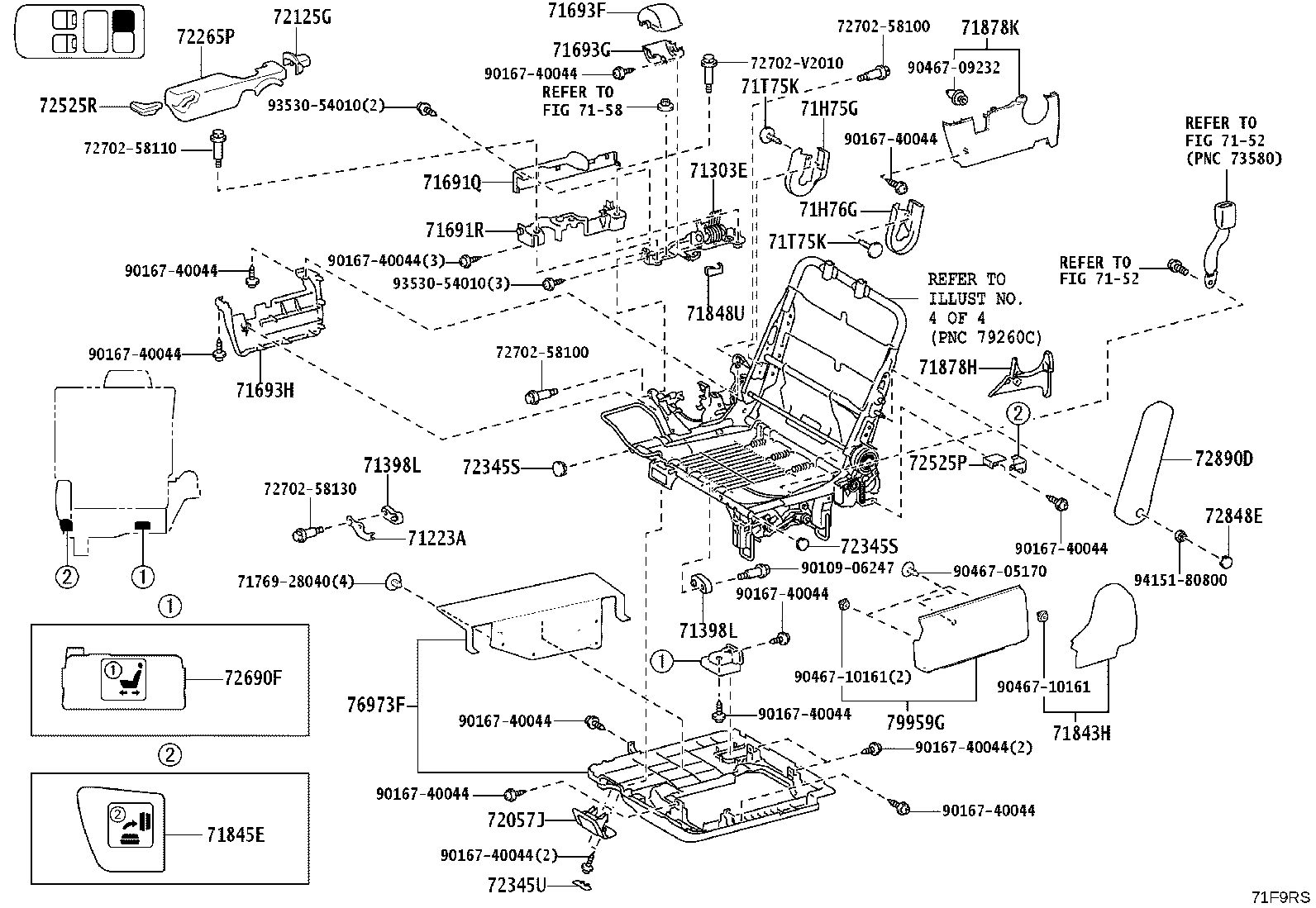

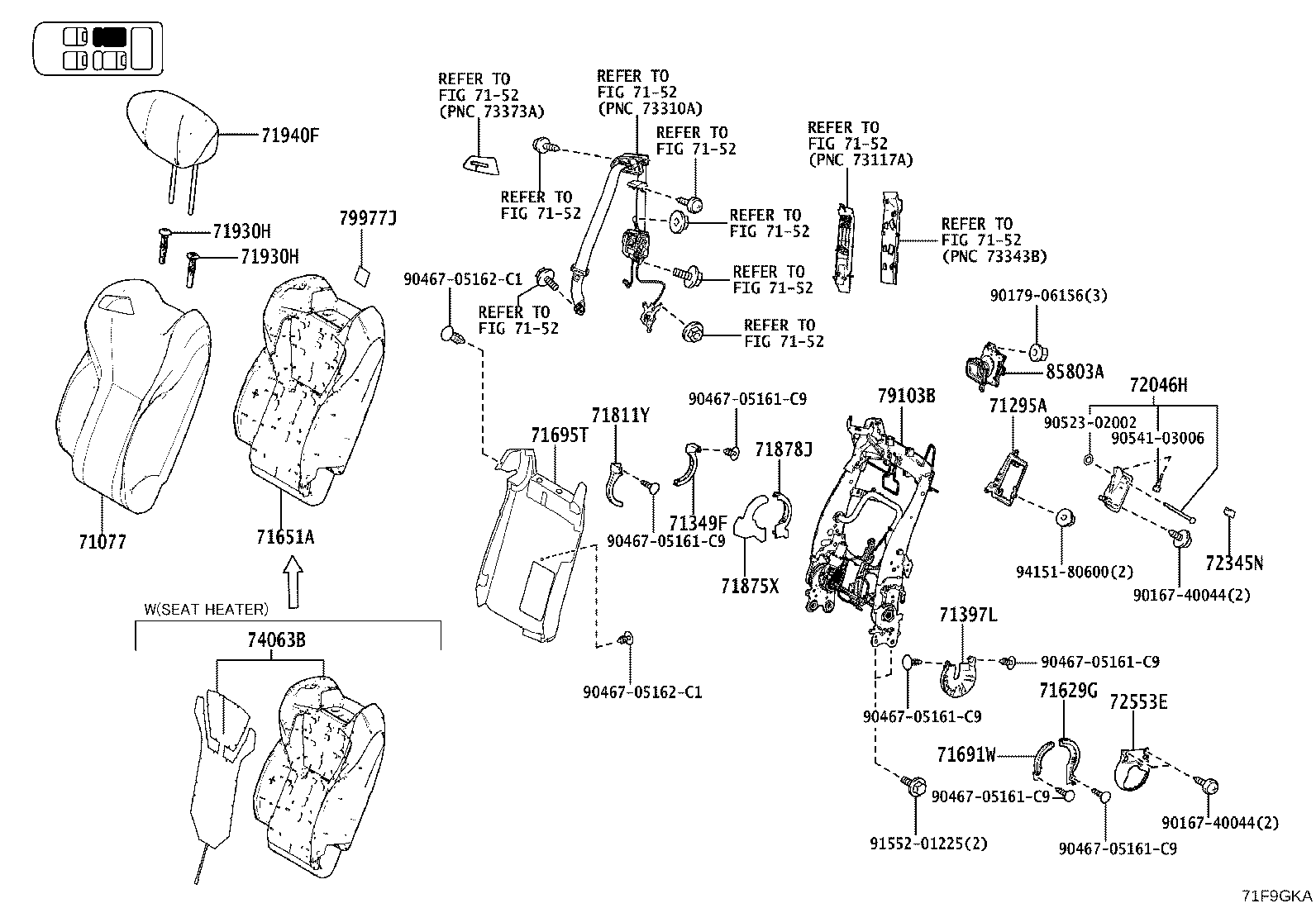

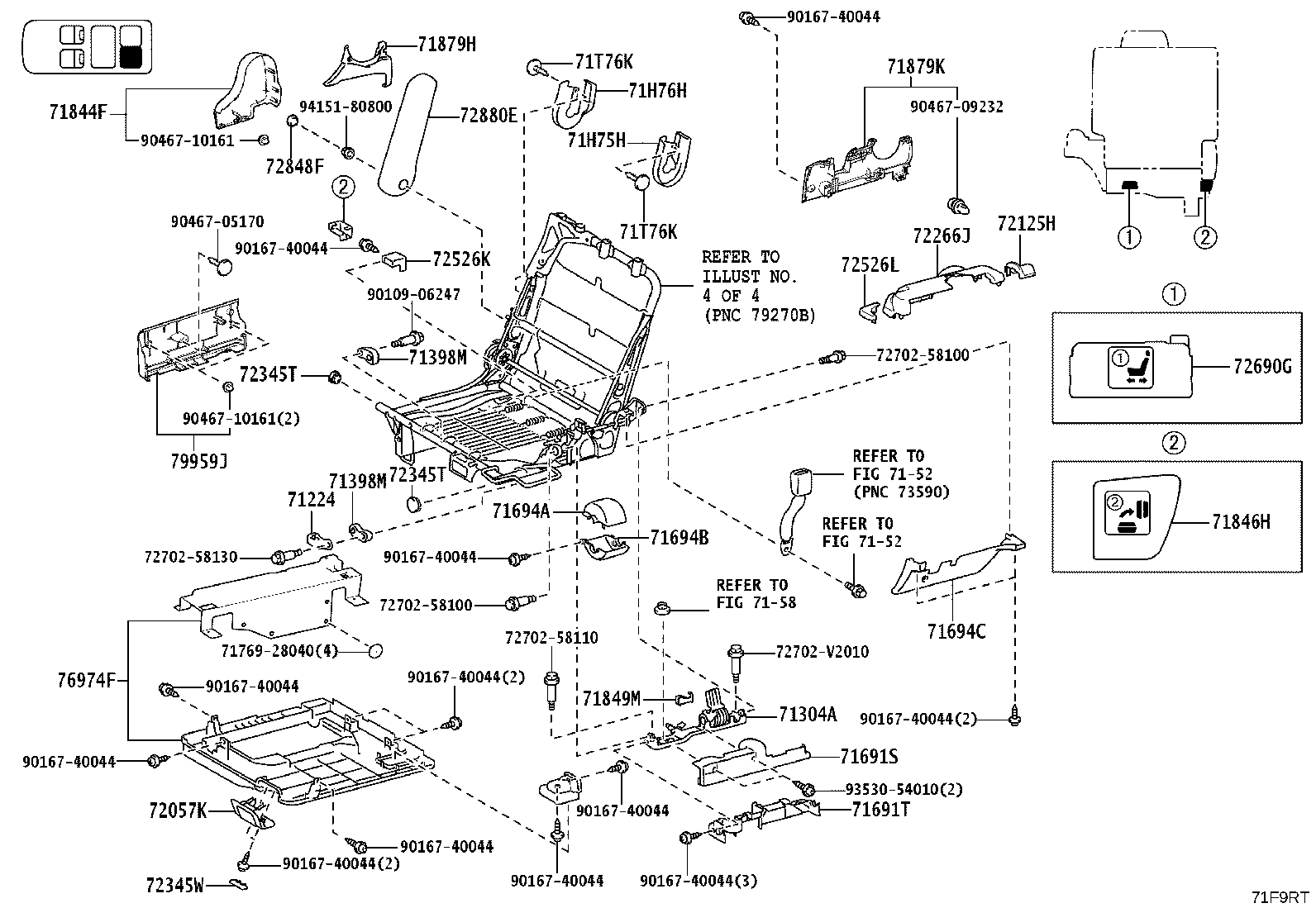

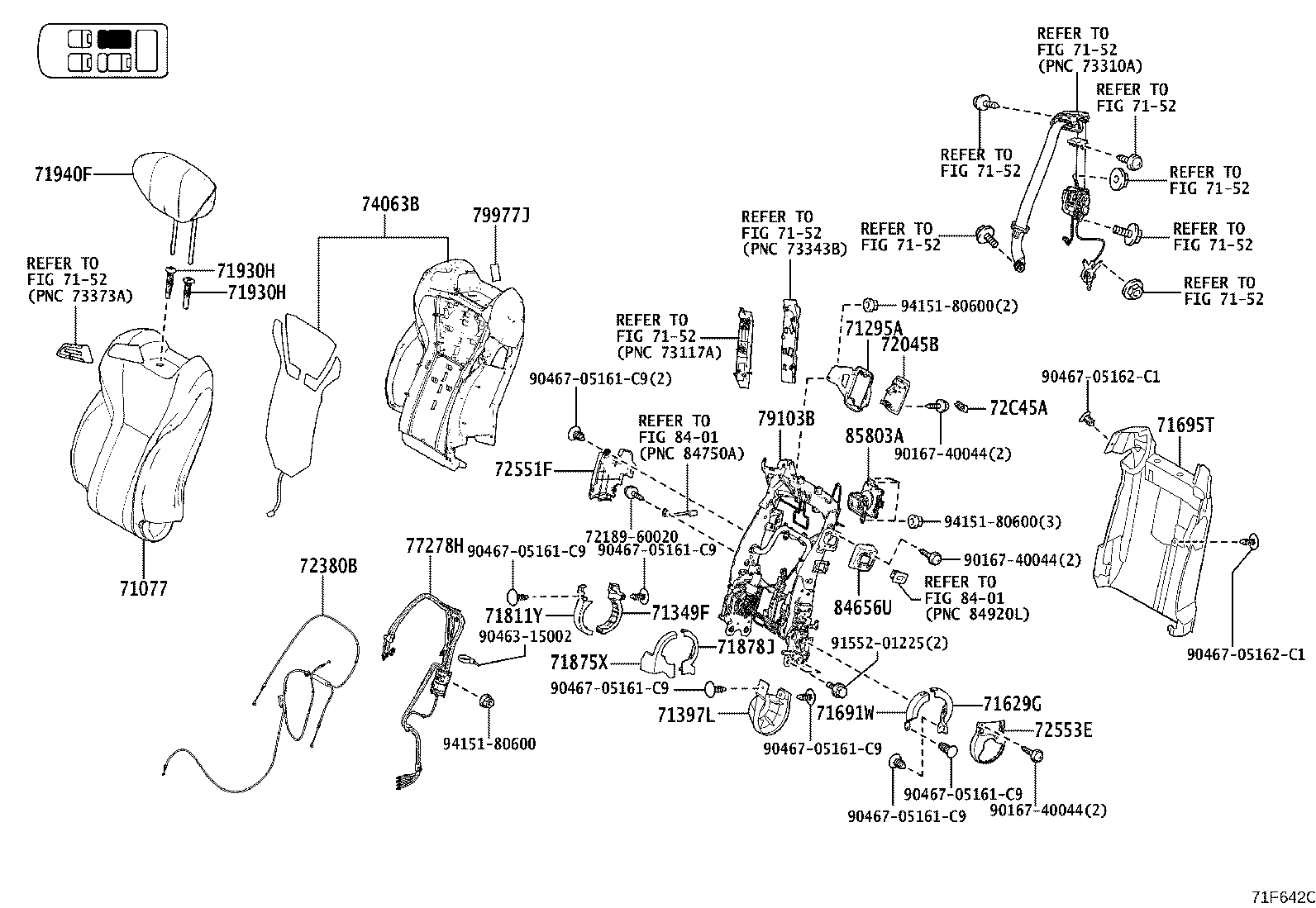

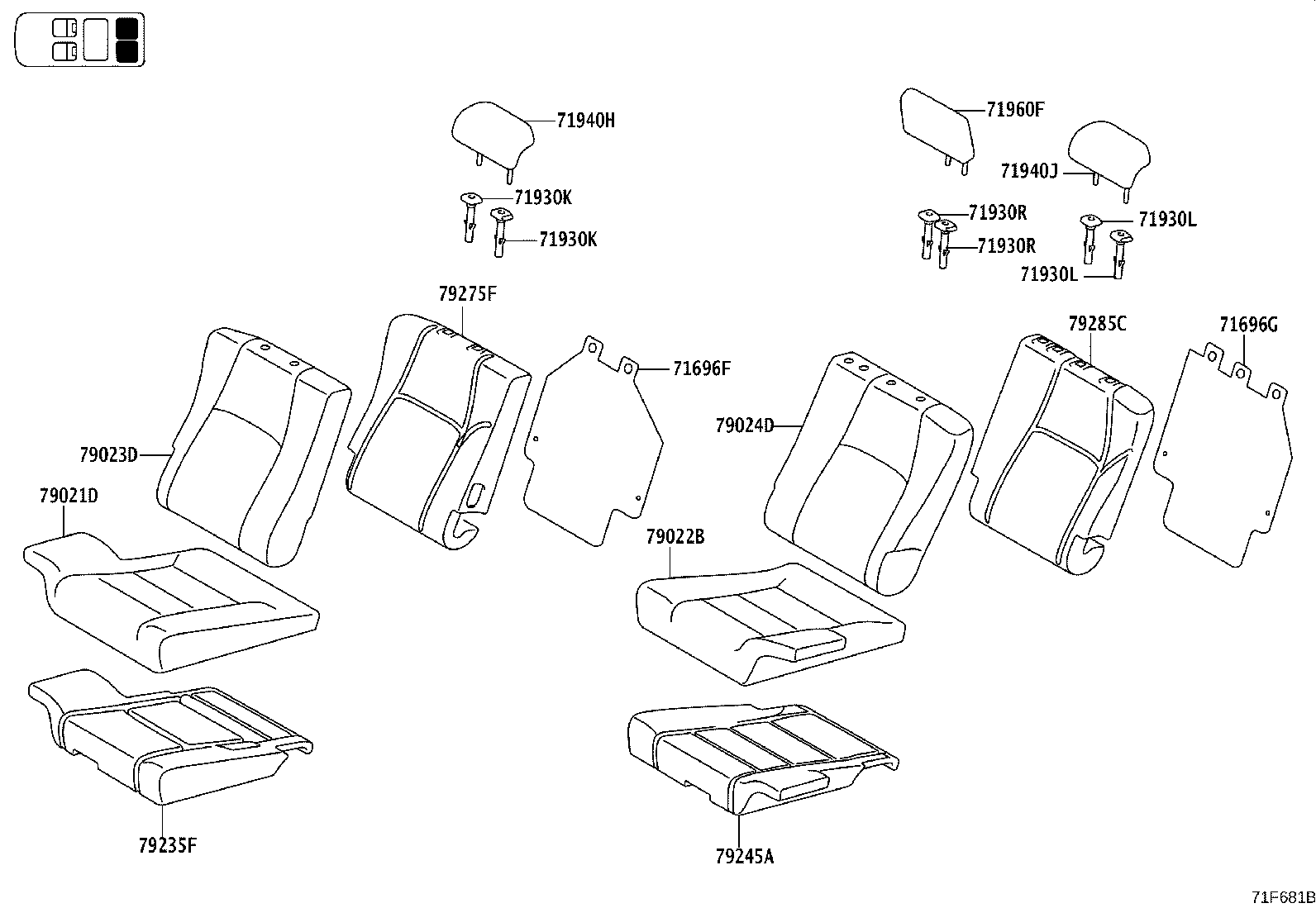

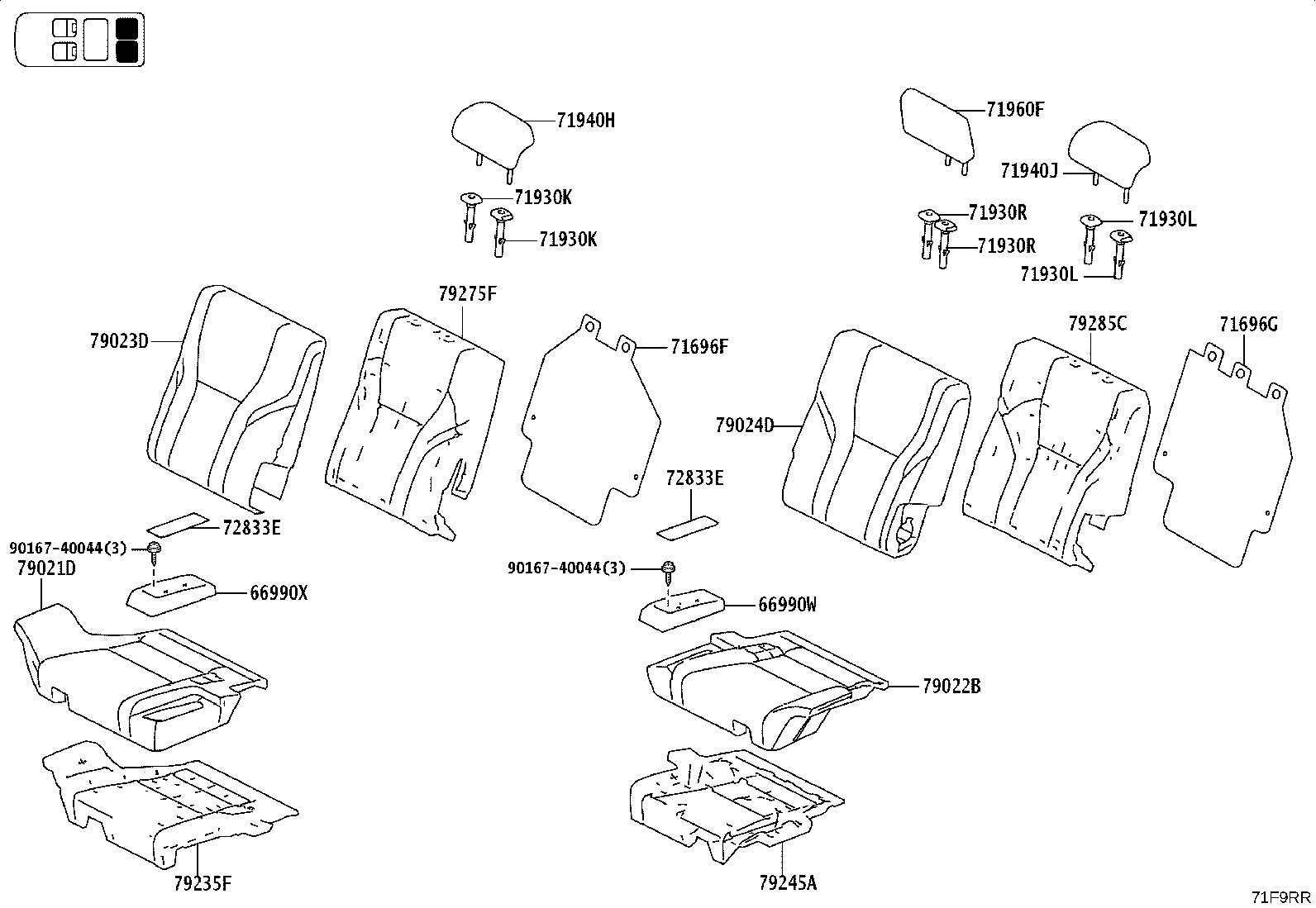

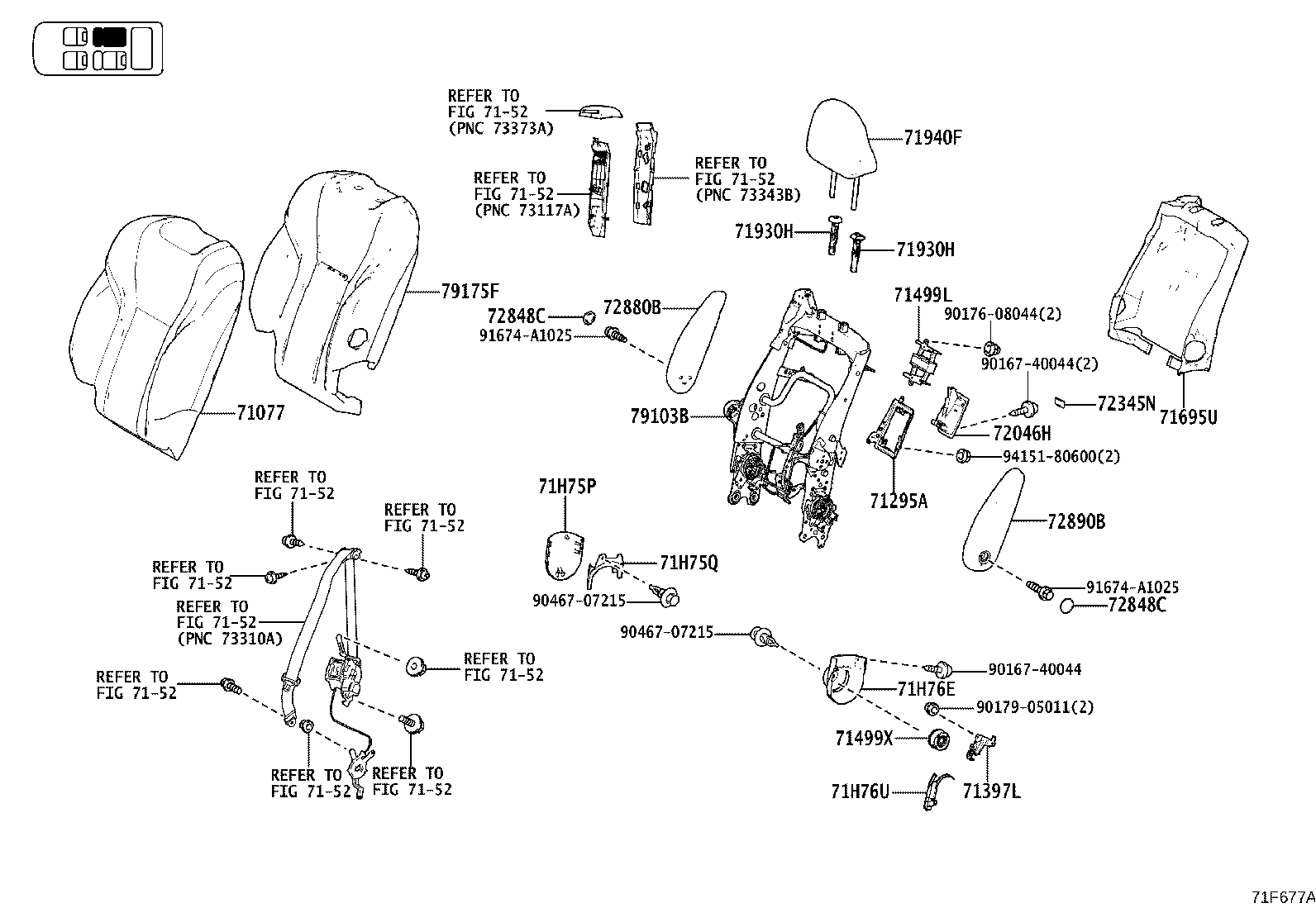

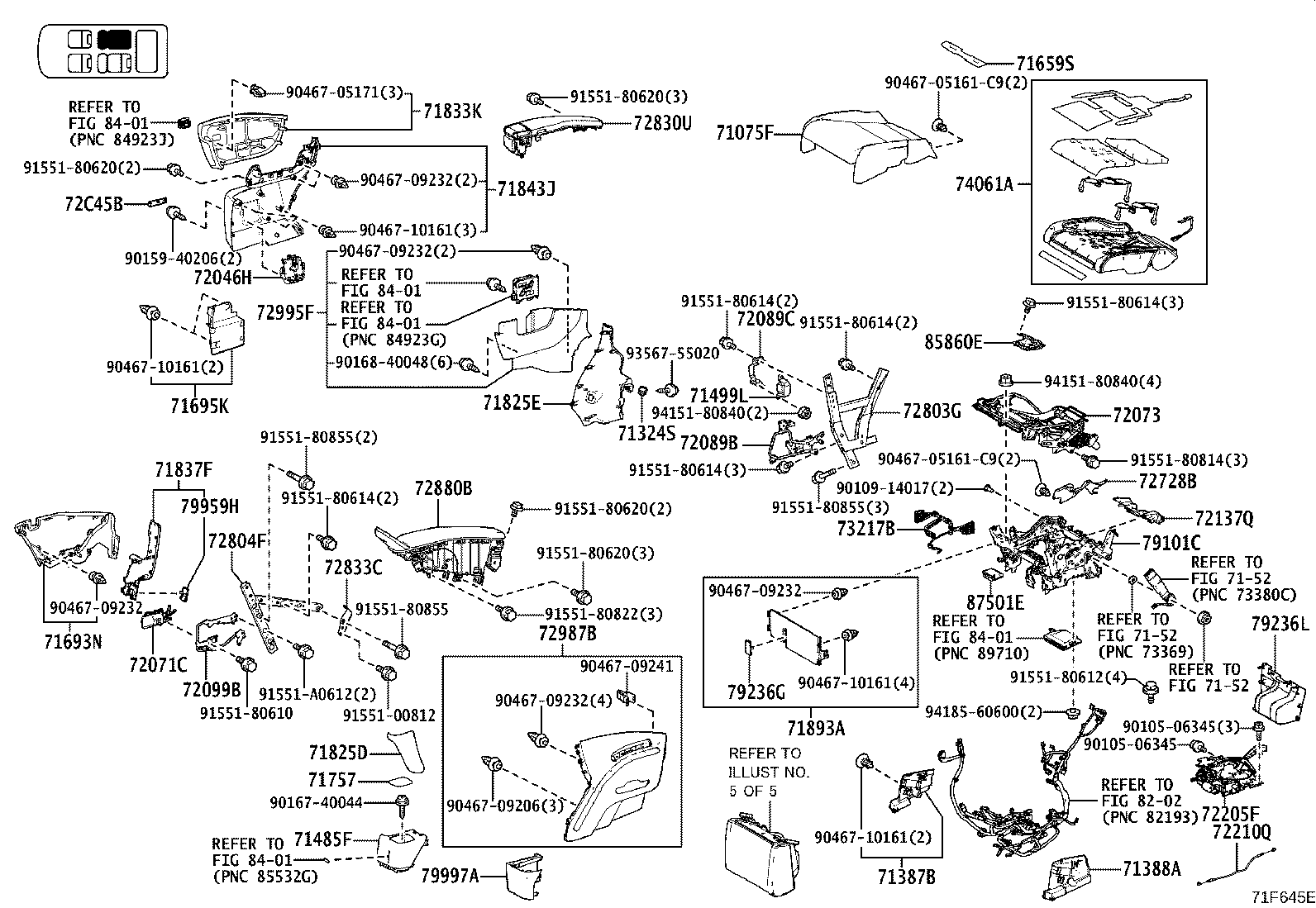

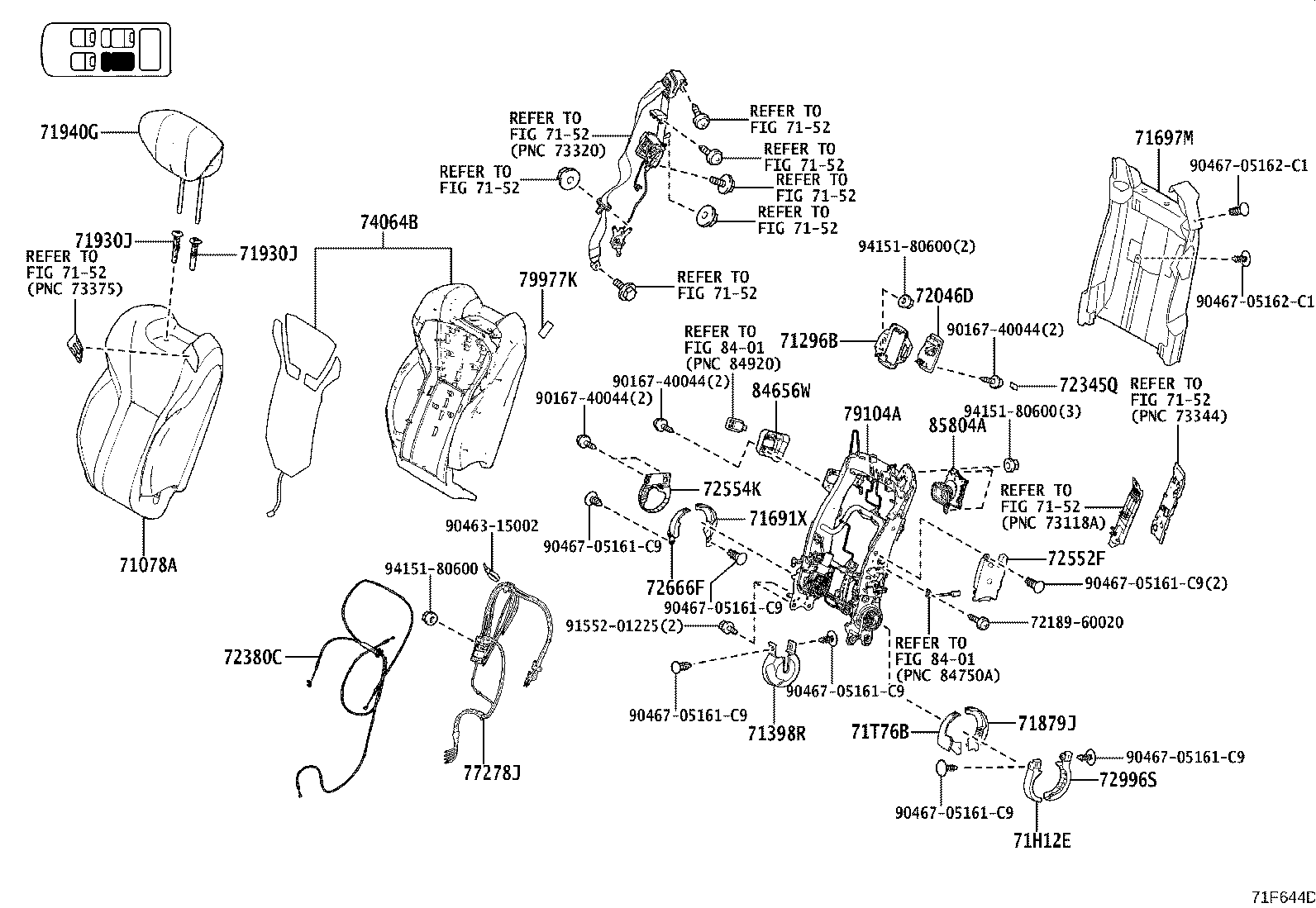

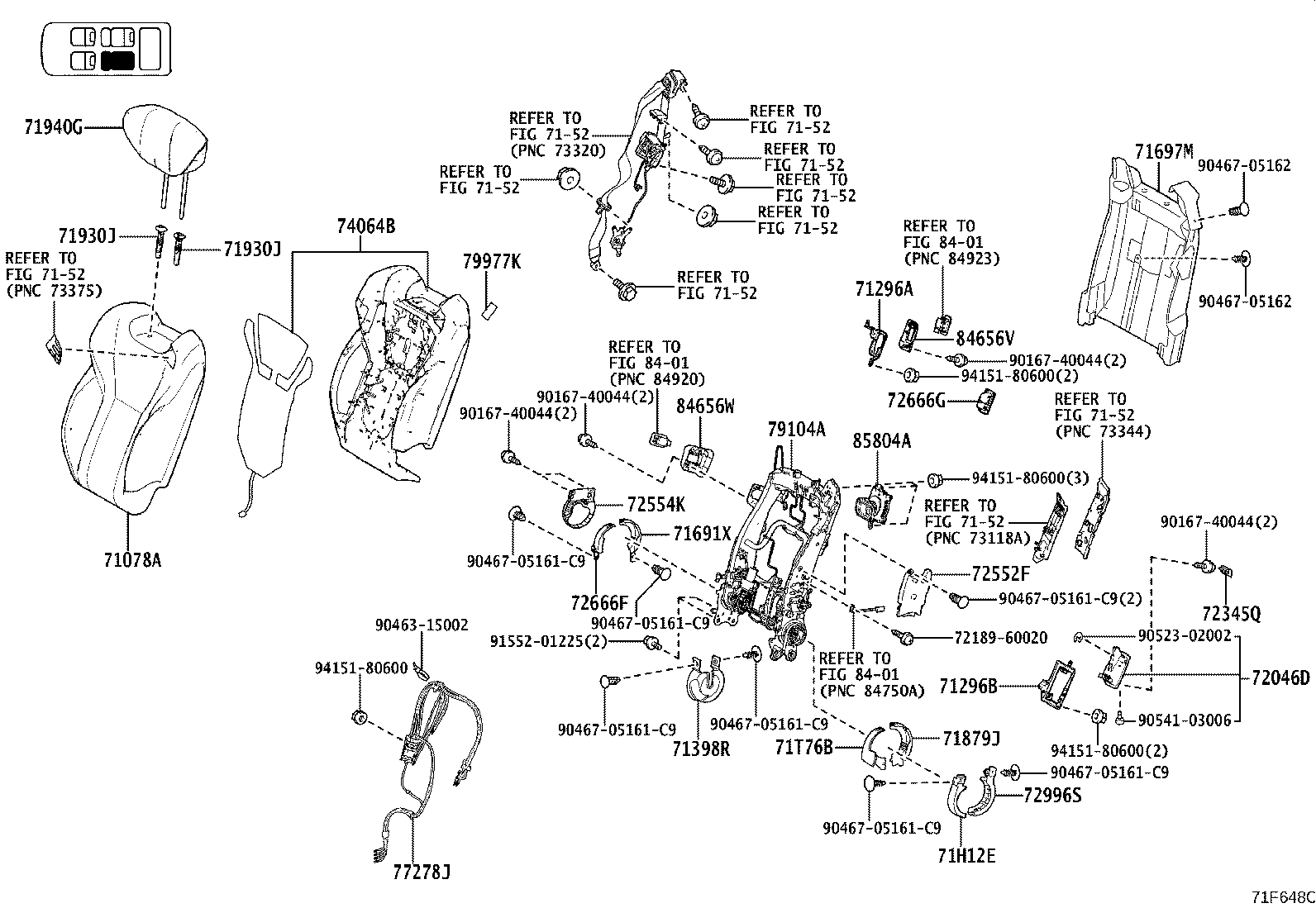

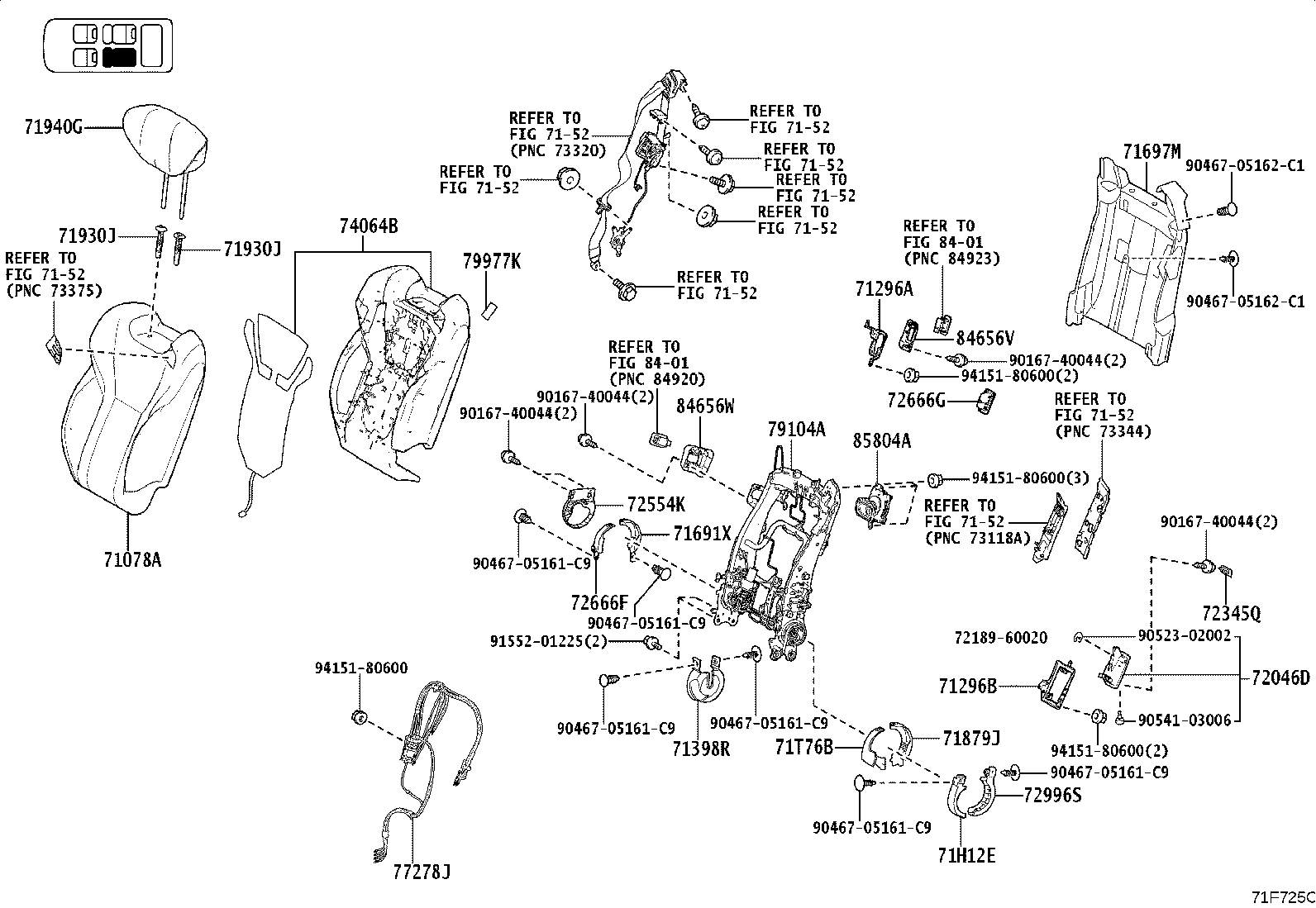

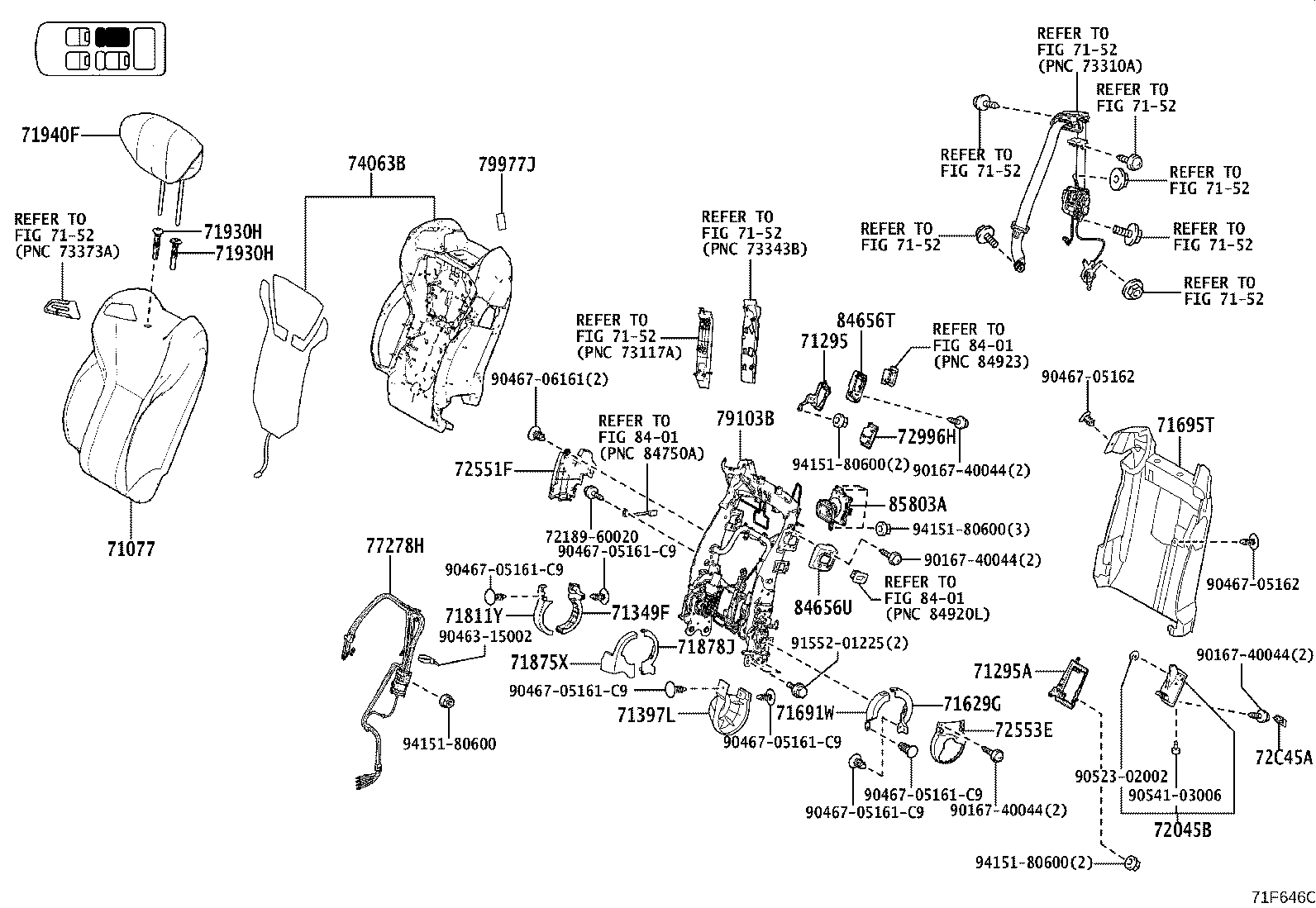

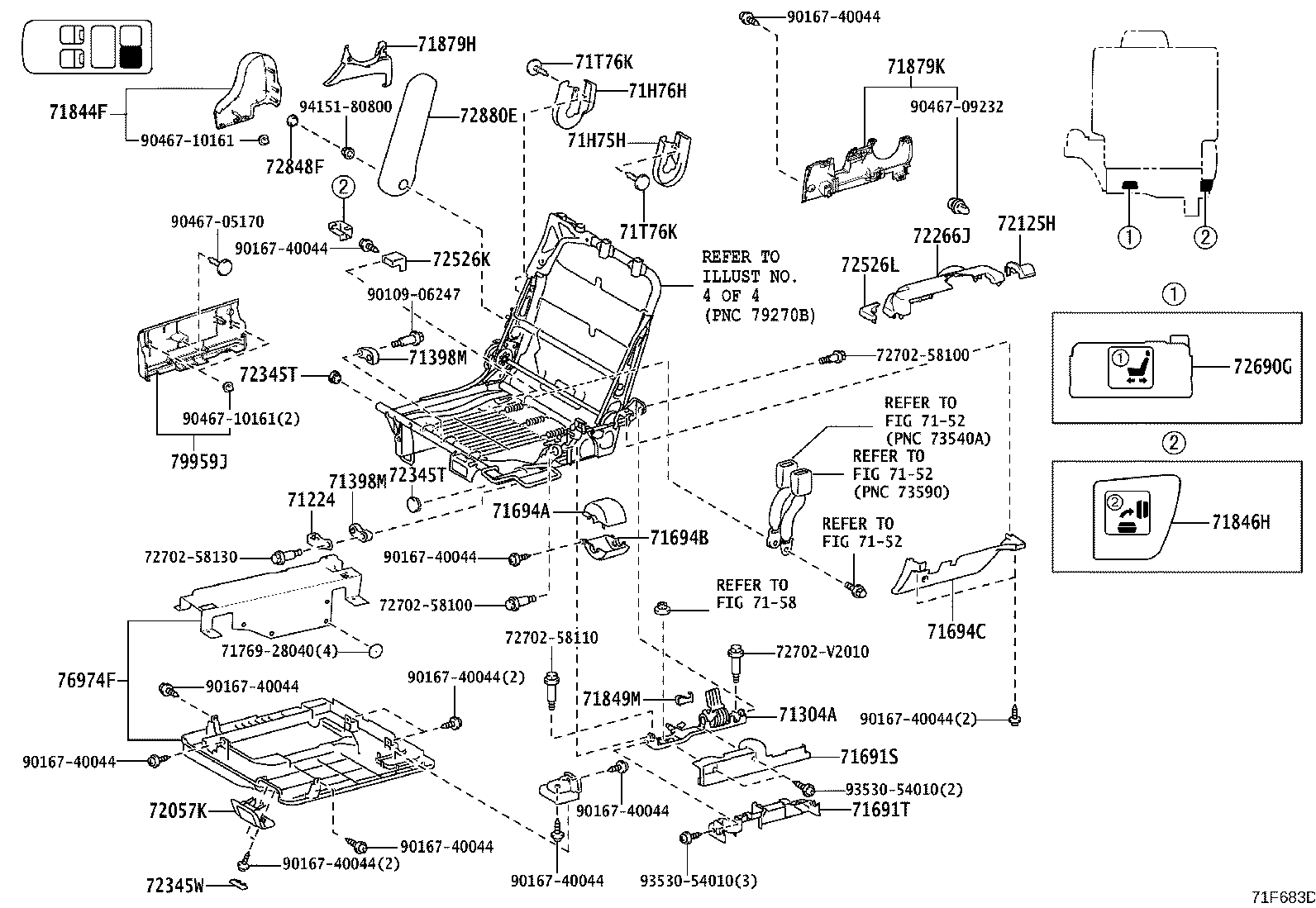

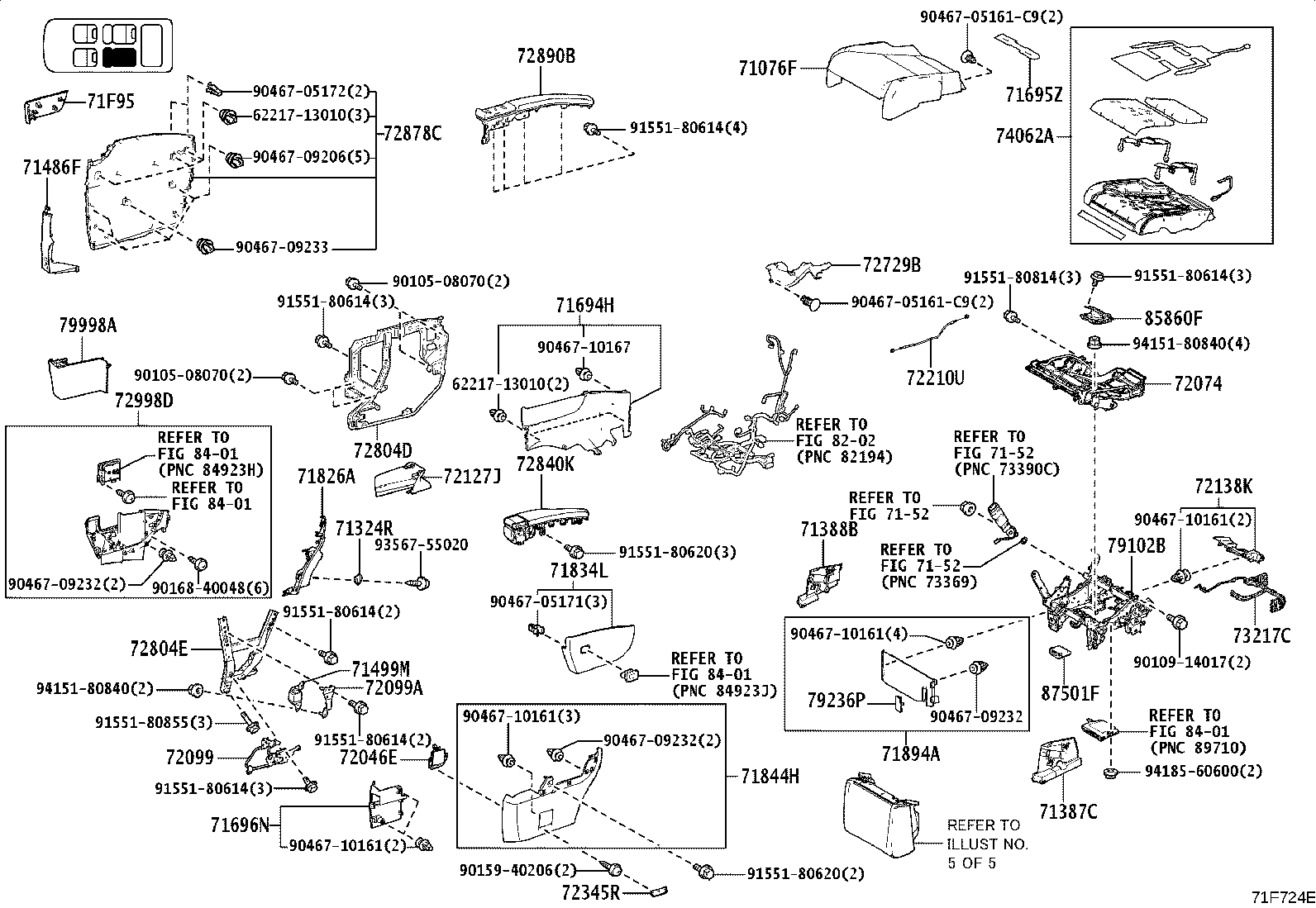

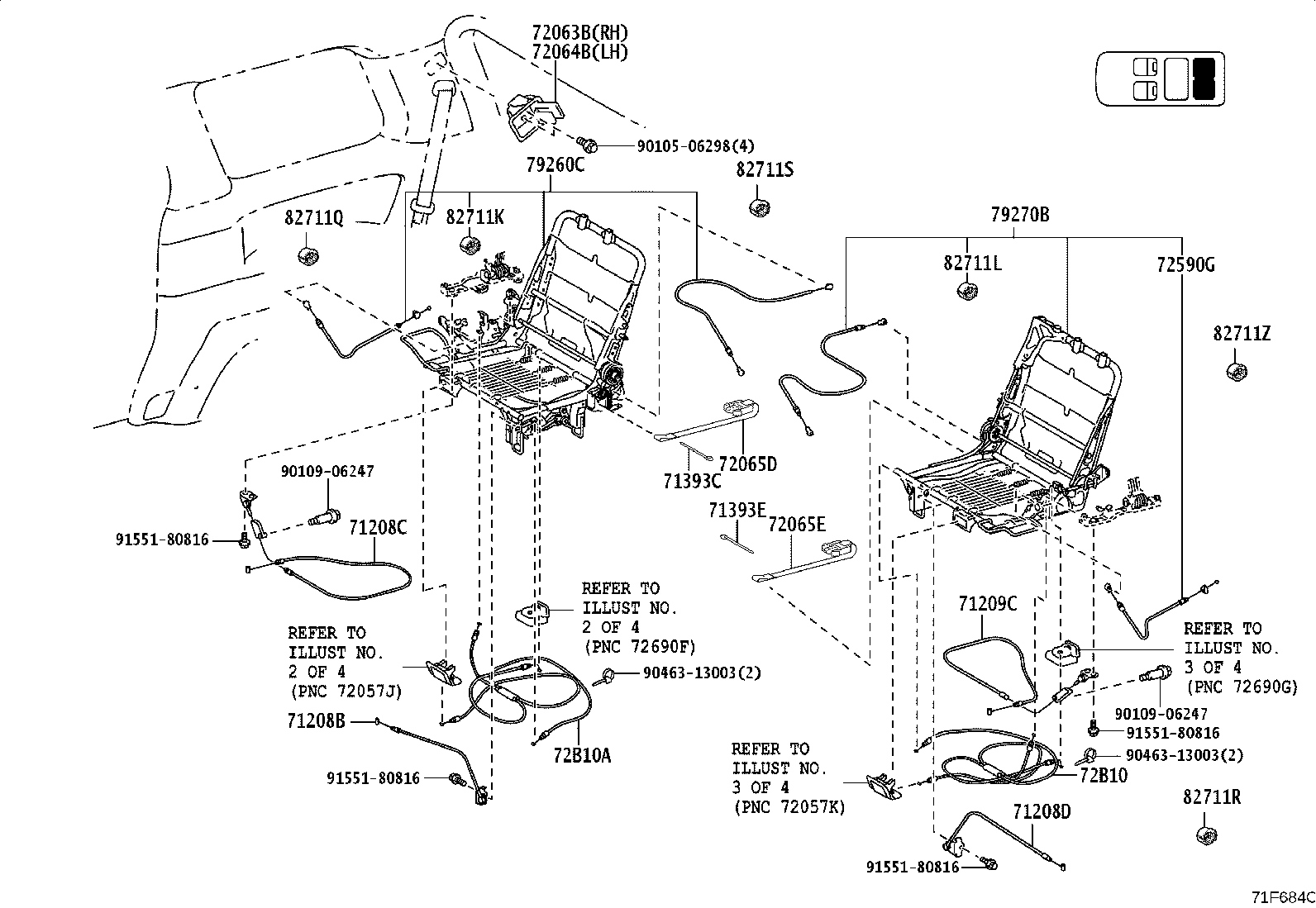

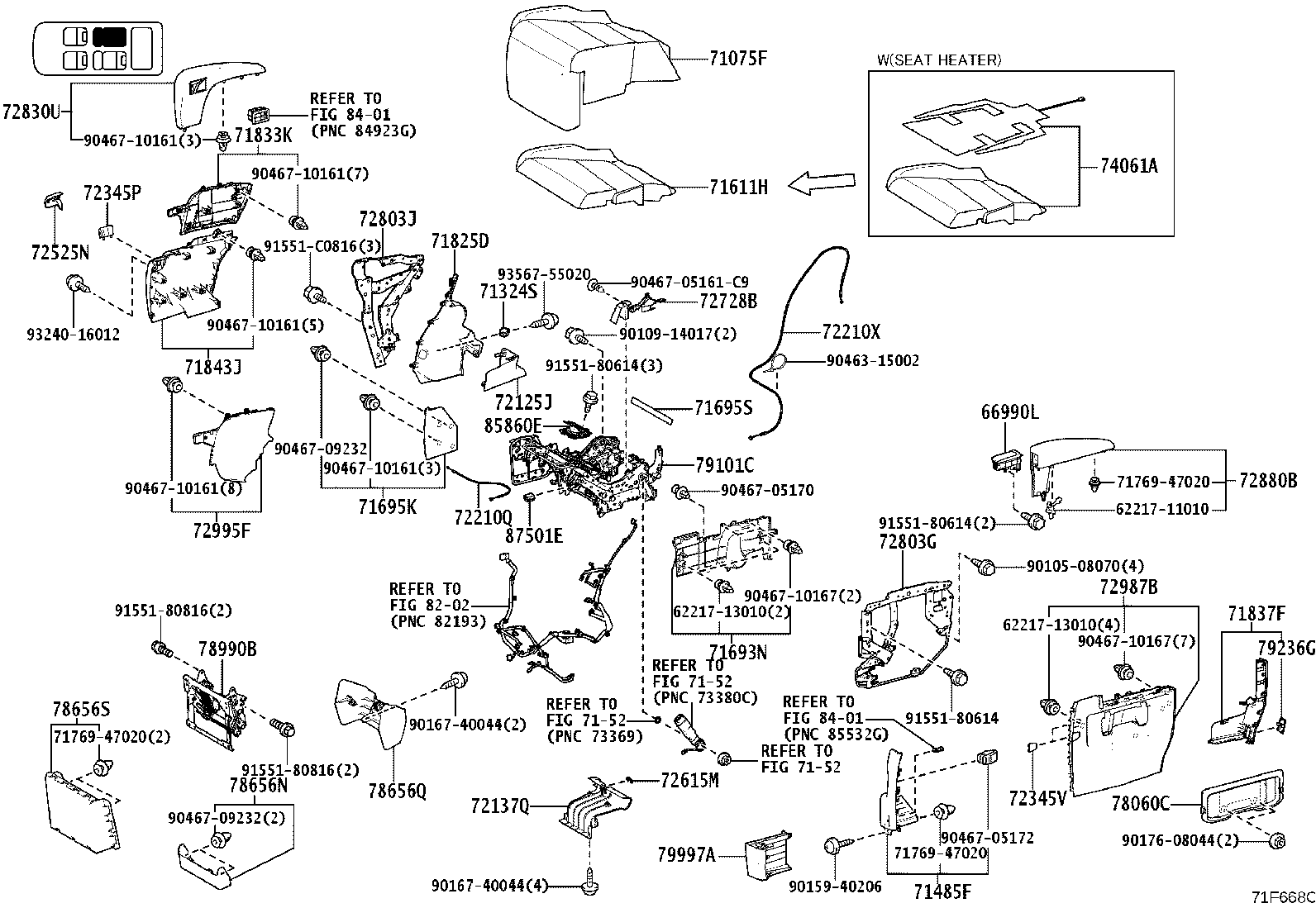

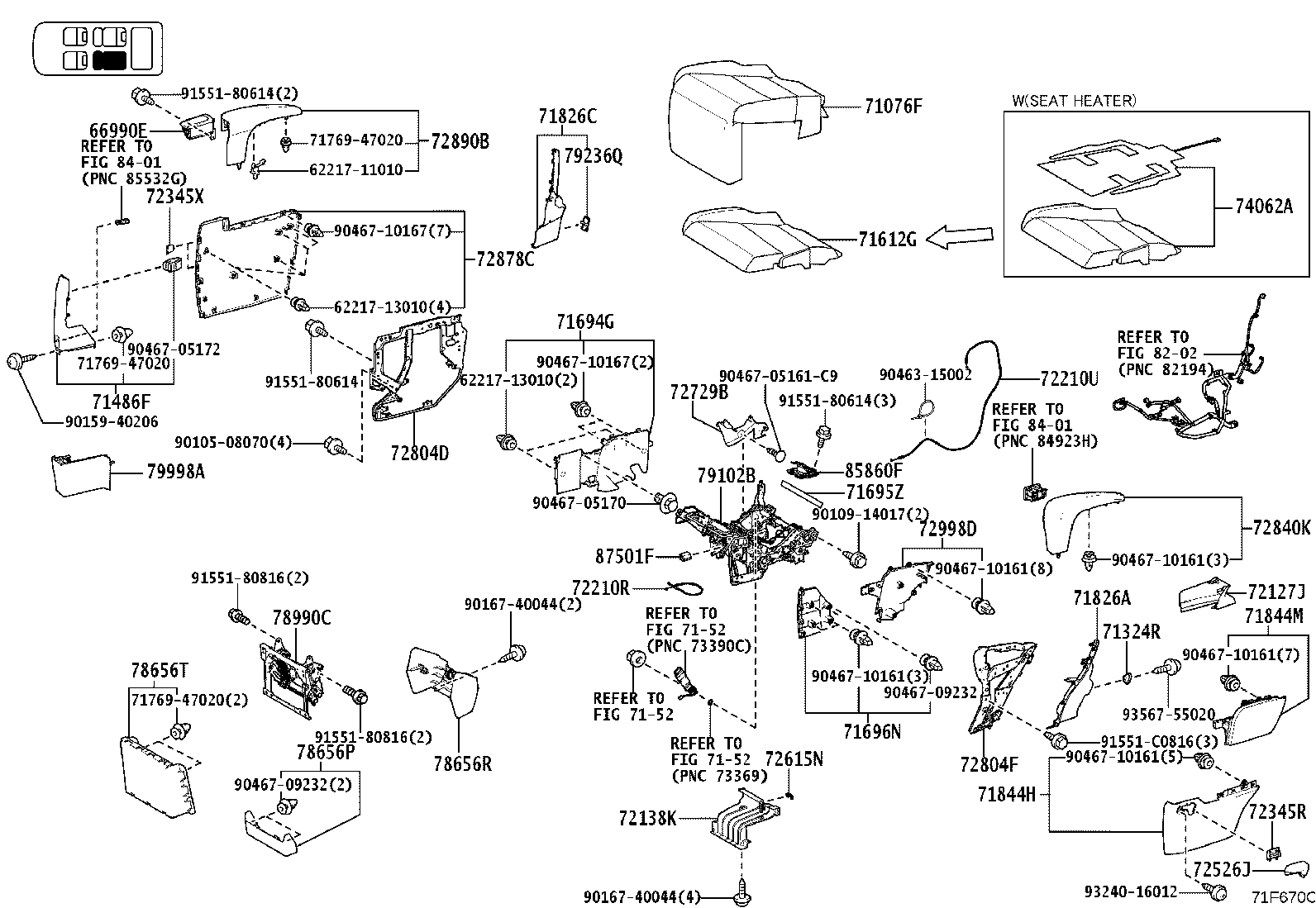

Figure 71F676B 71F676B 2023-06 → — Figure 71F677A 71F677A 2023-06 → — Figure 71F678A 71F678A 2023-06 → — Figure 71F679A 71F679A 2023-06 → — Figure 71F668C 71F668C 2023-06 → — Figure 71F9GKA 71F9GKA 2023-06 → — Figure 71F670C 71F670C 2023-06 → — Figure 71F671C 71F671C 2023-06 → — Figure 71F722D 71F722D 2023-06 → — Figure 71F723C 71F723C 2023-06 → — Figure 71F724E 71F724E 2023-06 → — Figure 71F725C 71F725C 2023-06 → — Figure 71F726E 71F726E 2023-06 → — Figure 71F641F 71F641F 2023-06 → — Figure 71F645E 71F645E 2023-06 → — Figure 71F642C 71F642C 2023-06 → — Figure 71F646C 71F646C 2023-06 → — Figure 71F643I 71F643I 2023-06 → — Figure 71F647F 71F647F 2023-06 → — Figure 71F644D 71F644D 2023-06 → — Figure 71F648C 71F648C 2023-06 → — Figure 71F9GLD 71F9GLD 2023-06 → — Figure 71F9RR 71F9RR 2024-10 → — Figure 71F681B 71F681B 2023-06 → — Figure 71F9RS 71F9RS 2024-10 → — Figure 71F682D 71F682D 2023-06 → — Figure 71F9RT 71F9RT 2024-10 → — Figure 71F683D 71F683D 2023-06 → — Figure 71F684C 71F684C 2023-06 → —

Part groups

PNCDescription
66990E Holder Assy, Rear NO.1 Seat Cup, LH
66990L Holder Assy, Rear NO.1 Seat Cup, RH
66990W Holder Assy, Rear NO.2 Seat Cup, LH
66990X Holder Assy, Rear NO.2 Seat Cup, RH
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71077 Cover Sub-assy, Rear NO.1 Seatback, RH
71078A Cover Sub-assy, Rear NO.1 Seatback, LH
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208C Wire Sub-assy, NO.2 Seat Cushion, RH NO.2
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71209C Wire Sub-assy, NO.2 Seat Cushion, LH NO.2
71223A Bracket, NO.2 Seat Cushion Side, RH
71224 Bracket, NO.2 Seat Cushion Side, LH
71295 Plate, Rear Seatback, Upper RH
71295A Plate, Rear Seatback, Upper RH
71296A Plate, Rear Seatback, Upper LH
71296B Plate, Rear Seatback, Upper LH
71303E Hinge Sub-assy, Rear NO.2 Seat, RH
71304A Hinge Sub-assy, Rear NO.2 Seat, LH
71324R Cushion, Rear NO.1 Seat, LH
71324S Cushion, Rear NO.1 Seat, RH
71349F Cover, NO.1 Seatback Hinge, RH
71387B Retainer, Rear Seat Cushion Holder, RH
71387C Retainer, Rear Seat Cushion Holder, RH NO.1
71388A Retainer, Rear Seat Cushion Holder, LH
71388B Retainer, Rear Seat Cushion Holder, LH NO.1
71393C Band, NO.2 Seat Cushion, RH NO.1
71393E Band, NO.2 Seat Cushion, LH NO.1
71397L Holder, Rear Seatback, RH
71398L Guide, NO.2 Seat Cushion Support, RH
71398M Guide, NO.2 Seat Cushion Support, LH
71398R Holder, Rear Seatback, LH
71485F Cover, Rear Seat Hinge, NO.1 RH
71486F Cover, Rear Seat Hinge, LH
71499L Damper, NO.1 Seatback Spring, RH
71499M Damper, NO.1 Seatback Spring, LH
71499V Damper, NO.1 Seatback Spring, LH NO.2
71499X Damper, NO.1 Seatback Spring, RH NO.2
71611F Pad, Rear Seat Cushion, A
71611H Pad, Rear NO.1 Seat Cushion, RH
71612F Pad, Rear Seat Cushion, LH
71612G Pad, Rear NO.1 Seat Cushion, LH
71629G Cover, Rear Seat Cushion Hinge
71652A Pad, Rear NO.1 Seatback, LH
71691Q Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71691R Cover, Rear NO.2 Seat Lock, Upper NO.2 RH
71691S Cover, Rear NO.2 Seat Lock, Upper NO.1 LH
71691T Cover, Rear NO.2 Seat Lock, Upper NO.2 LH
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71693H Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.3
71693N Cover, Rear Seat Cushion Hinge, Lower
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71694C Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.3
71694G Cover, Rear Seat Cushion Hinge, Inner LH
71694H Cover, Rear Seat Cushion Hinge, Lower LH NO.1
71695K Protector, NO.1 Seatback, RH
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695U Protector, NO.1 Seatback Stay(FOR RH SEAT)
71695V Protector, NO.1 Seatback Stay(FOR LH SEAT)
71695Y Protector, Rear Seat, NO.3
71695Z Protector, Rear Seat, NO.1 LH
71696F Protector, NO.2 Seatback, RH
71696G Protector, NO.2 Seatback, LH
71696N Protector, Rear Seat, NO.2
71697M Protector, Rear Seatback
71757 Plate, Seat Under Tray, NO.1
71757C Plate, Seat Under Tray, NO.1 LH
71769K Clip, NO.1 Seat Legrest Cover(FOR RH SEAT)
71769M Clip, NO.1 Seat Legrest Cover(FOR LH SEAT)
71811Y Cover, Reclining Adjuster, RH
71825A Moulding, NO.1 Seat Cushion, RH Inner
71825D Moulding, Rear NO.1 Seat Cushion, RH
71825E Moulding, Rear NO.2 Seat Cushion, RH
71826A Moulding, NO.1 Seat Cushion, LH Inner
71826C Moulding, Rear Seat Cushion, LH
71827C Moulding, Rear Seat Cushion, Rear LH
71833K Cover, NO.1 Seat Reclining, NO.1 RH Outer
71834J Cover, NO.1 Seat Reclining, NO.1 LH Outer
71834L Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71837F Moulding, Rear Seat Cushion, Rear RH
71843H Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843J Cover, Rear NO.1 Seat Reclining, NO.2 RH
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844H Cover, Rear Seat Reclining, NO.2 LH
71844M Cover, Rear Seat Reclining, NO.2 LH
71845E Cap, Rear NO.2 Seat Cover, RH
71846H Cap, Rear NO.2 Seat Cover, LH
71848U Cap, NO.2 Seat Adjuster Cover, RH
71849K Cap, Seat Adjuster Cover(FOR SEAT SIDE TABLE)
71849M Cap, NO.2 Seat Adjuster Cover, LH
71875X Cover, Reclining Adjuster Inside, RH
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71893A Shield, Power Adjuster, Front RH
71894A Shield, Power Adjuster, Front LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930K Support Assy, NO.2 Seat Headrest, RH
71930L Support Assy, NO.2 Seat Headrest, LH
71930R Support Assy, Rear NO.2 Seat Headrest, Center
71931H Support, NO.1 Seat Footrest(FOR RH SEAT)
71931J Support, NO.1 Seat Footrest(FOR LH SEAT)
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960F Headrest Assy, Rear NO.2 Seat, Center
71F95 Protector, Rear Seat, NO.4
71H12E Cover, Reclining Adjuster, LH
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H75G Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT)
71H75H Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT)
71H75L Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75M Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT)
71H75N Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT)
71H75P Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H75Q Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEATBACK)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75X Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76G Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT)
71H76H Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT)
71H76L Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76N Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76P Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT)
71H76R Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT)
71H76S Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
71H76T Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEATBACK)
71H76U Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT)
71T75 Cover, Reclining Adjuster Inside, RH
71T75F Cover, Reclining Adjuster Inside, RH
71T75K Clip, Reclining Adjuster Inside Cover(FOR REAR NO.2 RH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
71T76K Clip, Reclining Adjuster Inside Cover(FOR REAR NO.2 LH SEAT)
71T76S Cover, Reclining Adjuster Outside, NO.1 LH
72045B Cover Sub-assy, NO.1 Seat Track, Outer RH
72046D Cover Sub-assy, Rear Seat Track, Outer LH NO.1
72046E Cover Sub-assy, Rear Seat Track, Outer LH NO.2
72046F Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT)
72046H Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR RH SEAT)
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72063B Hook Sub-assy, Rear Seat, RH
72064B Hook Sub-assy, Rear Seat, LH
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72071C Pump Sub-assy, Lumber Support, RH
72071D Pump Sub-assy, Lumber Support, RH
72072B Pump Sub-assy, Lumber Support, LH
72073 Adjuster Sub-assy, Rear Seat Reclining, RH
72074 Adjuster Sub-assy, Rear Seat Reclining, LH
72089B Bracket Sub-assy, Rear Seat Armrest, RH
72089C Bracket Sub-assy, Rear Seat Armrest, RH NO.2
72089D Bracket Sub-assy, Rear Seat Armrest, RH NO.3
72099 Bracket Sub-assy, Rear Seat Armrest, LH
72099A Bracket Sub-assy, Rear Seat Armrest, LH NO.2
72099B Bracket Sub-assy, Rear Seat Armrest, LH NO.3
72125G Cover, Seat Track Lock Plate, NO.1
72125H Cover, Seat Track Lock Plate, NO.2
72125J Cover, Seat Track Lock Plate, NO.3
72127J Cover, Seat Track Bracket, Inner Front LH
72137Q Cover, Rear Seat Track, NO.2
72138K Cover, Rear Seat Track, LH NO.2
72205F Housing Sub-assy, Power Seat, NO.1
72206C Housing Sub-assy, Power Seat, NO.2
72210Q Cable Assy, NO.1 Seat Slide, RH
72210R Cable Assy, NO.1 Seat Slide, LH
72210U Cable Assy, NO.1 Seat Track Control, LH
72210X Cable Assy, NO.1 Seat Track Control, RH
72215A Lever, NO.1 Seat Track Handle Control, RH
72216B Lever, NO.1 Seat Track Handle Control, LH
72265P Cover, Seat Track Upper Rail, RH
72266J Cover, Seat Track Upper Rail, LH
72345N Cap, Seat Stand Frame, RH NO.1
72345P Cap, Seat Stand Frame, RH NO.2
72345Q Cap, Seat Stand Frame, LH NO.1
72345R Cap, Seat Stand Frame, LH NO.2
72345S Cap, NO.2 Seat Stand Frame, RH
72345T Cap, NO.2 Seat Stand Frame, LH
72345U Cap, Seat Stand Frame, RH NO.3
72345V Cap, Seat Stand Frame, RH NO.4
72345W Cap, Seat Stand Frame, LH NO.3
72345X Cap, Seat Stand Frame, LH NO.4
72380B Cable Assy, Seat Adjuster Control, NO.2 RH
72380C Cable Assy, Seat Adjuster Control, NO.2 LH
72455C Bracket, NO.1 Seat Frame Set, NO.1
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R Handle, Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72526L Handle, Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72552F Cover, Reclining Link, LH NO.1
72553E Protector, Reclining Cover, RH NO.1
72554K Protector, Reclining Cover, LH NO.3
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72570F Cable Assy, NO.1 Seat Reclining Adjusting, LH
72590G Cable Assy, Reclining Remote Control, LH
72615M Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620F Cable Assy, Rear Seat Lock, RH
72620G Cable Assy, Rear Seat Lock, LH
72666F Cover, Rear Seat Lock, LH
72666G Cover, Rear Seatback Lock, LH
72690F Lever Assy, NO.2 Seat Cushion Lock Release, RH
72690G Lever Assy, NO.2 Seat Cushion Lock Release, LH
72728B Protector, NO.1 Seat Reclining, Inner RH
72729B Protector, NO.1 Seat Reclining, Inner LH
72803G Frame Sub-assy, Rear Seat Armrest, RH
72803J Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT)
72804D Frame Sub-assy, Rear Seat Armrest, LH
72804E Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT)
72804F Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT)
72830U Armrest Assy, Rear Seat, RH
72833C Panel, Rear Seat Center Armrest, NO.1
72833E Plate, Rear Seat Armrest, NO.2
72834 Panel, Rear Seat Center Armrest, NO.2
72840K Armrest Assy, Rear NO.1 Seat, LH
72848C Cap, NO.1 Seat Armrest, NO.1 RH
72848D Cap, NO.1 Seat Armrest, NO.1 LH
72848E Cap, NO.2 Seat Armrest, NO.1 RH
72848F Cap, NO.2 Seat Armrest, NO.1 LH
72878C Cover, NO.1 Seat Armrest, LH
72880B Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72880C Armrest Assy, NO.1 Seat, C RH(FOR LH SEAT)
72880E Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890B Armrest Assy, NO.1 Seat, C LH(FOR RH SEAT)
72890C Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72890D Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72987B Cover, Rear Seat Center Armrest
72995F Cover, Rear Seat Cushion, RH
72996H Cover, Rear Seatback
72996S Cover, Rear NO.1 Seatback, LH
72998D Cover, Rear Seat Cushion, LH
72B10 Cable Assy, Rear NO.2 Seat Track Control(FOR LH SEAT)
72B10A Cable Assy, Rear NO.2 Seat Track Control(FOR RH SEAT)
72C45A Cap, NO.1 Seat Stand Frame, NO.1(FOR RH SEAT)
72C45B Cap, NO.1 Seat Stand Frame, NO.2(FOR RH SEAT)
73217B Tube, Rear Seat Adjuster
73217C Tube, Adjuster, LH
74061A Bag Sub-assy, Seat Cushion Pad, RH
74062A Bag Sub-assy, Seat Cushion Pad, LH
74063B Bag Sub-assy, Seatback Pad, RH
74064B Bag Sub-assy, Seatback Pad, LH
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
77278H Valve, Check W/Hose, RH(FOR SEAT CUSHION)
77278J Valve, Check W/Hose, LH(FOR SEAT CUSHION)
78060C Table Assy, NO.1 Seat Side
78093A Frame Sub-aasy, NO.1 Seat Footrest(FOR RH SEAT)
78093B Frame Sub-aasy, NO.1 Seat Footrest(FOR LH SEAT)
78097A Cover Sub-assy, NO.1 Seat Footrest(FOR RH SEAT)
78097B Cover Sub-assy, NO.1 Seat Footrest(FOR LH SEAT)
78608C Cable Sub-assy, Legrest Lock Control(FOR RH SEAT)
78608D Cable Sub-assy, Legrest Lock Control(FOR LH SEAT)
78632D Cover, Rear Seat Side Table, NO.1
78656J Cover, Rear Seat Legrest, RH
78656N Cover, Rear Seat Legrest, RH NO.2
78656P Cover, Rear Seat Legrest, LH NO.2
78656Q Cover, NO.1 Seat Legrest, RH NO.3
78656R Cover, NO.1 Seat Legrest, LH NO.3
78656S Cover, NO.1 Seat Legrest(FOR RH SEAT)
78656T Cover, NO.1 Seat Legrest(FOR LH SEAT)
78731B Lever, Sub Seat Cushion(FOR RH SEAT)
78731C Lever, Sub Seat Cushion(FOR LH SEAT)
78990B Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79015C Pad Sub-assy, NO.1 Seat Cushion, RH
79016 Pad Sub-assy, NO.1 Seat Cushion, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79175F Pad, NO.1 Seatback, RH
79235F Pad, NO.2 Seat Cushion, RH
79236G Cover, NO.2 Seat Leg, RH
79236K Cover, NO.1 Seat Leg, NO.1
79236L Cover, Rear Seat Leg, RH
79236P Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79236Q Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT)
79245A Pad, NO.2 Seat Cushion, LH
79246L Cover, NO.1 Seat Leg, NO.2
79246M Cover, Rear Seat Leg, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79959E Cover, NO.1 Seat Leg, RH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959H Cover, NO.2 Seat Leg, RH NO.2
79959J Cover, NO.2 Seat Leg, LH NO.1
79959T Cover, Rear Seat Leg, LH
79977J Felt, Seatback
79977K Felt, Seatback, NO.2
79997A Protector, Seat Leg Box, NO.1
79998A Protector, Seat Leg Box, NO.2
82711K Clamp, Wiring Harness
82711L Clamp, Wiring Harness
82711Q Clamp, Wiring Harness
82711R Clamp, Wiring Harness
82711S Clamp, Wiring Harness
82711Z Clamp, Wiring Harness
84656T Bezel, Switch, NO.1
84656U Bezel, Switch, NO.2
84656V Bezel, Switch, NO.3
84656W Bezel, Switch, NO.4
85803A Blower Sub-assy, Seatback Climate, RH
85804A Blower Sub-assy, Seatback Climate, LH
85860E Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
