Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

27 part groups · 4 illustrations

Illustrations

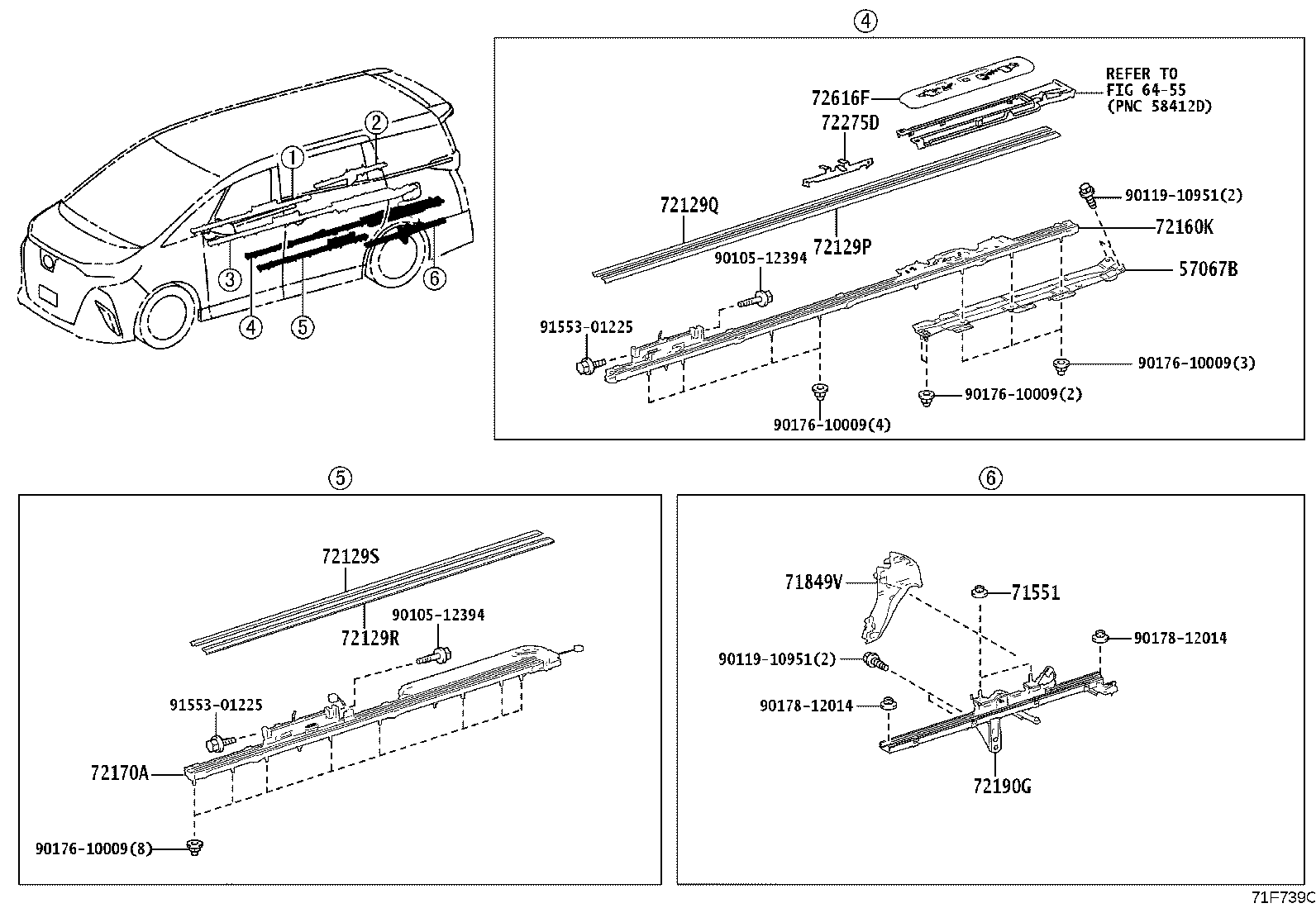

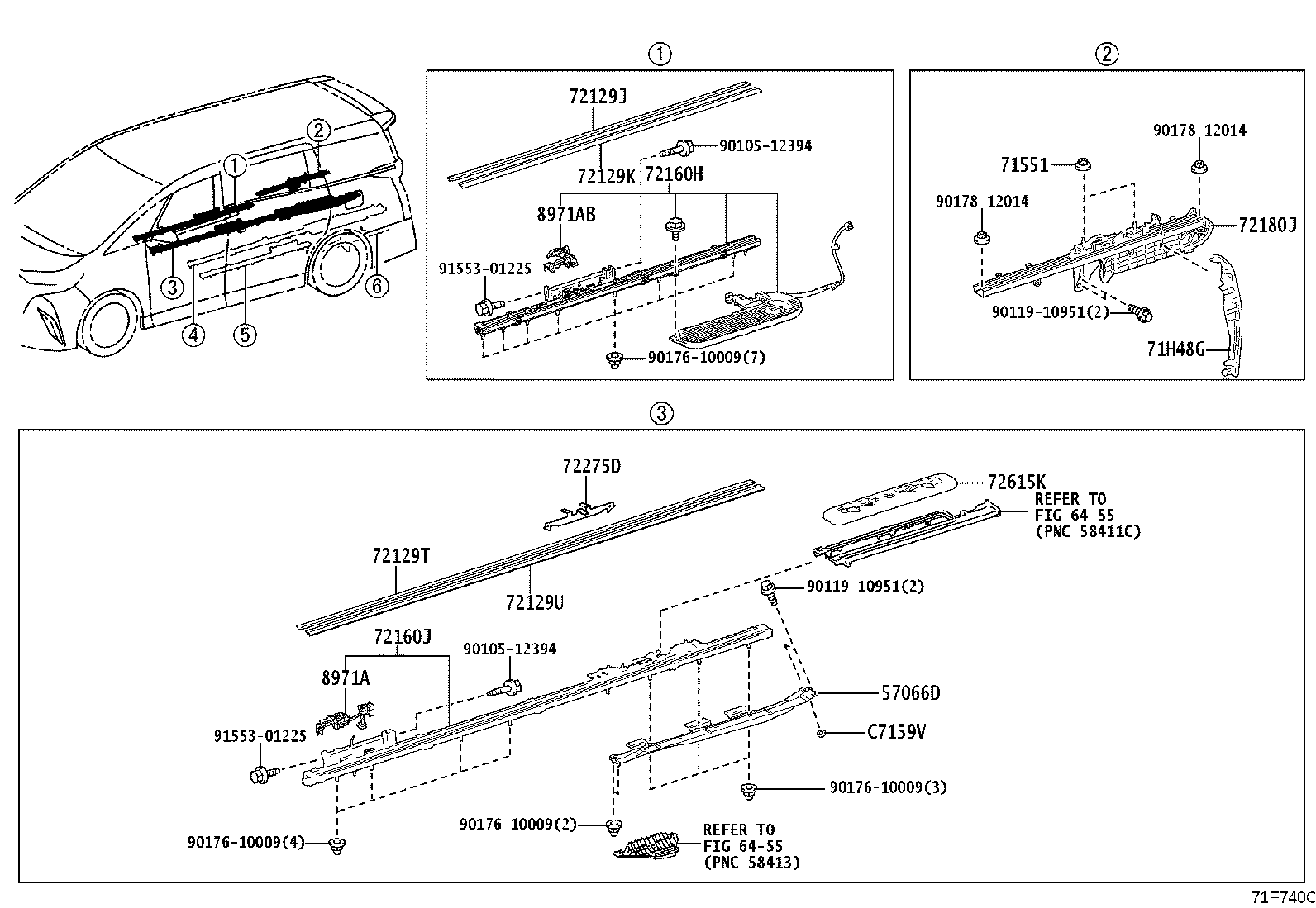

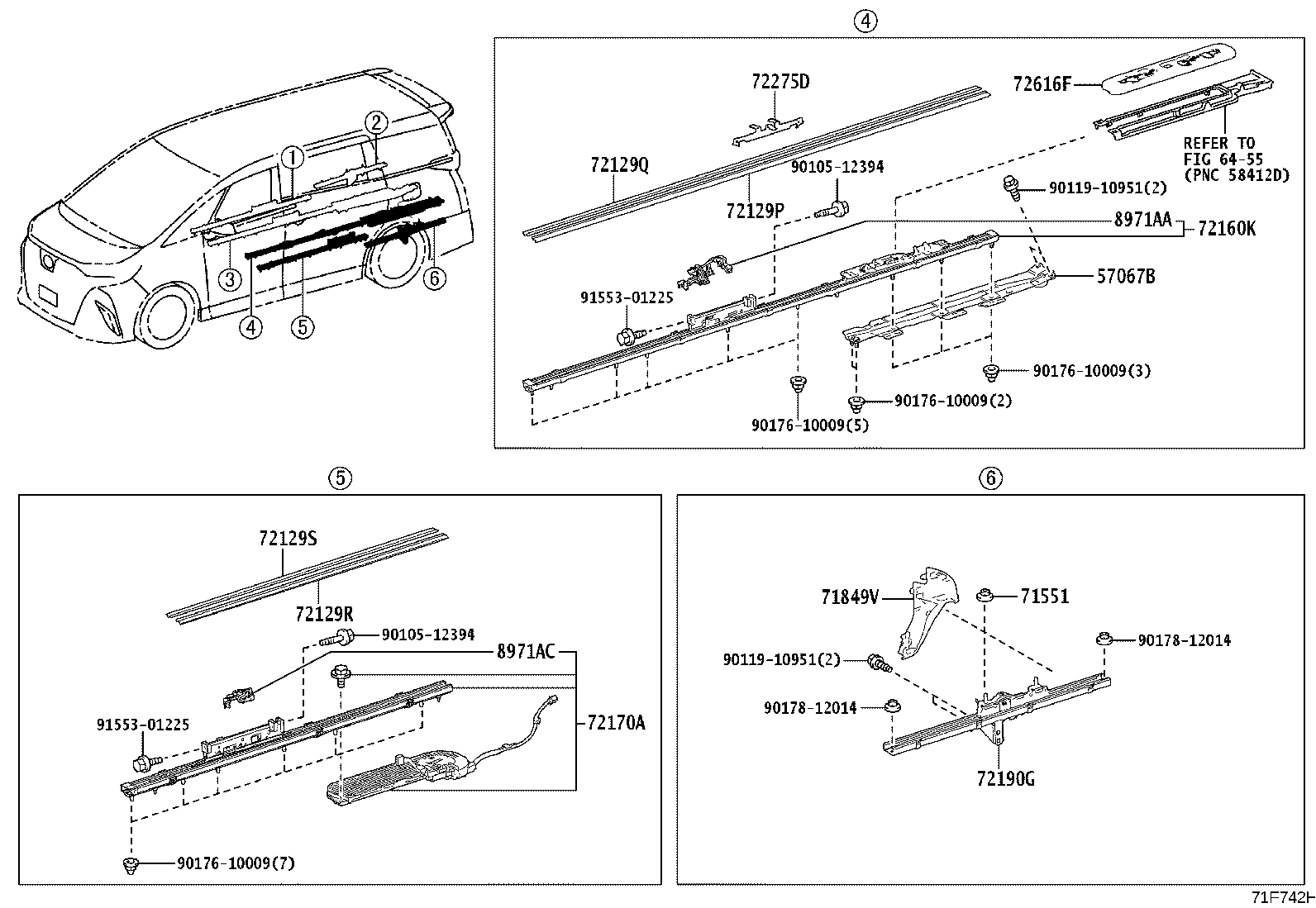

Figure 71F738C 71F738C 2023-06 → — Figure 71F739C 71F739C 2023-06 → — Figure 71F740C 71F740C 2023-06 → — Figure 71F742H 71F742H 2023-06 → —

Part groups

PNCDescription
57066D Member Sub-assy, Rear Floor Cross, NO.1
57067B Member Sub-assy, Rear Floor Cross, NO.2
71551 Nut
71849V Cap, Seat Adjuster Cover, LH
71H48G Cap, Seat Adjuster Cover, RH
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72160J Track Assy, Rear RH Seat, Inner NO.1
72160K Track Assy, Rear LH Seat, Inner NO.1
72170A Track Assy, Rear Seat, Outer LH
72180J Track Assy, Rear NO.2 Seat, RH
72190G Track Assy, Rear NO.2 Seat, LH
72275D Stopper, Rear Seat Track Slide, RH NO.1
72615K Cover, Rear Seat Lock Striker, RH
72616F Cover, Rear Seatback Lock Striker, LH
8971A Sensor, Seat Position NO.1
8971AA Sensor, Seat Position NO.2
8971AB Sensor, Seat Position NO.3
8971AC Sensor, Seat Position NO.4
C7159V Cushion, Welcab Seat Leg Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
