Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Armrest & Visor
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

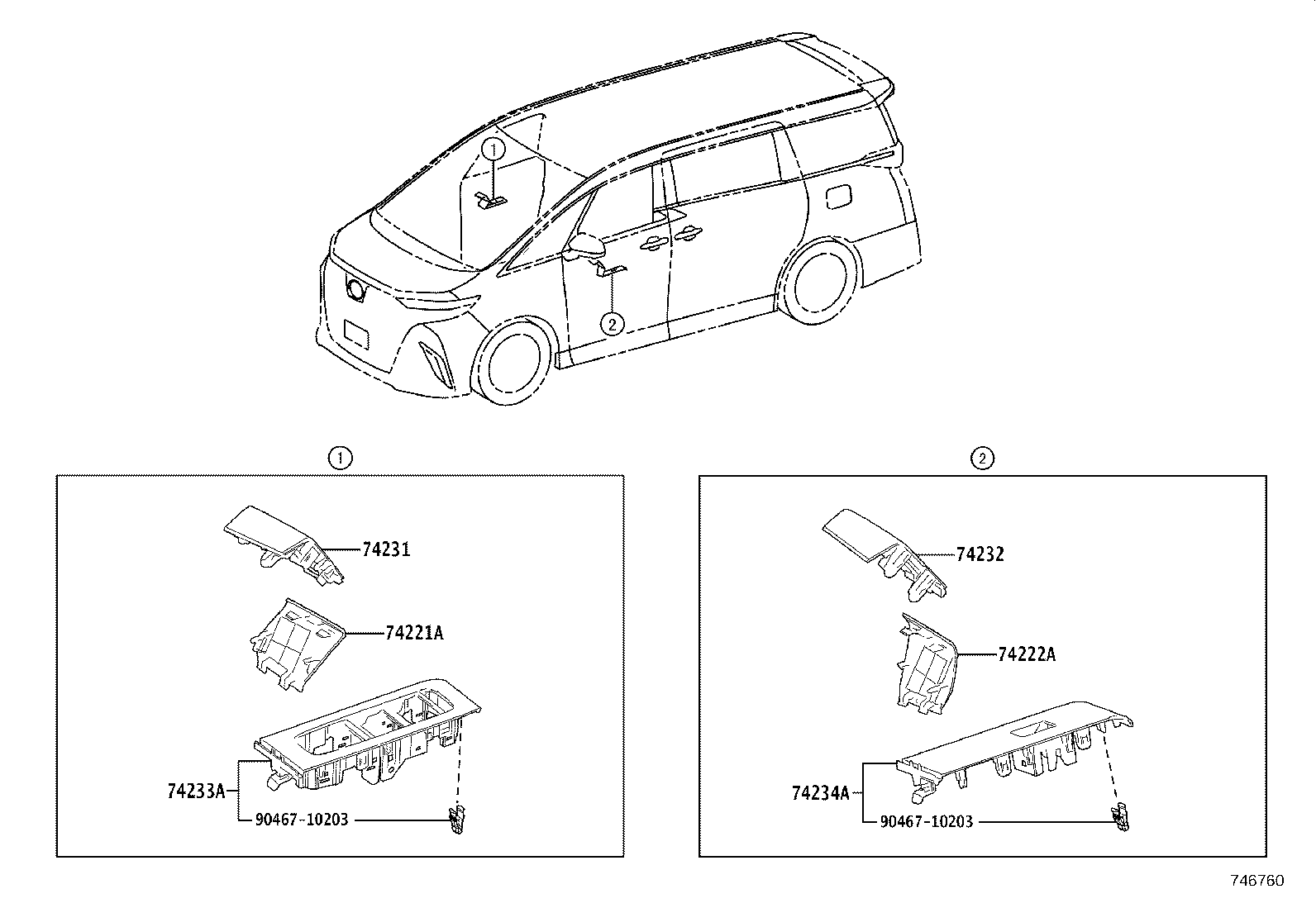

| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74233A | Panel, Front Door Armrest Base, Lower RH |
| 74234A | Panel, Front Door Armrest Base, Lower LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74606A | Cover, Assist Grip |
| 74610A | Grip Sub-assy, Assist |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74610K | Grip Assy, Assist, NO.2 LH |
| 74611B | Grip, Assist |
| 74611F | Grip, Assist, NO.1 |
| 74611G | Grip, Assist, NO.2 |
| 74612 | Cover, Assist Grip |
| 74612F | Cover, Assist Grip |
| 74613 | Plug, Assist Grip |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617V | Plug, Assist Grip |
| 74617W | Plug, Assist Grip |
| 74617X | Plug, Assist Grip |
| 74680B | Grip Assy, Pillar Assist, RH |
| 74680C | Grip Assy, Pillar Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
