Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Caution Plate
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11298B | Label, Emission Control Information |
| 28897A | Plate, Battery Caution |
| 28897B | Label, Battery Caution, NO.1 |
| 288A2 | Label, Battery Location |

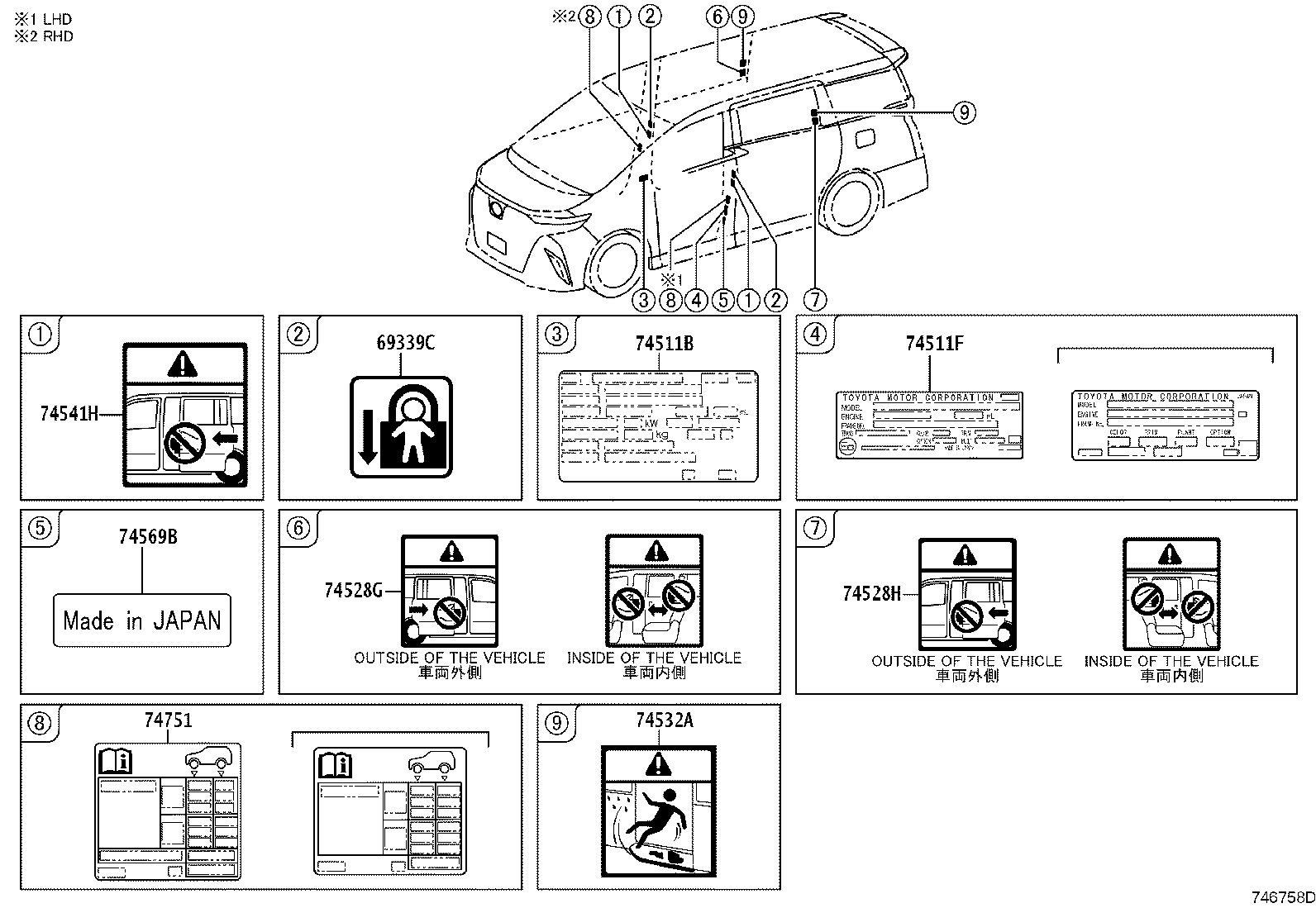

| 69339C | Label, Child Protector Information |
| 74511B | Plate, Name |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528G | Label, Power Slide Door Caution |
| 74528H | Label, Power Slide Door Caution |
| 74529C | Plate, Back Door Caution |

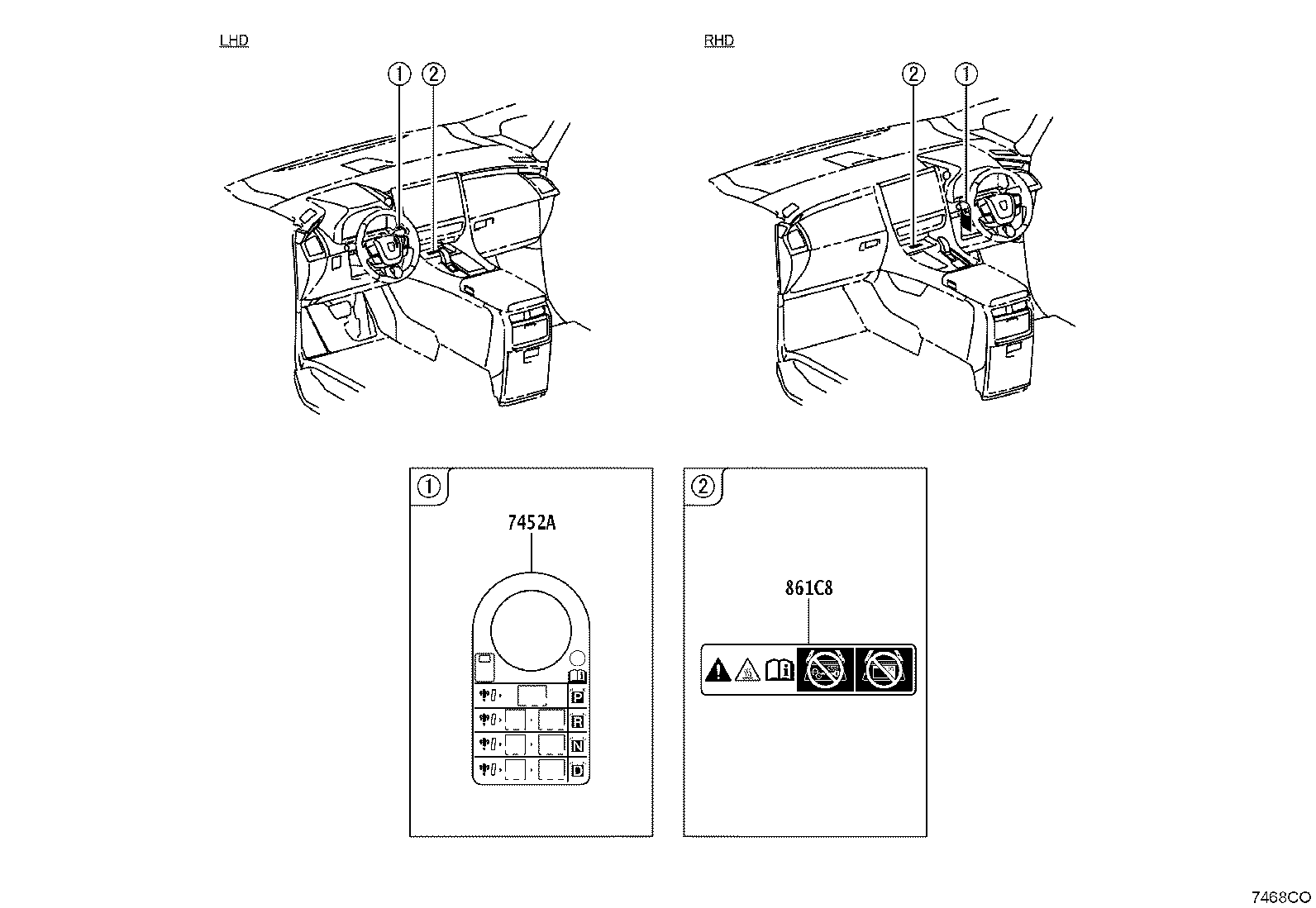

| 7452A | Label, Shift Control Information |
| 74532A | Plate, Caution |

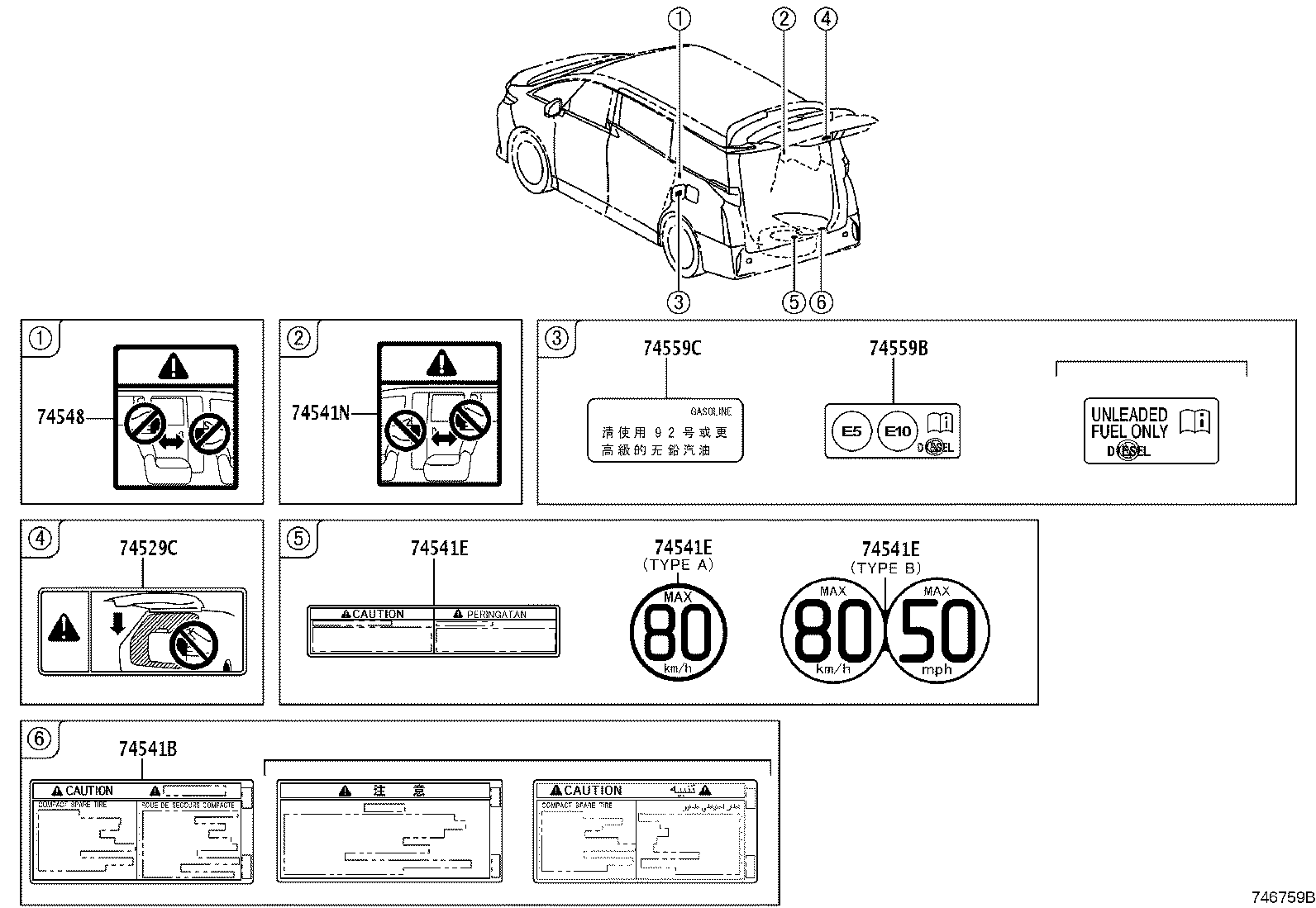

| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541H | Plate, Body Caution |
| 74541N | Label, Body Caution |
| 74548 | Plate, Body Caution |
| 74559B | Label, Fuel Information |
| 74559C | Label, Fuel Information, NO.2 |
| 74569B | Label, Vehicle Information |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
