Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Interior Lamp
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81024 | Lamp Set, Room |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81230 | Lamp Assy, Courtesy |
| 81260 | Lamp Assy, Glove Box |

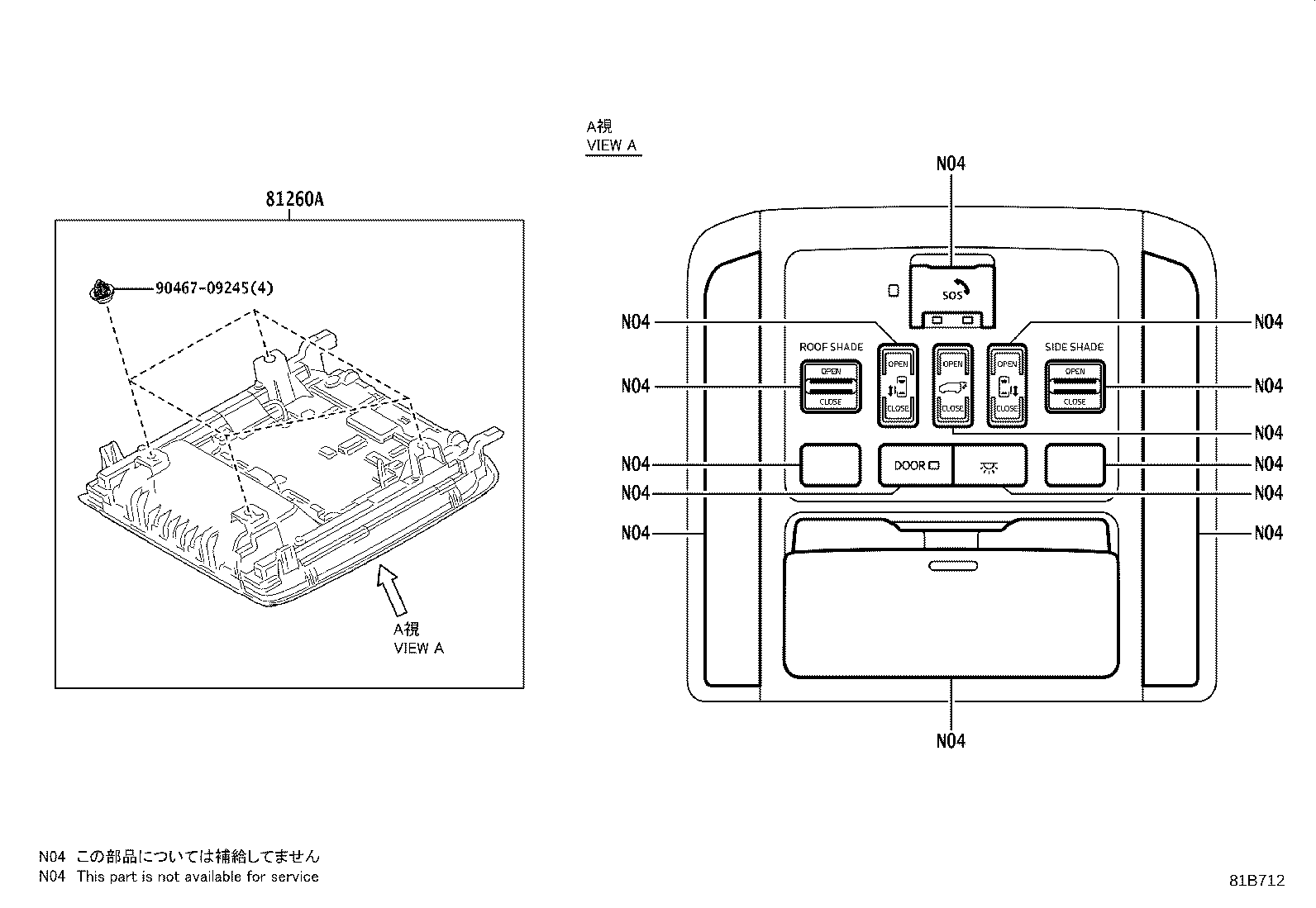

| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
| 81363A | Lens, Room Lamp, Outer RH |
| 81363B | Lens, Room Lamp, Outer LH |
| 81380D | Lamp Assy, Step |
| 81380H | Lamp Assy, Step |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
