Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Battery & Battery Cable
85 part groups · 10 illustrations
Part groups

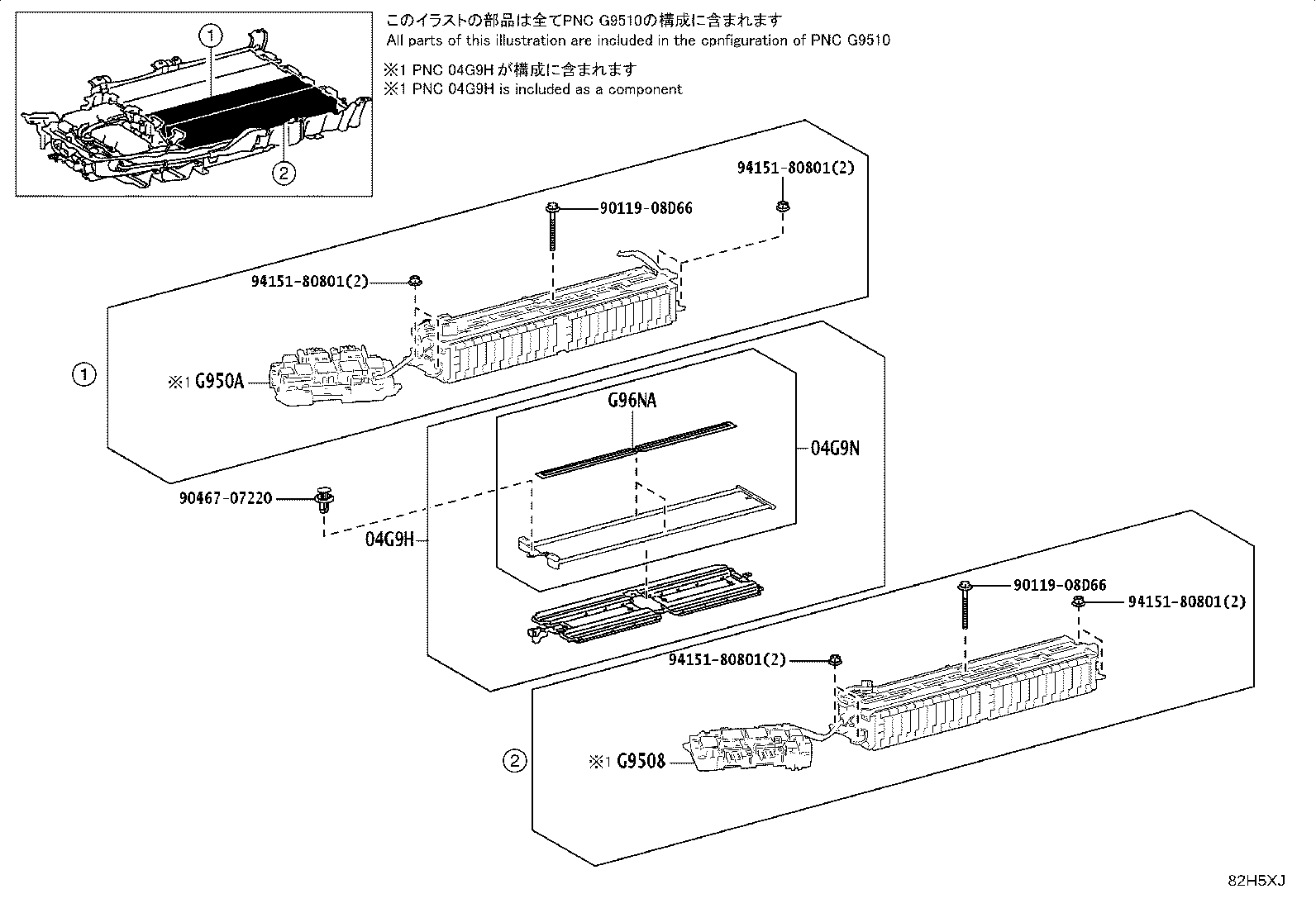

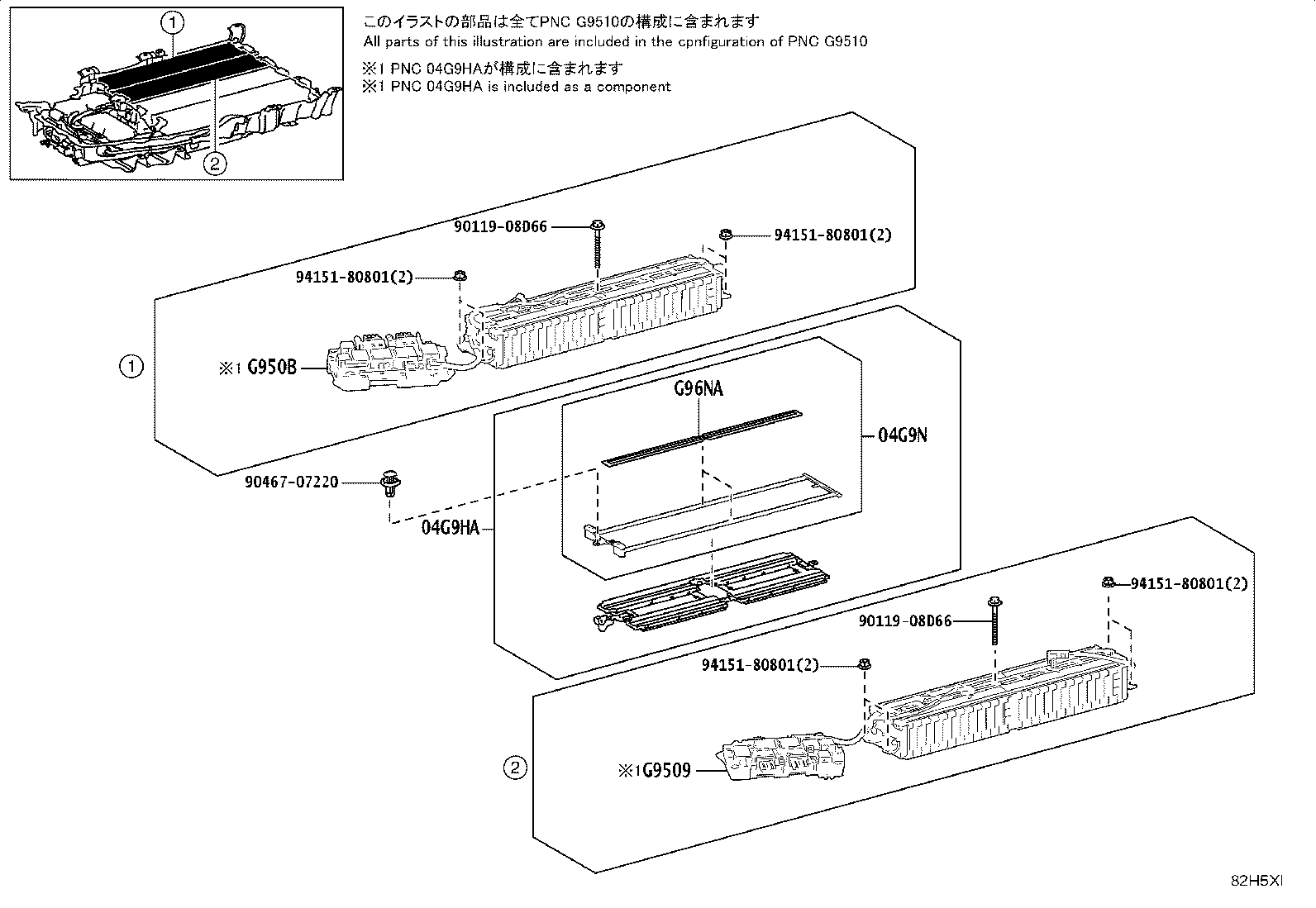

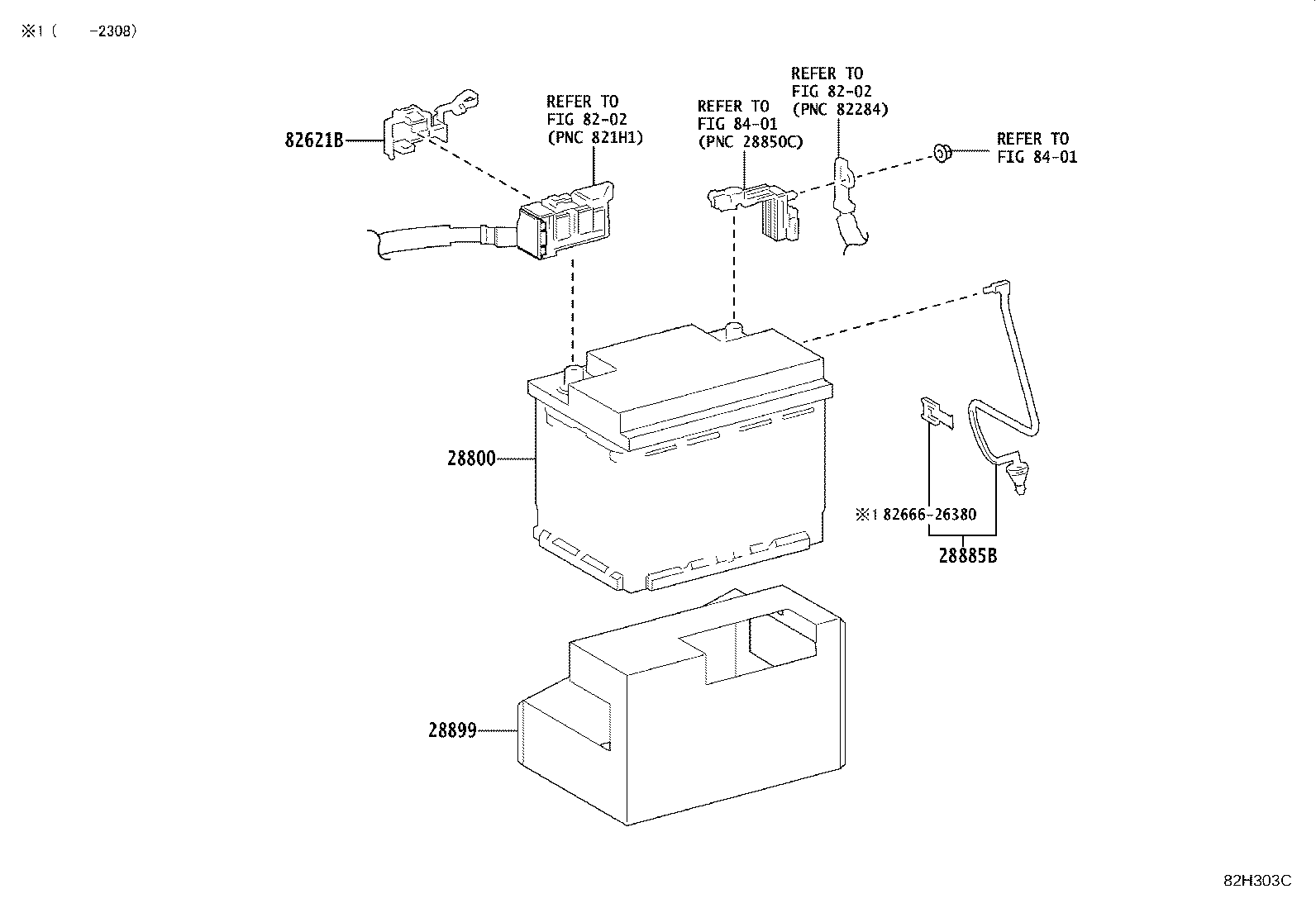

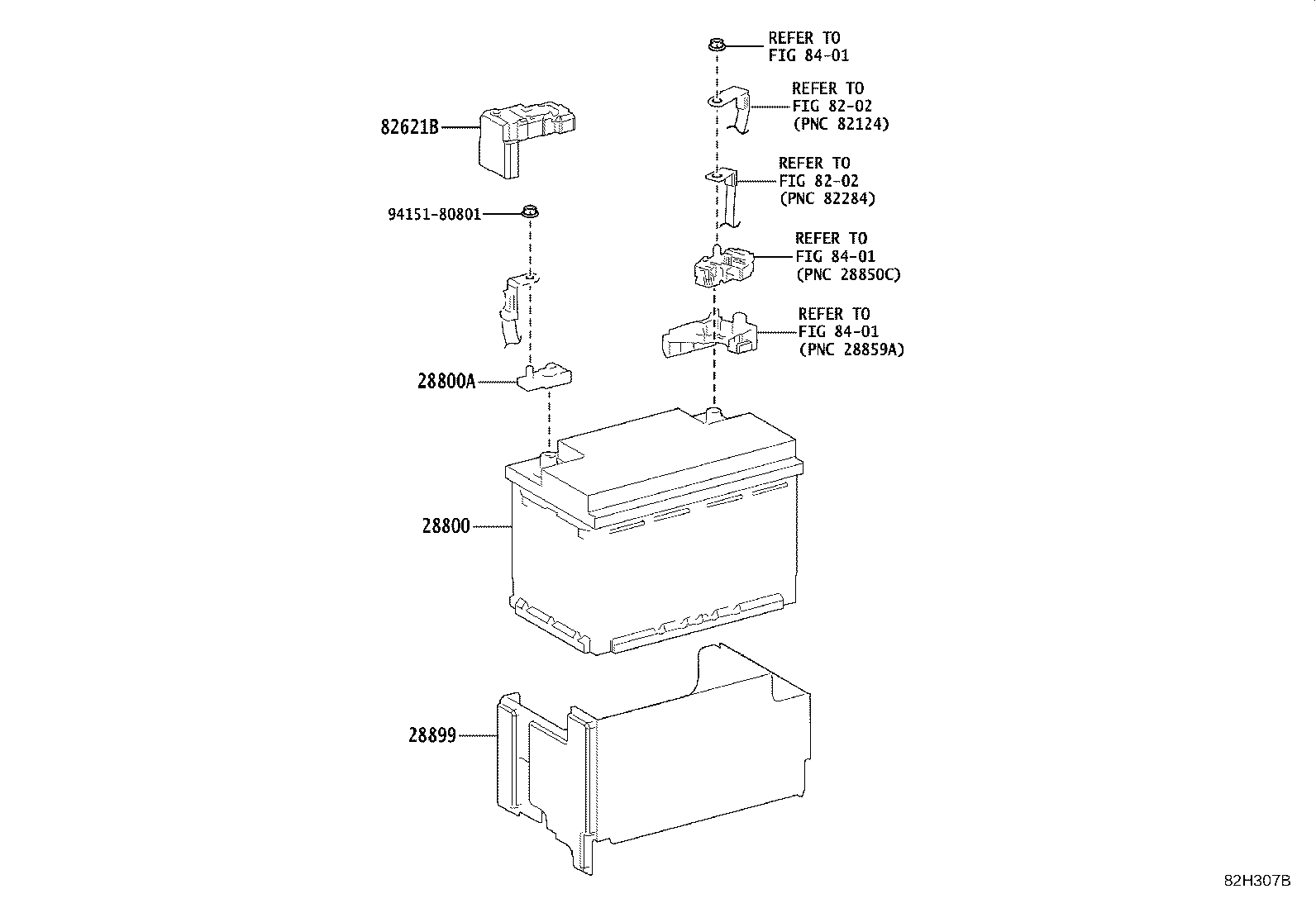

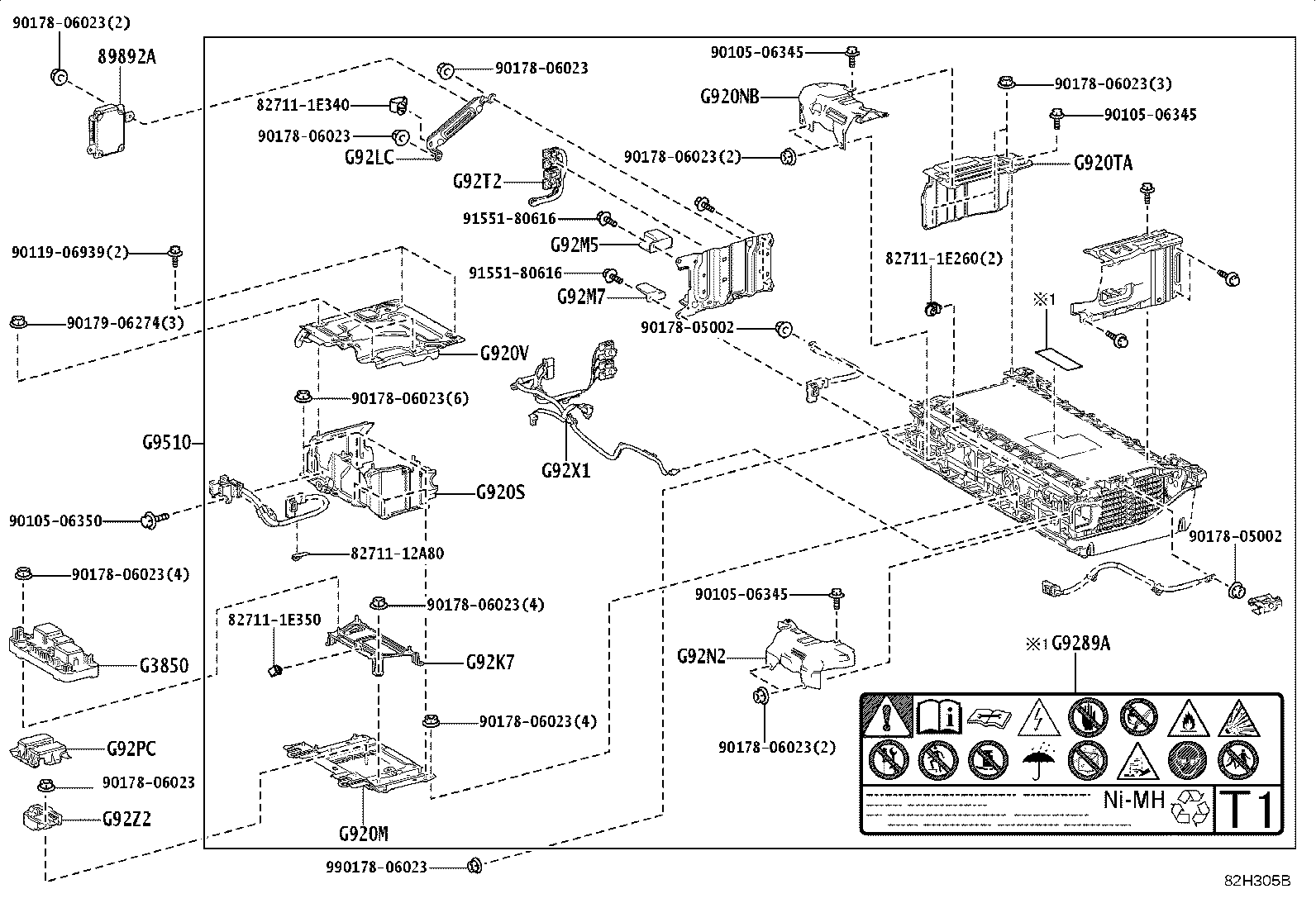

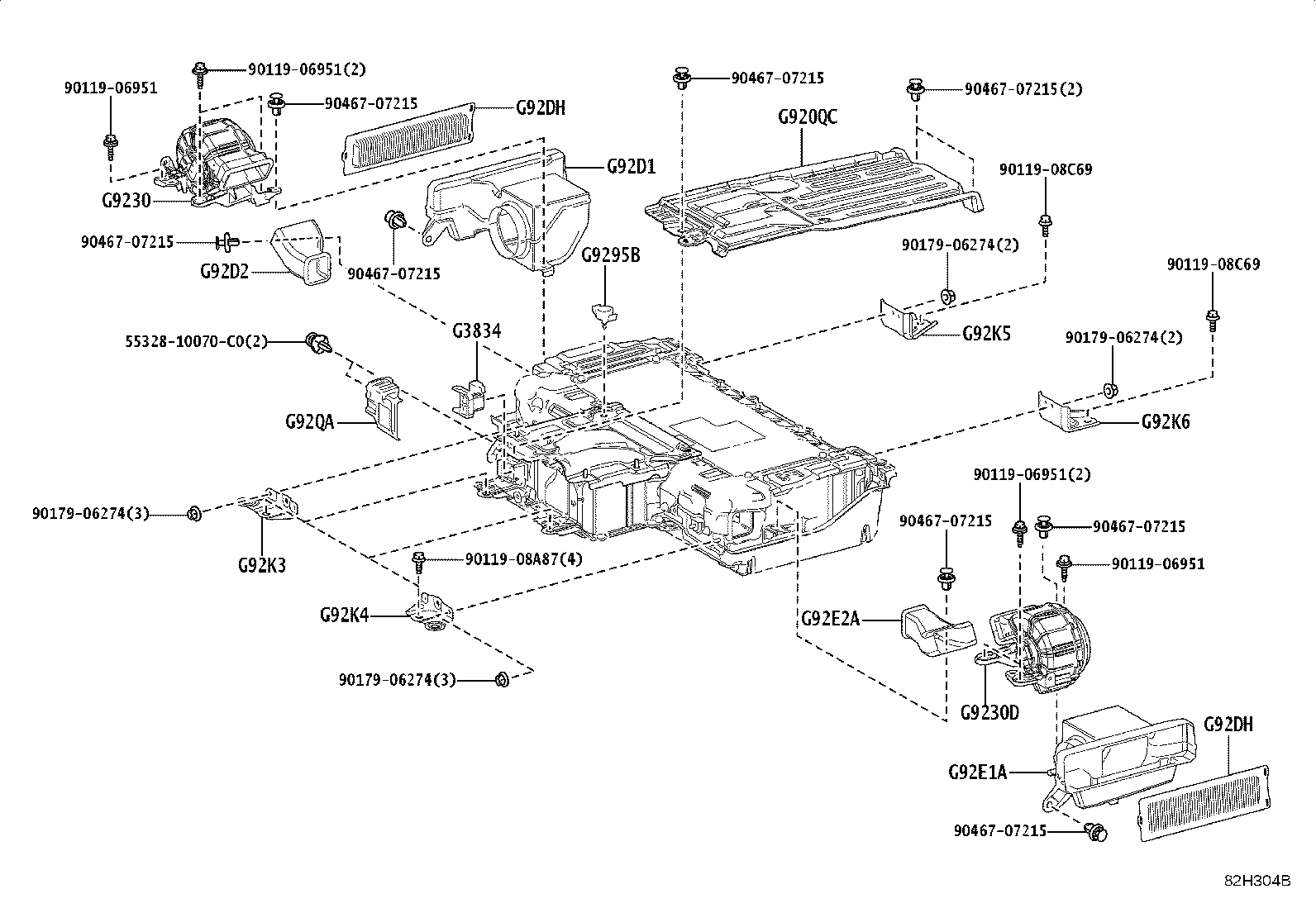

| PNC | Description |
|---|---|
| 04G9H | Heater Kit, Traction Battery |
| 04G9HA | Heater Kit, Traction Battery, NO.2 |
| 04G9N | Conductor Kit, Traction Battery Cooler |
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800J | Terminal, Battery Negative |
| 28885B | Hose, Battery |
| 28899 | Insulator, Battery |
| 82621B | Cover, Fusible Link |
| 87615B | Retainer, Insulator NO.1 |
| 87615C | Retainer, Insulator NO.2 |
| 88620N | Thermistor Assy, Air Conditioner NO.1 |
| 88620P | Thermistor Assy, Air Conditioner NO.2 |
| 88705D | Tube Sub-assy, Discharge |
| 88718S | Clamp, Piping NO.1 |
| 88718T | Clamp, Piping NO.2 |
| 88719C | Sensor, Air Conditioner Pressure |
| 88F90 | Valve Assy, Magnet NO.1 |
| 88F90A | Valve Assy, Magnet NO.2 |
| 88F90B | Valve Assy, Magnet NO.3 |
| 88G16H | Tube, Liquid, NO.1 |
| 88G16J | Tube, Liquid, NO.2 |
| 88G16K | Tube, Liquid, NO.3 |
| 88G16L | Tube, Liquid, NO.4 |
| 89890A | Computer Assy, Battery |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |
| G3850 | Box Assy, Traction Battery Device, NO.1 |
| G3860 | Box Assy, Traction Battery Device, NO.2 |
| G920M | Carrier Sub-assy, Hybrid Battery |
| G920NB | Cover Sub-assy, HV Battery, Upper |
| G920QC | Cover, Battery Pack |
| G920S | Shield, Hybrid Converter |
| G920TA | Shield Sub-assy, HV Battery, NO.4 |
| G920V | Shield Sub-assy, HV Battery, NO.6 |
| G9230 | Blower Assy, Battery Cooling |
| G9230D | Blower Assy, Battery Cooling, NO.2 |
| G9289A | Label, Battery Caution |
| G9295B | Striker, Battery Cover Lock |
| G929N | Plug, Battery Drain |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D2 | Duct, Hybrid Battery Intake, NO.2 |
| G92DC | Seal, HV Battery, NO.2 |
| G92DD | Seal, HV Battery Upr Cover |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92E1A | Duct, HV Battery Intake, NO.1 LH |
| G92E2A | Duct, HV Battery Intake, NO.2 LH |
| G92K3 | Bracket, Hybrid Battery Carrier, NO.1 |
| G92K4 | Bracket, Hybrid Battery Carrier, NO.2 |
| G92K5 | Bracket, HV Battery Carrier, NO.3 |
| G92K6 | Bracket, HV Battery Carrier, NO.4 |
| G92K7 | Bracket, HV Battery Carrier, NO.5 |
| G92LC | Bracket, HV Battery RH Cover, NO.3 |
| G92M5 | Reinforcement, HV Battery Carrier |
| G92M7 | Bracket, HV Battery Upper Carrier, NO.1 |
| G92N2 | Panel, HV Battery LH Cover, NO.2 |
| G92PC | Protector, HV Battery, NO.1 |
| G92QA | Panel, HV Battery Shield, NO.8 |
| G92T2 | Wire, Hybrid Battery Voltage Detection, NO.1 |
| G92X1 | Wire, Hybrid Battery Pack, NO.1 |
| G92Z2 | Block, Hybrid Battery Terminal |

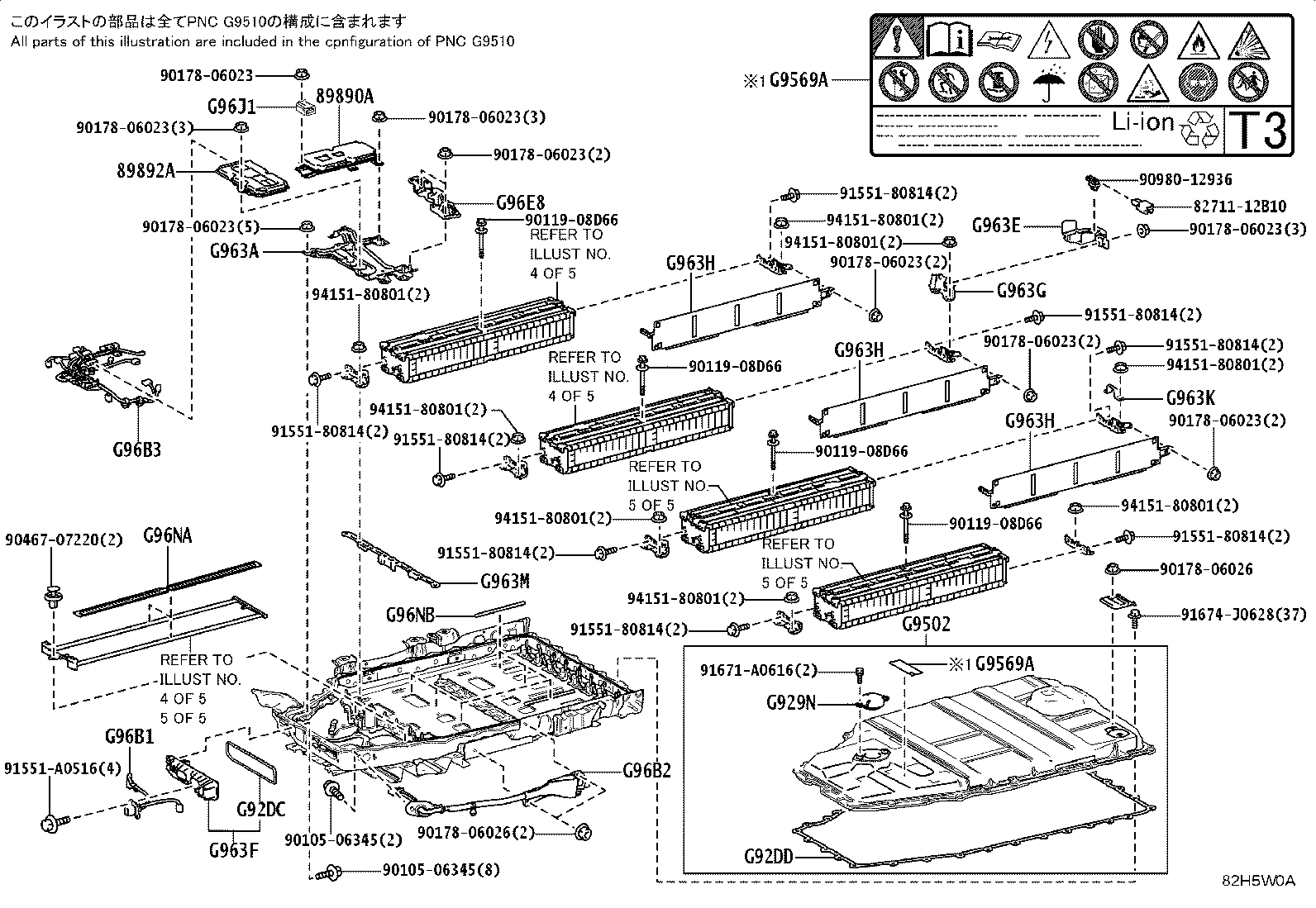

| G9502 | Battery Sub-assy, EV Supply, Upr |
| G9508 | Stack Sub-assy, HV Supply, NO.1 |
| G9509 | Stack Sub-assy, HV Supply, NO.2 |
| G950A | Stack Sub-assy, HV Supply, NO.3 |
| G950B | Stack Sub-assy, HV Supply, NO.4 |

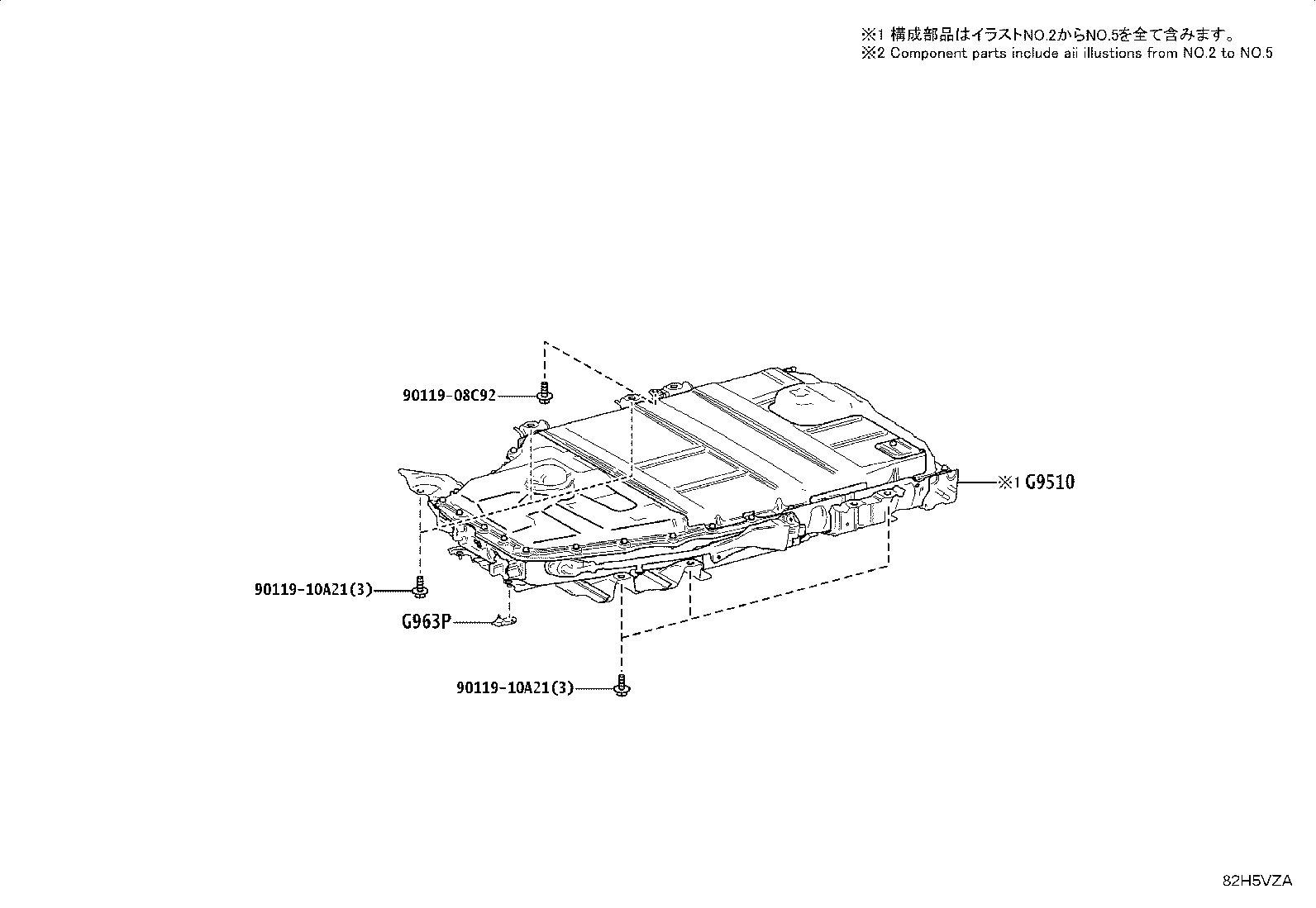

| G9510 | Battery Assy, HV Supply |
| G9569A | Label, Lithium Ion Battery Caution |
| G963A | Bracket, Traction Battery, NO.10 |
| G963E | Bracket, Traction Battery, NO.14 |
| G963F | Bracket, Traction Battery, NO.15 |
| G963G | Bracket, Traction Battery, NO.16 |
| G963H | Bracket, Traction Battery, NO.17 |
| G963K | Bracket, Traction Battery, NO.19 |
| G963M | Bracket, Traction Battery, NO.21 |
| G963P | Bracket, Traction Battery, NO.23 |
| G96B1 | Wire, Traction Battery, NO.1 |
| G96B2 | Wire, Traction Battery, NO.2 |
| G96B3 | Wire, Traction Battery, NO.3 |
| G96E8 | Cover, Traction Battery Wire, NO.3 |
| G96J1 | Relay, Traction Battery Heater, NO.1 |

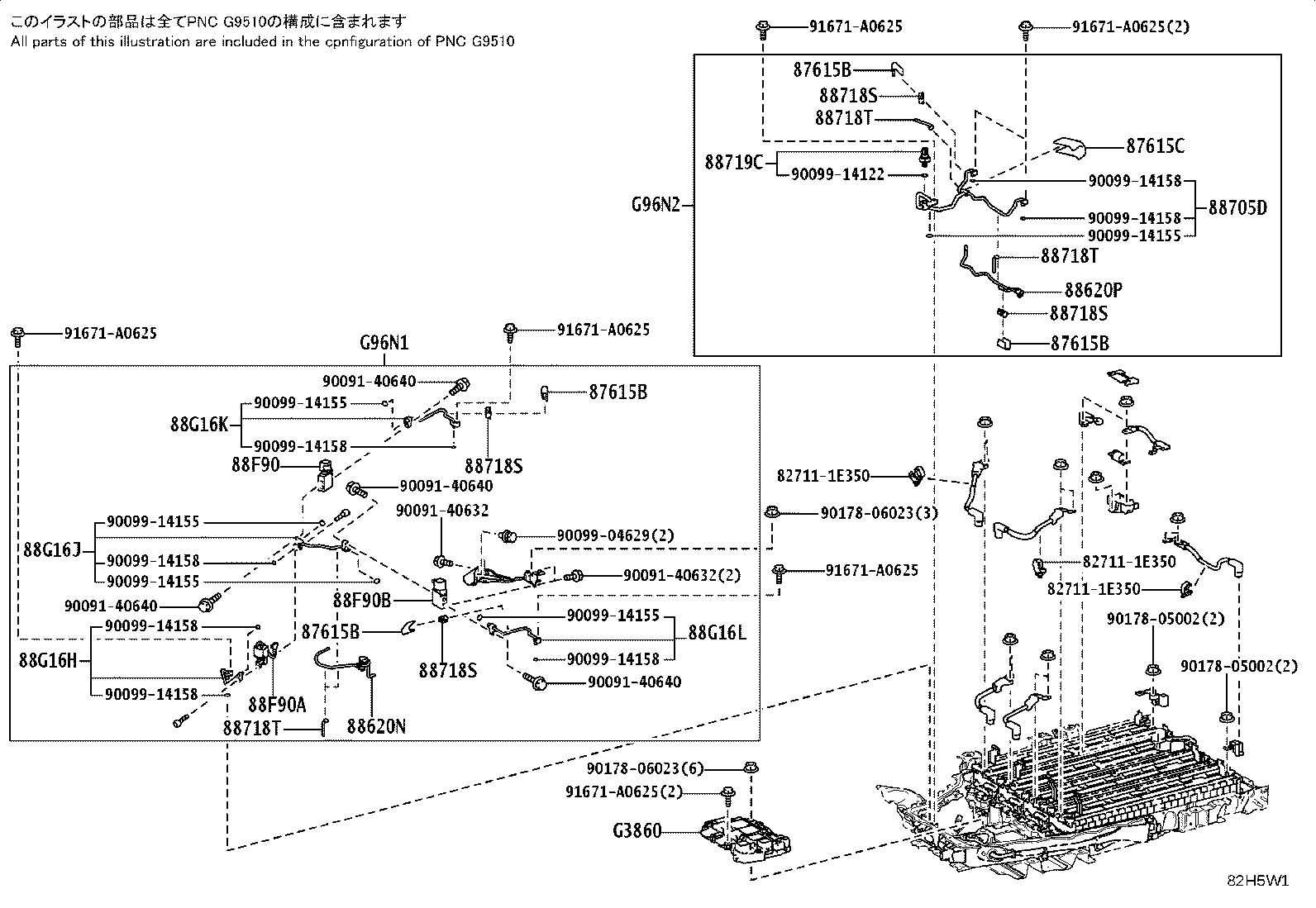

| G96N1 | Tube, Traction Battery Cooler, NO.1 |
| G96N2 | Tube, Traction Battery Cooler, NO.2 |
| G96NA | Sheet, Traction Battery Cooler, NO.1 |
| G96NB | Sheet, Traction Battery Cooler, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
