Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

174 part groups · 28 illustrations

Illustrations

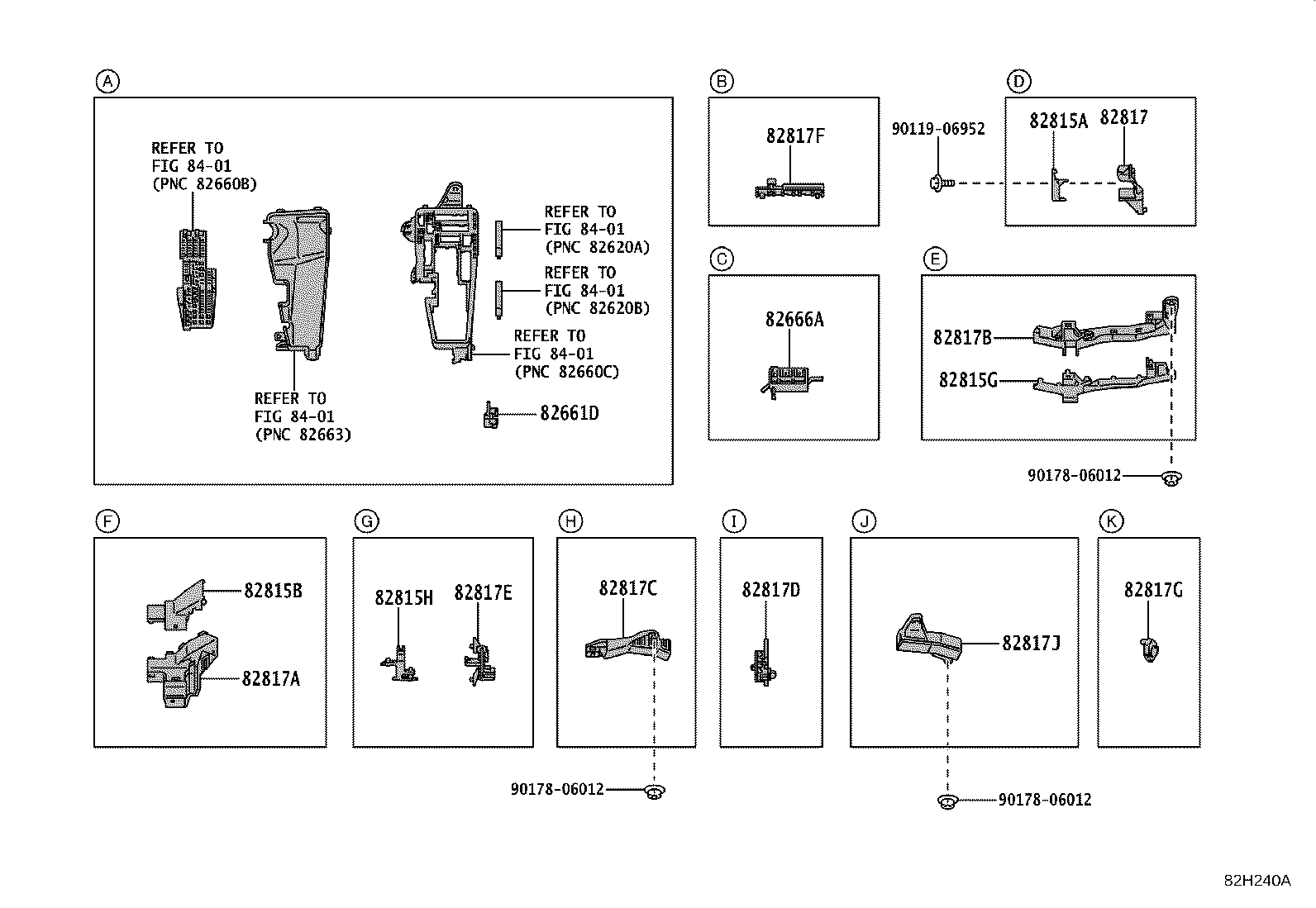

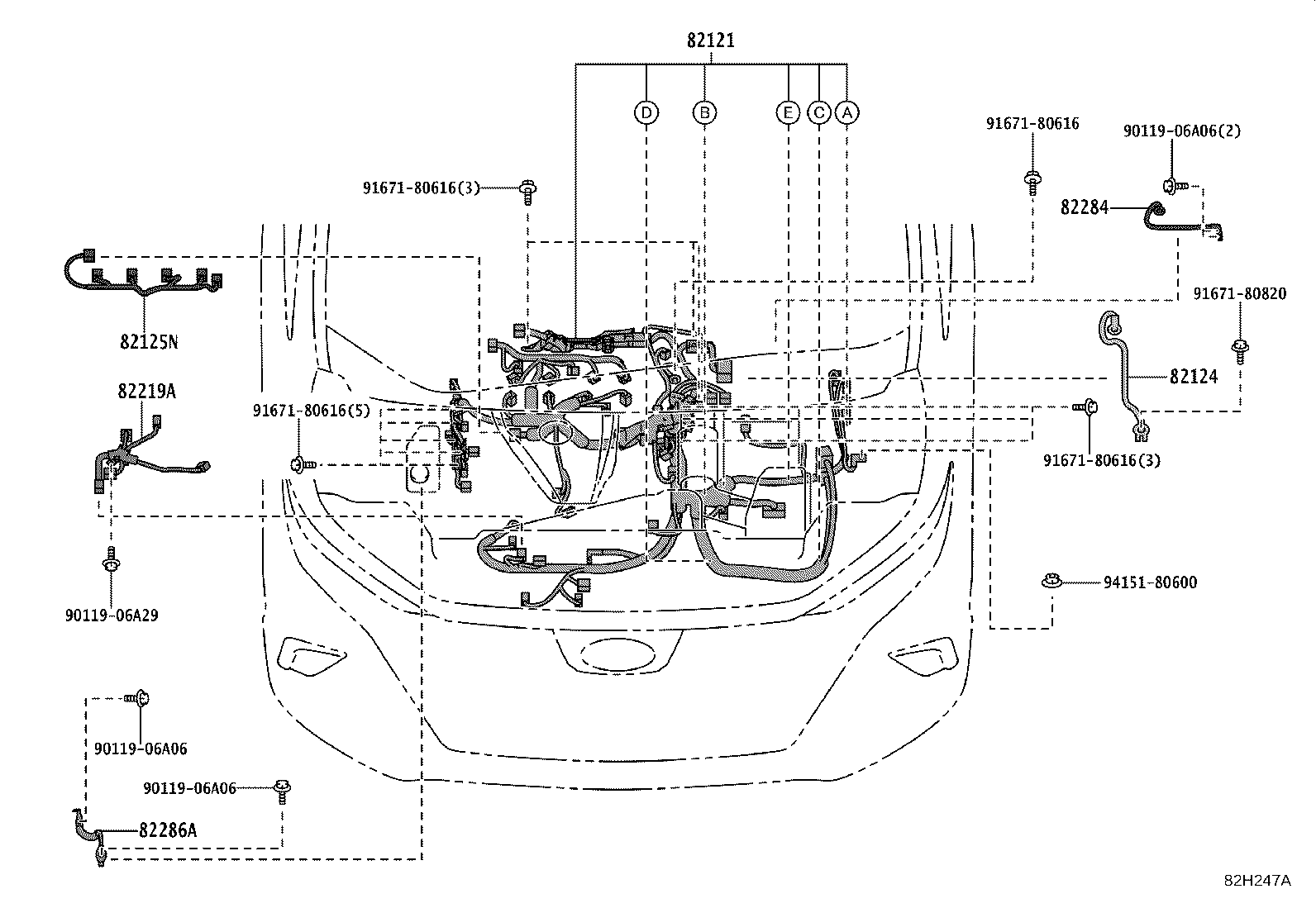

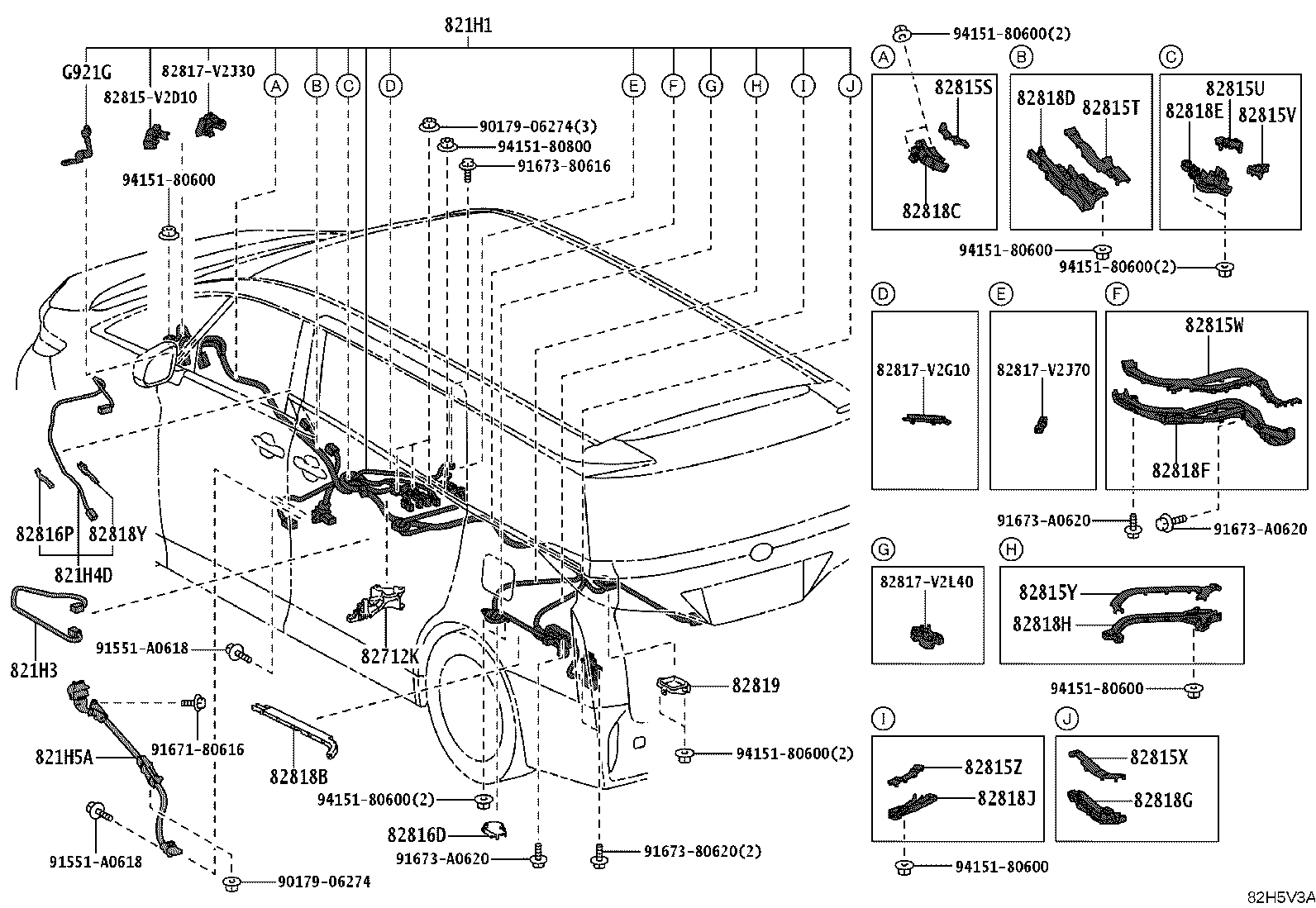

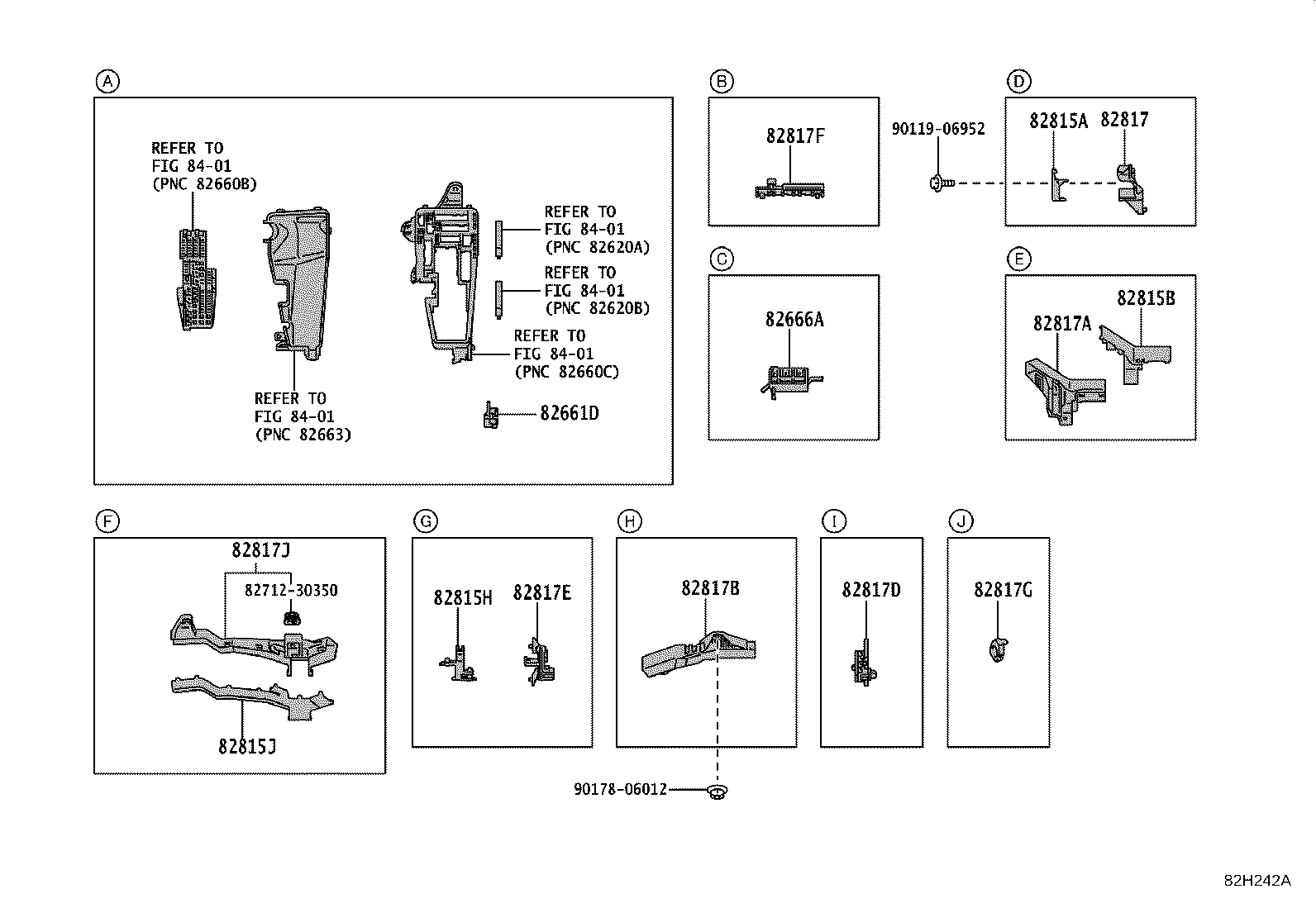

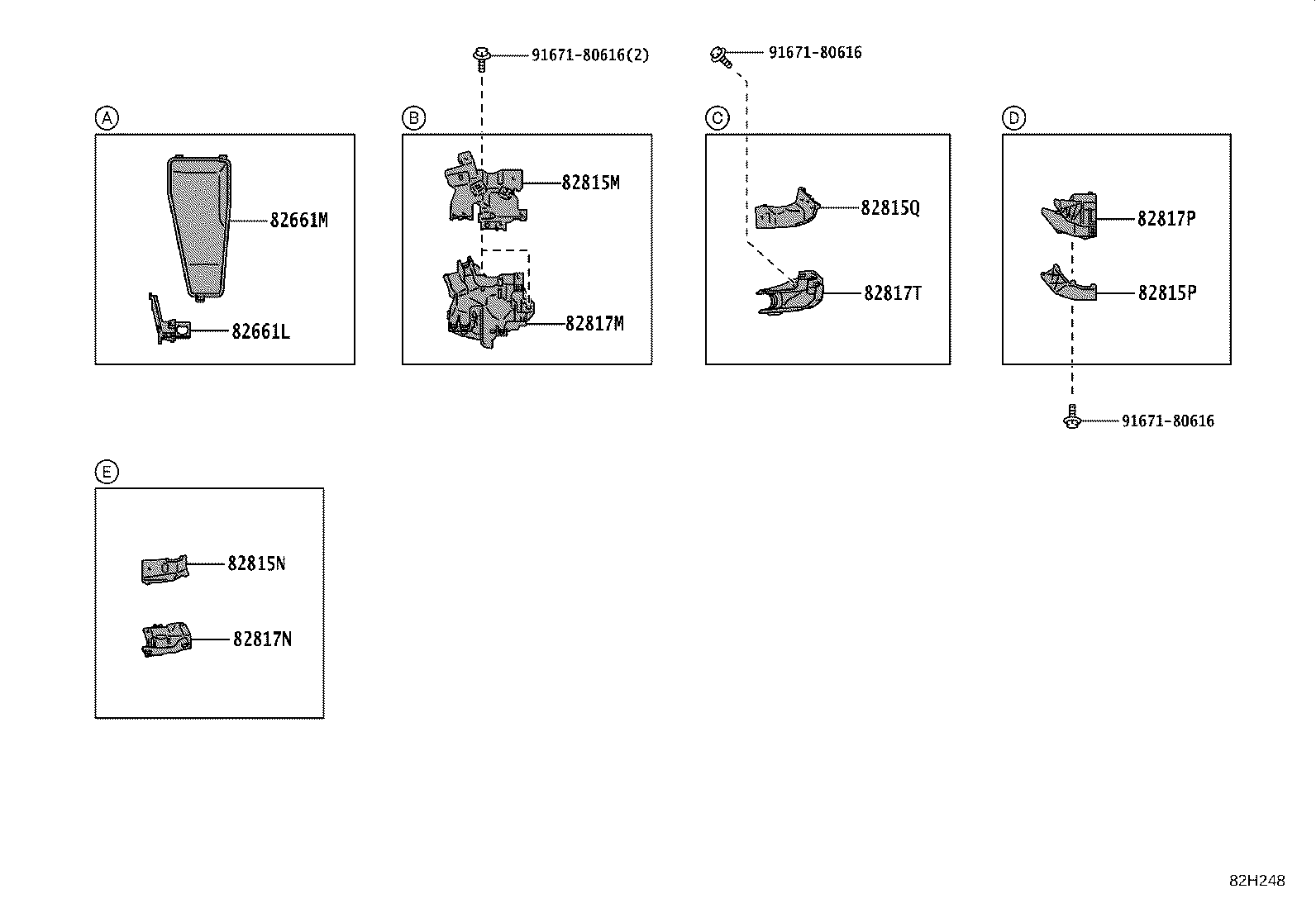

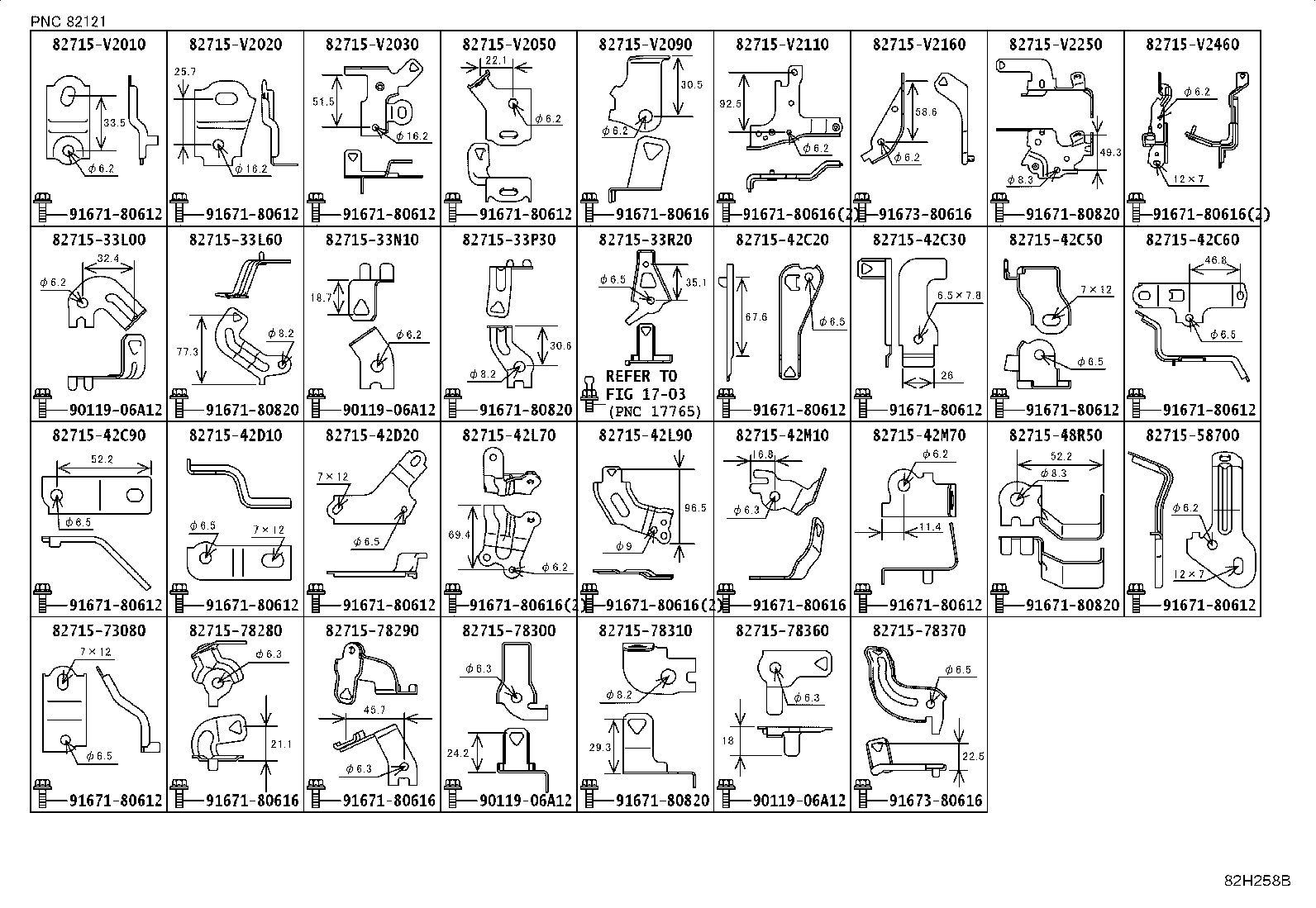

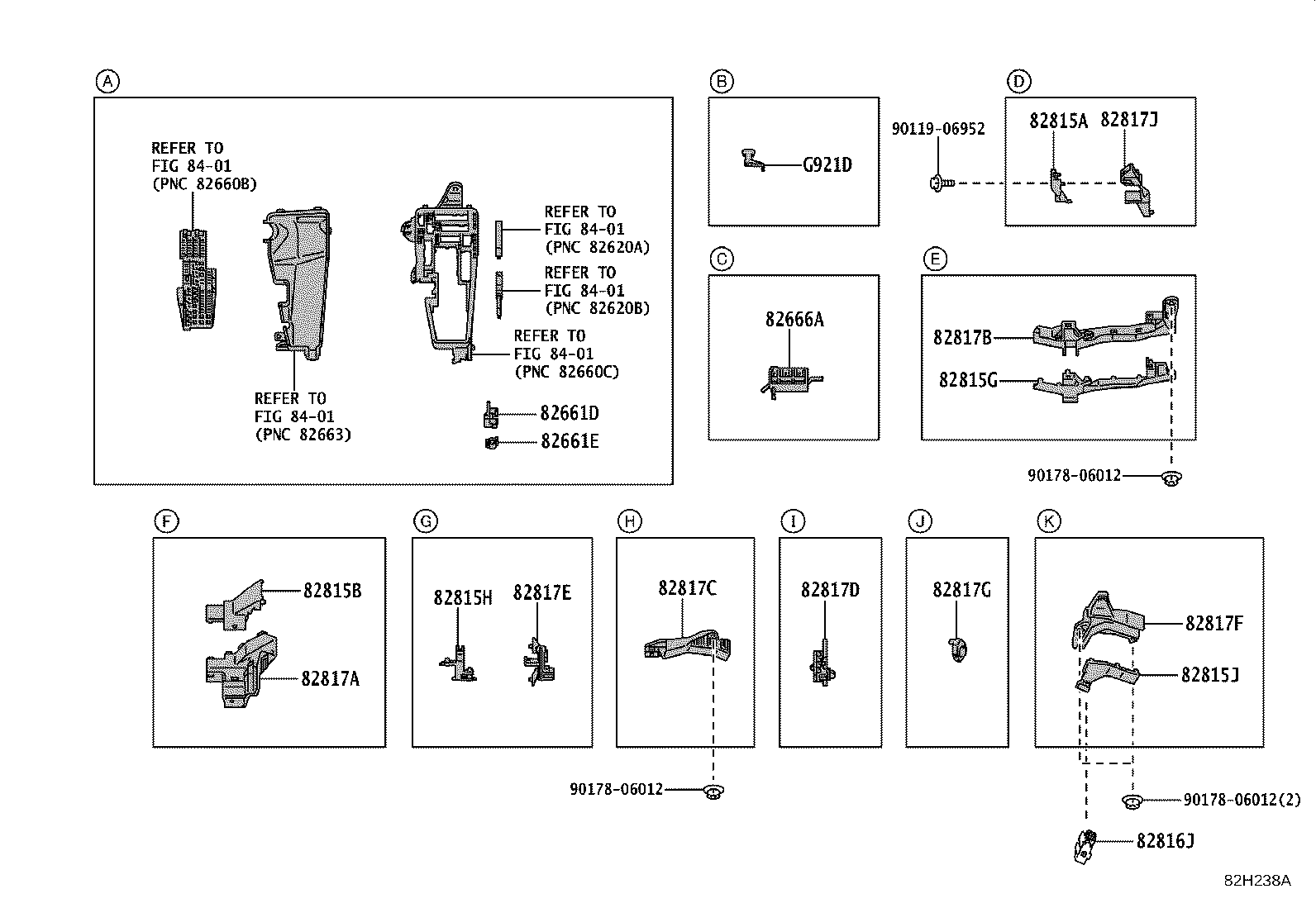

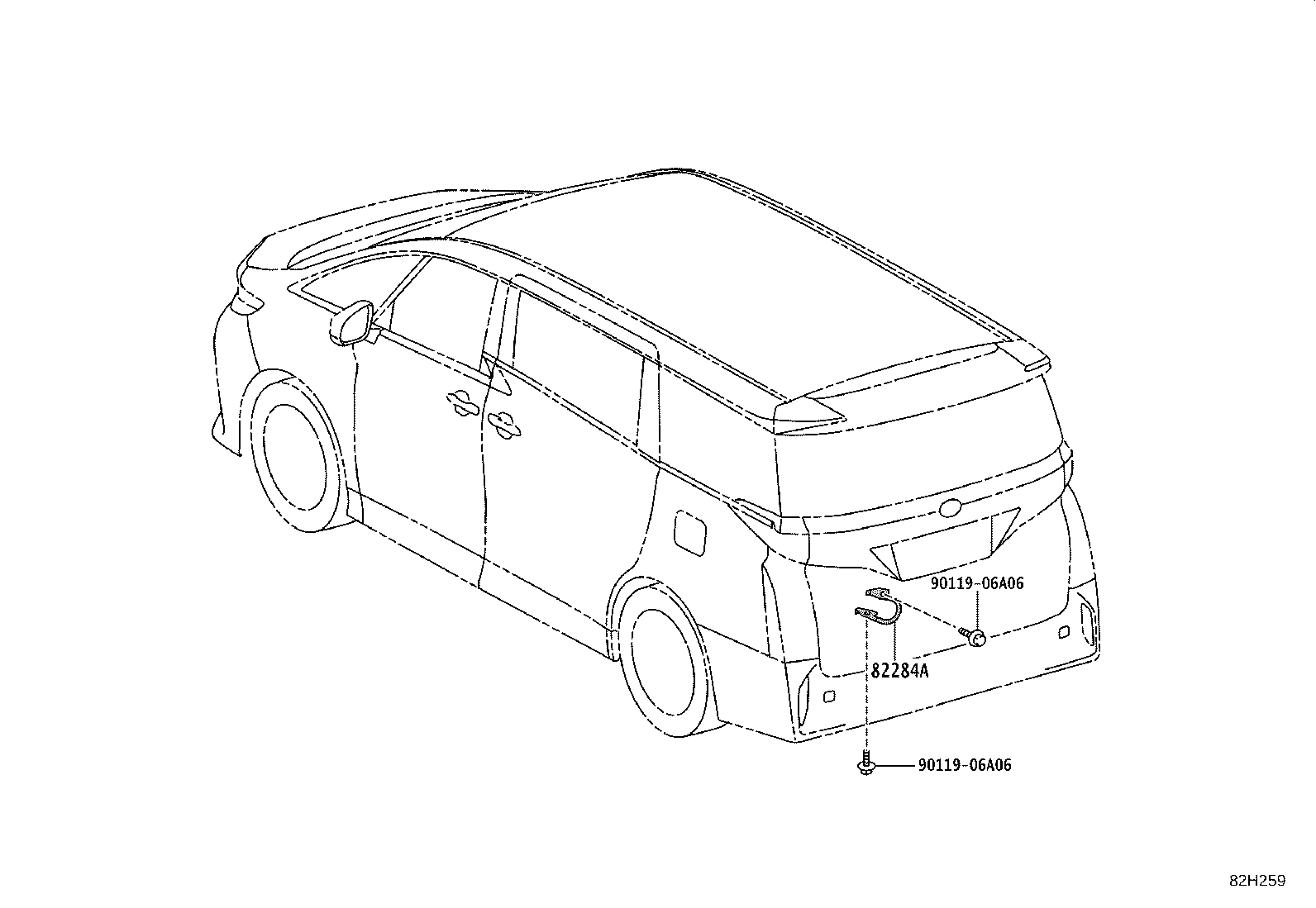

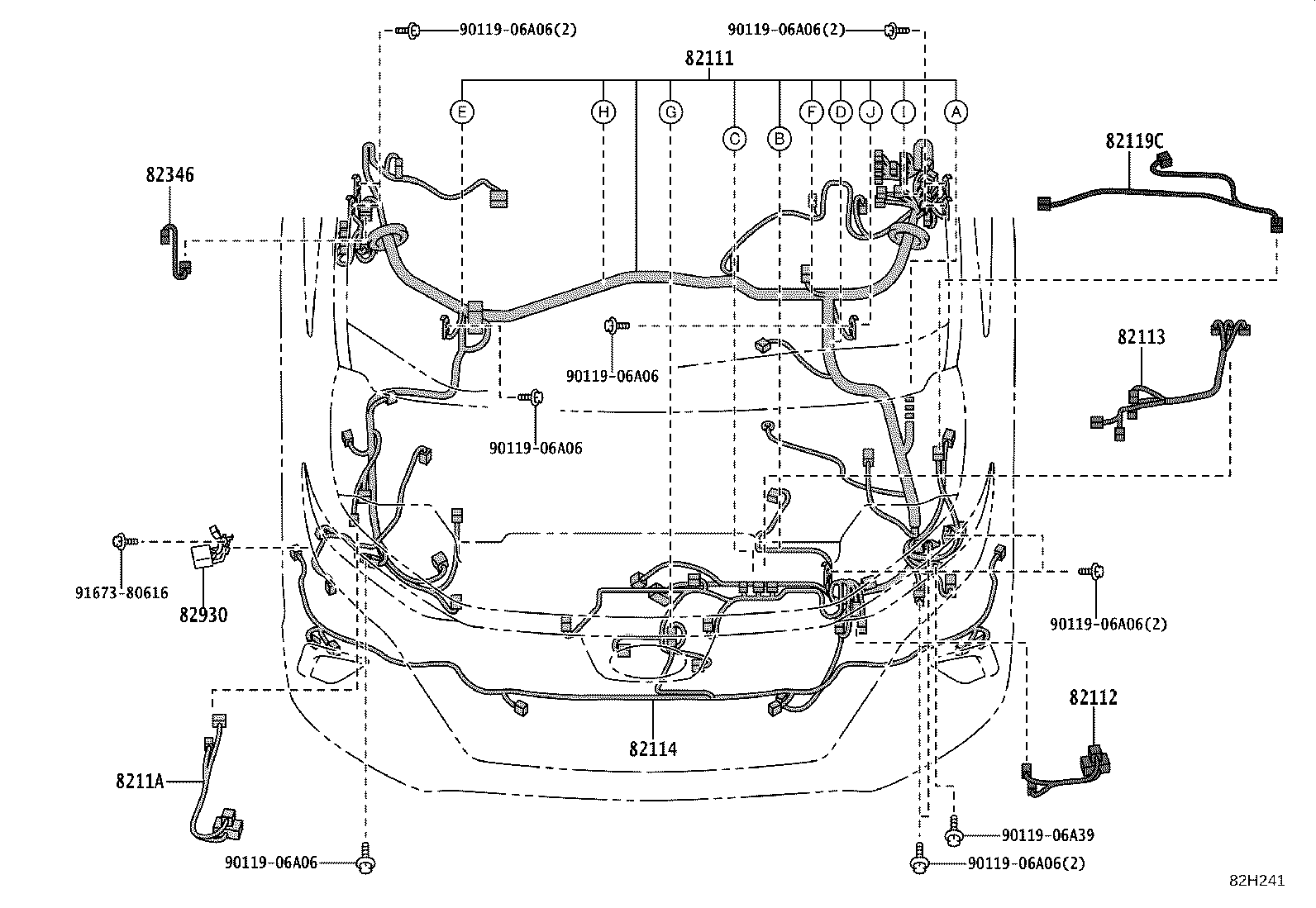

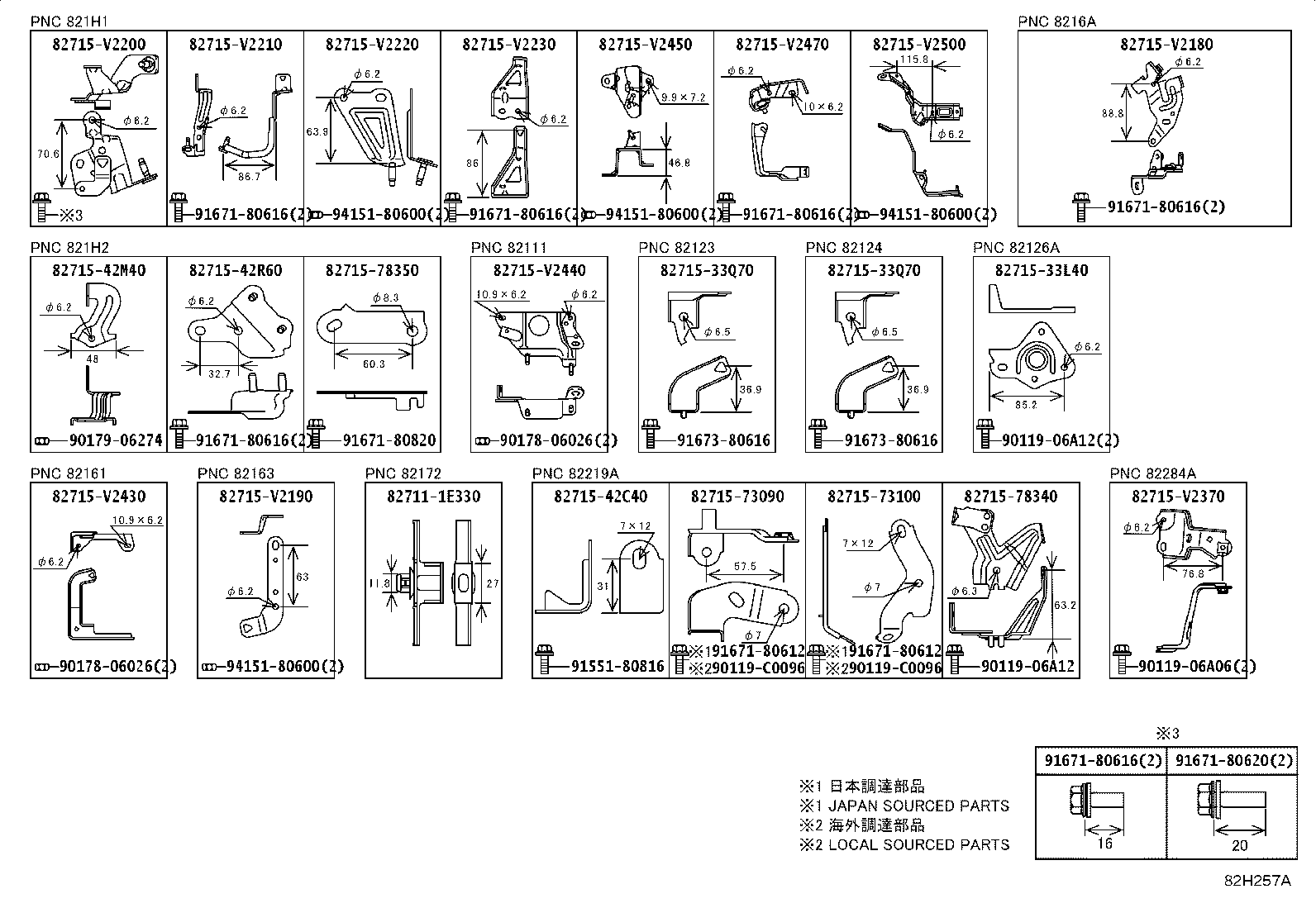

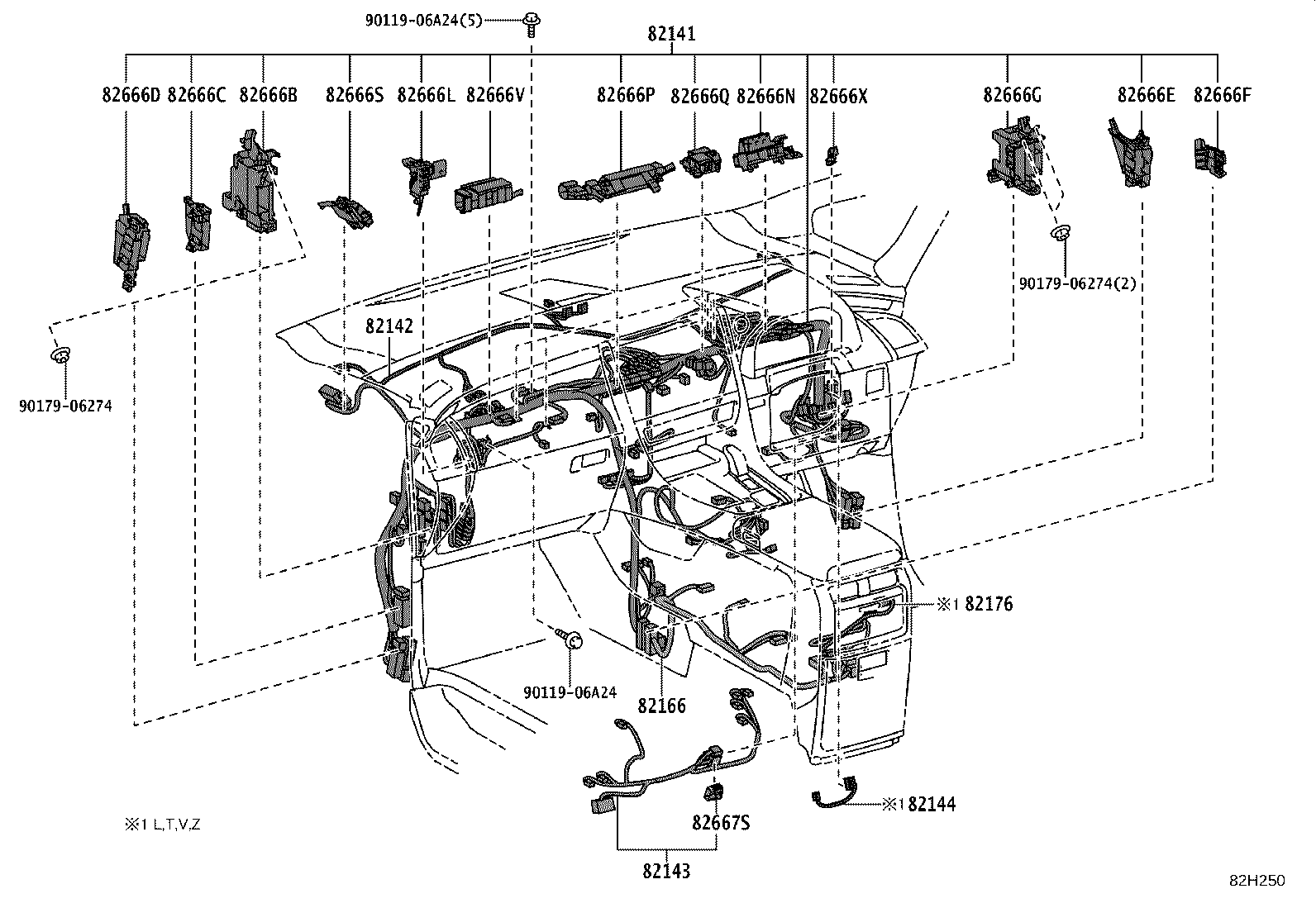

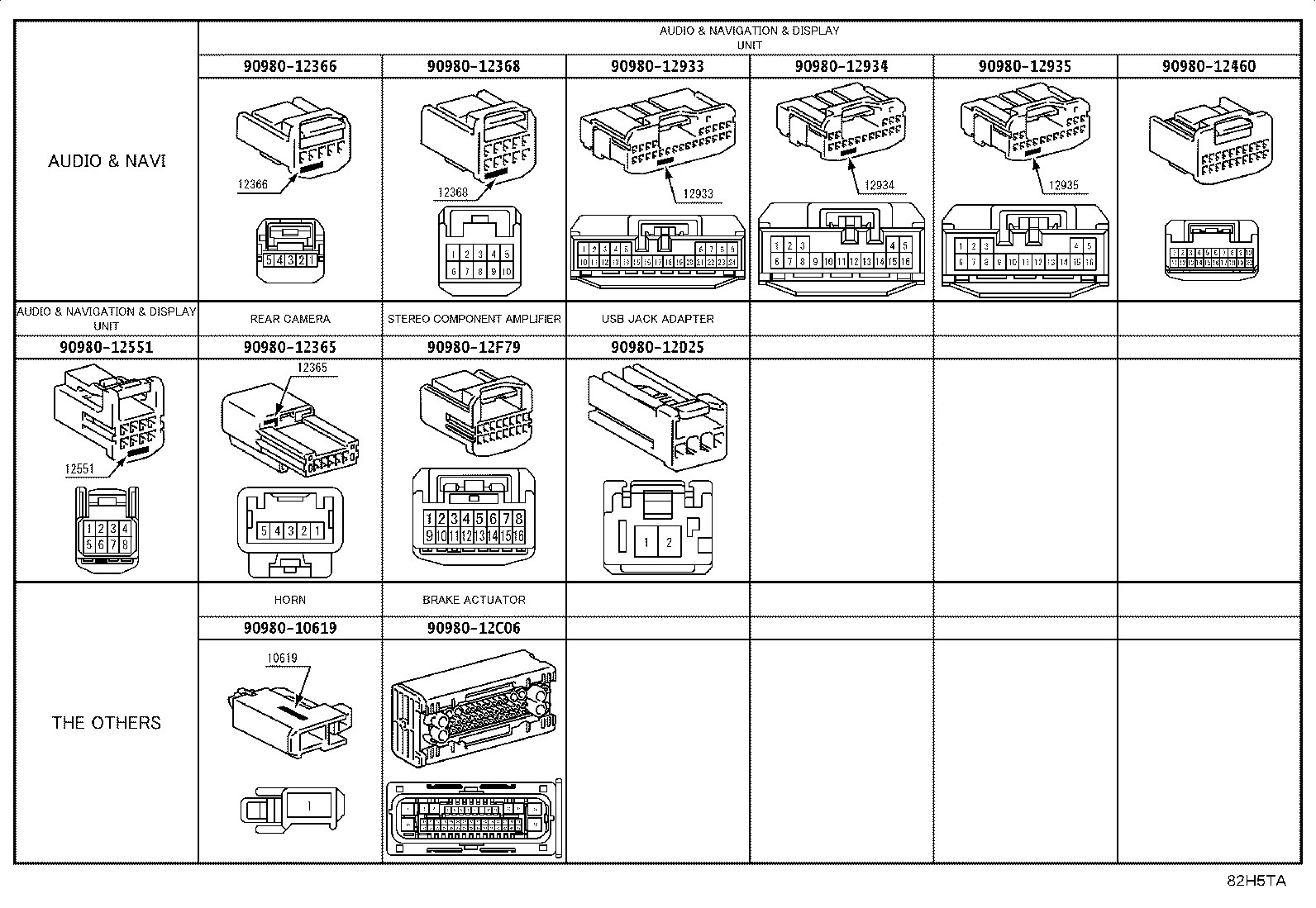

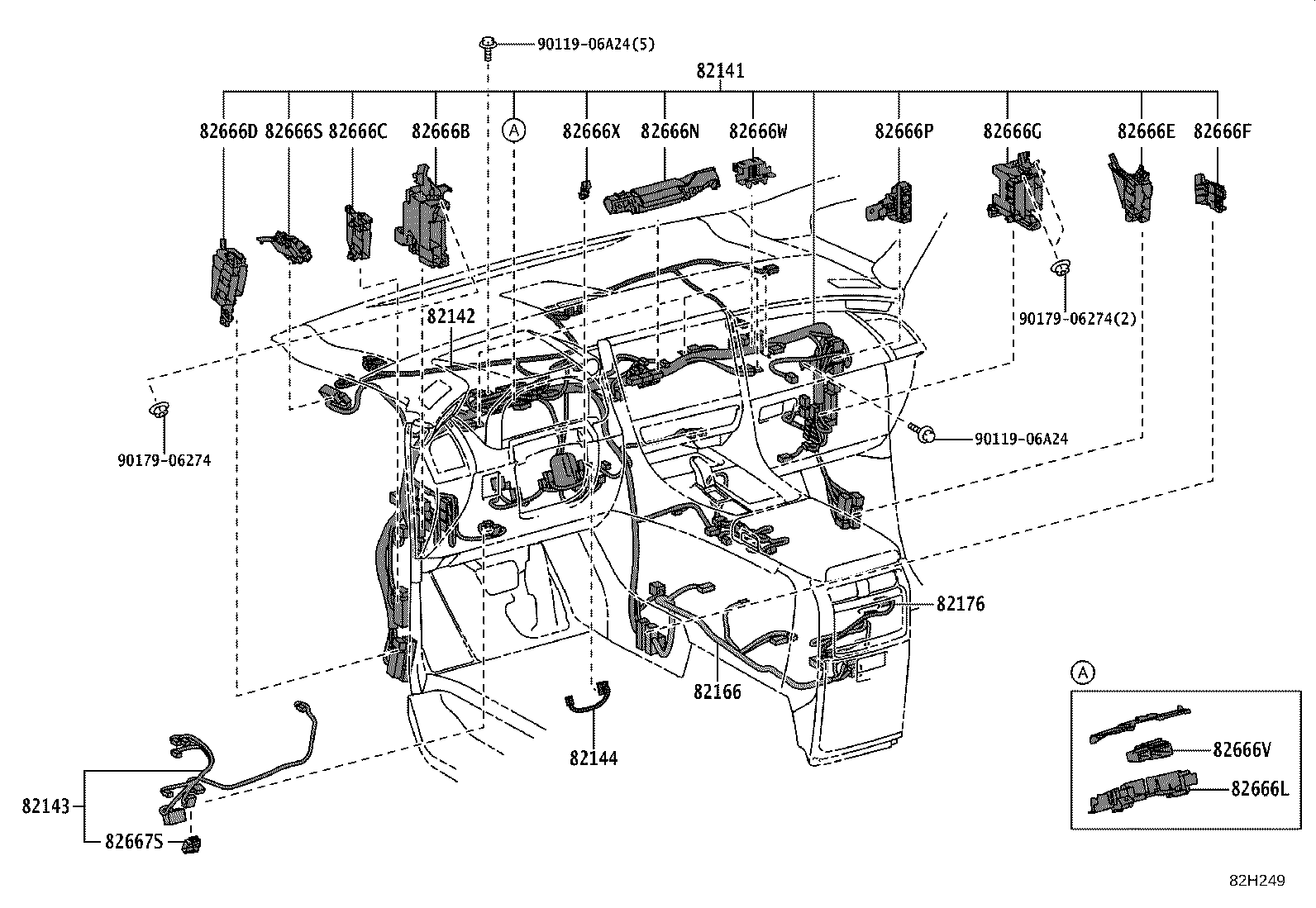

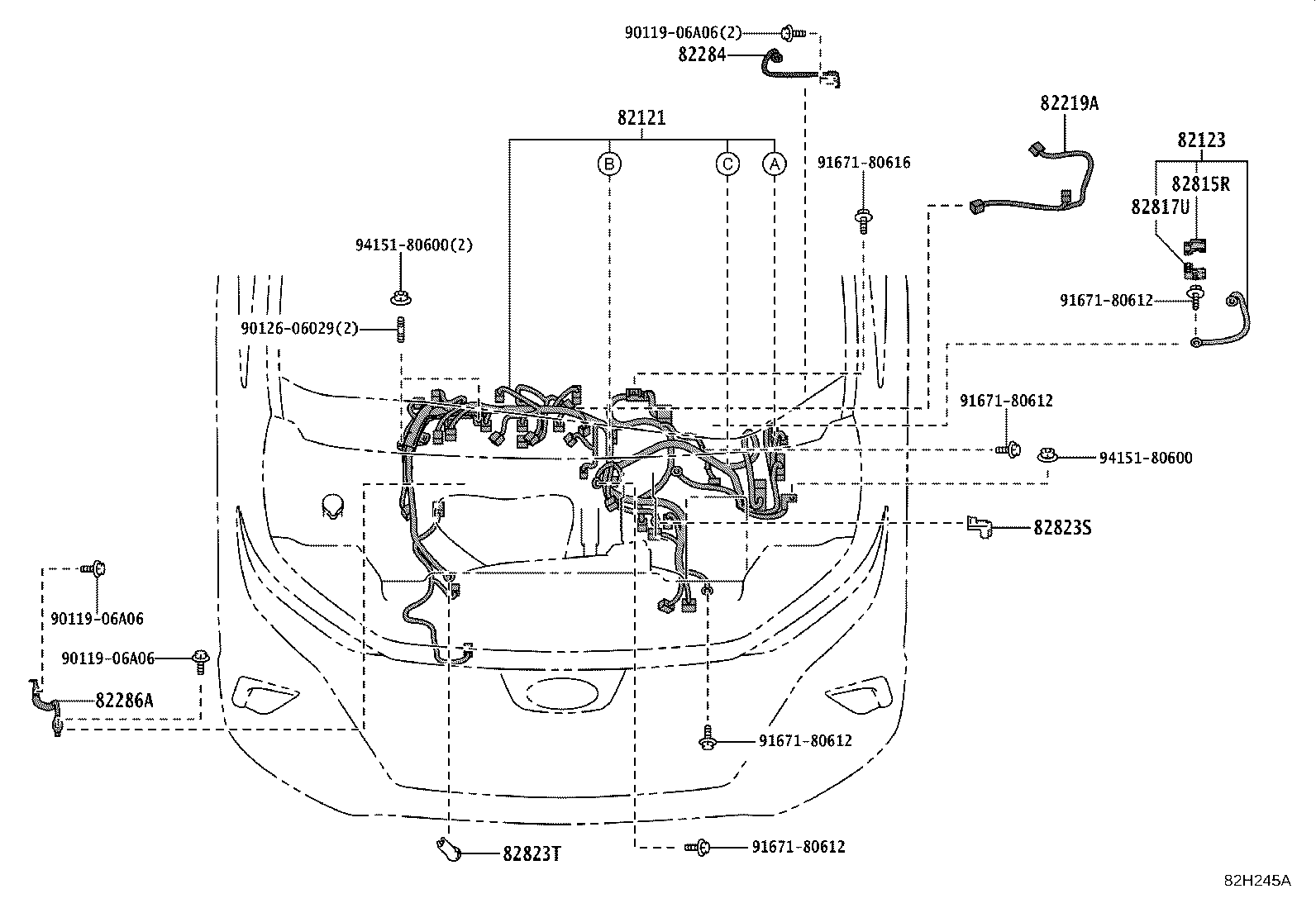

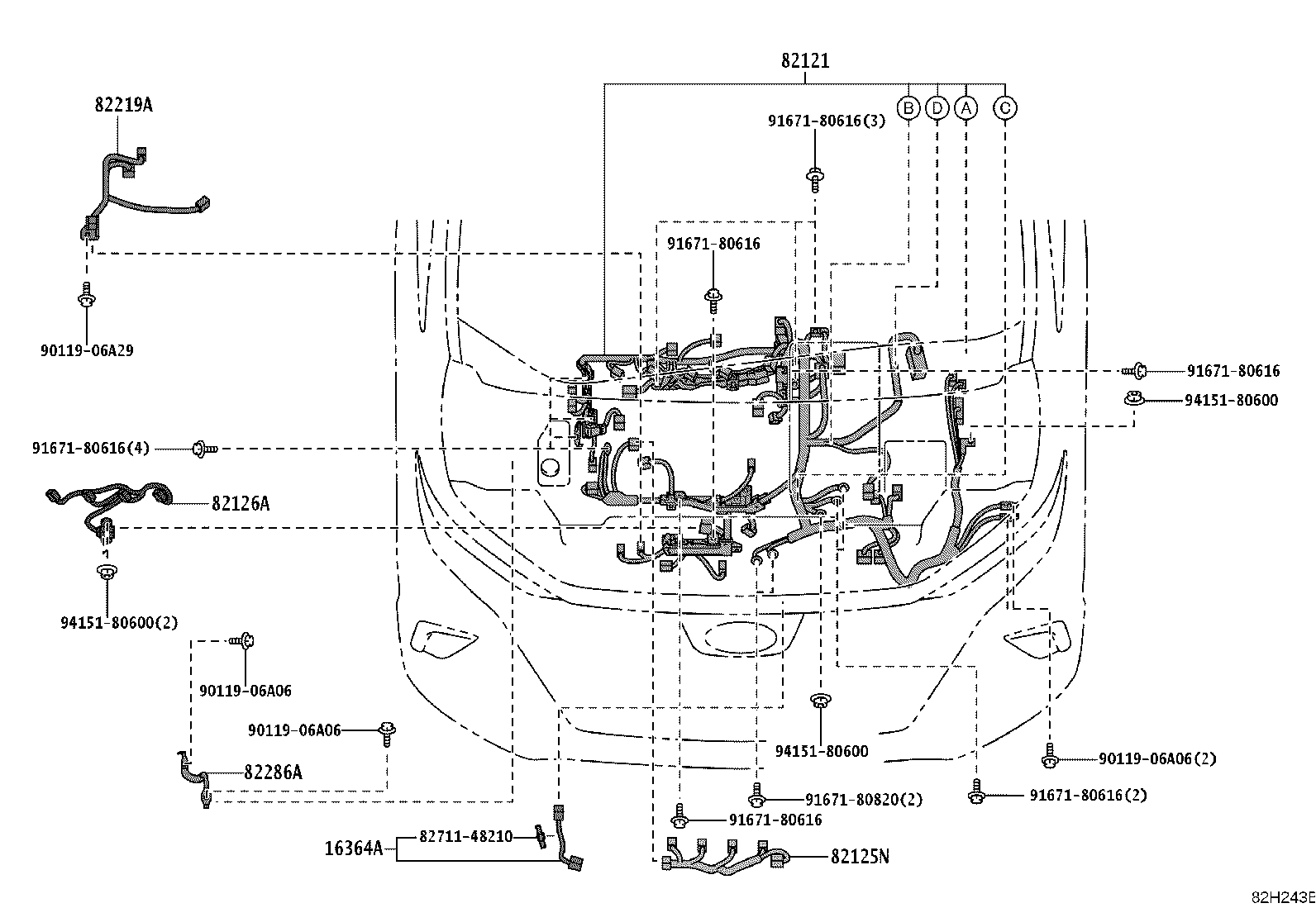

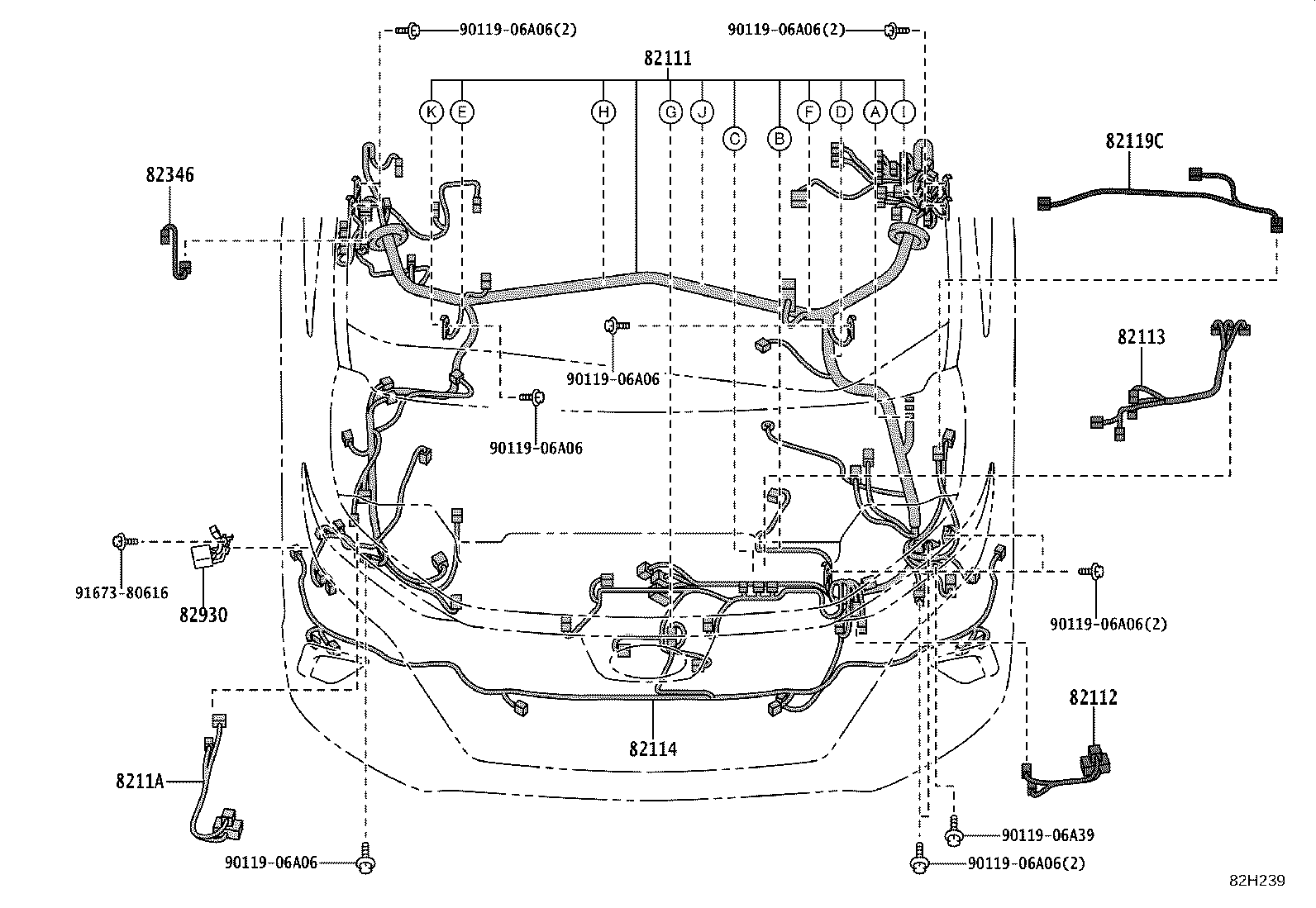

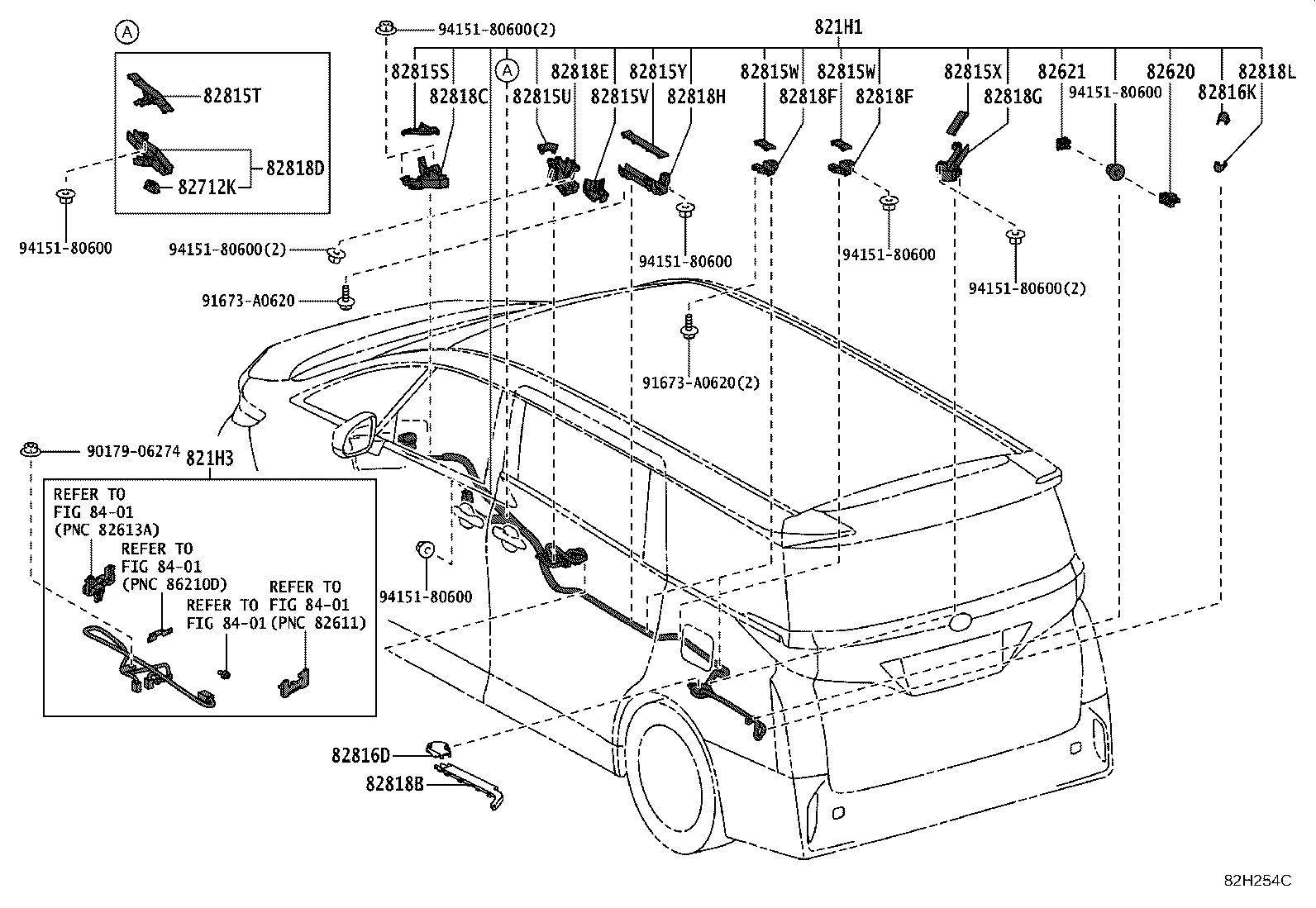

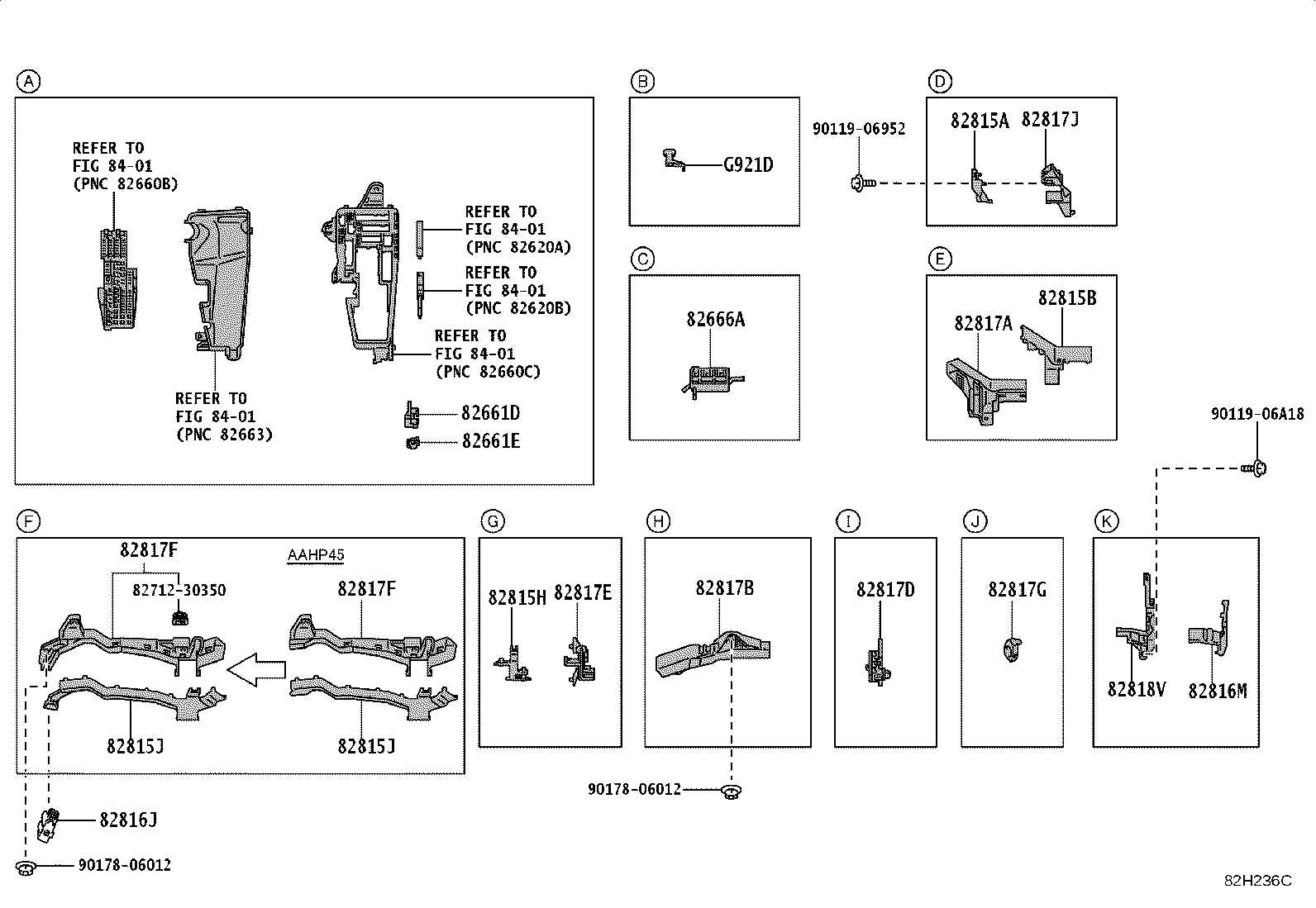

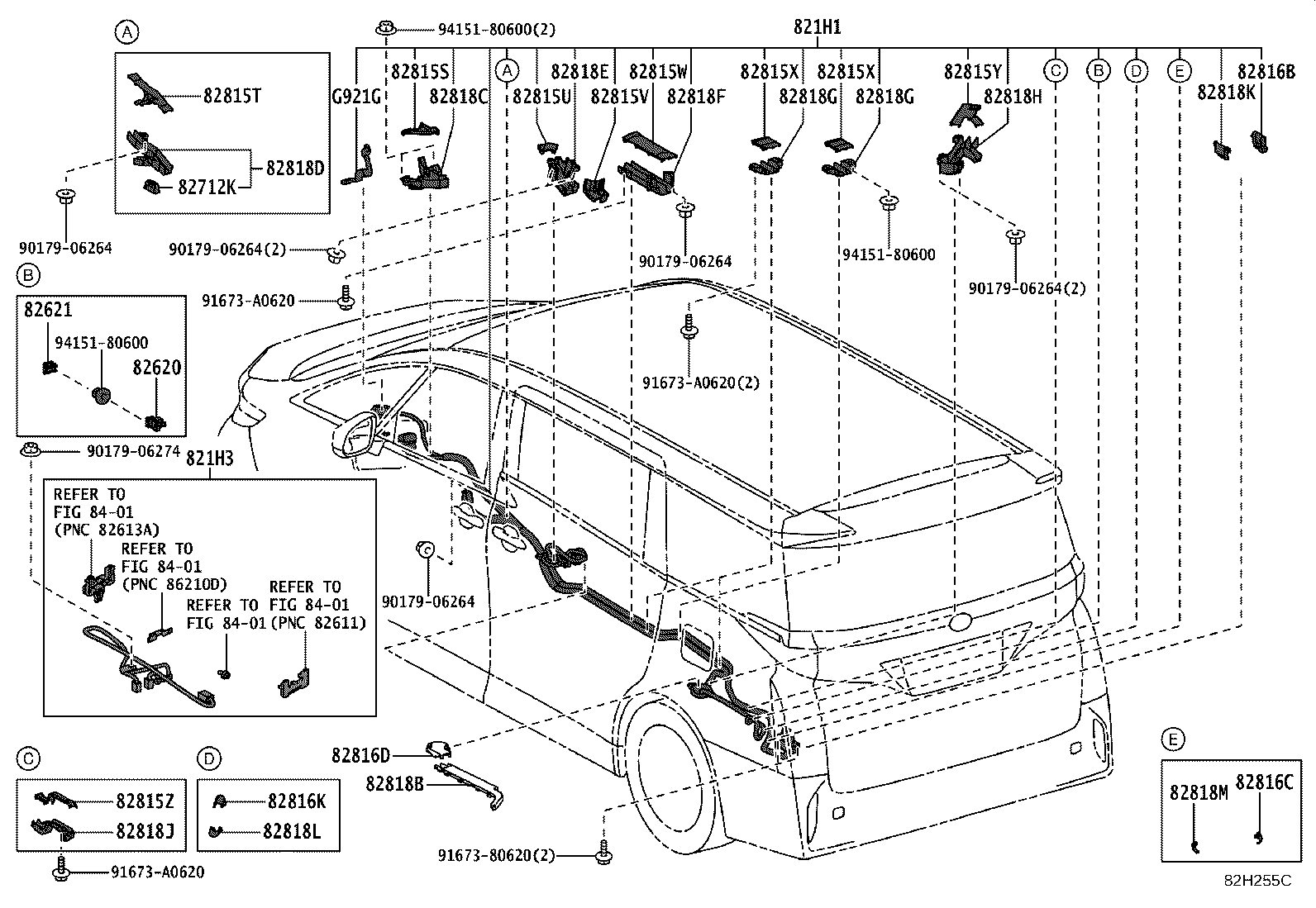

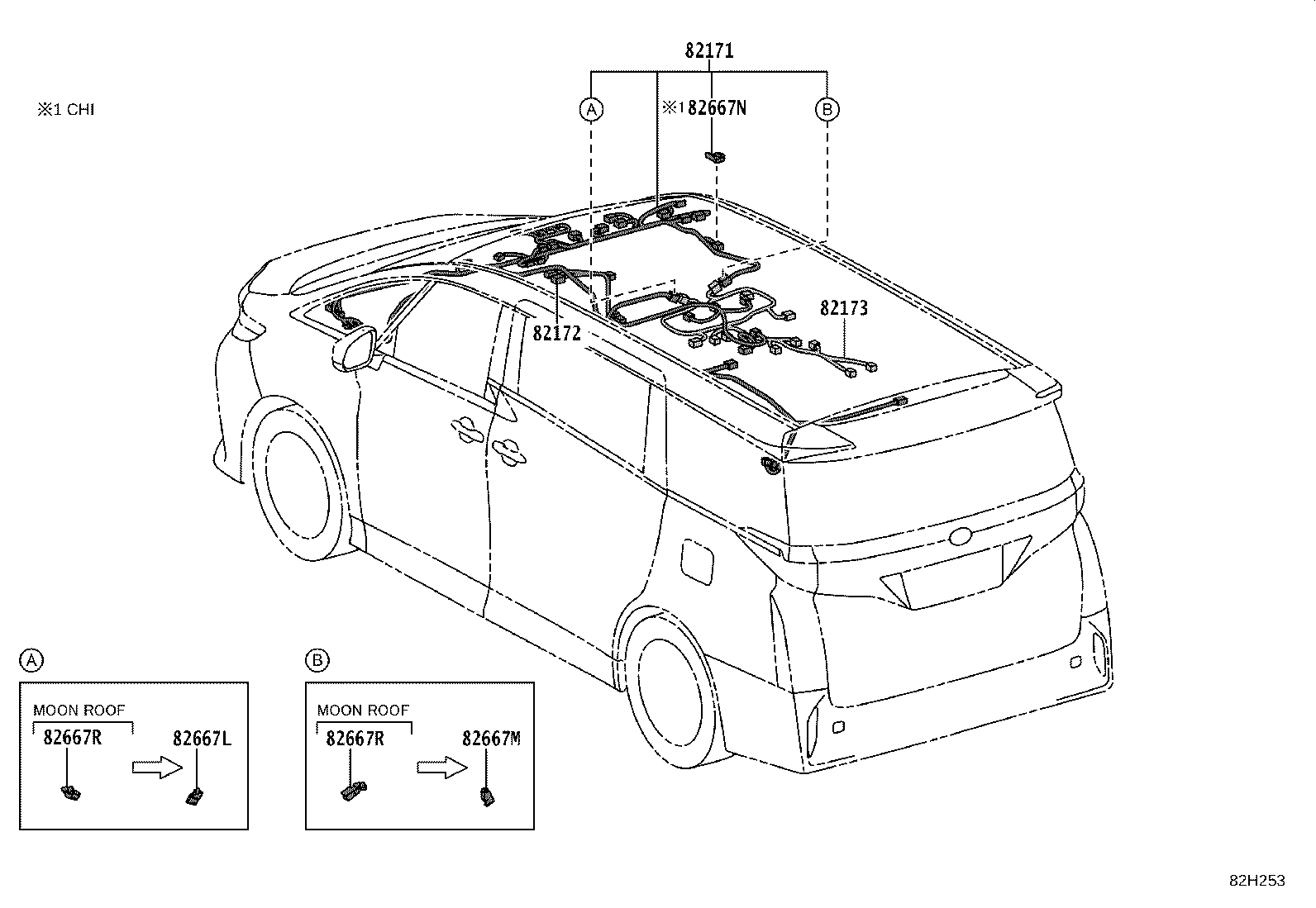

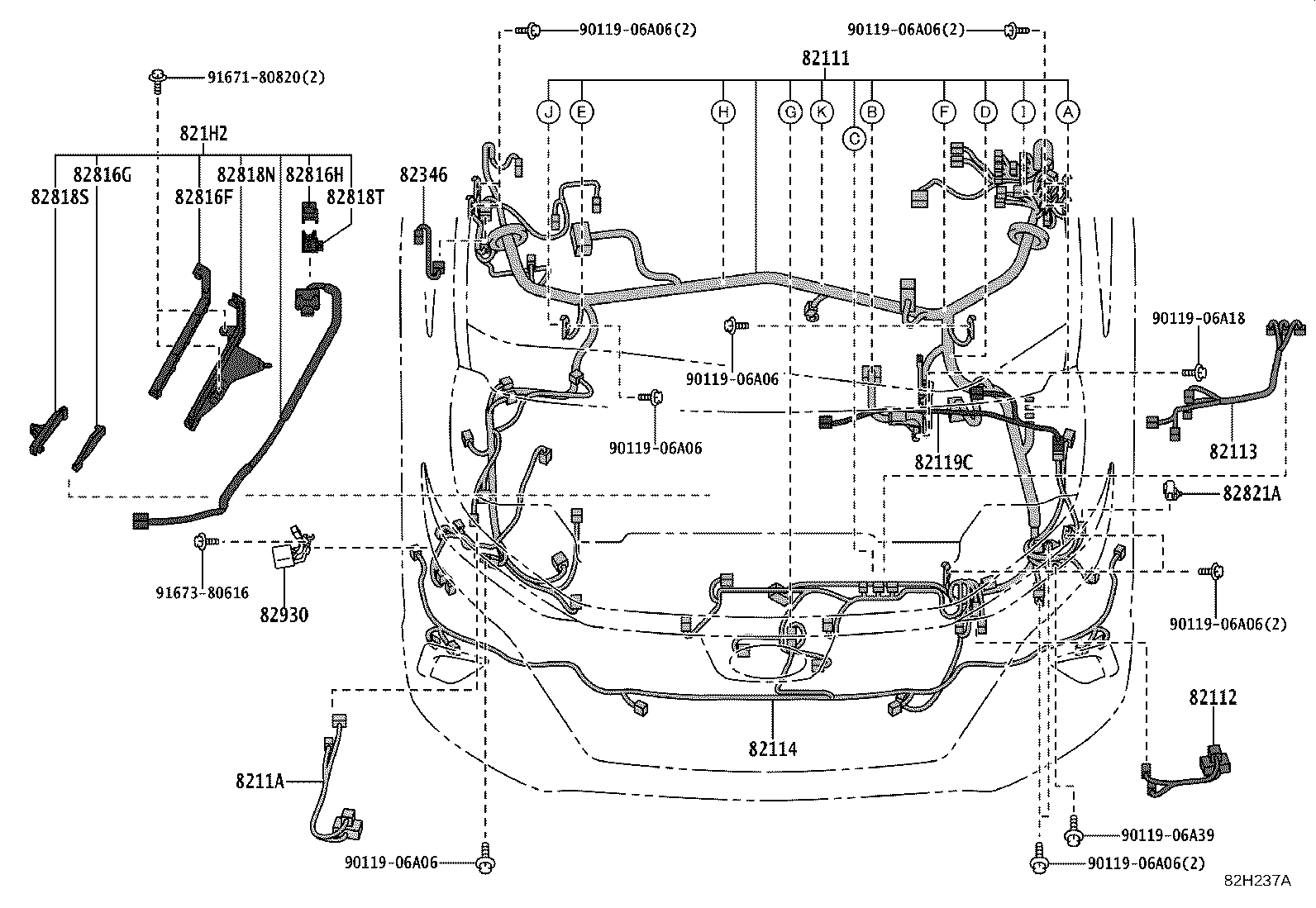

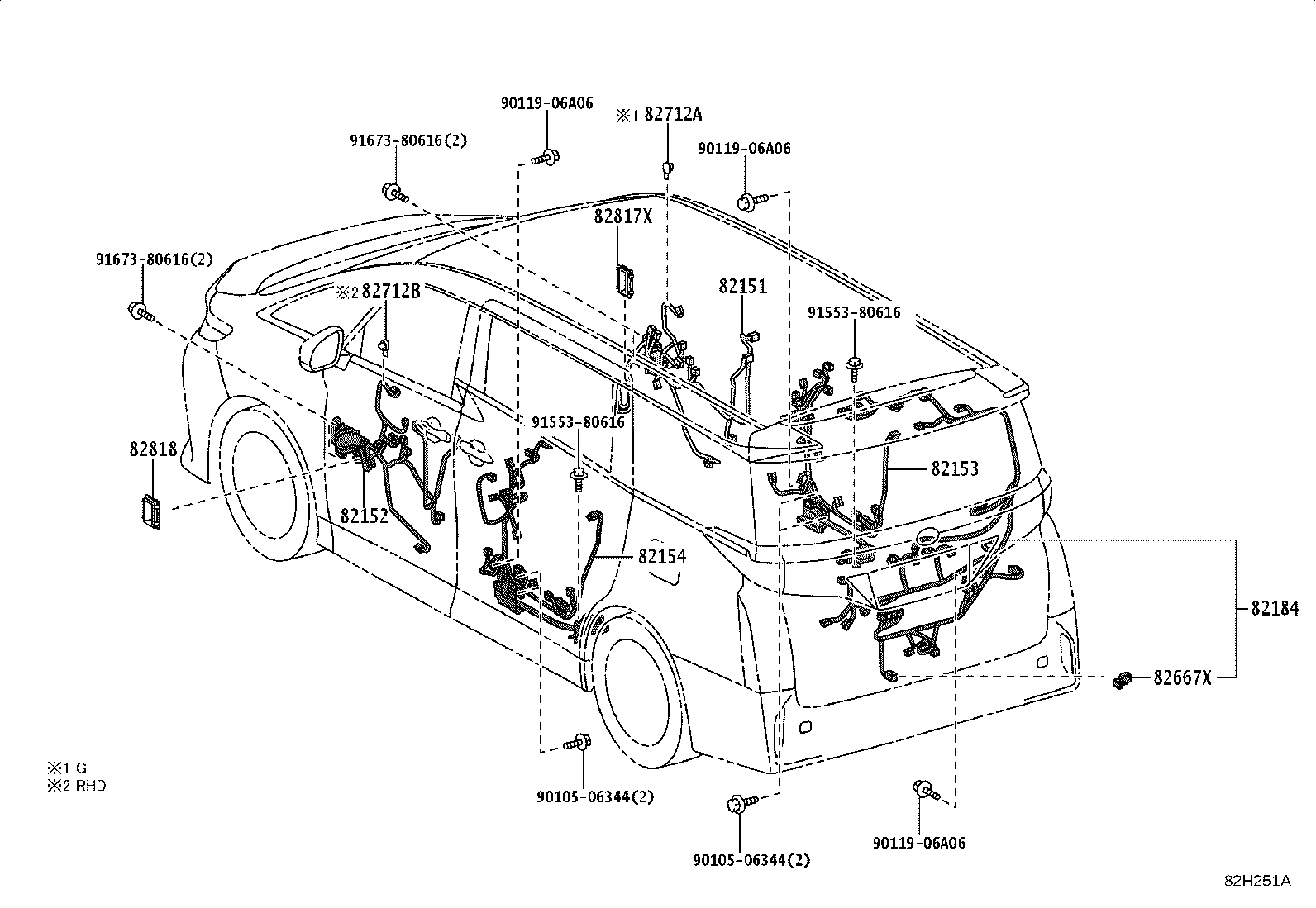

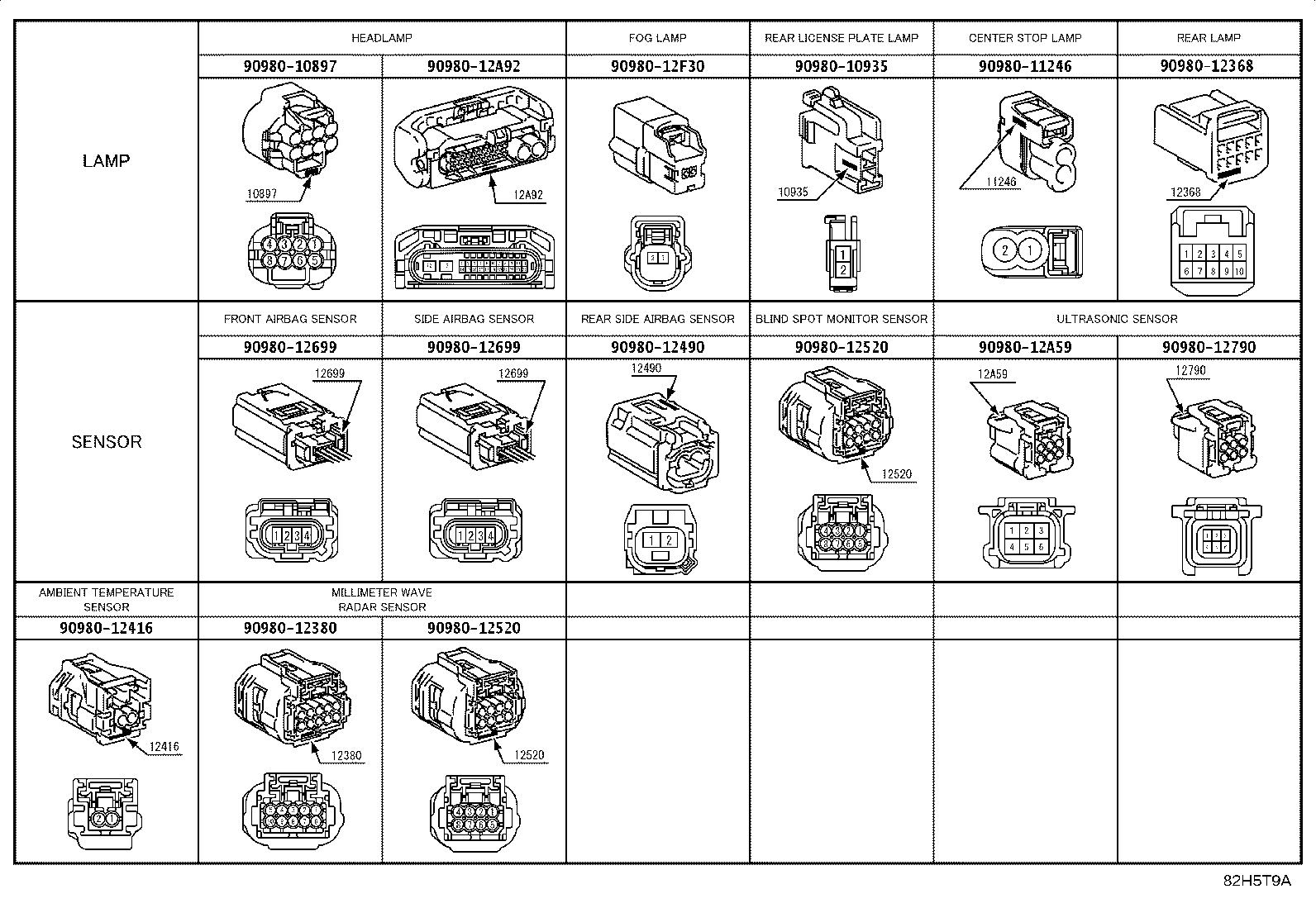

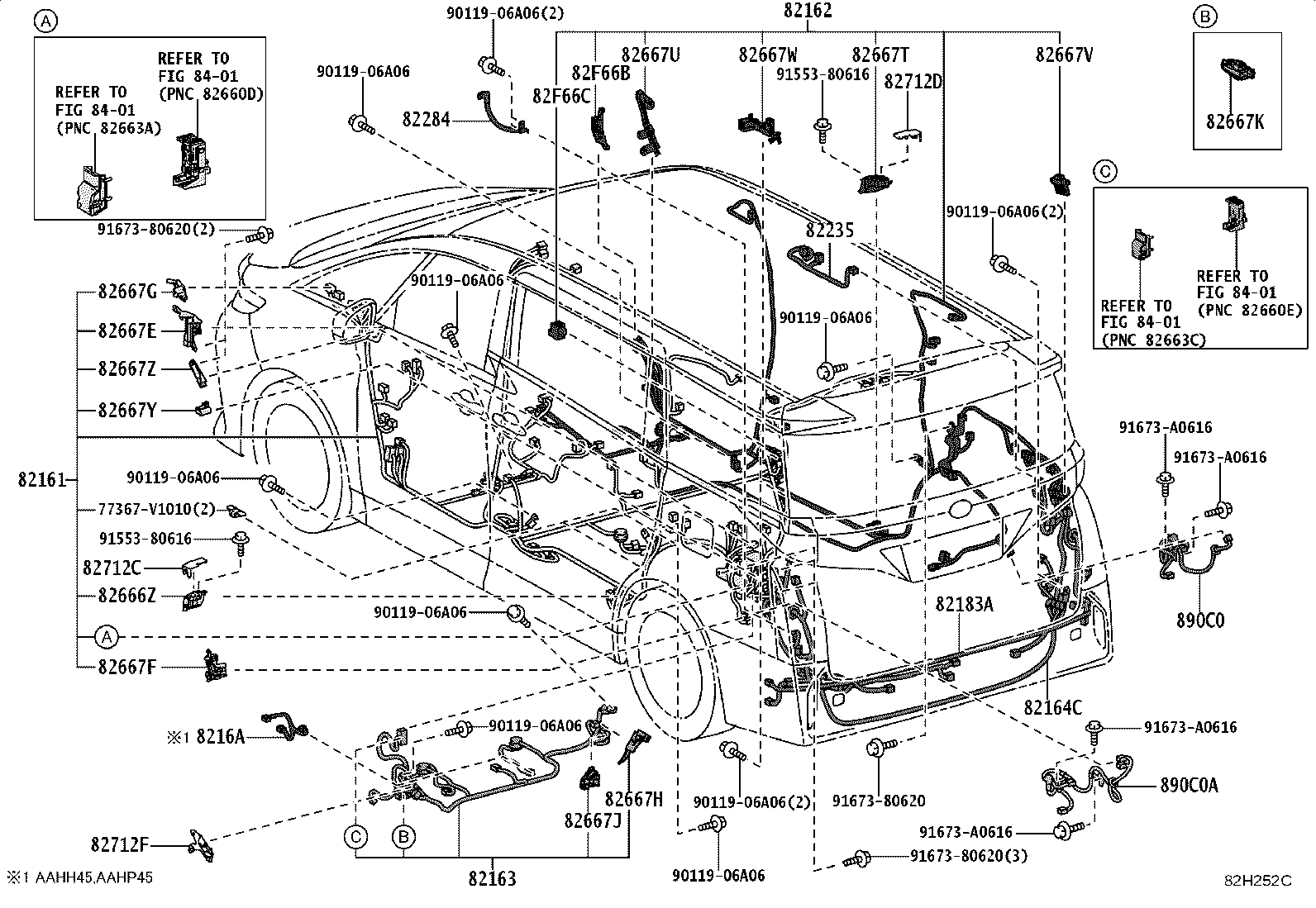

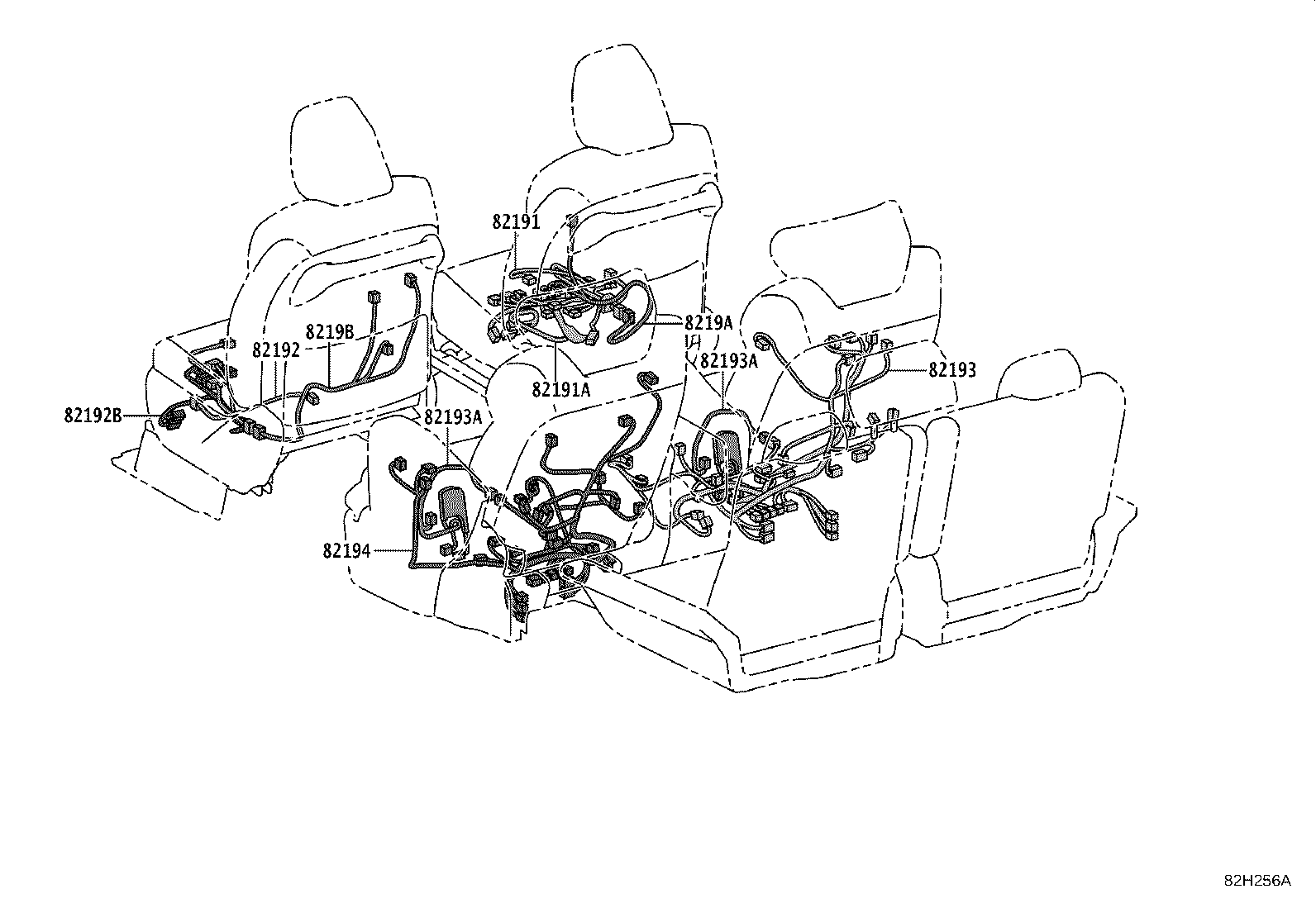

Figure 82H235B 82H235B 2023-06 → — Figure 82H236C 82H236C 2023-06 → — Figure 82H237A 82H237A 2023-06 → — Figure 82H238A 82H238A 2023-06 → — Figure 82H239 82H239 2023-06 → — Figure 82H240A 82H240A 2023-06 → — Figure 82H241 82H241 2023-06 → — Figure 82H242B 82H242B 2023-06 → — Figure 82H243B 82H243B 2023-06 → — Figure 82H244B 82H244B 2023-06 → — Figure 82H245A 82H245A 2023-06 → — Figure 82H246 82H246 2023-06 → — Figure 82H247A 82H247A 2023-06 → — Figure 82H248 82H248 2023-06 → — Figure 82H249 82H249 2023-06 → — Figure 82H250 82H250 2023-06 → — Figure 82H251A 82H251A 2023-06 → — Figure 82H252C 82H252C 2023-06 → — Figure 82H253 82H253 2023-06 → — Figure 82H254C 82H254C 2023-06 → — Figure 82H255C 82H255C 2023-06 → — Figure 82H5V3A 82H5V3A 2024-10 → — Figure 82H256A 82H256A 2023-06 → — Figure 82H257A 82H257A 2023-06 → — Figure 82H258B 82H258B 2023-06 → — Figure 82H259 82H259 2023-06 → — Figure 82H5T9A 82H5T9A 2023-06 → — Figure 82H5TA 82H5TA 2023-06 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82166 Wire, Console Box
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82176 Wire, Rear Console Box
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
82193 Wire, Rear Seat, RH
82193A Wire, Rear Seat, NO.1
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H3 Wire, HV Battery Pack
821H4D Wire, High Voltage Socket Inverter, NO.1
821H5A Wire, HV Battery Charger
82219A Wire, Sensor
82235 Wire, Room
82284 Wire, Earth
82284A Wire, Earth NO.2
82286A Wire, Earth, NO.2
82346 Wire, Speaker Tweeter
82620 Block Assy, Fusible Link
82621 Cover, Fusible Link
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82667H Holder, Connector, NO.23
82667J Holder, Connector, NO.24
82667K Holder, Connector, NO.25
82667L Holder, Connector, NO.26
82667M Holder, Connector, NO.27
82667N Holder, Connector, NO.28
82667R Holder, Connector, NO.29
82667S Holder, Connector, NO.30
82667T Holder, Connector, NO.31
82667U Holder, Connector, NO.32
82667V Holder, Connector, NO.33
82667W Holder, Connector, NO.34
82667X Holder, Connector, NO.35
82667Y Holder, Connector, NO.36
82667Z Holder, Connector, NO.37
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712D Support, Wiring Harness
82712F Support, Wiring Harness
82712K Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818V Protector, Wiring Harness, NO.18
82818Y Protector, Wiring Harness, NO.21
82819 Grommet, Wiring Harness
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82930 Condenser Assy, Wiring Harness, NO.1
82F66B Holder, Connector, NO.39
82F66C Holder, Connector, NO.40
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
