Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

171 part groups · 20 illustrations

Illustrations

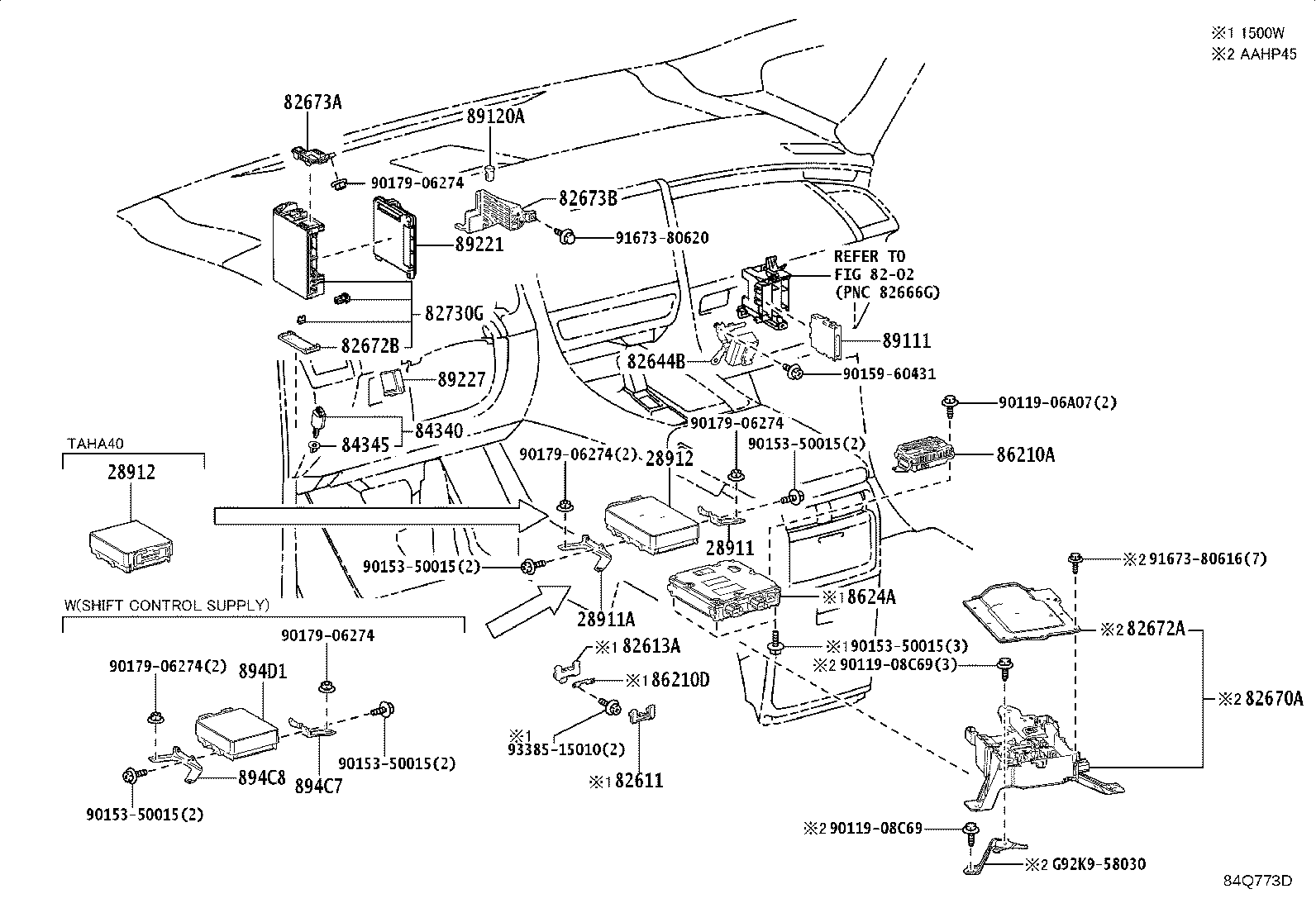

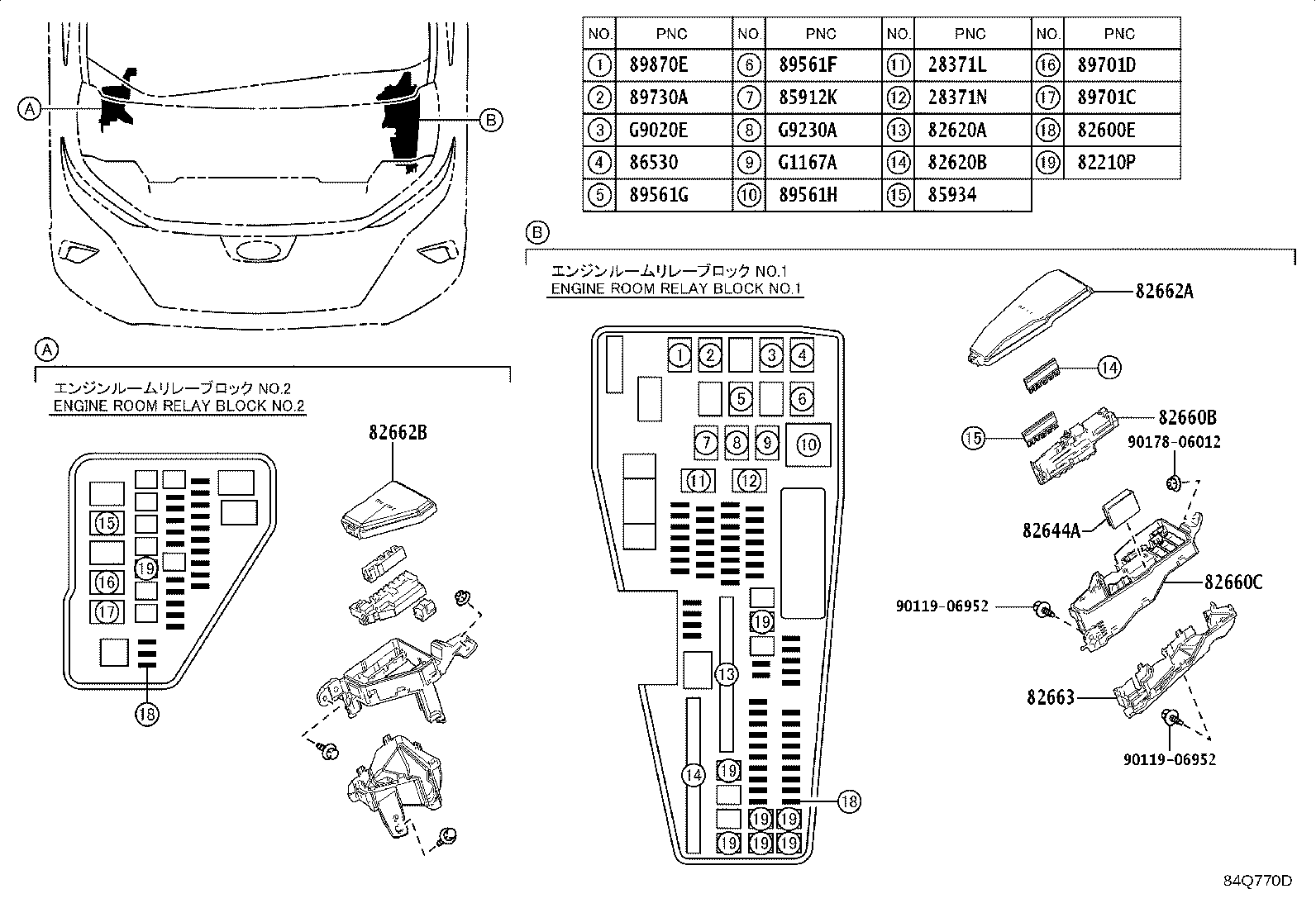

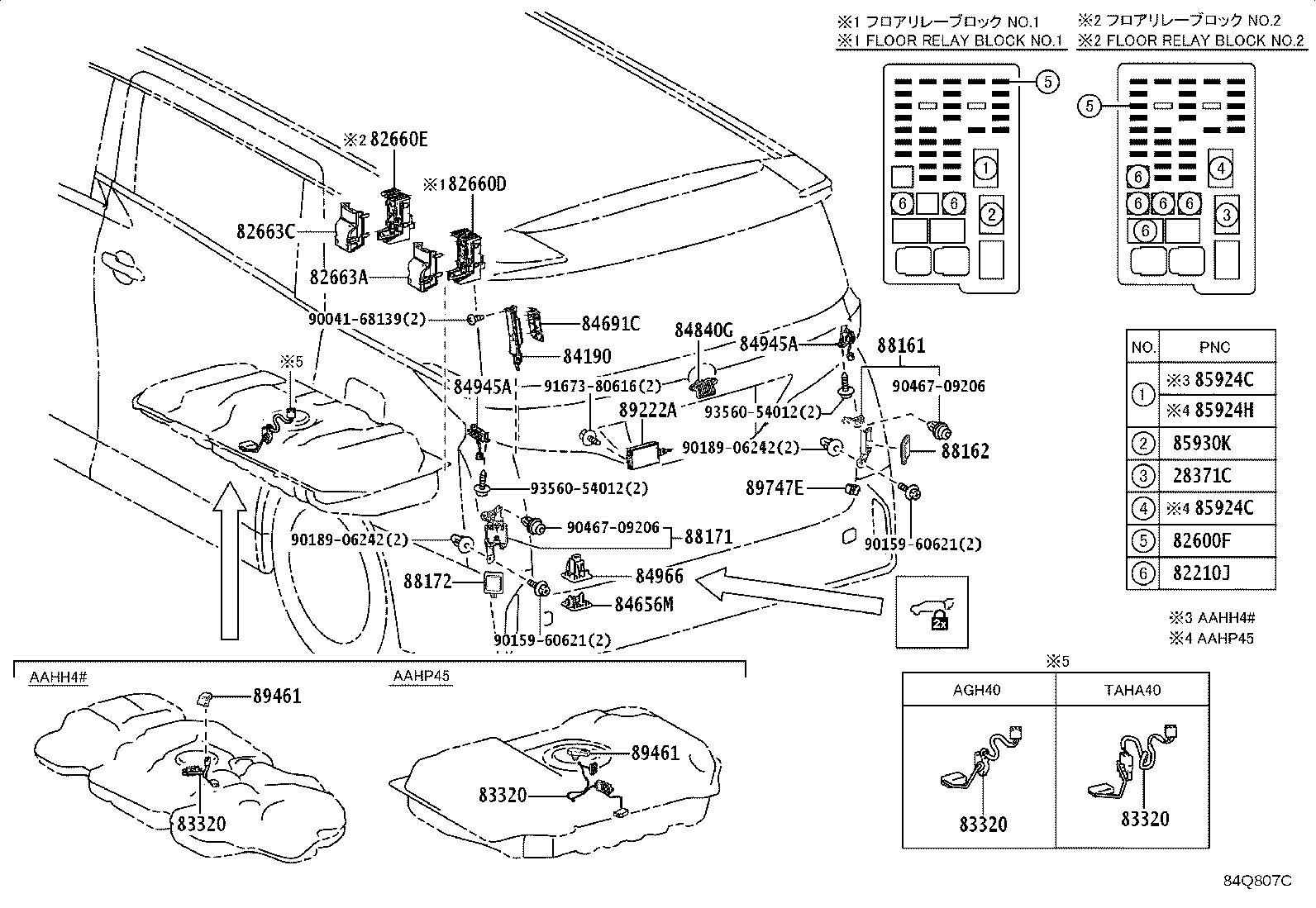

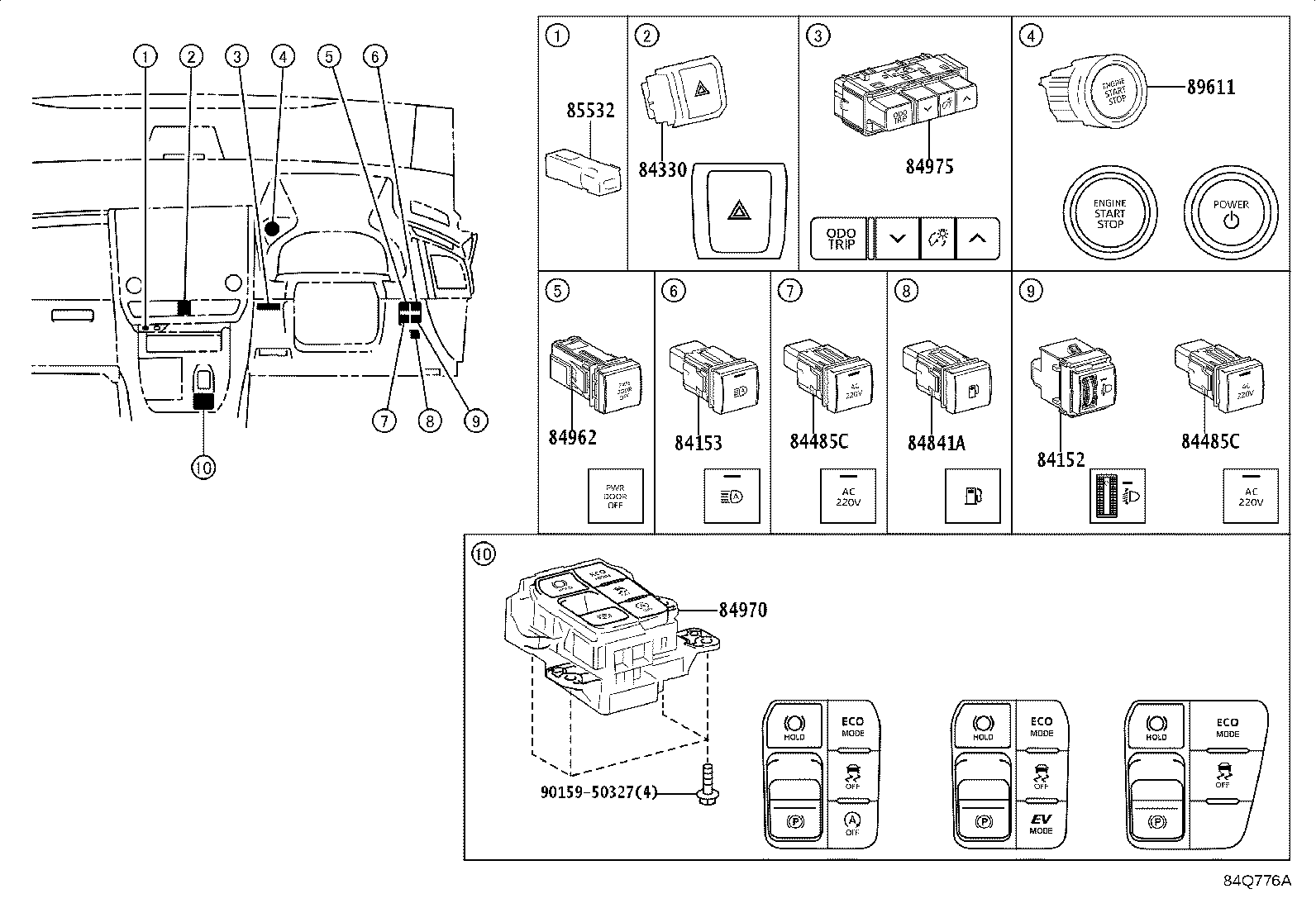

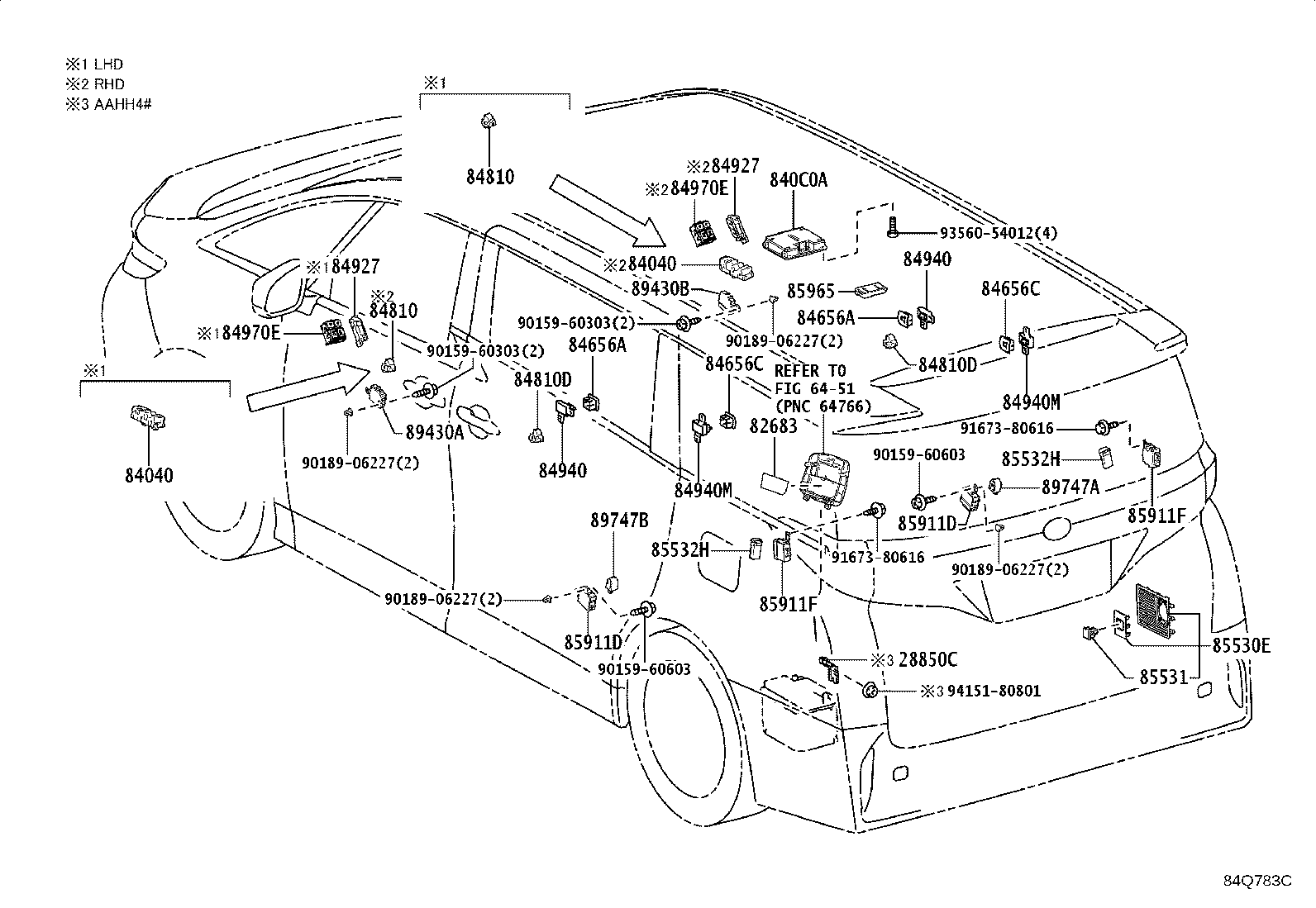

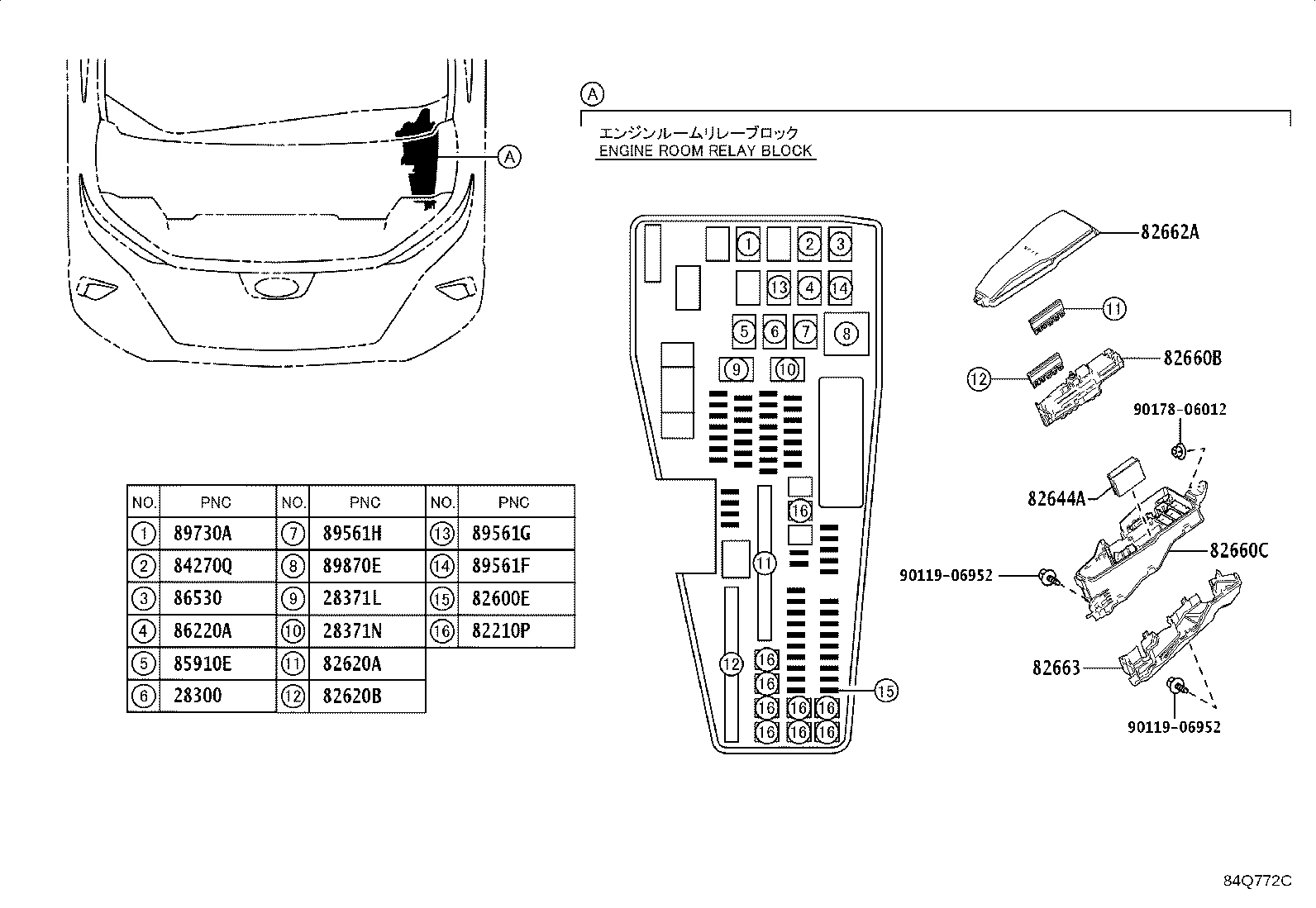

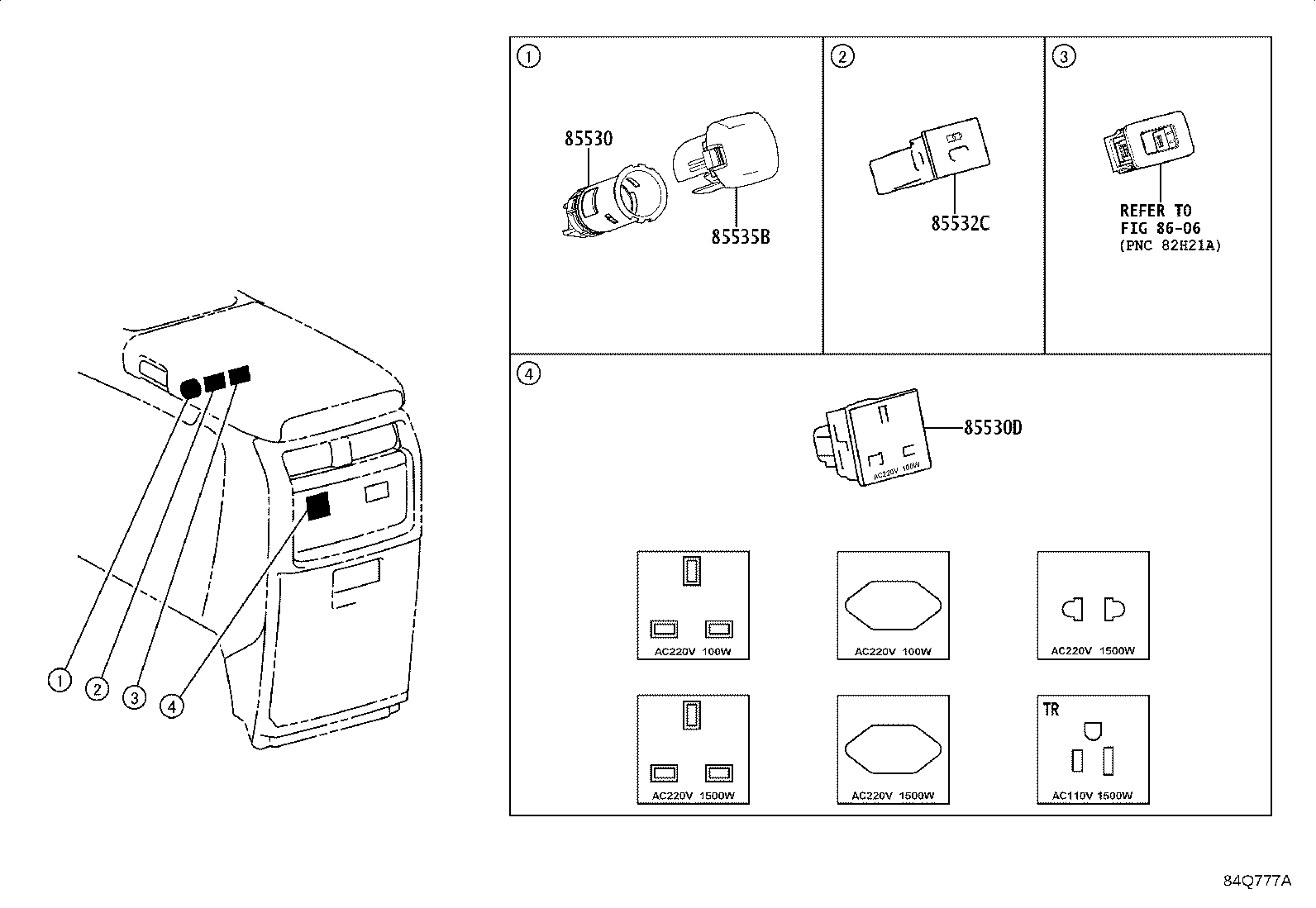

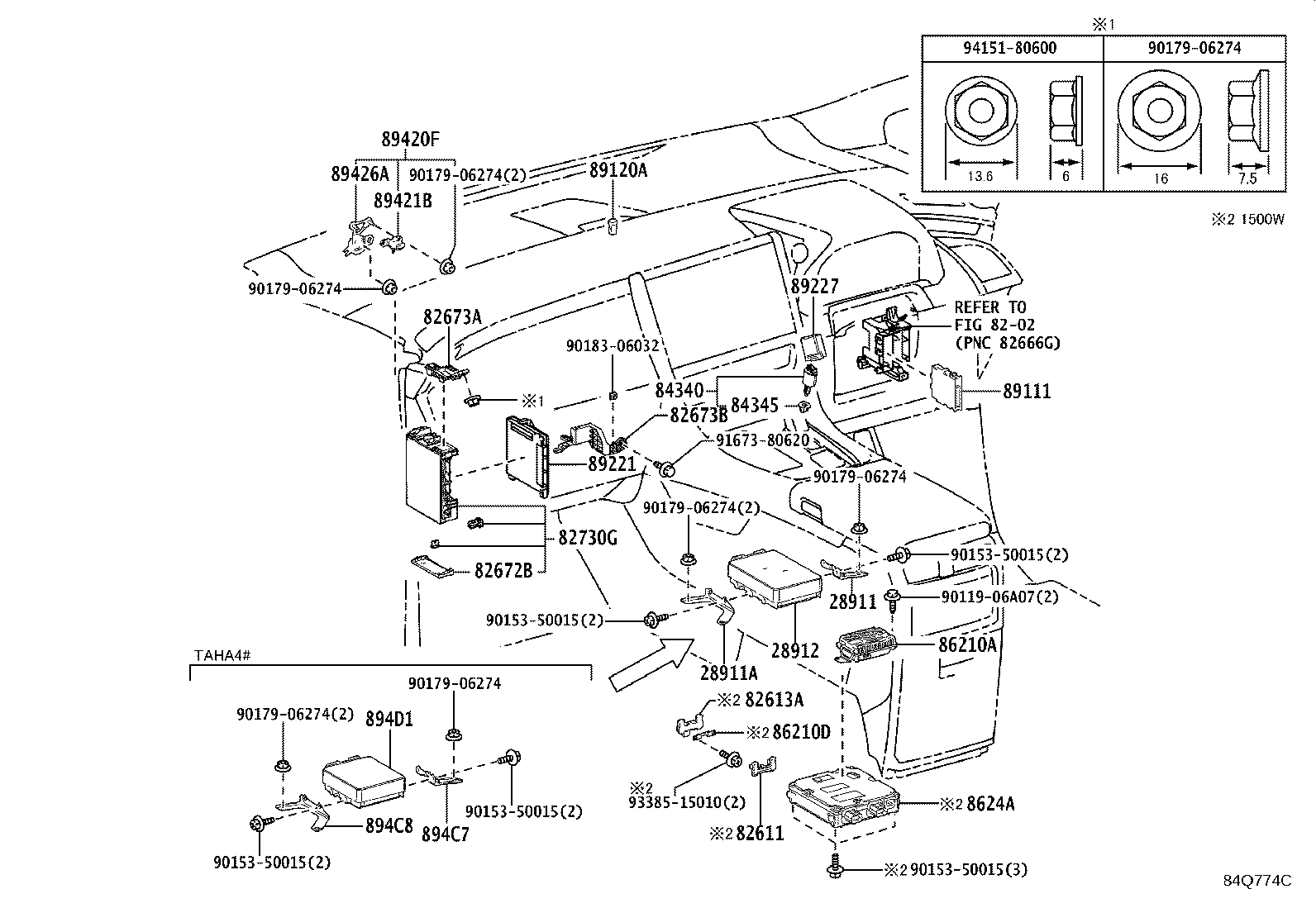

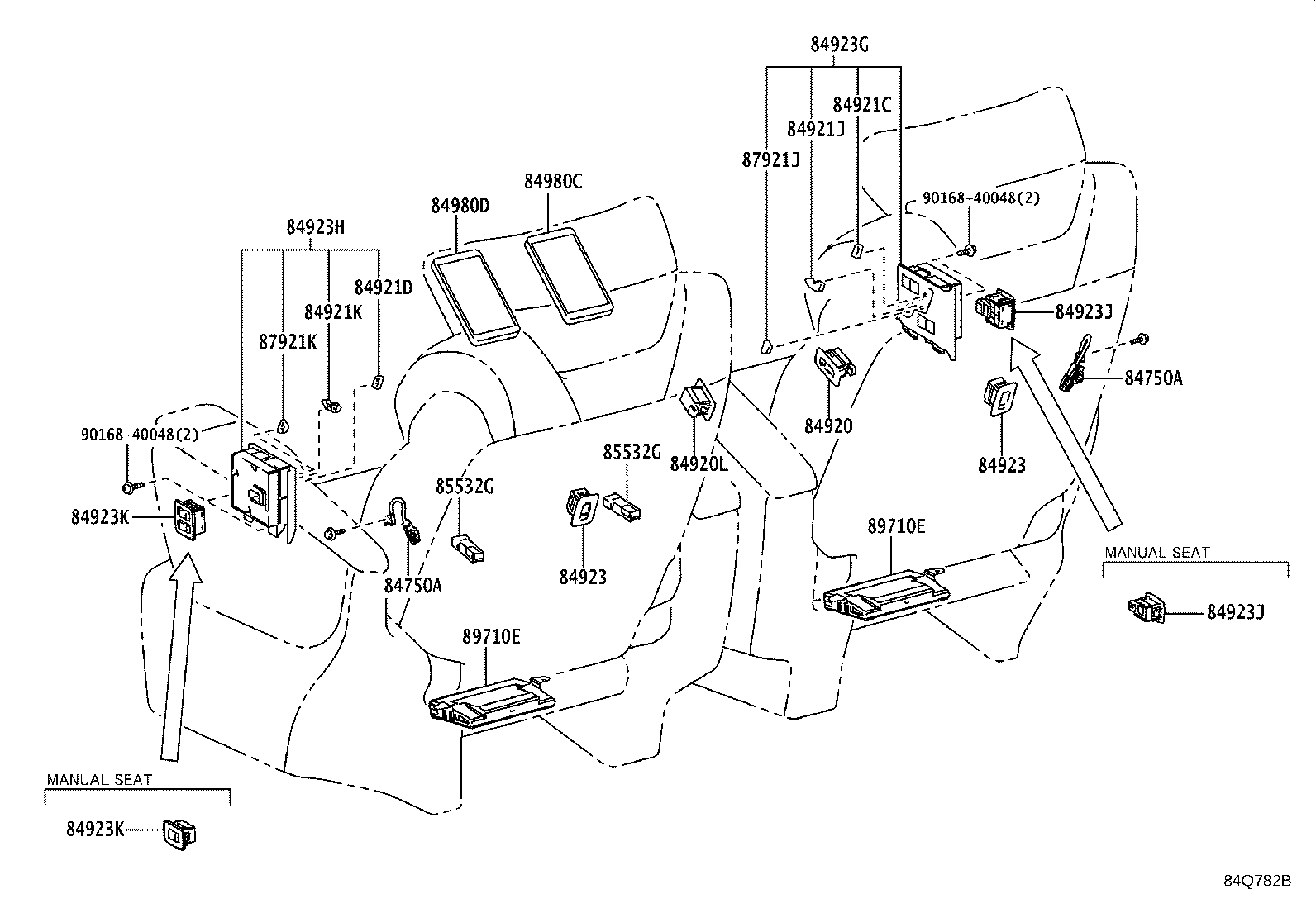

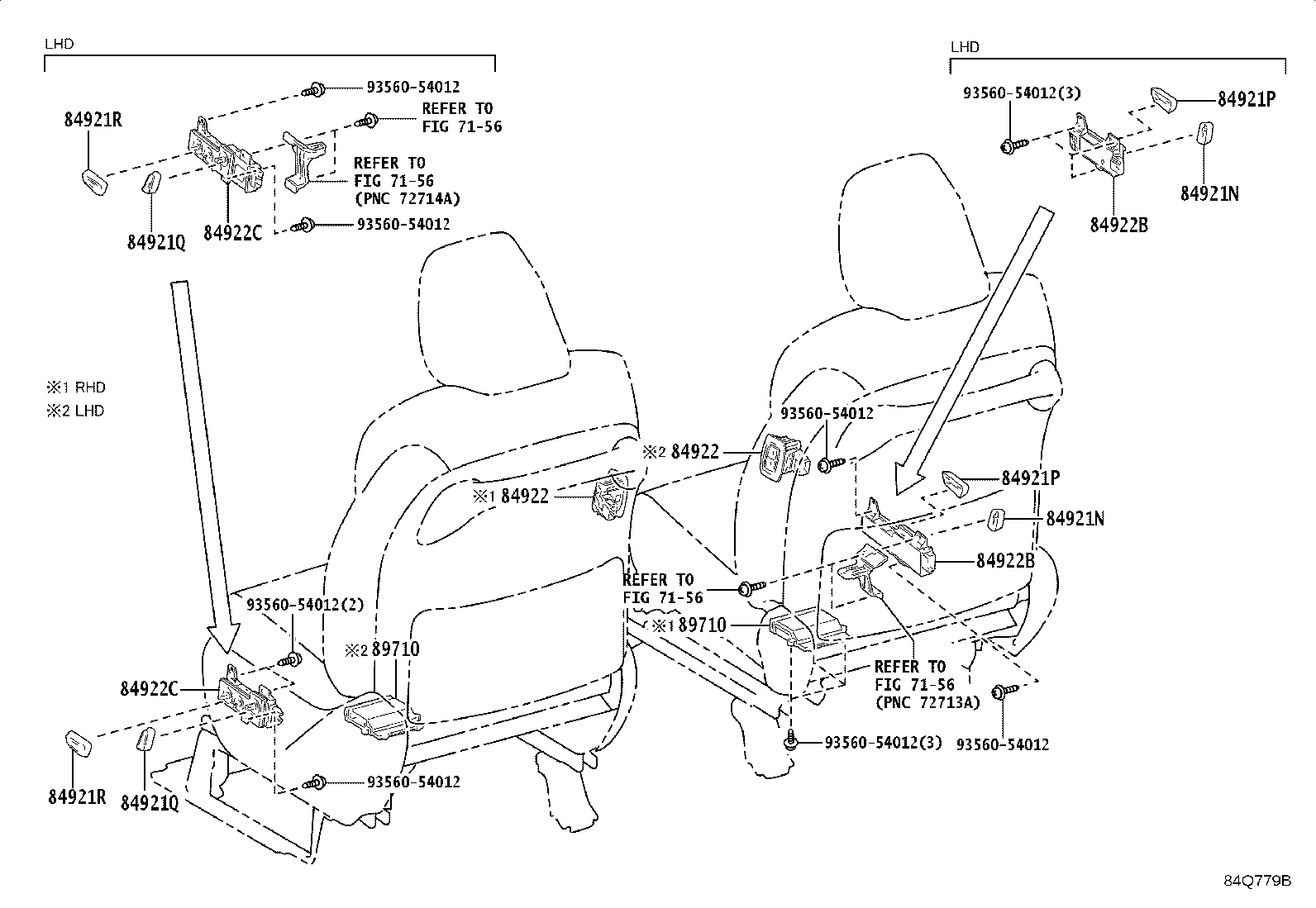

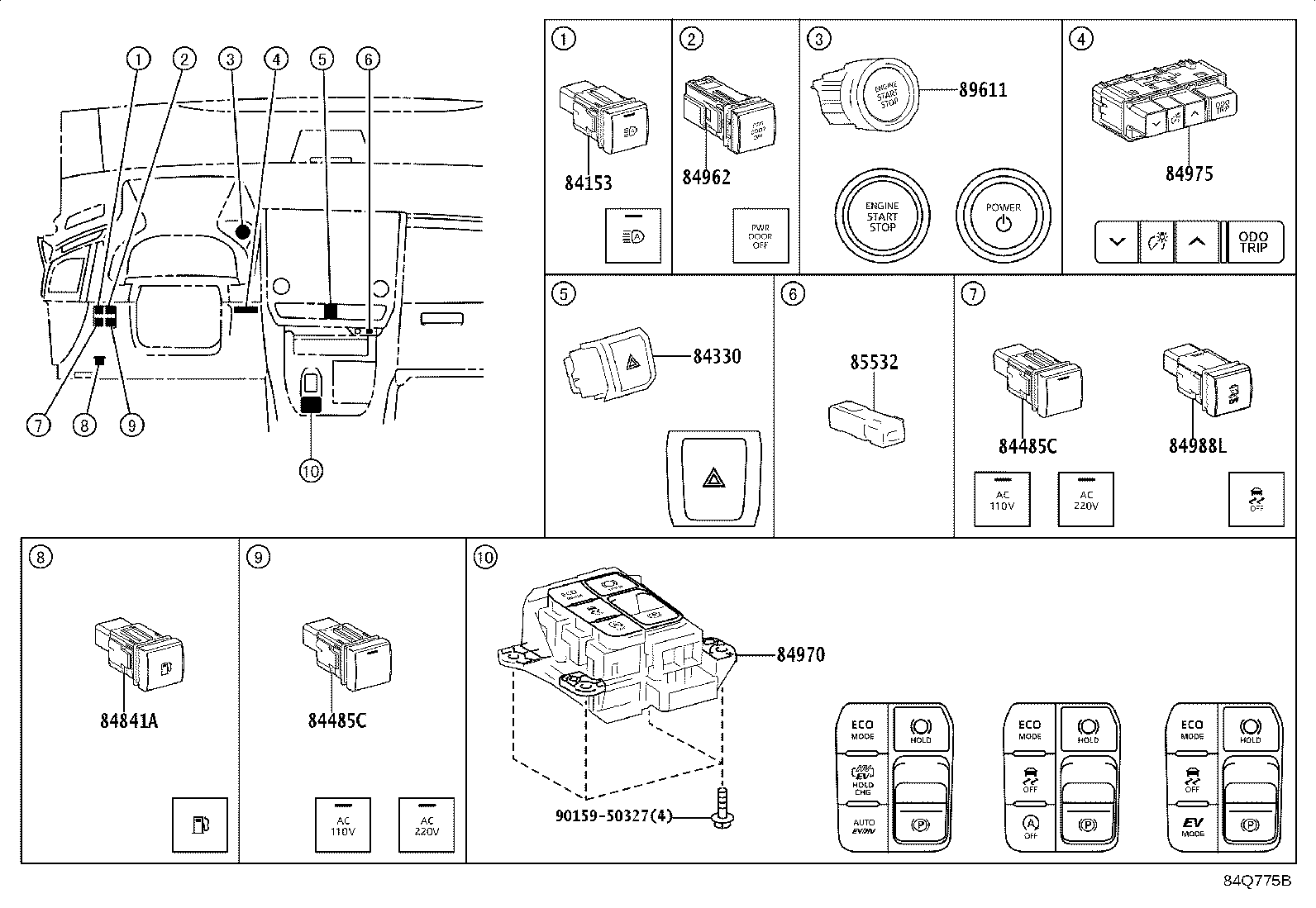

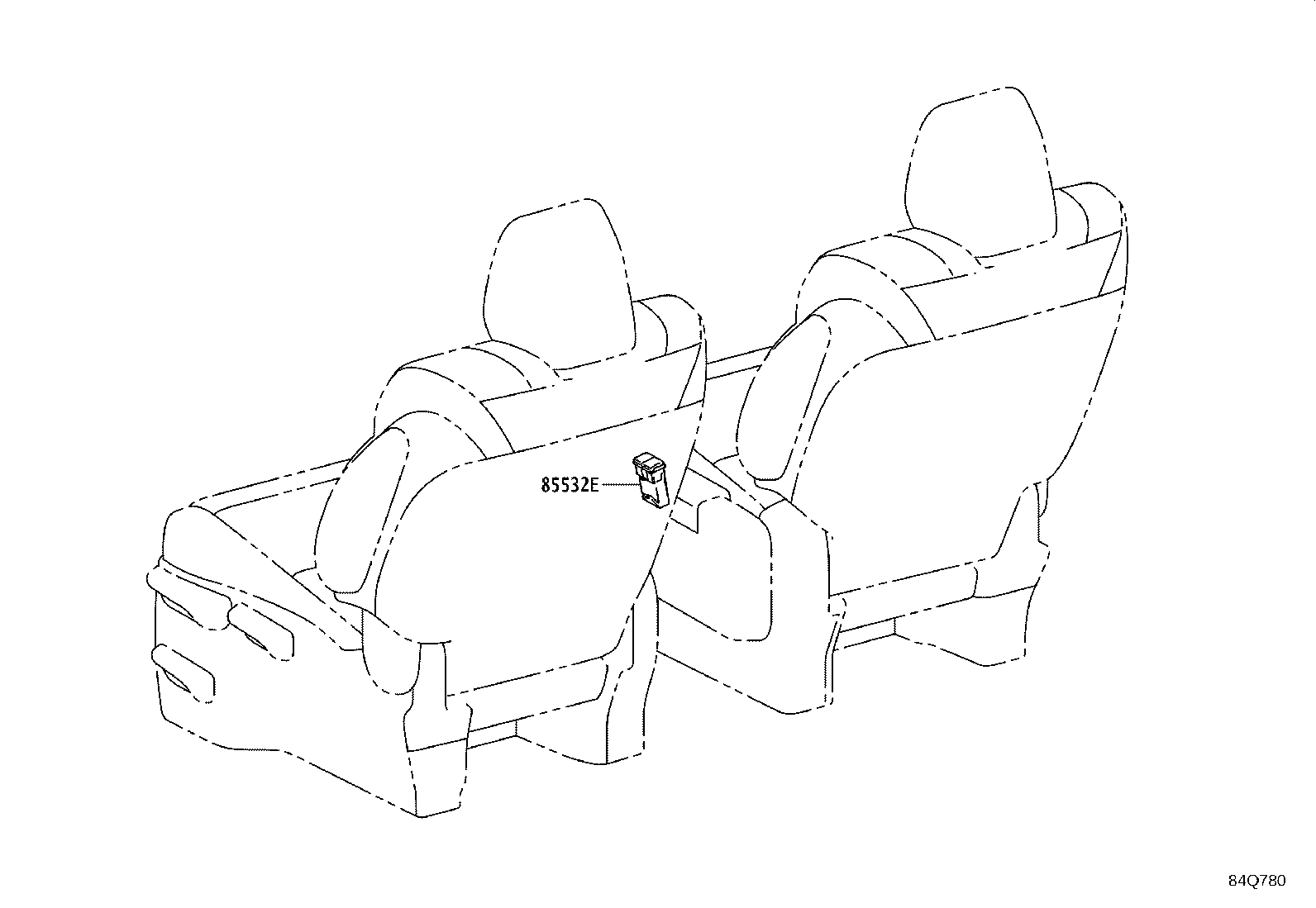

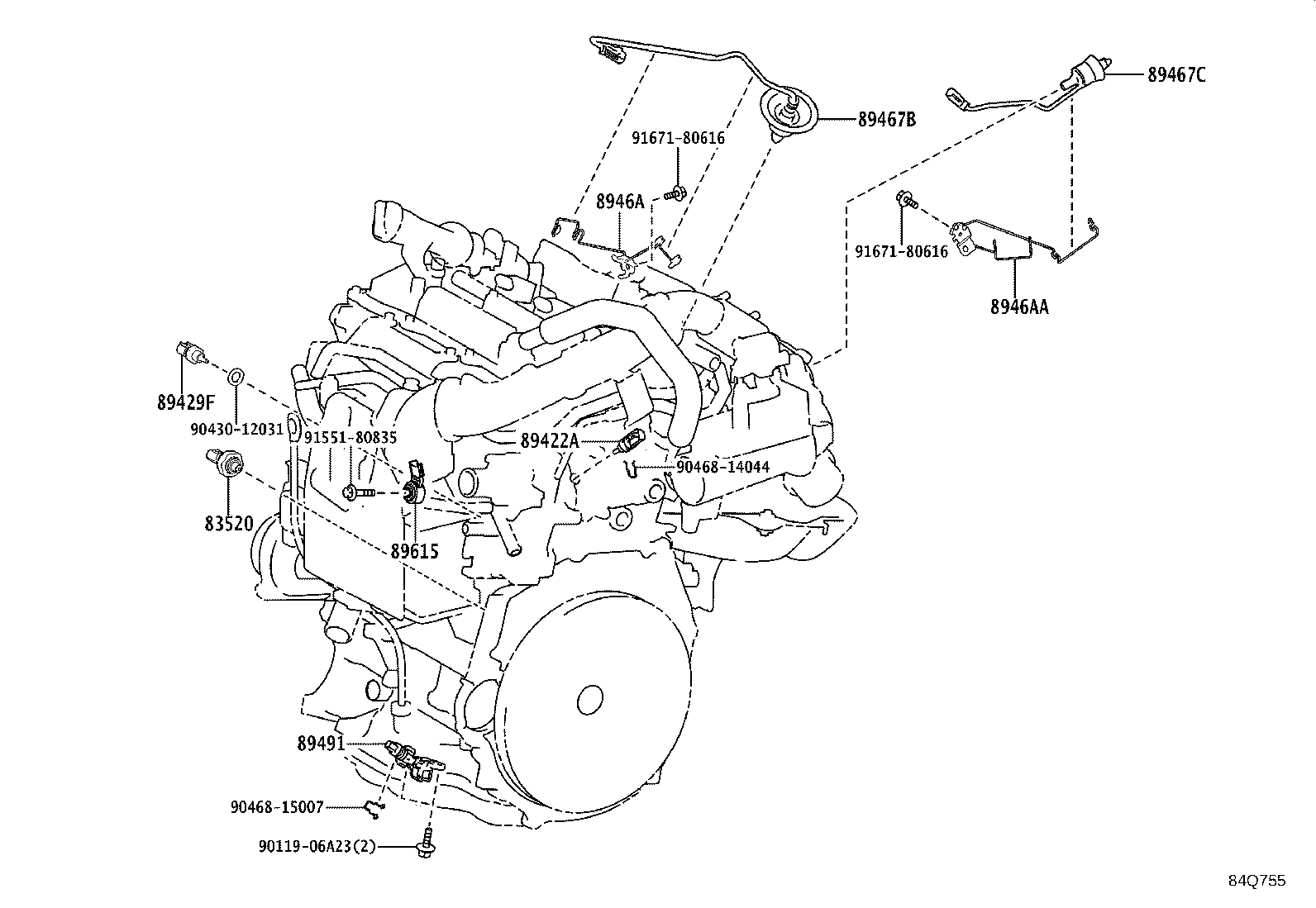

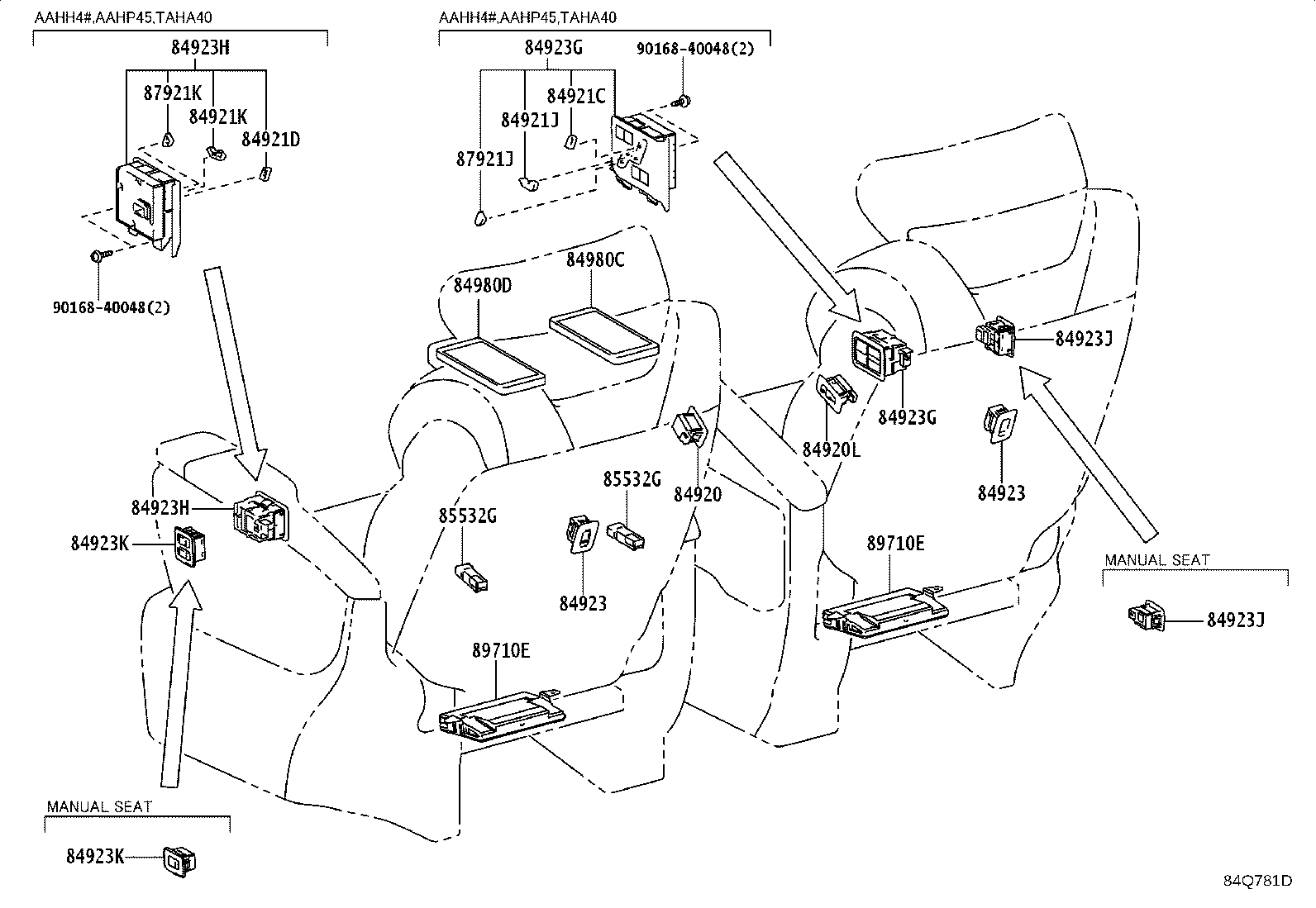

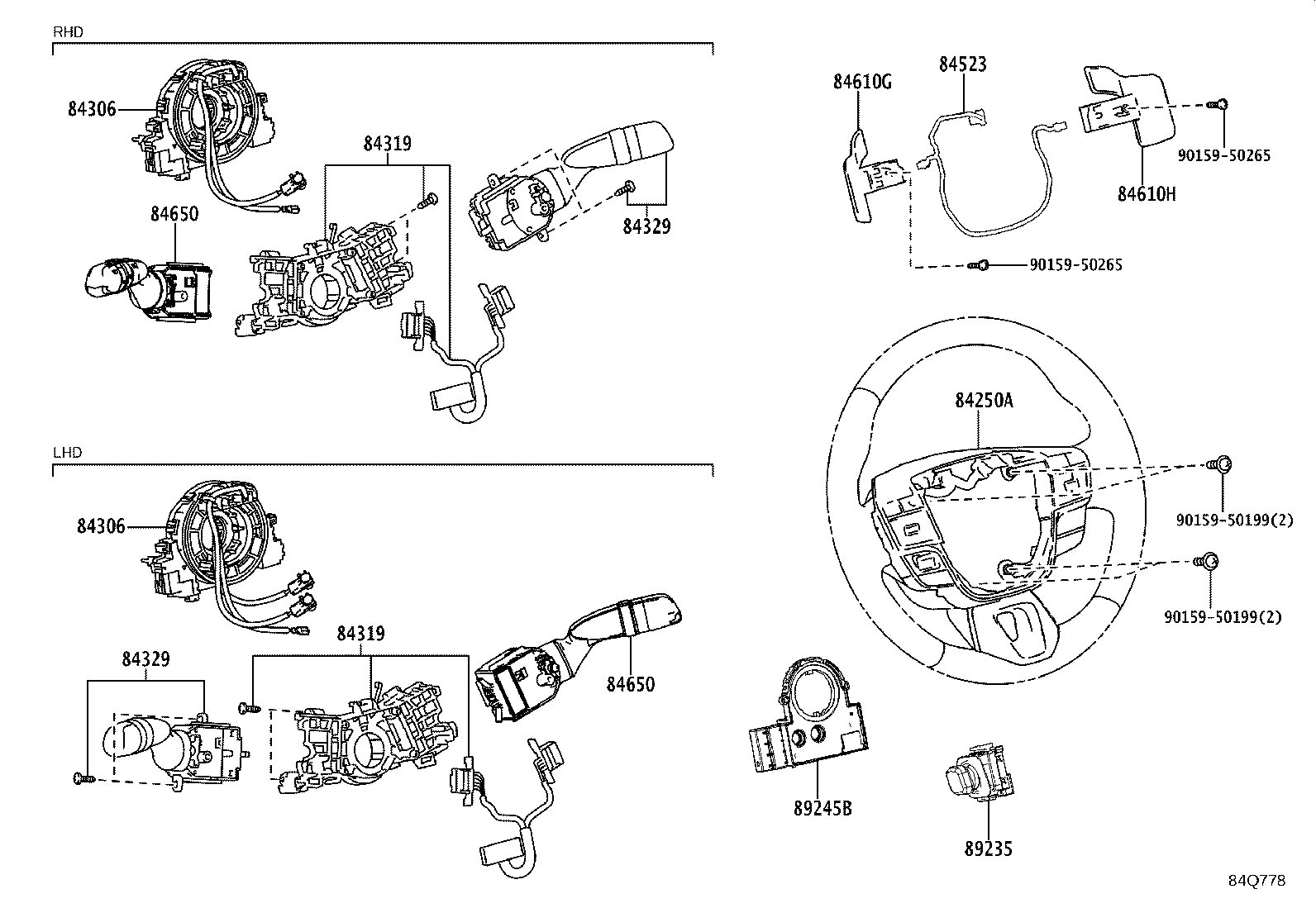

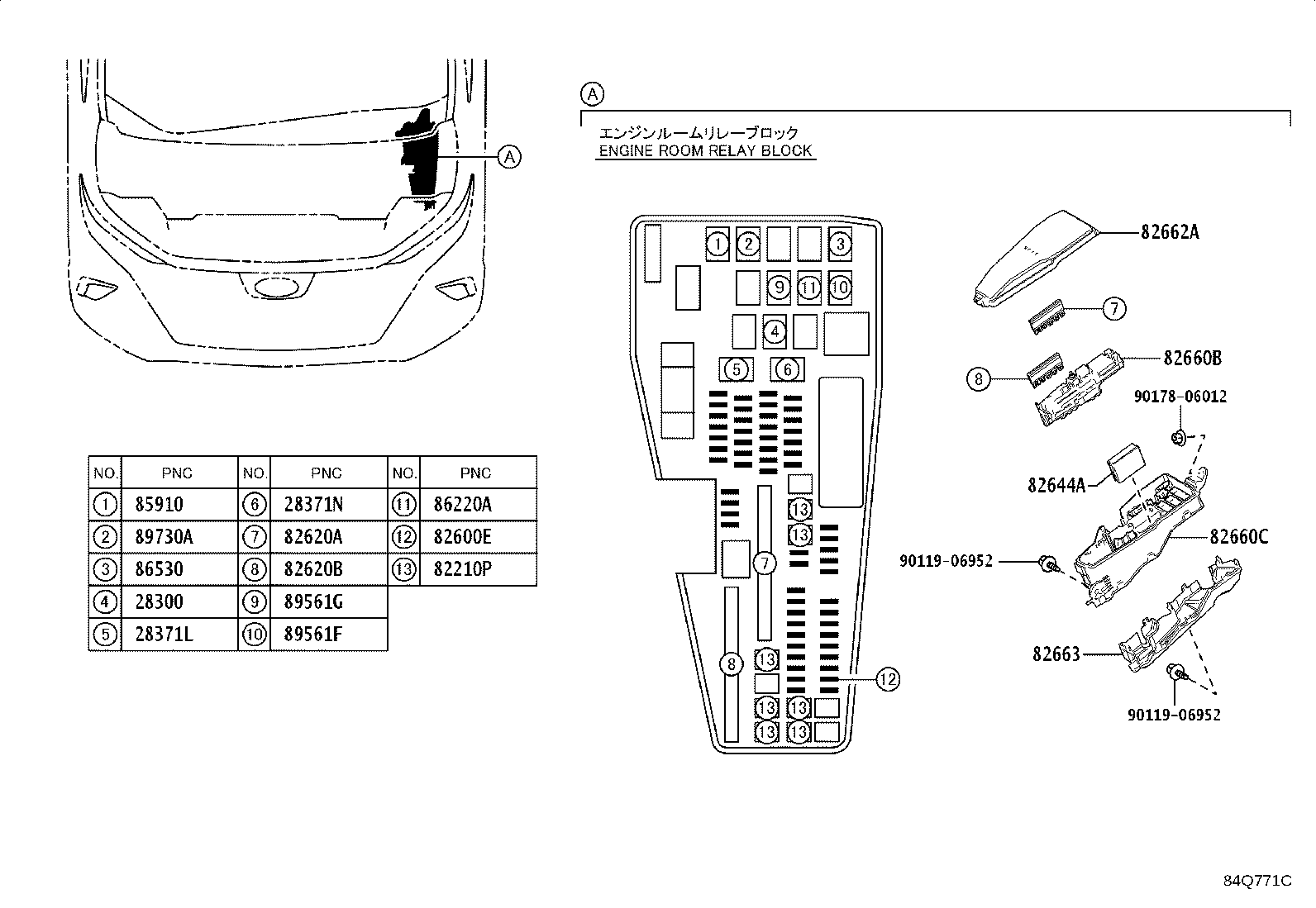

Figure 84Q784 84Q784 2023-06 → — Figure 84Q754 84Q754 2023-06 → — Figure 84Q755 84Q755 2023-06 → — Figure 84R496 84R496 2024-10 → — Figure 84Q756 84Q756 2023-06 → — Figure 84Q770D 84Q770D 2023-06 → — Figure 84Q771C 84Q771C 2023-06 → — Figure 84Q772C 84Q772C 2023-06 → — Figure 84Q773D 84Q773D 2023-06 → — Figure 84Q774C 84Q774C 2023-06 → — Figure 84Q775B 84Q775B 2023-06 → — Figure 84Q776A 84Q776A 2023-06 → — Figure 84Q777A 84Q777A 2023-06 → — Figure 84Q778 84Q778 2023-06 → — Figure 84Q779B 84Q779B 2023-06 → — Figure 84Q780 84Q780 2023-06 → — Figure 84Q781D 84Q781D 2023-06 → — Figure 84Q782B 84Q782B 2023-06 → — Figure 84Q783C 84Q783C 2023-06 → — Figure 84Q807C 84Q807C 2023-06 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28371L Relay, Igp
28371N Relay, Igp, NO.3

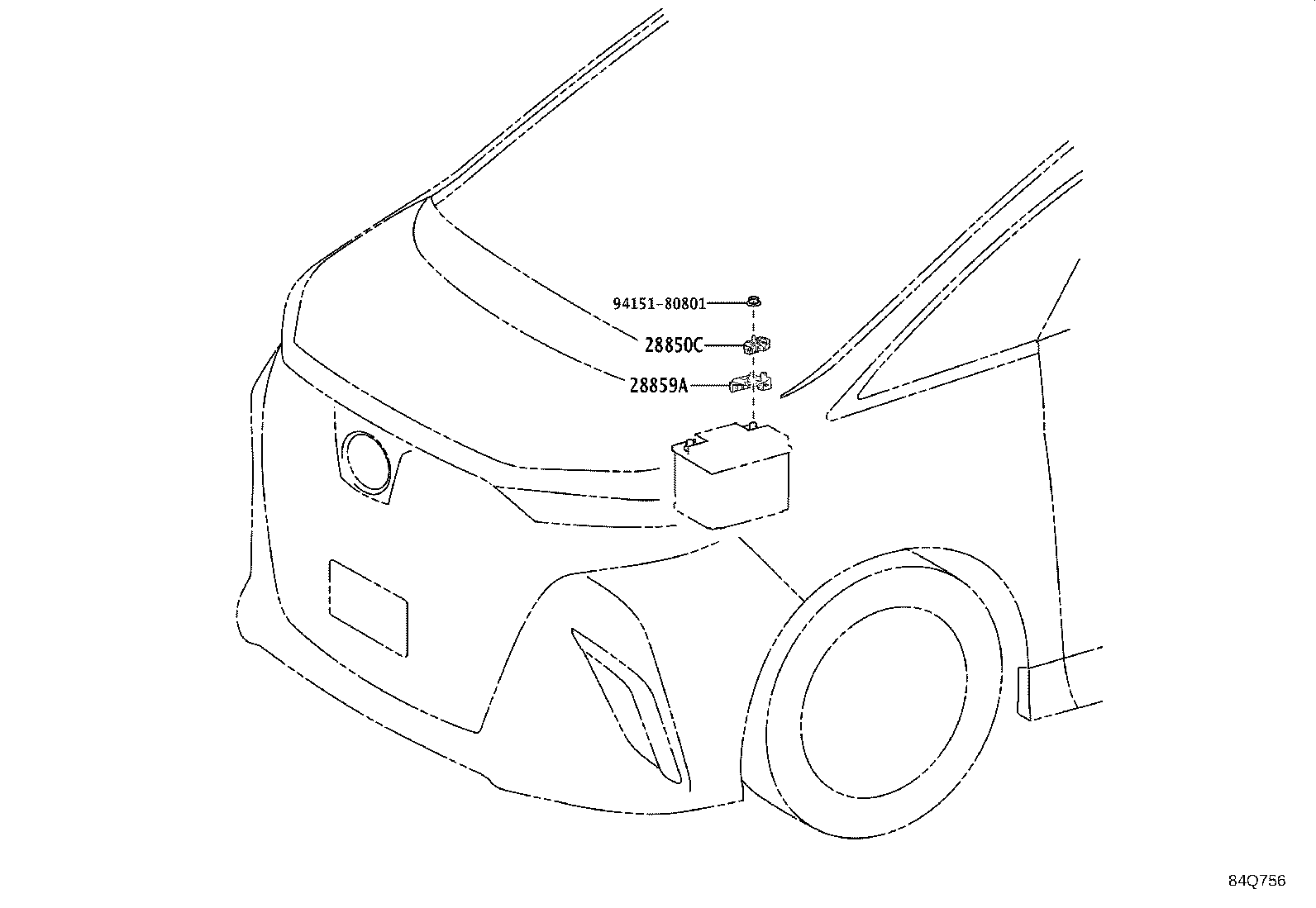

28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28911 Bracket, Integration Control Supply, NO.1
28911A Bracket, Integration Control Supply, NO.2
28912 Supply, Integration Control
82210J Fusible Link
82210P Engine Room Fusible Link
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82611 Cover, Fuse Block
82613A Block, Fuse Base
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82644A Computer, Semiconductor Power Integration, NO.1
82644B Computer, Semiconductor Power Integration, NO.2
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663C Cover, Relay Block Lower, NO.4
82670A Block Assy, Junction, NO.1
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82683 Plate, Fuse Block Caution
82730G Box Assy, Power Distribution
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
840C0A Control Assy, Integration
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84190 Switch Assy, Fold Seat
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84485C Switch, Power Outlet
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610G Switch Assy, Transmission Shift, NO.1
84610H Switch Assy, Transmission Shift, NO.2
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84656C Bezel, Switch NO.2
84656M Bezel, Switch
84691C Bezel, Switch
84750A Switch Assy, Seat
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84920 Switch Assy, Power Seat
84920L Switch Assy, Power Seat, NO.2
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84921N Knob, Power Seat Switch, RH (FOR RECLINING)
84921P Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
84921Q Knob, Power Seat Switch, LH (FOR RECLINING)
84921R Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
84922 Switch, Front Power Seat
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84923G Switch, Rear Power Seat, NO.1, RH
84923H Switch, Rear Power Seat, NO.1, LH
84923J Switch, Rear Power Seat, NO.2, RH
84923K Switch, Rear Power Seat, NO.2, LH
84927 Switch, Seat Memory
84940 Switch Assy, Curtain
84940M Switch Assy, Curtain, NO.2
84945A Switch, Luggage Electrical Key
84962 Switch, Power Slide Door Main
84966 Switch, Power Back Door Control
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84975 Switch, Trip
84980C Switch Assy, Remote Controller, RH
84980D Switch Assy, Remote Controller, LH
84988L Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532E Socket, Usb Charger, NO.4
85532G Socket, Usb Charger, NO.5
85532H Socket, Usb Charger, NO.6
85535B Cover, Power Outlet Socket, NO.1
85910 Relay Assy, Circuit Opening
85910E Relay, Injector
85911D Relay, Rear Sunshade
85911F Relay, Rear Sunshade, NO.2
85912K Relay, Vvt
85924C Relay, Igct
85924H Relay, Igct-scene
85930K Relay, Acc, NO.2
85934 Relay, Magnet-clutch
85965 Relay, Room Lamp Control
86210A Inverter Assy, Voltage
86210D Fuse, High Voltage
86220A Relay, Inverter
8624A Inverter, Voltage
86530 Relay Assy, Horn
87921J Knob, Power Seat Switch, RH NO.2
87921K Knob, Power Seat Switch, LH NO.2
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235 Switch, Tilt Steering
89245B Sensor, Steering
89420F Sensor Assy, Vacuum
89421B Sensor, Vacuum

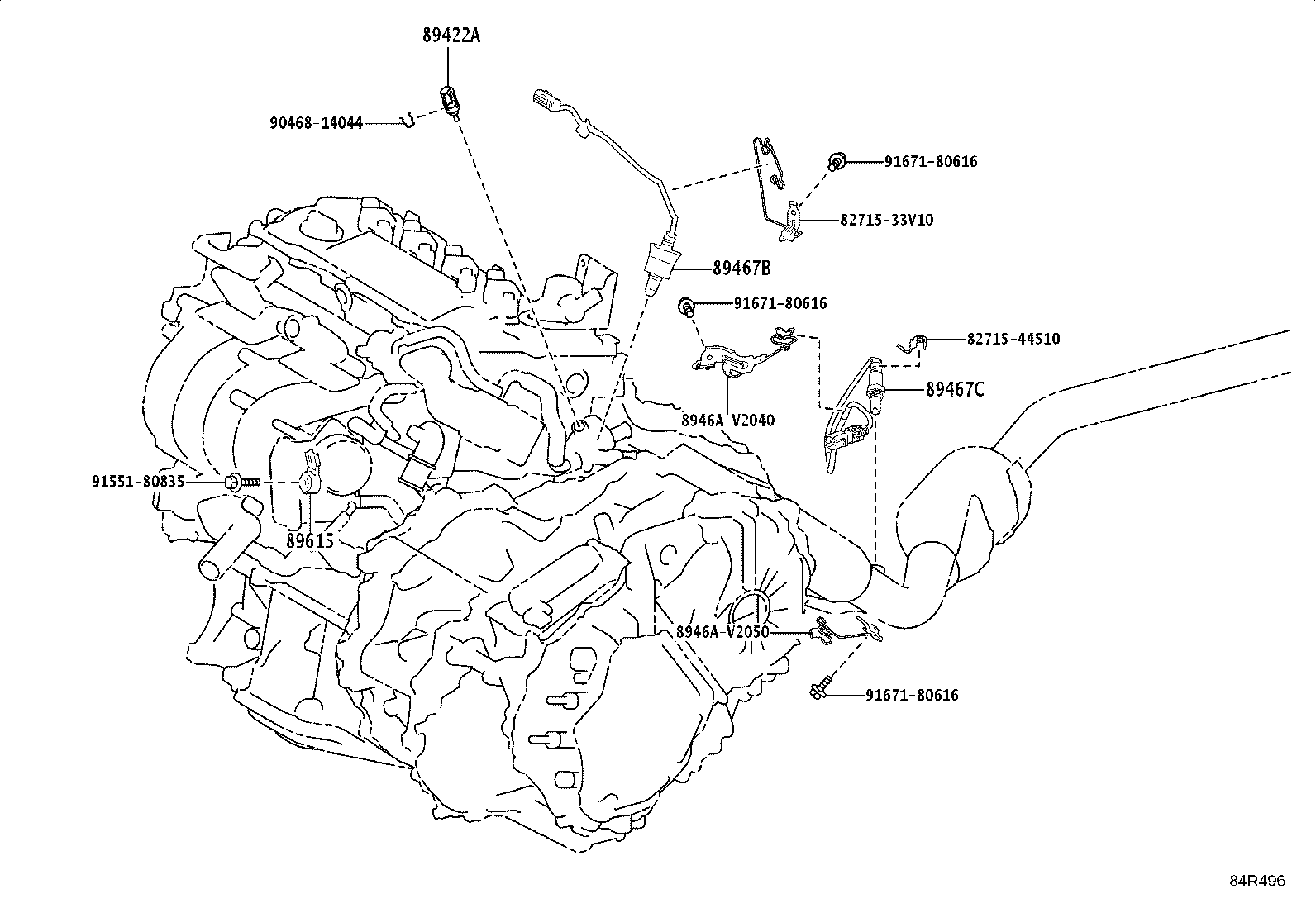

89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89426A Bracket, Vacuum Sensor
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89461 Sensor, Vapor Pressure

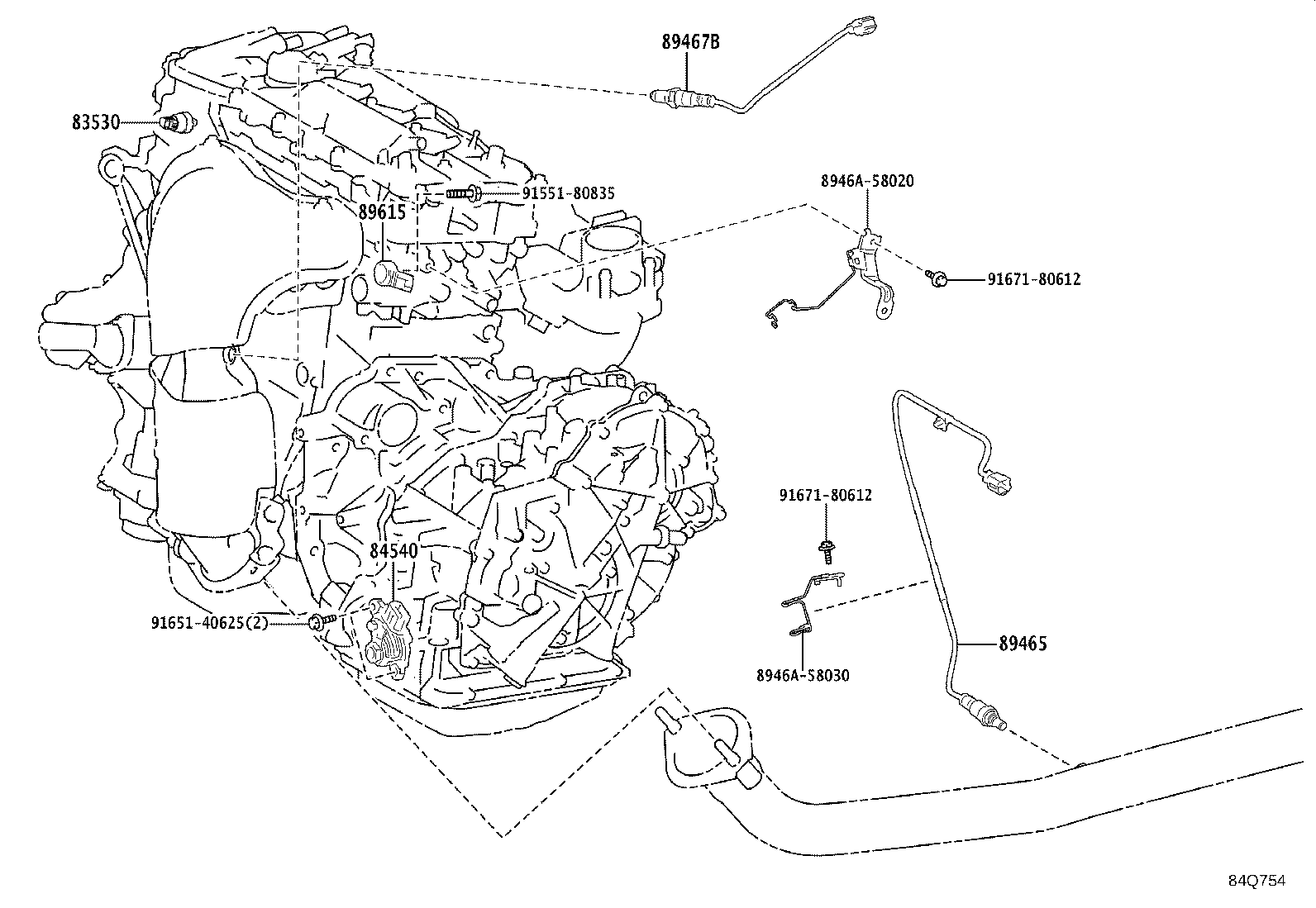

89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
8946A Bracket, Exhaust Sensor Clamp
8946AA Bracket, Exhaust Sensor Clamp, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
894C7 Bracket, Shift Control Computer, NO.1
894C8 Bracket, Shift Control Computer, NO.2
894D1 Supply, Shift Control
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89701C Relay, Plug Lock, NO.1
89701D Relay, Plug Lock, NO.2
89710 Computer Assy, Position Control
89710E Computer Assy, Position Control, NO.2
89730A Relay(FOR SECURITY WARNING)
89747A Buzzer, Power Slide Door Warning, RH
89747B Buzzer, Power Slide Door Warning, LH
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
G1167A Relay (FOR OIL PUMP MOTOR)
G9020E Relay, Hybrid Water Pump
G9230A Relay, Battery Fan, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
