Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

9 part groups · 3 illustrations

Illustrations

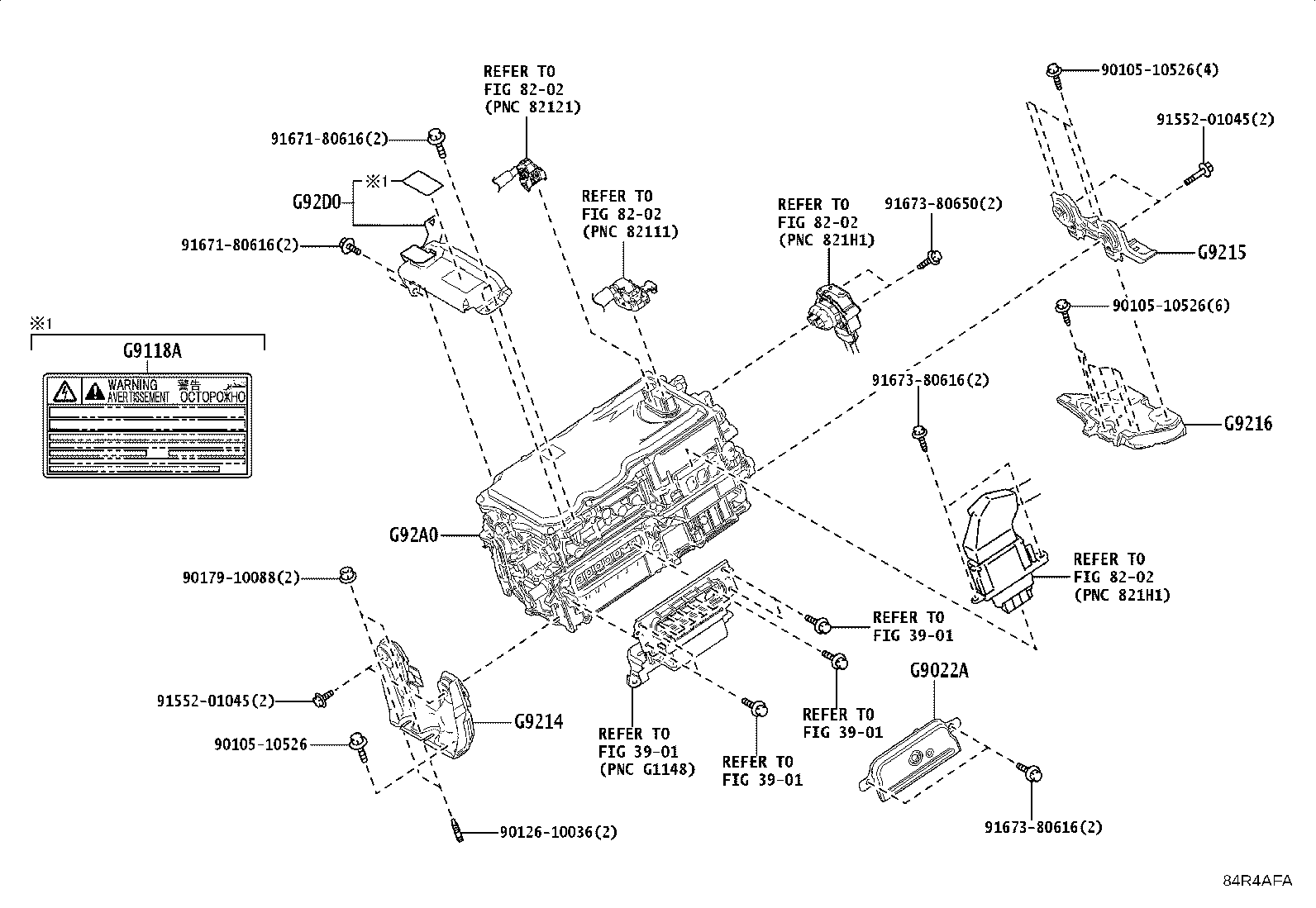

Figure 84Q804D 84Q804D 2023-06 → — Figure 84R4AFA 84R4AFA 2024-10 → — Figure 84R3YW 84R3YW 2024-04 → —

Part groups

PNCDescription

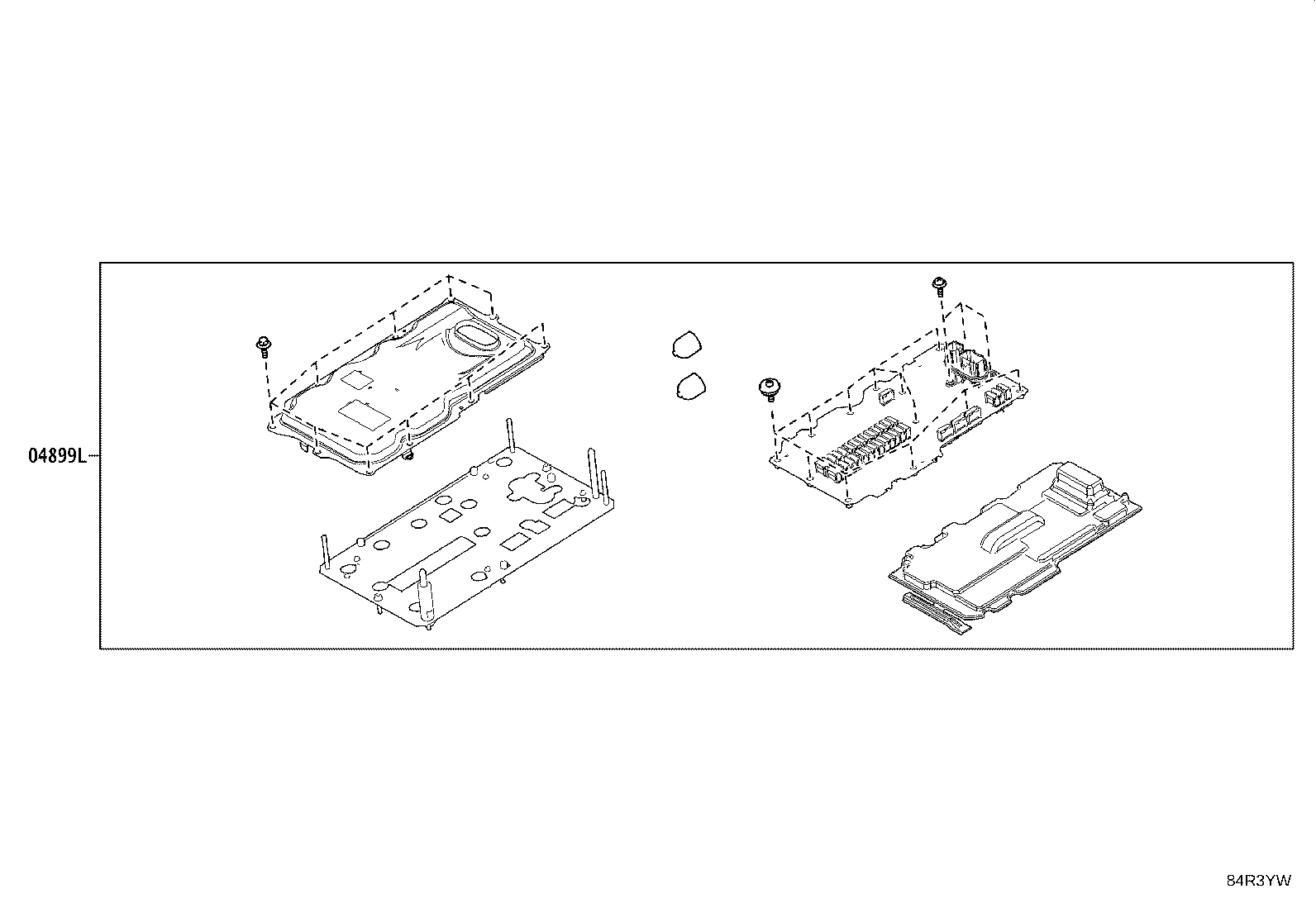

04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G92A0 Inverter Assy, Hybrid Motor Control
G92D0 Protector Assy, Hybrid Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
